polycarbonate hollow sheets polycarbonate roofing sheet clear
- Category: Sun Sheets & PC Embossed Sheets >>>
- Supplier: Jinan,Alands,Plastic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product description
| Polycarbonate twin-wall sheet Product Standard & Technical Parameters | ||||||
| Thickness(mm) | Weight(kg/m2) | Minimunbending radius(mm) | Minimun span | Transparency(%) | Sound insulation(db) | |
| 4 | 0.9 | 70 | 1500 | 83 | 14 | |
| 6 | 1.3 | 1050 | 2000 | 82 | 17 | |
| 8 | 1.5 | 1400 | 2700 | 81 | 18 | |
| 10 | 1.7 | 1750 | 3300 | 79 | 19 | |
| 12 | 1.9 | 2100 | 3600 | 76 | 20 | |
| Technical Parameters | ||||||
| Impact strength | Transparency | Specific grevity | Coefficient of thermal expansion | Service temperature | Heat conductivity | |
| 2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/m°C | -40°C—120°C | 3.0-3.9w/m²°C | |
| Tensile strength | Flexural strength | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break | |
| ≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% | |

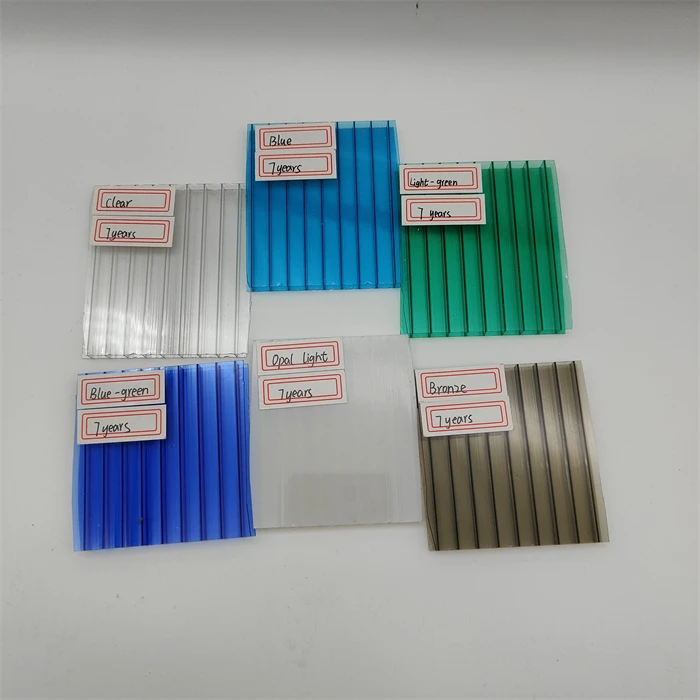

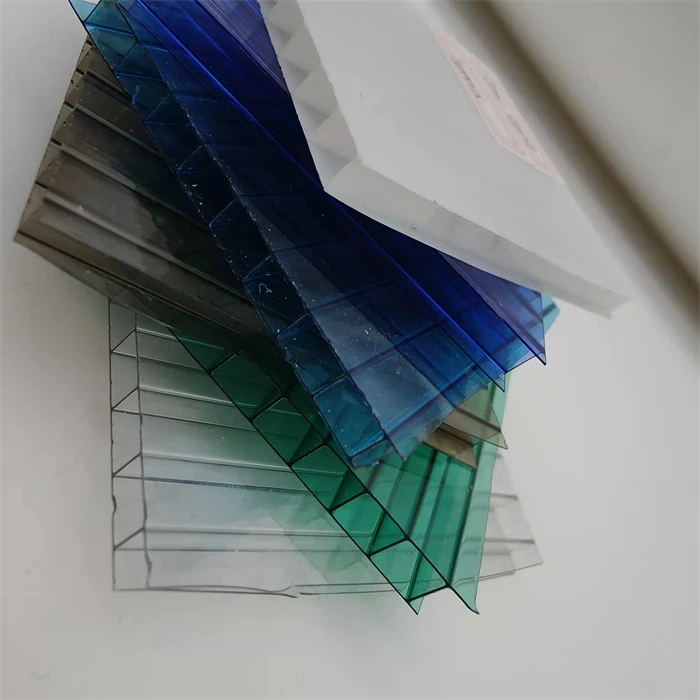

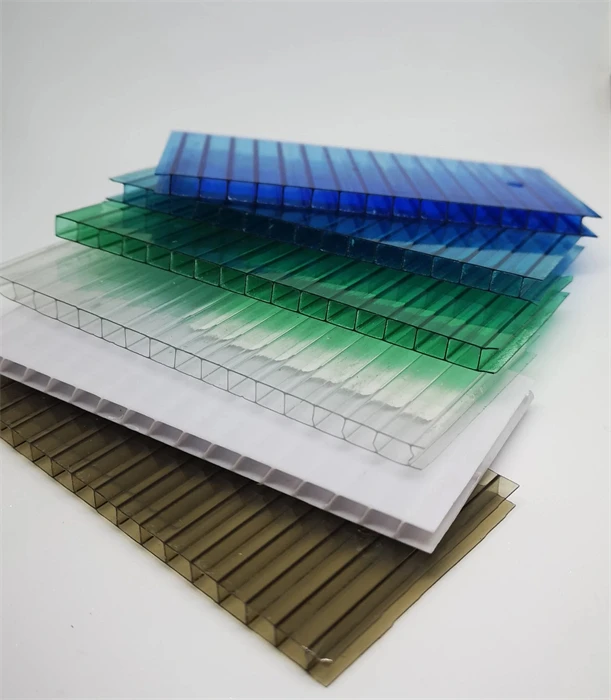

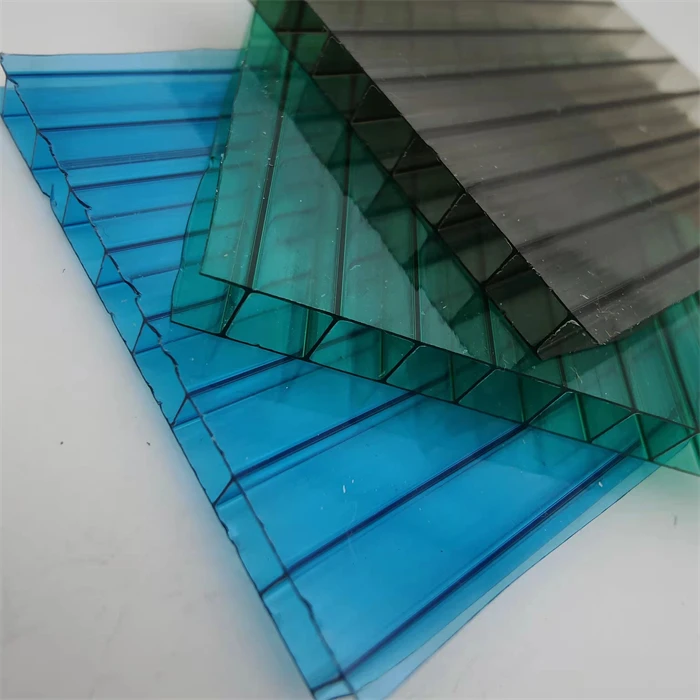

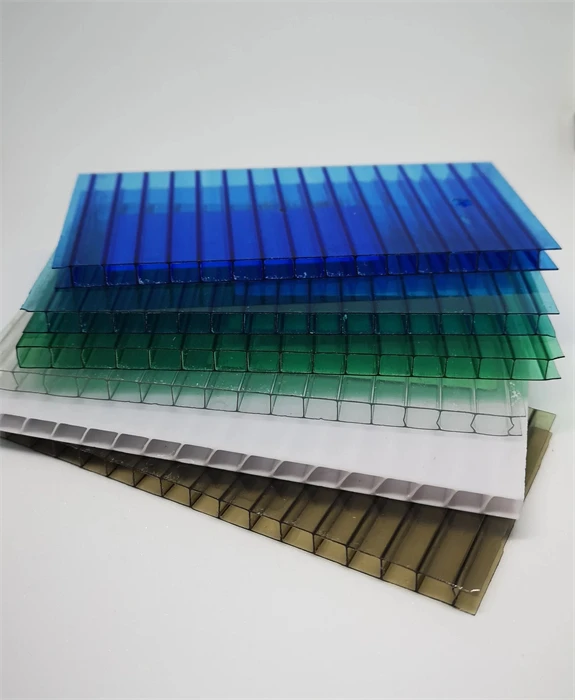

Product picture
Main Products
A. Product Range
1).Twin-walls polycarbonate sheet thickness: 4,6,8,10,12mm Width: 2100mm.
2).Triple-walls polycarbonate sheet thickness: 8,10,12,14,16. Width: 2100mm.
3).Four-walls polycarbonate sheet thickness: 8,10,12,14,16,18,20mm. Width: 2100mm.
4).Honeycomb polycarbonate sheet thickness: 6,8,10,12,14mm. Width: 2100mm.
5).X-structure polycarbonate sheet thickness: 14,16,18,20,25,30mm.
6).Solid polycarbonate sheet [Compact] thickness:0.9-8.0mm.
Width: 1220,1560,1820,2100mm.Usually 1220*2440mm, 2000*3000mm
7).Corrugated polycarbonate sheet: 0.8-2.5mm. Width is different.
B.Length: No limit(Recommend 5800, 6000, 11800,12000mm to suit 20'container &40'container).
C.Color: clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery grey, red, yellow, etc.
1).Twin-walls polycarbonate sheet thickness: 4,6,8,10,12mm Width: 2100mm.
2).Triple-walls polycarbonate sheet thickness: 8,10,12,14,16. Width: 2100mm.
3).Four-walls polycarbonate sheet thickness: 8,10,12,14,16,18,20mm. Width: 2100mm.
4).Honeycomb polycarbonate sheet thickness: 6,8,10,12,14mm. Width: 2100mm.
5).X-structure polycarbonate sheet thickness: 14,16,18,20,25,30mm.
6).Solid polycarbonate sheet [Compact] thickness:0.9-8.0mm.
Width: 1220,1560,1820,2100mm.Usually 1220*2440mm, 2000*3000mm
7).Corrugated polycarbonate sheet: 0.8-2.5mm. Width is different.
B.Length: No limit(Recommend 5800, 6000, 11800,12000mm to suit 20'container &40'container).
C.Color: clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery grey, red, yellow, etc.
|
Application
Our Advantages
Company Information
We, Alands Plastic, founded in 1994, started from the manufacture of acrylic sheet, and added the production line of Polycarbonate sheet in 1997, have arround 30 years of productive and exporting history. we also provide the one-stop shop service of various of plastic sheets, our available product line include PMMA(clear and colorful, mirror, glitter and marble pattern), PVC(foam boards and rigid sheets), PP, PC(solid and hollow), PS/HIPS, ABS, PET/PETG, etc

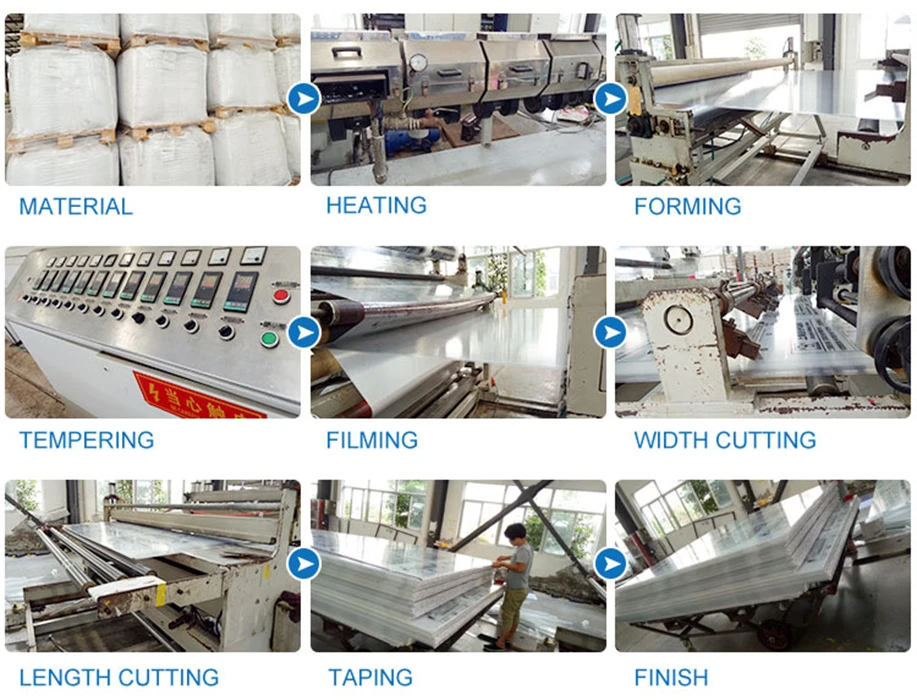

Production Line
