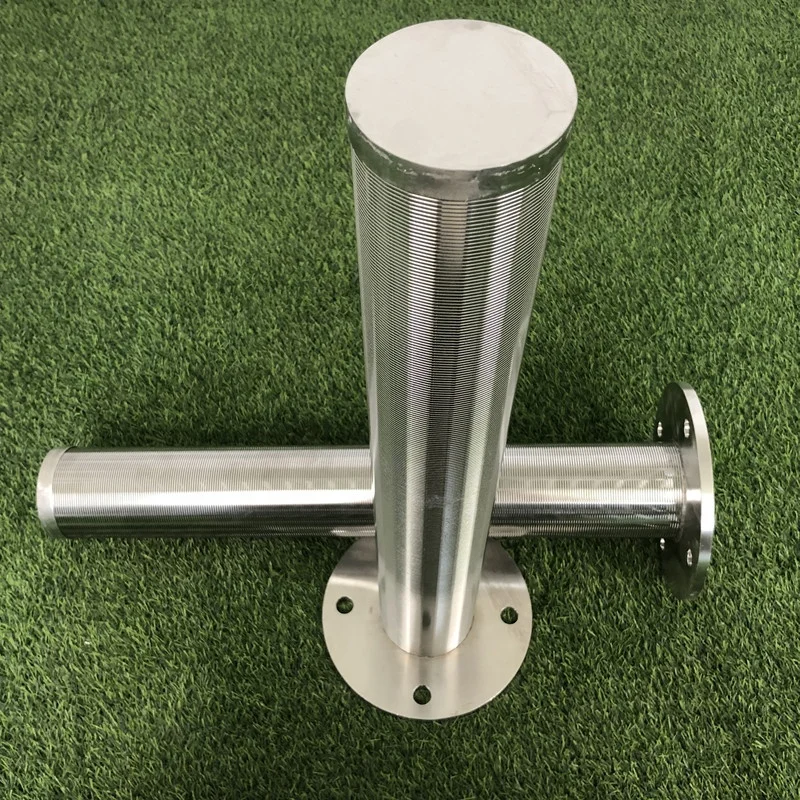

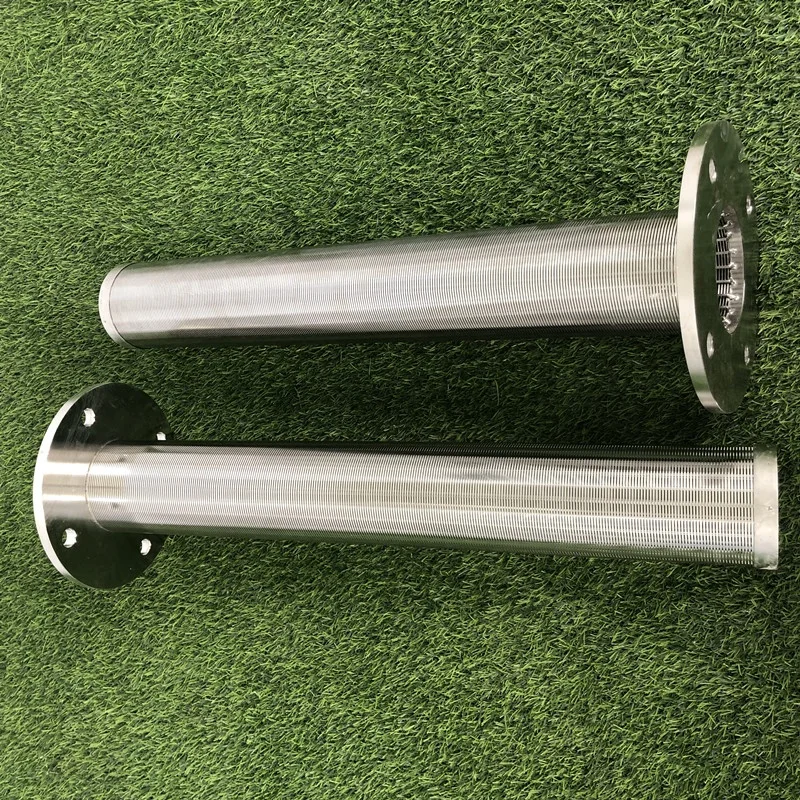

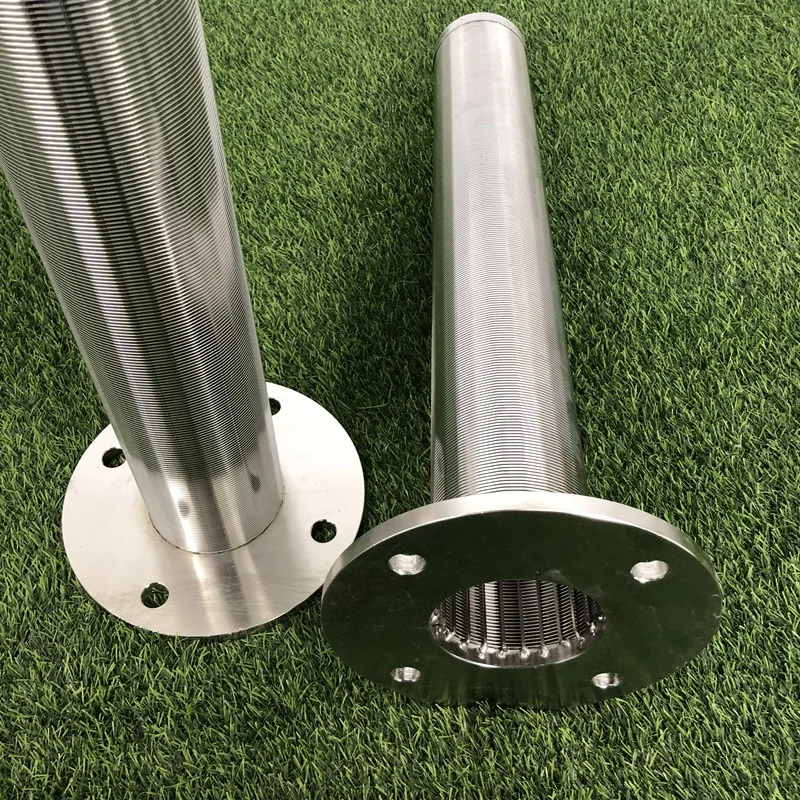

Stainless Steel Wedge Wire Screen Resin Traps for Ion Exchange Filters in Water Treatment
- Category: >>>
- Supplier: Anping County BT Wire Mesh Products Co. Ltd.
Share on (1600527781048):
Product Overview
Description
Product Description
Resin Traps- high filtering efficient & durable life

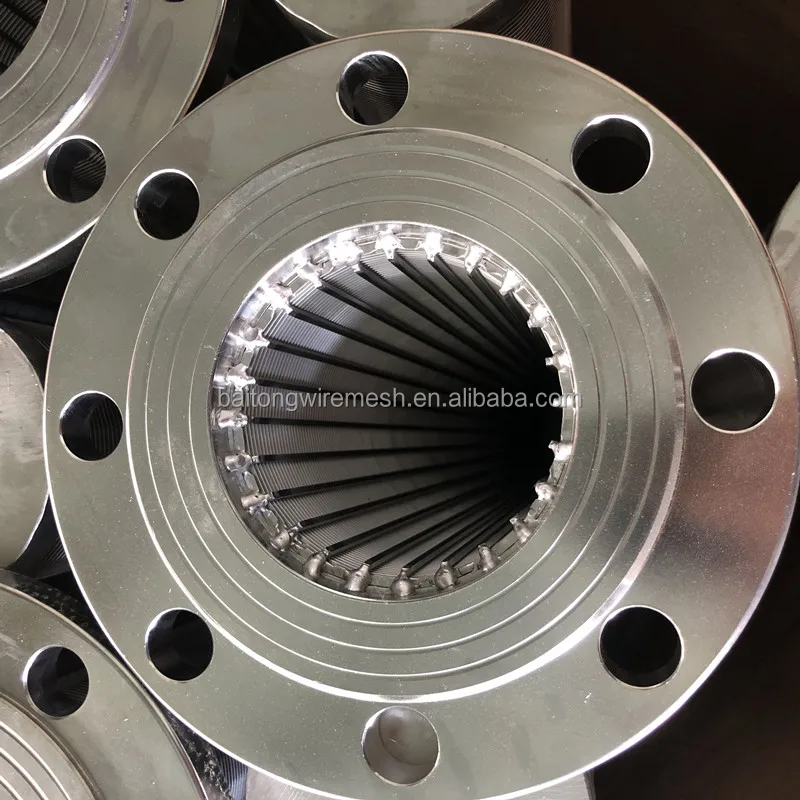

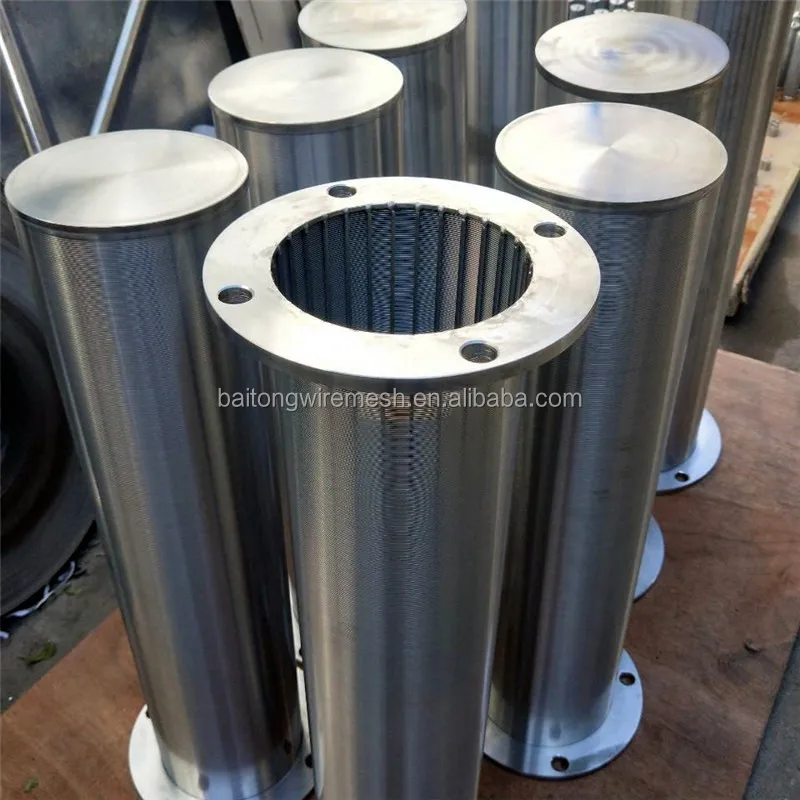

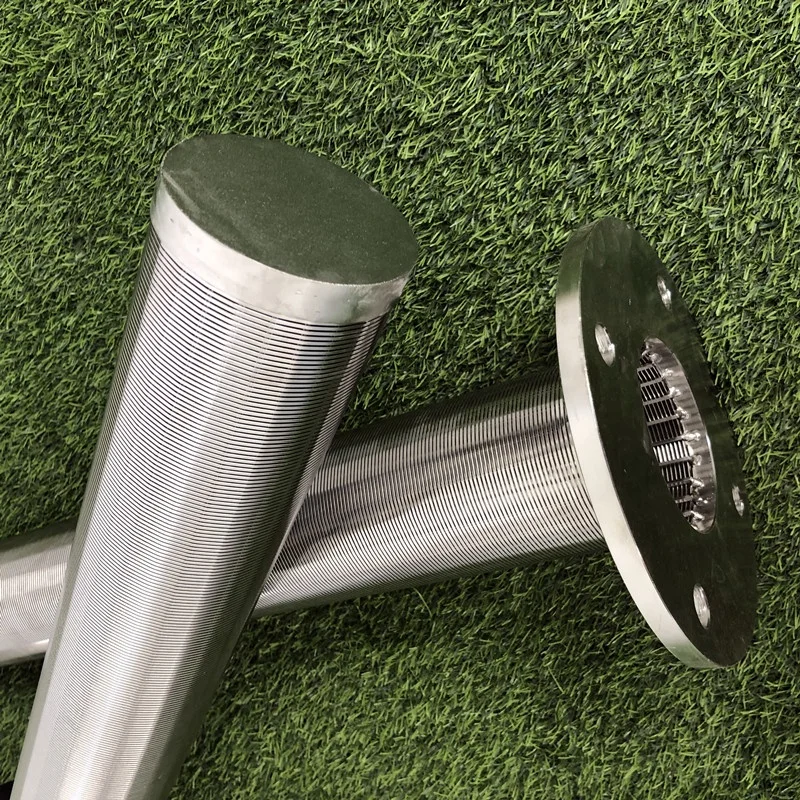

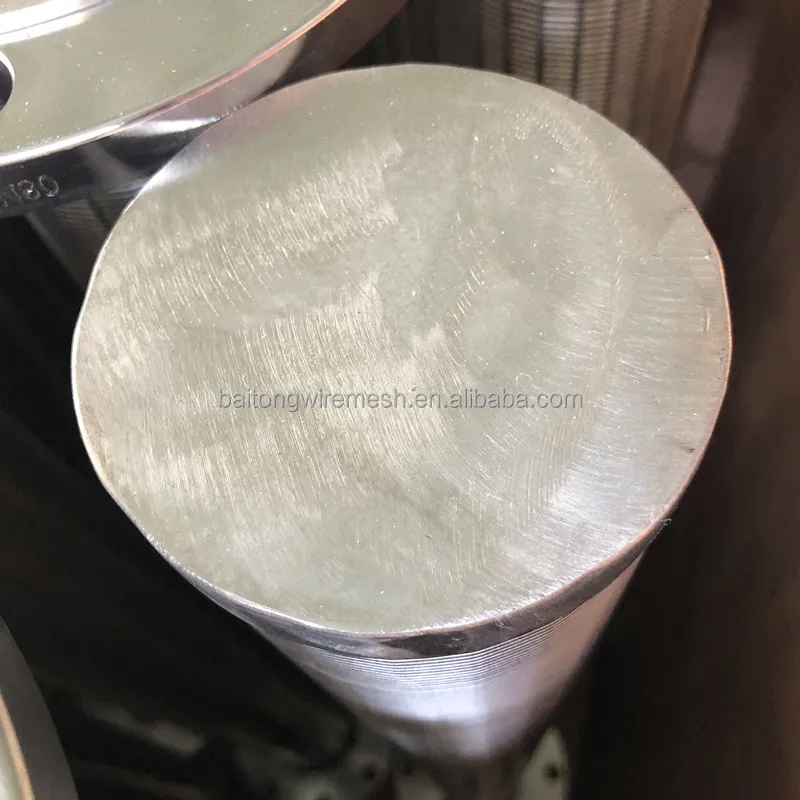

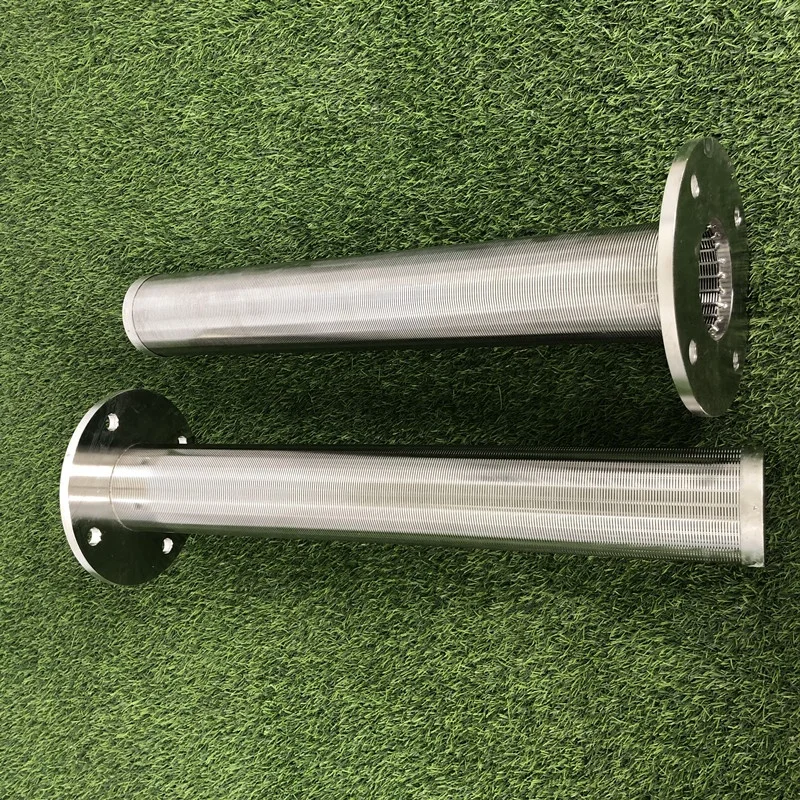

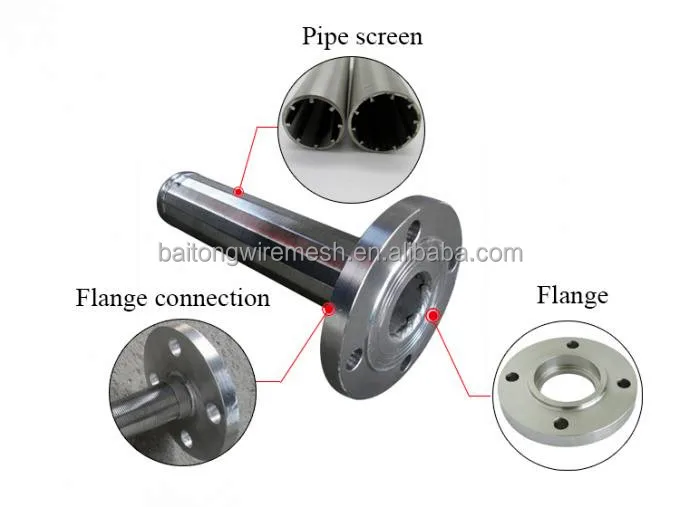

Resin traps also named as media traps, are designed to install on either existing and new build strainer bodies to capture the media and resins from loss and prevent them from traveling downstream.Resin trap screen is normally closed on one side and has a flange on the other for easy installation to the equipment. The resin trap screen has a continuous slots and smooth surface. It can be made for FITO or FOTI filtration. The slot size are as small to capture very small particle resins.
The resin traps are commonly made of stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.
Resin traps also named as media traps, are designed to install on either existing and new build strainer bodies to capture the media and resins from loss and prevent them from traveling downstream.Resin trap screen is normally closed on one side and has a flange on the other for easy installation to the equipment. The resin trap screen has a continuous slots and smooth surface. It can be made for FITO or FOTI filtration. The slot size are as small to capture very small particle resins.
The resin traps are commonly made of stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.
Advantages

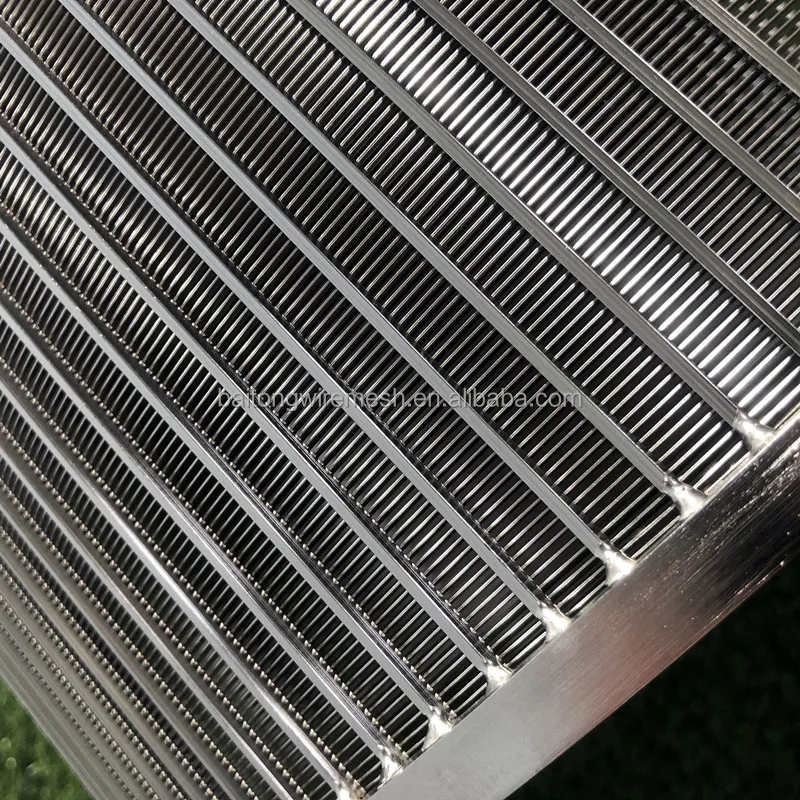

1. Continuous slots supply high percent of open area to minimize pressure loss through the system.
2. V-shaped surface wire allow to easy cleaning by back washing.
3. Anti-plugging structure can reduce downtime and improve efficiency.
4. Stainless steel material, corrosion resistance and long service lifetime, reduce maintaining cost.
5. Customized slots and size to accommodate your existing and new build spooling restrictions, flow rates, pressure and other needs.
2. V-shaped surface wire allow to easy cleaning by back washing.
3. Anti-plugging structure can reduce downtime and improve efficiency.
4. Stainless steel material, corrosion resistance and long service lifetime, reduce maintaining cost.
5. Customized slots and size to accommodate your existing and new build spooling restrictions, flow rates, pressure and other needs.
Applications

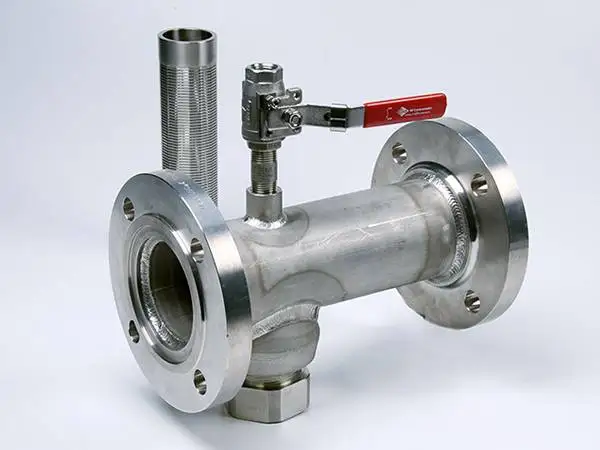

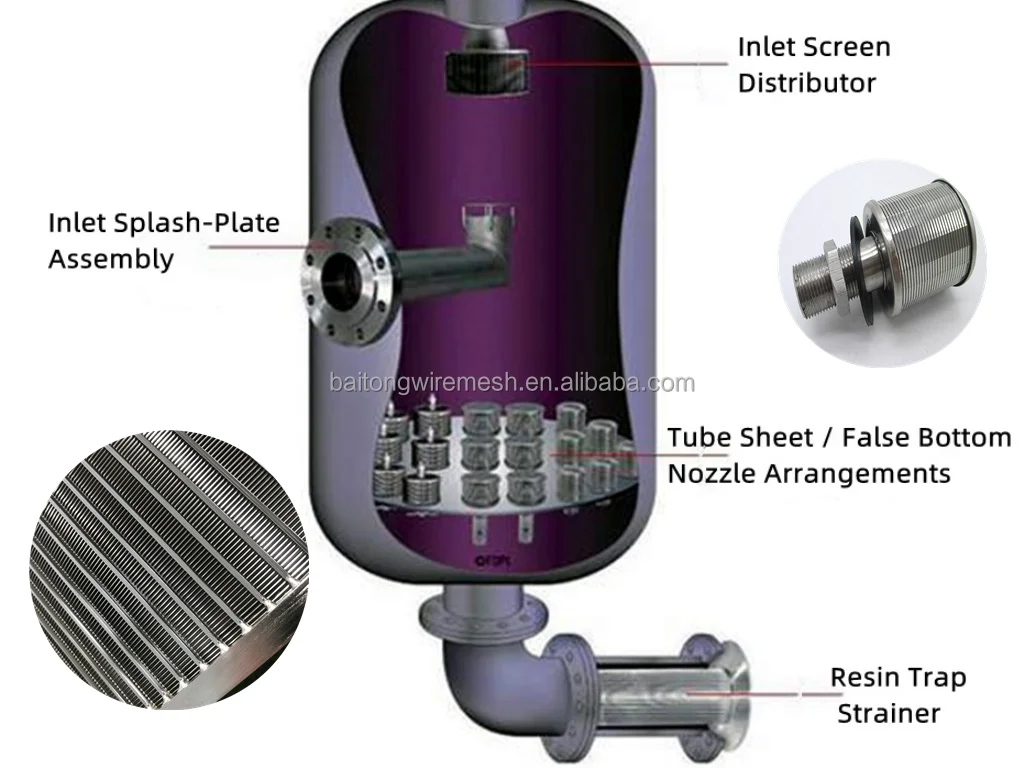

Resin Traps or media traps should be installed in the product water line of most resin and
media based water treatment equipment like, Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon Filters, Sand Filters, Portable DI Tanks, Green sand Filters, Multi-media Filters etc. Also, a resin trap should be considered in the backwash lines of most ion exchange and carbon systems because temperature related flow changes can be cause these expensive materials to be sent down the drain.
media based water treatment equipment like, Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon Filters, Sand Filters, Portable DI Tanks, Green sand Filters, Multi-media Filters etc. Also, a resin trap should be considered in the backwash lines of most ion exchange and carbon systems because temperature related flow changes can be cause these expensive materials to be sent down the drain.
Slot precision
This is one of the most important characteristics of the BTOSLOT screen as it determines the dimensions of the fibers passing through. BTOSLOT guarantees a superb slot precision .

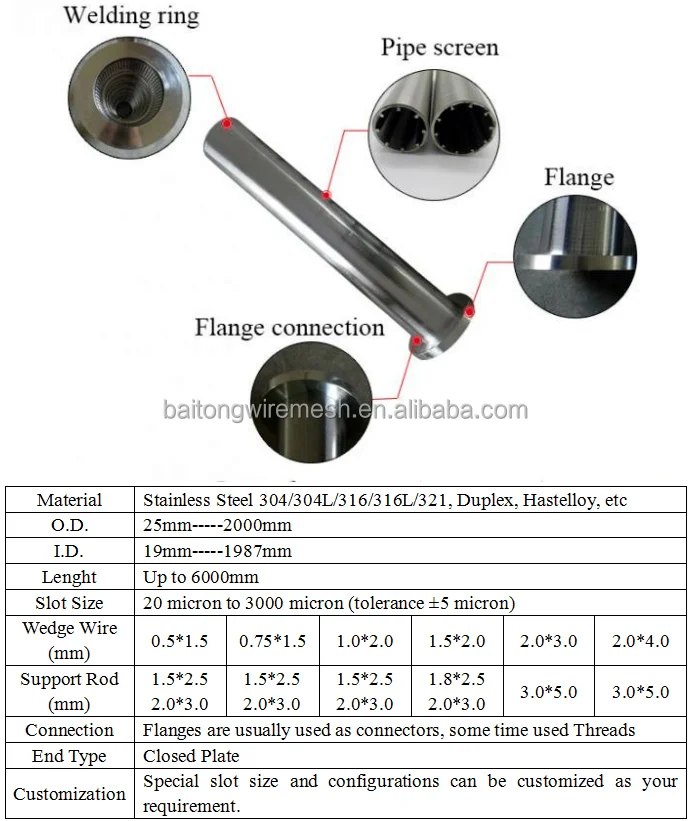

Specification
Exhibition
With more than 10 years of experience, BTOSLOT knows the ins and outs of this technology. Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer’s requirements.
We are a reliable partner in the filtration industry, and supply into a vast range of applications like Water Treatment, Food Industry, Petrochemical Industry, Paper&Pulp, Nutsche Filters, Manure Dewatering, Aquaculture and Architecture.
Radial External Wire
These tubes are composed of a surface profile wire that is spirally wrapped around axial support profiles and attached to each other by resistance welding.

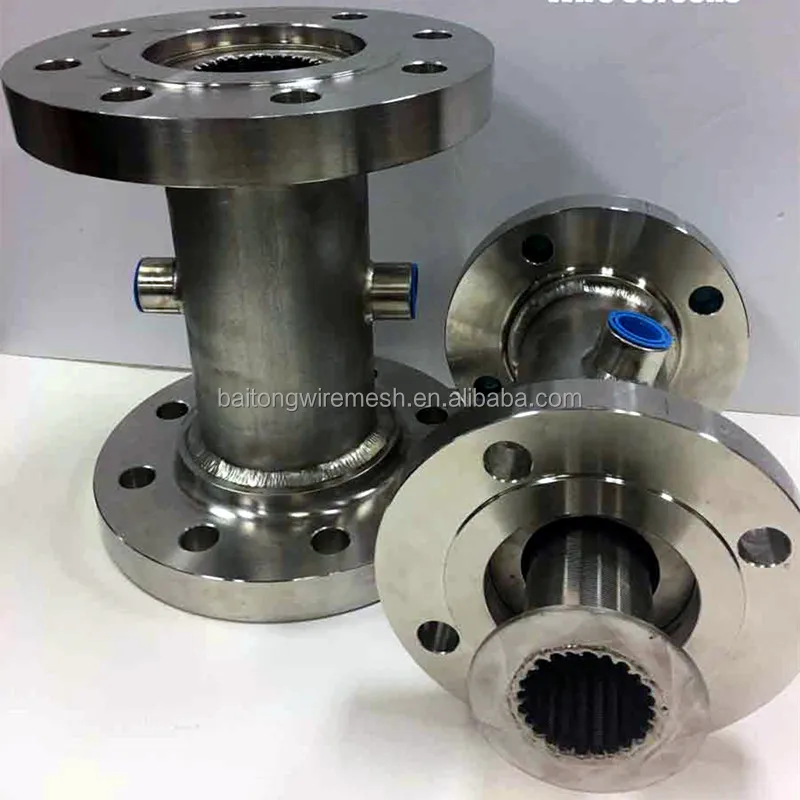

Resin Trap
A resin trap is normally used to capture expensive resin that escapes from a treatment vessel by accident or to protect equipment further downstream.
Nozzles
Wedge wire nozzles prevent the outflow of filter media, activated carbon or sand and secure an even distribution of water at the same time.
Water Well Tube
An extensive range of high open are wire wrap screens for ground water applications.
Radial Internal Wire
For these types of slot tubes, the support wires are on the outside in an axial direction and the profile wire runs radially on the inside of the tube. The flat side of the triangular profile wire is oriented to the
inside of the tube, which is why this element is FITO(flow in to out).
inside of the tube, which is why this element is FITO(flow in to out).
Rotary Drum
The construction of these wedge wire tubes makes them easy to clean by a scraper on the inside. BTOSLOT guarantees perfect
roundness.
roundness.
Self Cleaning Filter
A slot tube where the slot runs in the axial direction, with smooth surface on the inside can be cleaned by a suction plate, a scraper or by Bernoulli effect.
Paper & Pulp
Coated paper requires filtering in different stages of the production . Wedge wire is the ideal medium because of the high open area, roundness and high clean-ability.
Axial Internal Wire
This type of filter tube is characterized by an axial profile wire/axial slot direction.The support wire is oriented on the outside of the filter element in a radial direction. The smooth surface of the profile wire is on the inside and the filtration direction is therefore from the inside to outside. Although FOTI is also possible in exceptional cases.
Flat Screens
BTOSLOT flat screens are flat filter surfaces that can be manufactured in two different ways. 1. welded screens, directly made on the flat welding machine; 2. Flattened slot tube, manufactured by opening and flattening a slot tube with radial external wire.
Vibrating Screens
Bottom Screens
Wedge wire filter bottoms and screens are ideal to separate the liquid from the solids.
Drainage Gratings
Curved Screens
BTOSLOT can bend a flat screen to form a curved screen. As the substrate flows over the curved screen, the large solid particles remain behind and are collected at the bottom of the screen.
Coanda screens
Coanda screens are intake screens that are installed in a river or creek. They retain leaves, small branches etc. These wedge wire intake screens are common for hydro plants.
Bend Sieve
These screens are an alternative to pressure screens for fiber washing, fiber dewatering and germ washing applications. They are also known as ICM or paddle screens.
Static Sieve Bend Screen
As the substrate flows over the curved screen, the large solid particles remain behind and are collected at the bottom of the screen.
Wedge Wire Screen Basket
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Conical Baskets
Centrifuge basket for dewatering of granular material
* Sugar industry
* Starch mills
* Starch mills
Rectangular Baskets
Wedge Wire Screen Basket
Packing & Delivery
Wooden Pallets or Wooden Boxes to better protect your products during the transport.
Company Profile
Anping County BT Wire Mesh Products Co., Ltd. was established in 2011 with registered capital of RMB six million. Located in wire mesh hometown of China-Anping County. We specialize in filter products more than 10 years with strength of Wedge Wire Screens, Perforated Metal Screen Sheet, Expanded Metal Screen Sheet, Wire Mesh Filter Disc, Wire Mesh Filter Tube and Industrial Filter Media. They are widely used in Petroleum, Chemical, Pharmaceutical, Food Industry, Sewage Treatment and other industries.
Our tenet is Specialized operation, Integrity service, Customer Orientation. We sincerely hope that with superior products, reasonable price and perfect services, there can be perfect cooperation with every customer.
Our tenet is Specialized operation, Integrity service, Customer Orientation. We sincerely hope that with superior products, reasonable price and perfect services, there can be perfect cooperation with every customer.
Applications
FAQ
1. Who are we?
BAITONG company (BT) designs and manufactures wedge wire filter elements. With more than 10 years of experience, BT company knows the ins and outs of this technology. We are a reliable partner in the filtration industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wedge Wire Screen, Johnson Screen, Dewatering Filter Drum, Perforated Metal Mesh, Expanded Metal Mesh, Industrial Filter Media with good quality and pretty competitive prices.
4. Why should you buy from us not from other suppliers?
Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer’s requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB / CIF
Accepted Payment Currency: USD / EUR / CNY
Accepted Payment Type: T/T / LC at sight
Language Spoken: English
BAITONG company (BT) designs and manufactures wedge wire filter elements. With more than 10 years of experience, BT company knows the ins and outs of this technology. We are a reliable partner in the filtration industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wedge Wire Screen, Johnson Screen, Dewatering Filter Drum, Perforated Metal Mesh, Expanded Metal Mesh, Industrial Filter Media with good quality and pretty competitive prices.
4. Why should you buy from us not from other suppliers?
Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer’s requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB / CIF
Accepted Payment Currency: USD / EUR / CNY
Accepted Payment Type: T/T / LC at sight
Language Spoken: English
