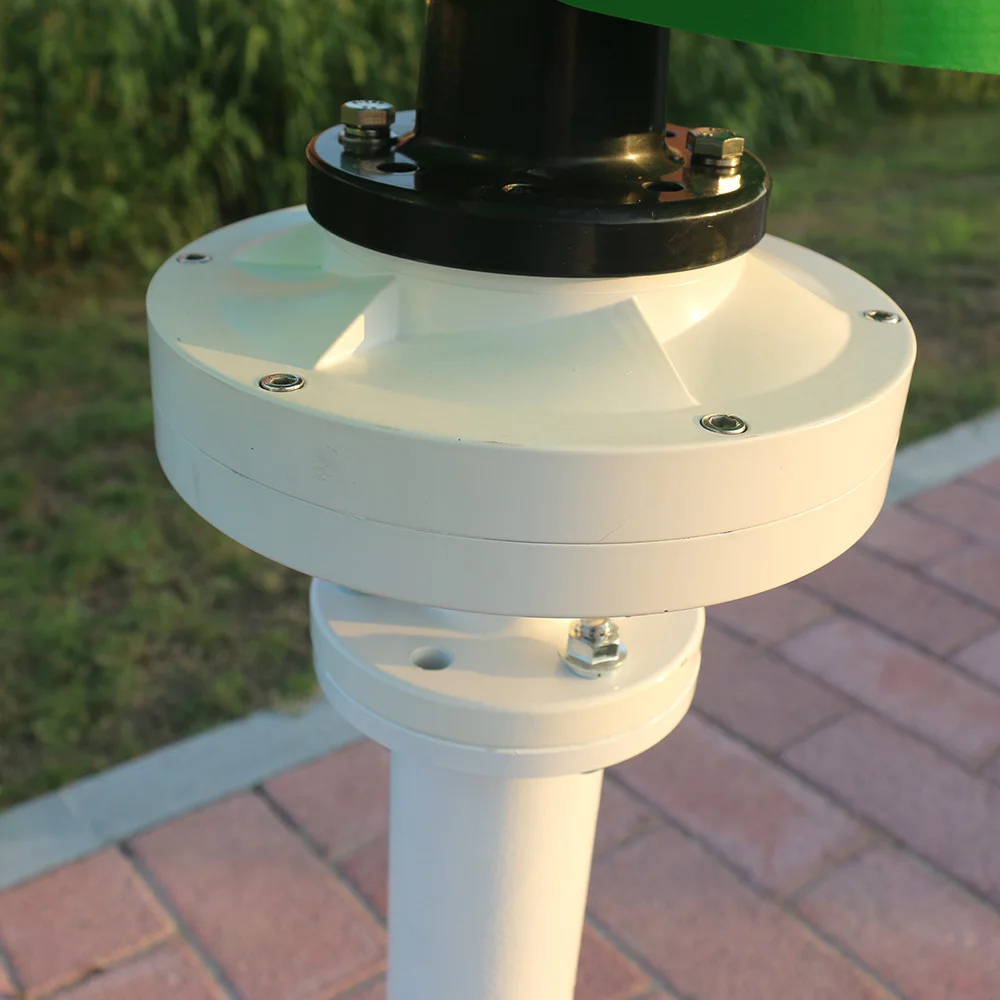

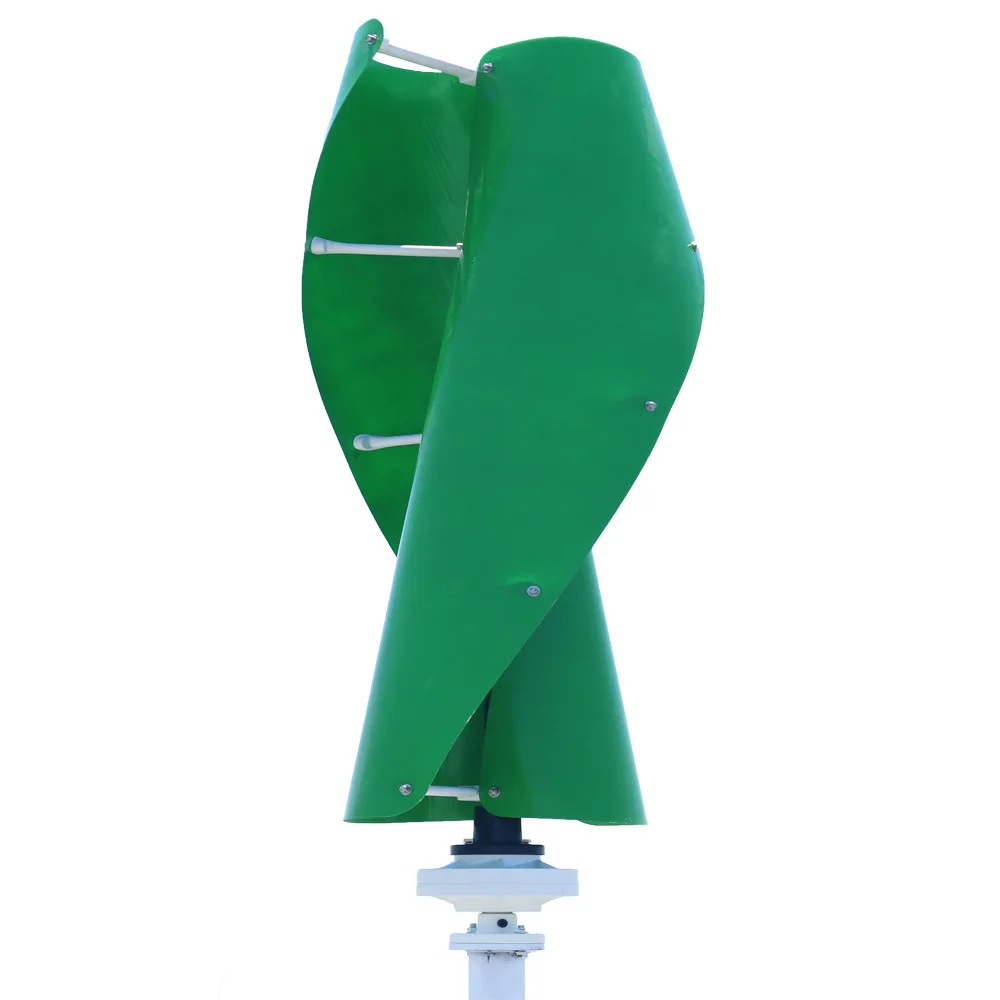

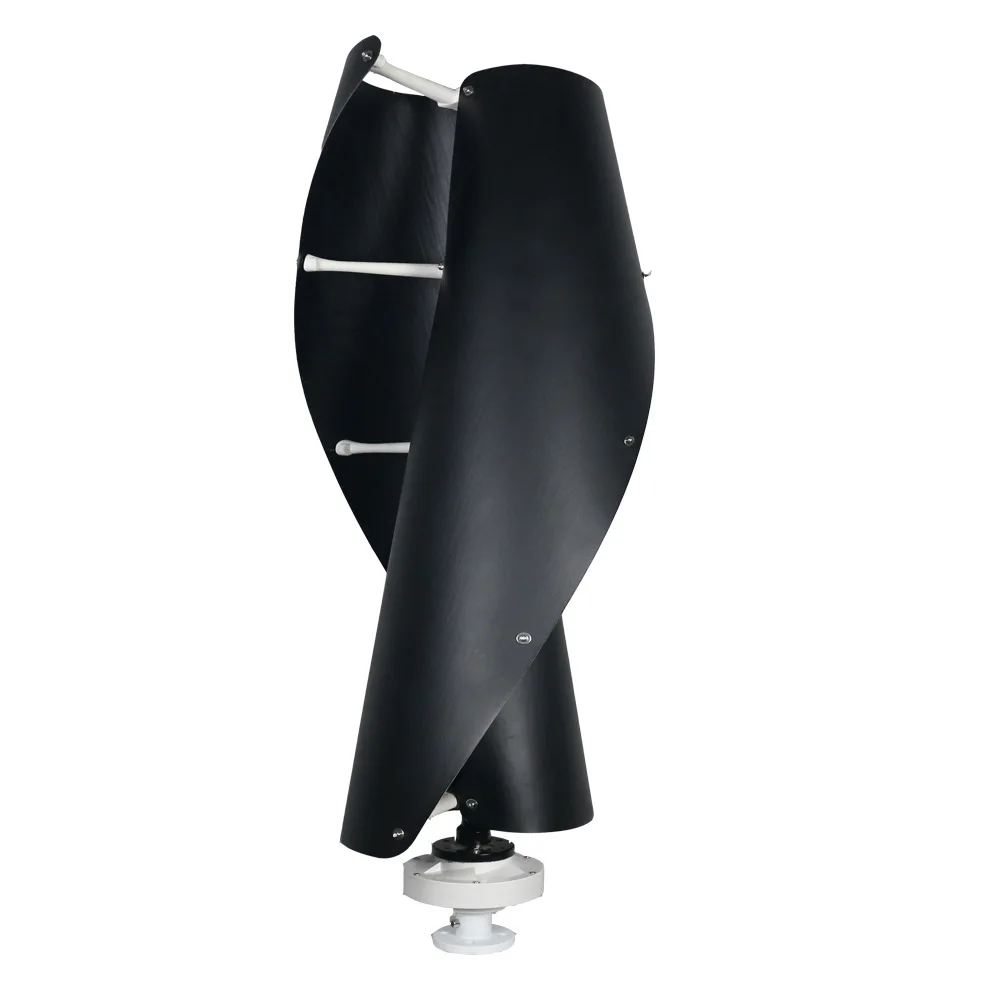

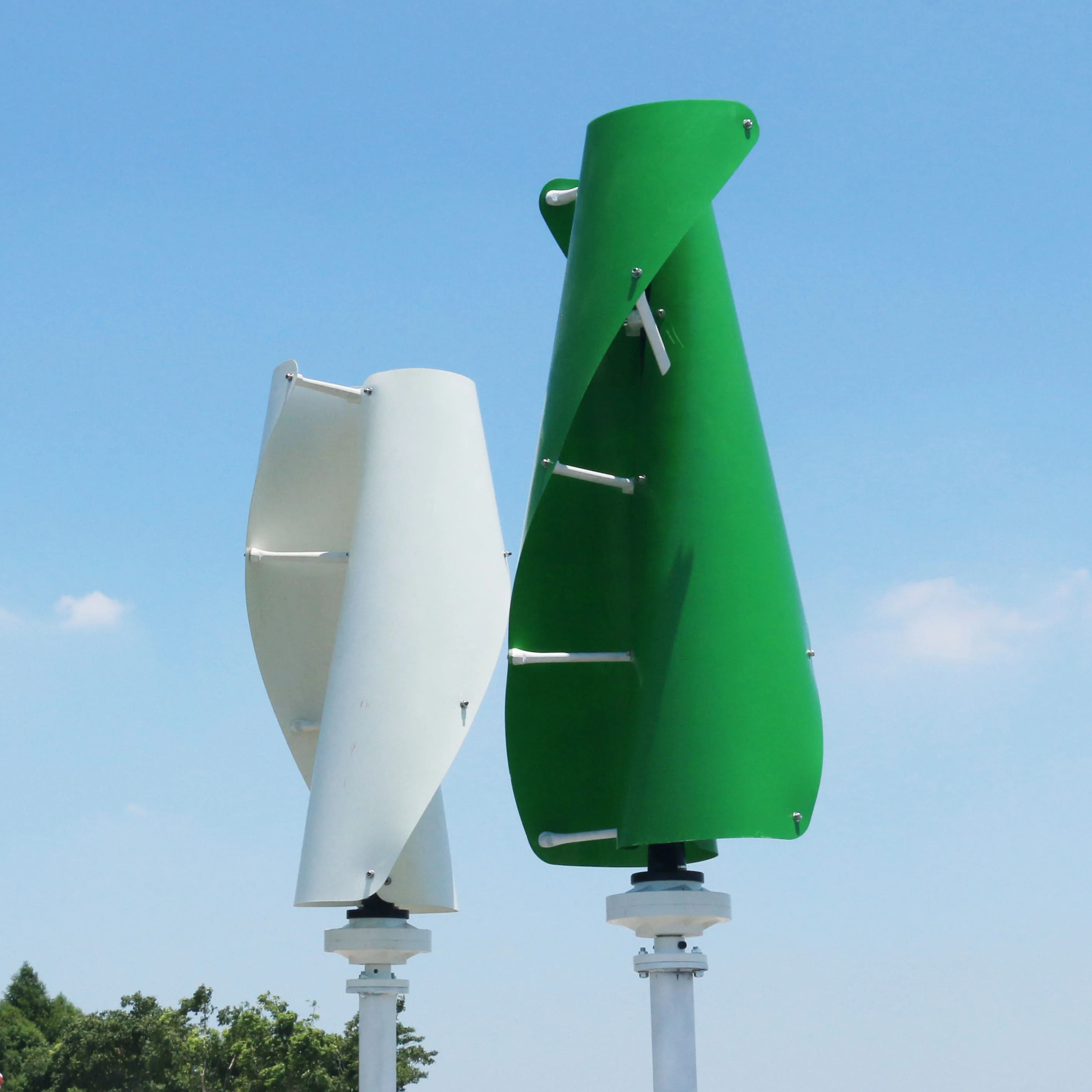

Maglev wind turbine 100w to 600w 12v 24v 48v vertical axis wind generator with 12v 24v AUTO MPPT controller for home use
- Category: >>>
- Supplier: Yiwu Zhanzhi Trading Co. Ltd.
Share on (1600527804056):
Product Overview
Description
Products Description
1.1.3m/s start up
2.2 blades,maglev generator
3.20 years use life and 1 year for warranty
4.small ,light ,stable and safely
5.Certified with:CE
6.High efficiency, could be hybrid system with solar panels.
7. Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting..
2.2 blades,maglev generator
3.20 years use life and 1 year for warranty
4.small ,light ,stable and safely
5.Certified with:CE
6.High efficiency, could be hybrid system with solar panels.
7. Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting..
item | FS-V-100 | FS-V-200 | FS-V-300 | FS-V-400 | FS-V-500 | FS-V-600 | |||||
Started wind speed (m/s) | 1.3 m/s | 1.3 m/s | 1.3 m/s | 1.3 m/s | 1.3 m/s | 1.3 m/s | |||||
Cut-in wind speed (m/s) | 2.5 m/s | 2.5 m/s | 2.5 m/s | 2.5 m/s | 2.3 m/s | 2.3 m/s | |||||
Rated Wind speed (m/s) | 12 m/s | 12 m/s | 13 m/s | 13 m/s | 12 m/s | 12 m/s | |||||
Rated voltage（DC） | 12/24V/48V | 12/24V/48V | 12/24V/48V | 12/24V/48V | 12/24V/48V | 12/24V/48V | |||||
Rated power（W） | 100W | 200W | 300W | 400W | 500W | 500W | |||||
Max power（W） | 150W | 250W | 350W | 450W | 550W | 550W | |||||
Rotor Diameter of Blades（m) | 0.52 | ||||||||||
Blades Height（m) | 900(no generator) | 1.05(no generator) | 1.3(no generator) | ||||||||
1.02 (include generator and Flange) | 1.17 (include generator and Flange) | 1.42 (include generator and Flange) | |||||||||
Safe wind speed (m/s) | Max wind speed：≤40m/s，The instantaneous maximum wind speed≤45m/s | ||||||||||
Blades quantity | 2 | ||||||||||
Blade material | glass/basalt | ||||||||||
Generator | Three phase permanent magnet suspension motor | ||||||||||
Control System | Electromagnet | ||||||||||
Mount Height（m) | 7~12m （9m） | ||||||||||
Generator protection grade | IP54 | ||||||||||
Work environment temperature | VAWT -25~+45℃、 | ||||||||||
controller -10~+45℃ | |||||||||||
Inverter 0~+40℃ | |||||||||||
Work environment humidity | VAWT ≤90%、 | ||||||||||
Controller and inverter≤80% | |||||||||||
Altitude： | ≤4500m | ||||||||||
Product assembly weight (Kg) | <21Kg | ||||||||||
Overspeed protection | Electromagnetic brake | ||||||||||
Overload protection | Electromagnetic brake and the unloading unit | ||||||||||
