Promotion YT 521 Daul band GPON/XPON ONU 1GE 3FE WIFI POT 2.4g&5g IPTV ONU 2 /4 antenna
- Category: >>>
- Supplier: Yantai Yatai Photoelectricity Equipment Co. Ltd.
Share on (1600527812885):
Product Overview
Description
Introduction
YT-521 is for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice, video (IPTV) and high speed internet access.
GPON Interface
ITU-T G.984.x GPON standards
Optical port:1 GPON interface (SC/UPC)
Transmit rate:2.488Gbps downstream;1.244Gbps upstream
Wavelength::Downstream 1490nm;Upstream 1310nm
Receiving Sensitivity:-28dBm Transmitting Optical Power: 0.5~5dBm
User Network Interface
1GE+3FE:1 x 10/100/1000Base-T+3x 10/100 Base-T
1 x POTS interfaces:SIP/H.248
2.4G&5G Wi-Fi interface:IEEE 802.11b/g/n @2.4G Hz
IEEE 802.11a/n/ac @5G Hz
2 x2 MIMO(2.4G&5G)
Antenna gain:5dBi
2.4G&5G concurrent
Air interface rate:300Mbit/s(2.4G);867Mbit/s(5G)
2x USB 2.0 host interface

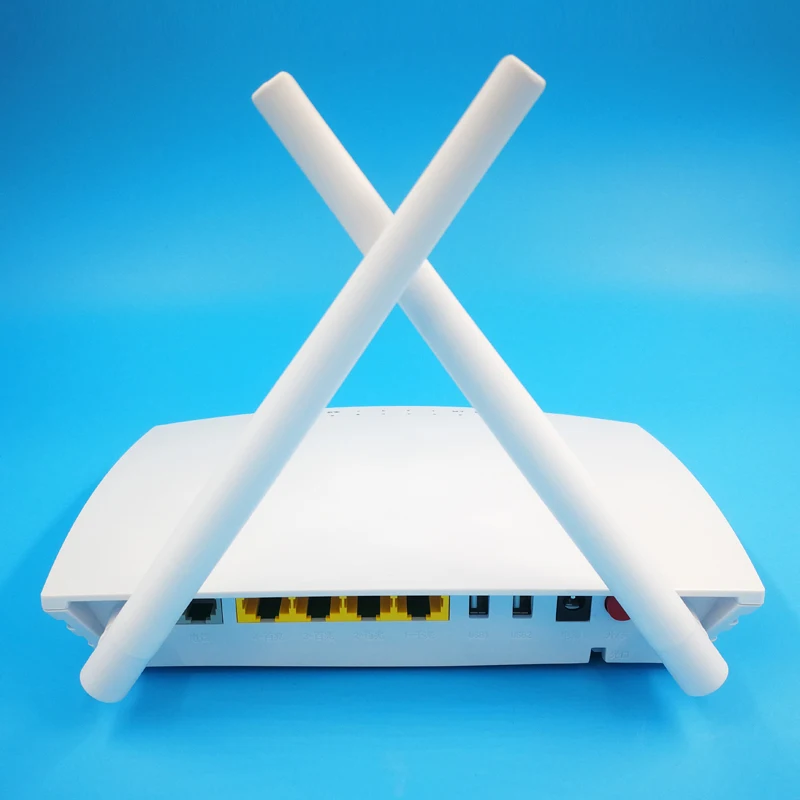

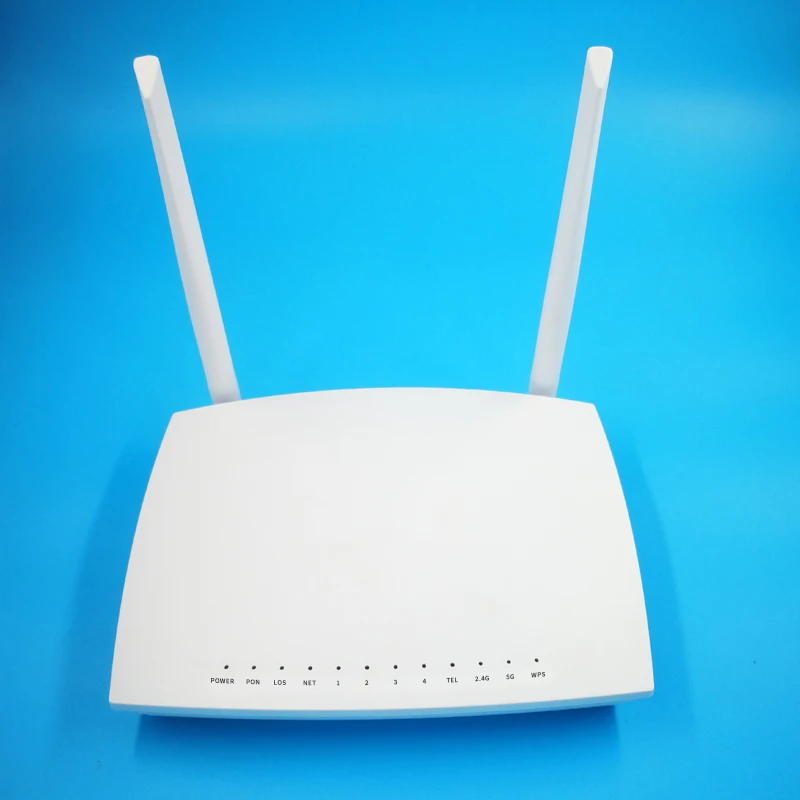

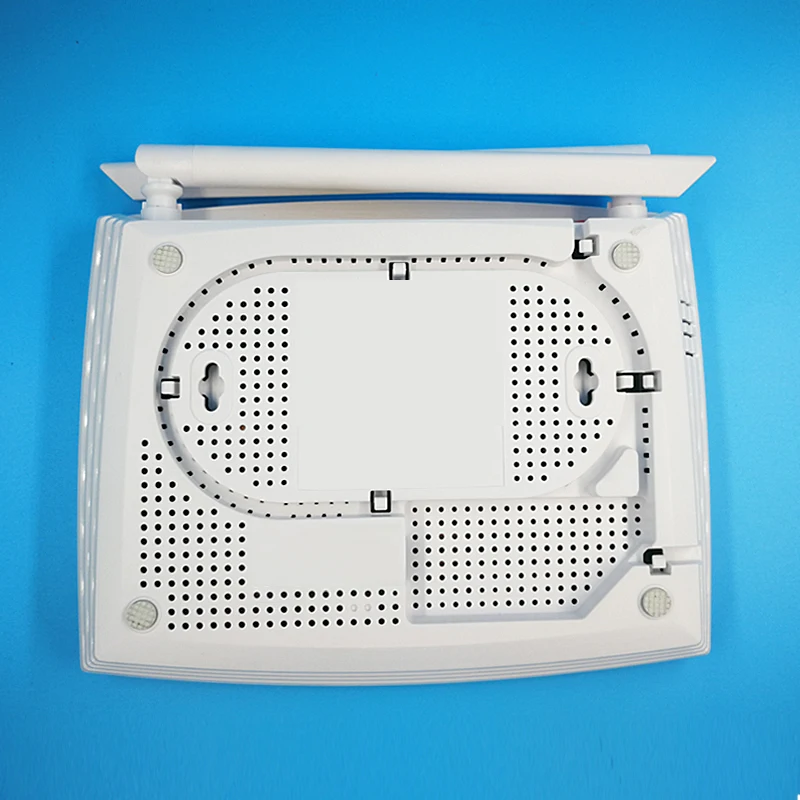

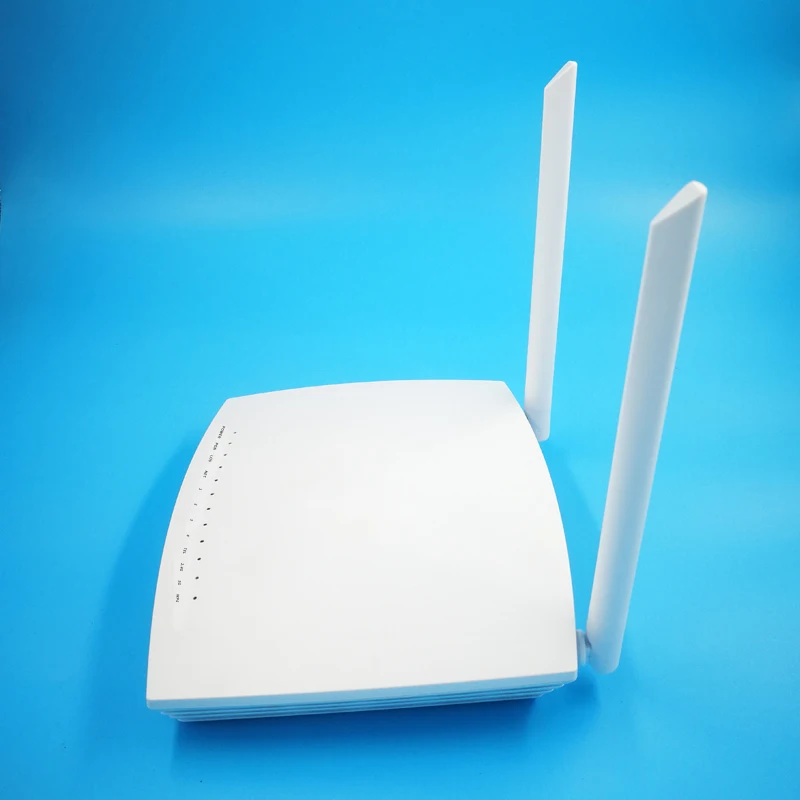

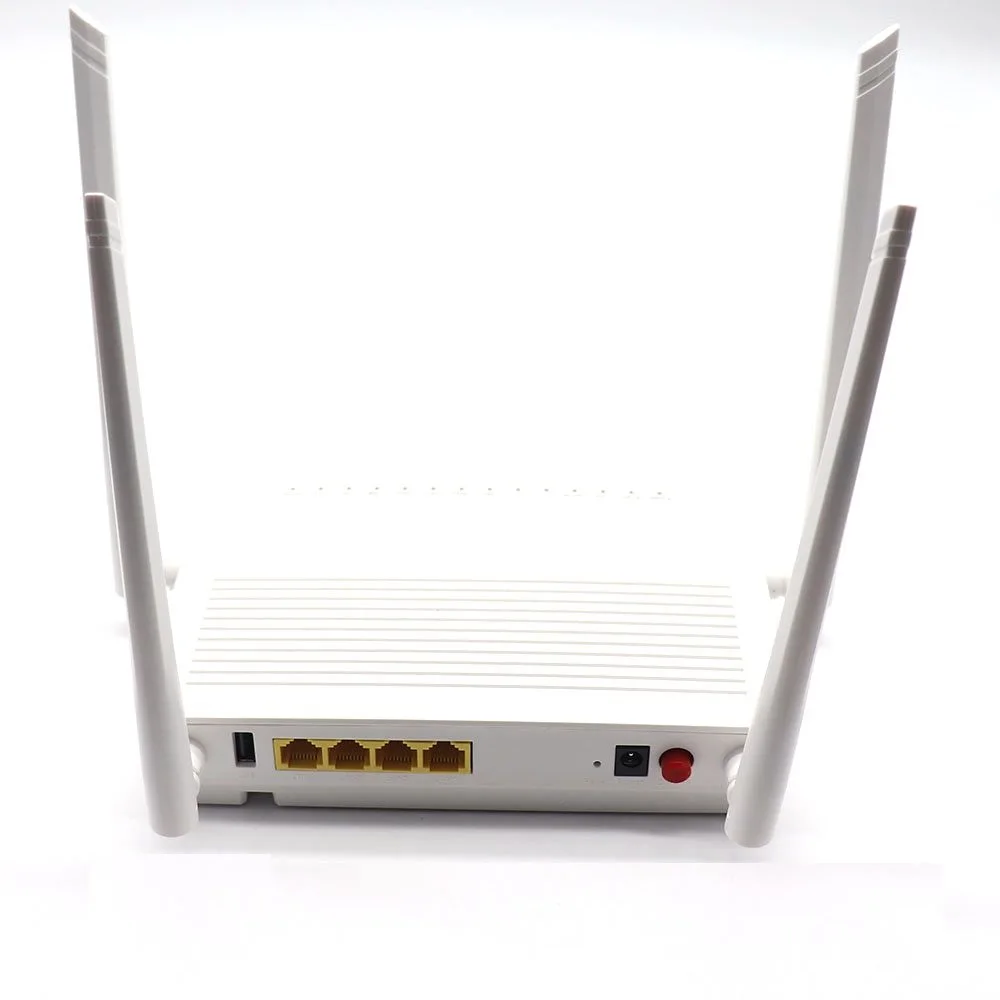

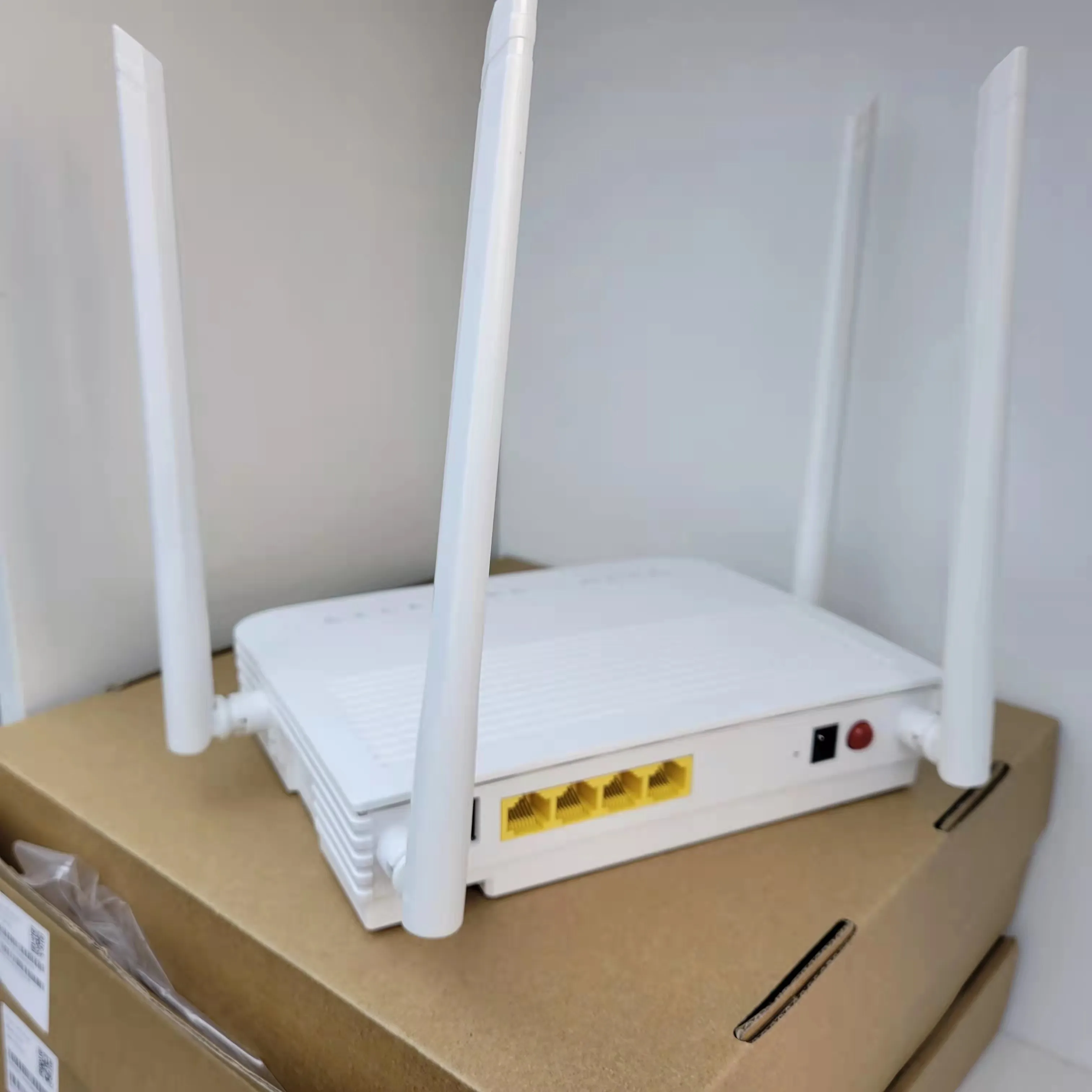

Detail image
Company Information
Yantai Yatai Photoelectricity Equipment Co.,Ltd was founded in 1997. We are a hi-tech enterprise engaged in research, development, production and sale of optoelectronic products, with advanced proprietary intellectual property rights. 150 workers,1000 square meter non-dust workshop, 20 years experience, many domestic and overseas government projects for CATV, ISO certificated, this is how we keep good quality and reliable cooperation for global valued customers.
Workshop
Packaging & Shipping
