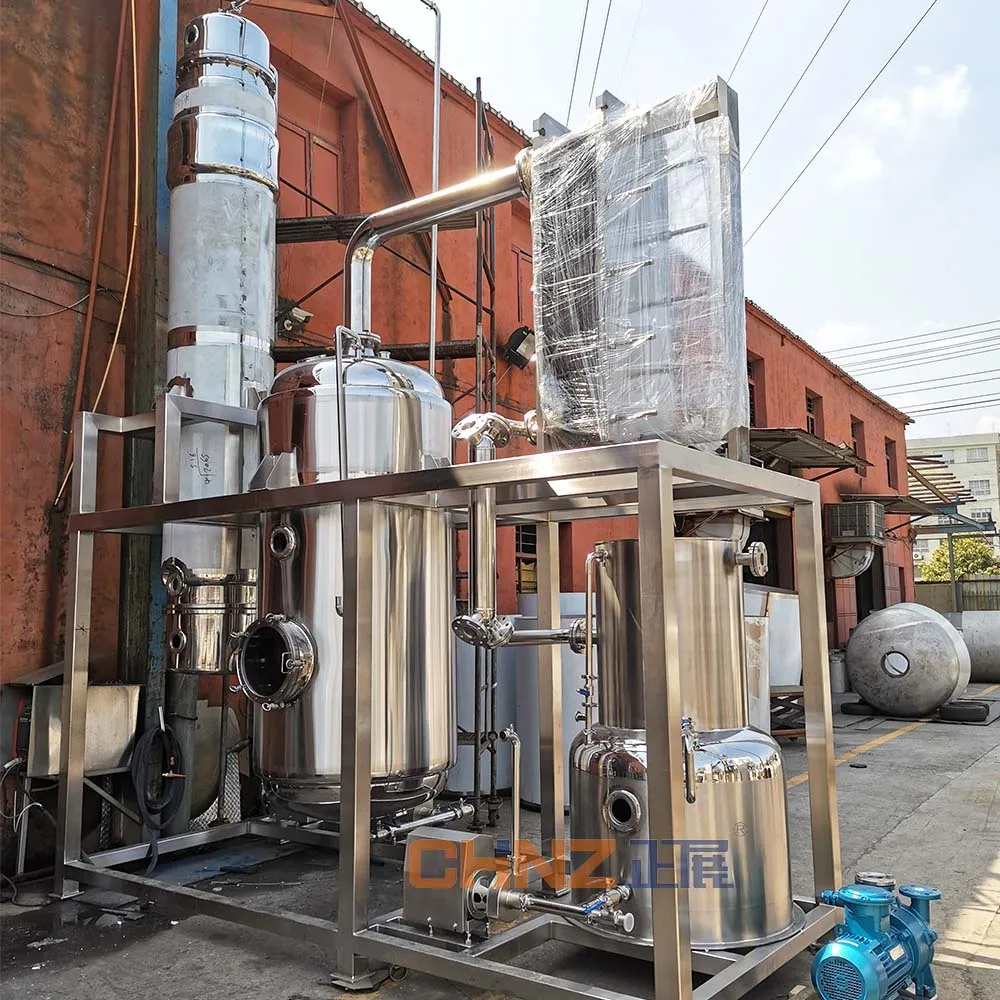

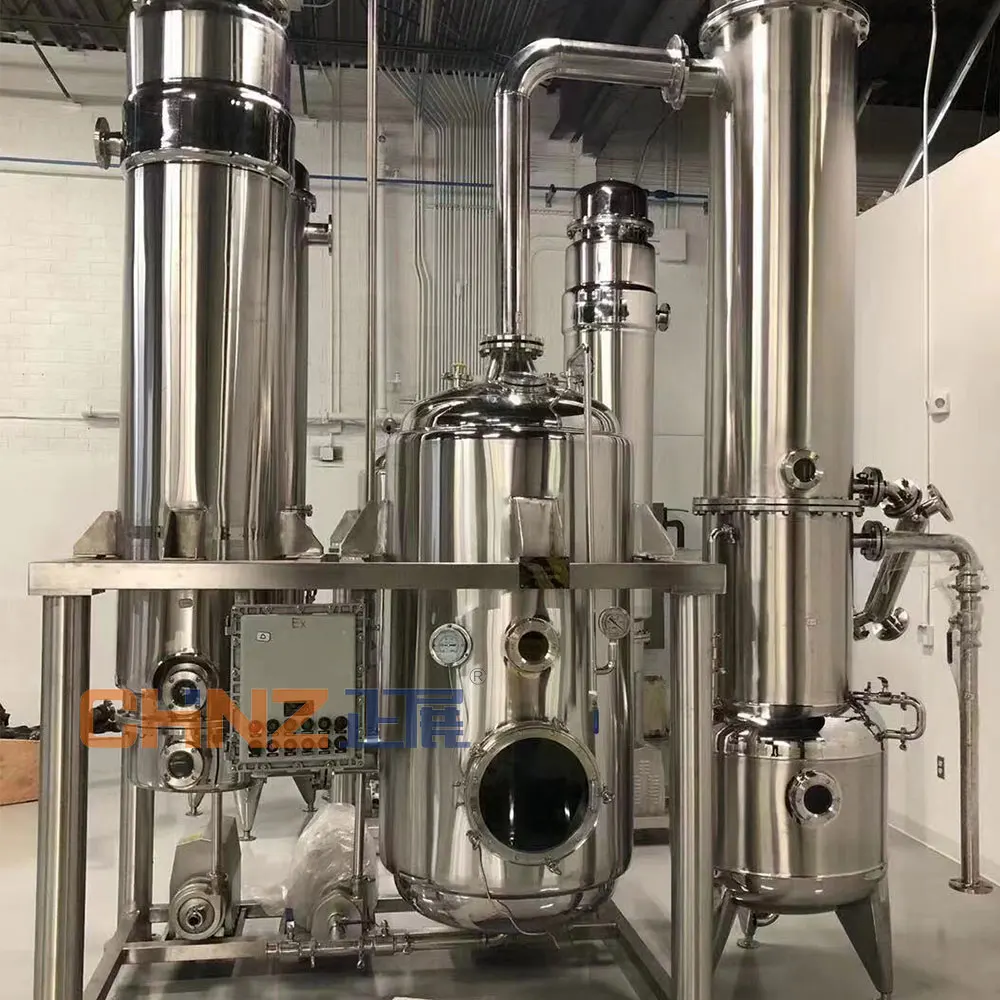

Falling film extraction evaporator with plant condenser for sugar industry fruit juice equipment factory price
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (1600527826949):
Product Overview
Description
Products Description
Environmental protection industry----water liquor comprehensive treatment !

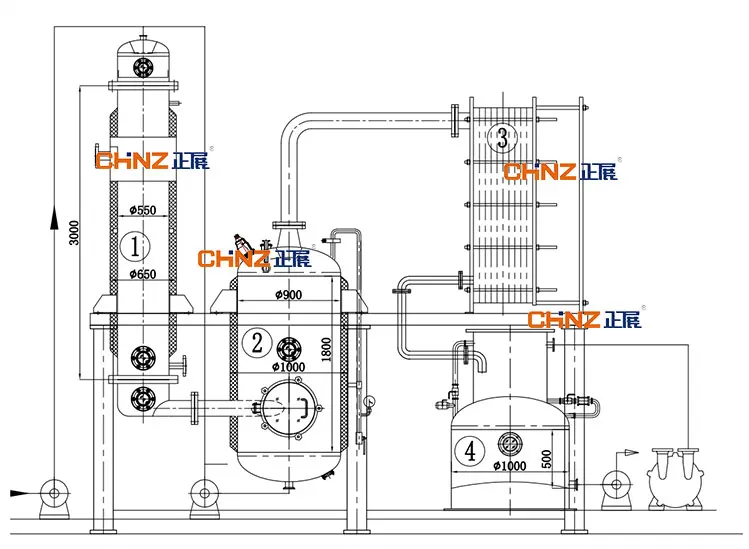

2. Equipment descriptions
1) Equipped with high efficiency vortex separator, the plate concentrating equipment revolves around the new type plate rising falling film evaporator to evaporate the materials under vacuum at low temperature and heat the steam to carry out multi-effect evaporation operation through repetitive use.
2) It adopts high efficiency plate heat exchange to instantly and rapidly complete heating and sterilizing processes. Whole set design and complete set devices and designs are available. Thanks to the features such as compact structure, high efficiency ( the total transfer coefficient is 2-4 times of that of tubular evaporator), convenient disassembly and cleaning, low liquid holding quantity and short duration of materials under high temperature, the equipment is applicable to the concentration of Chinese herbal medicine, fruit juice, dairy, sugar alcohol and fine chemicals etc.
3. Advantage
1) High heat transfer efficiency
Comparing with traditional shell-and-tube evaporator, plate-type evaporator with unique corrugation makes high turbulence so the heat transfer efficiency enhanced, especially in the condition with medium of high concentration and high viscosity. TanletVap can work normally under the condition with temperature difference of 3-5°C.There is obvious advantage when TanletVaps were used in TVR and MVR systems.
2) Less fouling ,long operation cycle
The special design of corrugated plate can make the flow turbulence in very low speed. This can reduce the fouling and prolong plate life time. Then both the maintenance cost and initial investment can be much smaller for customer.
3) Low power consumption
In the same heating area, plate heat exchanger has bigger passage area and lower friction than tube heat exchanger. Then in the same velocity, plate-type evaporator can use a lower head pump and consume less power.
4) Improving product quality An obvious advantage of TanletVap is low retention volume, which means there is hardly any product in TanletVap. Furthermore, quick start and stop are allowed for it.
2. Equipment descriptions
1) Equipped with high efficiency vortex separator, the plate concentrating equipment revolves around the new type plate rising falling film evaporator to evaporate the materials under vacuum at low temperature and heat the steam to carry out multi-effect evaporation operation through repetitive use.
2) It adopts high efficiency plate heat exchange to instantly and rapidly complete heating and sterilizing processes. Whole set design and complete set devices and designs are available. Thanks to the features such as compact structure, high efficiency ( the total transfer coefficient is 2-4 times of that of tubular evaporator), convenient disassembly and cleaning, low liquid holding quantity and short duration of materials under high temperature, the equipment is applicable to the concentration of Chinese herbal medicine, fruit juice, dairy, sugar alcohol and fine chemicals etc.
3. Advantage
1) High heat transfer efficiency
Comparing with traditional shell-and-tube evaporator, plate-type evaporator with unique corrugation makes high turbulence so the heat transfer efficiency enhanced, especially in the condition with medium of high concentration and high viscosity. TanletVap can work normally under the condition with temperature difference of 3-5°C.There is obvious advantage when TanletVaps were used in TVR and MVR systems.
2) Less fouling ,long operation cycle
The special design of corrugated plate can make the flow turbulence in very low speed. This can reduce the fouling and prolong plate life time. Then both the maintenance cost and initial investment can be much smaller for customer.
3) Low power consumption
In the same heating area, plate heat exchanger has bigger passage area and lower friction than tube heat exchanger. Then in the same velocity, plate-type evaporator can use a lower head pump and consume less power.
4) Improving product quality An obvious advantage of TanletVap is low retention volume, which means there is hardly any product in TanletVap. Furthermore, quick start and stop are allowed for it.
Item | Single-effect | Double-effect | Three-effect | Four-effect | Five-effect | ||||
Steam evaporation(Kg/h) | 100-2000 | 500-4000 | 1000-1500 | 8000-40000 | 10000-60000 | ||||
Steam pressure(Mpa) | 0.5-0.8Mpa | ||||||||
Steam consumption(kg/h) with thermal pump | 0.65 | 0.38 | 0.28 | 0.23 | 0.19 | ||||
Steam pressure(Mpa) | 0.1-0.4Mpa | ||||||||
Steam consumption(kg/h) | 1.1 | 0.57 | 0.39 | 0.29 | 0.23 | ||||
Evaporation temperature(℃) | 45-95℃ | ||||||||
Cooling water consumption | 28 | 11 | 8 | 7 | 6 | ||||
Details Images
Certifications
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents. Our company has been awarded many titles, including Zhejiang High-Tech Enterprise, etc. Wenzhou Chinz Machinery Co., Ltd. is always devoted to the research and development of machinery project and high precision sanitary fluid equipment. Through several years of efforts, our company has successfully designed and developed various specifications of methanol and ethanol reclaimers, low temperature concentrators, heat
hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.
hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.

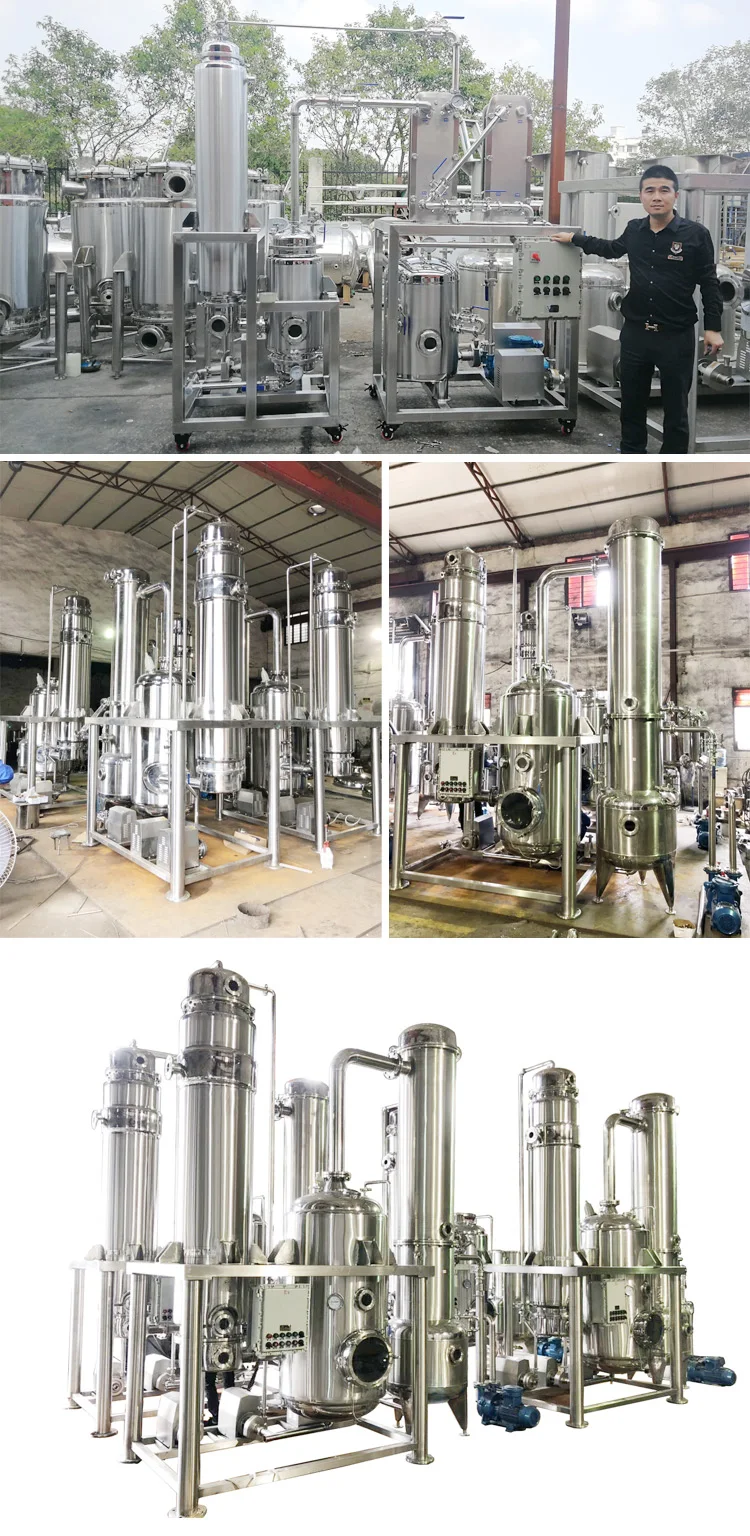

Customer Photos
Recommend Products

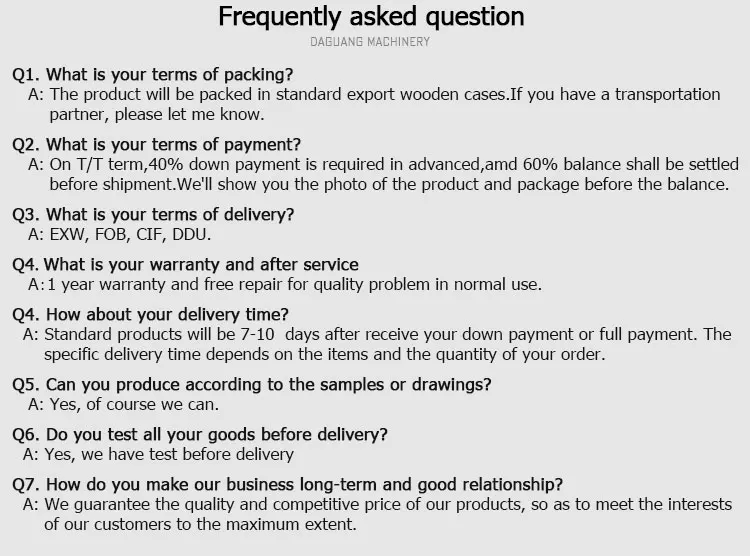

FAQ
