2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM
2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM
2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM
2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM
2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM
2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM

2000 Watt Pure Sine Wave Solar Power Sinus Inverter Inversor 2KW 12V 24V 48V DC To AC 110V 220V 230V CE NOM

Share on (1600527832788):


Price:$129.00 - $149.00

Quantity:


Product Overview

Description




Features:


1:True sine wave output(THD<3%) 2:2200W work 180 Sec,2400W work 10 Sec
3:High surge power up to 4000w
4:High efficiency up to 94%
5:With 11 protection function
6:Smart cooling fan intelligent adjustment
7:Standby saving mode
8:Power ON/OFF switch
9:Warranty 2 Years(replacement service)
10:80cm 25㎡ wire cable with 250A terminal




Pure Sine Wave THD<3%




Efficiency 88%~94%




11 Protection Functions
Soft start /low voltage shut down / over current protection




Smart Cooling Fan




Optional Remote Control




More Than 20 Years Experience Engineers Team




Optional Socket




Accessories






Highly Recognized Market:

*Germany Market
*France Market
*Norway Market
*Australia Market
*Mexico Market
*South Africa Market
*Japan Market
*South Africa Market
*Brazil Market




Scene








Specification


MODEL
KS-2000-112
KS-2000-124
KS-2000-148
KS-2000-212
KS-2000-224
KS-2000-248









OUTPUT
RATED POWER
2000W
MAXIMUM OUTPUT POWER
2200W for 180 sec. / 2400W for 10 sec. / surge power 4000W for 2 sec
AC VOLTAGE
Factory Setting set at 110V AC
Factory Setting set at 110V AC
100/110/115/120VAC (Option)
220/230/240VAC Option
FREQUENCY
Factory Setting set at 60Hz (50/60Hz Option)
Factory Setting set at 50Hz (50/60Hz Option)
WAVE FORM
Ture Sine Wave(THD<3%)at rated input voltage
AC REGULATION
5%
STANDARD RECEPTACLES
Schuko/UK/Australia/Universal/USA/France/JP/Brazil
FRONT PANEL INDICATOR
Operation and Fault status





INPUT
BAT. VOLTAGE
12V
24V
48V
12V
24V
48V
VOLTAGE RANGE
10.8 - 15.5VDC
21.6-31VDC
43.2 〜62VDC
10.8 - 15.5VDC
21.6-31VDC
43.2 〜62VDC
DC CURRENT
200A
100A
50A
200A
100A
50A
FUSE
35A*8
20A*8
10A*8
35A*8
20A*8
10A*8
NO LOAD CURRENT DRAW
0.85A
0.42A
0.21A
0.85A
0.42A
0.21A
EFFICIENCY
89%
91%
92%
90%
92%
93%
BATTERY TYPES
Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION
BAT.LOW ALARM
10.8+/-0.2V
21.6+/-0.4V
43.2+/-0.8V
10.8+/-0.2V
21.6+/-0.4V
43.2+/-0.8V
BAT.LOW SHUTDOWN
10.2+/-0.2V
20.4+/-0.4V
40.8+/-0.8V
10.2+/-0.2V
20.4+/-0.4V
40.8+/-0.8V
BAT.OVER SHUTDOWN
15.5+/-0.2V
31+/-0.4V
62+/-0.8V
15.5+/-0.2V
31+/-0.4V
62+/-0.8V
REVERSE POLARITY
Built in fuse


OUTPUT
OVER TEMPERATURE
75°C
OUTPUT SHORT CIRCUIT
Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD
120% Rated power / Protection type : Shut down o/p voltage, re-power on to recover within 10 times.
BYPASS
BUILT IN RELAY
30A


ENVIRONMENT
WORKING TEMP.
0 〜+40°C @100% Load; 60 °C @ 50% Load
WORKING HUMIDITY
20%-90% RH non-condensing
STORAGE TEMP
-30-+70 °C /-22~+158° F
STORAGE HUMIDITY
10-95% RH non-condensing


SAFETY
CE
Compliance to EN61000-3-2,3
LVD
Compliance to EN60950-1
ROHS
Compliance to EN1122B:2001-1



LED BUZZER
LOW BAT ALARM
Buzzer sound 2 times and Red light blink 2 times every 8 Sec
LOW BAT SHUT DOWN
Buzzer sound 3 times and Red light blink 3 times every 8 Sec
OVER BAT SHUT DOWN
Buzzer sound 4 times and Red light blink 4 times every 8 Sec
OVER TEMP
Buzzer sound 5 times and Red light blink 5 times every 8 Sec
OVER LOAD
Light Blink Constantly



OTHER
COOLING
Load and Temp control the Fan
CONTROL WIRING
RJ11
DIMENSION
380*220*9 0mm (L*W*H)
PACKING
7KG;2PCS/15KGS/CARTON
APPLICATION

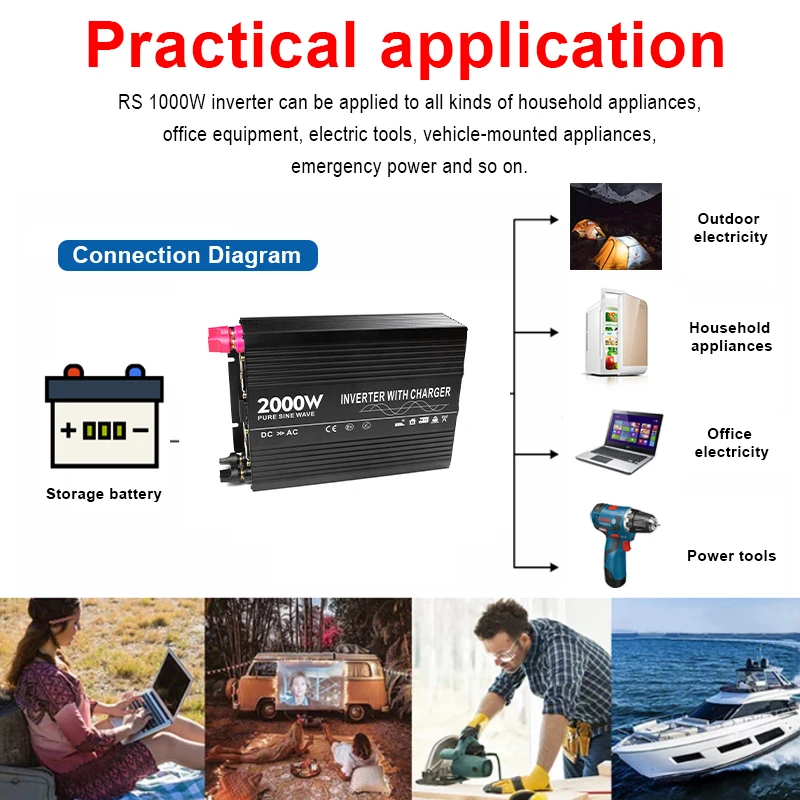

Home and office appliances, Power Tools and Portable Equipment, Vehicle,Yacht and Solar System
NOTE
1 .Volue test by input voltage at 13V,26V,48V. 2 .All parameters are measured at rated load, 2 5 °C of ambient temperature. 3.The
specifications are subject to change w辻hout prior notice for further improvement of products
