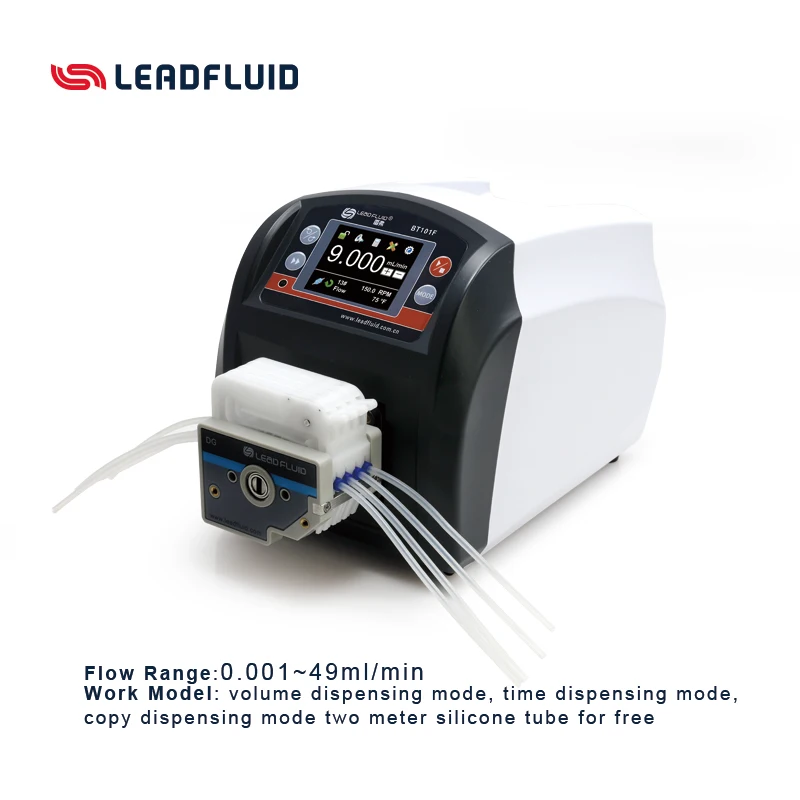

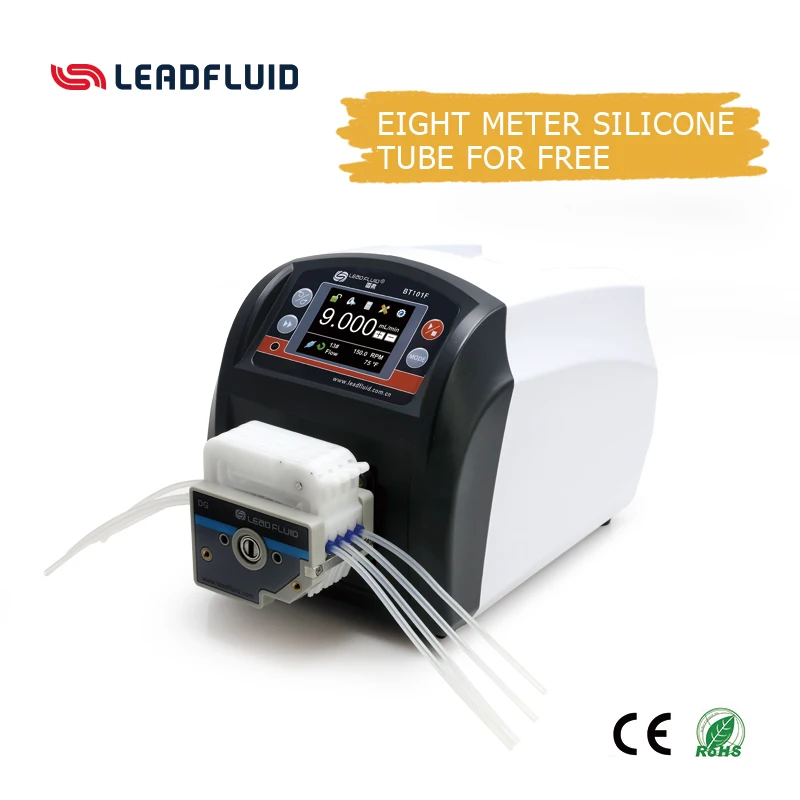

Lead Fluid BT101F-DG-4 Intelligent Dispensing  Peristaltic Pump


Product Description


Flow Range
0.001～49ml/min
Speed Range
0.1~150 rpm
Application
Mainly used for accurate measurement and dispensing of complex liquid




①Pump shell:ABS plastic shell, creative streamlined appearance, beautiful and simple.
②Color LCD display:easy to read and operate touch screen,even wearing gloves
③DG mode pump head: The card-type structure can be loaded and unloaded independently, which is easy to replace and fix the pump tube.
④Pump tube:the tube can be replaced with different materials according to the transmitted liquid, such as silicone tubes, chemical tubes etc.

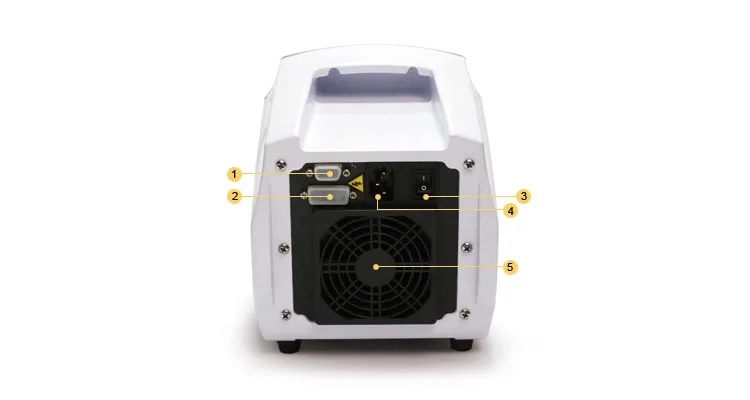

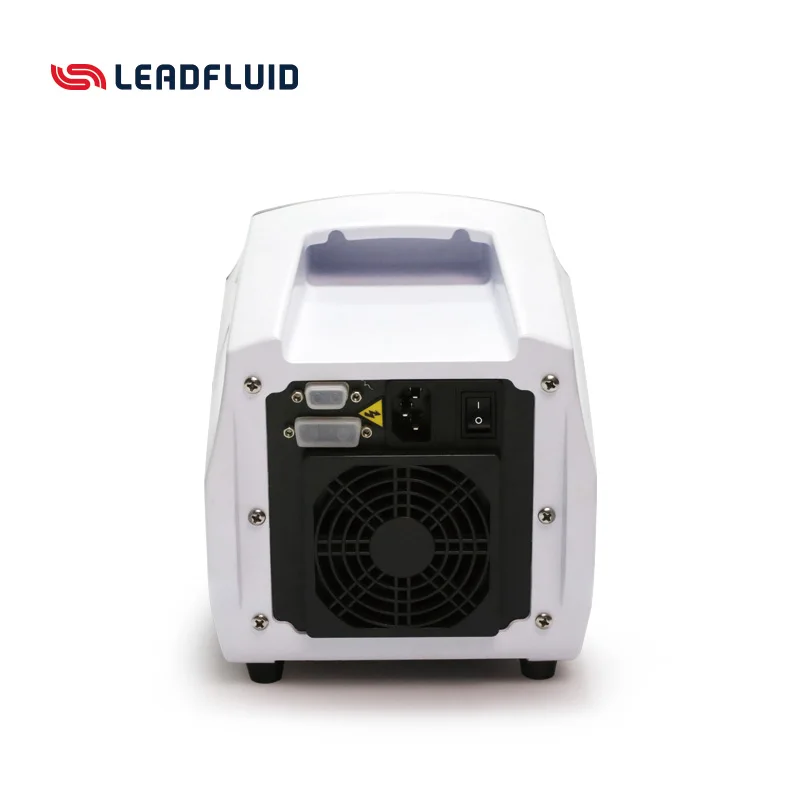

①RS232 connector ② DB15 external control interface ③Power switch ④Power line connector ⑤Cooling fan


Functions and Features


time dispensing mode

volume dispensing mode

copy dispensing mode



●Three dispensing work modes: time mode,volume mode,copy mode.
●Display and control flow rate, accumulate dispensing volume automatically.
●Automatically store five groups of working parameters.
●Calibration function, easy to operate.


Quite peristaltic pump
Drip proof
Wifi function


High precision motor
Super anti-interference
Widely used


Application Show






Specification


Brand Name
Lead Fluid
Model Number
BT101F-DG-4
Channel
Four
Voltage
AC100-240V,50Hz/60Hz
Power
30W
Flow
0.001～49ml/min
Rotation Speed
0.1-150rpm
Display
LED +key pad
Speed accuracy
＜±0.2%
Tubing
Wall 0.8～1, ID≤3.17
External control
external input level5V,12V(standard),25V(optional)External control analog 0-5V(Standard),
0-10V,4-20mA（Optional）
Communication interface
RS485 communication interface, MODBUS protocol is available
Working environment
Temperature 0 ～ 40℃, relative humidity＜80%
IP grade
IP31
Dimension
257(L)*180(W)*197(H)mm
Weight
4.5KG

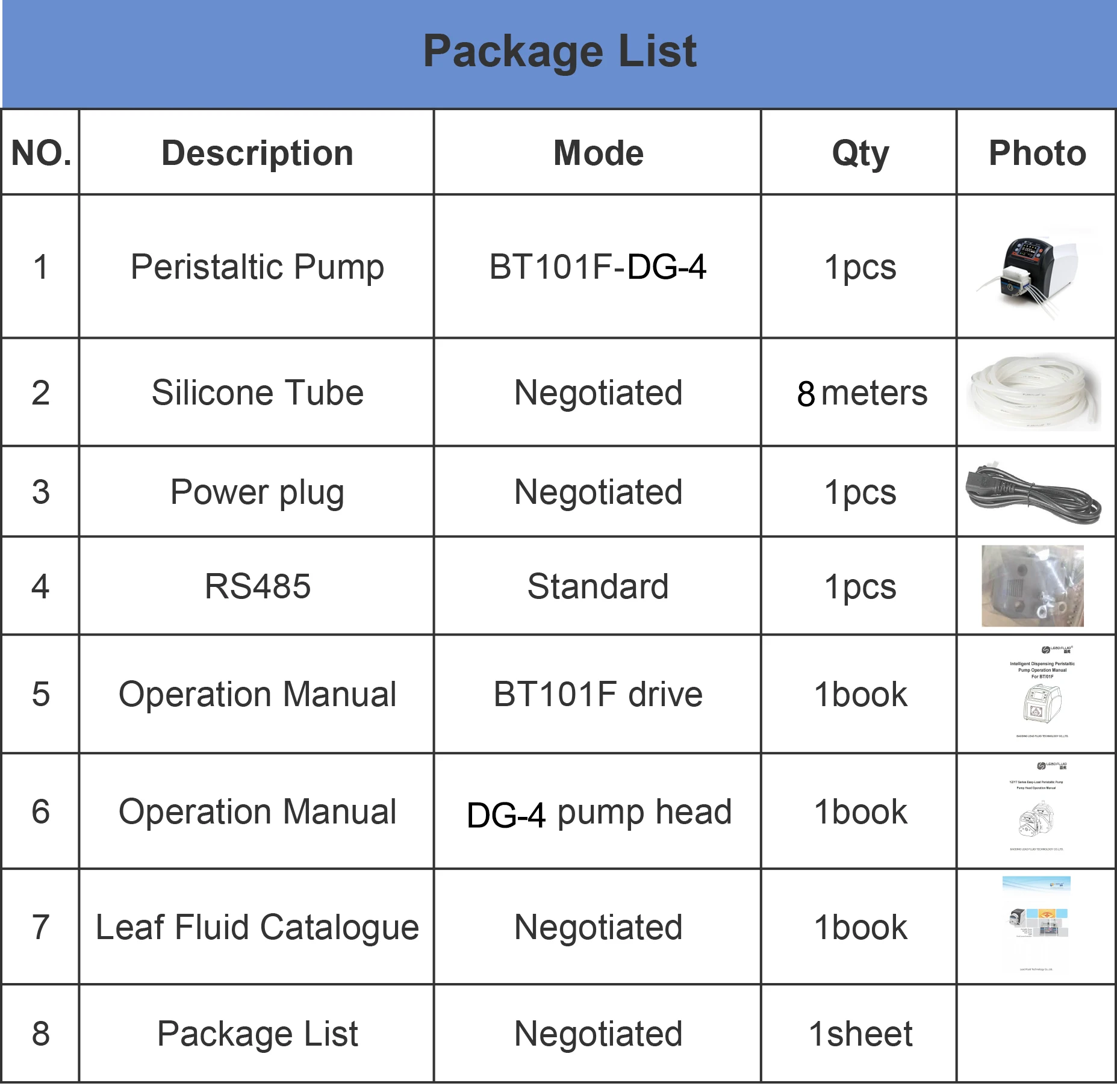

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Related Products

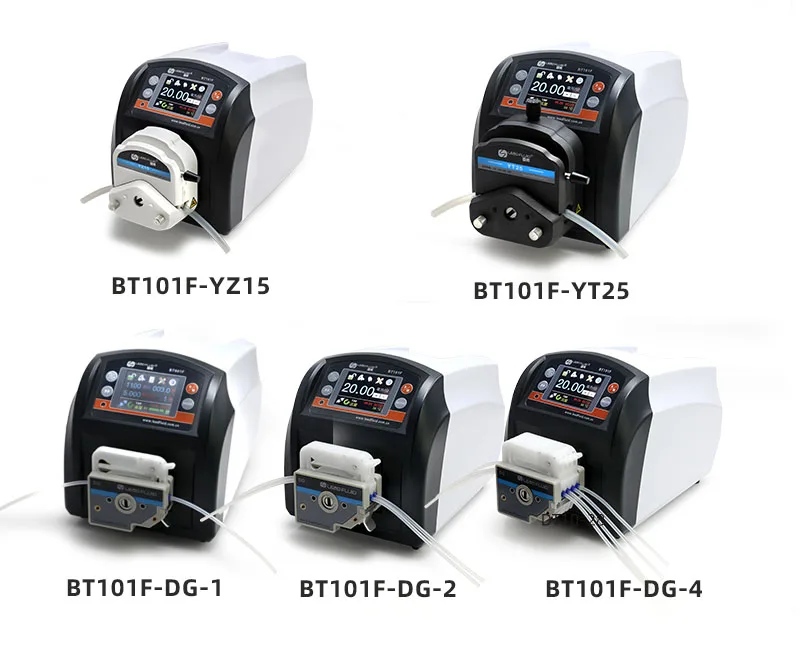

BT101F Pump Drive With Different Pump Head


Drive type
Pump Head
Channel
Tube（mm）
Flow Rate Per Channel （mL/Min）






BT101F
DG6-1
1
Wall 0.8～1, ID≤3.17
0.0002～49

DG10-1
1
Wall 0.8～1, ID≤3.17
0.0001～41

DG6-2
2
Wall 0.8～1, ID≤3.17
0.0002～49

DG10-2
2
Wall 0.8～1, ID≤3.17
0.0001～41

DG6-4
4
Wall 0.8～1, ID≤3.17
0.0002～49

DG10-4
4
Wall 0.8～1, ID≤3.17
0.0001～41

YZ15
1
13#14#19#16#25#17#18#
0.006～570

2×YZ15
2
13#14#19#16#25#17#18#
0.006～570

YT25
1
15#24#35#36#
0.16～720






Company Profile




Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.


How About The Advantage About Lead Fluid Company?


● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
