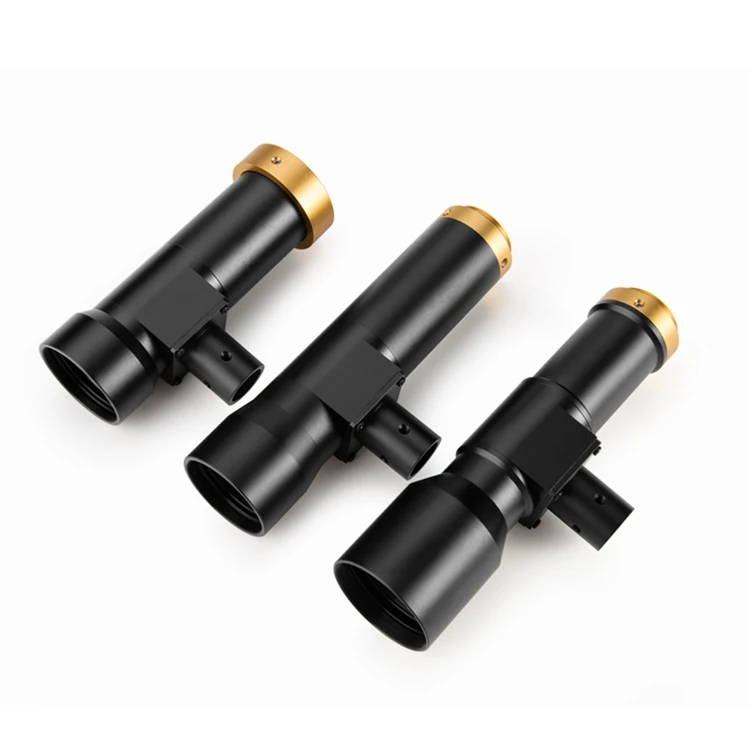

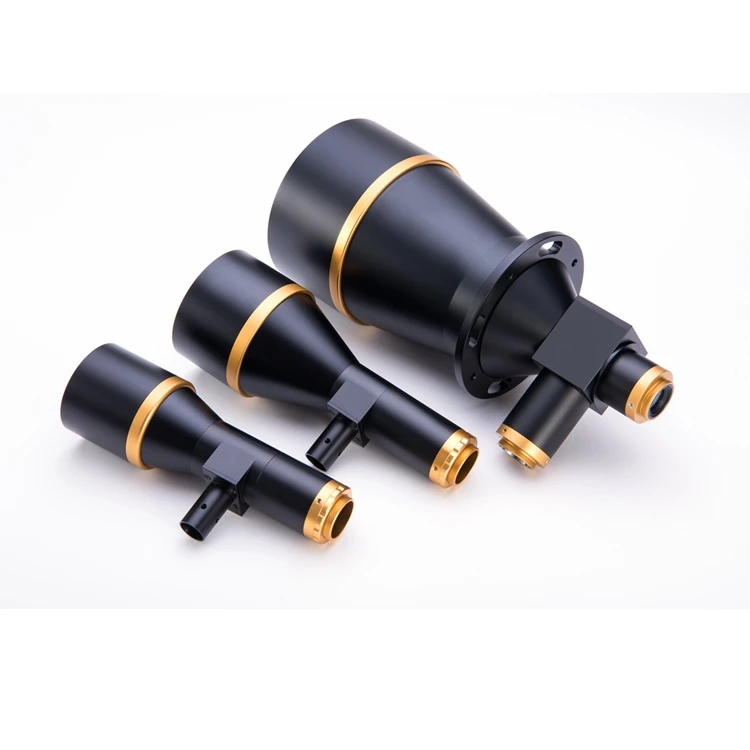

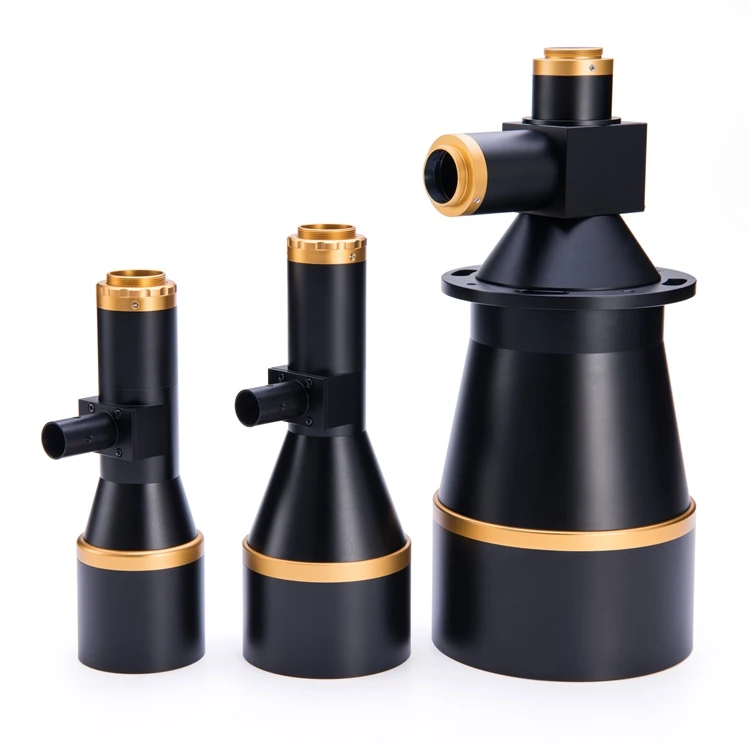

High speed detection of Machine vision telecentric lenses for Item detection
- Category: >>>
- Supplier: Shenzhen ZK Electric Technology Co. Limited
Share on (1600527848889):
Product Overview
Description
Product Description

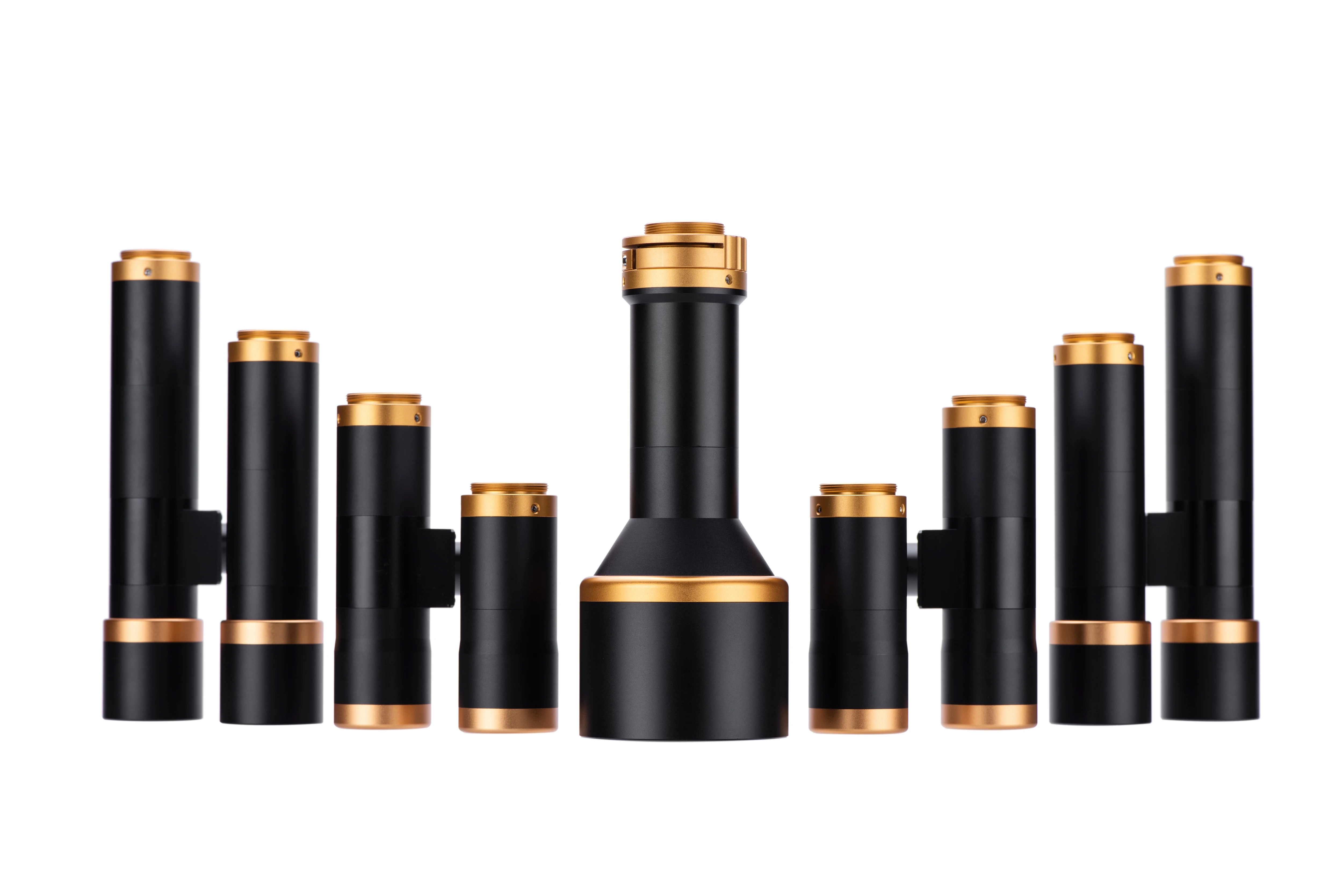

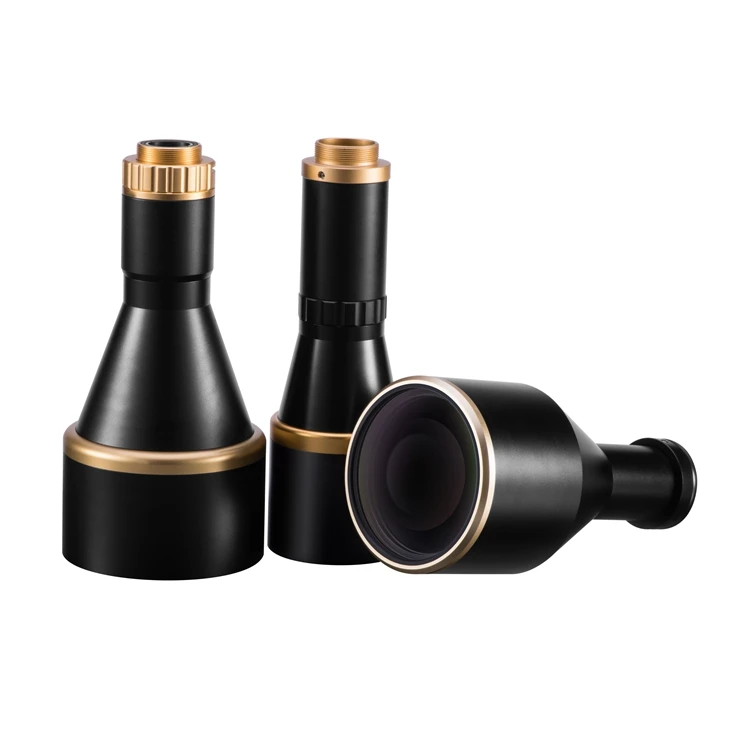

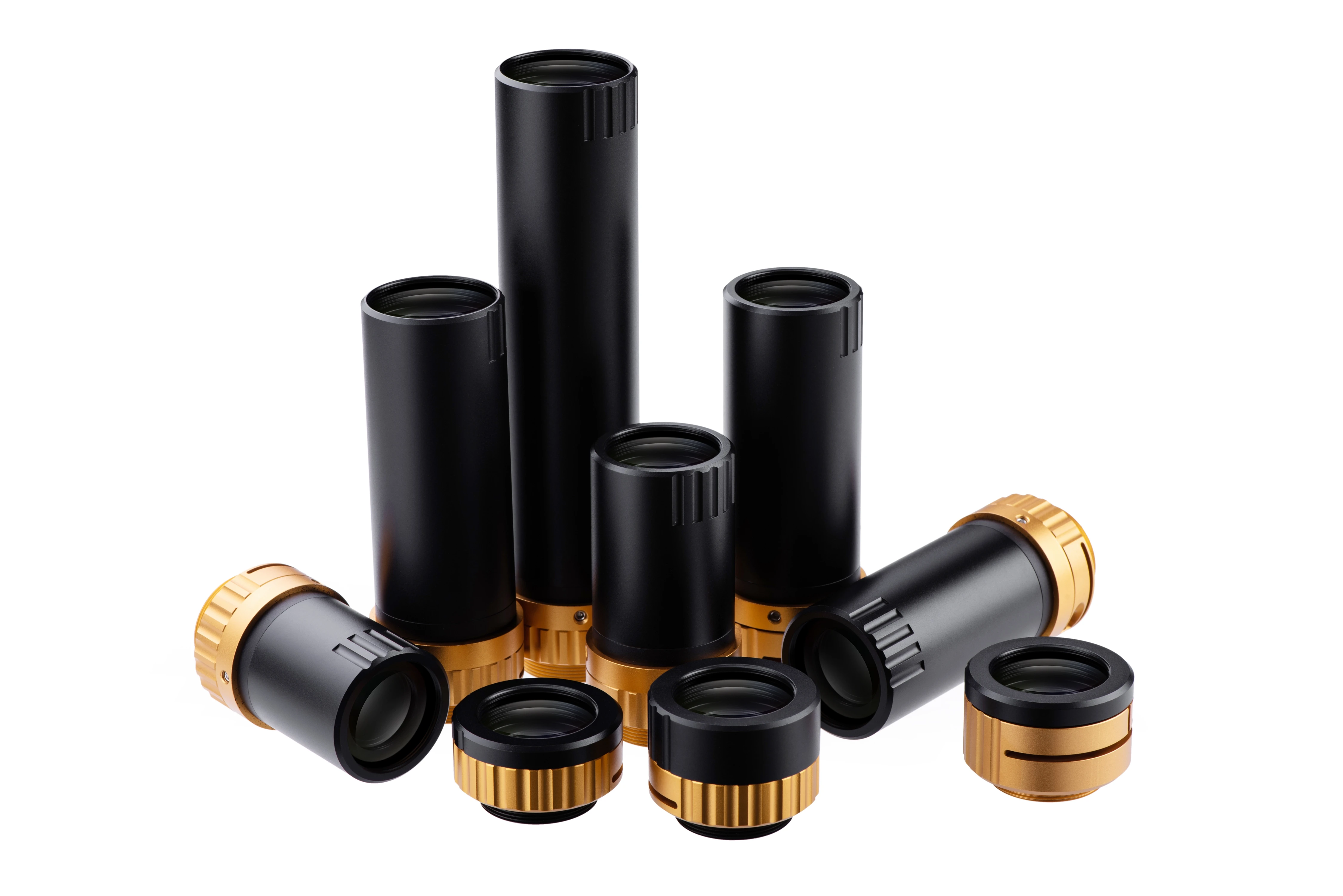

Industrial machine vision products: telecentric lens, double telecentric lens, industrial lens for industrial testing,
measurement, inspection, positioning, identification, etc.
measurement, inspection, positioning, identification, etc.
ZK Industrial Lens mainly features:
Features: ● WD=65mm, Magnification 0.3X, DOF(Depth of Field) 7.4 mm, Distortion TV< 0.1%.
● Mainly Usage: The KOMA dual telecentric lenses have an superior ability to quickly perform repeatable, high-accuracy
measurements is critical to maximizing the performance of many machine vision systems. For such systems, a dual telecentric lens
allows the highest possible accuracy to be obtained.
● Parallax Error Elimination: KOMA dual telecentric lenses eliminate the parallax error characteristic of conventional lenses by
having a constant, non-angular FOV; at any distance from the lens, a telecentric lens will always have the same FOV.
● Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
● Ultra-high resolution--10MP, C-mount, small Aperture, low Magnification.
● Mainly Usage: The KOMA dual telecentric lenses have an superior ability to quickly perform repeatable, high-accuracy
measurements is critical to maximizing the performance of many machine vision systems. For such systems, a dual telecentric lens
allows the highest possible accuracy to be obtained.
● Parallax Error Elimination: KOMA dual telecentric lenses eliminate the parallax error characteristic of conventional lenses by
having a constant, non-angular FOV; at any distance from the lens, a telecentric lens will always have the same FOV.
● Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
● Ultra-high resolution--10MP, C-mount, small Aperture, low Magnification.

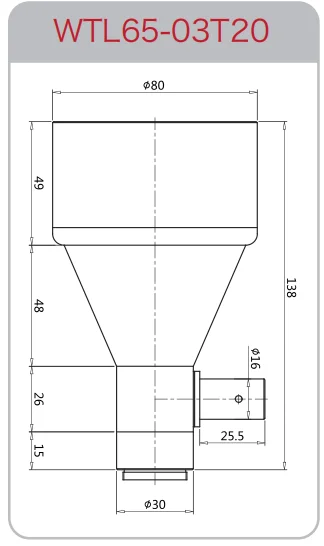

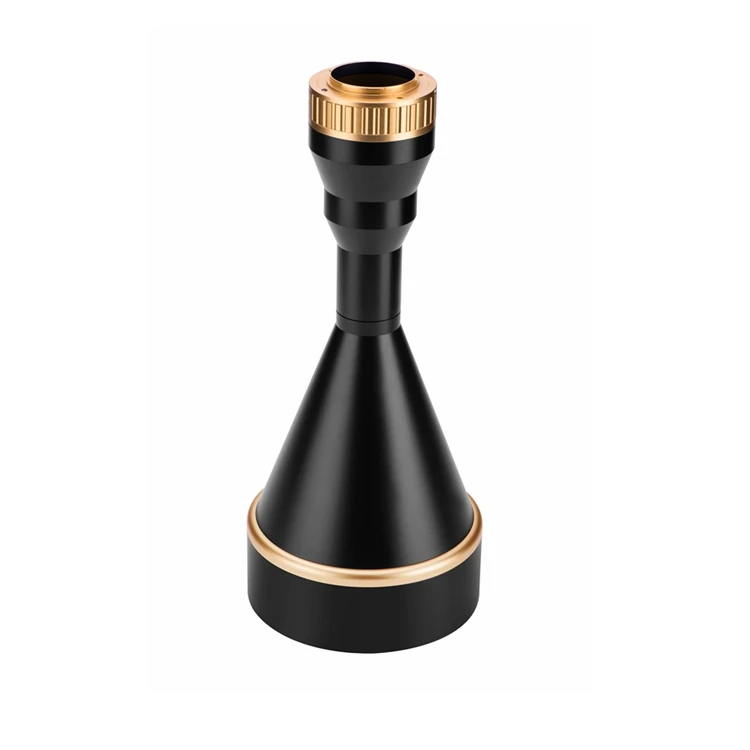

Model No. WTL65-03T20
Mag:0.3X
Mag:0.3X
Telecentricity:<0.1
Optical distortion:<0.1
Aperture:F11
MTF>0.3(LP/MM):>100
Telecentric lens
The main light of a telecentric lens is parallel to the optical axis of the lens, which is very suitable for coaxial lighting. When the distance between the object and the lens changes, without changing the magnification, the telecentric lens eliminates the image perspective error and allows accurate measurement of 3D objects. He moves up and down
Company Profile
Shenzhen ZK Electric Technology Co., Ltd
Shenzhen ZK Electric Technology Co., Ltd. is a professional manufacturer of kinds of Solar Pump Inverter, AC drives, variable frequency inverter and soft start, Industrial Lens, etc.
There are around 50 staffs working in our factory, 50% of them are engineers. Thanks to our great R&D team hardworking and innovation.

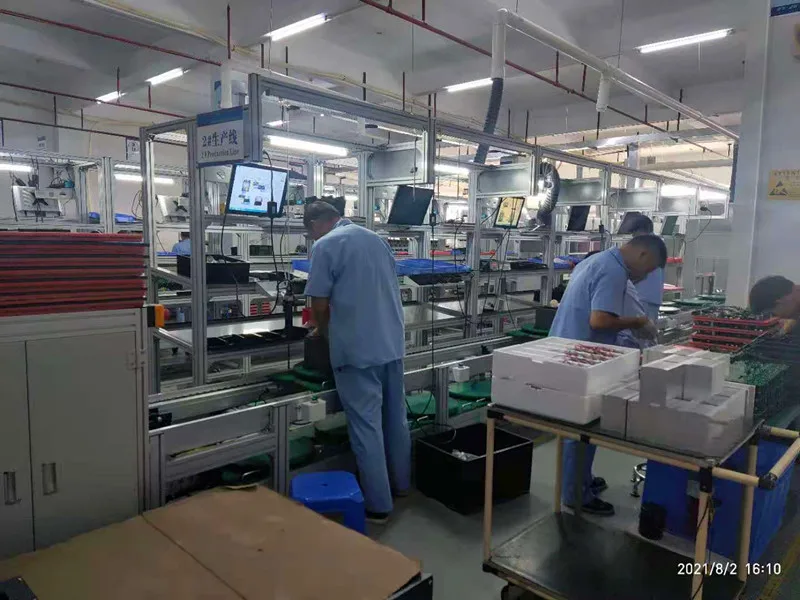

We have 2 modernization production lines, digital quality control system, code bar tracking system and ERP management system.

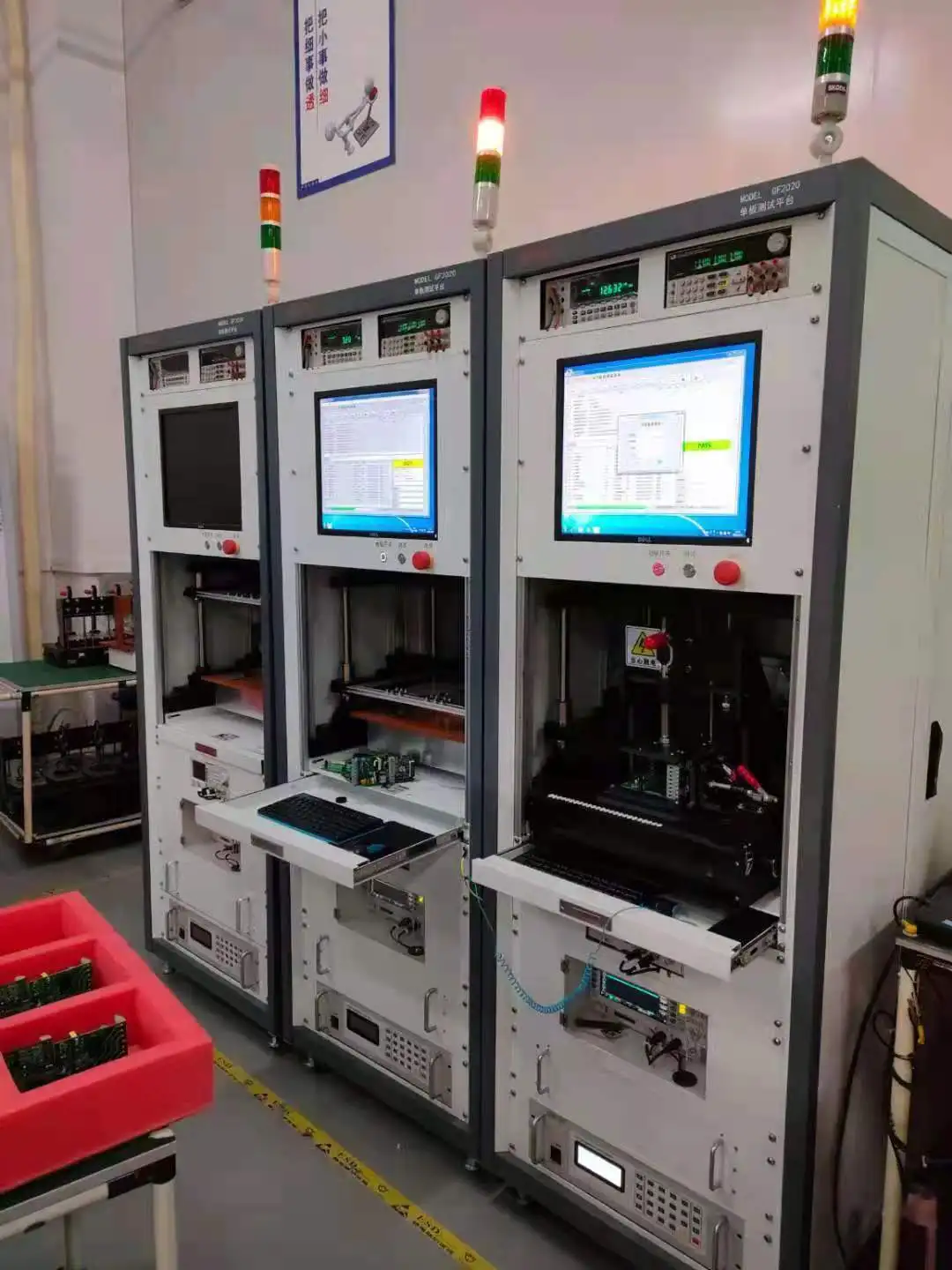

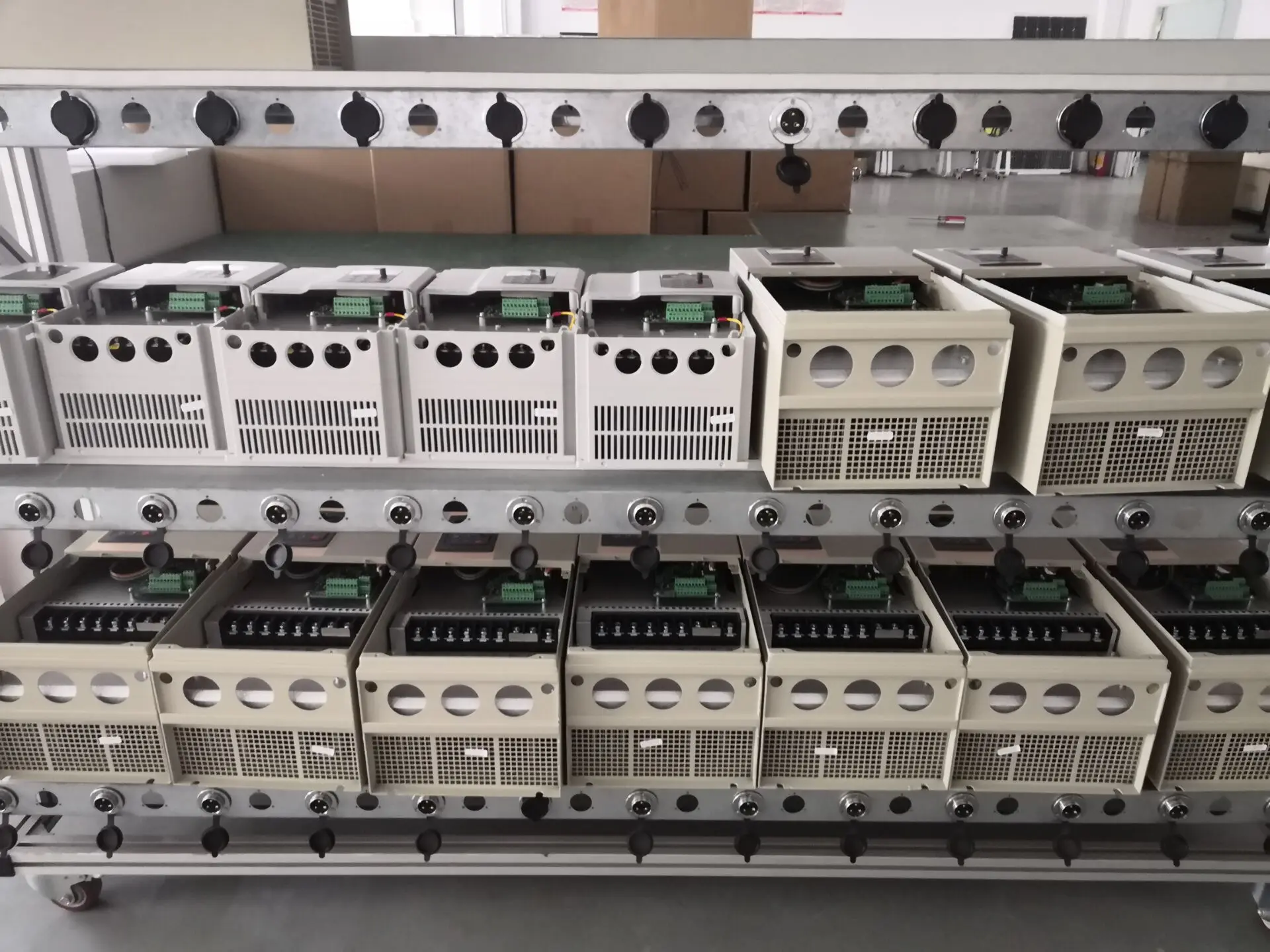

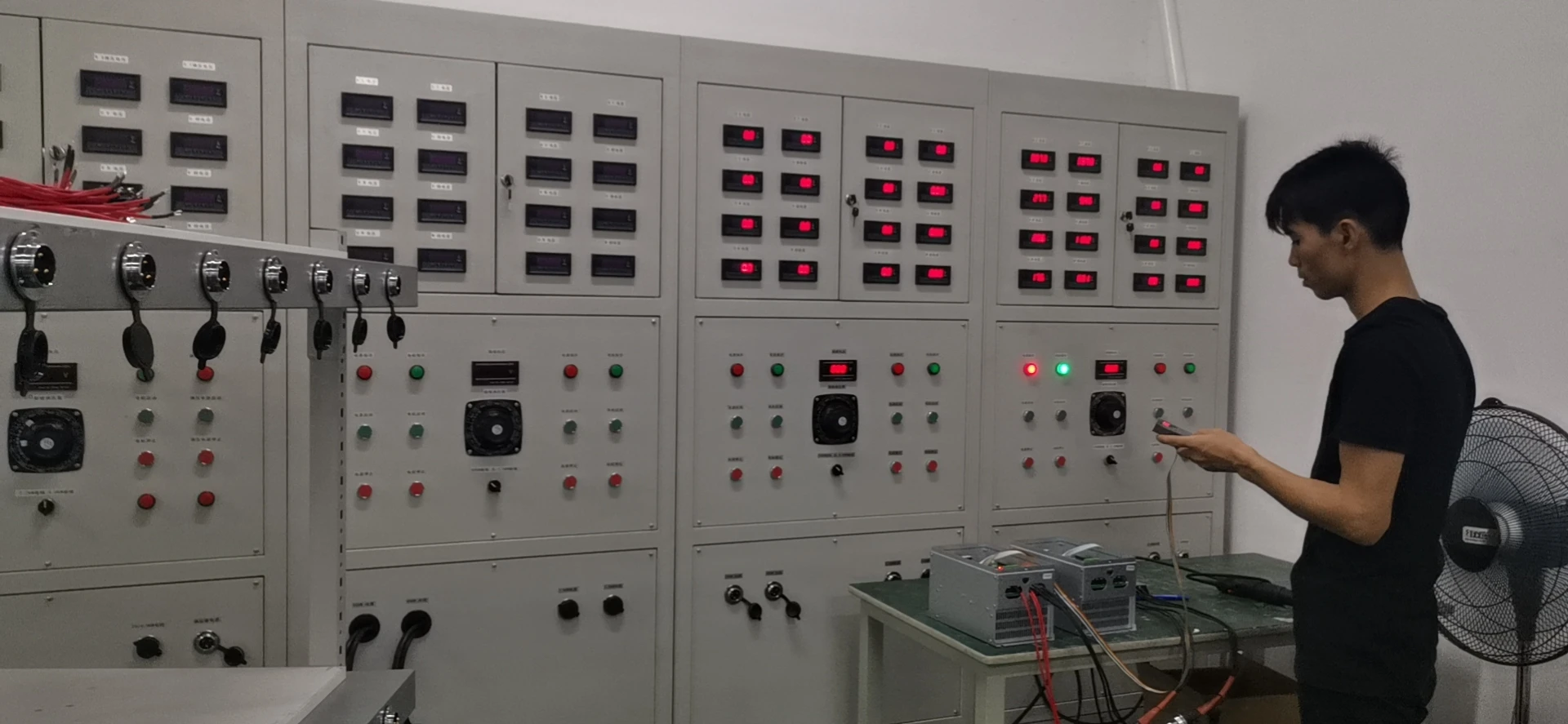

All ZK Inverters have been tested with full load to ensure 100% good quality before shipping.
There are around 50 staffs working in our factory, 50% of them are engineers. Thanks to our great R&D team hardworking and innovation.
We have 2 modernization production lines, digital quality control system, code bar tracking system and ERP management system.
All ZK Inverters have been tested with full load to ensure 100% good quality before shipping.

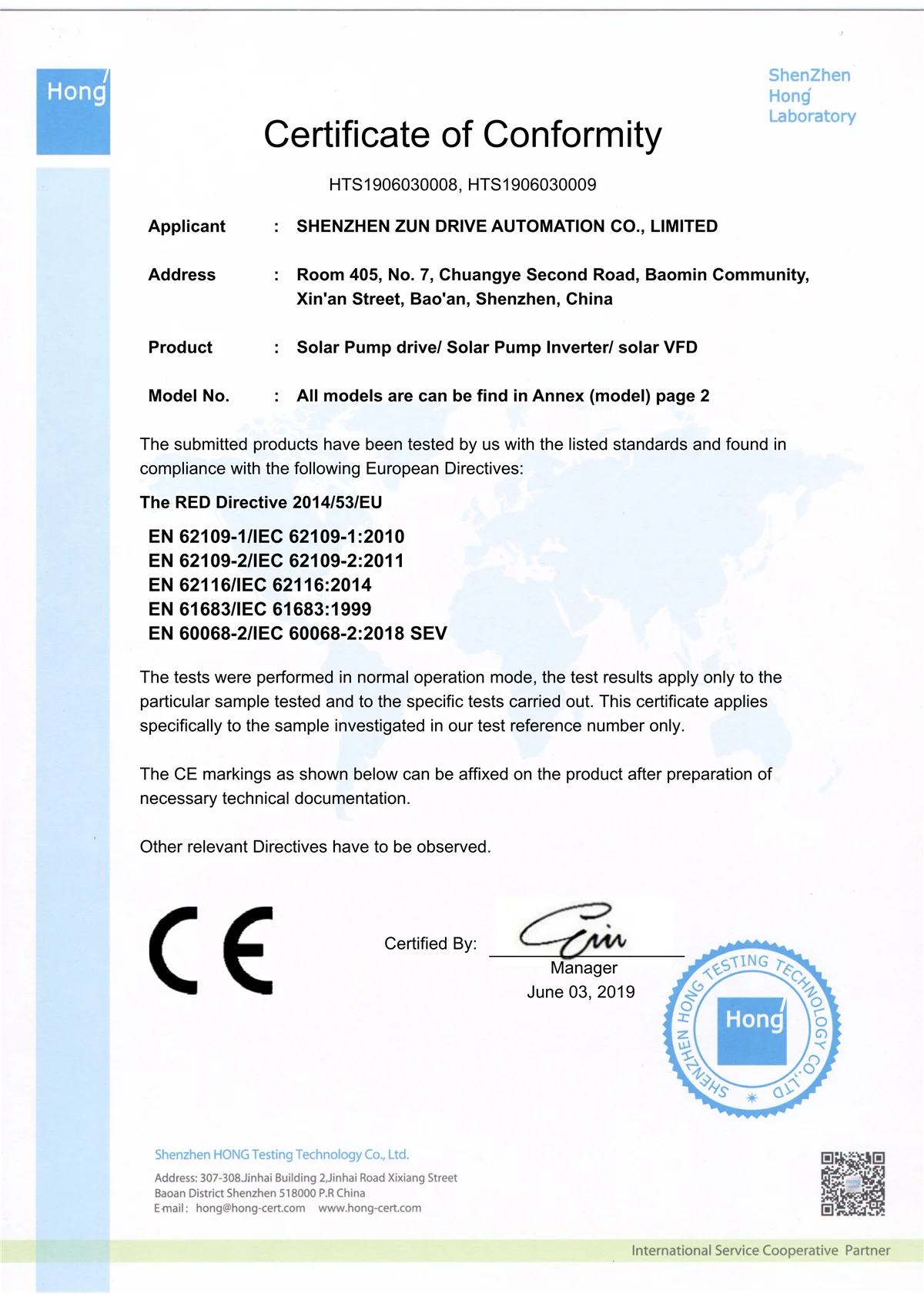

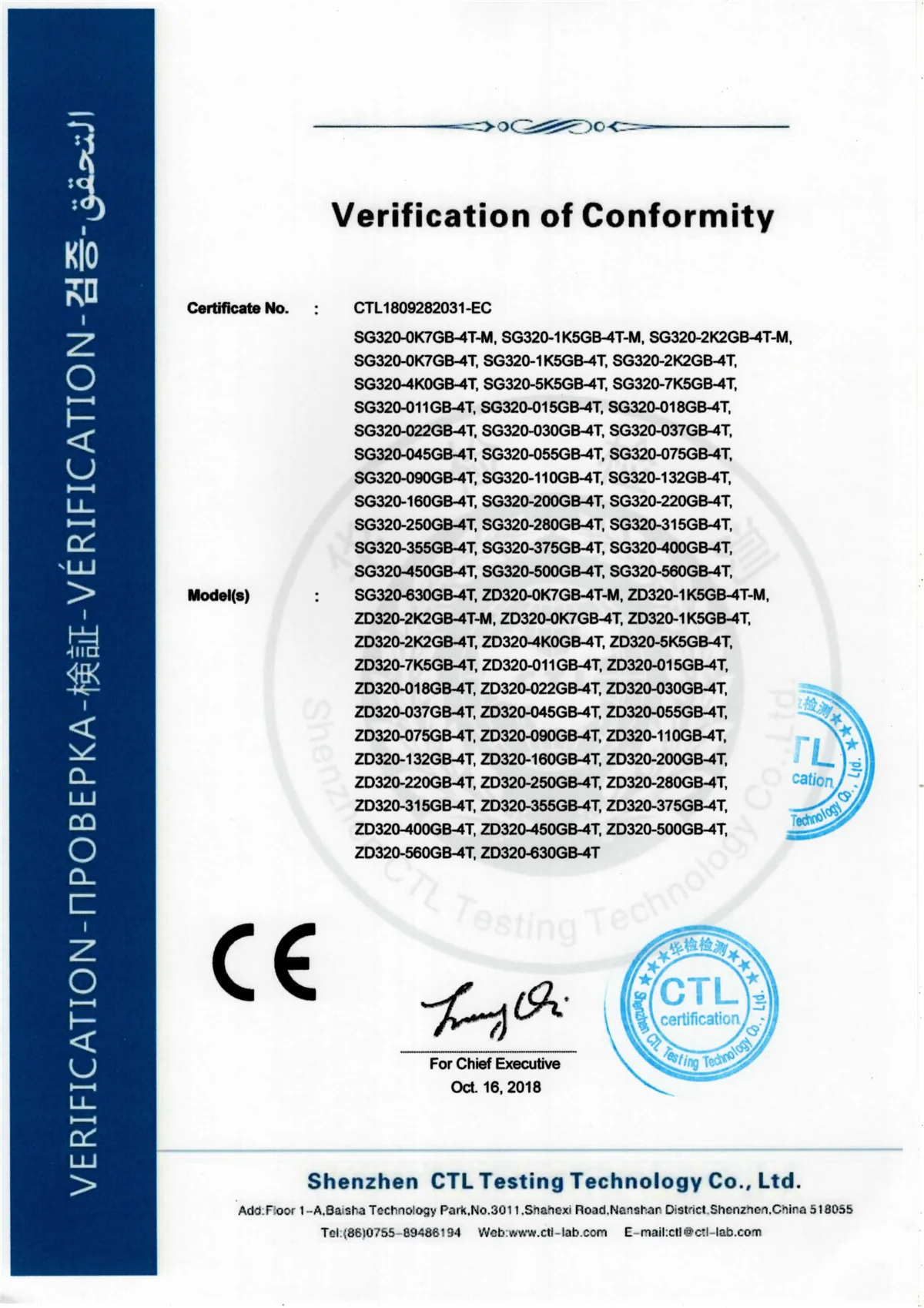

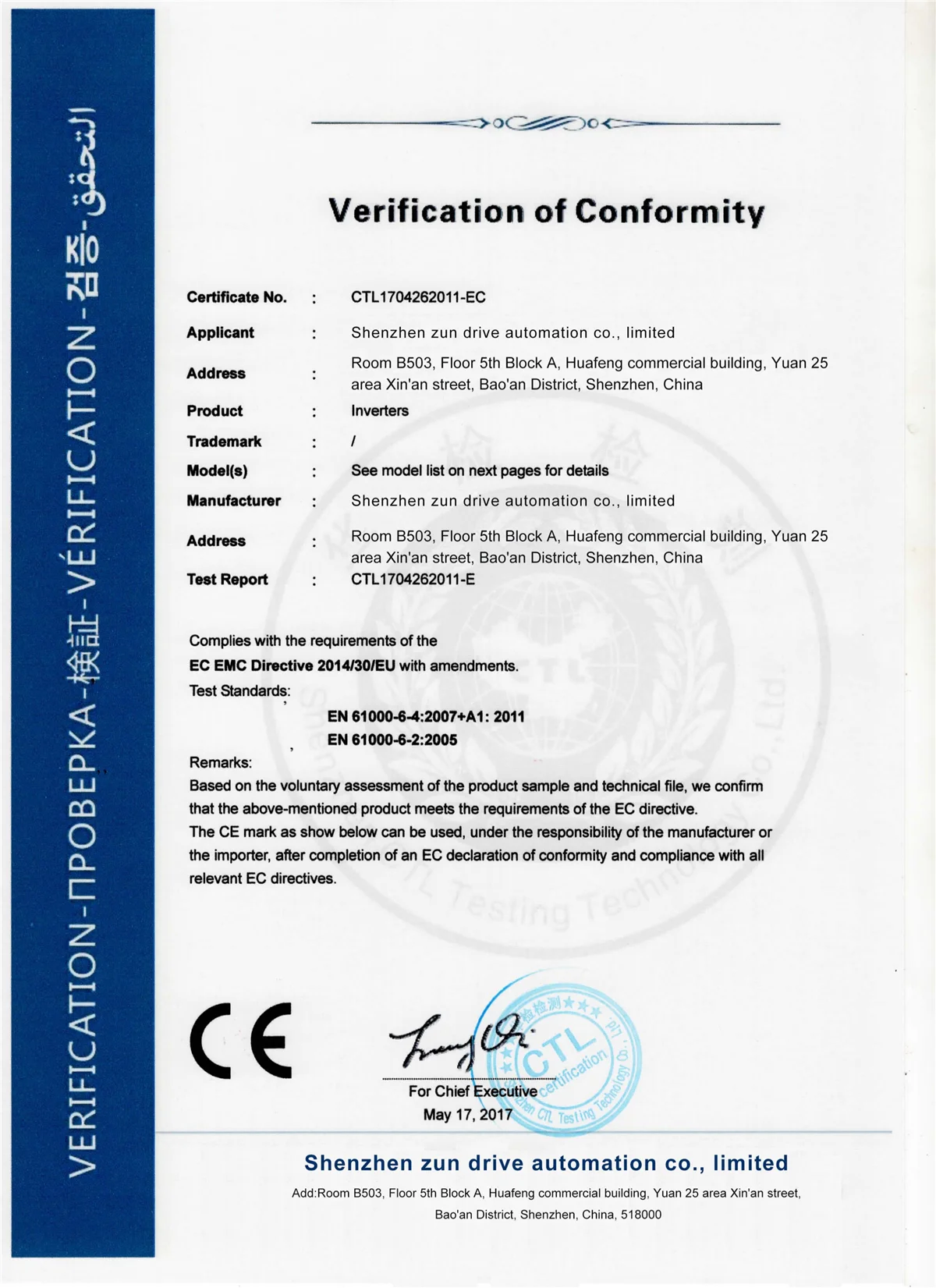

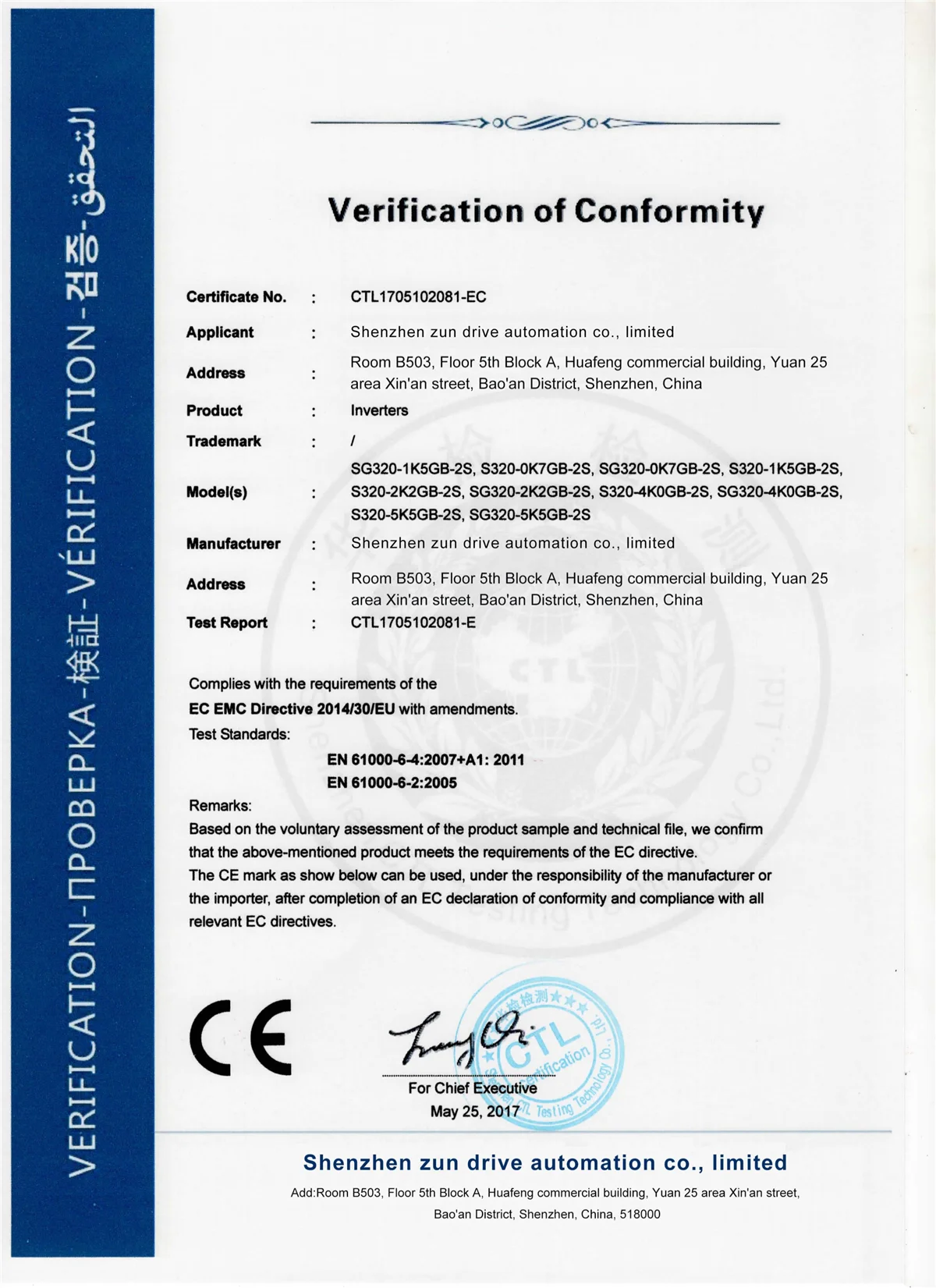

Certifications

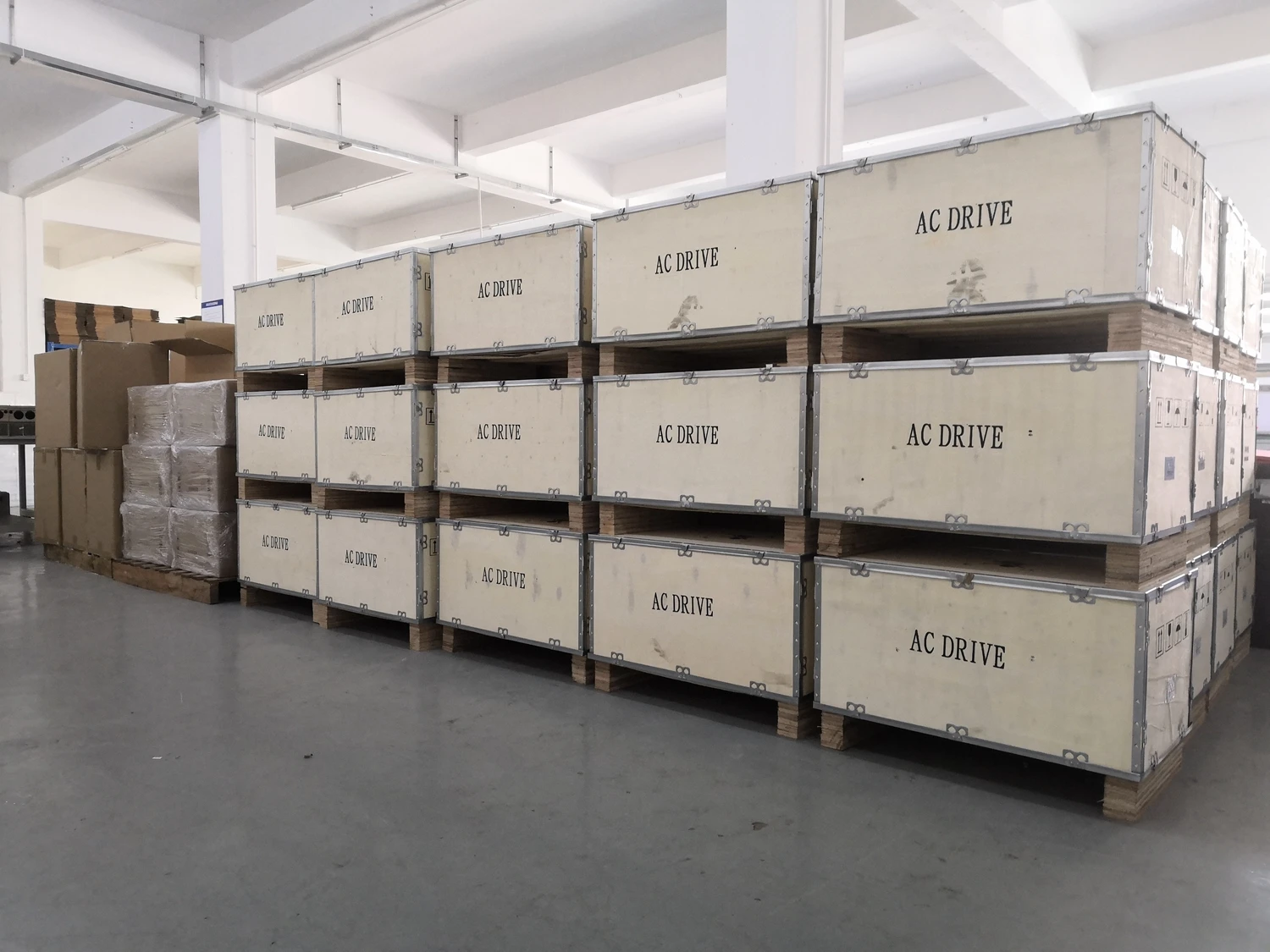

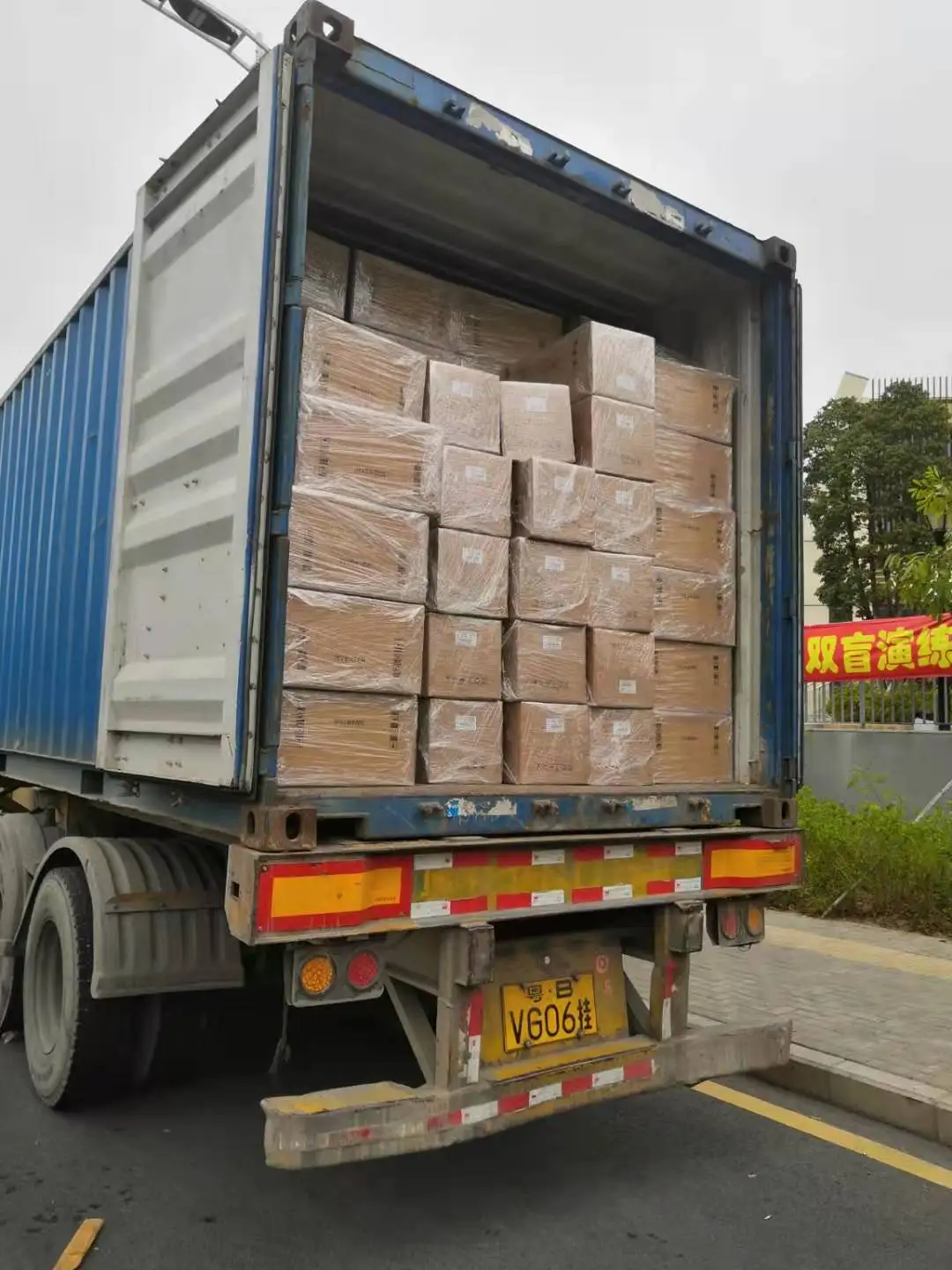

Product packaging
