Electric engine brushless generator 3 phase 40kw 50kva diesel generator price
- Category: >>>
- Supplier: Jiangsu United Power Friend Technology Co. Ltd.
Share on (1600527872798):
Product Overview
Description

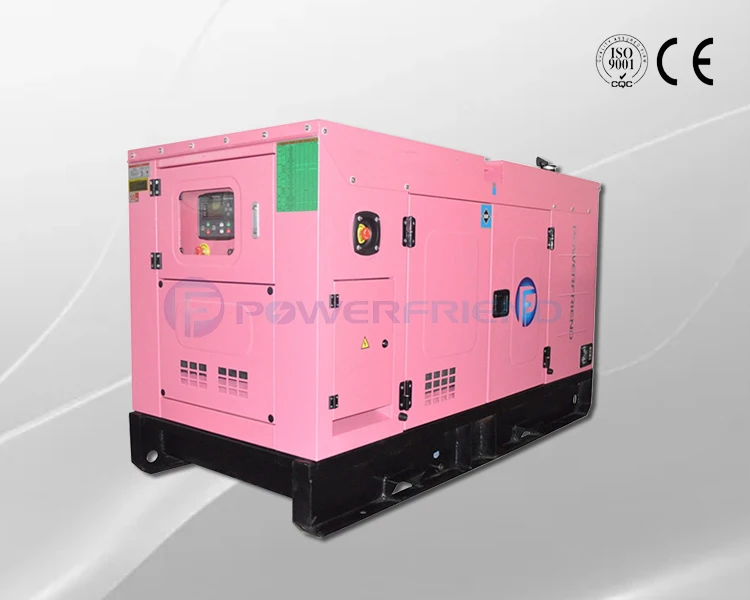

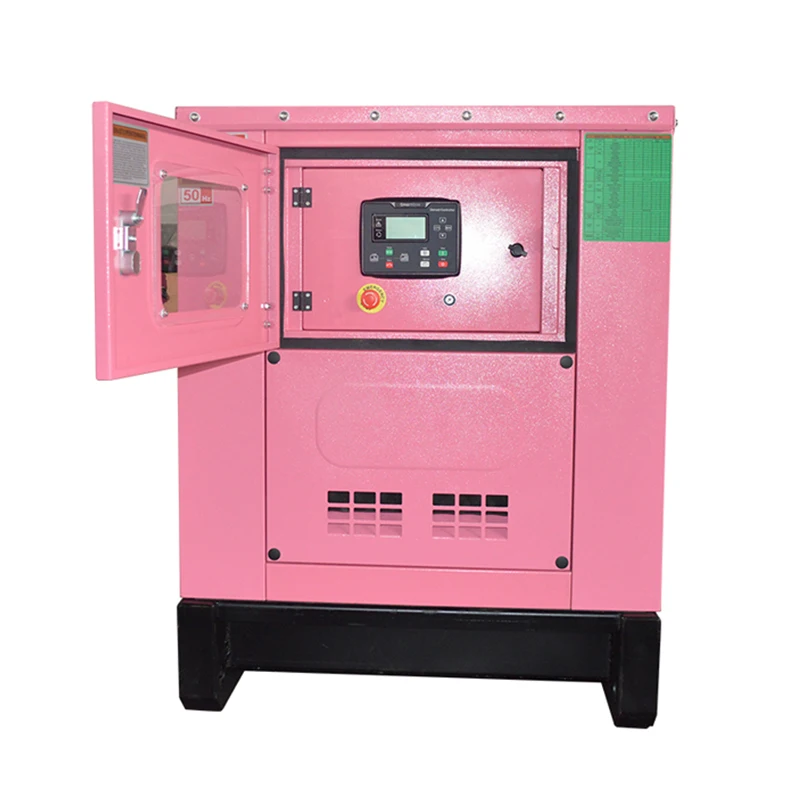

Brushless diesel generator 40kw Liquid cooling With 4 cylinder and silent shell
Product Description
| Technical specification | |

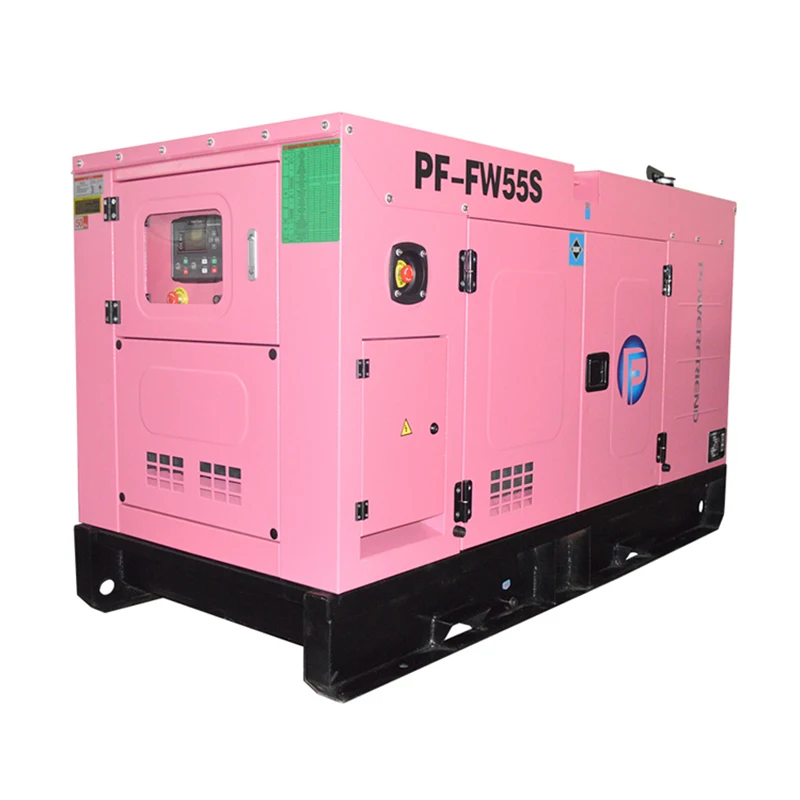

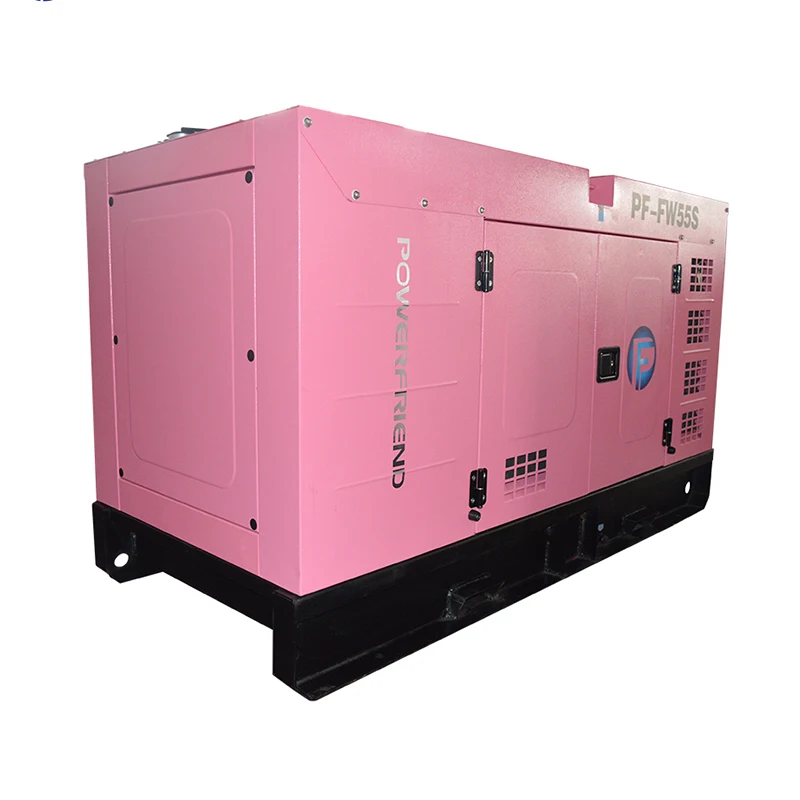

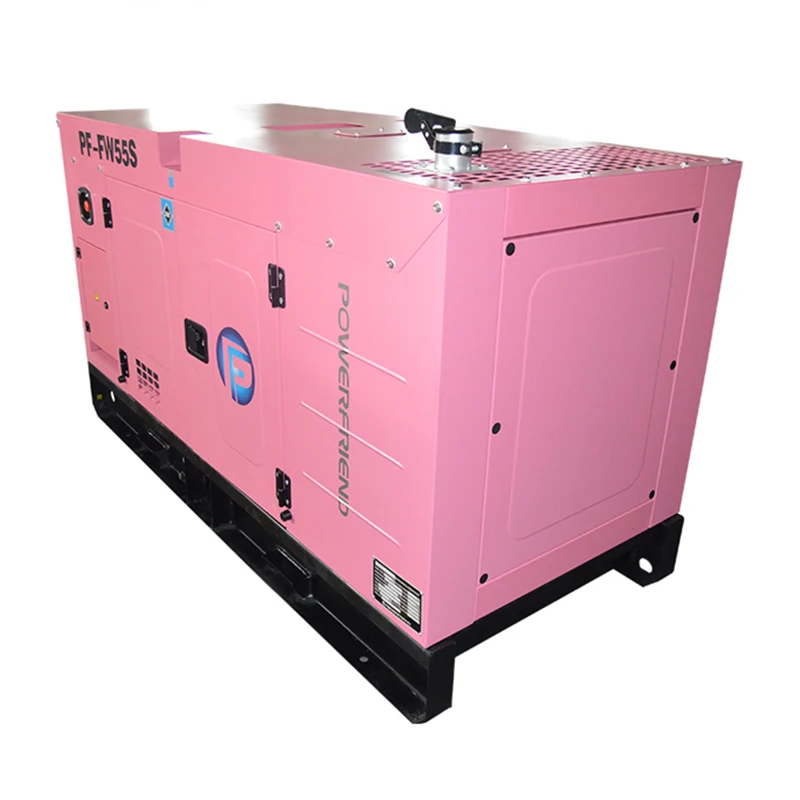

| Genset Model | PF-FW55S |
| Prime Power | 40KW/50KVA |
| Standby Power | 44KW/55KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 400/230V |
| Frequency | 50HZ |
| Rated Current | 72A |
| Genset Structure | Silent type |
| Dimension | 2320x1100x1200mm |
| Net Weight | 1200KG |
| Engine Model | FAWDE/4DX21-45D |
| Engine Features | 4-cylinder,4 stroke, water cooled, natural |
| Bore * Stroke | 102x118 mm |
| Displacement | 6.7L |
| 12-hour Power(kw) | 39KW/1500 |
| Fuel Consumption L/H | 6.7L/H |
| Compression Ratio | 17:1 |
| Governor type | Electronic |
| Alternator Model | Mecc Alte/ECO32-1L/4, Stamford, Marathon, Leroy Somer |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Smartgen / DeepSea / Harsen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
Packaging & Shipping
Our Services
Warranty period is one year or 1000 running hours ( depends on which occurs first). If the failure is caused by trubine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable sapre parts of genset caused by crew wearing parts, consumable parts for daily use, human error, negligence or failure of following the original maintenance manual provisions, etc.
FAQ
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global engine have the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
6. Can you use our logo?
Yes. For mass orders, we can use customer's logo instead of ours.
