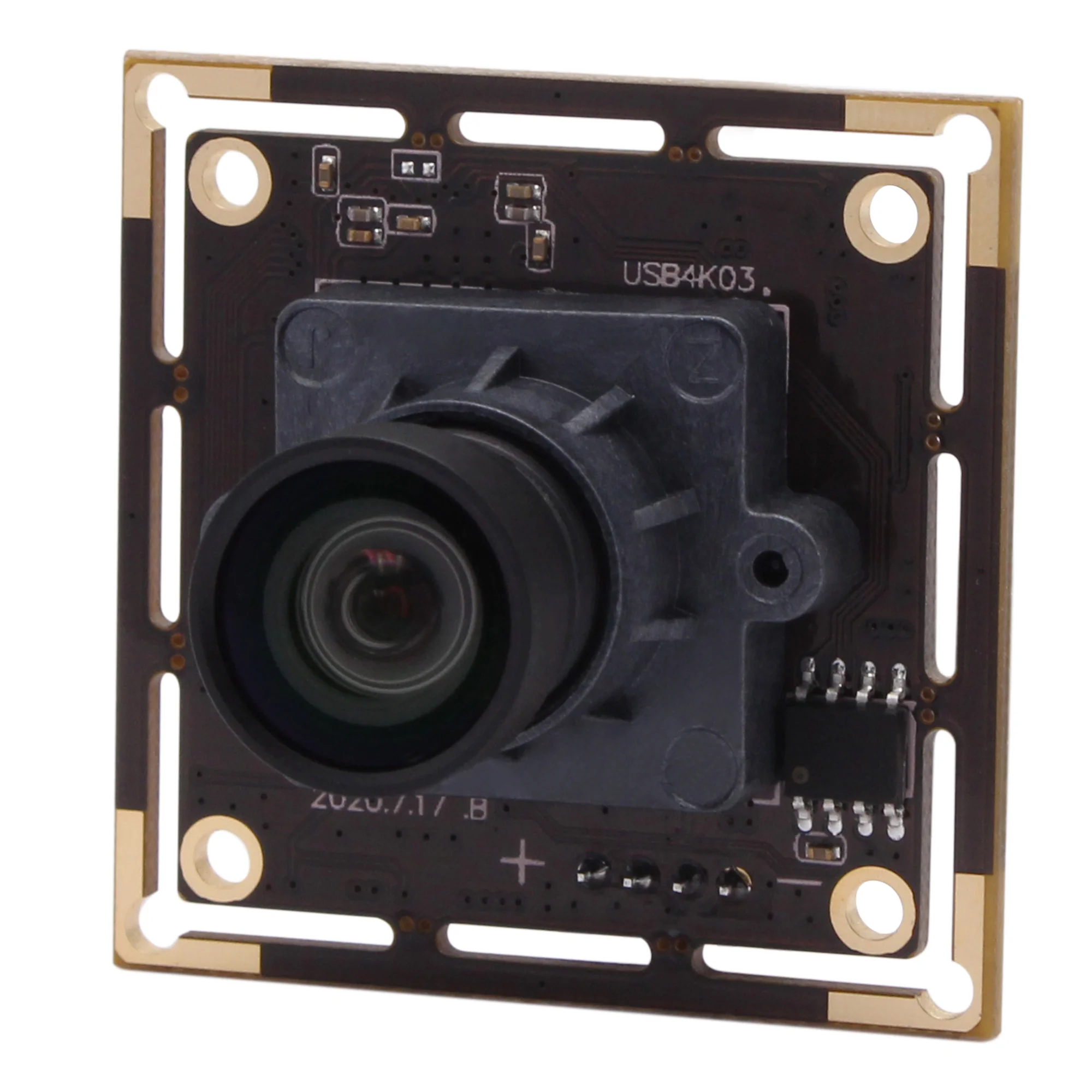

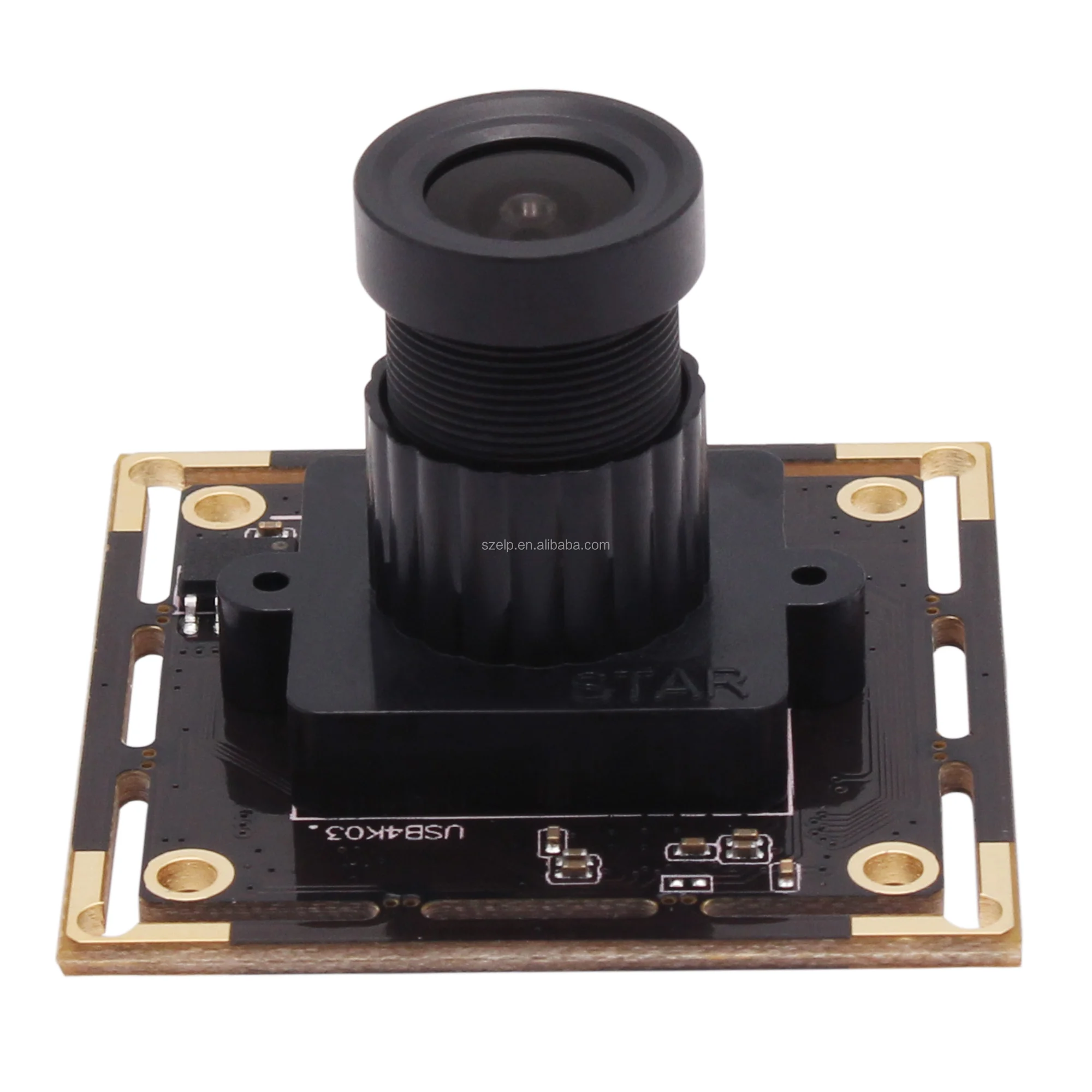

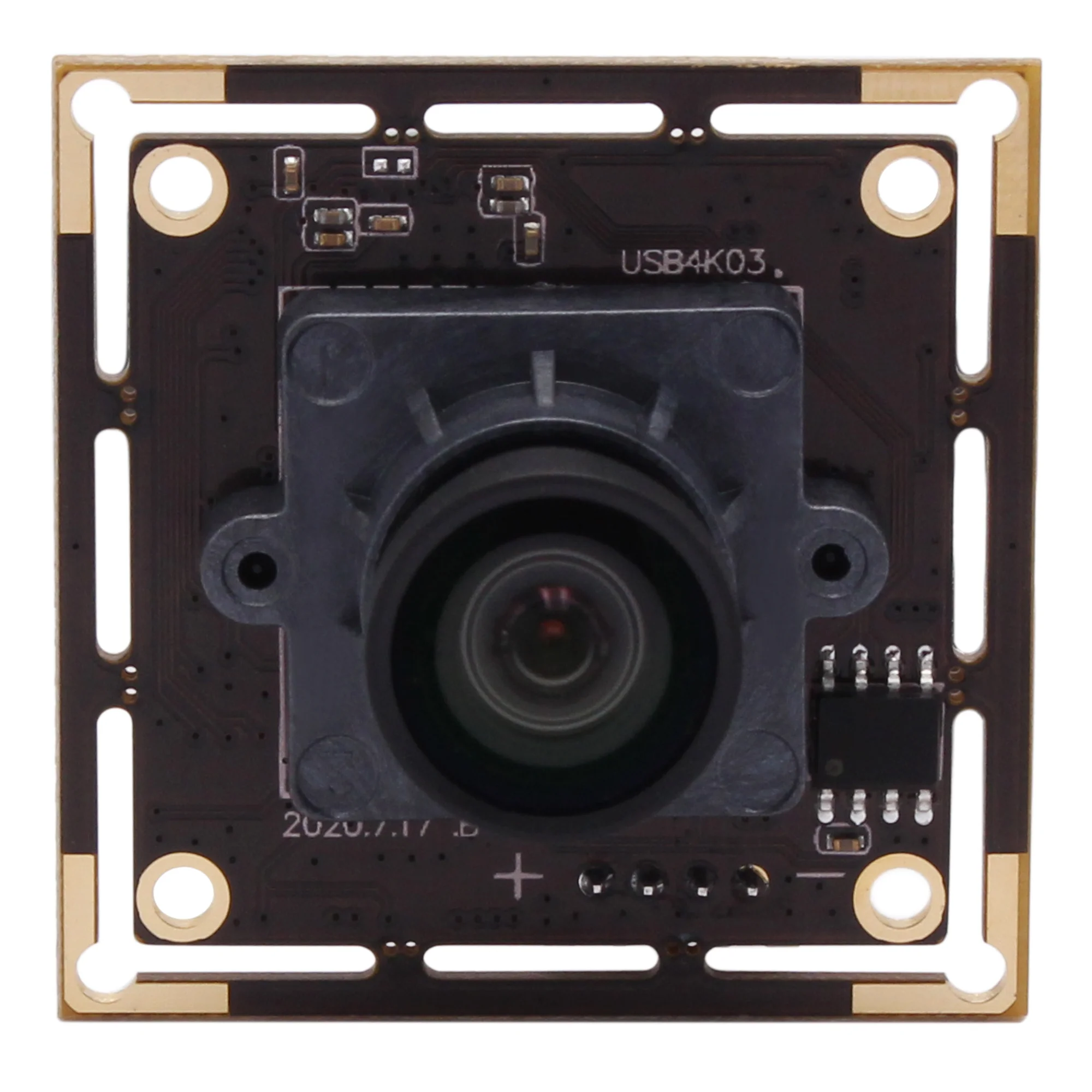

ELP IMX415 Mini 4K Camera Module USB 3840X2160 30FPS with No Distortion Lens for Face Identification Capturing USB4K03 LC1100
- Category: Webcams >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600527887815):
Product Overview
Description
ELP IMX415 Mini 4K Camera Module USB 3840X2160 30FPS with No Distortion Lens for Face Identification Capturing ELP-USB4K03-LC1100
Product Description
Features:
* 4K 3840*2160 High resolution USB Camera
* 1/2.8”Sony IMX415 sensor for high quality image
* With no distortion M12 lens, optional 2.1/2.8/3.6/6/8/12mm/ wide angle fisheye lens
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38*38/32X32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specification:
Model NO.: | ELP-USB4K03-LC1100 |
Image Sensor | SONY IMX415 (1/2.8” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2(YUYV) |
Resolution & frame | 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Auto Focus | Support |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |
Lens Parameter
| No distortion lens IR filter: 650±10nm |

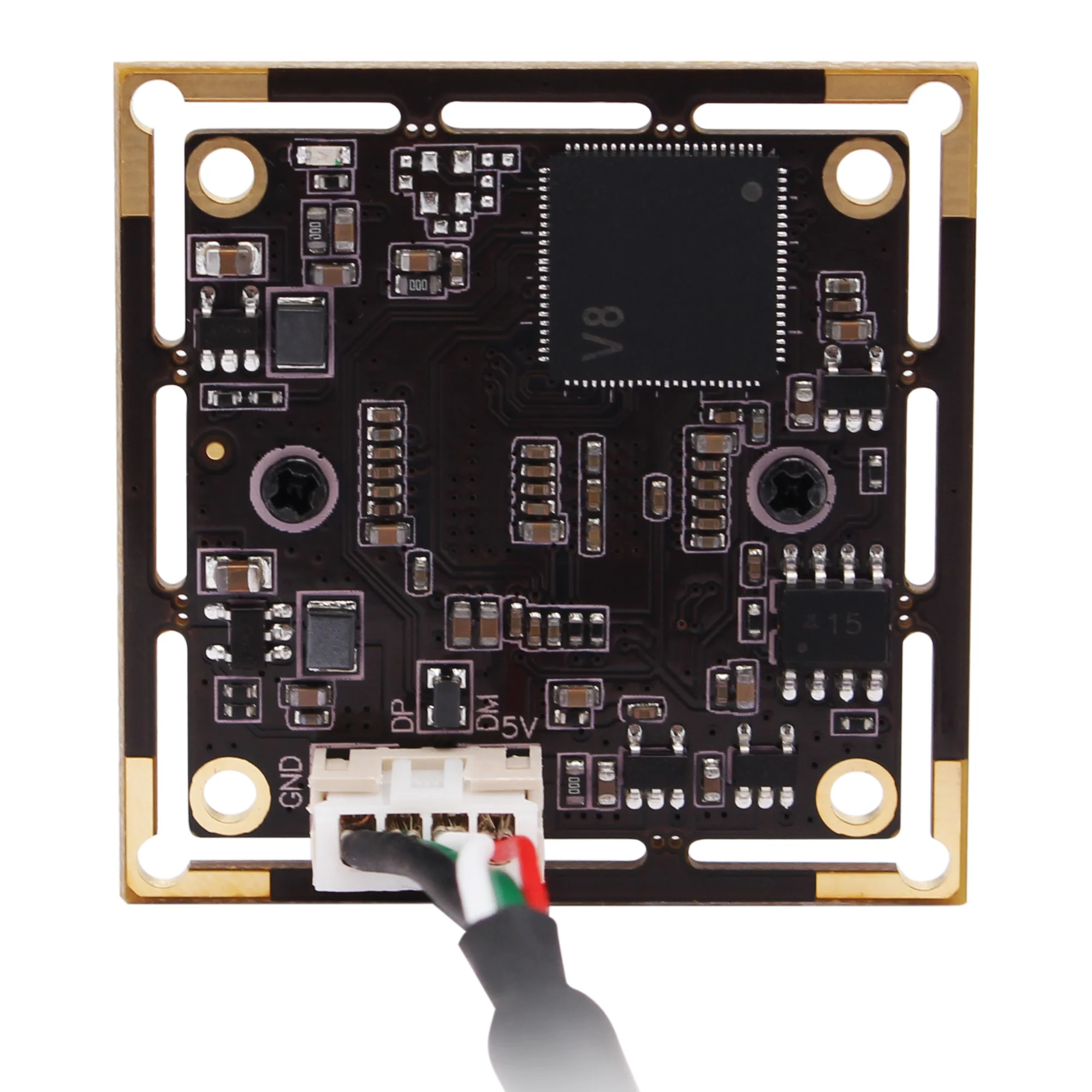

Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38mm×38mm or 32x32mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
USB Cable | 1M(2M/3M/5M optional) |
Operating System support | Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

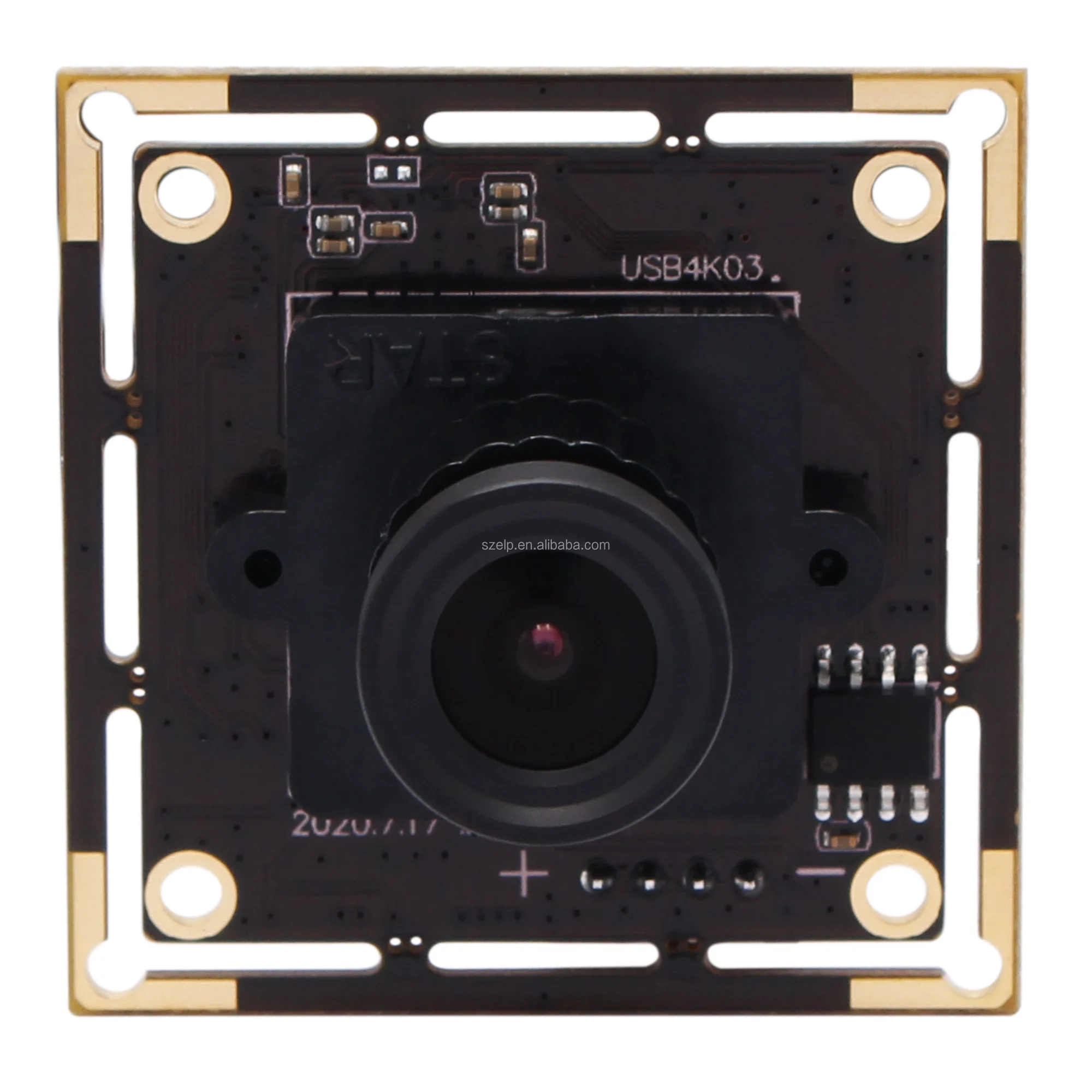

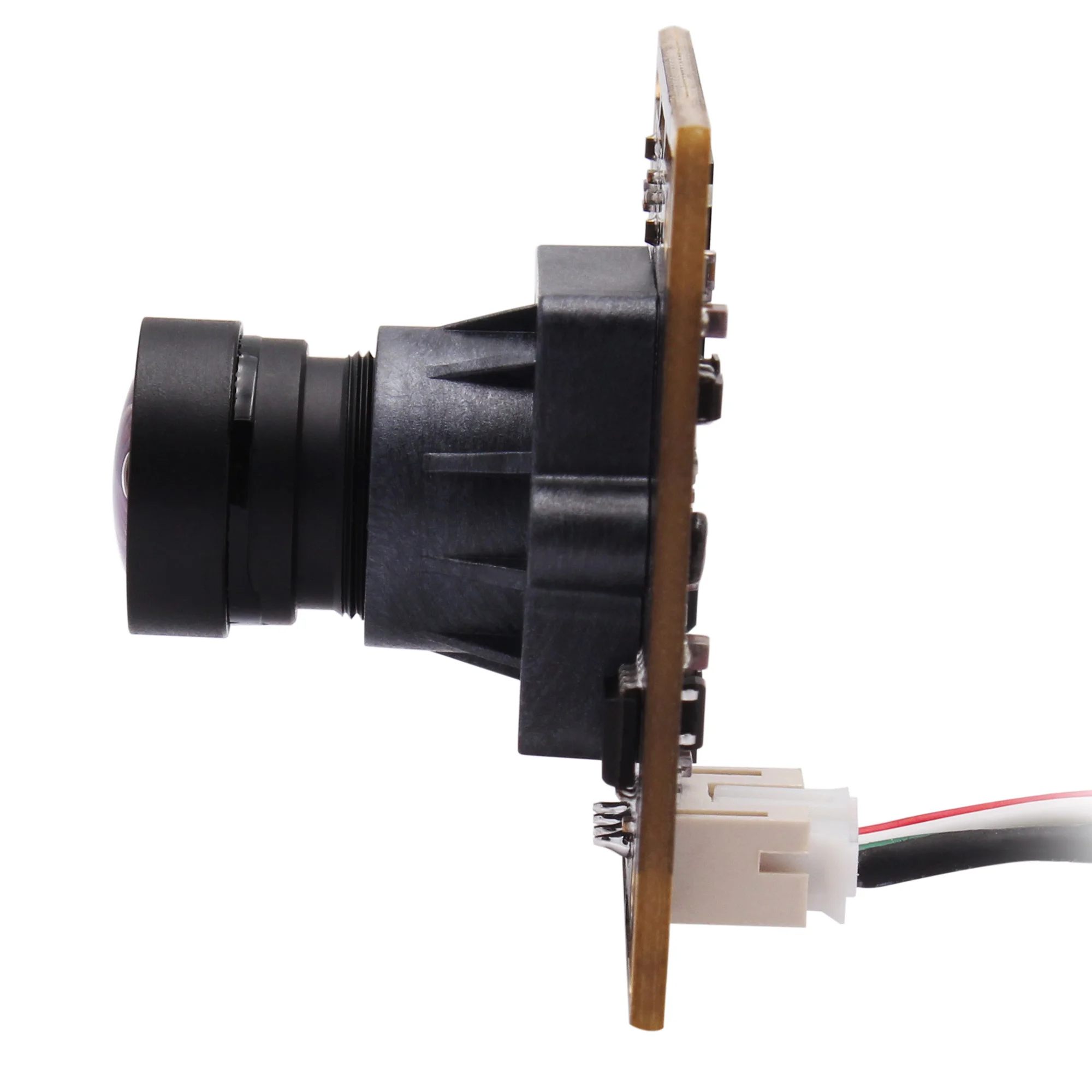

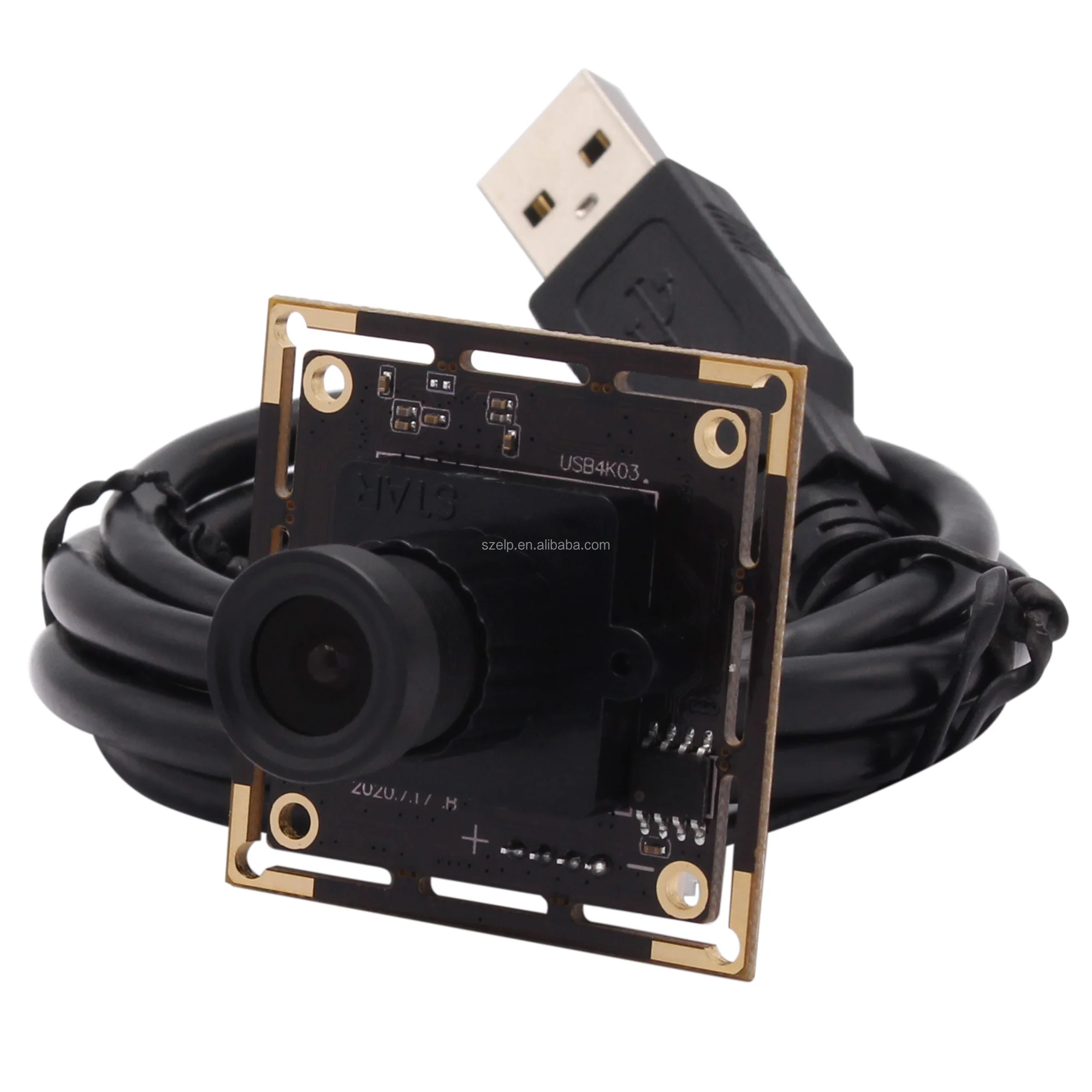

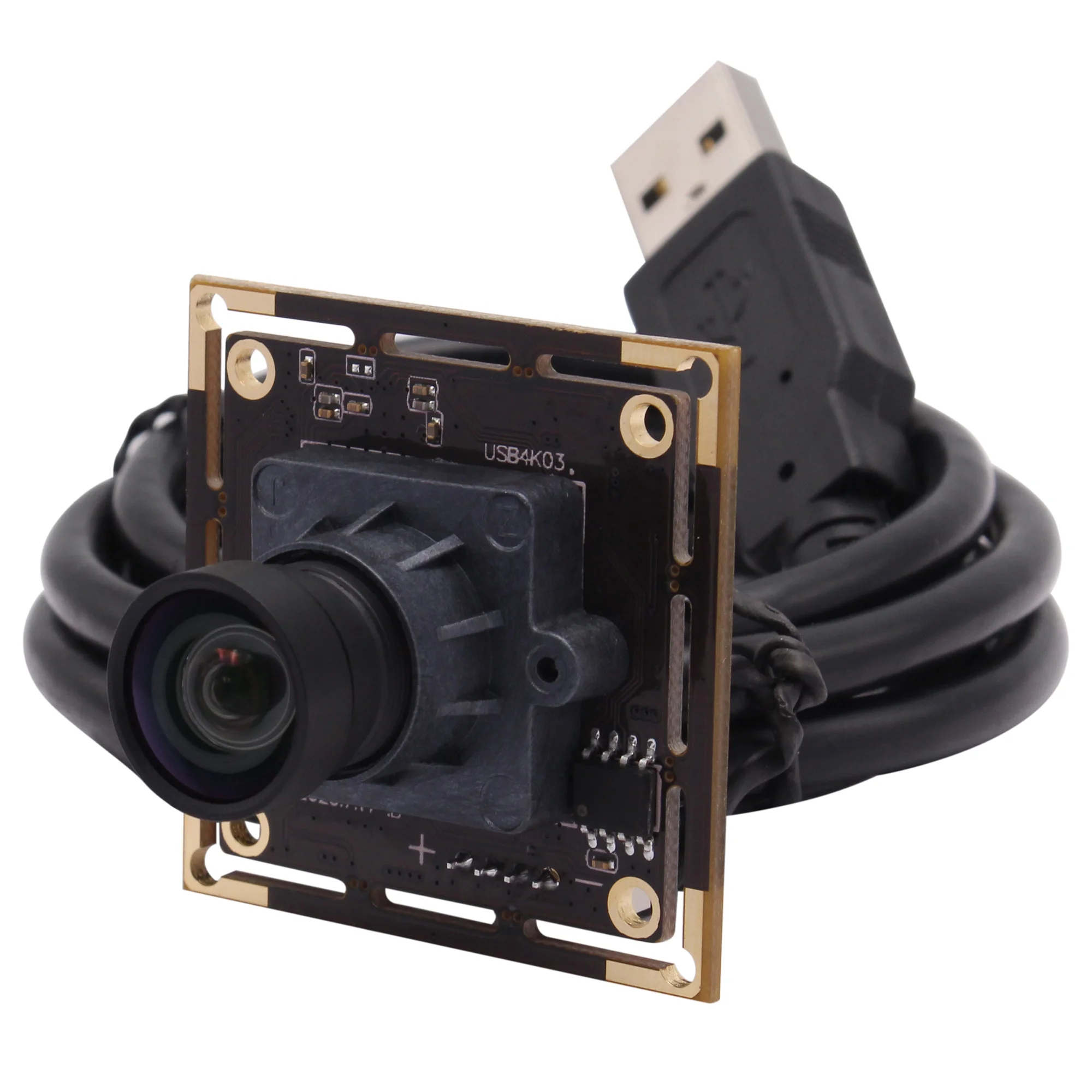

Pictures:
