Китайский поставщик газа, оборудование для бустера газа, охладитель биогаза, промышленный компрессор биогаза, цена
- Category: Industrial Compressor Parts >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1600527955277):
Product Overview
Description
Product Description

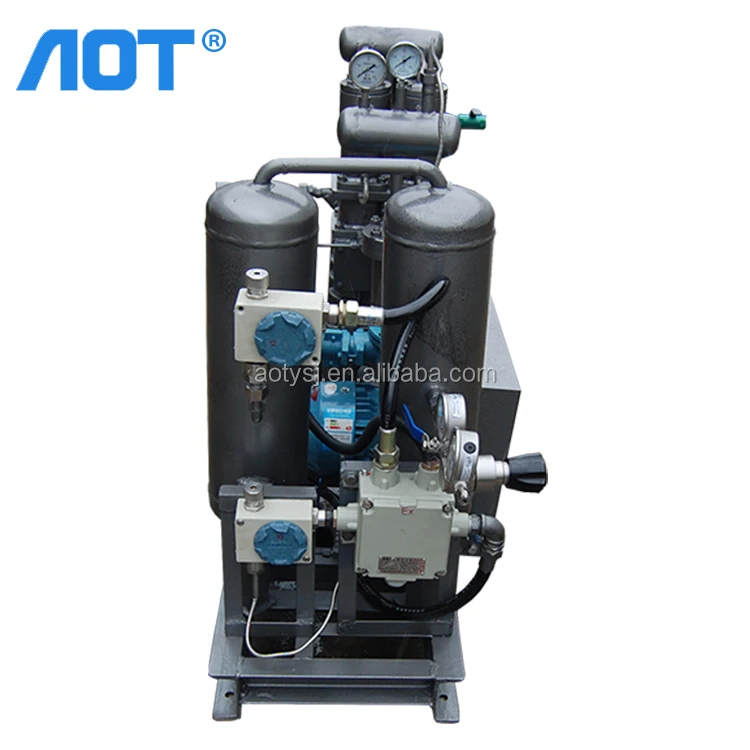

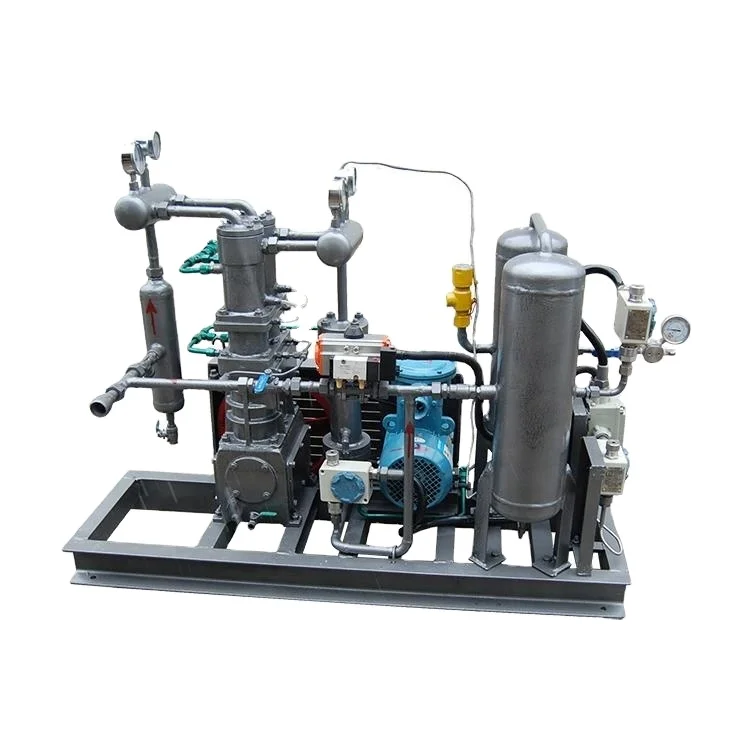

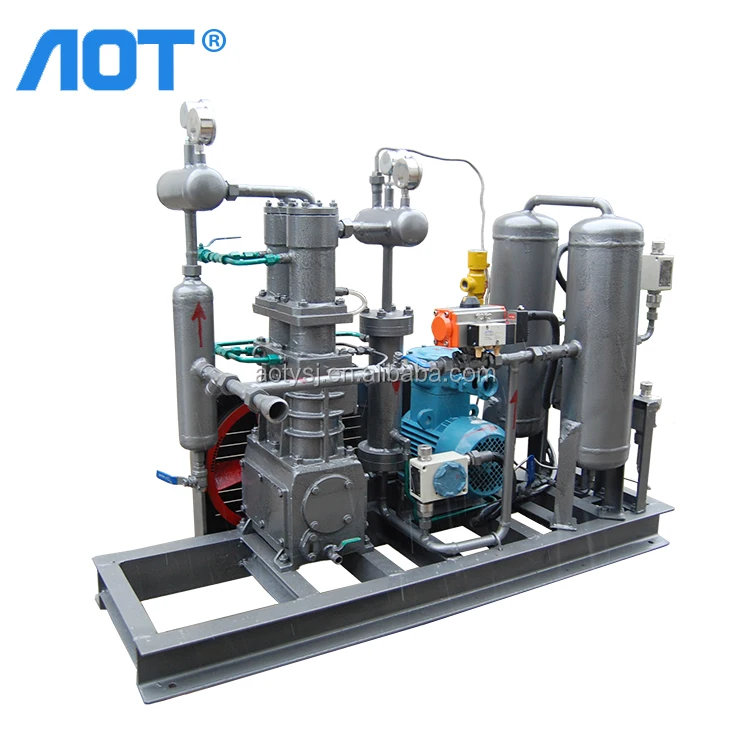

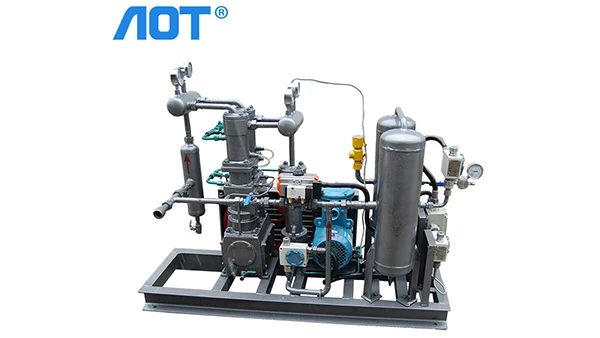

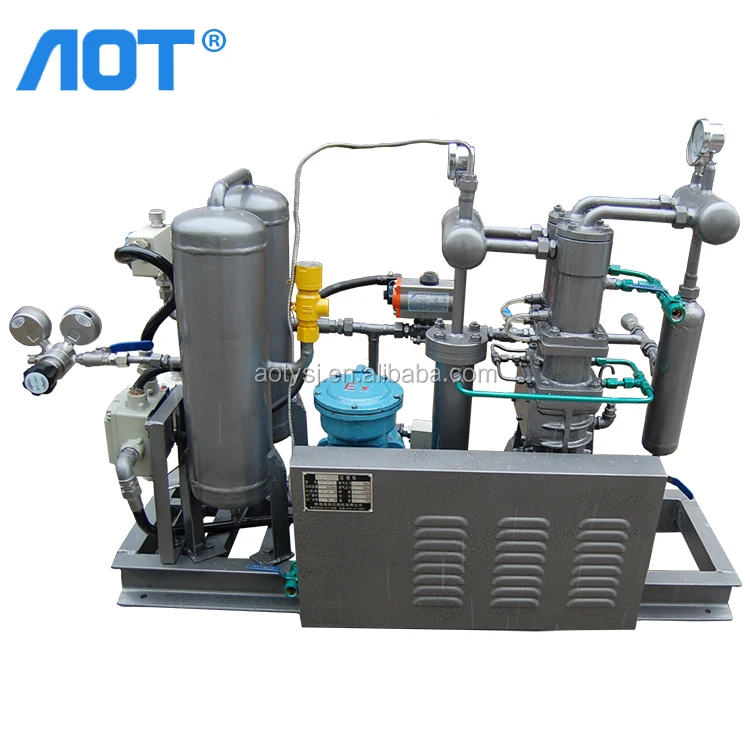

AOT Compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements,suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Product Overview:
✿ Product Overview: In response to the national demand for new and renewable energy, our company has developed large, medium and small compressors.With unique professional and technical level,our compressor products are cost-effective. discharge pressure from 0.2MPa to 25MPa , displacement from 0.2m3/min to 40m3/min,the compressor has Z-type, D-type and other forms.
✿ Features: the whole machine has the characteristics of low noise, high stability, simple structure and convenient maintenance.
The product is safe and reliable.
✿ Application: widely used in rural stations, sewage treatment plants, and new filling stations.
✿ Features: the whole machine has the characteristics of low noise, high stability, simple structure and convenient maintenance.
The product is safe and reliable.
✿ Application: widely used in rural stations, sewage treatment plants, and new filling stations.
Technical Parameters
Compressor | Product Model | ZW-0.5/8 | |||
Type | Z Type（customization ） | ||||
Compressed medium | Biogas | ||||
Nominal volume flow(Nm3/min) | 0.5 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤105 | ||||
Cooling mode | Water cooling | ||||
Rotational speed (r/min) | 550★ | ||||
Suction pressure (Bar G) | Normal pressure | ||||
Discharge Pressure (Bar G) | 8 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤160 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YB3-100L2-4 | |||
Explosion proof grade | / | ||||
Rotational speed (r/min) | 1420★ | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 6.8 | ||||
Rated power (Kw) | 3 | ||||
Compressor size (L×W×H) mm | ≈1400*800*1000★ | ||||
Weight(kg) | ≈680★ | ||||
Note:With the parameters of the logo will be subject to leave the factory
No. | Name | Unit |
1 | Compressor host | 1 |
2 | Explosion proof motor | 1 |
3 | Cooling system | 2 sets |
4 | Inlet gas-liquid separator | 1 |
5 | The relief valve | 2 |
6 | Shared chassis | 1 |
7 | Transmission | 1 set |

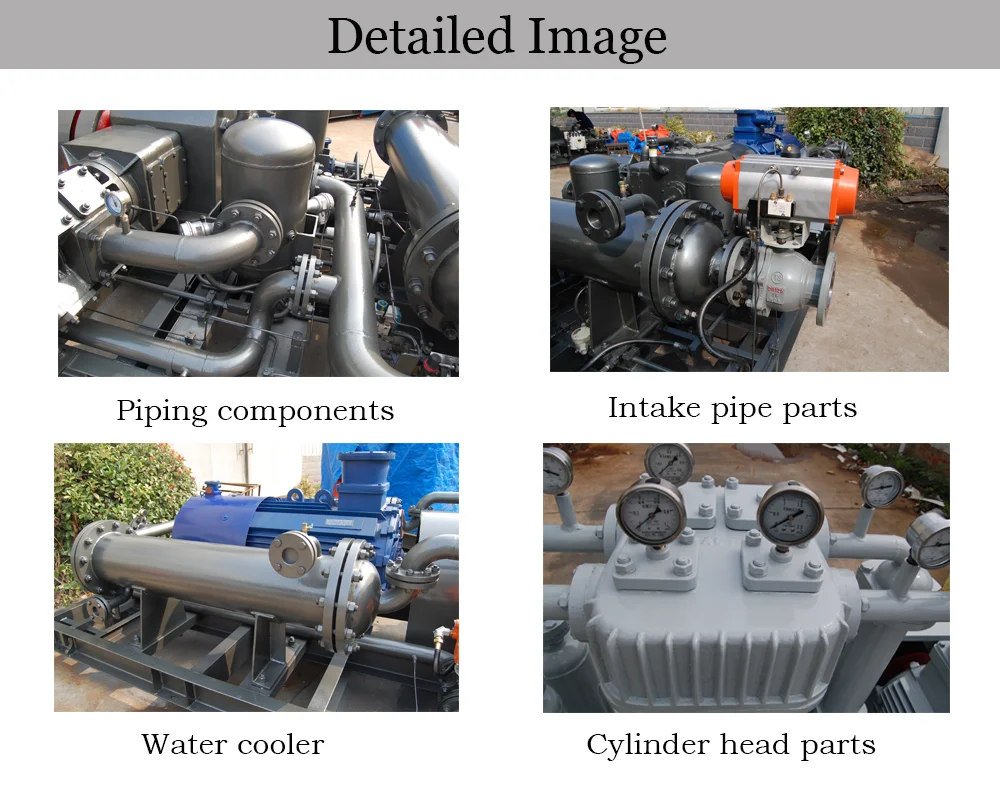

8 | Piping components | 1 set |
9 | Random spare parts | 1 set |
10 | The technical documentation | 1 set |
Related Products
Five reasons to choose AOT compressor :
✔ Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.✔ "Tailored" for customers:According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs ofcustomers.
✔ A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
✔ 12-Monthly free warranty:
All factory compressors are Free warranty for 12 months, lifetime warranty, so that users can be more assured.
✔ Perennial spare parts support:
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries
✔ Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.✔ "Tailored" for customers:According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs ofcustomers.
✔ A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
✔ 12-Monthly free warranty:
All factory compressors are Free warranty for 12 months, lifetime warranty, so that users can be more assured.
✔ Perennial spare parts support:
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries

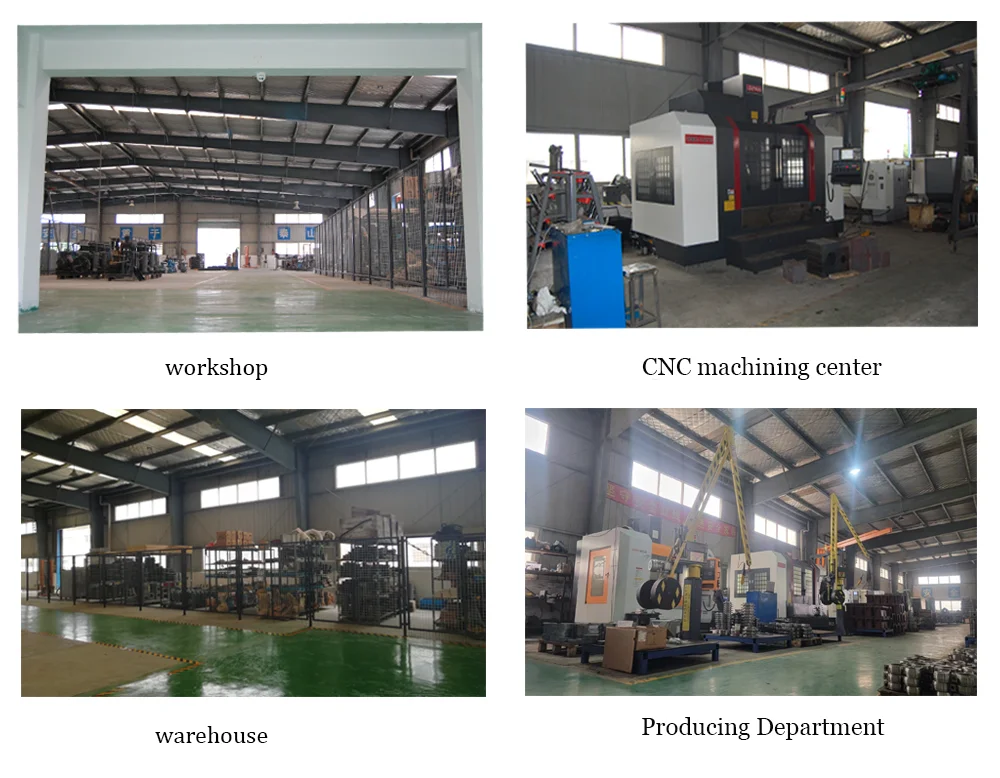

Our Company
Packing & Delivery
FAQ
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a compressor .
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: ______ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. ______Compressor .Application
If you are interested in it,please contact me freely
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: ______ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. ______Compressor .Application
If you are interested in it,please contact me freely
