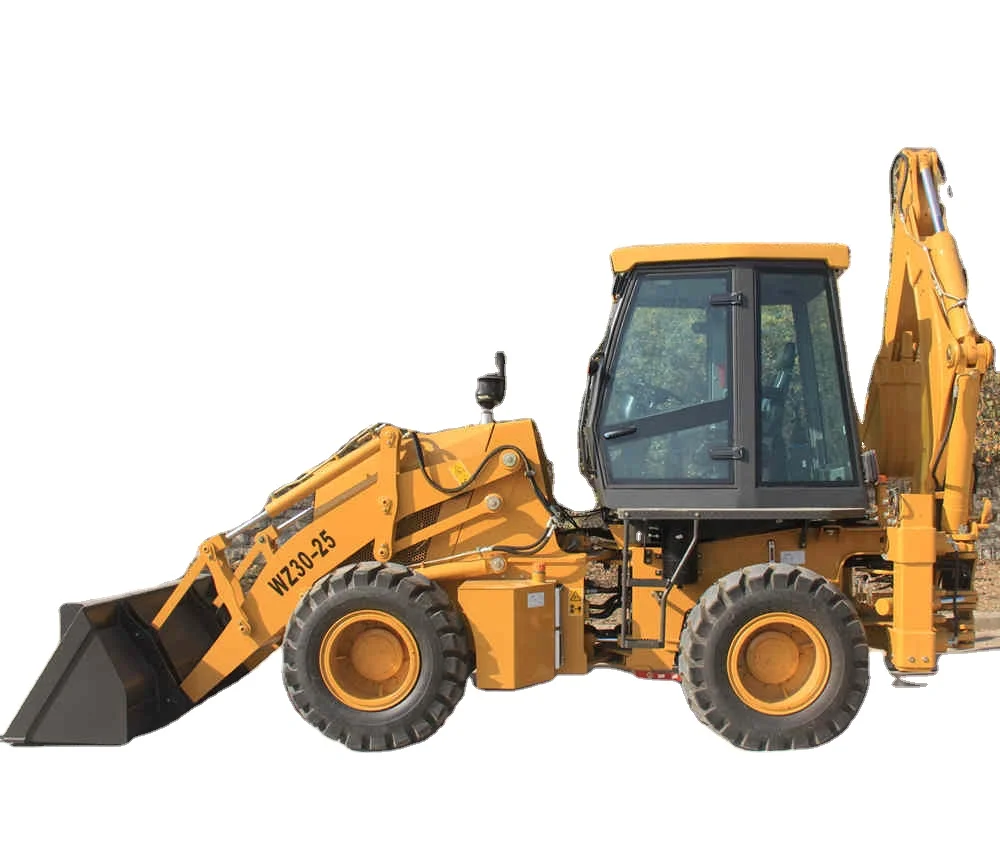

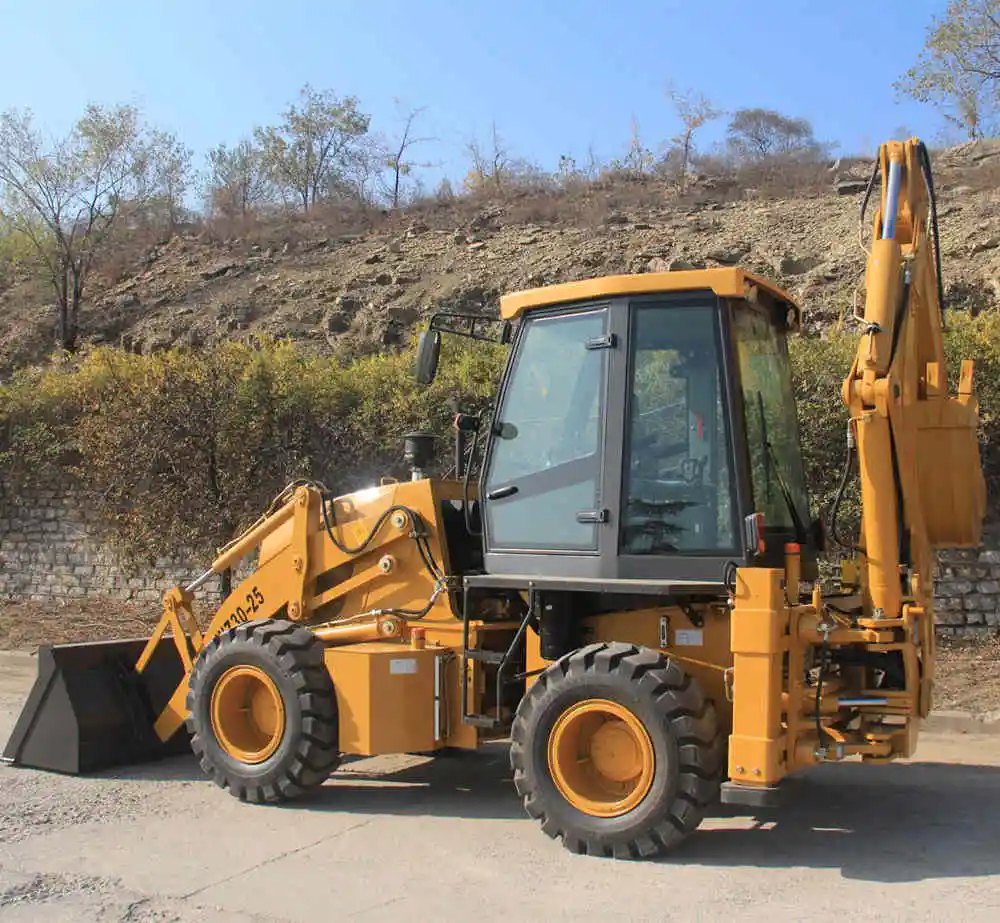

china cheapest mini backhoe loader excavator loader 4x4 tractor with loader and backhoe for sale
- Category: >>>
- Supplier: Weifang Champion Farm Machinery Co. Ltd.
Share on (1600528020123):
Product Overview
Description
Products Description
mini wheel loader
1. Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading
operation in the narrow site.
operation in the narrow site.
2. Loading device features refer to the world's advanced level of the British JCB 3 cx type structure, mining device features referto John Deere 310 se type structure, beautiful shape, cab USES large area glass, good daylighting sex and vision, the driver operation more comfortable.
3. With the gas cap oil pliers disc type foot brake system and external beam hand drum brakes, brake safe and reliable.
Adopts full hydraulic steering, power shift, working device hydraulic control. The operation of portable flexible, smooth and
reliable action.
reliable action.
4. Adopted 360 damping suspension type rotating seats, with the armrest and seat belt, improves the comfort and safety of the driver.
Product Specifications
Overall Operating Weight | 7640KG | Final Reducer | Single Stage Final Reducer | ||
Transport Dimension | Rated Loader of Axle | 7.5t | |||
(mm) L*W*H | 5910×2268×3760 | Transmission System | |||
Wheel base | 2250mm | Torque Converter | |||
Min. Ground Clearance | 300mm | Model | YJ280 | ||
Bucket Capacity | 1.2m3 | Type | Single-stage Three Elements | ||
Breakout Force | 38KN | Max. Efficiency | 84.40% | ||
Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.4Mpa—0.55 Mpa | ||
Bucket Dumping Height | 2742mm | Outlet Pressure | 1.2Mpa—1.5 Mpa | ||
Bucket Dumping Distance | 1062mm | Cooling Method | Oil-cooling Pressure Circulation | ||
Digging Depth | 52mm | Gearbox | |||
Backhoe Capacity | 0.3 m3 | Type | Fixed Shaft Power Transmission | ||
Max. Digging Depth | 4082mm/4500mm/5797mm) | Oil Pressure of Clutch | 1373Kpa—1569 Kpa | ||
Swing Angle of Excavator Grab | 190o | Gears | Two Gears Ahead, Two Gears Astern | ||
Max. Pulling Force | 39KN | Max.Speed | 22Km/h | ||
Engine | Tyre | ||||
Model | CUMMINS 4BTA3.9—C100 | Model | 16/70-20 | ||
Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | 0.22 Mpa | ||
Cylinder-Inside Diameter*Stroke | 4-102×120 | Pressure of Back Wheel | 0.22 Mpa | ||
Rated Power | 74KW | Brake System | |||
Rated Speed | 2200r/min | Service Brake | Air Over Oil Caliper Brake | ||
Min. Fuel Consumption | ≤216g/km.h | External Type | |||
Max.Torque | ≥410N.M/1500r/min | Self-regulation | |||
Displacement | 3.9L | Self-balance | |||

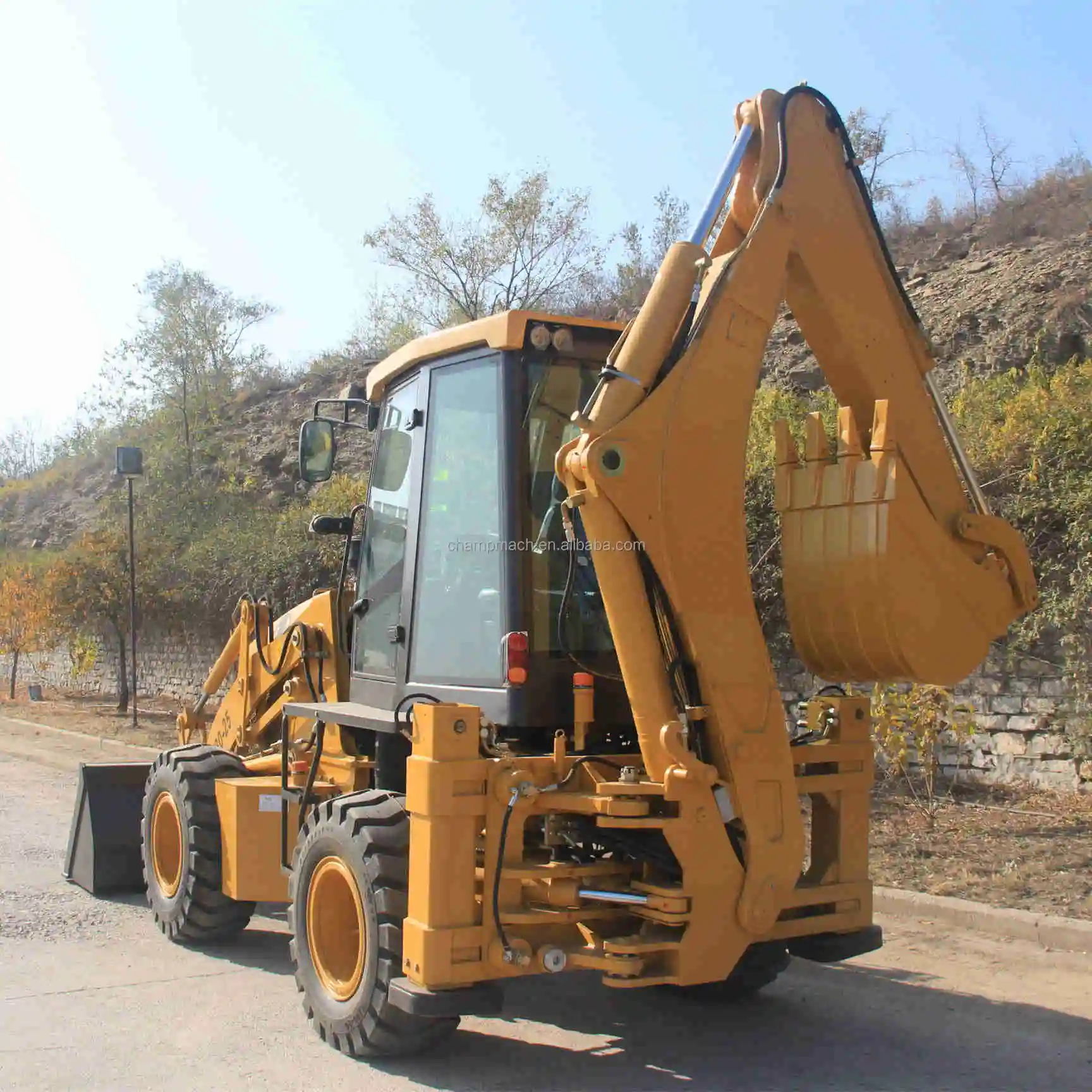

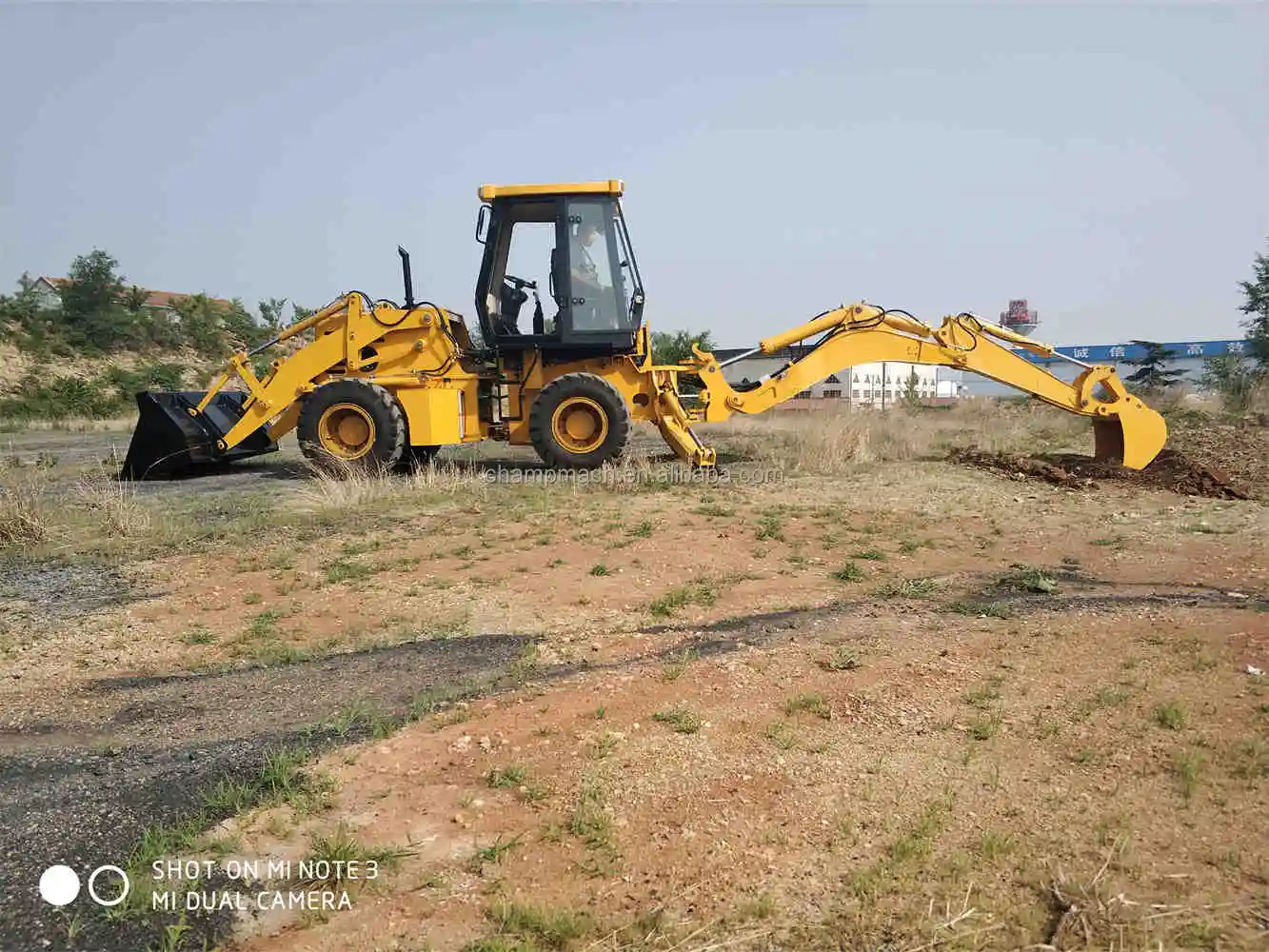

Details Images

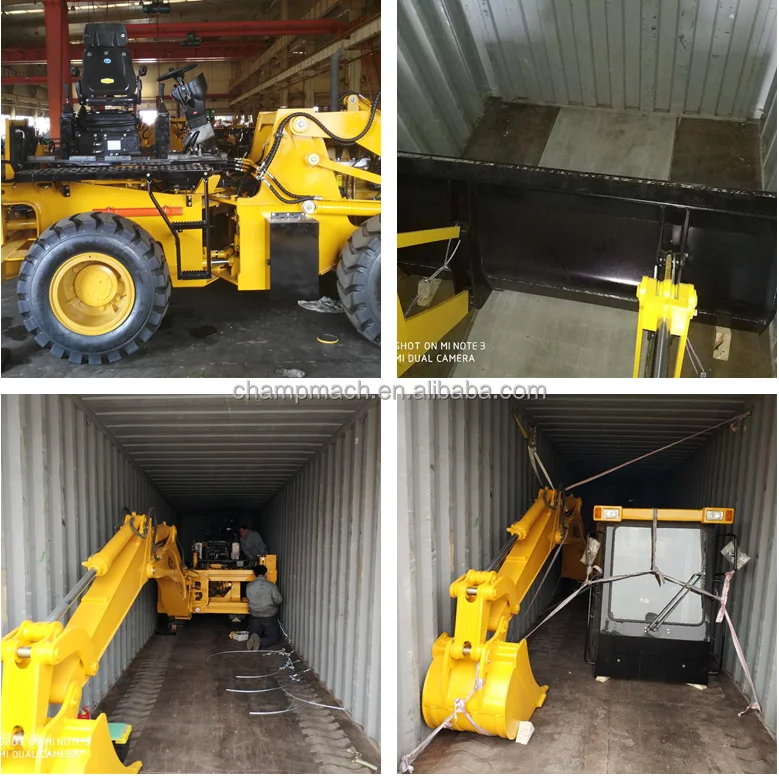

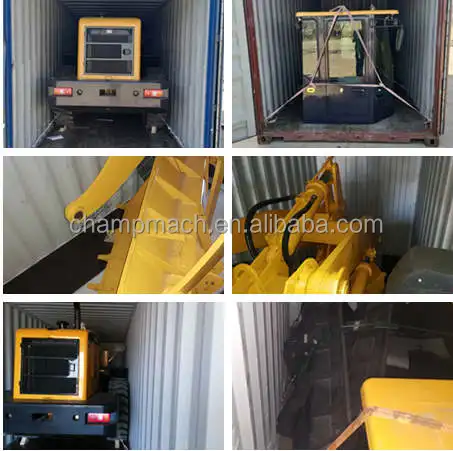

Product Packaging and Shipping
OPTIONS
PALLET FORK
4 IN ONE BUCKET
LOG GRAB
6 IN ONE BUCKET
HAMMER
AUGER
Recommend Products

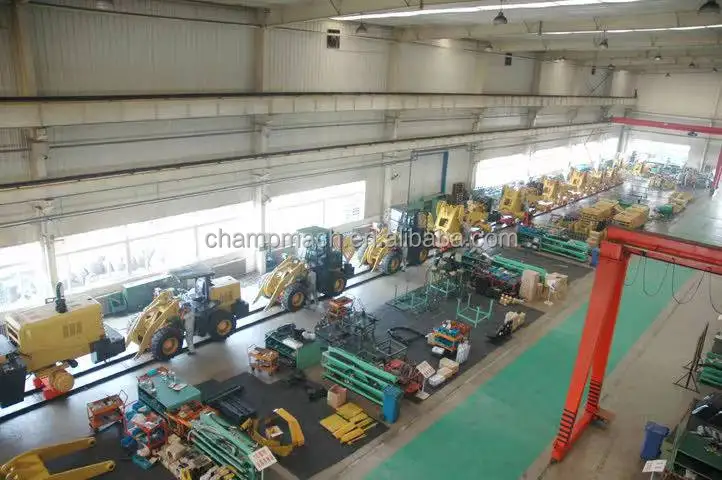

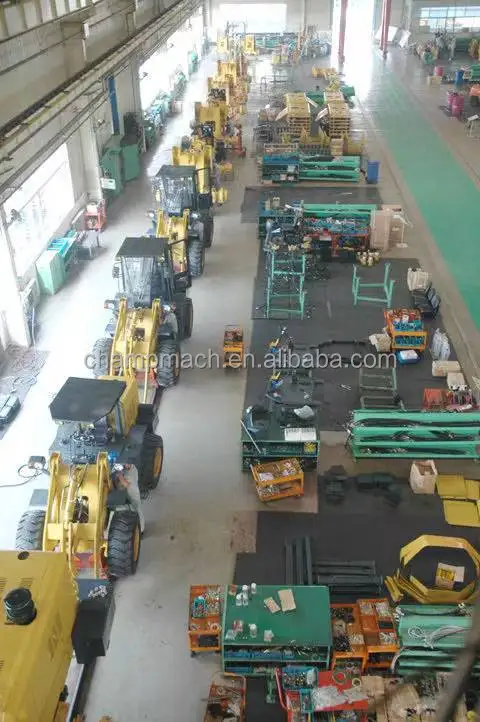

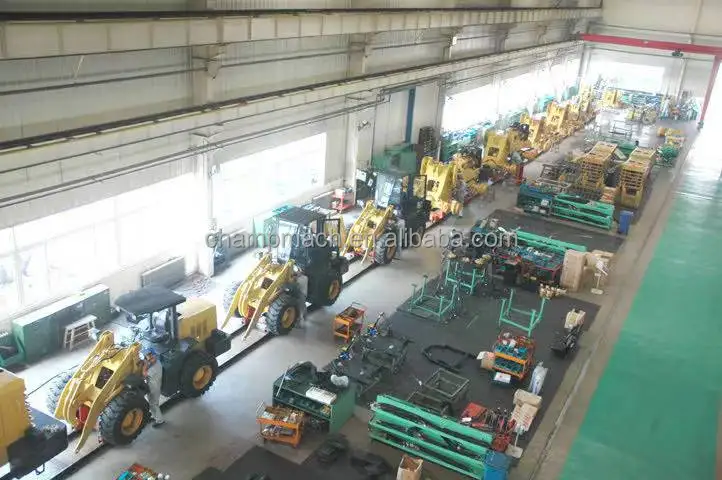

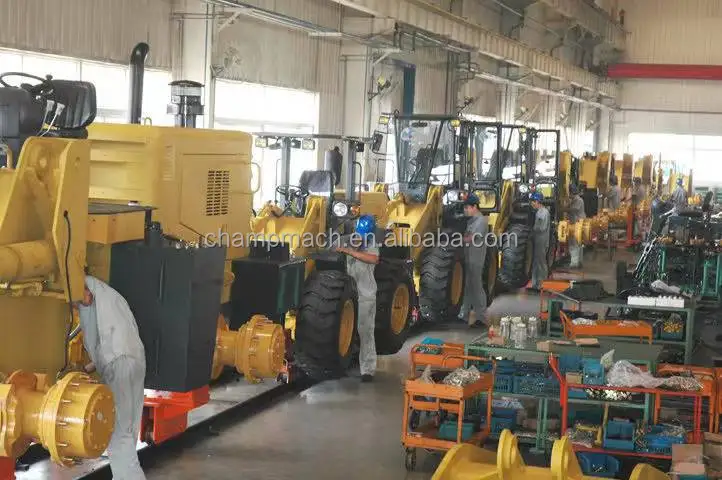

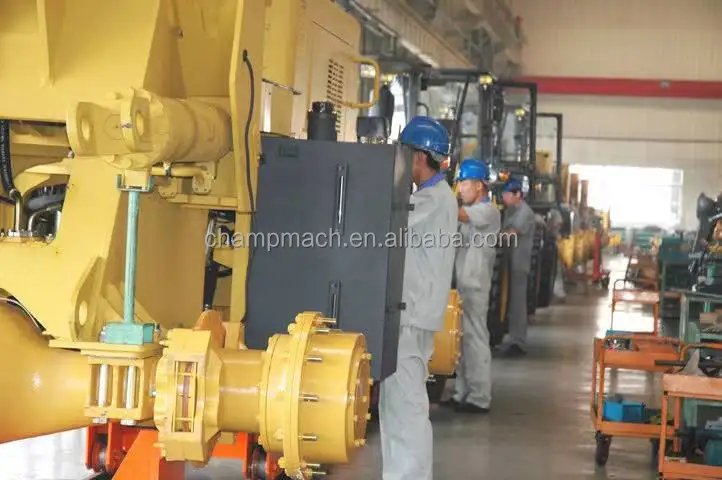

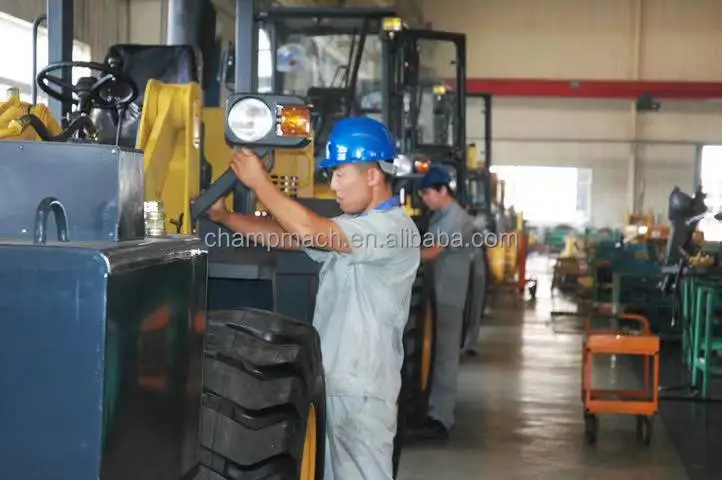

Workshop display
