Factory Direct Sale Optical Fiber Fusion Splicer AI 6C Internet Fiber Cable Splicing Machine Spanish Fusion Splicer Machine
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600528367808):
Product Overview
Description
Products Description

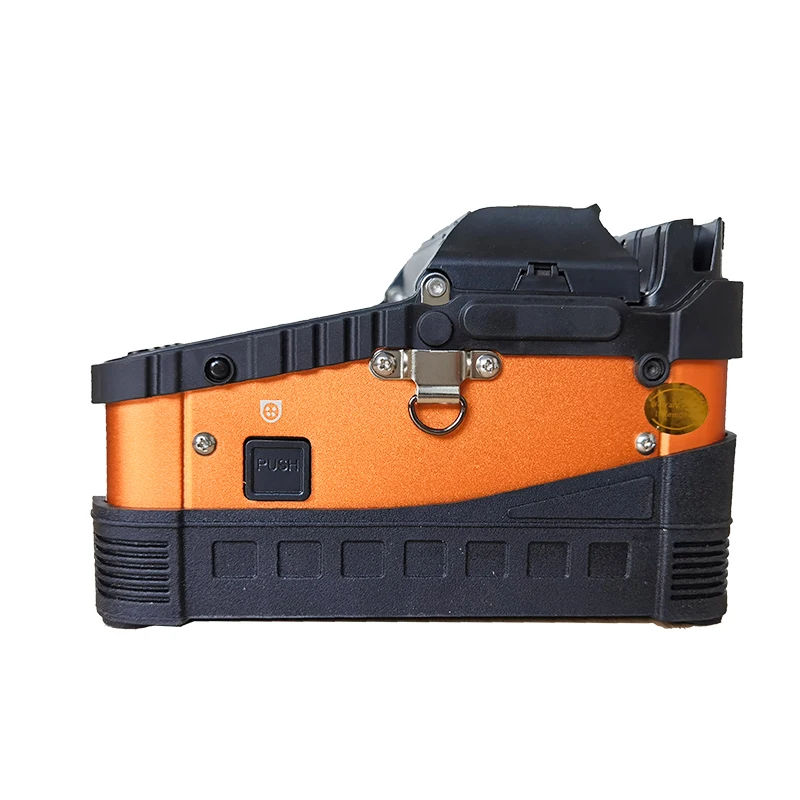

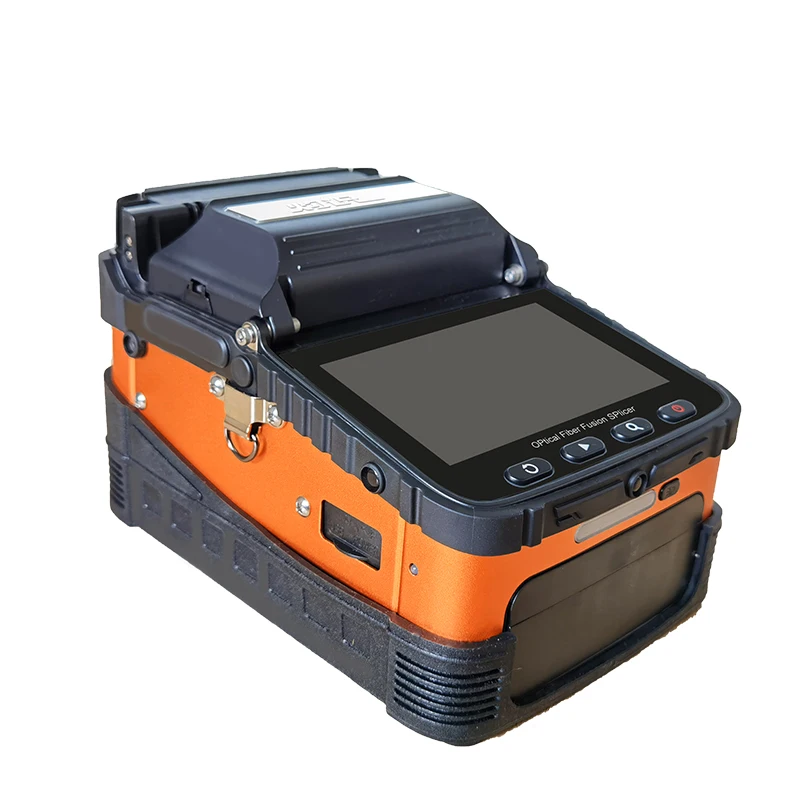

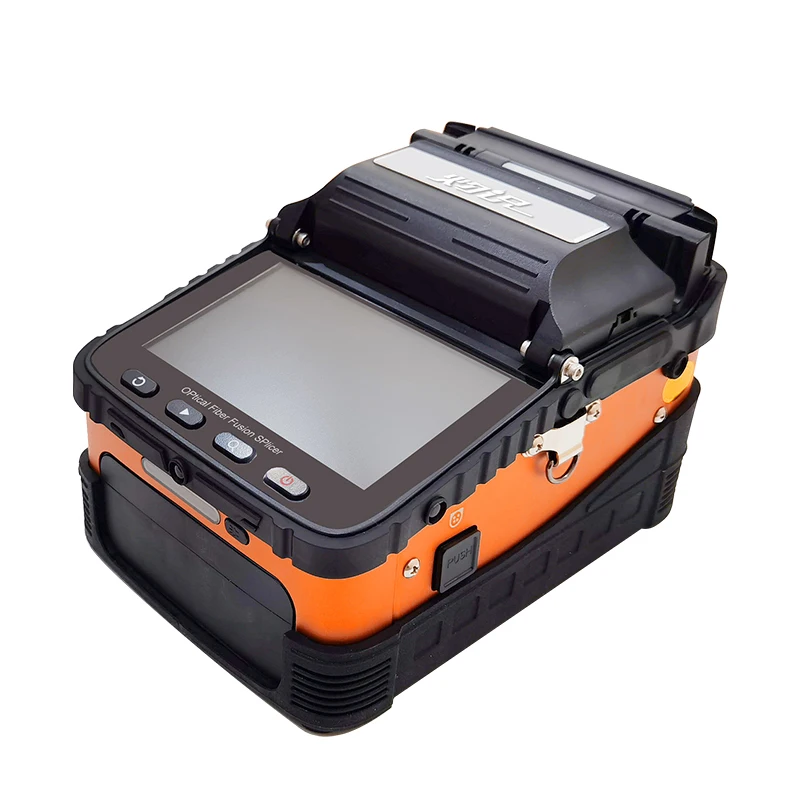

Signal Fire AI-6C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects.
Features
support multi-languages, up to 10 languages
uses industrial quad-core CPU, fast response5 inch TFT color display
up to 300 times focus magnifications
8 seconds speed core alignment splicing, 18 seconds heating

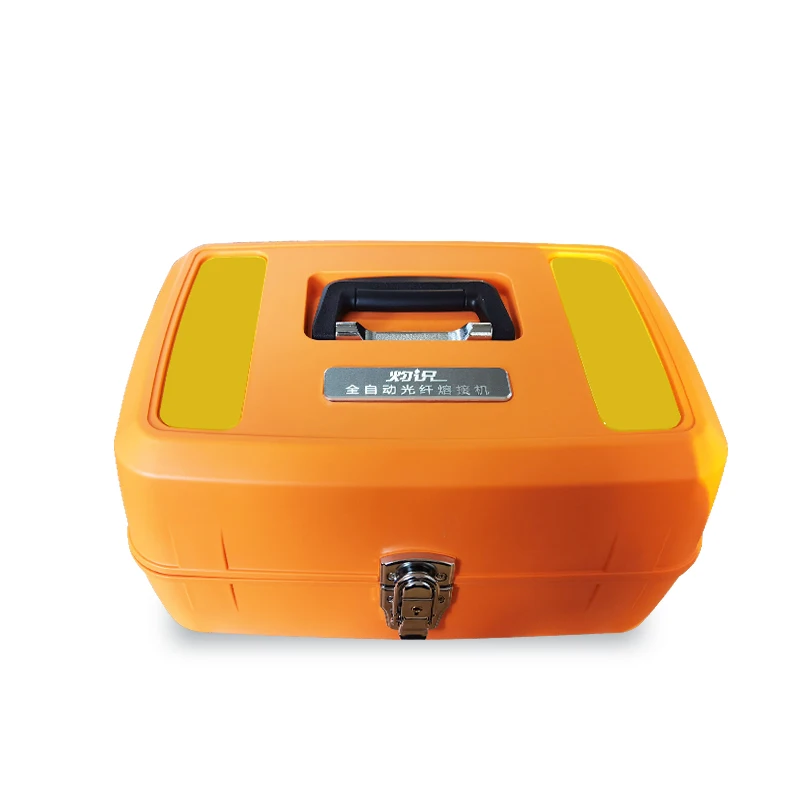

toolbox is small, exquisite, durable, and with unique bench design
More details
Specification
Fiber alignment | Core/cladding alignment / Manual alignment |
Splicing time | 8S |
Heating time | 18S |
Heating mode | Automatic heating (Preheating) |
Focus mode | Six motors Auto focus |
Applicable Rbers | SM(G.652&G.657},MM (G.651),DS(G.657),NZDS (G.655) |
Splice Loss | 0.025dB (SM),0.0IdB (MM) 0.04dB (DS/NZDS) |
Control technology | Real-time control and calibration of fusion ARC |
Return loss | Better than 60DB |
Fiber diameter | Cladding Diameter: 80-150um Coating Diameter: 100-1000um |
Fiber Cleave Length | Coating less than 250um: 8-16mm Coating less than 250-1000um: 16mm |
Built-in lighting | easy for night operation |
Tension Test | Standard 2N |
Fiber holders | 3 in ' fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification | 3001or XorY view, 150 for X or Y view |
Screen | 5 inch TFT color display |
Splicing Mode | Normal / high precision splicing |
Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
Built-in battery | 5200 mA high-capacity lithium battery, charghg time < 3.5 hours, continuous splicing and heating about 260 times |
Power supply | input AC 100-240V 50 / 60HZ, output DC 13.5V / 4A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions | Temoerature -15 ~ +50 °C, humidity: <95% RH (no condensation) Working altitude: 0 -5000m. Resist max. wind speed: < 15m / s |
Shrinkable tube | 60mn 40mm |
Visual Fault Locator | Power:15mw,2hzfiashing And Constantly Bright Mode |
Optical Power Meter | Wavelength:850nm1300nm,1310nm. 1490nm. 1550nm,1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
