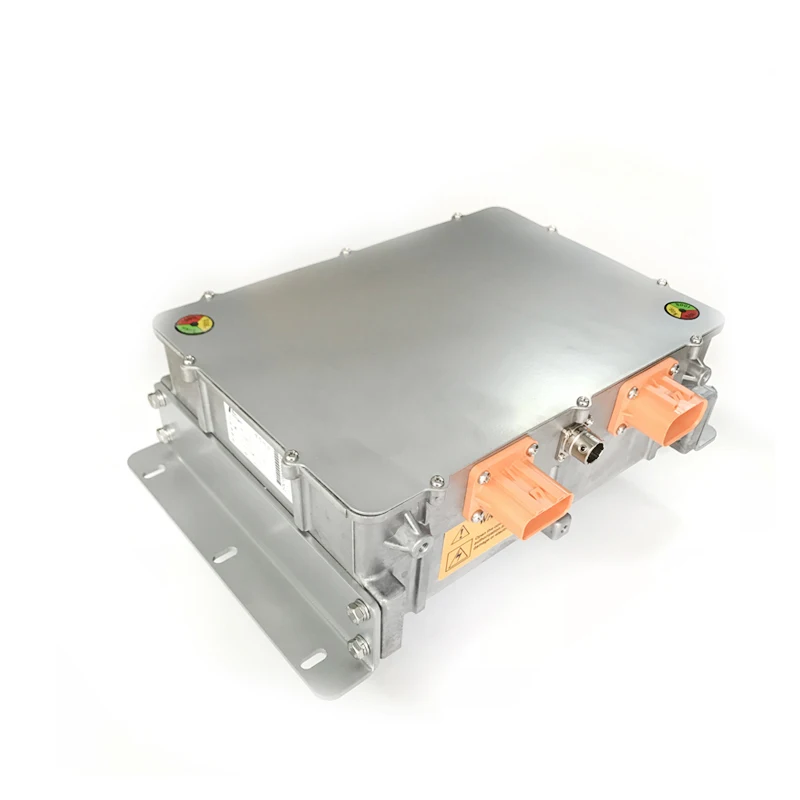

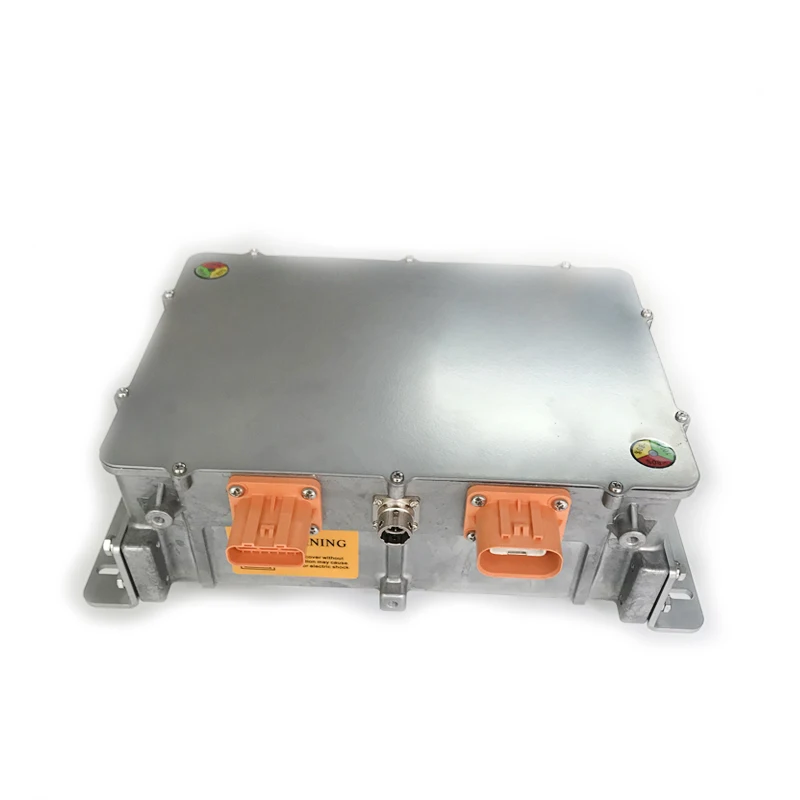

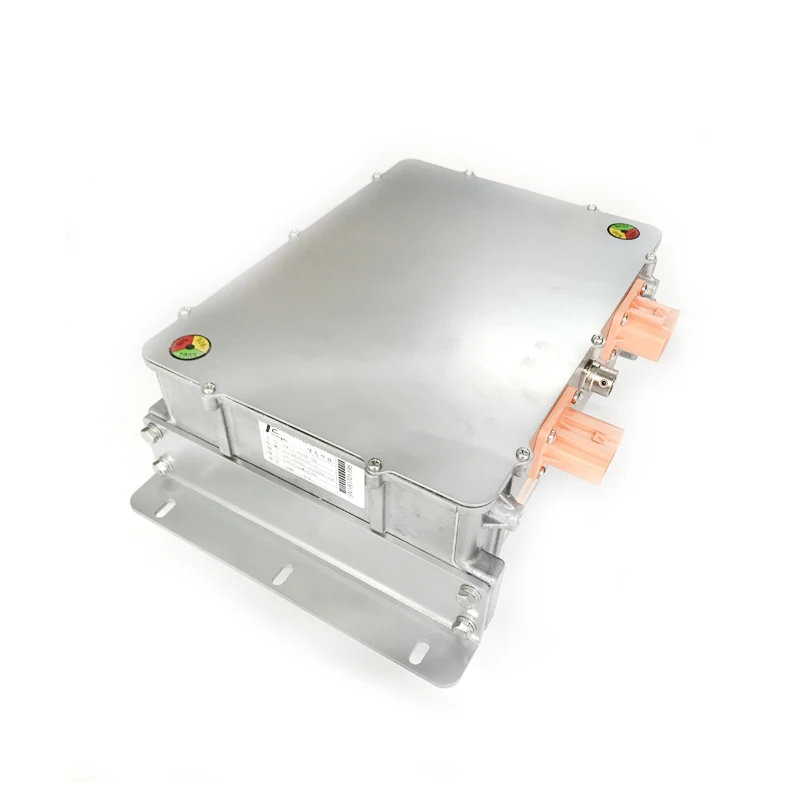

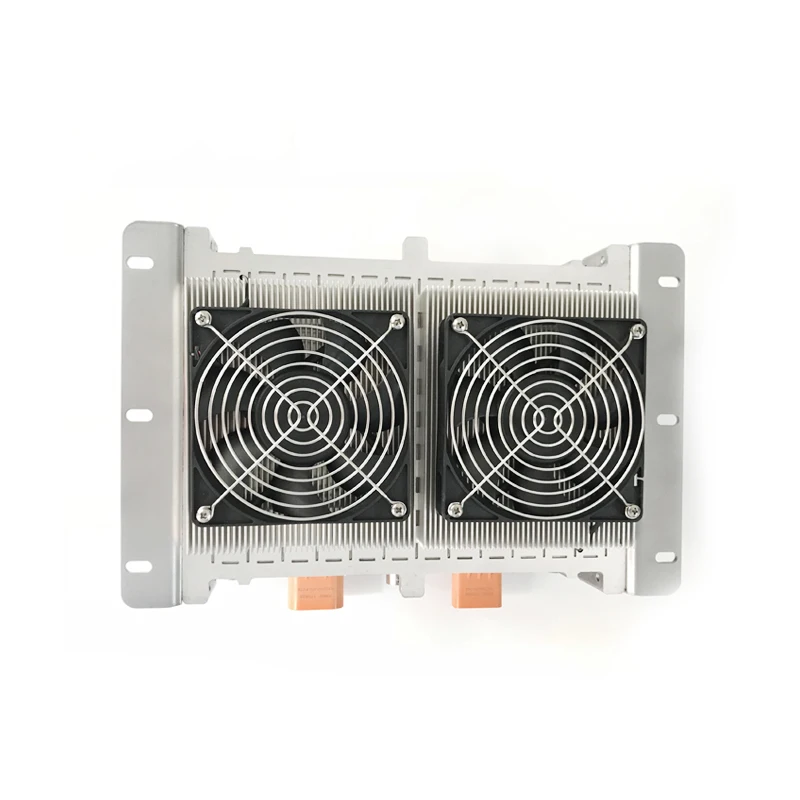

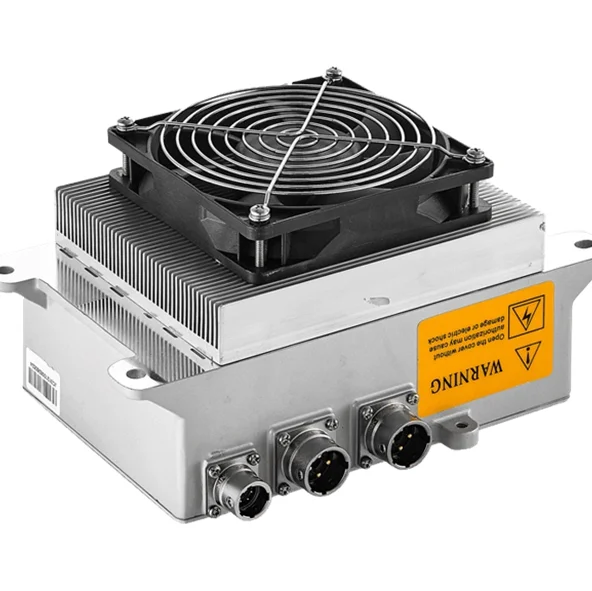

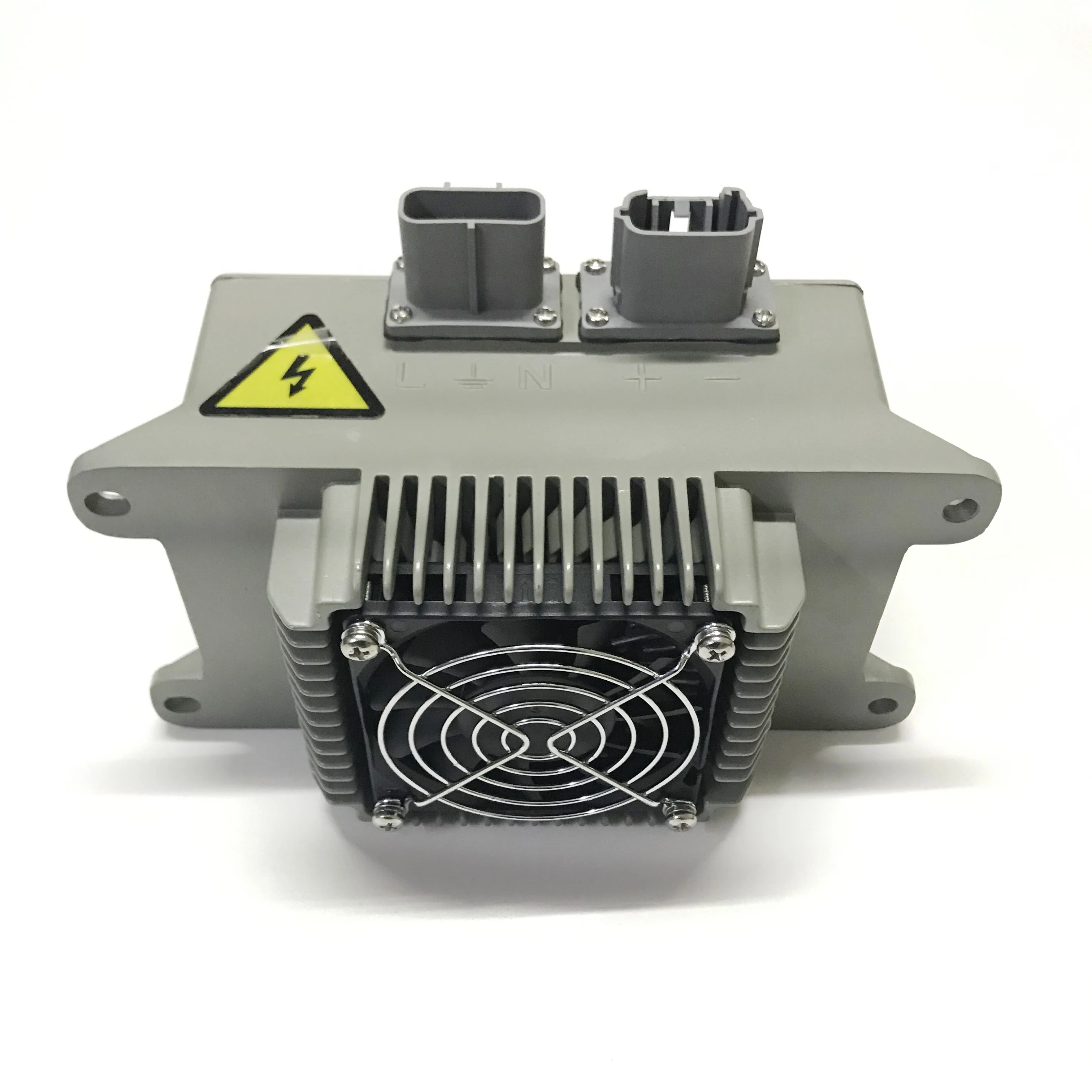

Waterproof on board charger 1.8KW 3.3KW 6.6KW deutsch battery ev campervan ac dc on off circuit on board lithium charger
- Category: >>>
- Supplier: Benbv Tech Co. Ltd.
Share on (1600528413922):
Product Overview
Description
Specification

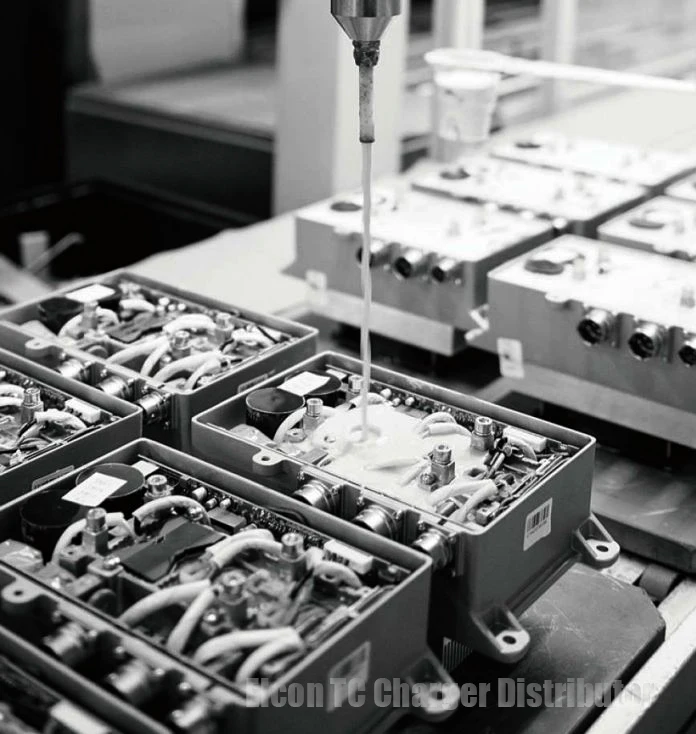

value | ||
Charger Power | 1.8KW 3.3KW 6.6KW 1800W 3300W 6600W | |
Brand Name | Elcon TC Charger | |
Use Application | Electric Vehicle/Car/Trunk/Forklift/Hybrid EV/Camper/Caravan/Boat/clubcar/Motorcycle | |
CAN bus control | CAN bus speed 250Kbps or 500Kbps, CAN IDs E5, E7, E8 or E9 | |
Advantage | 93% hight efficeiency Power factor correction High Volt input output range High frequency High power Builting in Auxilary 12v 5A power supply Full 1 year repair and replacement warranty IP67 full sealed and potted Free custom programming Using in series | |
Other similar Products | ||
Dcdc converter | UHF DC-DC converters available in 500W, 1000W and 1500W sizes | |
Model Sheet
Charge Power | Rated Volt /Current | Volt Range | Model name (CAN control |
1.8kw | 48v 25A | 18-66V | HK-H-H66-25 |
72v 25A | 25~99V | HK-H-H99-25 | |
96V 16A | 34~132V | HK-H-H132-16 | |
3.3kw | 72V 40A | 25~99V | HK-J-H99-40 |
84V 40A | 30~116V | HK-J-H116-40 | |
96V 32A | 34~132V | HK-J-H132-32 | |
144V 23A | 50~198V | HK-J-H198-23 | |
312V 10A | 110~440V | HK-J-H440-10 | |
540V 6A | 170~650V | HK-J-H650-6 | |
6.6kw | 72V 80A | 25~99V | HK-J-H99-40 |
84V 80A | 30~116V | HK-J-H116-40 | |
92V 64A | 34~132V | HK-J-H132-32 | |
144V 46A | 50~198V | HK-J-H198-23 | |
312V 20A | 110~440V | HK-J-H440-10 | |
540V 12A | 170~650V | HK-J-H660-10 |
What is on board charger
OBC charger also called on board charger ,widely use for new energy /electric vehicle,RV,HEV,EV electric conversion projects, is mainly composed of power circuit (rectifier + PFC + phase shift full bridge ) and control circuit, as a key component of automotive power electronics, the main function is AC /DC converter. The on-board charger takes the AC power supply as the input and the output is DC to charge the power battery directly.
Key function : to convert AC power from the grid to DC power stored in the high-voltage vehicle battery /could save time get a full charged car more easily

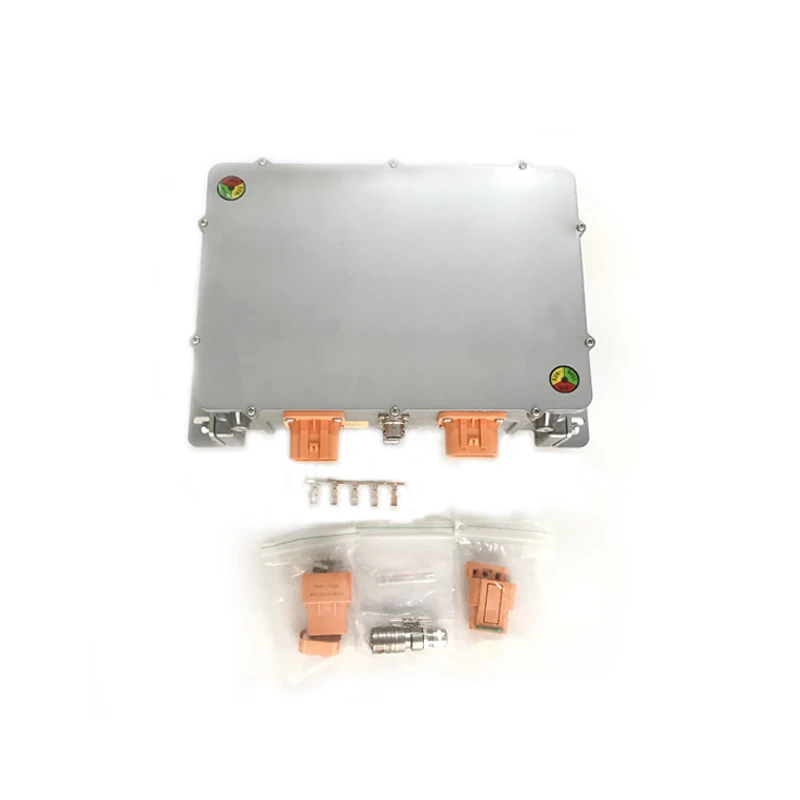

Offer charging plugs connectors as well ,welcome inquiry
Wendy
WendySchematic Diagram

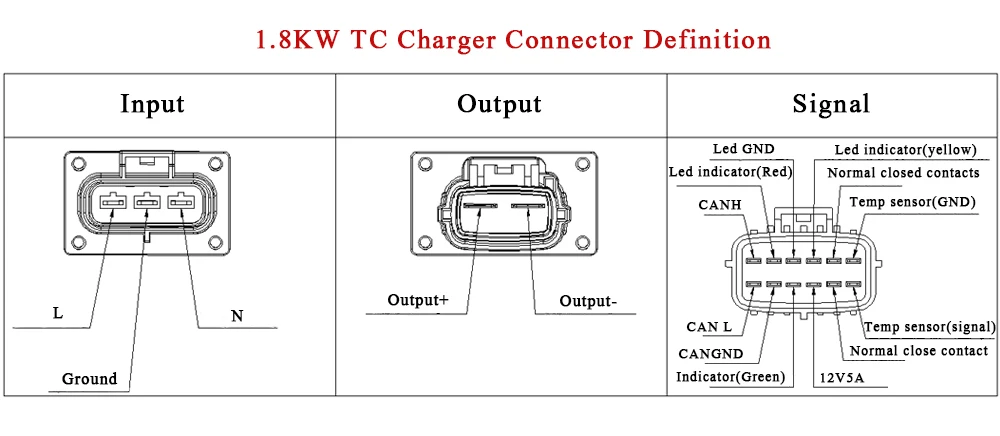

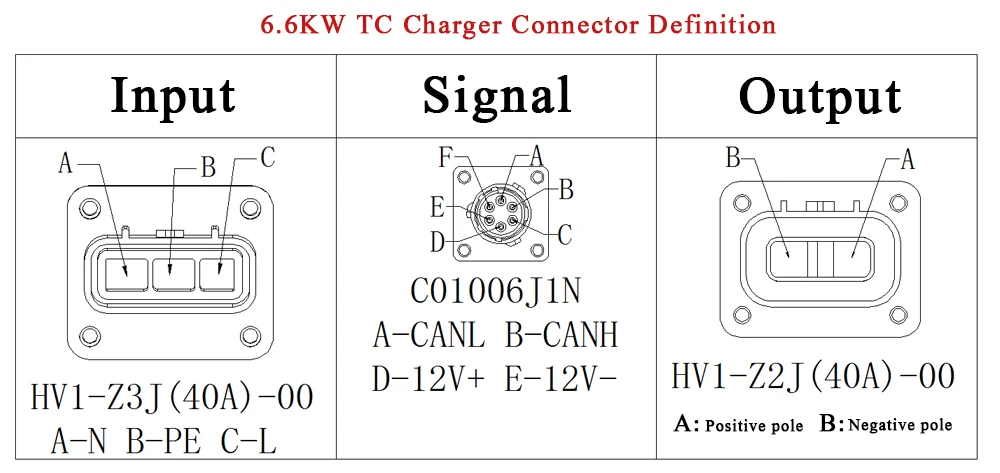

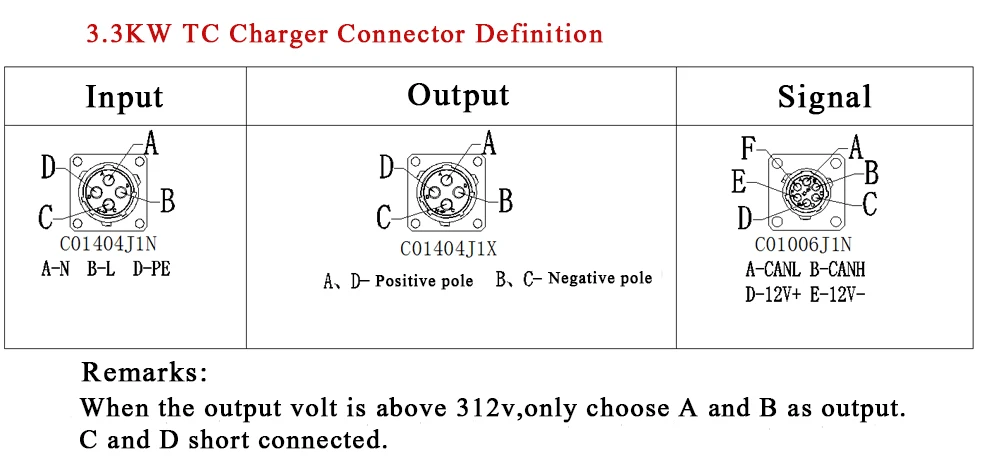

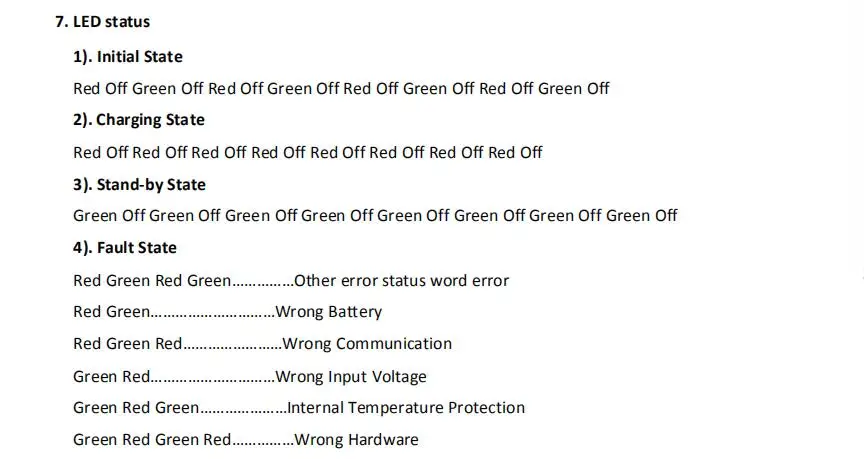

Troubleshooting
If the charger appears to stop charging prematurely, we recommend connecting to the BMS unit, using the BMS utility and monitoring the charge current limit (CCL) to determine if the BMS is restricting the current.
If the CCL is zero, the BMS is turning the charger off for one reason or another.
If the CCL is not zero, the charger may be defective or there may be a wiring problem.
Please see the troubleshooting guide for more information which is available below /on manual
FAQ
1. Where i can get the manual diagram of elcon tc charger ?
Please free to contact our sales directly ,specification, weight .dimension, CAN protocol provided timely
2. Did charger with stock?
We are the distributor ,with stock fast delivery in 7 business days
3.Did charge come with connectors?
Yes,charge come with connectors, and also can buy connectors separately
4.Charger compatible with Orion bms?
Please free to contact our sales directly ,specification, weight .dimension, CAN protocol provided timely
2. Did charger with stock?
We are the distributor ,with stock fast delivery in 7 business days
3.Did charge come with connectors?
Yes,charge come with connectors, and also can buy connectors separately
4.Charger compatible with Orion bms?
Yes, for other programming ,send us your's protocol or send us to u for verify
5. Did we assembly the charge with cable?
5. Did we assembly the charge with cable?
Charger of elcon oftenly without cable included ,custom cable making & assembly with moq:50pcs
6.What's difference of on board charger and off board charger?
1. Different power supply methods:
1. The on-board charger is a charger that is fixedly installed on the electric vehicle. is connected to the AC socket through a plug and cable, so it can also be called an AC charger.
1. The on-board charger is a charger that is fixedly installed on the electric vehicle. is connected to the AC socket through a plug and cable, so it can also be called an AC charger.
The advantage of the on-board charger is that when the battery needs to be charged, Charging is possible as long as there is an available power outlet.
2. The off-board charger is fixedly installed outside the electric vehicle and connected to the AC power grid to provide DC power for the rechargeable energy storage system such as the power battery of the electric vehicle.
Second, the components are different:
1. As a power electronic system, the on-board charger is mainly composed of a power circuit and a control circuit. is composed of AC rectifier, transformer and power tube, and the DC/DC converter is an important part of it. The control circuit realizes serial communication with the power management, and controls the power drive circuit to output a certain voltage and current according to requirements.
2.The off-board charger consists of a power unit, a control unit, a metering unit, a charging interface, a power supply interface, and a human-computer interface. The output voltage of the off-board charger is divided into five levels according to the voltage level of the power battery system.
1. As a power electronic system, the on-board charger is mainly composed of a power circuit and a control circuit. is composed of AC rectifier, transformer and power tube, and the DC/DC converter is an important part of it. The control circuit realizes serial communication with the power management, and controls the power drive circuit to output a certain voltage and current according to requirements.
2.The off-board charger consists of a power unit, a control unit, a metering unit, a charging interface, a power supply interface, and a human-computer interface. The output voltage of the off-board charger is divided into five levels according to the voltage level of the power battery system.
7.What's your main business?
We are dedicated to solar energy storage system/EV car parts line
more details can view our products catagories
