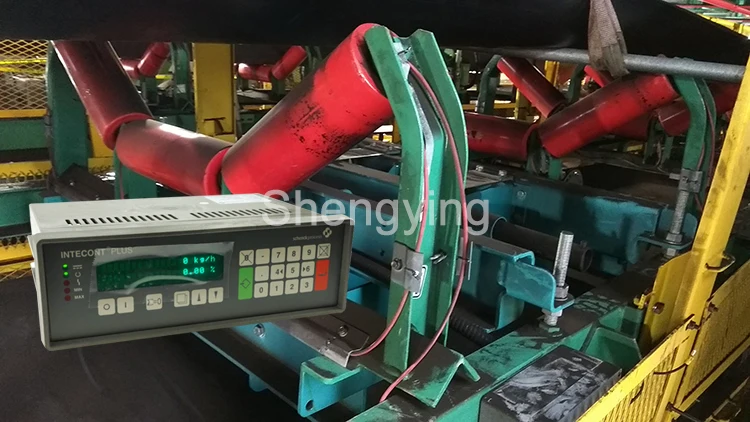

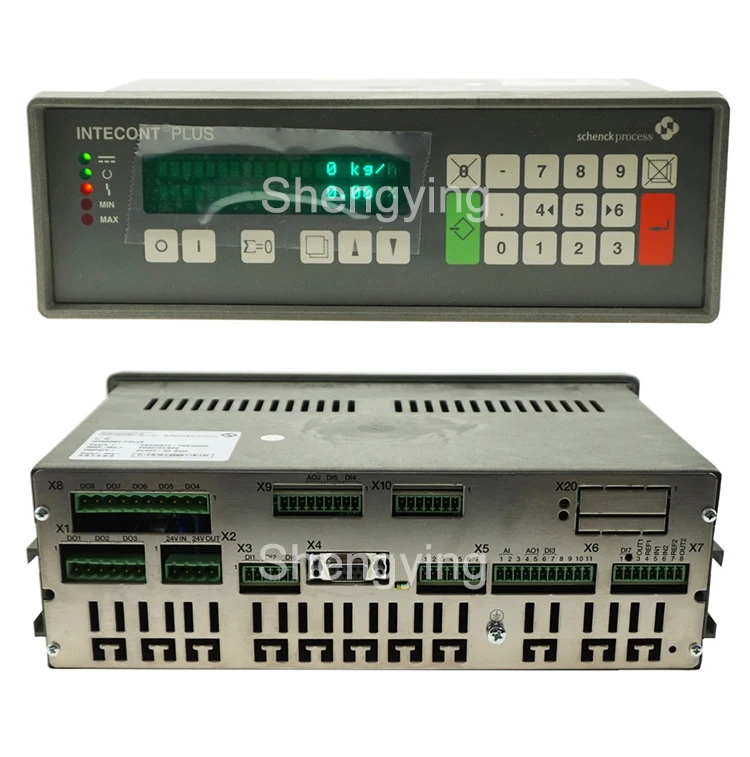

Schenck Process Loss in weight feeder Controller INTECONT Plus VEG20611/VLW20600

Display

Clear text fluorescent display, 2 lines with 20 digits each,

6 mm character height

Power supply

24 VDC +30% / -25%

Consumption 20 VA

Ambient conditions

Operating temperature -40° to 60°C EMC (EN 61000, EN61326)

conform to CE regulations

Protection

Front panel mounting housing Front protected to IP 65

Measuring inputs

Speed (RPM) input

(NAMUR level 0.04 - 3000 Hz)

Load cell input

(R min 80 0, up to 500 m cable)

Release contact (24 V, 5 mA) Namur input for belt circuit sensor

Control inputs

3 potential-free digital inputs (24 V, 5 mA)

Outputs

3 relay outputs (max. 230 V, 8 A ohmic load, 1 A inductive load)

1 analog output (potential-free,

0/4 ... 20 mA, max. 11 V)

1 pulse output for totalizing counter (24 V / 100 mA)

Interfaces

RS 232 for Service PC

Power supply

measuring circuit

12 V AC

Control inputs

2 potential-free digital inputs

(24 V / 5 mA)

Outputs

5 relay outputs (max. 230 V, 8 A ohmic load, 1 A inductive

load)

1 analog output (potential-free, 0/4 ... 20  mA, max. 11 V)

Interfaces

RS 232 for printer

Wall housing for belt

weighers, solids flow meters

Wall housing IP 54

Power supply 85 .. 264 V/ 24 V

Wall housing for Coriolis

mass flow meters with control unit and power switch

Wall housing IP 54

Power supply 85 .. 264 V /24 V Control unit and power switch

Power supply, 85 ... 264 V

24 V, 2 A, panel-mounting unit

Power supply, 85 ... 264 V

24 V, 1,25 A, desk-top unit

Analog display

0 - 100%, panel-mounting unit

4 - 20 mA,

Event printer

printer with serial interface RS 232  and

system cable

Special measuring cable

Indicate length in your order
