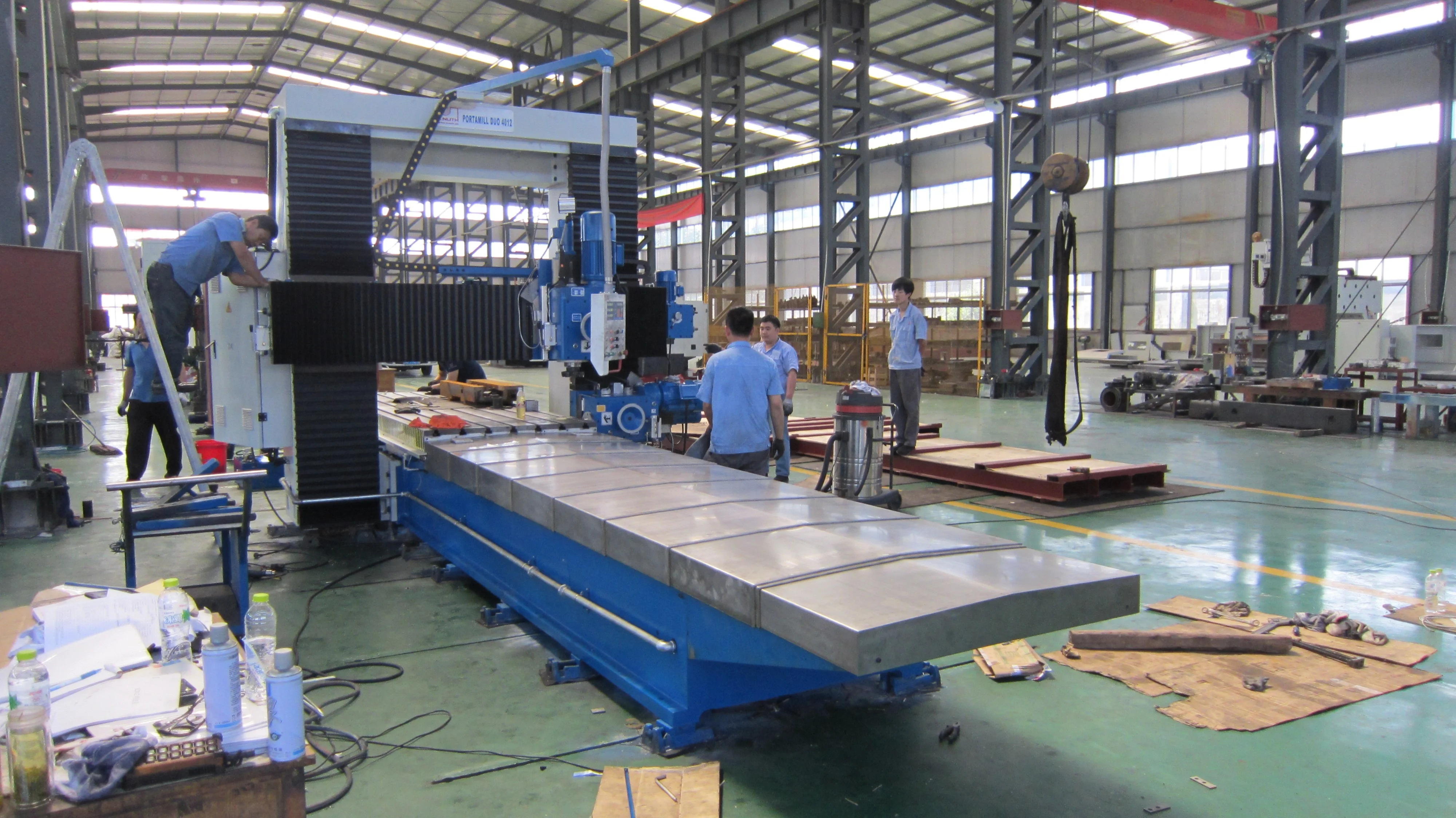

X2012x3000 Gantry Type Powerfull Milling Machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (1600528678118):
Product Overview
Description
X2012x3000 Manual Gantry Milling Machine
Brief Introduction
such gantry milling machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
* As we are constantly working to improve our products, we reserve the right to update this
information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
X axis travel | mm | 2000/3000/4000 |
Y axis travel | mm | 1400 |
Z axis travel | mm | 1000 |
Milling head moving on the cross beam | mm | 600 |
Cross beam up and down movable distance | mm | 300 |
Spindle center-to-table distance | mm | -100~500 |
Table dimensions | mm | 2000x1250 3000x1250 4000x1250 |
T-slots(number*width*spacing) | mm | 7x28x180 |
Max. table load capacity | kg | 3000/4000/6000 |
Spindle nose-to-table distance | mm | 130~1130 |
Speed range | rpm | 82~505 |
Spindle mount |
| ISO 50 |
X axis rapid feed | mm/min | 1360/2100/2100 |
X axis feed | mm/min | 0~1360 0~2100 0~2100 |
Z axis rapid feed (gantry) | mm/min | 430 |
Y axis rapid feed | mm/min | 890 |
Y axis feed | mm/min | 65/320/890 |
Z axis rapid feed (gantry) | mm/min | 280 |
Z axis rapid feed | mm/min | 730 |
Z axis feed | mm/min | 50/265/730 |
Z axis rapid feed (gantry) | mm/min | 280 |
Motor rating for vertical spindle | kW | 7.5 |
Motor rating for horizontal spindle | kW | 7.5 |
Motor rating X axis | kW | 5.5/7.5/7.5 |
Motor rating Y axis | kW | 1.1 |
Motor rating Z axis | kW | 4 |
Side spindle motor power | kW | 1.1 |
Milling head fast feed motor power | kW | 0.4 |
Dimensions | mm | 5800x3550x3400 7800x3550x3400 10000x3550x3400 |
Weight | kg | 13000/16000/20000 |
Free Std Accessories
Optional Accessories
DRO
Pneumatic tool locking mechanism
Milling vice
Pls send inquiry to me for optioanl accessories and other further information about such milling machines.
