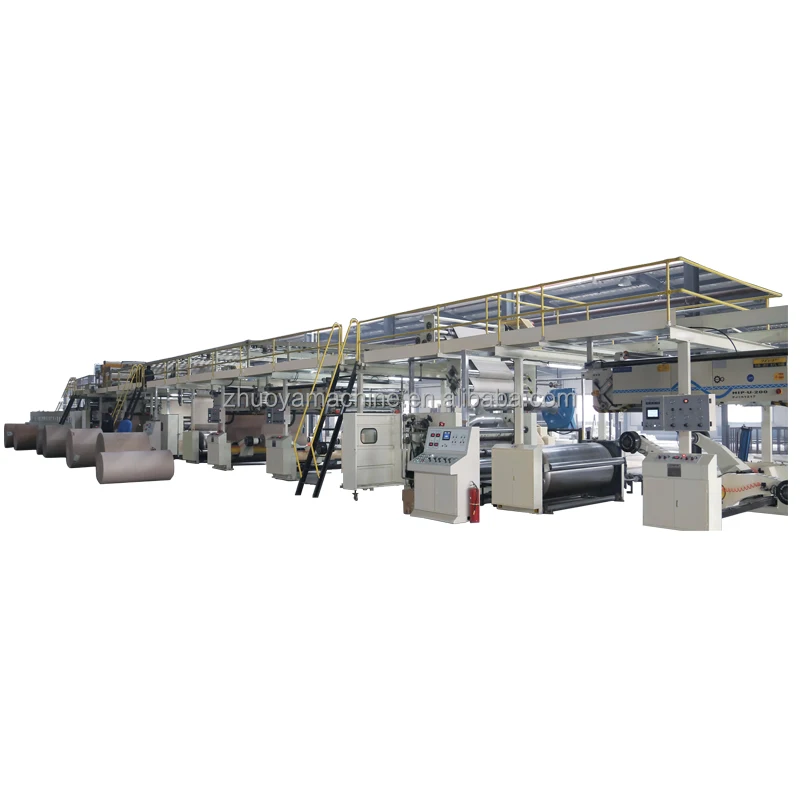

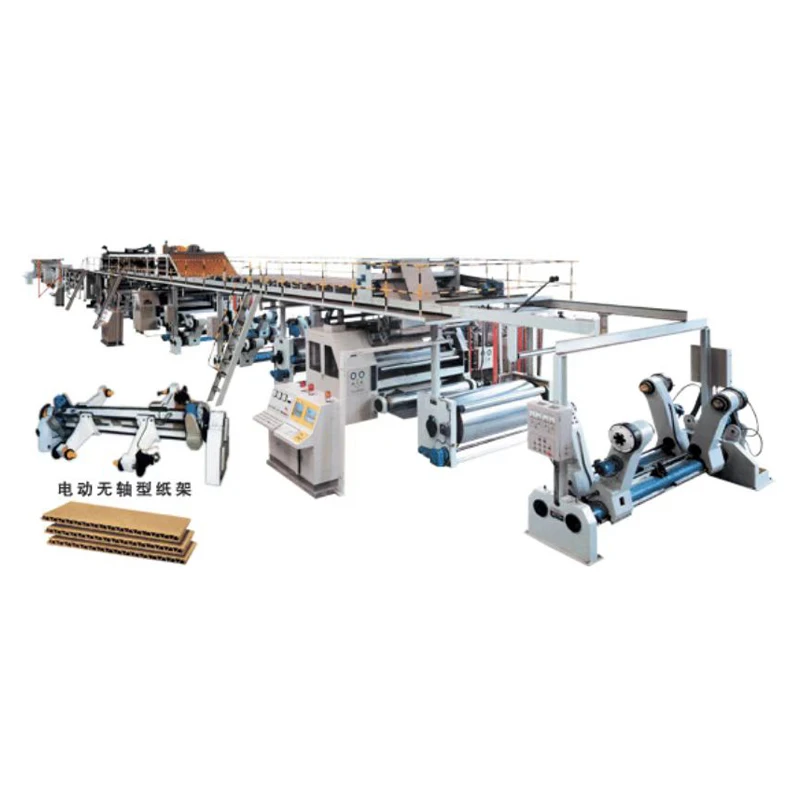

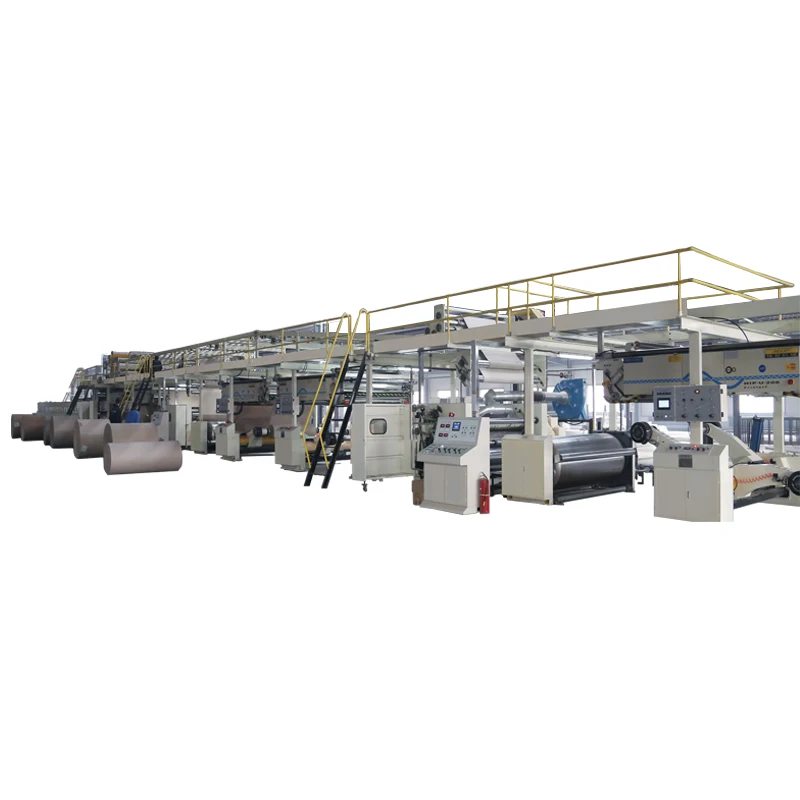

High speed Automatic double wall 3 5 7 layer corrugated cardboard paperboard production line

Main Specification

Model: WJ150-1800 3Layer Corrugated Carton Production Line

1. Design speed: 150m/min

2. Normal work speed:120-130m/min

3. Manufacture width: 1800mm

4.Production Line Length:About  70 meters (Exact length basis on groundwork drawing)

5. Note: The roll paper which is used to test the production speed should meet following requirements:

*Grade: Min. B              * Moisture content: 11% ± 1%

*Face paper:  100~150g/m2   * Liner paper: 100~150g/m2

*Corrugated paper: 105- 180g/m2

6. Flute profiles: A,B,C,E flute(as per clients request)

7.Steam requirements:

   Steam quantity: 1500-1800Kg/Hr   Max. pressure: 1.6Mpa

   Normal pressure: 0.8-1.25MPa

8.Voltage : 380V 50Hz   three-phase, or four phase

9.Equipment Direction:Left or Right transmission will be according to client`s requirements

10. equipment total power: about 245 kW, equipment commonly used power: 170 kw

Remarks: Buyer supply part:

Air compressor and glue pipeline

Main power, electric wire from operate box to main power.

Water supply, pipeline and barrel.

Water, electric and gas, main groundsill foundation.

Test machine use Raw materials ( paper roll, corn starch, caustic soda, sodium borax) to test machinery

Machine use oil, lubricate oil and high temperature lubricate oil.

Installing engineer’s food, hotel and supply enough workers to help installing and test machine.

Boiler 2T

Quality Guarantee

1. Quality Guarantee period: one year after final acceptance

2. Within the period of quality guarantee, the Seller is obliged to supply technical assistance to the Buyer to ensure normal production. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by Seller’s poor materials, designing errors, and poor fabrication and assembly technology, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately.

3. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by the Buyer using improper material, mis-operating and maintenance, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately. The international air tickets (if necessary), local transportation and accommodation will be borne by the buyer.

Q:Are you a manufacturer ,or trading company ?

A:We are professional manufacturer of the carton machinery.

Q:How many manufacturer experience do you have ?

A:More than 20 years .

Q: How about the after-sale service ?

A:The machine warranty time is usually one year . In this one year, if the machine parts are broken ,we can send you new one for free .
