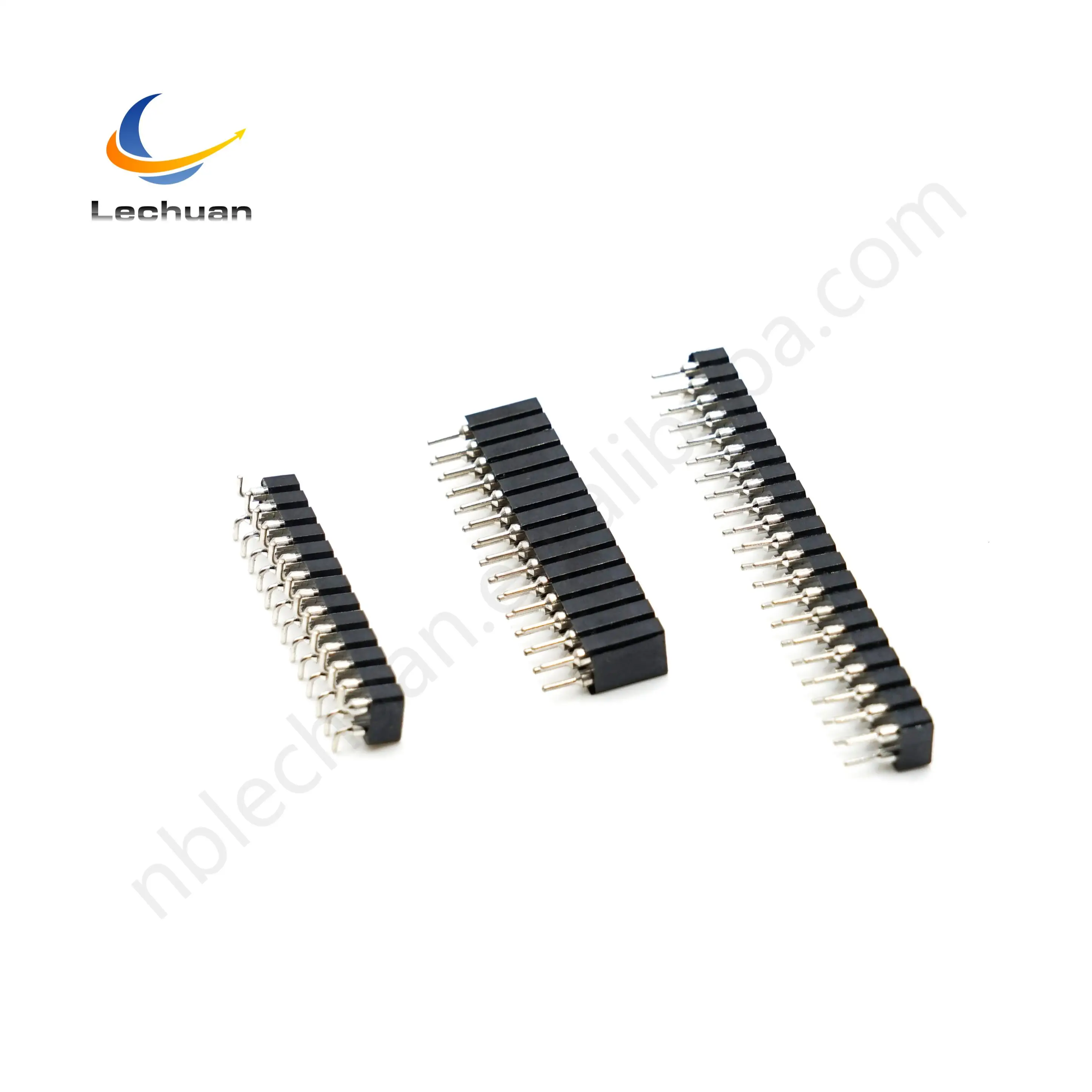

Machined round pin single row dual row 2.54 1.27 2.0 2.54 mm female header Straight Right angle SMT Pin length 17.8mm
Machined round pin single row dual row 2.54 1.27 2.0 2.54 mm female header Straight Right angle SMT Pin length 17.8mm
Machined round pin single row dual row 2.54 1.27 2.0 2.54 mm female header Straight Right angle SMT Pin length 17.8mm
Machined round pin single row dual row 2.54 1.27 2.0 2.54 mm female header Straight Right angle SMT Pin length 17.8mm

Machined round pin single row dual row 2.54 1.27 2.0 2.54 mm female header Straight Right angle SMT Pin length 17.8mm

Share on (1600528796795):


Price:

Quantity:

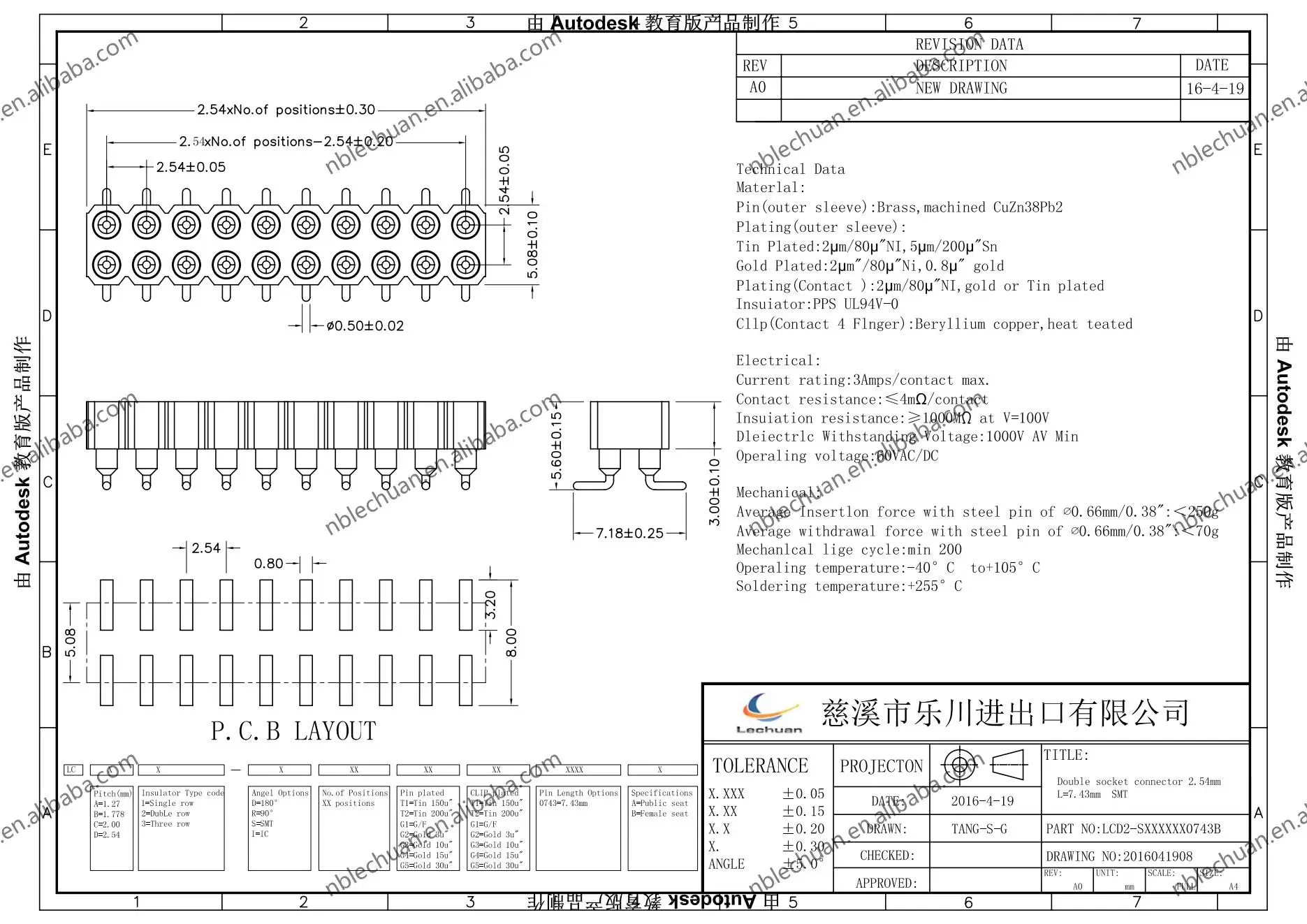

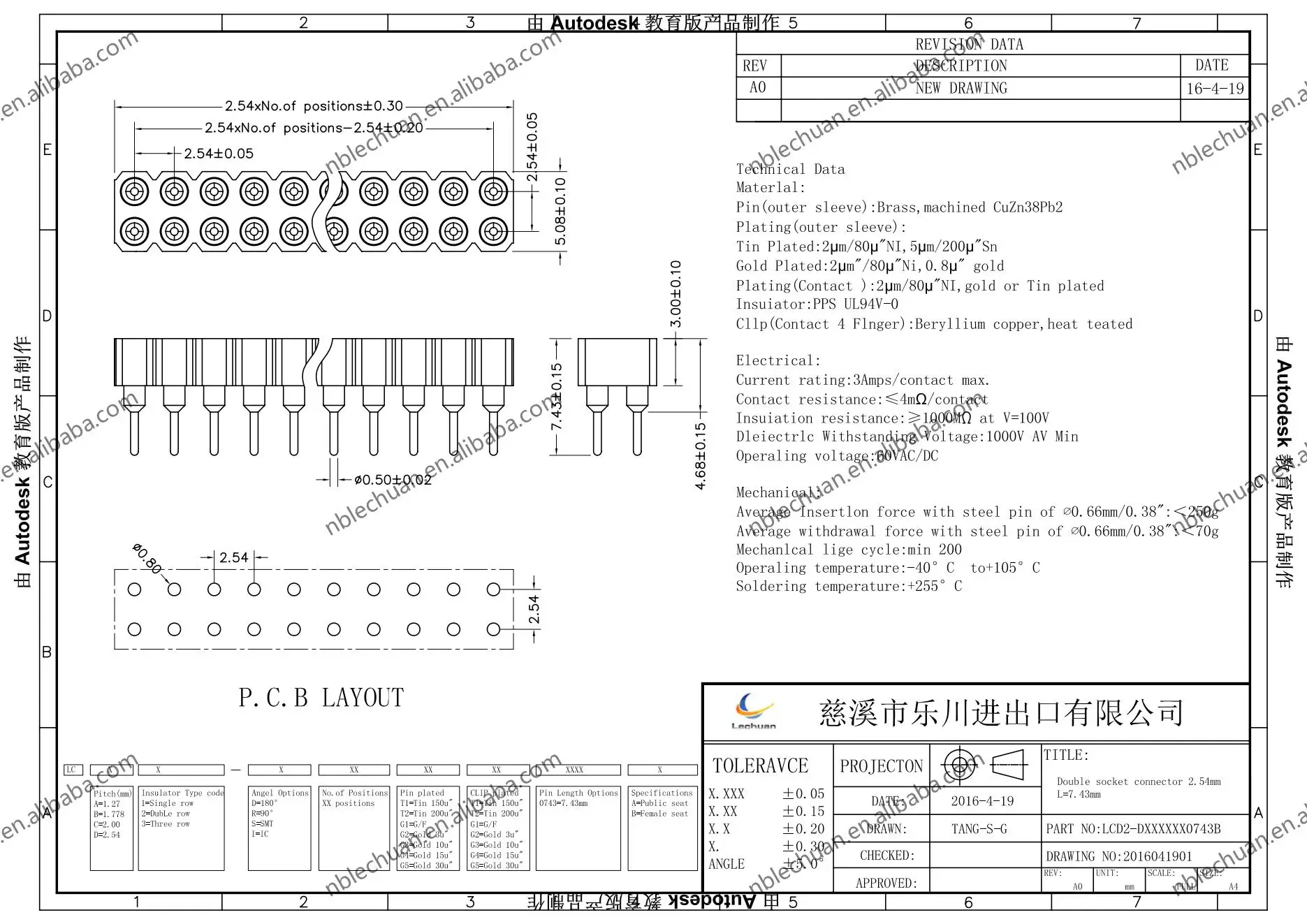

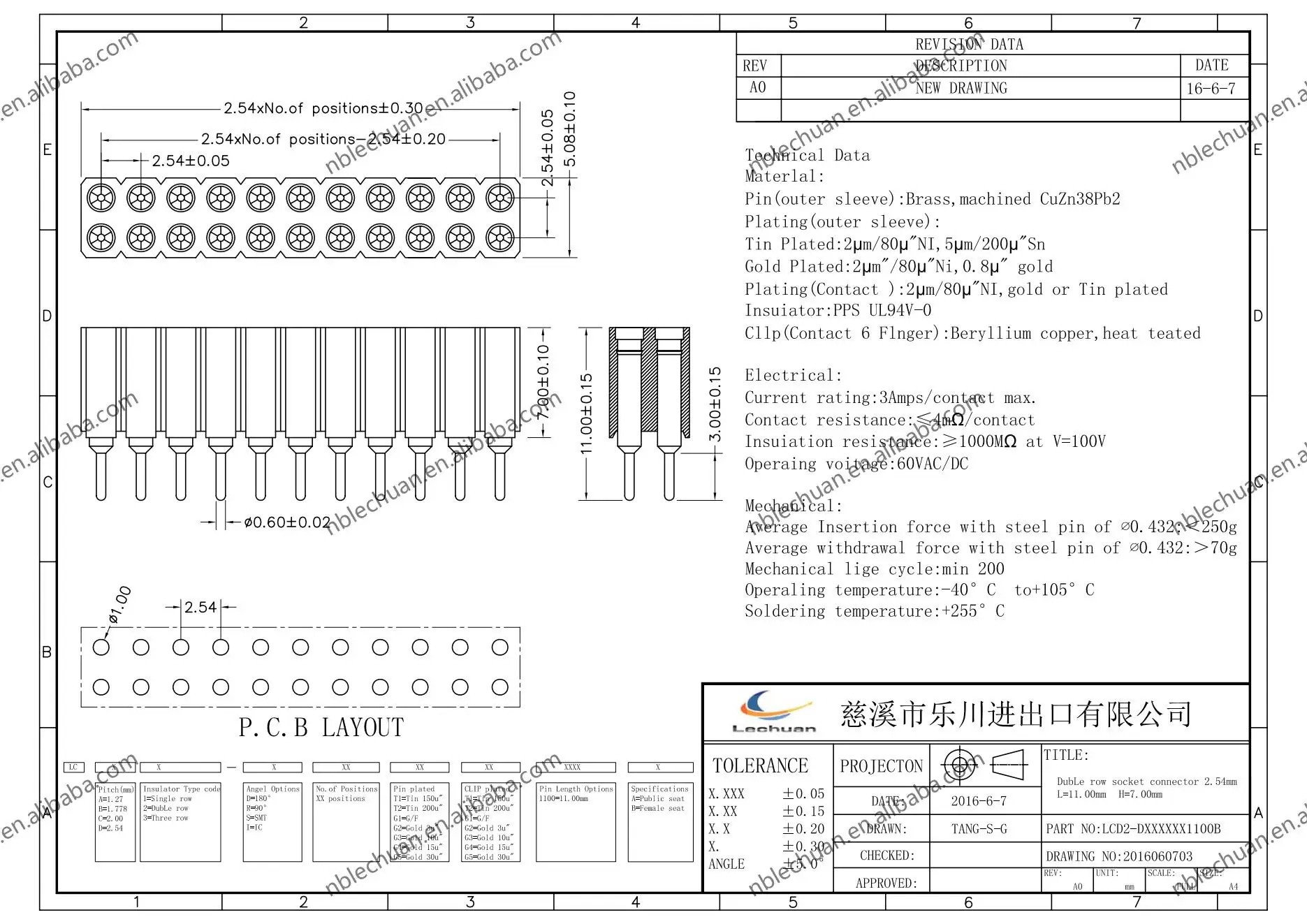

Product Overview

Description








Material
Pin(outer sleeve):Brass,machined CuZn38Pb2

Cllp(Contact 4 Flnger):Beryllium copper,heat teated

Insulator:PPS UL94V-0 colour:black





Electrical Characteristics
Current rating:3Amps
Mating pin φ:0.38/0.56mm
Forces:(polished steel gaugeφ0.43mm)
-Insertion:2N typ
-Withdrawal:1N typ
Mechanical life:min 500cycles
Contact resistance:max 10m
Dielectric strength:min 1000V RMS
Environment
Operaling temperature:-40°C to+105°C
Soldering temperature:+255°C
