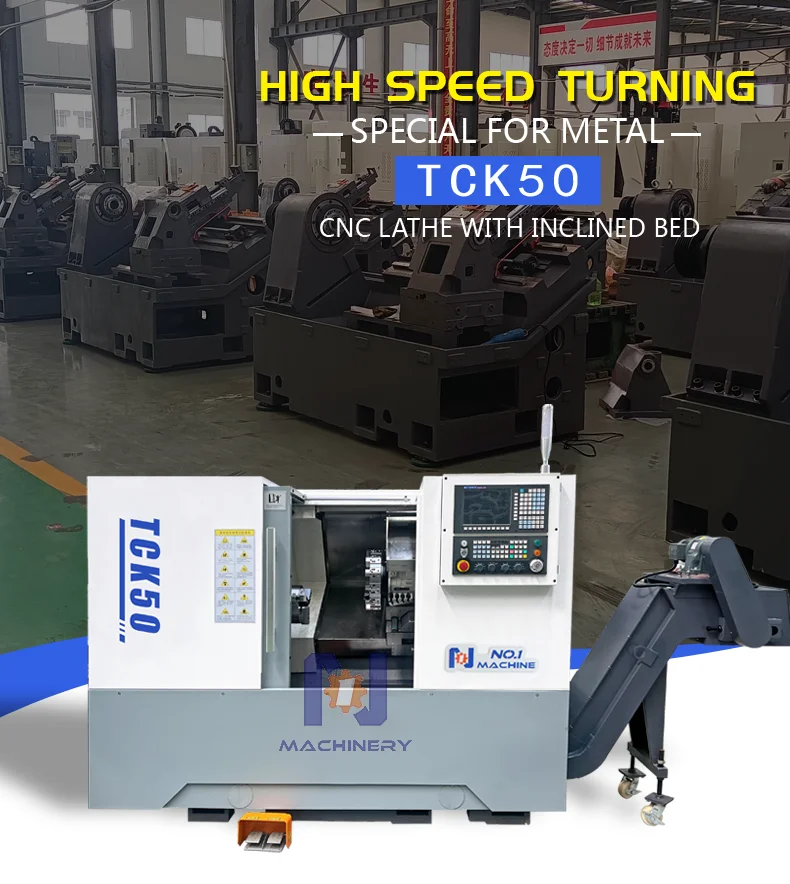

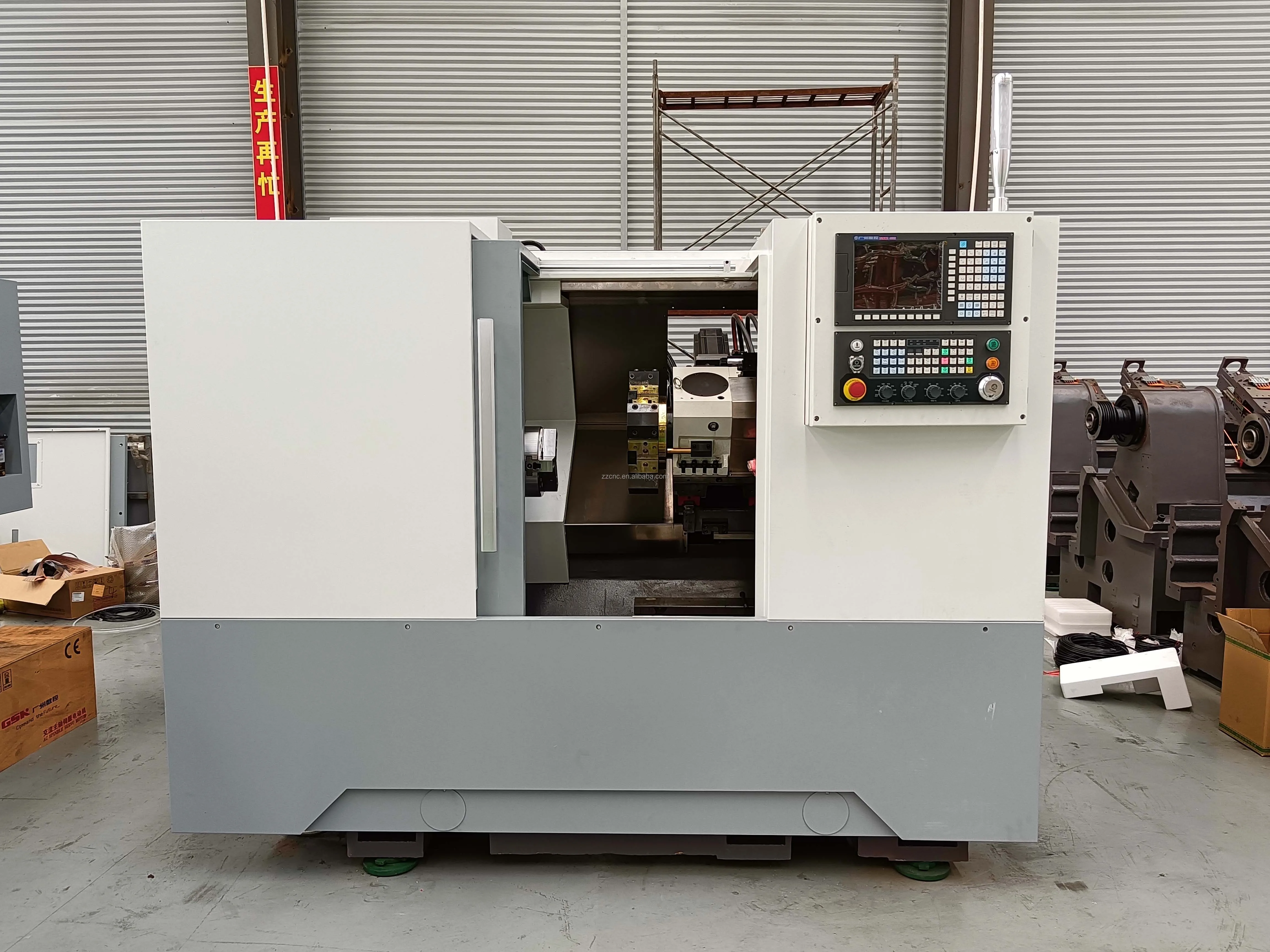

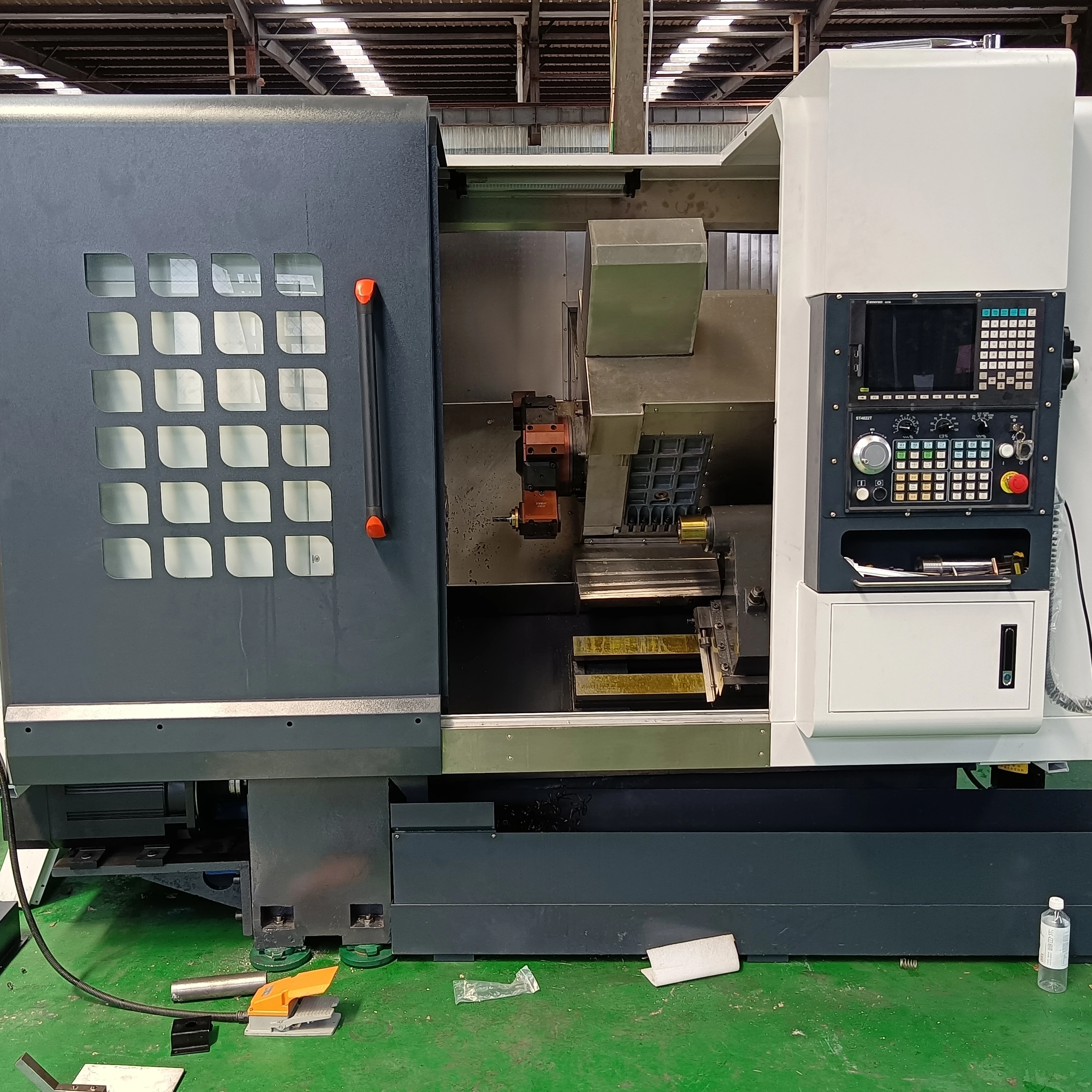

CNC Slant bed lathe TCK50
- Category: >>>
- Supplier: Zaozhuang No. 1 Cnc Machine Tool Co. Ltd.
Share on (1600528797890):
Product Overview
Description
Product Description
Specification
Item | Unit | Specification | |||||
Slant bed degree | ° | 30 | |||||
swing over bed | mm | 500 | |||||
Maximum cutting length | mm | 500 | |||||
Maximum cutting diameter | mm | 360 | |||||
Maximum turning diameter on slide plate | mm | 300 | |||||
Standard cutting diameter | mm | 240 | |||||
spindle nose form and code | A2-6/ A2-8 | ||||||
Diameter of spindle hole | mm | 65/ 80 | |||||
Maximum bar diameter | mm | 50/ 70 | |||||
Single spindle headstock | Spindle speed range/ | r/min/Nm | 50~4500/177 | ||||
Maximum output torque of spindle | |||||||
Output power of main motor | 30min/continuity | kW | 11，15 | ||||
Standard chuck | Chuck diameter | inch | 8² /10/ 12 | ||||
X-axis fast moving speed | m/min | 30 | |||||
Z-axis fast moving speed | m/min | 30 | |||||
X-axis travel | mm | 200 | |||||
Z-axis travel | mm | 550 | |||||

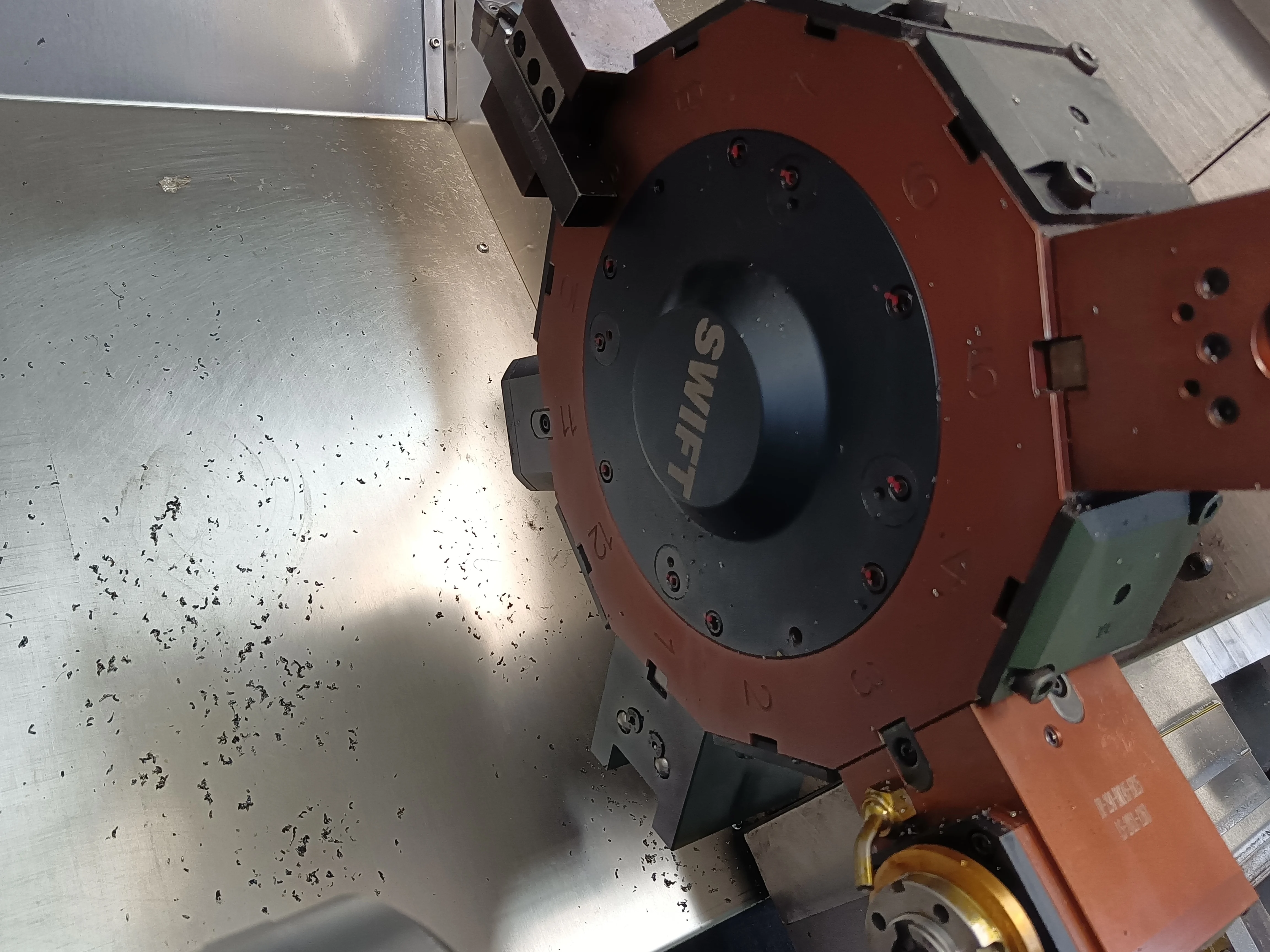

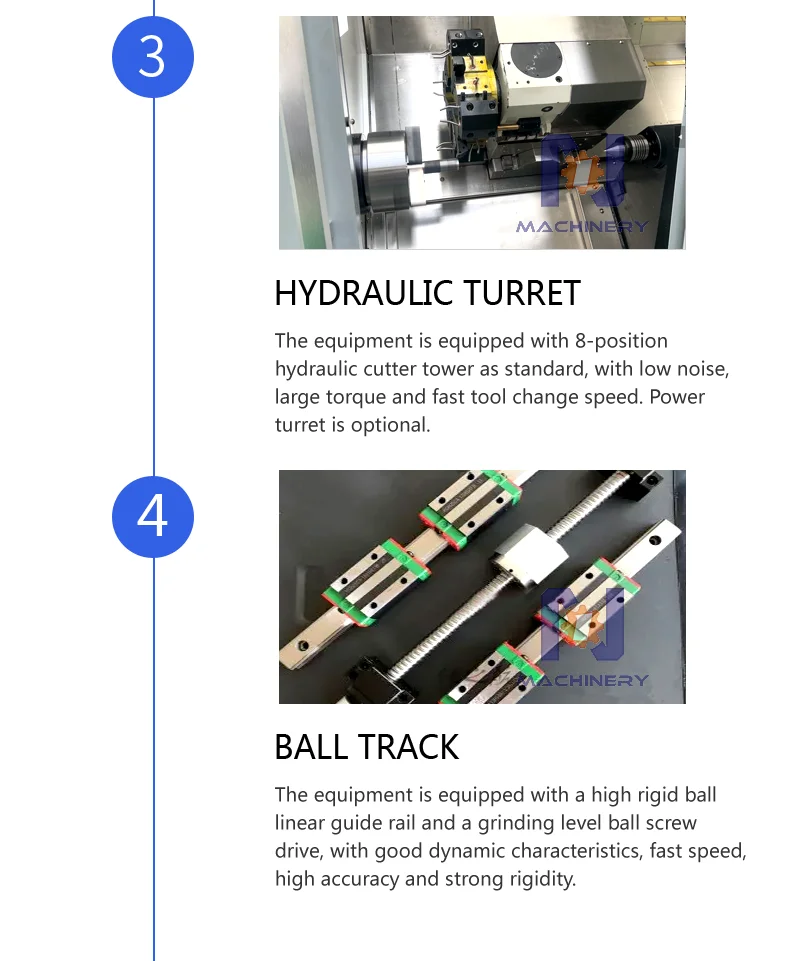

Standard tool holder form | Horizontal 8/12 station | ||||||
tailstock travel | mm | 450 | |||||
Tailstock sleeve travel | mm | 100 | |||||
Taper of tailstock sleeve | Morse | 5# | |||||
Tool size | External circular knife | mm | 25×25 | ||||
Boring blade diameter | mm | φ40/φ32/φ25/φ20 | |||||
The cutter head selects the tool nearby | yes | ||||||
Machine weight | Total weight | kg | 3800 | ||||
maximum safe load | Disk workpiece | kg | 200 | ||||
Shaft workpiece | kg | 500 | |||||
dimension of machine tool | (length * width * height) | mm | 500 | ||||

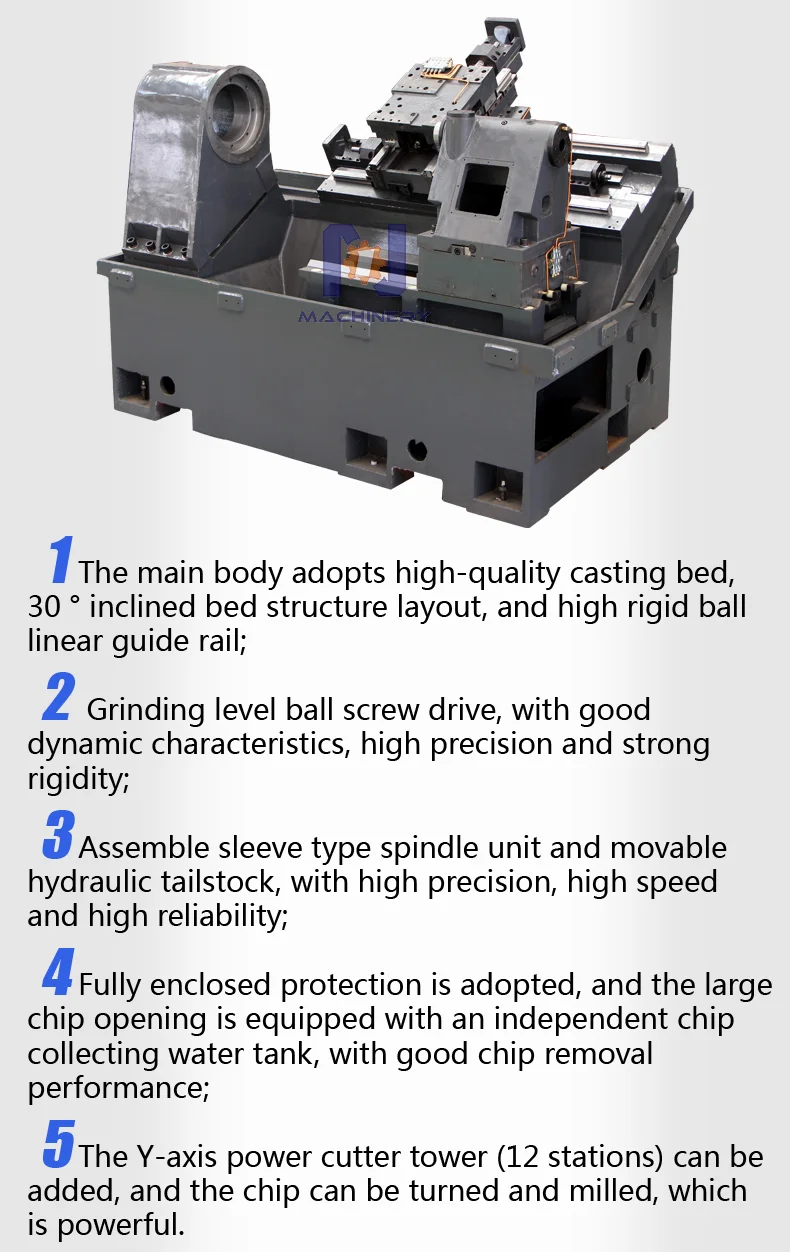

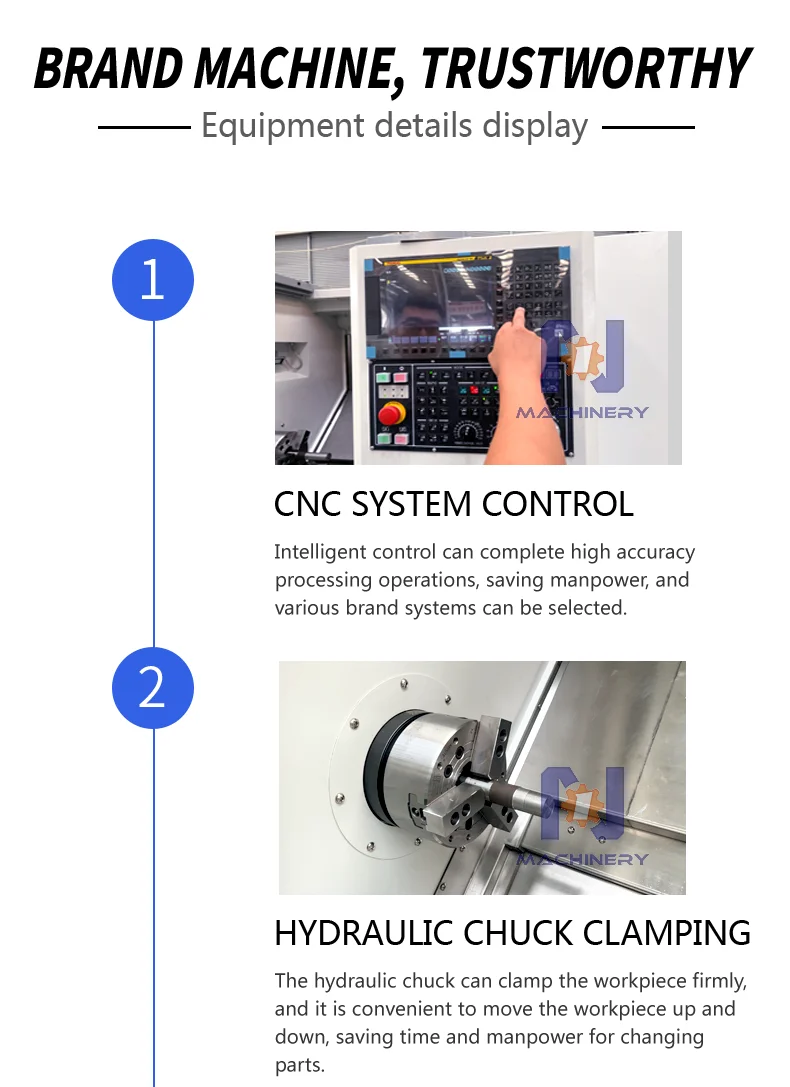

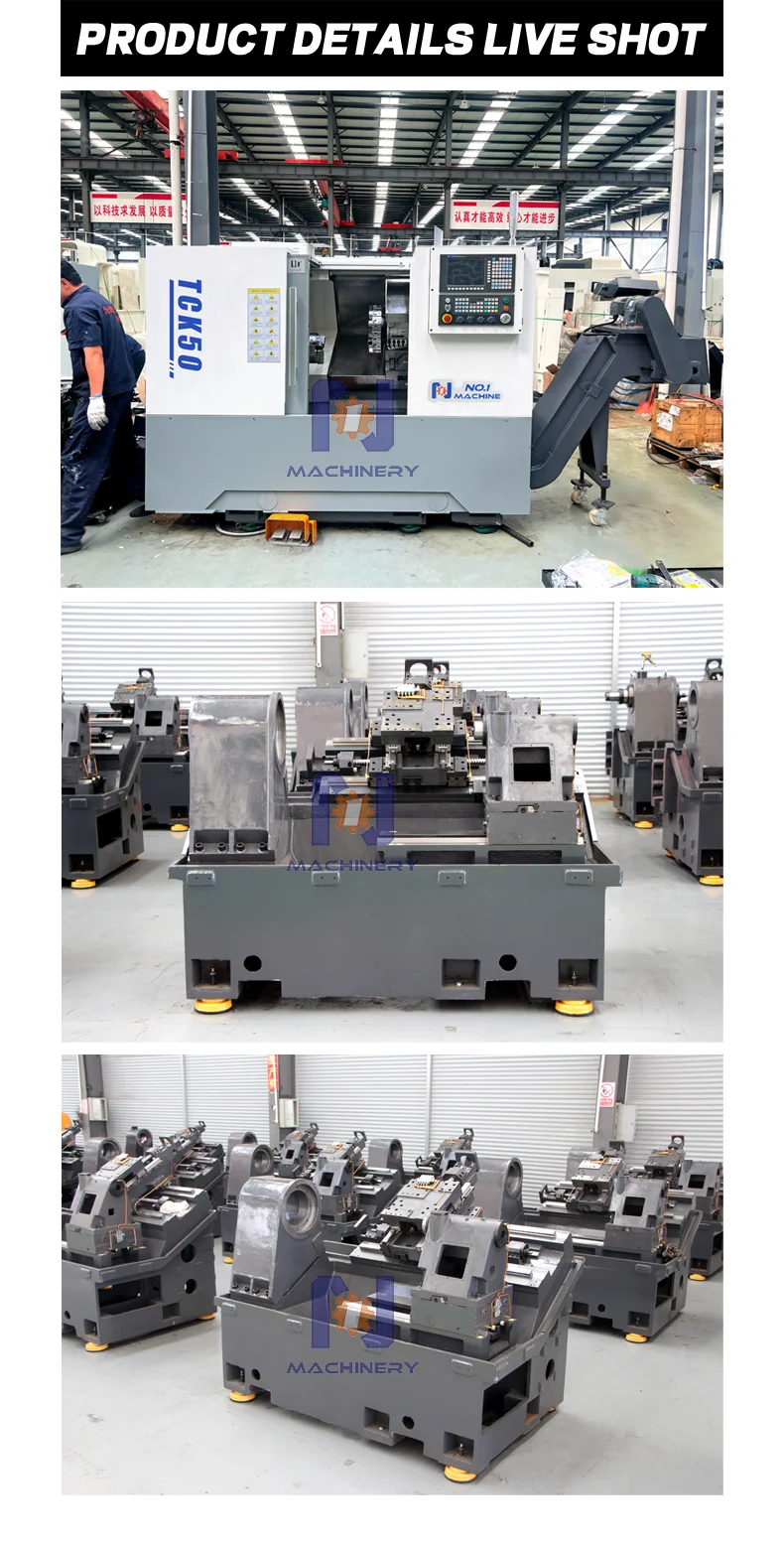

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
