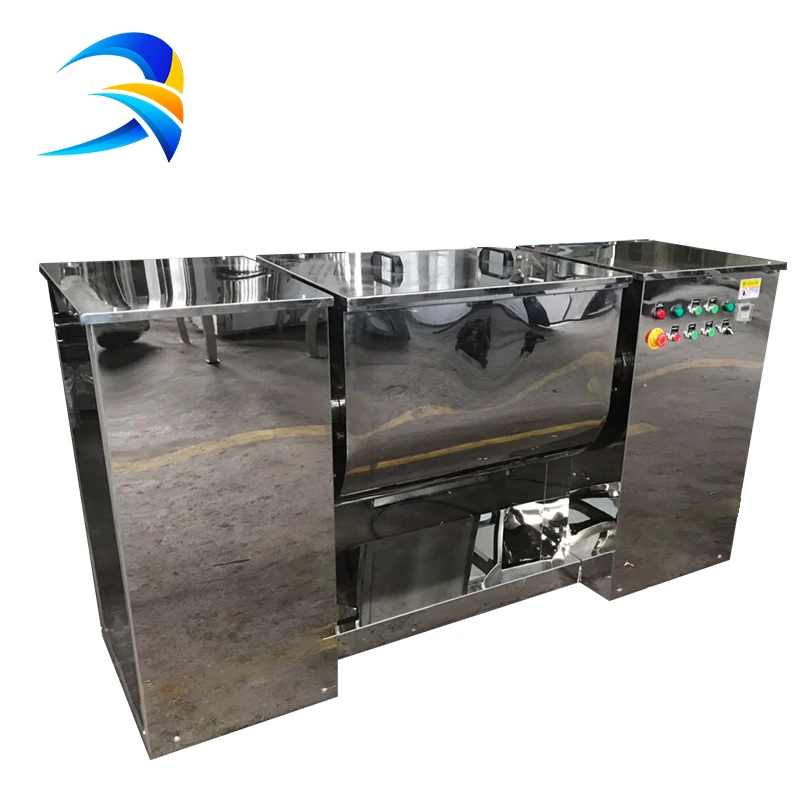

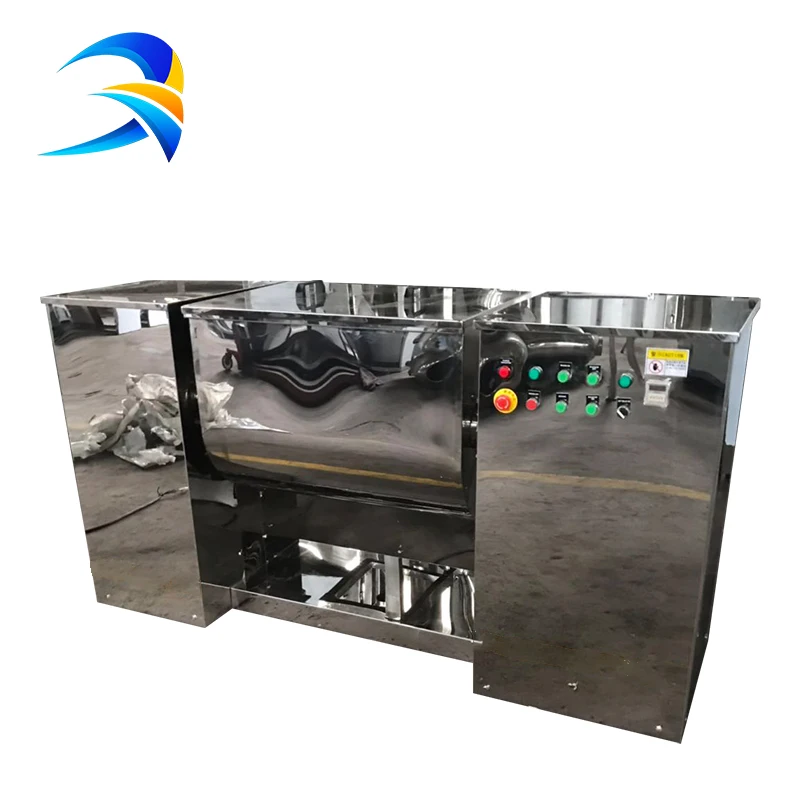

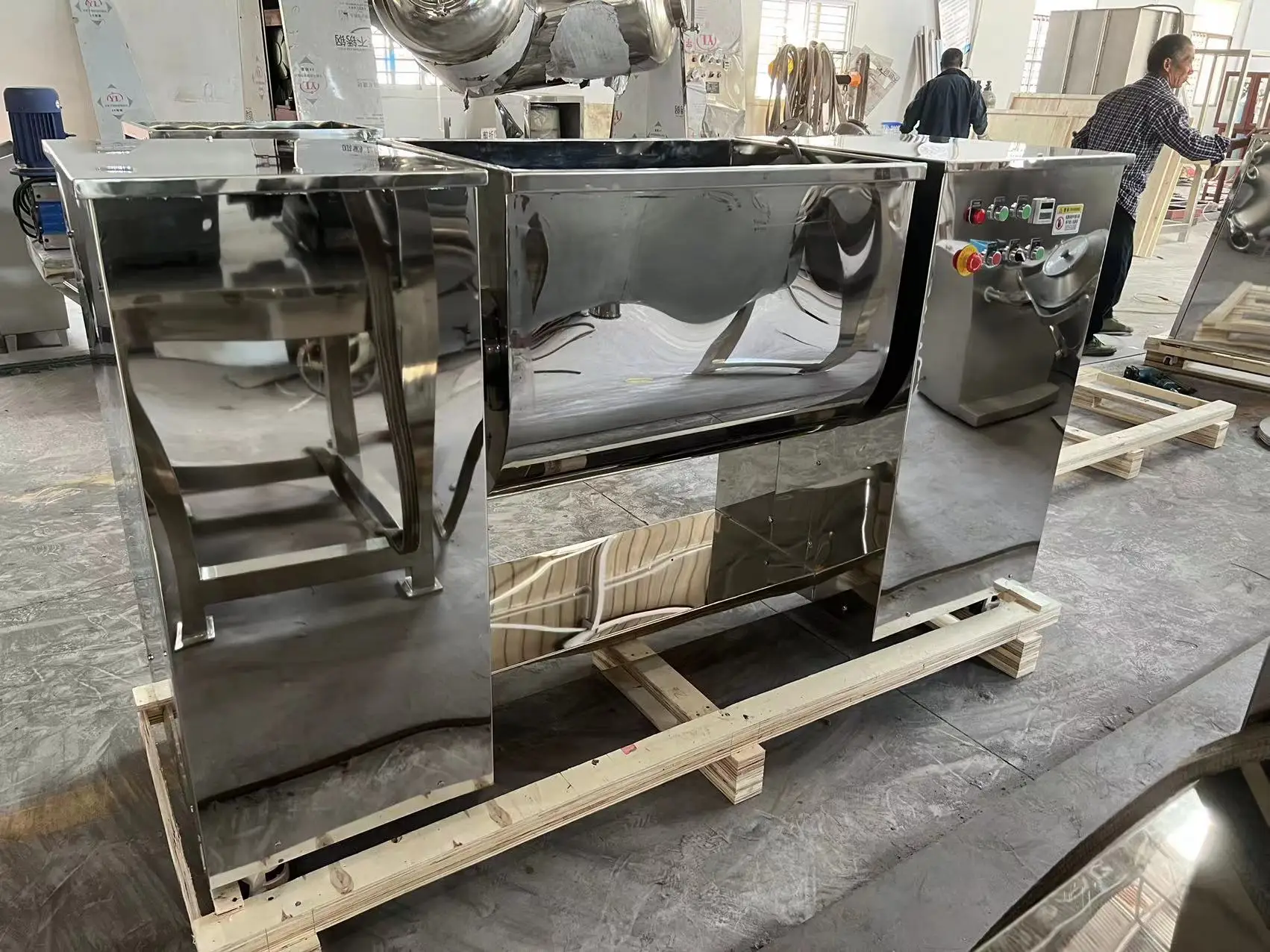

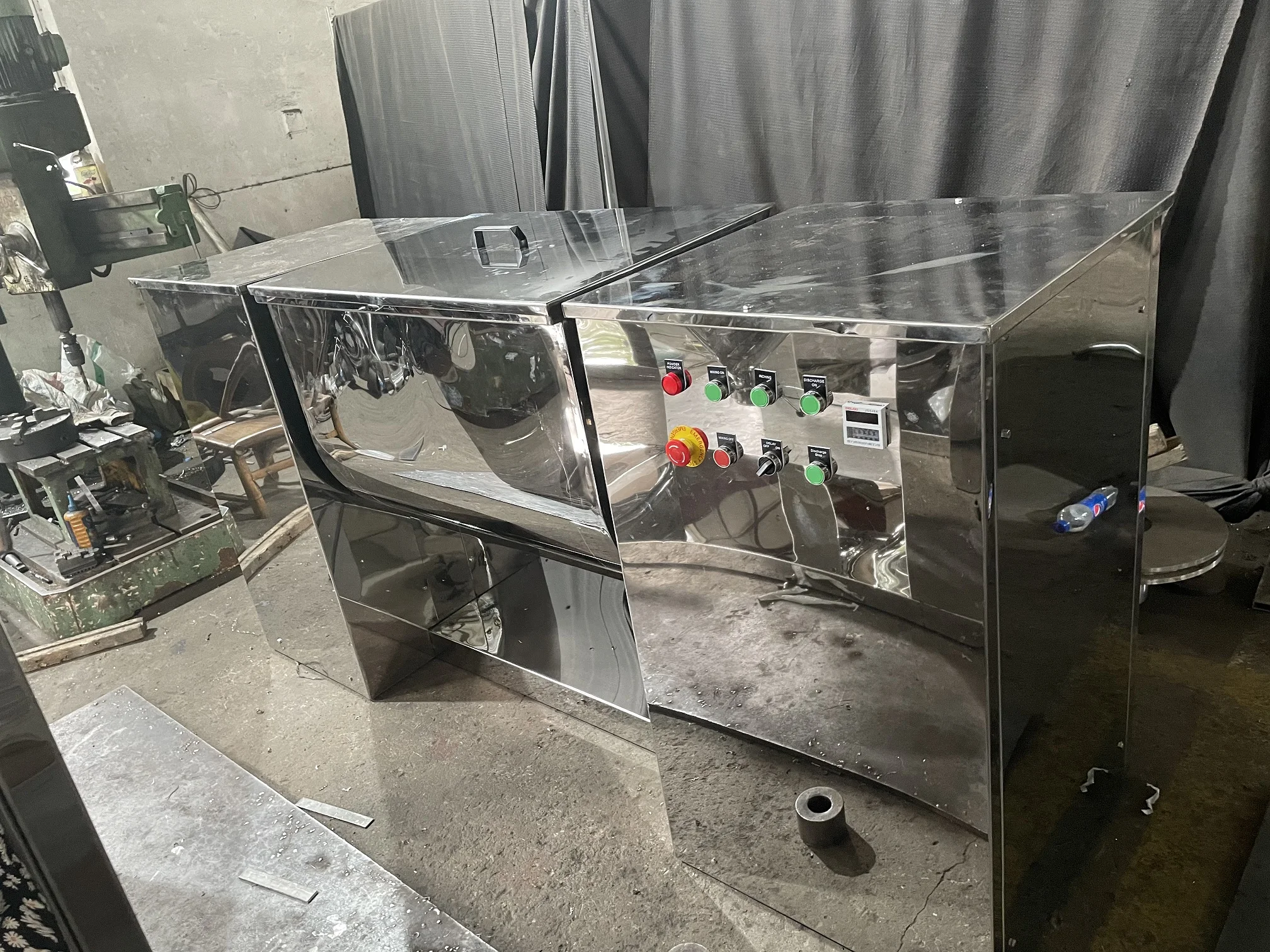

CH 200 Single Paddle Chicken seasoning Powder Mixing Equipment/Trough Shaped Mixer
- Category: >>>
- Supplier: Jiangyin City Xuan Teng Machinery Equipment Co. Ltd.
Share on (1600528836910):
Product Overview
Description
CH Trough mixer
Main Application
As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method

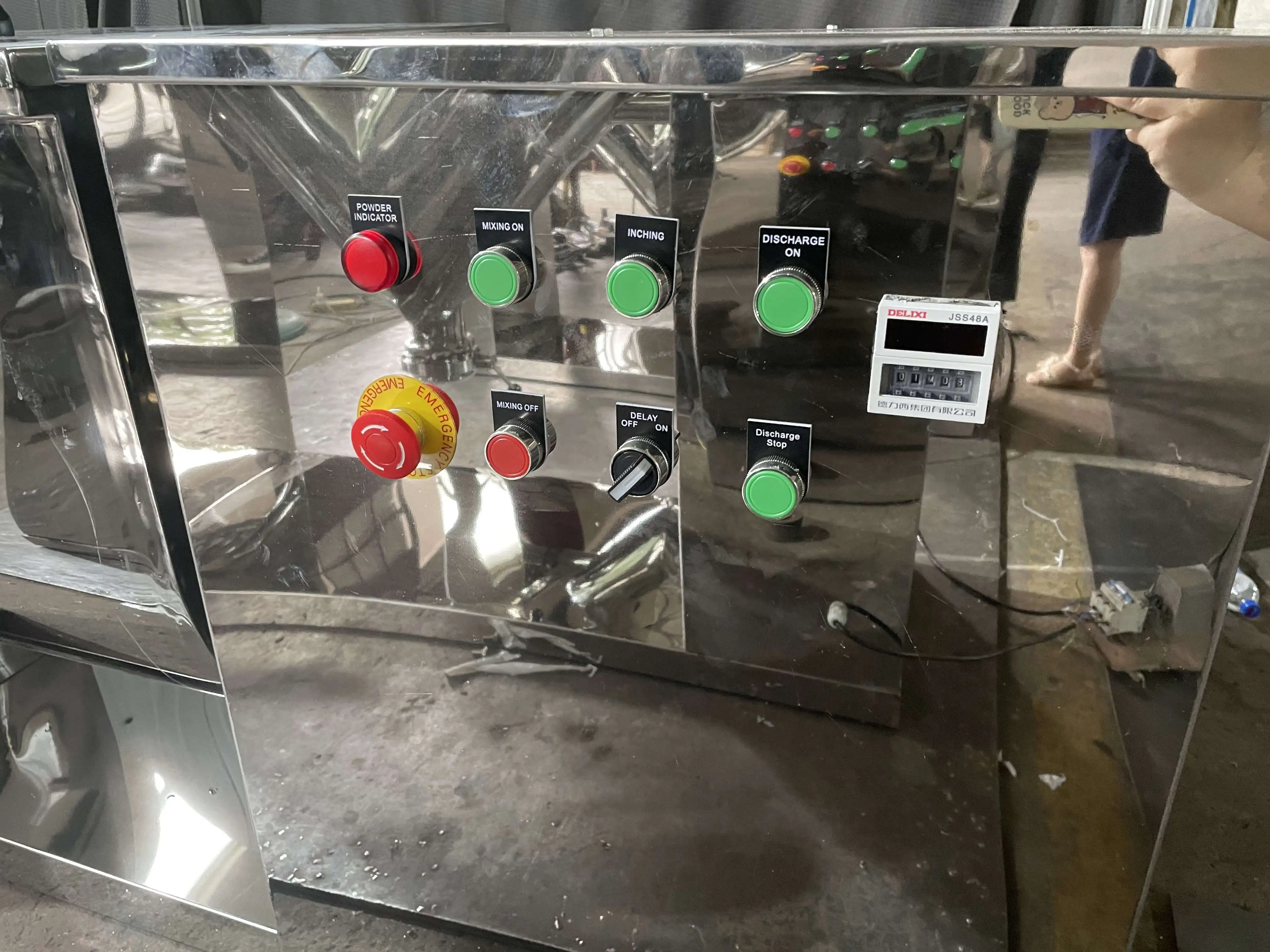

By driving of mechanism of mixer, the stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.
As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method
By driving of mechanism of mixer, the stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.

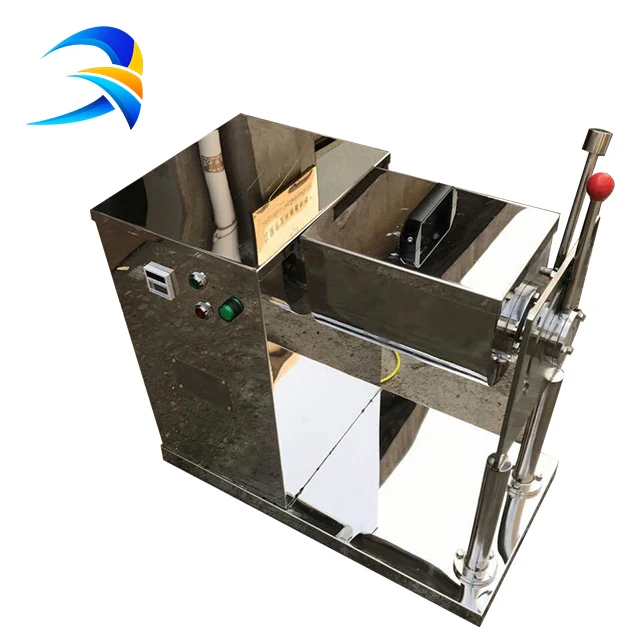

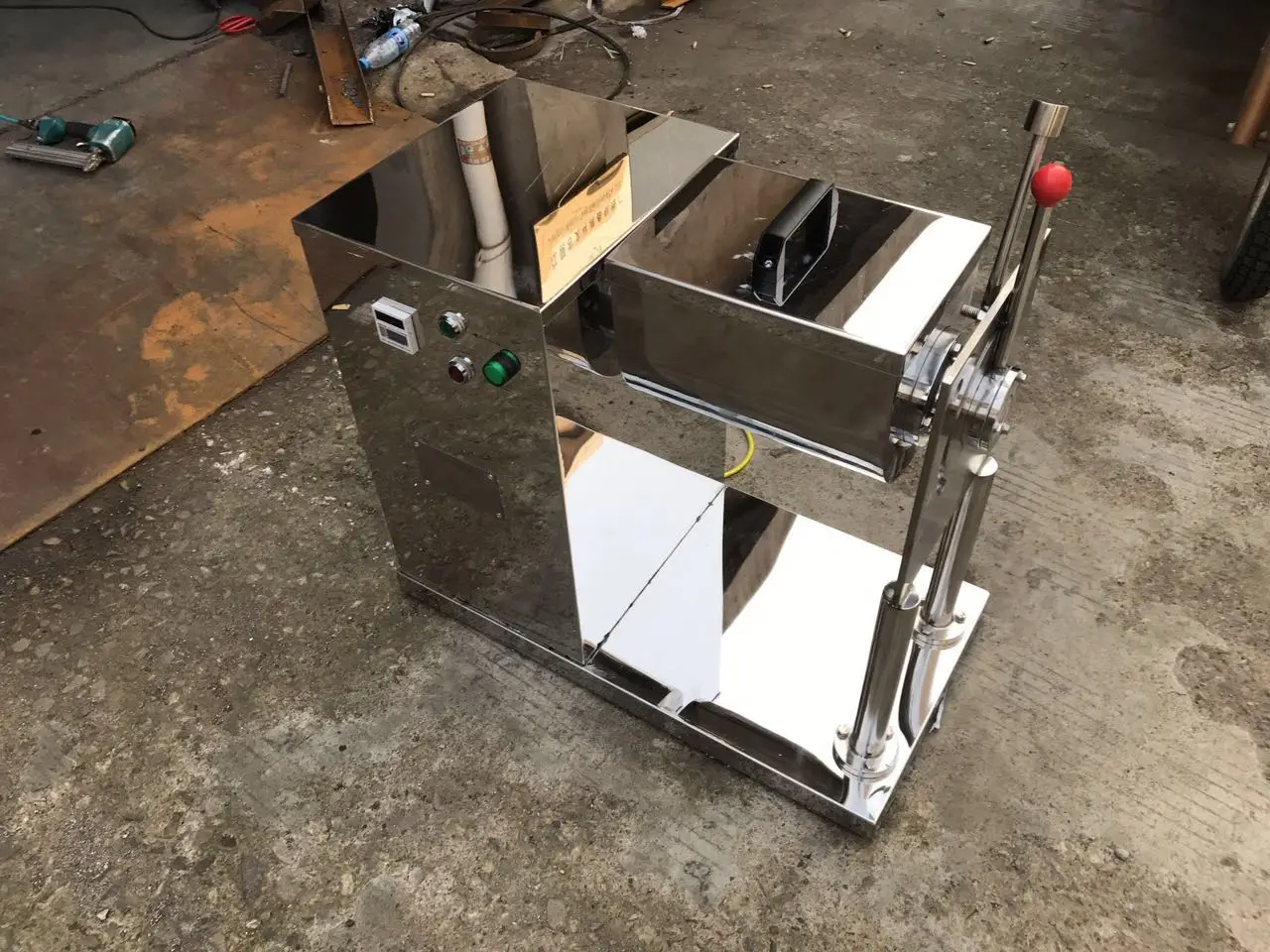

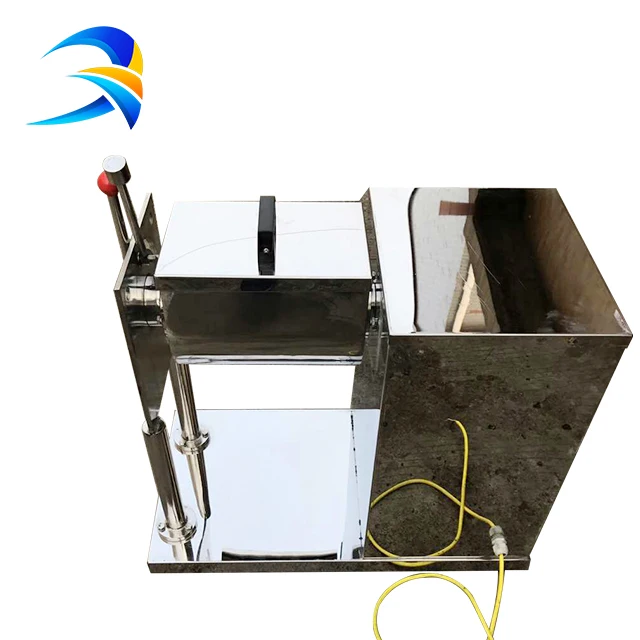

Model | CH-5 | CH-10 | CH-20 |
Volume(L) | 5 | 10 | 20 |
Mixing speed(r/min) | 24 | 24 | 24 |
Inclined angle(° ) | 105 | 105 | 105 |
Mixing motor(KW) | 0.2 | 0.25 | 0.37 |
Dumping motor | Manval | Manval | Manval |
Over size (mm) | 500*200*400 | 570*230*420 | 680*380*550 |
Weight(kg) | 40 | 45 | 65 |
MODEL | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 |
Paddle shape | S double paddle | S single paddle | S single paddle | S single paddle | S single paddle |
Working volume (L) | 100 | 100 | 150 | 200 | 300 |
Mixing speed (r/min) | 24 | 24 | 24 | 24 | 24 |
Stir angle ( ° ) | < 105 | < 105 | < 105 | < 105 | < 105 |
Mixing power (KW) | 2.2 | 2.2 | 3 | 4 | 5.5 |
Dumping power (KW) | 0.55 | 0.55 | 0.55 | 0.75 | 1.1 |
Weight (kg) | 350 | 350 | 410 | 450 | 520 |
Overall size L× W× H (mm) | 1400× 580 × 1000 | 1400× 580 × 1000 | 1600× 600 × 1150 | 1700× 650 × 1200 | 1800× 700 × 1250 |
1.It is suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.It can also increase to blend the function compulsorily. It can mix thin powder and more than two form powders including the materials that contain water.
1.It is suitable for mixing dry material powder in pharmaceutical, food and chemical industry.

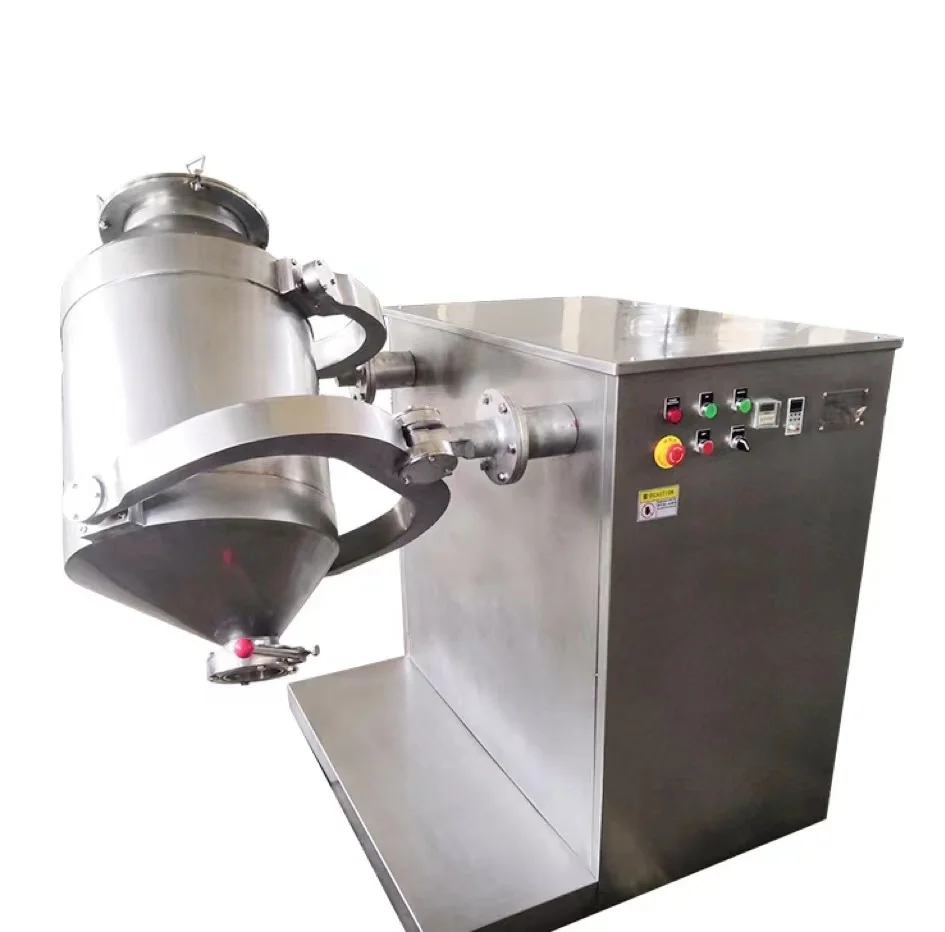

2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.

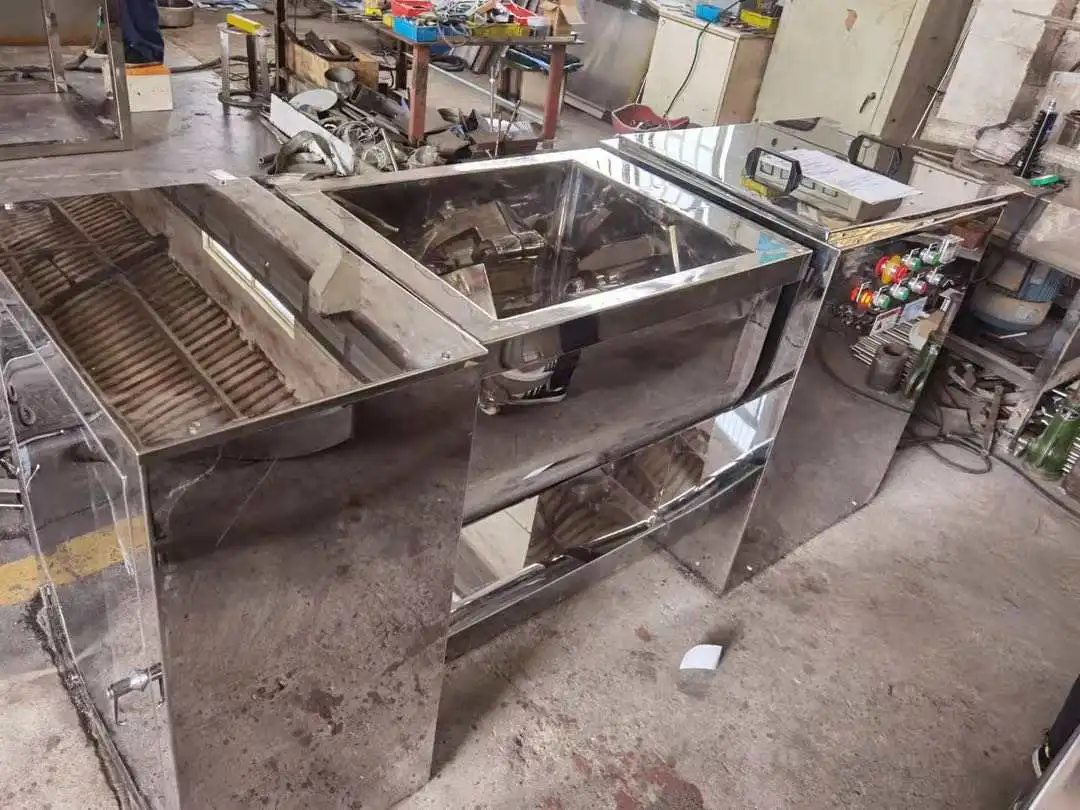

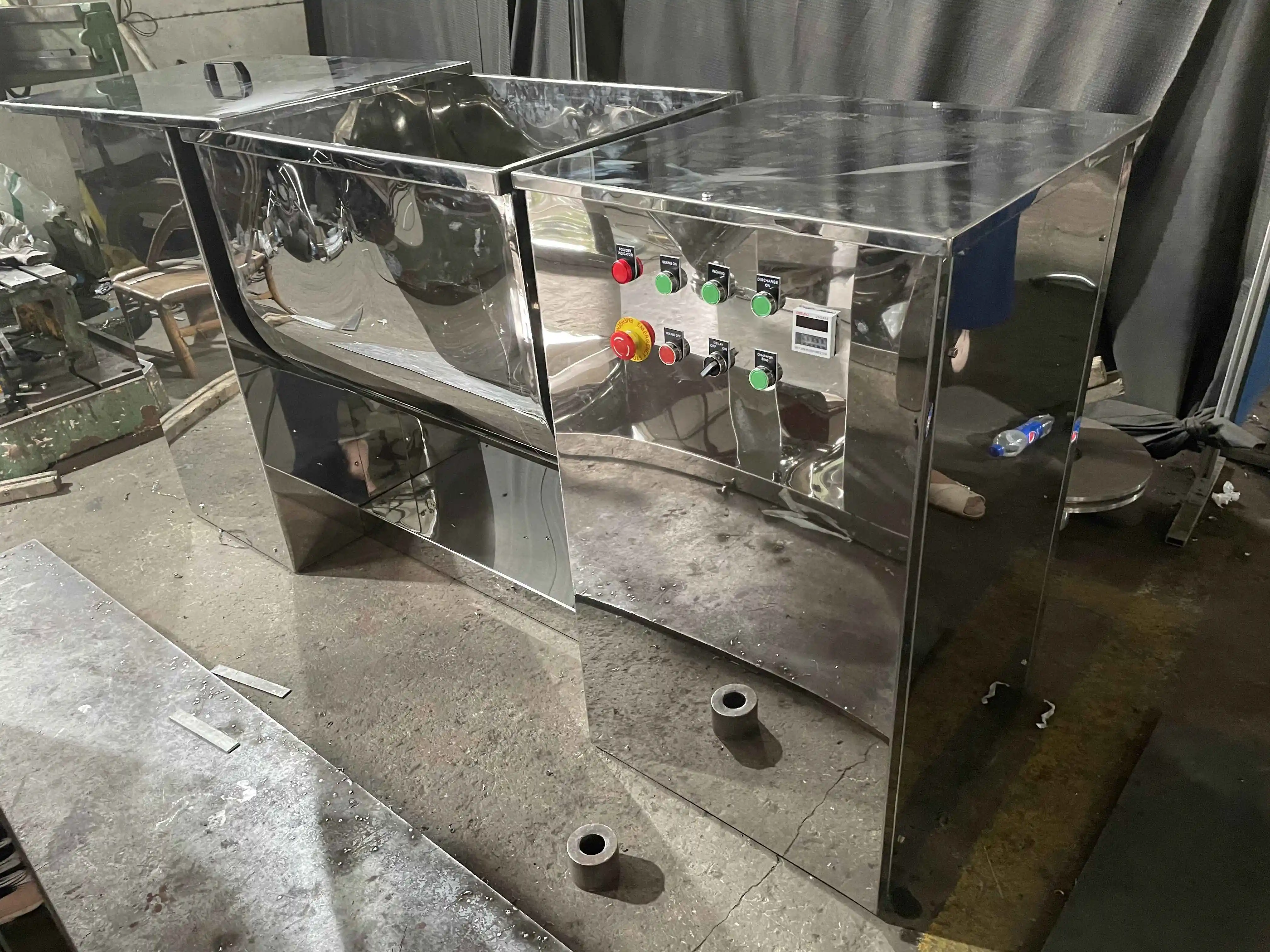

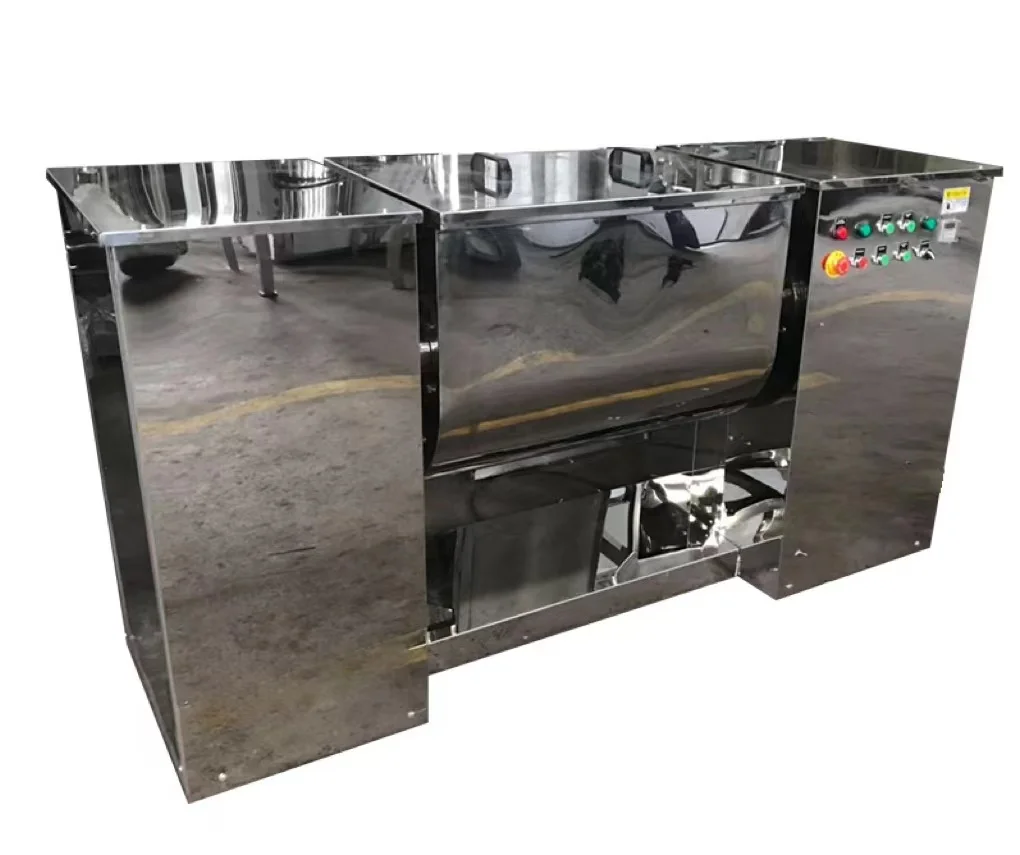

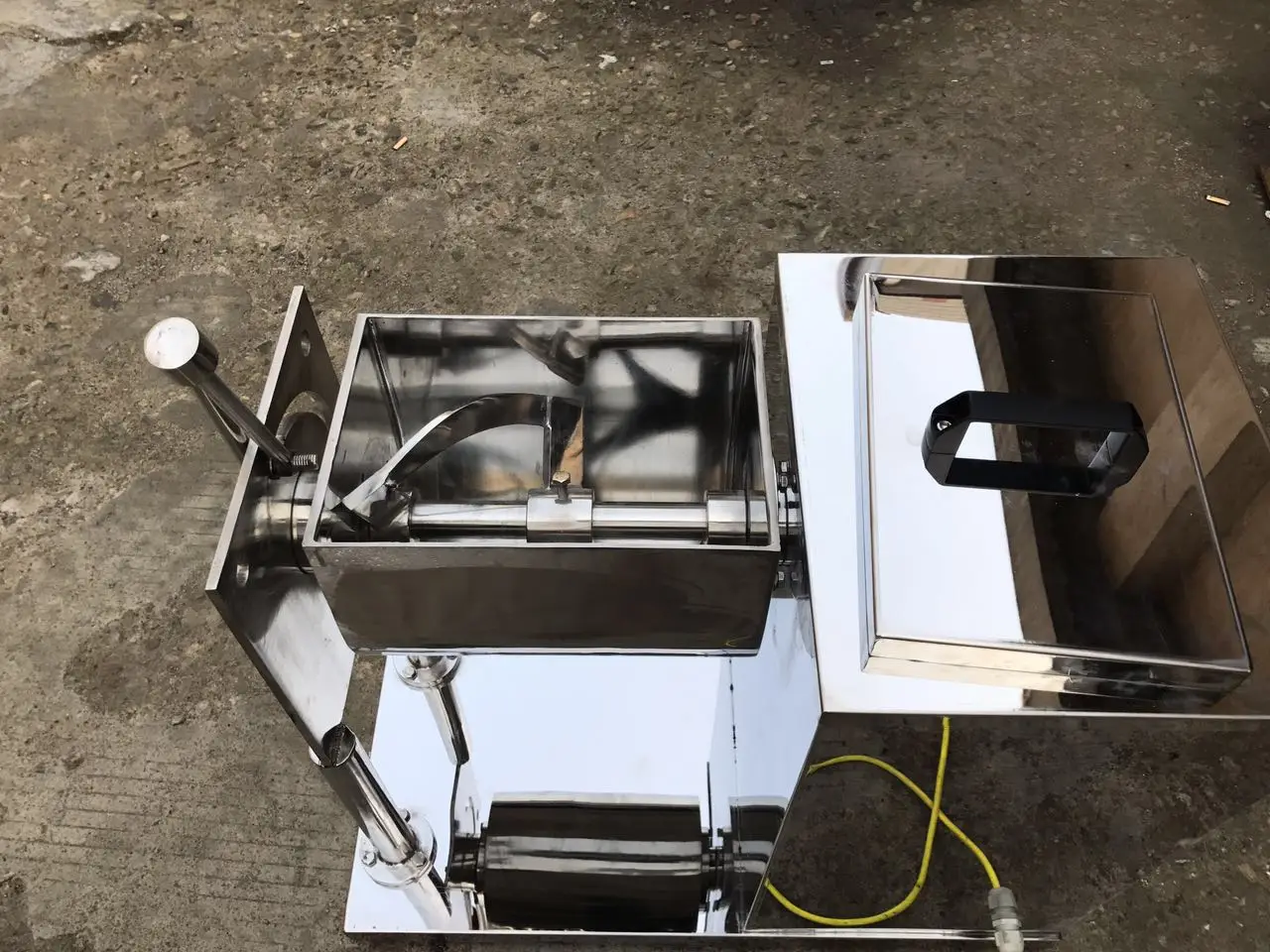

CH Trough Type Mixer
1.Horizontal trough mixer, suitable for mixing powdery or pasty materials.

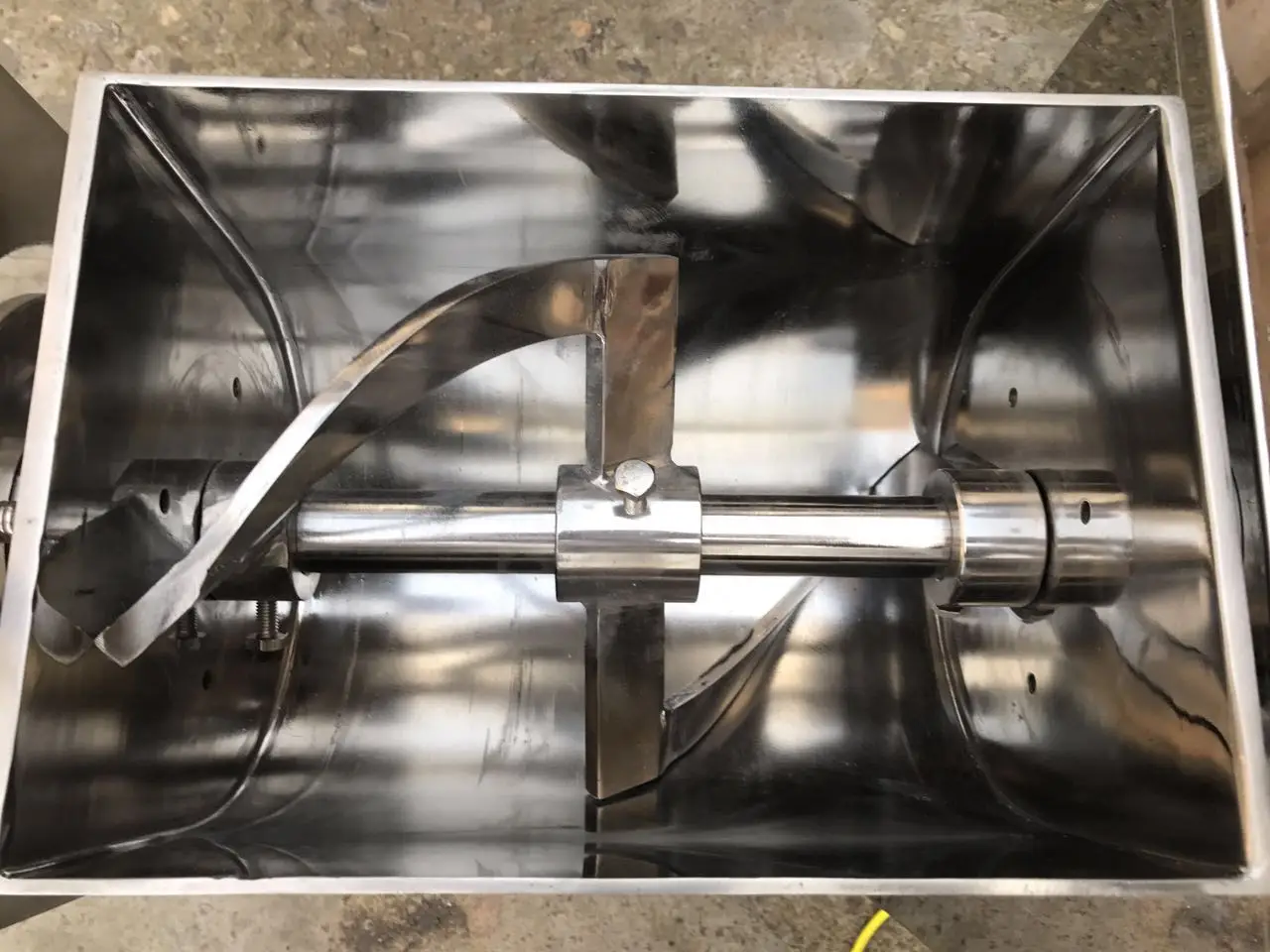

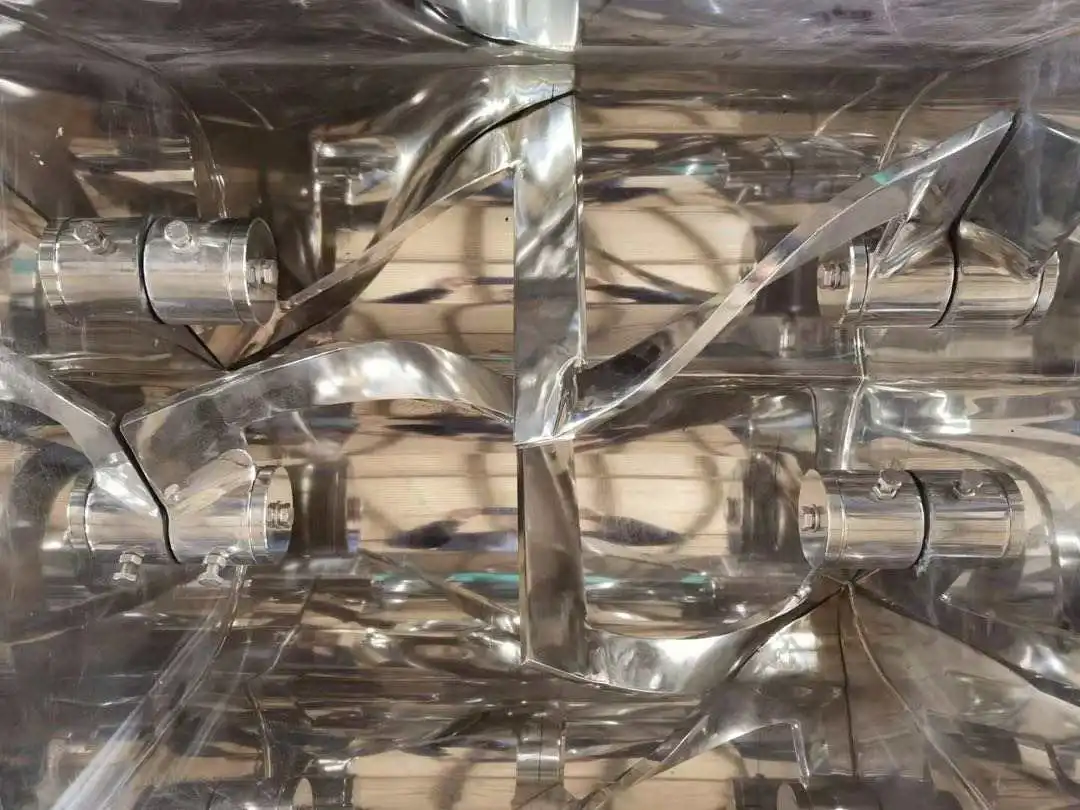

2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.
2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.
1.It is suitable for mixing dry material powder in pharmaceutical, food and chemical industry.

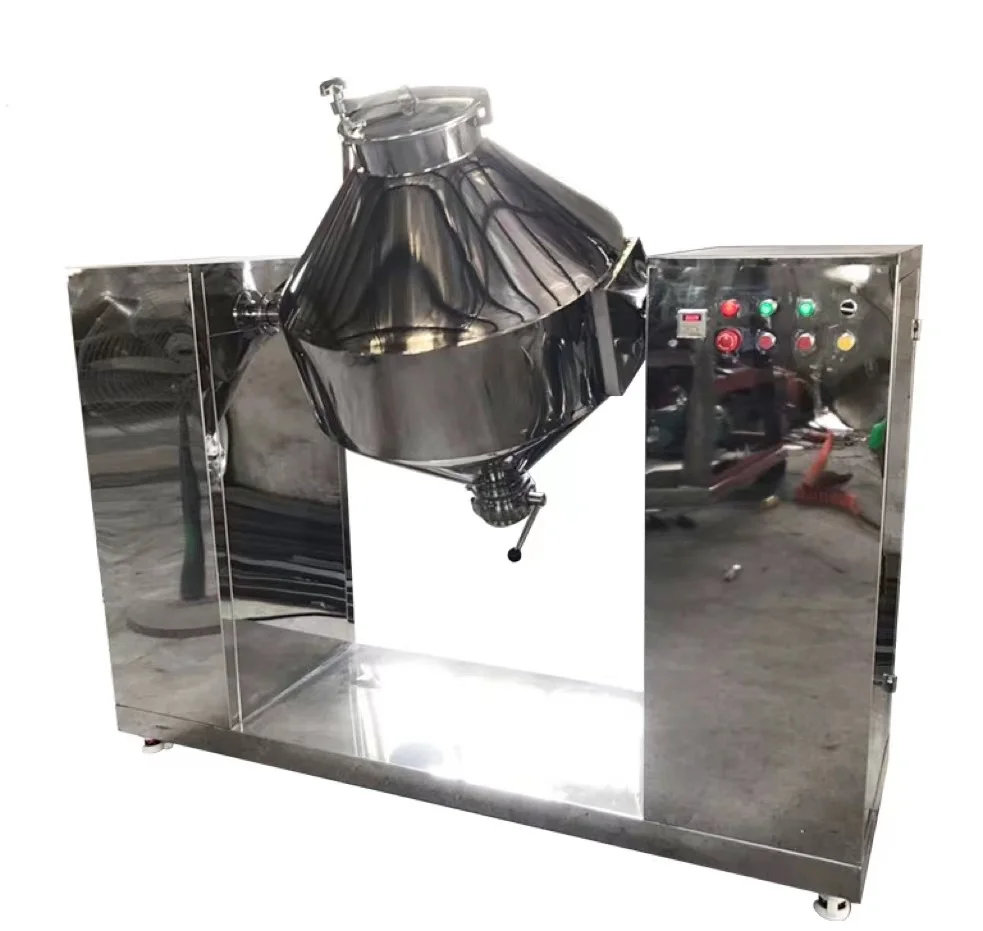

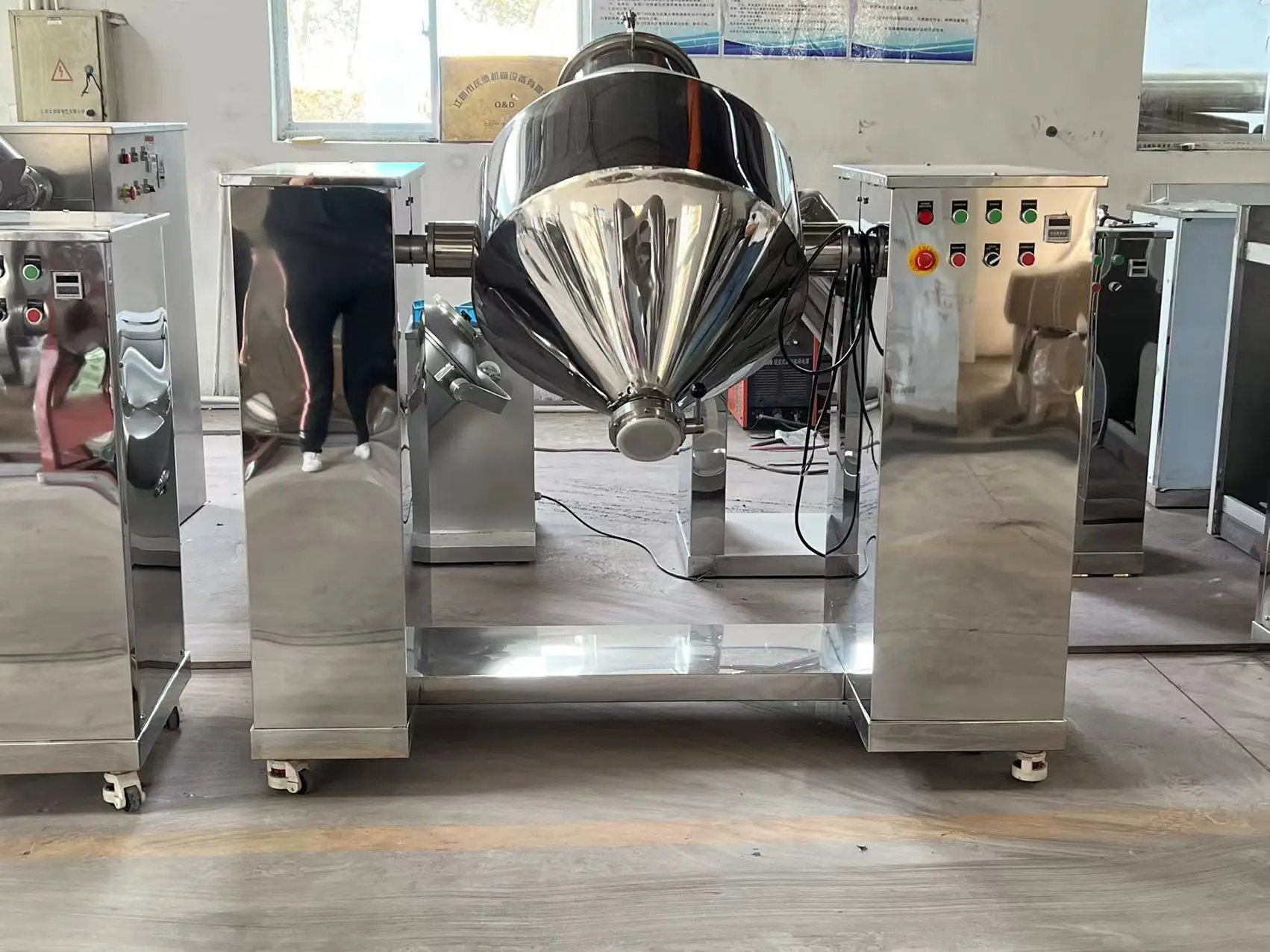

2.Double cone mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
2.Double cone mixing container.A stirring stick can be added for mixing materials containing a small amount of water.

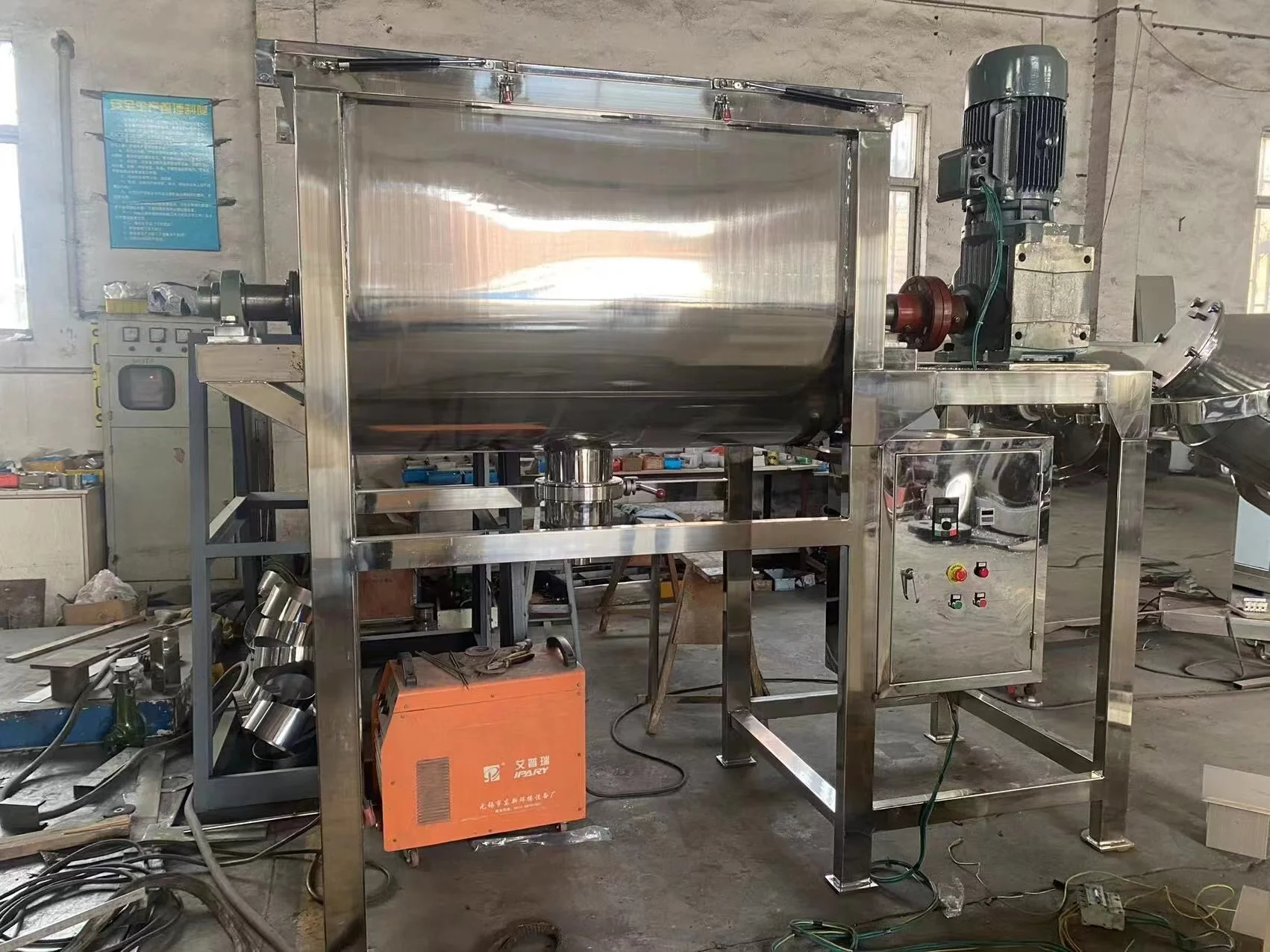

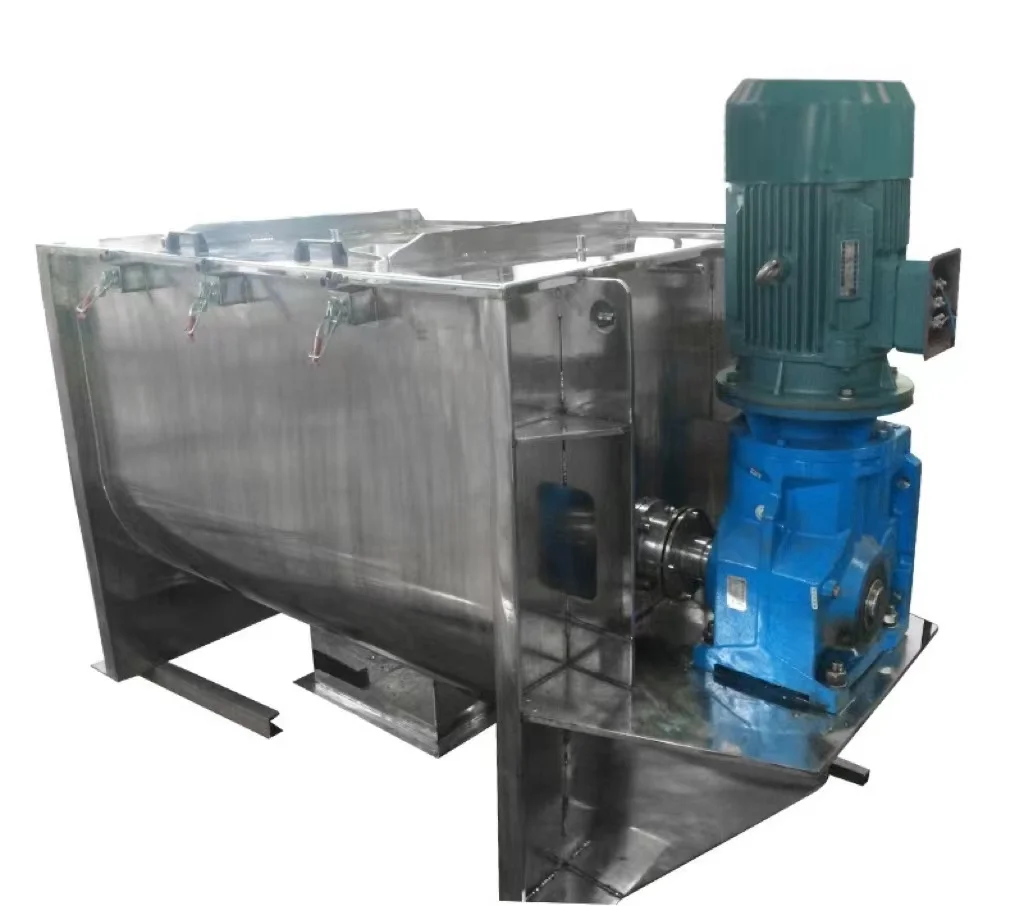

1.Suitable for high-volume mixing of materials in the pharmaceutical, food, chemical industries.
2.The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good
circulation of material.
2.The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good
circulation of material.
ABOUT US
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.

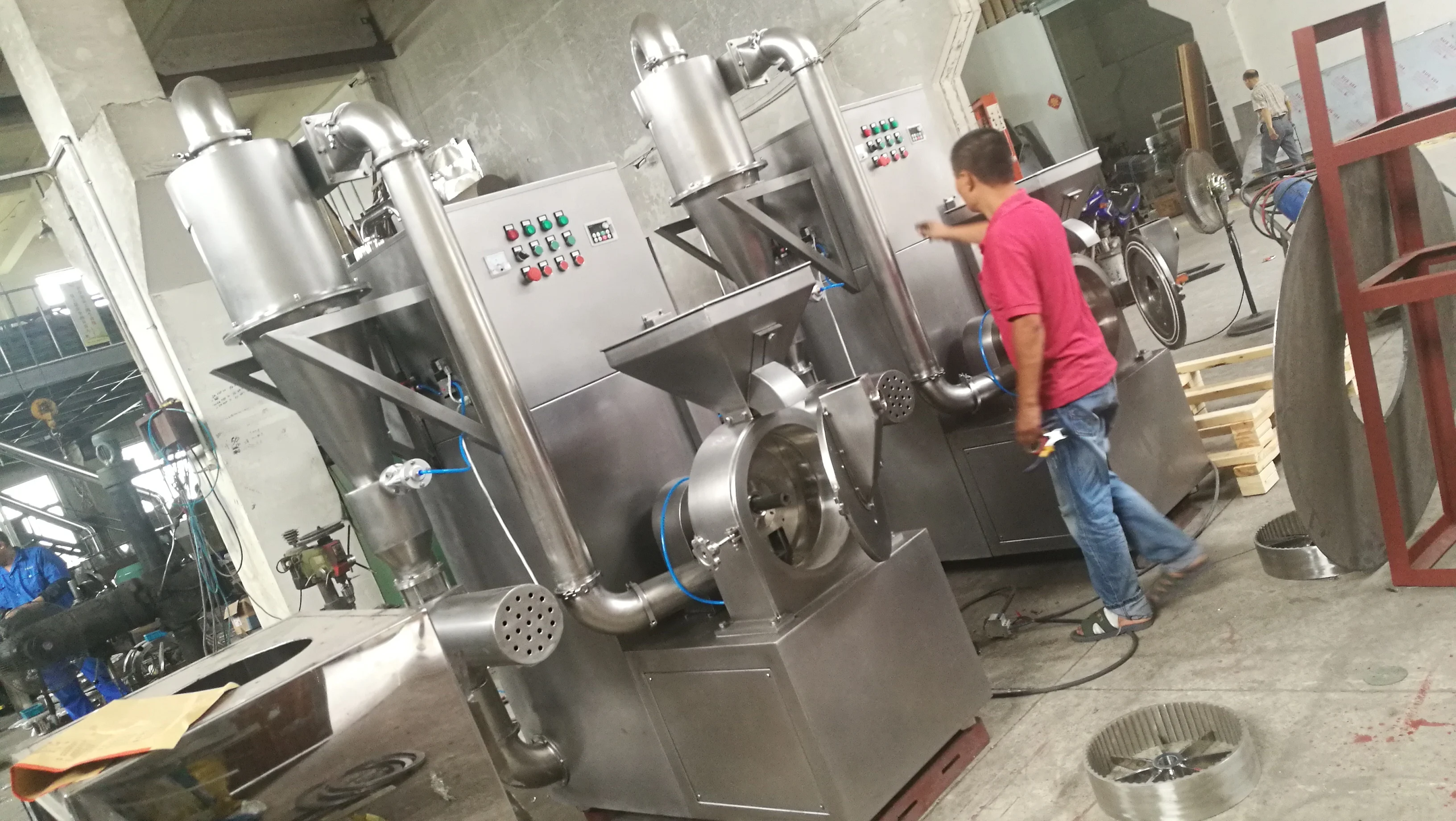

Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine. Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being
pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine. Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being
pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!
1. Who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?

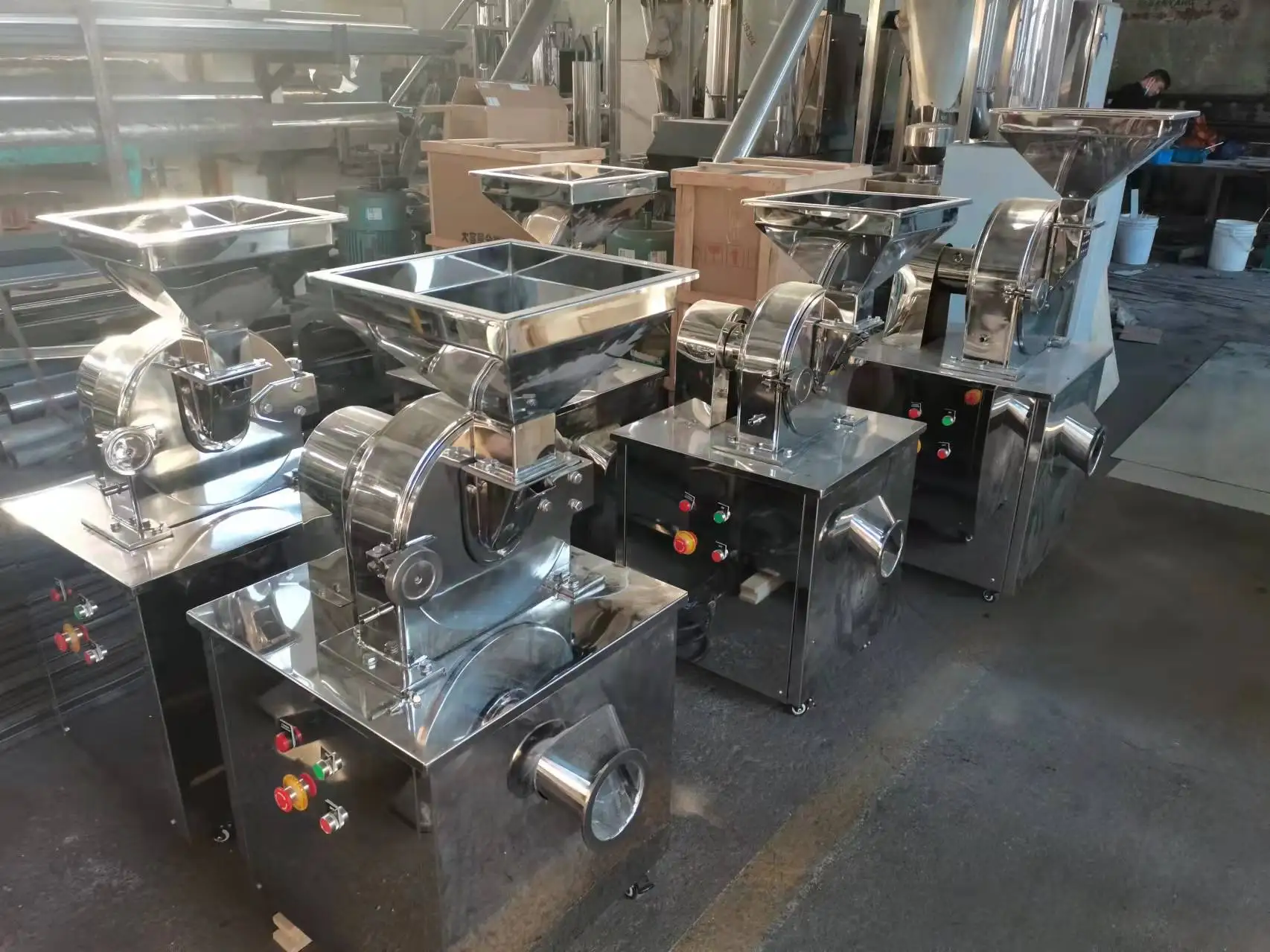

Pulverizer,Mixer,Sifting machine,Granulator,Drier
