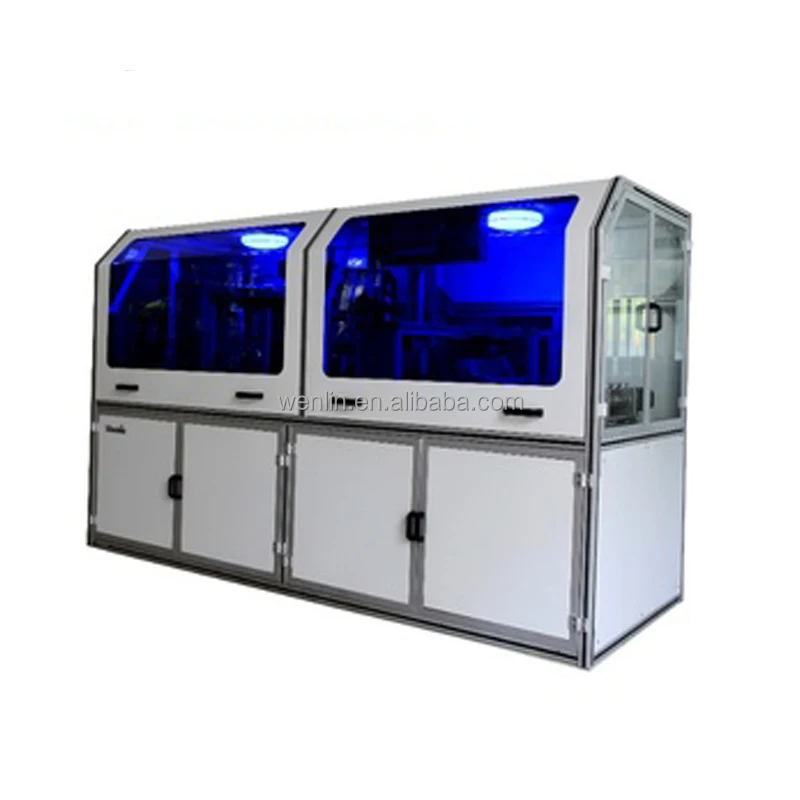

Высококачественная машина для пробивки карточек из ПВХ с автоматической сортировочной системой
- Category: Plastic Cutting Machines >>>
- Supplier: Wuhan Wenlin Technology Co. Ltd.
Share on (1600528854916):
Product Overview
Description

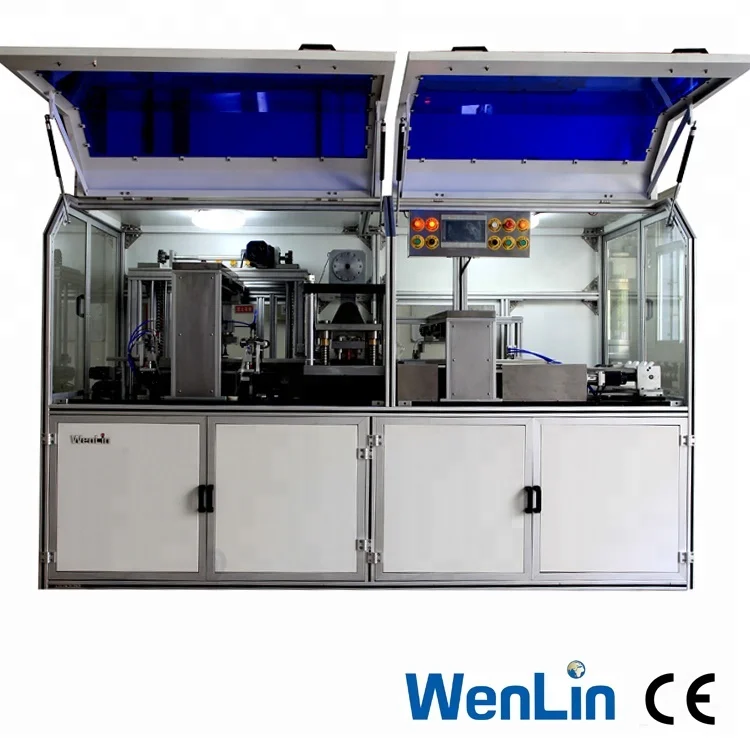

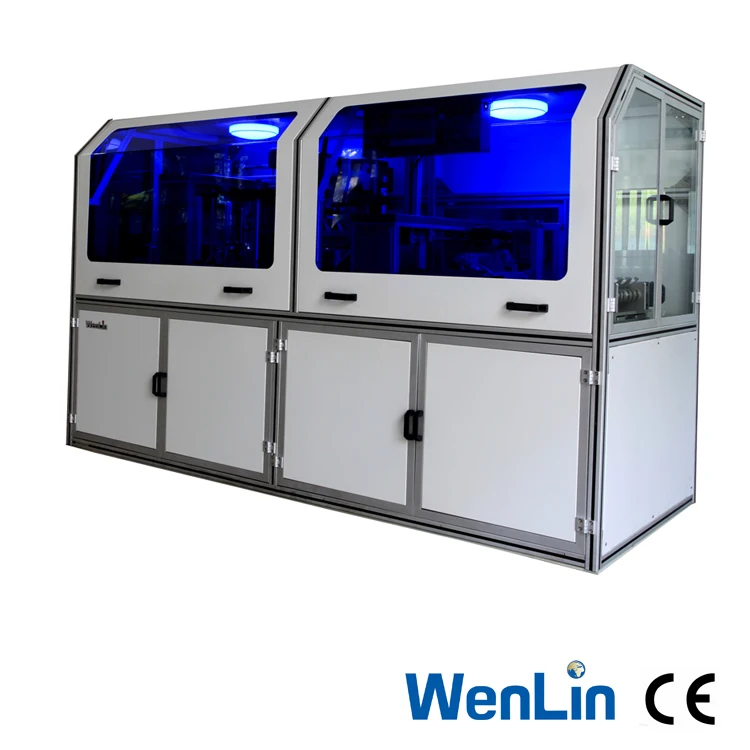

WENLIN-HSA-3C/4C/5C card punch
Product Description:

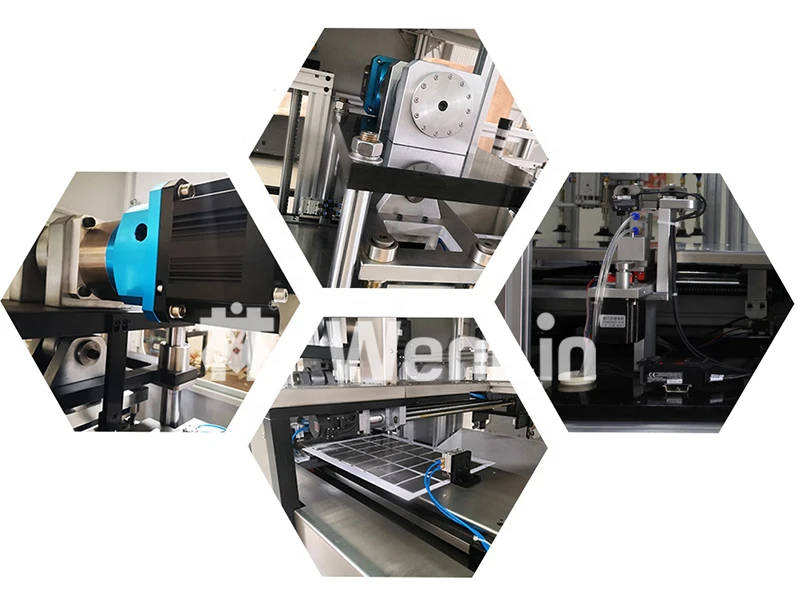

WENLIN-HSA-3C/4C/5C fully Automatic card Punching Machine with high speed productivity of 16000-24000 cards per hour, which adopts PLC industrial automation controlling, this automated technology can realize automatic feeding. This good price card die cutter can be used for punching plastic card, PVC card, ID card, IC card, bank card, credit card, loyalty card, VIP card, hotel card, inlay sheet. High-quality servomotor and high precision ball screw as well as linear guide are adopted. High sensitivity photoelectric recognition device reads the position marks for precise and reliable positioning.
The mould of WENLIN-HSA-3C/4C/5C ID card punch machine is made by imported mould steel. The power adopts high power servomotor as the power source in order for strong punching capacity and adjustable speed. The advanced card conveyer structure and alternate feeding and discharging functions of double servo screws realize fast speed and high efficiency.
The card collecting uses three separate card boxes and the scrap material border is automatically piled up and collected by manipulator. This machine has a real time monitoring of repeated cards and output cards detection.If anything unusual happens, the machine will stop automatically and give an alarm with fast speed and accurate positioning. The whole process is monitored by sensor for convenient production,safety and reliability, automatic feeding,automatic card separation, automatic card separation and scrap material collection function for labor cost saving and high efficiency.
Application range:
his pvc card punch machine can be used for punching plastic card, PVC card, ID card, IC card, bank card, credit card, loyalty card, VIP card, hotel card, inlay sheet.
Technical parameter:
| Model | WENLIN-HSA-3C/4C/5C card punch |
| Punch layout | 3X8 4X8 5X5 |
| Controlling Method | PLC |
| Punching Power | Servo system |
| Punching Precision | ±0.10mm |
| Card Collecting Method | 3/4/5 rows of card collecting boxes |
| Productivity | 16000-24000 pcs/hour |
| Card Standard | ISO CR-80-ISO7810 International Standard |
| Air Source | 6 kg / square centimetre |
| Air Consumption | 150 L/min |
| Power | AC 380V/50 HZ 5.5kw |
| Machine dimension | 3000(L)×1240(W)×1750(H)mm |
| G.W. | About 1800KGS |
Packaging & Shipping
WENLIN-HSA-3C/4C/5C fully Automatic card Punching Machine Improved Customization Mould PVC/ID Card Punching Machine in Standard Export Wooden Carton
FAQ1.Question: How long time of warranty ?
Answers: 1 year free of charge
2.Question: Do you get CE certified ?
Answers: Yes, we get CE certificate for all our machines
3.Question: Can you supply door to door installation service for machines ?
Answers: Yes ,we supply ,buyer need to afford all dinners ,hotels and ticket.Our Services1.Inquiry and consulting support and sample testing support
2. View our factory
3. Industry and trade integration development
4. 20 years experience
5. Various products
6. Flexible payment
7. Accurate quotation quickly
Certifications
Company Information
Wuhan Wenlin Technology Co., Ltd. was founded in 2001, which is a smart card making equipment R & D, production and materials supply enterprise. The laminator and punching machine for IC, ID&RFID smart card are well-praised. There are more than 1000 customers in nearly more than 50 countries and regions around the world, including the world-famous card making enterprises. The machines are widely used in the production fields of Union Pay, VISA, MasterCard, second generation ID card, residence card, social security card, double interface card and IC, ID smart card and so on.
Wenlin is a high-tech and national Torch Program project enterprise identified by the Chinese government, as well as a demonstration enterprise of scientific & technological innovation and patent transformation. The trademark “WENLIN" have been evaluated as famous trademarks of Hubei province and Wuhan city for more than 10 years.
Wenlin passed CE and ISO9001 certificates, and obtained 11 national invention patents(ZL201110189116.0;ZL201110189122.6;ZL201410139338.5;ZL201410140570.0;ZL201410139337.0;ZL201410140607.X;ZL201410125696.0;ZL201410140568.3;ZL201410139336.6;ZL201511029056.0;ZL201510513046.8),multi patents for utility models(ZL2015211392374;ZL201721920832.0;ZL20192242777.7T etc)and software copyright.
Founding century name brand, Creating hundred-years-old Wenlin. To provide the best card making solution and service for all the customers is the eternal aim of Wenlin. We’d like to cooperate with agents all over the world.
