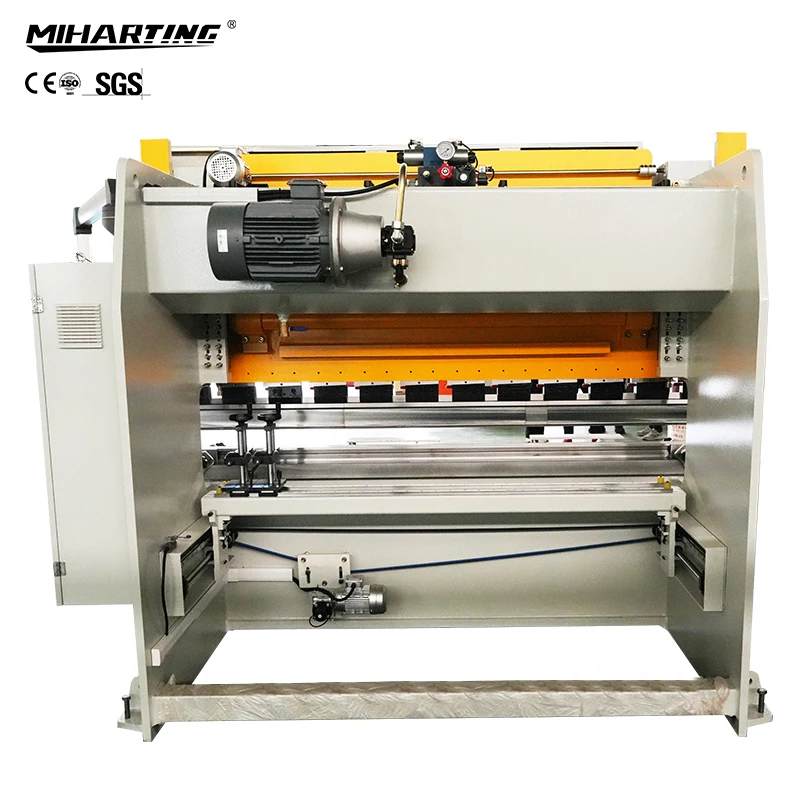

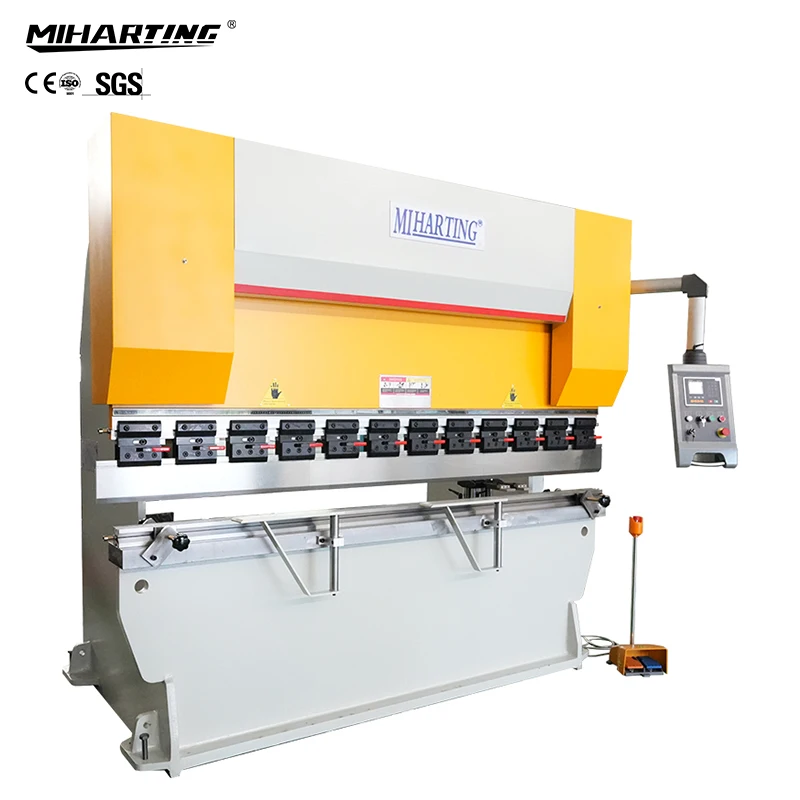

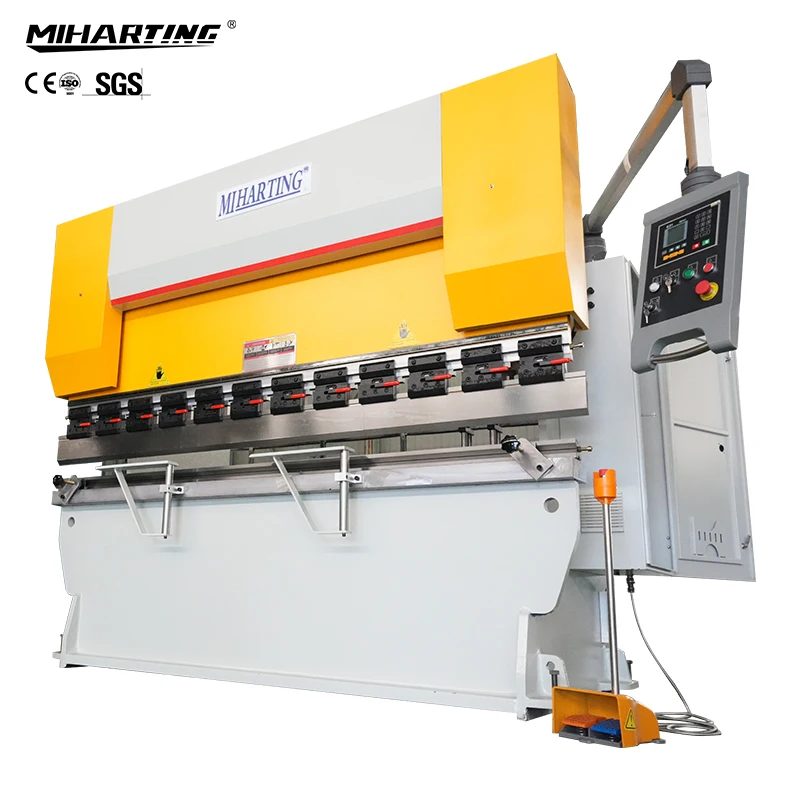

E21 System WC67Y 80t/2200 CNC Hydraulic Press Brake Bending Machine for sheet metal
- Category: >>>
- Supplier: Anhui Harting Machinery Technology Co. Ltd.
Share on (1600528875841):
Product Overview
Description
FEATURES
* OVERALL WELDED AND PROCESSED STRUCTURE.
* MECHANICAL STOP AND STEEL TORSION BAR TO MAINTAIN SYNCHRONIZATION AND HIGH PRECISION.

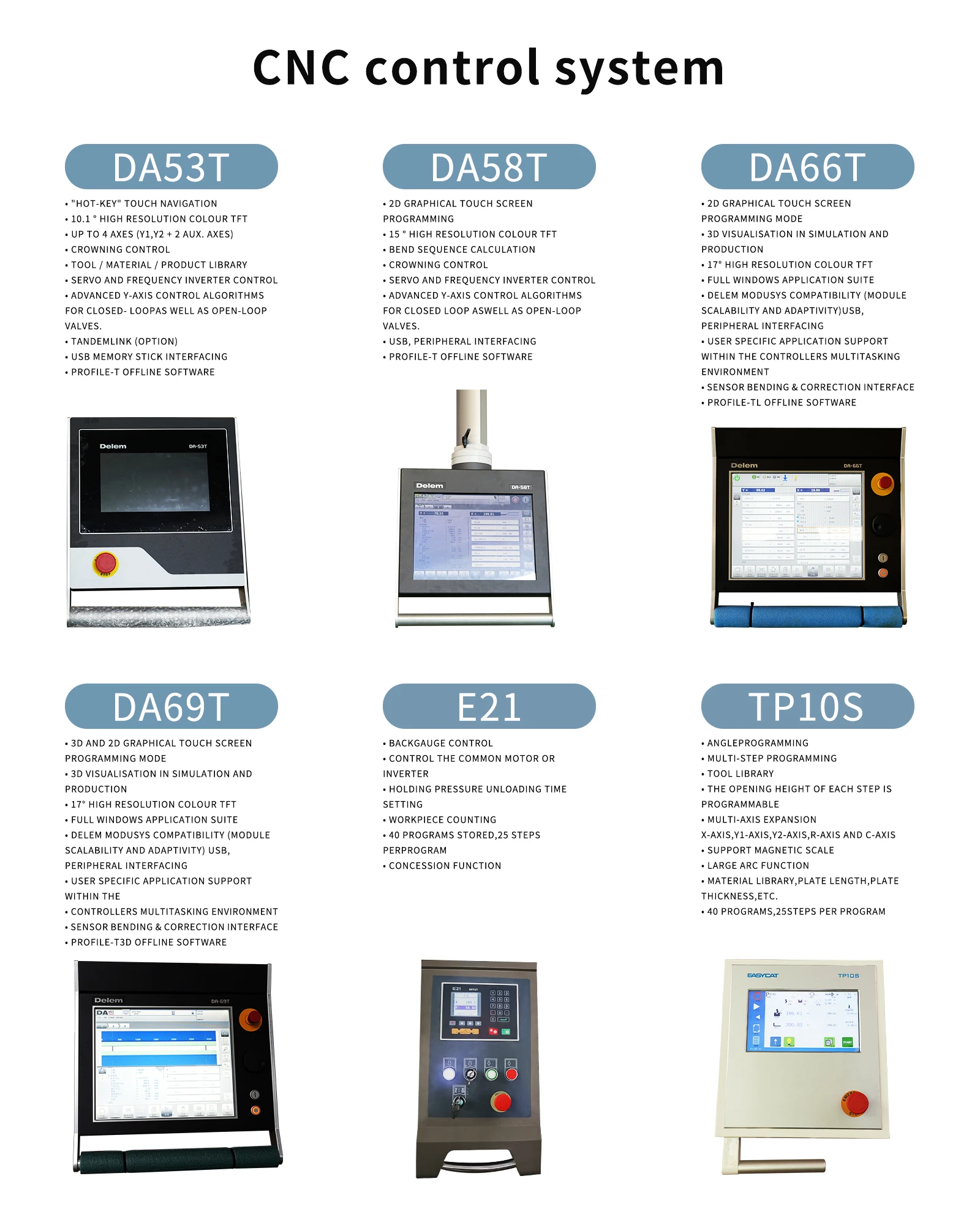

* MOVEMENT OF BACKGAUGE AND RAM STROKE IS SERVO CONTROLLED BY CONTROLLER
* THE FUNCTION OF ANGLE PROGRAMMING OF CONTROLLER WILL BRING HIGH BENDING EFFICIENCY.
* X AXES AND Y AXES ARE CONTROLLED BY SERVO MOTOR, WITH STRONG SYNCHRONOUS BELT, WITH HIGH CONTROL ACCURACY, FAST POSITIONING
AND LOW NOISE.ALSO WITH ELECTRIC R AXES
* WITH IMPORTED HYDRAULIC SYSTEM,STABLE AND HIGH PRECISION WHEN PERSISTENT WORKING.
* IMPORTED BALL BEARING LEAD SCREW AND LINEAR GUIDE RAIL ARE USED FOR REAR STOPPER, TO ENSURE THE POSITIONING PRECISION OF REAR
STOPPER, FOR PROCESSING PRECISION OF MACHINE TO BE HIGHER
* OVERALL WELDED AND PROCESSED STRUCTURE.
* MECHANICAL STOP AND STEEL TORSION BAR TO MAINTAIN SYNCHRONIZATION AND HIGH PRECISION.
* MOVEMENT OF BACKGAUGE AND RAM STROKE IS SERVO CONTROLLED BY CONTROLLER
* THE FUNCTION OF ANGLE PROGRAMMING OF CONTROLLER WILL BRING HIGH BENDING EFFICIENCY.
* X AXES AND Y AXES ARE CONTROLLED BY SERVO MOTOR, WITH STRONG SYNCHRONOUS BELT, WITH HIGH CONTROL ACCURACY, FAST POSITIONING
AND LOW NOISE.ALSO WITH ELECTRIC R AXES
* WITH IMPORTED HYDRAULIC SYSTEM,STABLE AND HIGH PRECISION WHEN PERSISTENT WORKING.
* IMPORTED BALL BEARING LEAD SCREW AND LINEAR GUIDE RAIL ARE USED FOR REAR STOPPER, TO ENSURE THE POSITIONING PRECISION OF REAR
STOPPER, FOR PROCESSING PRECISION OF MACHINE TO BE HIGHER

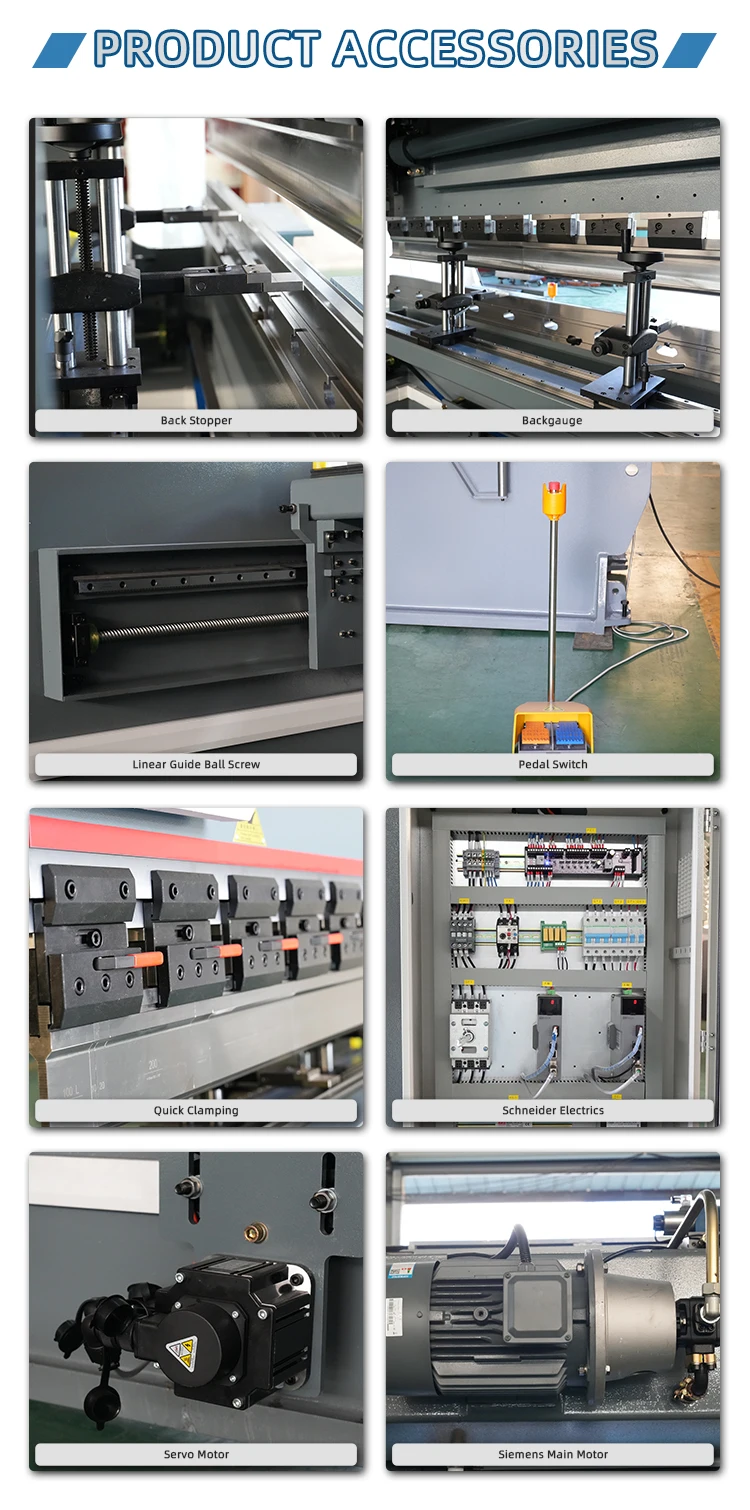

Machine Configuration
1. Siemens Main Motor Germany Brand
2. Rexroth Hydraulic System
3. Schneider Stroke Switch
4. Use France Schneider components,anti-interference,stable and durable
5. Pedal switch with emergency stop,safe operation,the R axis up and down control integrated on the pedal switch
6. The torsion bar is synchronized with the gear rack.Easy to adjust the two sides of the synchronization.The connector use wear-resistant brass
7. The guideway use the brass,wear-resisting,long service life
8. Galvanized cold drawn tube,Germany connector
2. Rexroth Hydraulic System
3. Schneider Stroke Switch
4. Use France Schneider components,anti-interference,stable and durable
5. Pedal switch with emergency stop,safe operation,the R axis up and down control integrated on the pedal switch
6. The torsion bar is synchronized with the gear rack.Easy to adjust the two sides of the synchronization.The connector use wear-resistant brass
7. The guideway use the brass,wear-resisting,long service life
8. Galvanized cold drawn tube,Germany connector
6325 | 10032 | 10040 | 12532 | 12540 | 16032 | 16040 | 20032 | 20032 | |
Capacity | KN | 630 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 | 1600 |
Table Length | mm | 2500 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 4000 |
Between Columns | mm | 2100 | 2600 | 3100 | 2600 | 3100 | 2600 | 3100 | 3100 |
Daylight Opening | mm | 420 | 460 | 460 | 460 | 460 | 460 | 460 | 460 |
Ram Stroke | mm | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Throat Depth | mm | 320 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
Approach Speed | mm/s | 180 | 180 | 180 | 180 | 180 | 160 | 160 | 160 |
Working Speed | mm/s | 12 | 10 | 10 | 10 | 10 | 9 | 9 | 9 |
Return Speed | mm/s | 170 | 160 | 160 | 160 | 150 | 150 | 140 | 140 |
Main Motor Power | kw | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 |
X axes stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
X axes speed | mm/s | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
R axes stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Anhui Harting Machinery Technology Co.,Ltd.

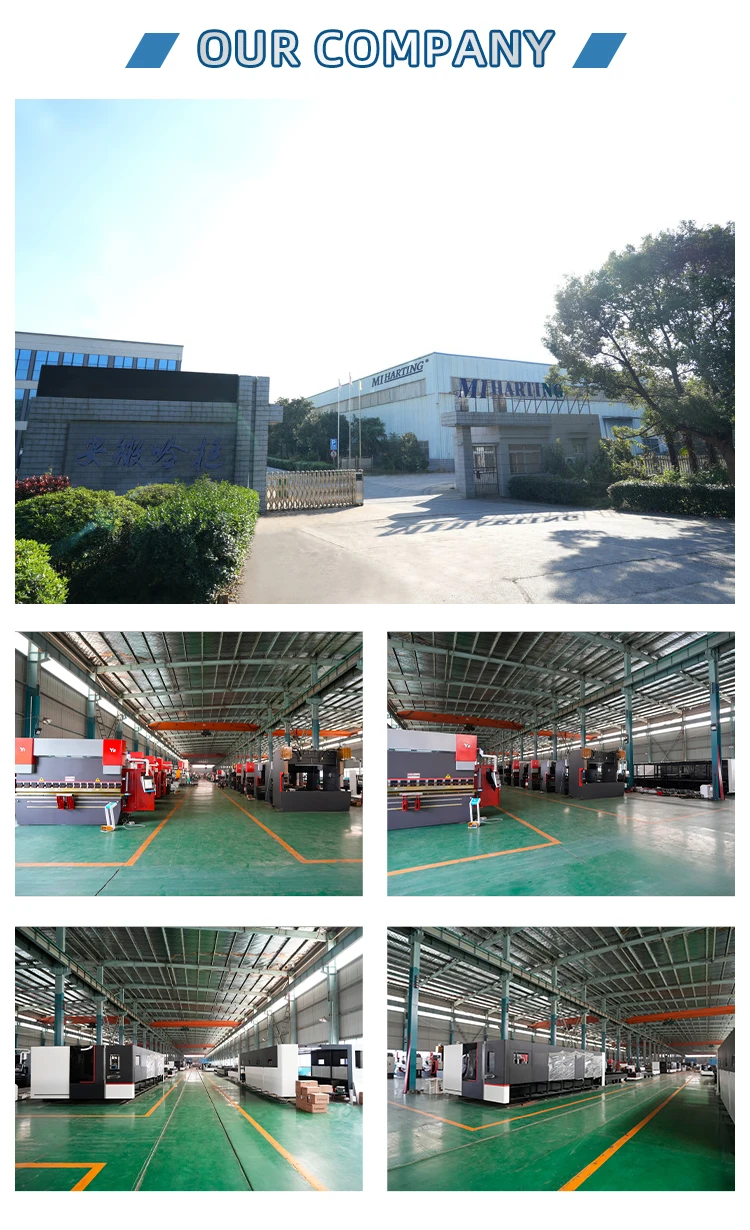

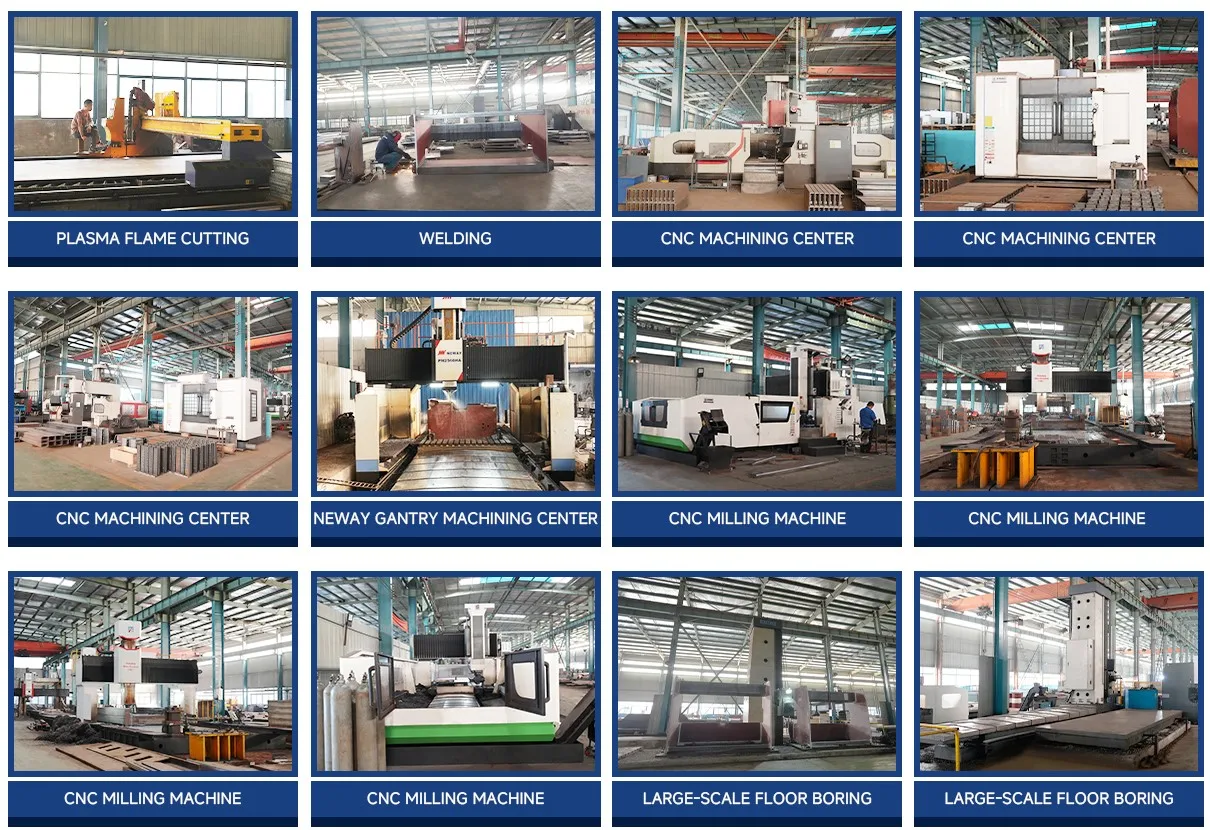

Anhui Harting Machinery Technology Co.,Ltd. is a professional manufacturer and exporter in China dedicated to the development,production and sales of high quality sheet metal processing equipment, founded in 2012.The company's factory is located in Bowang District, Ma'anshan, Anhui Province.The foreign trade center is located in Wuhu City, Anhui Province, with convenient transportation and superior location. Harting Machinery has three factories, the first factory produces forging machine tools, the second factory produces ventilation ducting equipment and the third factory produces bending machine tools, shearing machine blades and other machine tools. The total area of the factory is 60,000 square meters.Our company has more than 200 employees including engineering and technology developers, production workers and salesmen.In order to serve our customers well, the company is specially managed with ERP software. It systematically assigns responsibilities and manages the process from pre-sales, sales and after-sales aspects such as consultation, quotation, order placement, export, remote or door-to-door commissioning and installation.
FAQ
1.Q: Who are we?
A: We are MIHARTING, a manufacturer and exporter specialize in the sheet metal processing equipment.
2.Q: How to choose a press brake machine?
A: Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
3.Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.Q: What is the average lead time?
A: The lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
5.Q: How can I pay?
A:You can pay by T/T, Western Union, Money Gram, Paypal; 30% deposit; pay off the 70% balance before shipment.
6.Q: How about your after-sale service?
A: In order to serve our customers well, the company is specially managed with ERP software.It systematically assigns responsibilities and manages the process from pre-sales, sales and after-sales aspects such as consultation, quotation, order placement, export, remote or door-to-door commissioning and installation.
A: We are MIHARTING, a manufacturer and exporter specialize in the sheet metal processing equipment.
2.Q: How to choose a press brake machine?
A: Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
3.Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.Q: What is the average lead time?
A: The lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
5.Q: How can I pay?
A:You can pay by T/T, Western Union, Money Gram, Paypal; 30% deposit; pay off the 70% balance before shipment.
6.Q: How about your after-sale service?
A: In order to serve our customers well, the company is specially managed with ERP software.It systematically assigns responsibilities and manages the process from pre-sales, sales and after-sales aspects such as consultation, quotation, order placement, export, remote or door-to-door commissioning and installation.
