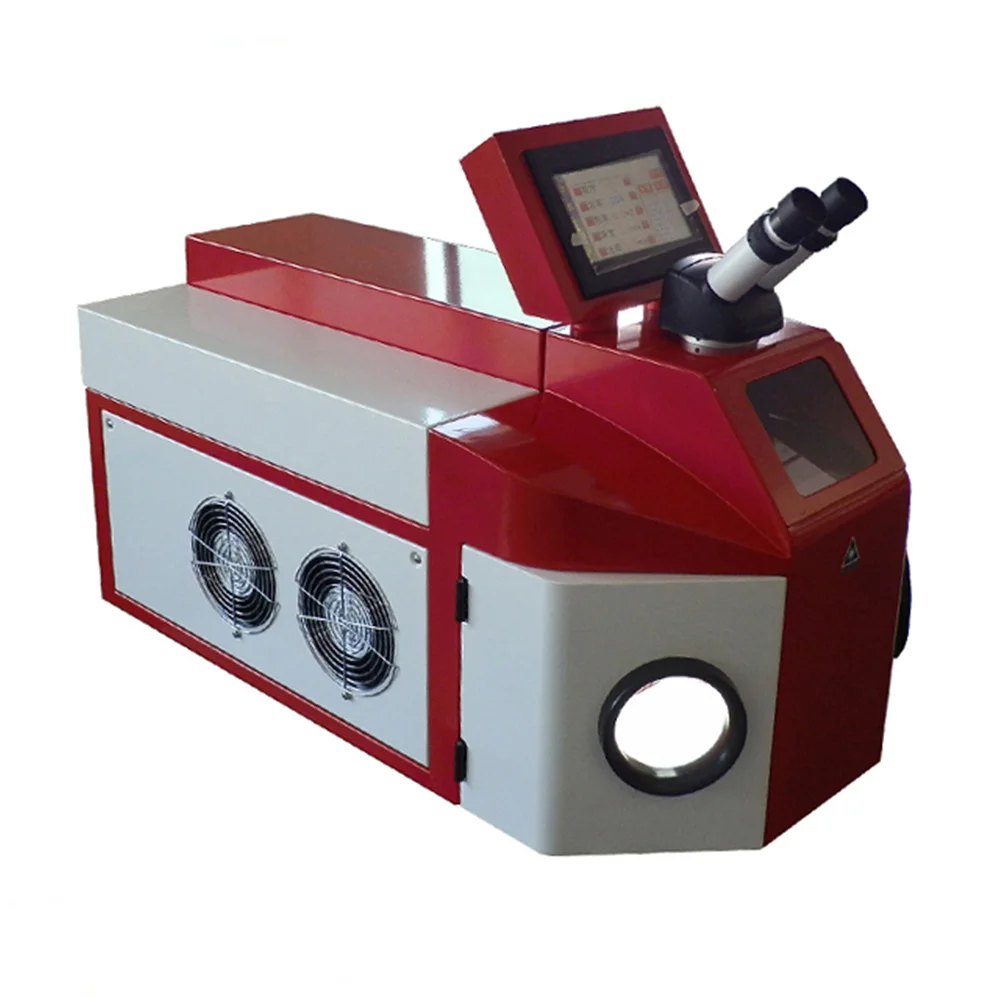

DaG MC Soldadura Por Laser 100W 200W YAG Laser Welder Jewelry Welding Machine 18K Gold Silver Jewellery Laser Soldering Machine

DaG MC Soldadura Por Laser 100W 200W YAG Laser Welder Jewelry Welding Machine 18K Gold Silver Jewellery Laser Soldering Machine

Category: >>>
Supplier: Shenzhen Dag Technology Industrial Co. Ltd.

Price:$1,800.00 - $3,300.00

Quantity:

Product Overview

Description

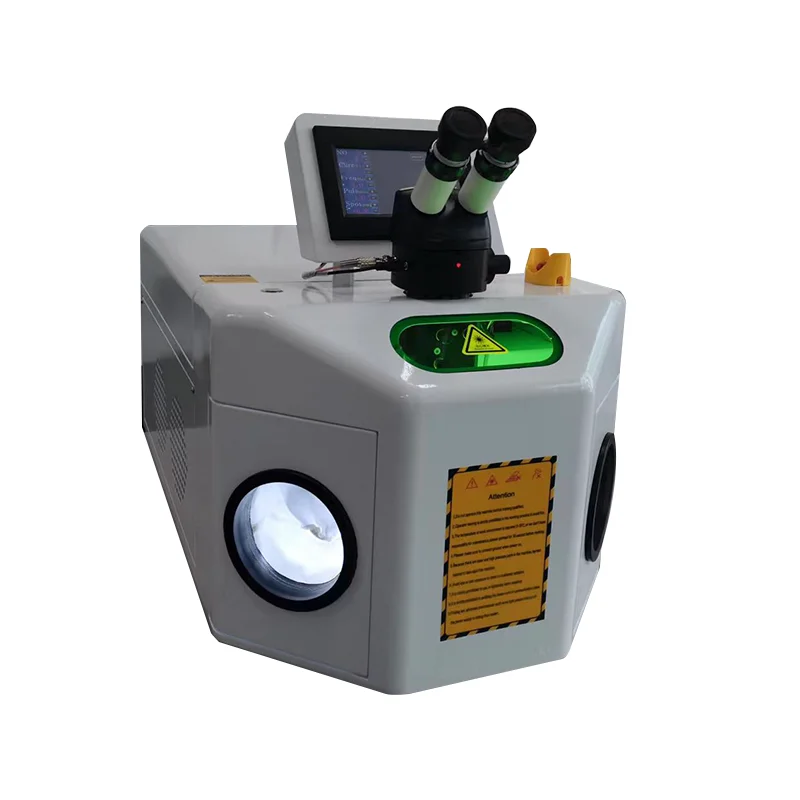

Jewely Laser Welding Machine

PRODUCT Parameters
Laser Power	200W（Optional）
Max Single Pulse Engery	150J
Laser Wavelength	1064nm
Pulse Frequency	≤100Hz
Pulse Width	≤20ms
Spot Adjustment Range	0.1-3mm
Repeating Precision	±0.1mm
Observation System	Microscope
Voltage	Single-Phase 220V/50HZ/20AVoltage
Overall Power	6KW
Cooling Method	Water Cooling
Cabinet Shape Color	Custom or Standard
Cabinet Size	1000600820 mm

PRODUCT DESCRIPTION

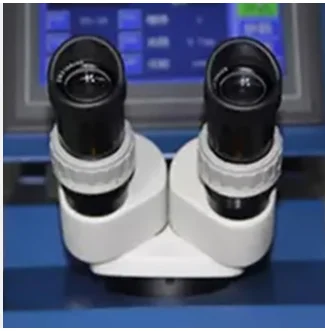

Microscope

Easy for viewing the welding position and adjusting the parameter accordingly.

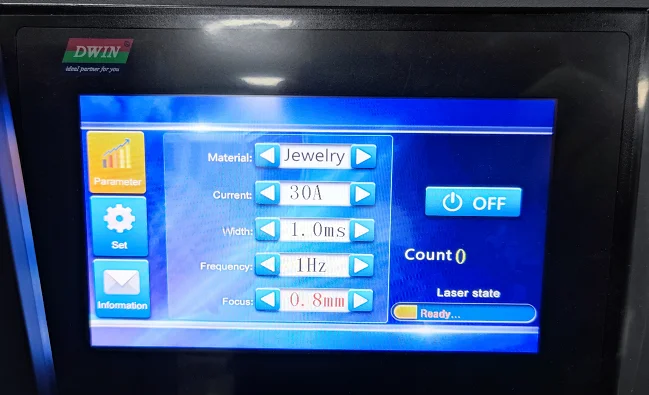

HD touch screen

High-resolution touch screen, smooth operation, stable, easy for operation Adjust 3 parameters ONLY: Current/Pulse/- Frequency.

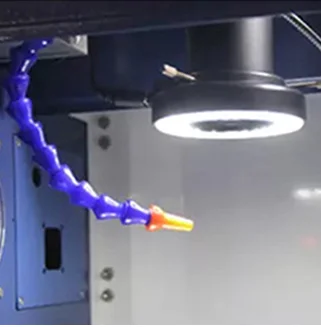

Laser head&Air tube

With the light and red light pointer in the operation space Accurate welding With air tube Better welding effect.

Foot switch

Control the laser source

Equipment introduction

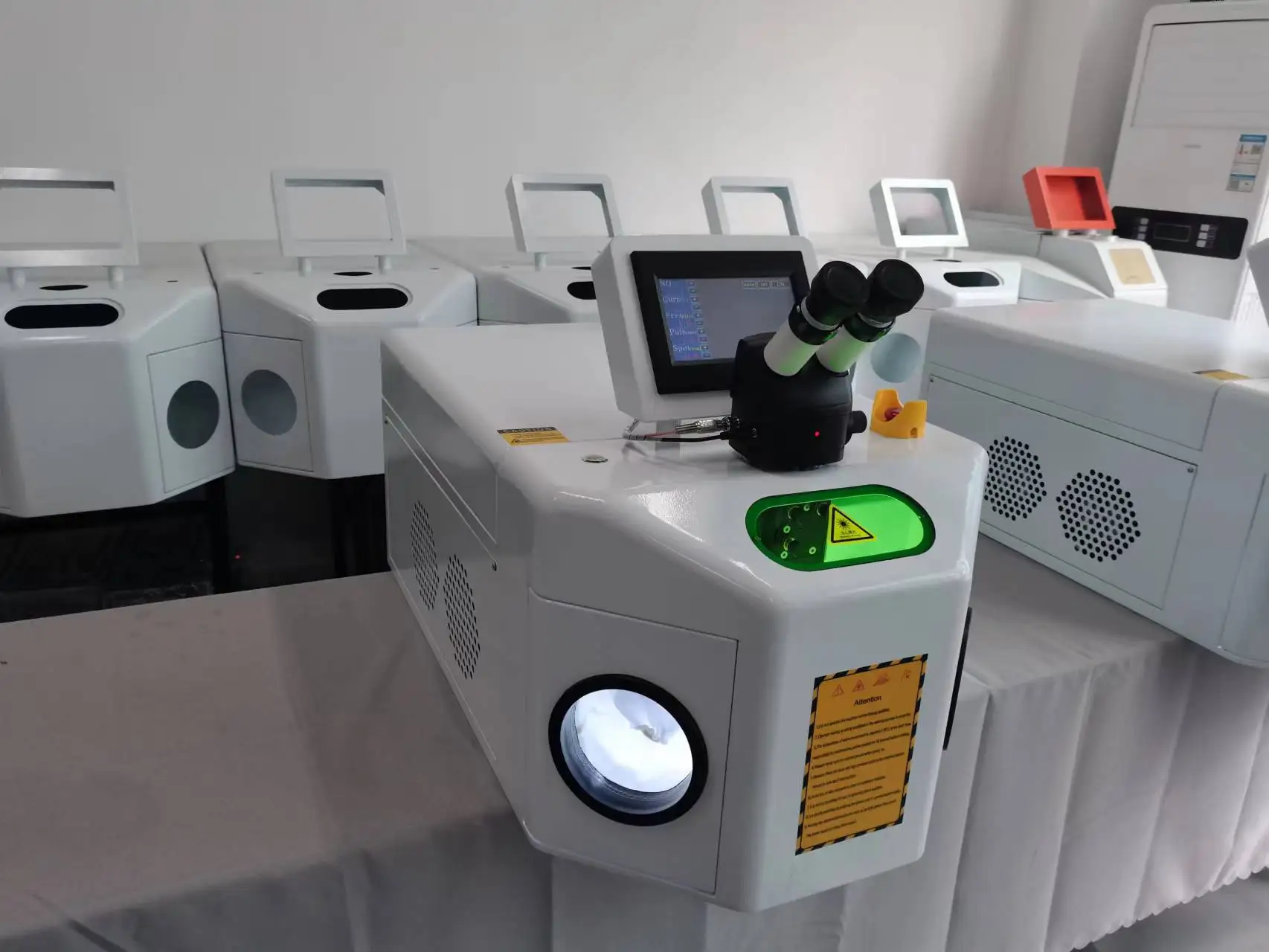

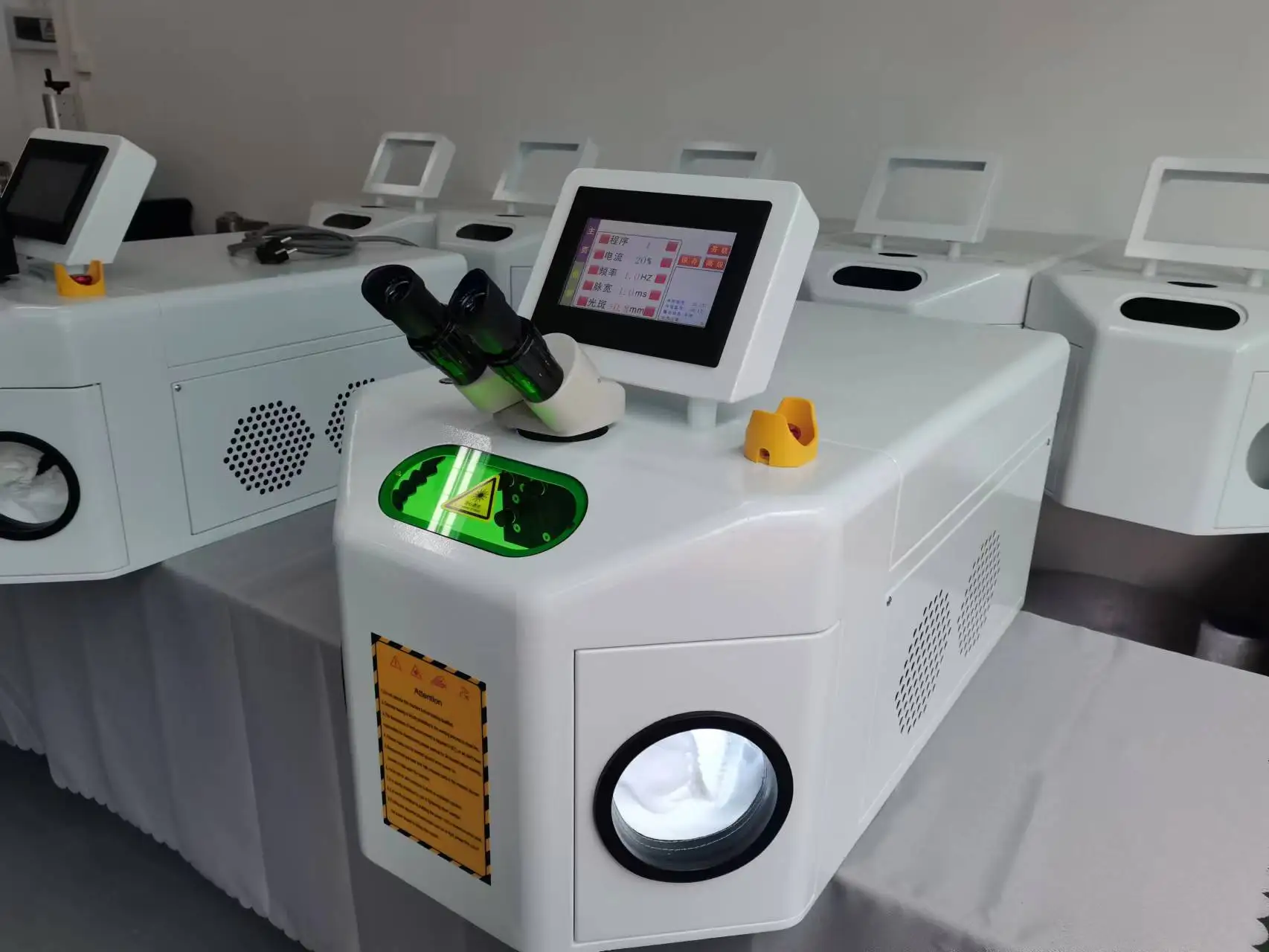

Micro laser welding machine is composed of YAG pulsed laser, laser power supply, imported optical system, built-in integrated water cooler, CCD observation system, etc. It is a desktop device, small in size, light in weight and strong in function; the laser power supply and welding system are independent.

PRODUCT Advantage

● Regulating pulse power supply , compact size, single pulse energy is 15% higher than ordinary power supply.More suitable for gold, silver and other high anti-material welding requirements.
● The core component "laser condenser cavity" using gold-plated reflection condenser cavity, more stable performance, longer service life, for users to bring efficient and economic processing solutions.
● The whole machine structure optimization preparation, smaller, more portable operation, a real high performance mini welding machine.
● The welding quality is high, the welding seam is beautiful, the welding seam can be the same strength as the base metal, without the secondary processing, effectively improve the qualified rate of finished products;
● Weldable refractory material, especially suitable for micro and small parts, jewelry precision welding;
● Special plane customization ability is strong, according to customer requirements tailored to create exclusive models.

WIDER APPLICATION

This series of products for jewelry, hardware, electronic industry design. Mainly used in jewelry, hardware, electronic components,3C communication, crafts and other industries. They can repair and weld all kinds of metals and alloys, spot weld lines, splicing, embedded troops and other welding; Such as stainless steel, copper, gold, silver,K gold, jewelry processing shop, shop, factory or school scientific research laboratory necessary welding tools.

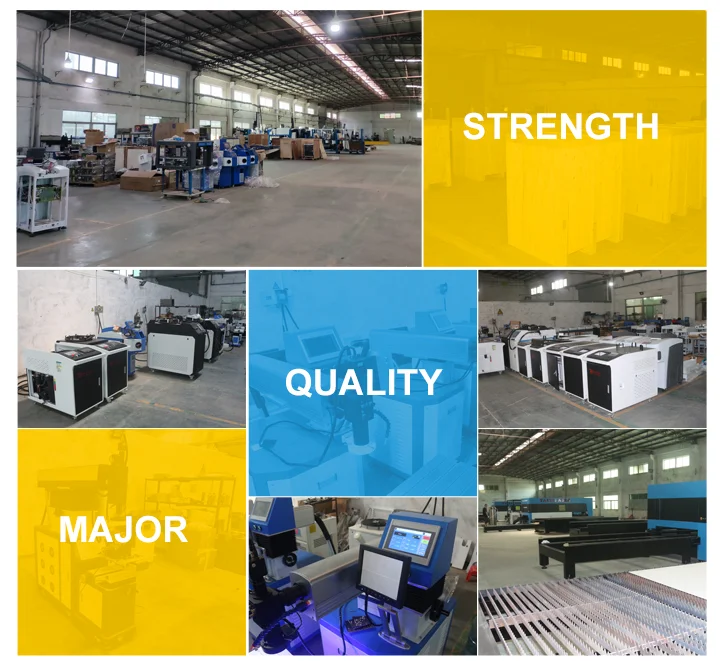

COMPANY PROFILE

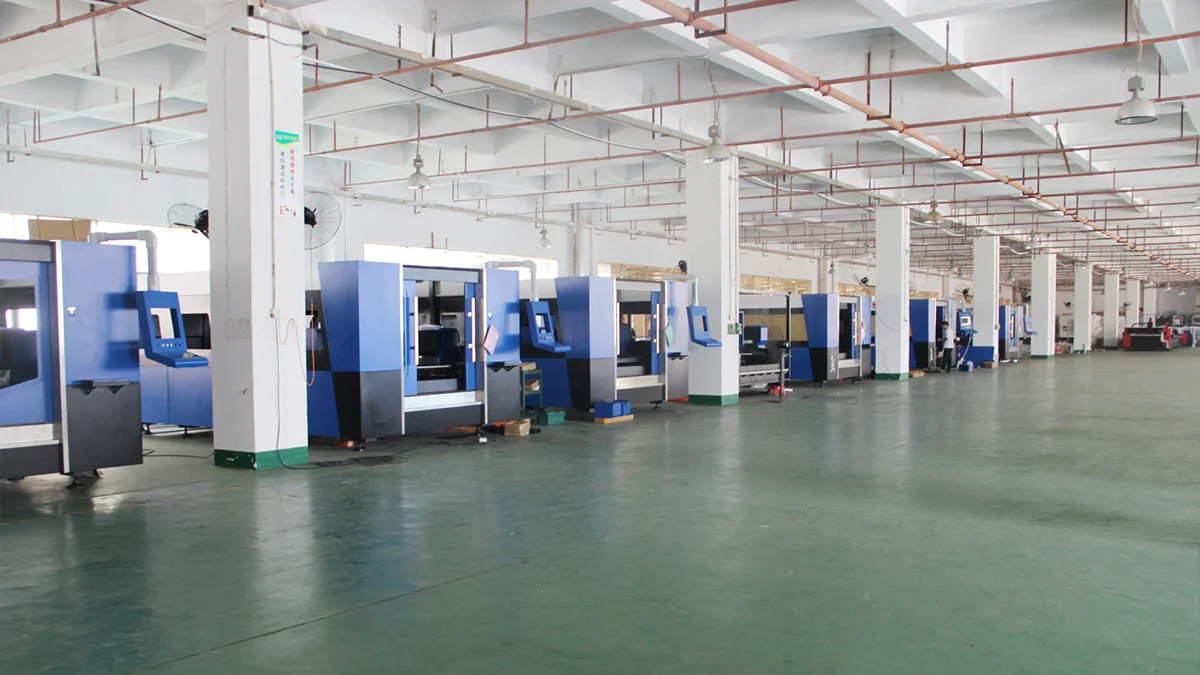

About us

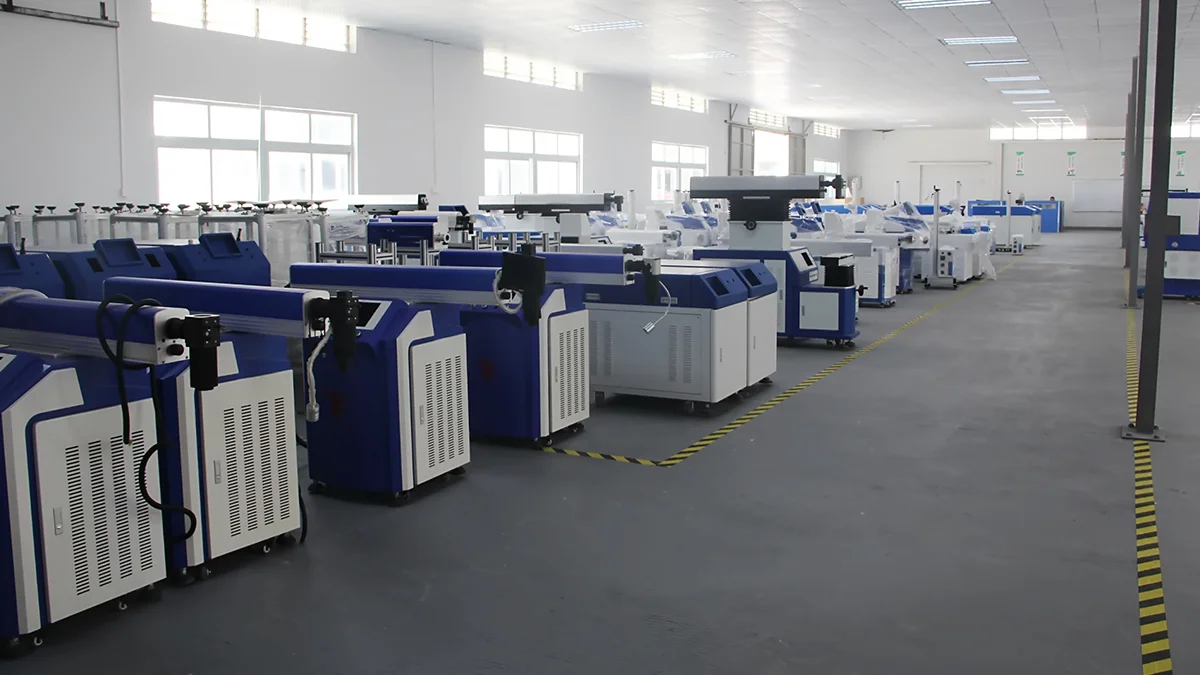

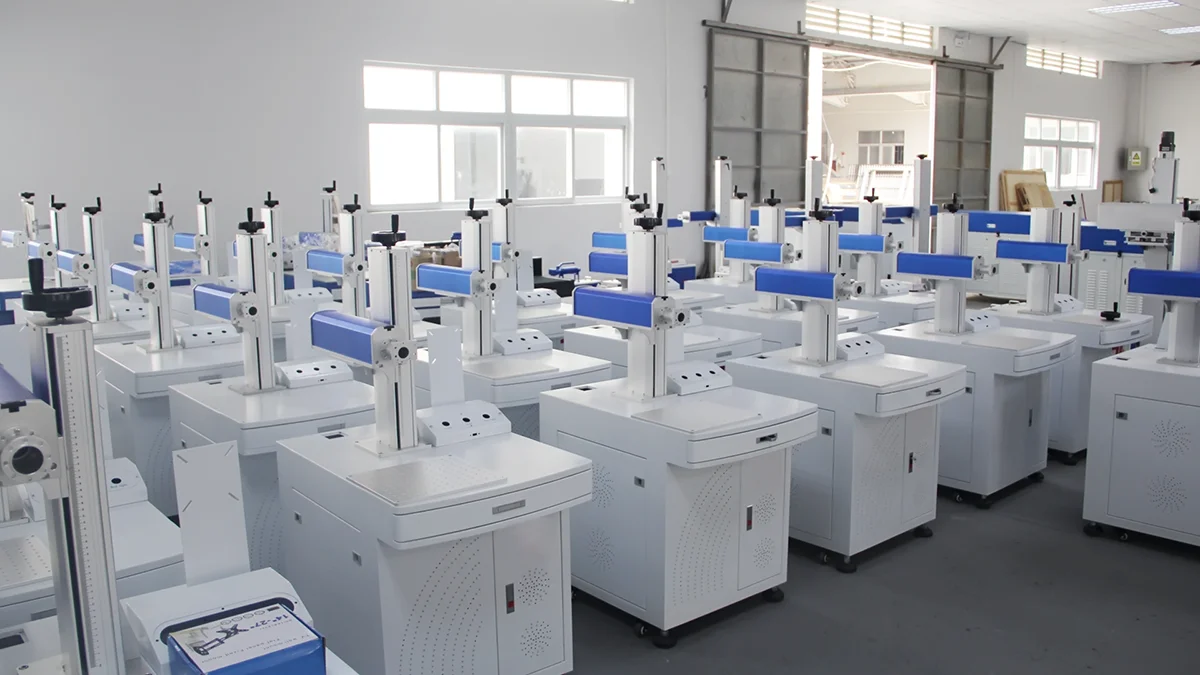

Shenzhen DaG Technology Industrial Co., Ltd. is a industrial machine manufacturer and supplier, we are in the industry of Laser marking machine, Laser welding machine, Laser cutting machine, Laser cleaning machine. Meanwhile, we provide OEM and ODM service.We are not only having the sales department, but also have the quality and R&D department, in order to ensure we have competitive products in the market. By far, our machines have seen sold to all round the world, Nowadays, more and more factories and distributors choose us, because they realized good reliable quality with reasonable prices is the basic of long-term business Our goal is provide better services and better products for our customers, in order to satisfy more and more factories production demands and requirements.
