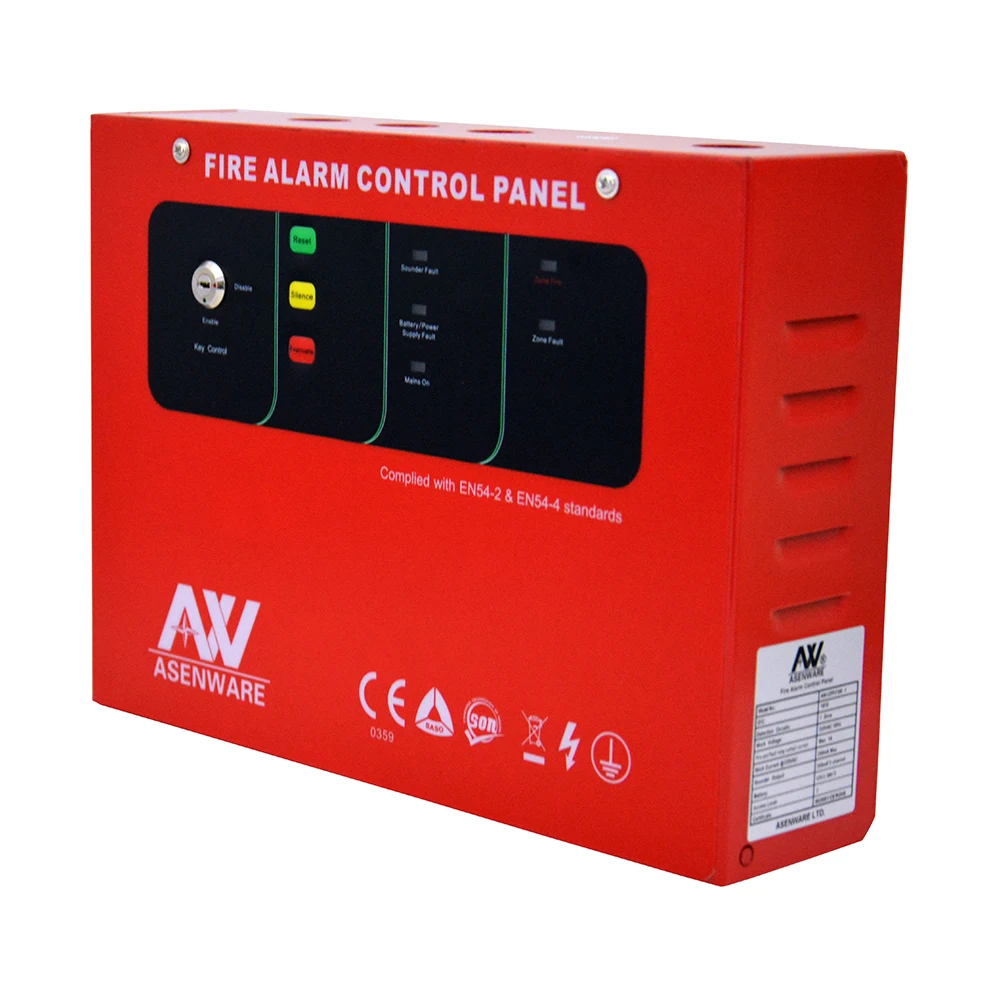

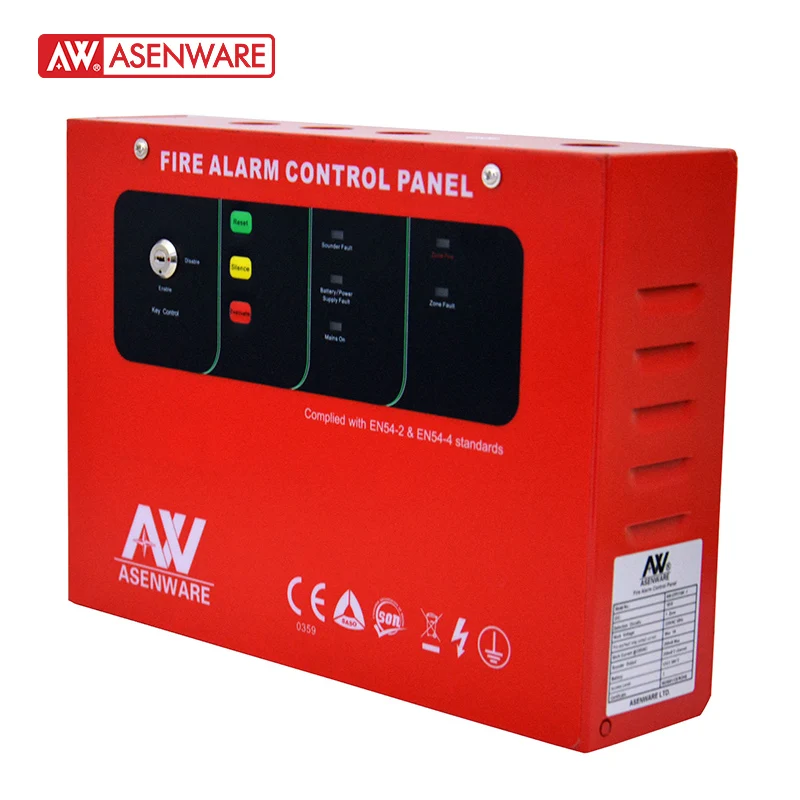

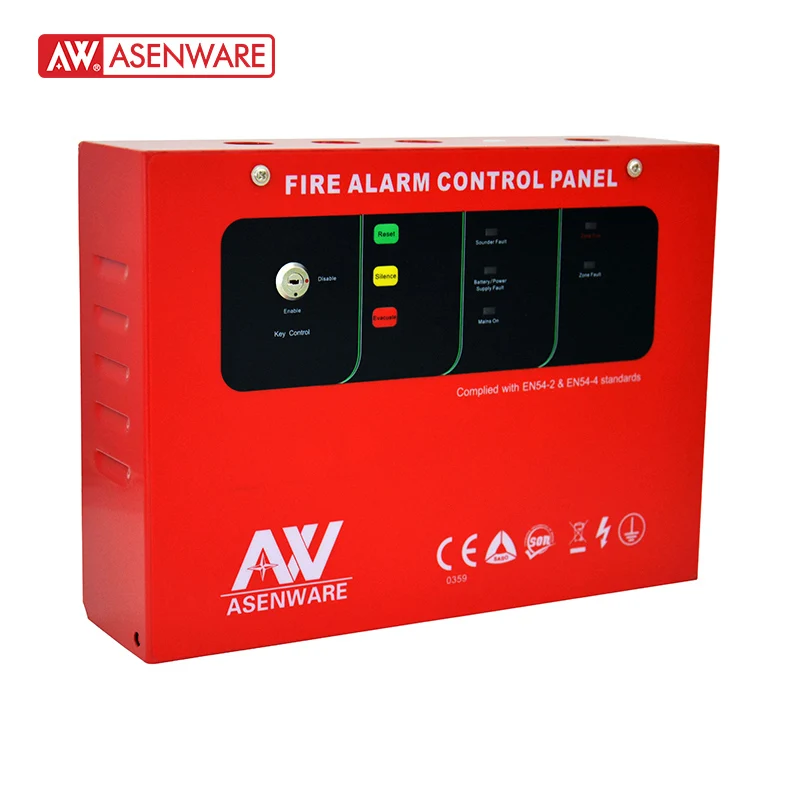

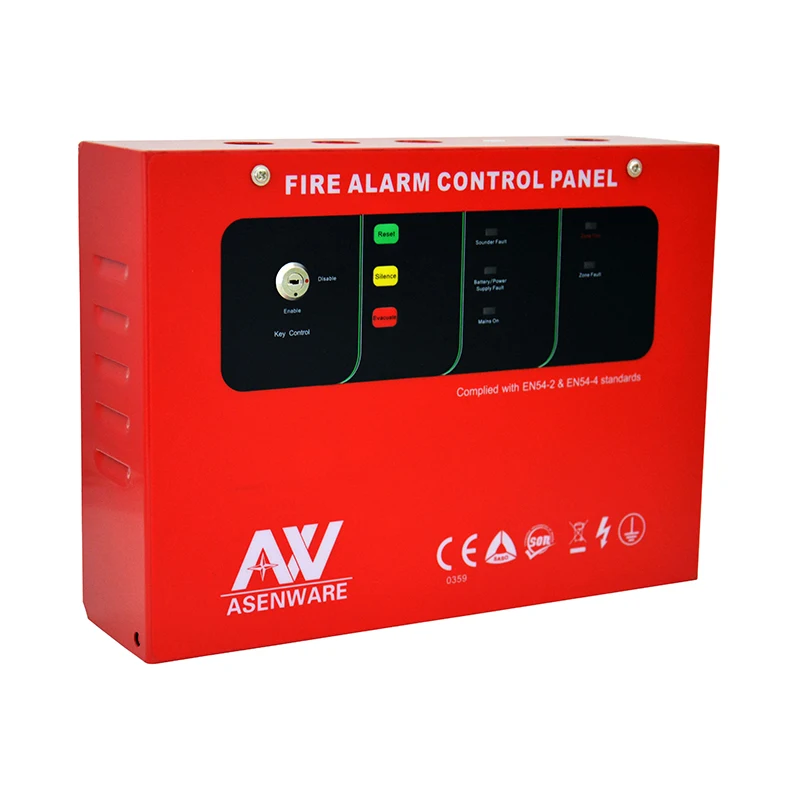

Item | Conventional fire alarm control panel |
Model | AW-CFP2166-1 |
Brand Name | Asenware |
External Dimension(Mm²) | 270*200*76 |
Weight(kgs) | 4.5 |
Working environment | Class A temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing |
Main Voltage | 110VAC/220VAC 50/60Hz |
Batteries | 2*12V 2.3Ah sealed lead acid gel, self-regulated |
Battery low-voltage protection | 21V |
Max points of each zone | 20 pcs (including MCPs) |
Zone alarm current | 8~20mA |
Sounder output | 2*200mA maximum |
Relay contacts rating | 1A @30VDC |
EOL resistor for zone and outputs | 6.8K ohm 1W |
Fuse for AC Power | 1 A/ 250V glass tube fuse slow blow 5 X 20mm |
Fuse for DC Power | 1 A/ 250V glass tube fuse slow blow 5 X 20mm |
Terminal blocks rating | All terminals rated for 12 to18 AWG(0.75 to 2.5 mm²) |
