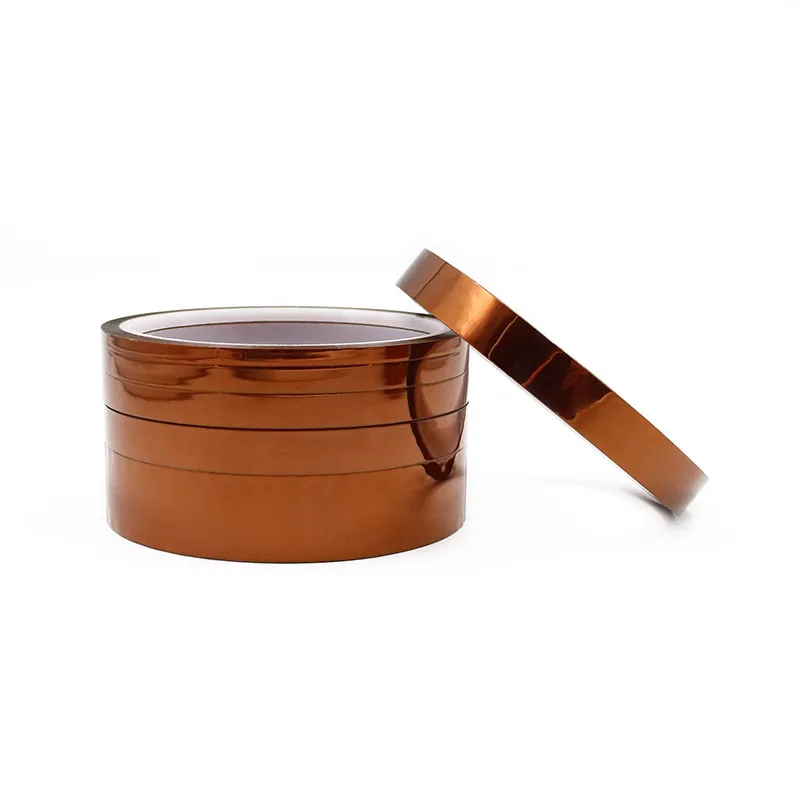

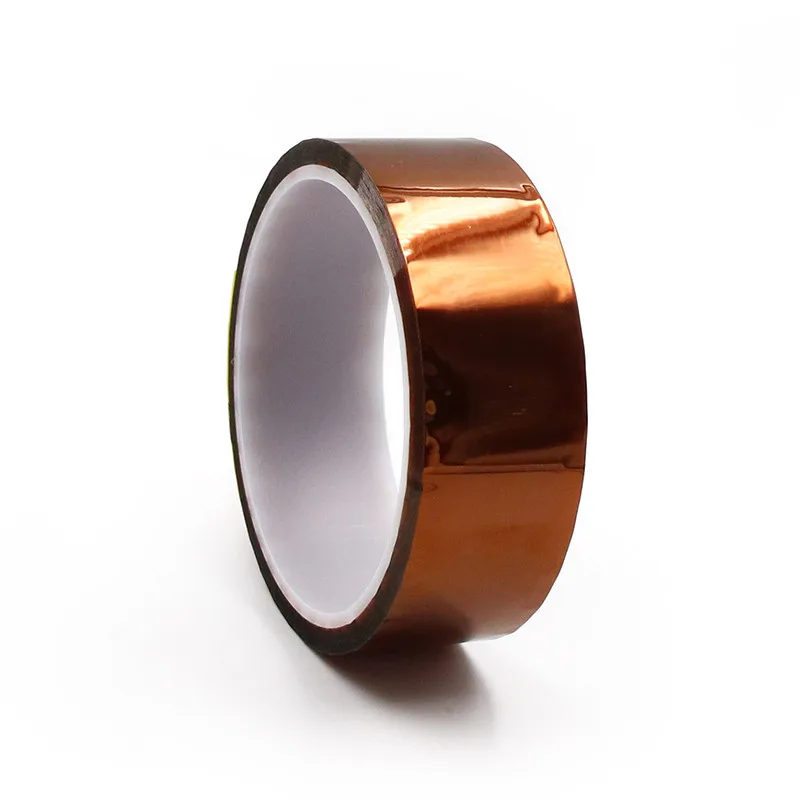

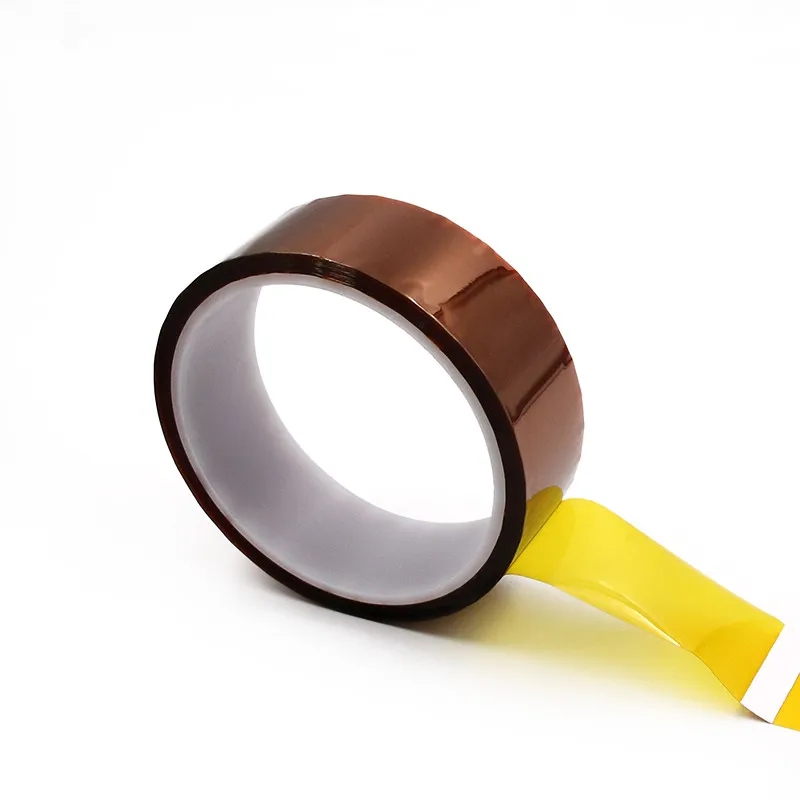

High Temperature Heat Resistant Heat Transfer Thermal Tape For Sublimation Masking Polyimide Film Adhesive Kaptons Tape
- Category: >>>
- Supplier: Shenzhen Zhenzhixing Technology Co. Ltd.
Share on (1600528940889):
Product Overview
Description

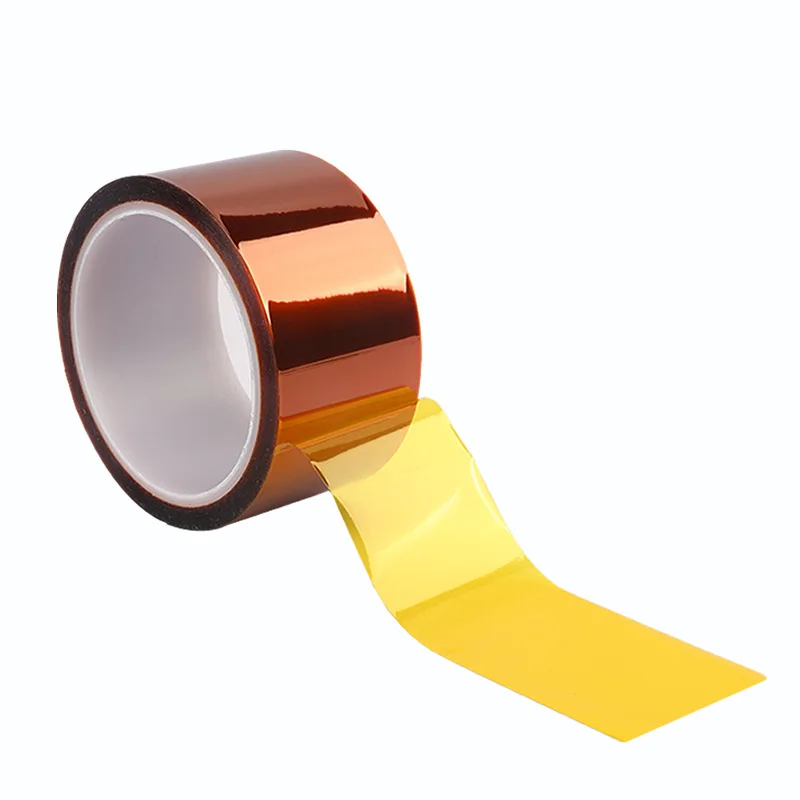

High Temperature Heat BGA Tape Polyimide Adhesive Insulation Tapee
Product Description
Material:Polyimide

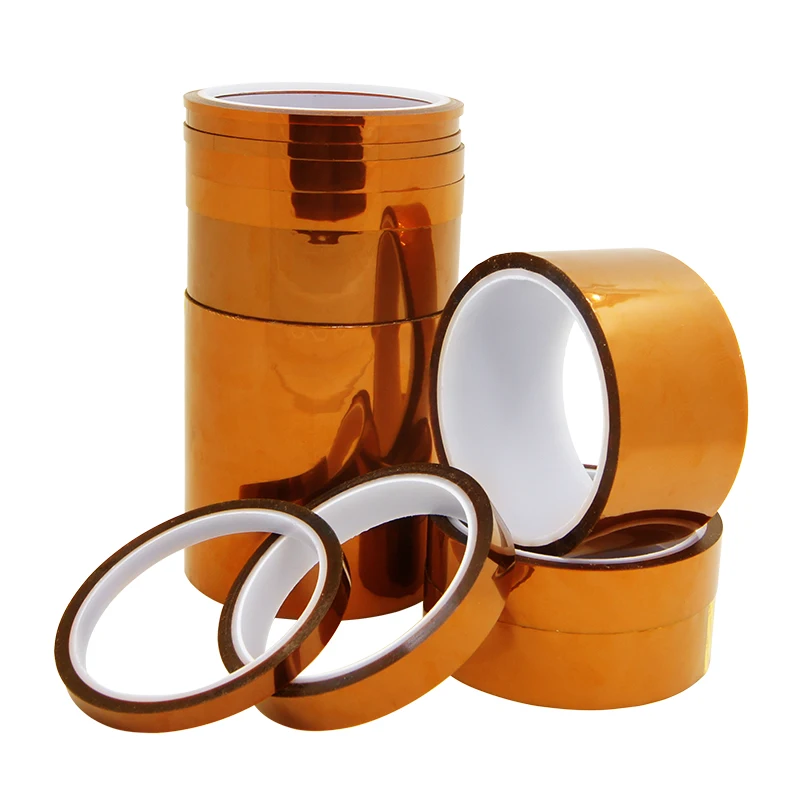

Width: 10/12/15/18/20/25/30mm
Length: 30m /108 ft (± 5 ft length)

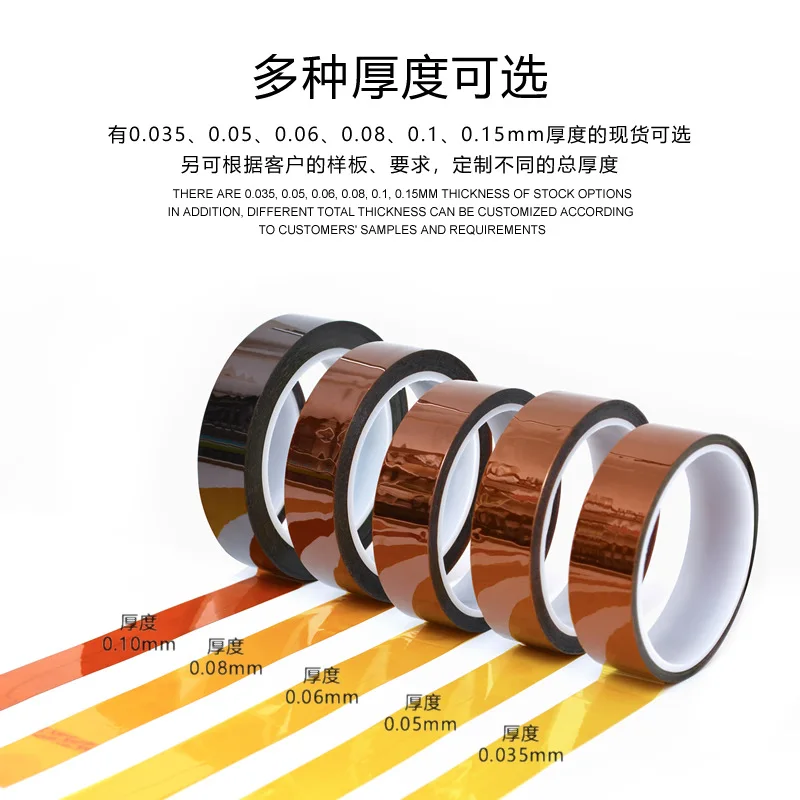

Thickness:0.05mm
Can withstand max temperature:280°
Brand new and high quality.
One-side Self-adhesive.
High insulation, high temperature resistance, acid and alkali-resistance, low electrolysis, mechanically sound, crocking resistance, tear-resistance, without rest on surface when tear.
It's with good performance of adhesive, docile and obedient, solvent resist, no infiltrating solder, no glue rest.
Widely used for phone batteries packing, coil insulation and high temperature masking, gold finger protect when PCB SMT soldering.
PRODUCT NAME | PI Kapton tape | ||
PRODUCT No. | MS-JIN2550 | ||
I T E M | UNIT | SPEC | TEST METHO |
Total Thickness | mm | 0.05±0.002 | GB7125-1998 |
Film Thickness | mm | 0.025 | GB7125-1997 |
Adhesion | N/25mm | 4.5±1 | GB/T2792-1997 |
Tensile Strength | N/25mm | 135 | GB7753-1986 |
Elongation | % | 70 | GB7753-1986 |
Voltage Resistance | KV | 4000 |
|
Heat Resistance | ℃ | 280℃ /30mins | CE-021 |
USAGES: It is used for the protection of high temperature coating of chassis and cabinets, and high temperature protection of products through tin furnace. | |||
FEATURES: Good Performance in Adhesive Force,High Temperature Resistant,Soft and Compact,Strong Holding Force,No Residual Left. 1.Substrate Material:Kapton PI 1. 2.Adhesive:Silicone | |||
PI Kapton tape | |||
PRODUCT No. | MS-JIN2540 | ||
I T E M | UNIT | SPEC | TEST METHOD |
Total Thickness | mm | 0.065±0.002 | GB7125-1998 |
Film Thickness | mm | 0.025 | GB7125-1997 |
Adhesion | N/25mm | 6±1 | GB/T2792-1997 |
Tensile Strength | N/25mm | 135 | GB7753-1986 |
Elongation | % | 70 | GB7753-1986 |
Voltage Resistance | KV | 4000 |
|
Heat Resistance | ℃ | 280℃ /30 mins | CE-021 |
USAGES: It is used for the protection of high temperature coating of chassis and cabinets, and high temperature protection of products through tin furnace. | |||
FEATURES: Good Performance in Adhesive Force,High Temperature Resistant,Soft and Compact,Strong Holding Force,No Residual Left. 1.Substrate Material:Kapton (PI film) 2. 2.Adhesive:Silicone | |||

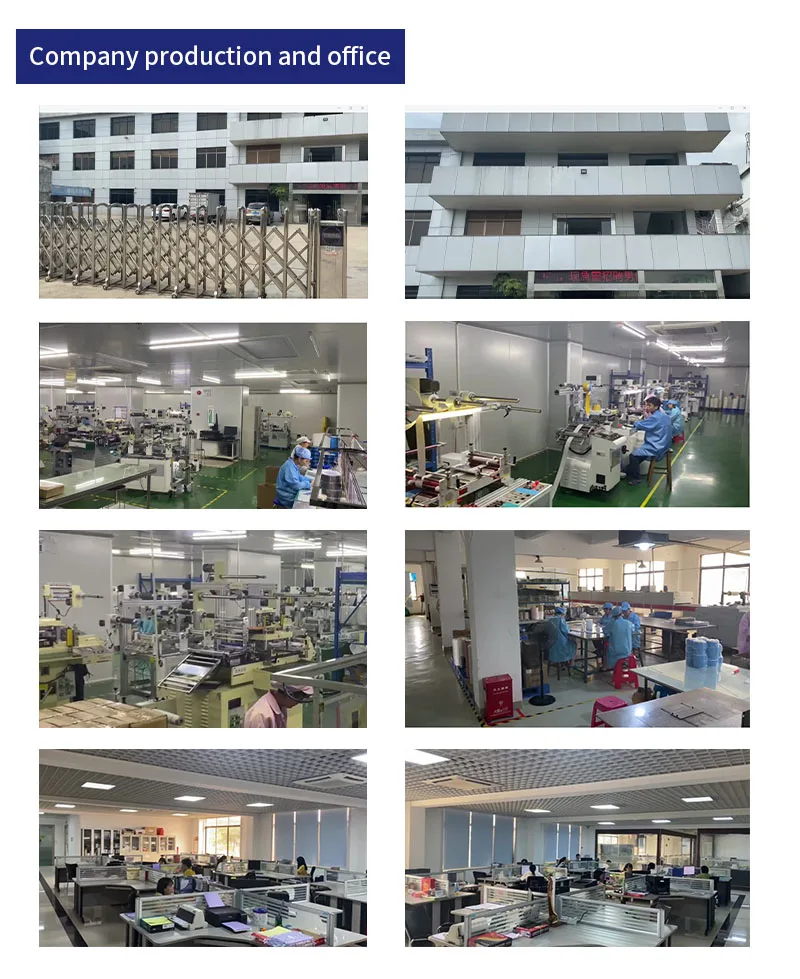

Company Information
