Gainlaser Fast Scanning Speeds UV Laser Engraver ITO FTO removal silicon wafers PCB polyimides mini uv laser marking machine 3W
- Category: >>>
- Supplier: Shenzhen Gainlaser Laser Science And Technology Co. Ltd.
Share on (1600528946062):
Product Overview
Description

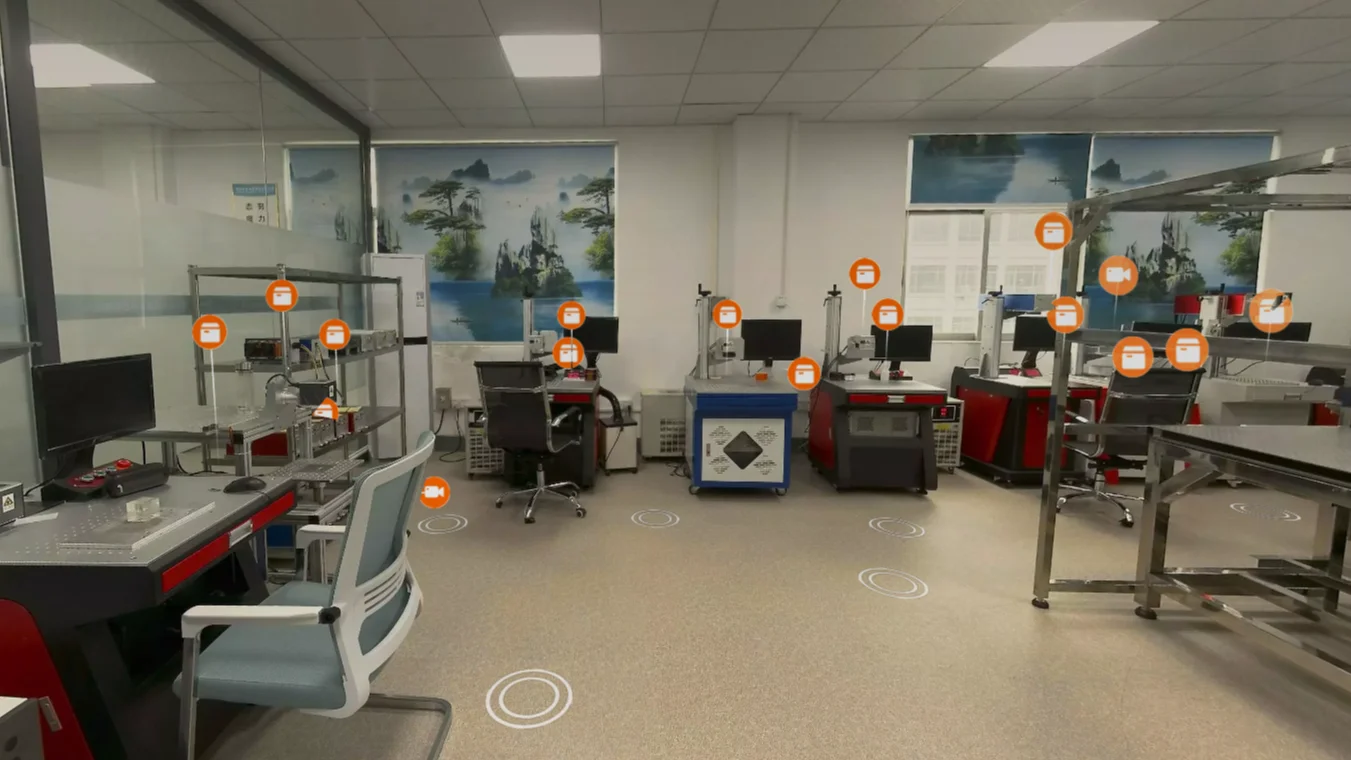

VR
Product Description
1)355nm DPSS UV laser with average output power ＞3W@30KHz;
2)Mark plastic, glass, regular metals, wood, leather, fruits, ceramic, etc.;
3)Short wavelength 355nm, generating tiny laser spot, achieving elaborate marking effect;
4)Cold processing method, producing little heat, no thermal deformation on material surface;
5)Small size and portable design, and ready to work when connecting with a PC or laptop;
6)With RS-232 serial port line, computer remote control the machine;
7)With professional JCZ marking board and EZcad2 software, achieving accurate marking effect;
8)High repetitive precision 0.02mm galvo scanner with clear aperture 10mm;
9)High effective aluminum cooling module, in-built 7 cooling fans, narrow air duct, quick cooling effect;
2)Mark plastic, glass, regular metals, wood, leather, fruits, ceramic, etc.;
3)Short wavelength 355nm, generating tiny laser spot, achieving elaborate marking effect;
4)Cold processing method, producing little heat, no thermal deformation on material surface;
5)Small size and portable design, and ready to work when connecting with a PC or laptop;
6)With RS-232 serial port line, computer remote control the machine;
7)With professional JCZ marking board and EZcad2 software, achieving accurate marking effect;
8)High repetitive precision 0.02mm galvo scanner with clear aperture 10mm;
9)High effective aluminum cooling module, in-built 7 cooling fans, narrow air duct, quick cooling effect;
10)Laser lifespan ＞ 20,000 hours. Afterwards, replace aging components to prolong lifespan.

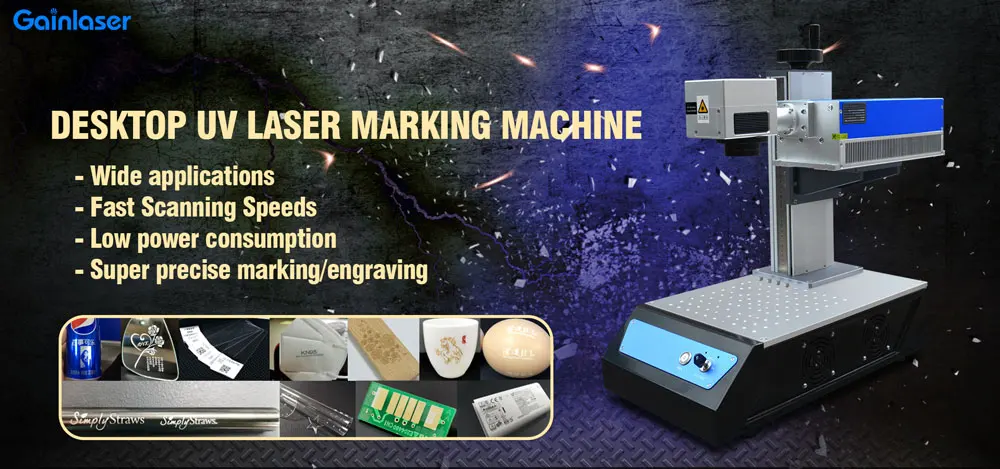

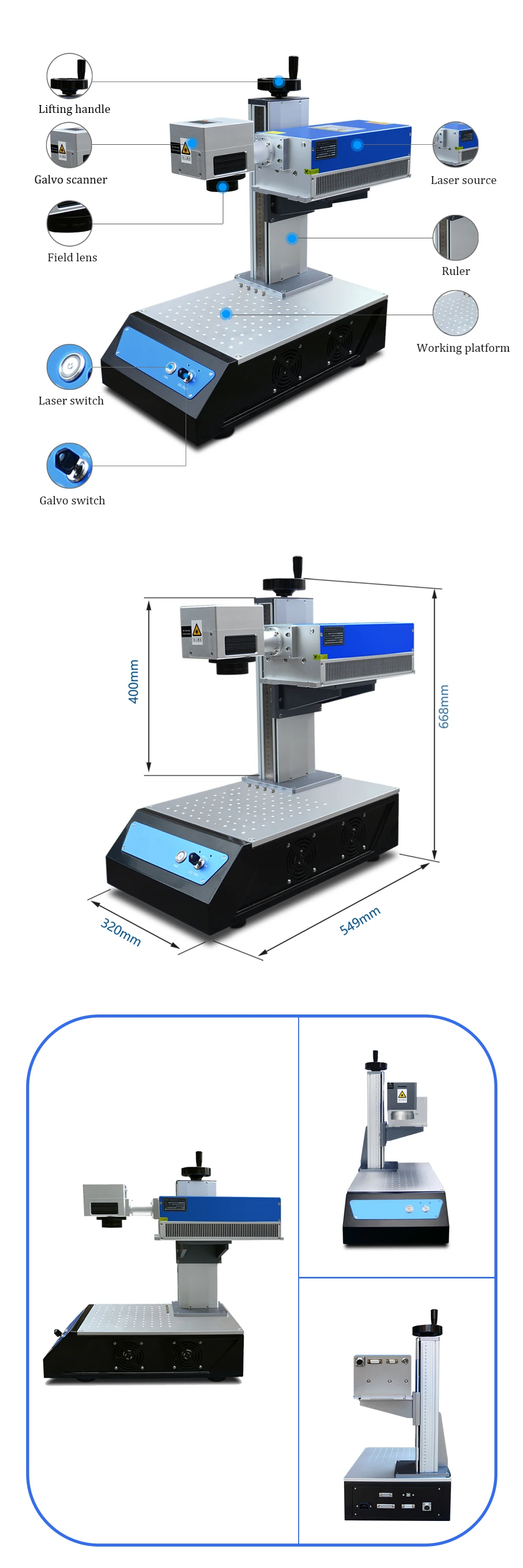

Product Name | Desktop UV Laser Marker |
Cooling Mode | Air Cooled/Water Cooled |
Laser Wavelength | 355nm |
Average Output Power | ＞3W@30KHz |
Pulse Energy | ＞0.1mJ@30KHz |
Pulse Repetition Frequency | 10-150KHz |
Pulse Width | ≤10ns@30KHz |
Marking Area | 110*110mm |
Max Marking Speed | 2000mm/s |
Beam quality | M2＜1.2 |
Pulse Repetition Frequence | 10 KHz - 150 KHz |

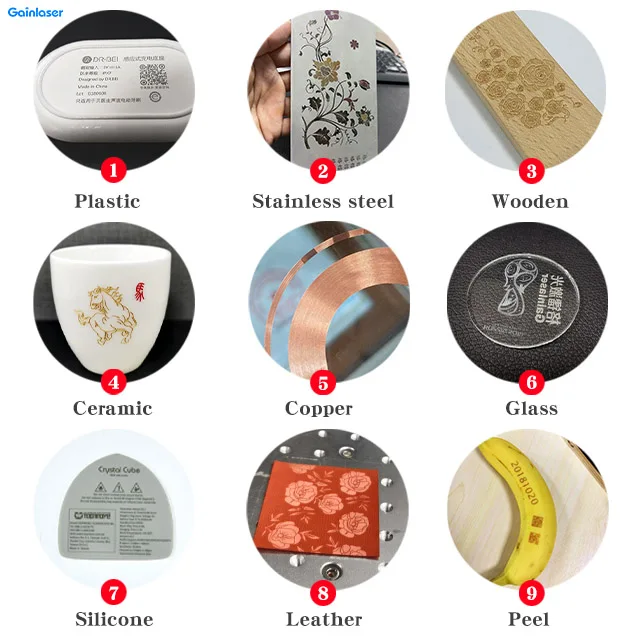

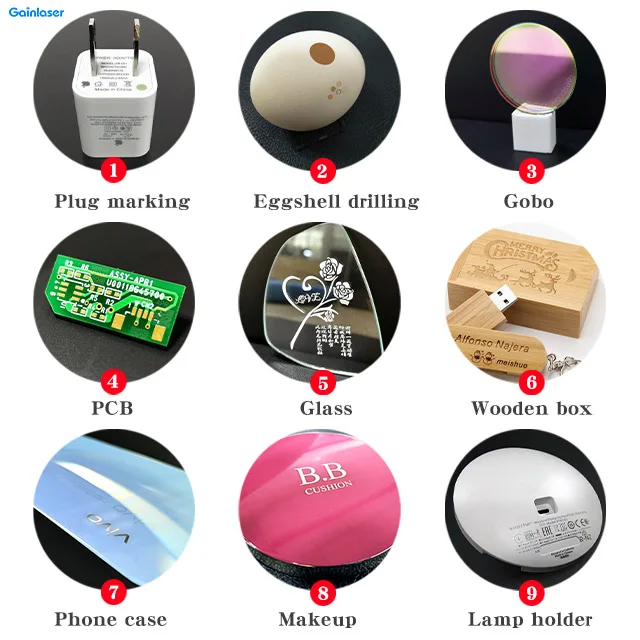

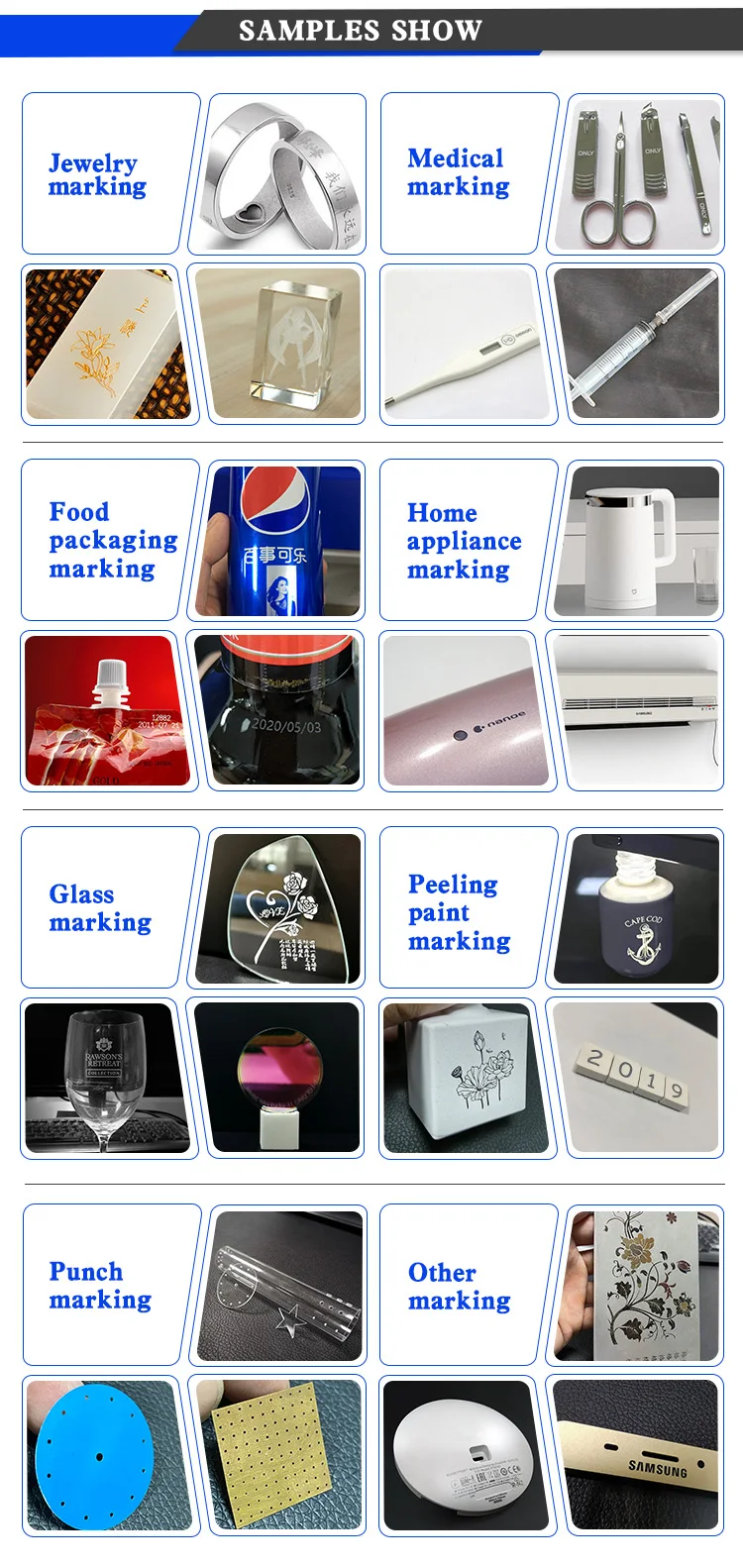

Marking sample
Company information

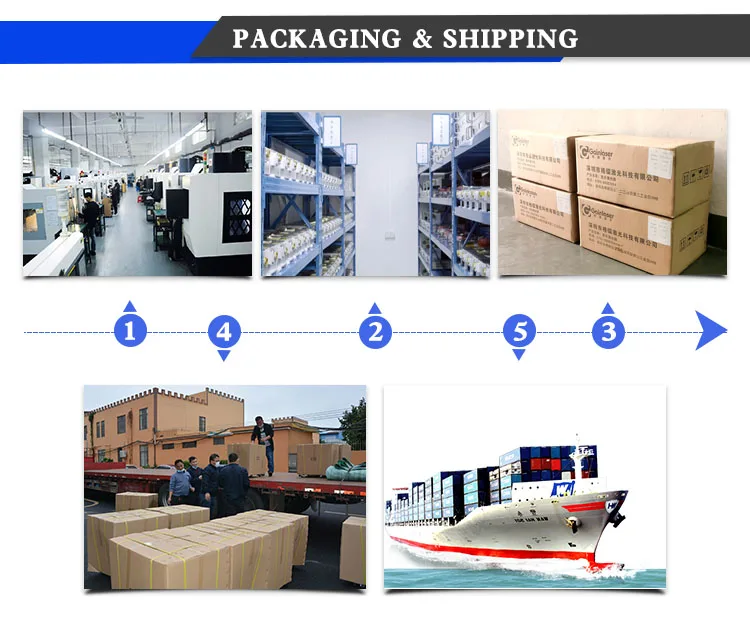

Packaging and shipping
Certification
Partner

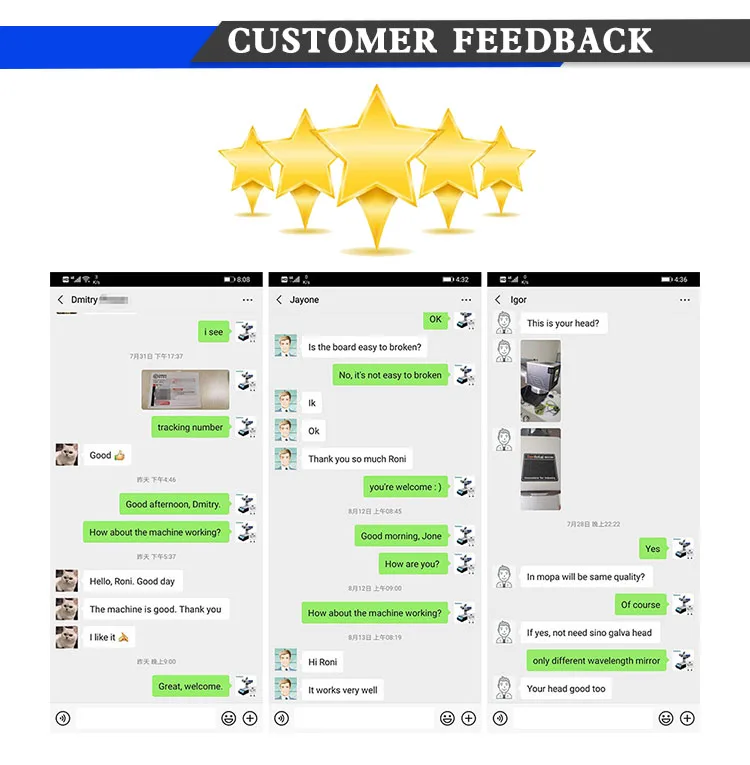

Feedback
FAQ
Q1: How can I get most suitable machine for me?
A1:Please inform us of the materials and thicknes you need to use.
Q2:What is the mode of payment?
A2:T/T,Western union,cash payment ect.
Q3:What should I do after receiving the machine？Is it easy to operate？
A3:Yes, it is easy to operate.We will send the instructions to you and the video of machine operation to you.We are online 24 hours a day. If you have any other questions, please consult us.
Q3:What should I do after receiving the machine？Is it easy to operate？
A3:Yes, it is easy to operate.We will send the instructions to you and the video of machine operation to you.We are online 24 hours a day. If you have any other questions, please consult us.
Q4:How about the warranty?
A4:The Warranty is one year. We strictly control the quality, but if the machine is damaged Within one year, we will bear the cost of parts.
Q5:What are your machine advantages compared with other supplier?
A5:High quality and competitive price.Our factory is specialized in the research and development of advanced solid-state lasers.We has ourselves factory and R&D team.It has rich experience in the laser industry.
A5:High quality and competitive price.Our factory is specialized in the research and development of advanced solid-state lasers.We has ourselves factory and R&D team.It has rich experience in the laser industry.
Q6:How long is the delivery time?
A6:In general,delivery time within 5-7 days after receiving the payment.
