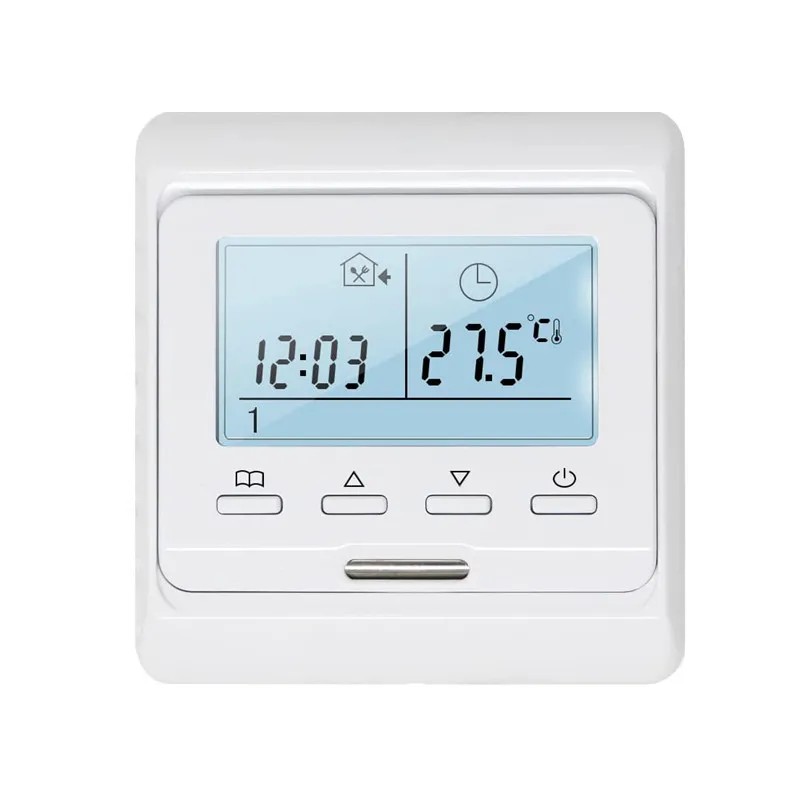

Home Floor Heating Thermostat with 7 Day Programmable Large LCD Display
- Category: >>>
- Supplier: Taizhou Sade Hvac Technology Co. Ltd.
Share on (1600528960602):
Product Overview
Description
Banner
Home Floor Heating Thermostat with 7 Day Programmable Large LCD Display
Products Description
Part NO. | Load Current | Application | Remark | Loading (PCS/Carton) |
| S7206A | 3A | Water Heating System | Without sensing line | 64 |
Main Technical Parmeter
Set temperature range:10-30℃
Temperature accuracy:±1℃
Rated output power:<200W
Consumale power:<2W
Operaing:AC220±10%, 50/60Hz
Traverse requirements:0.5mm2≤Voltage≤2.5mm2

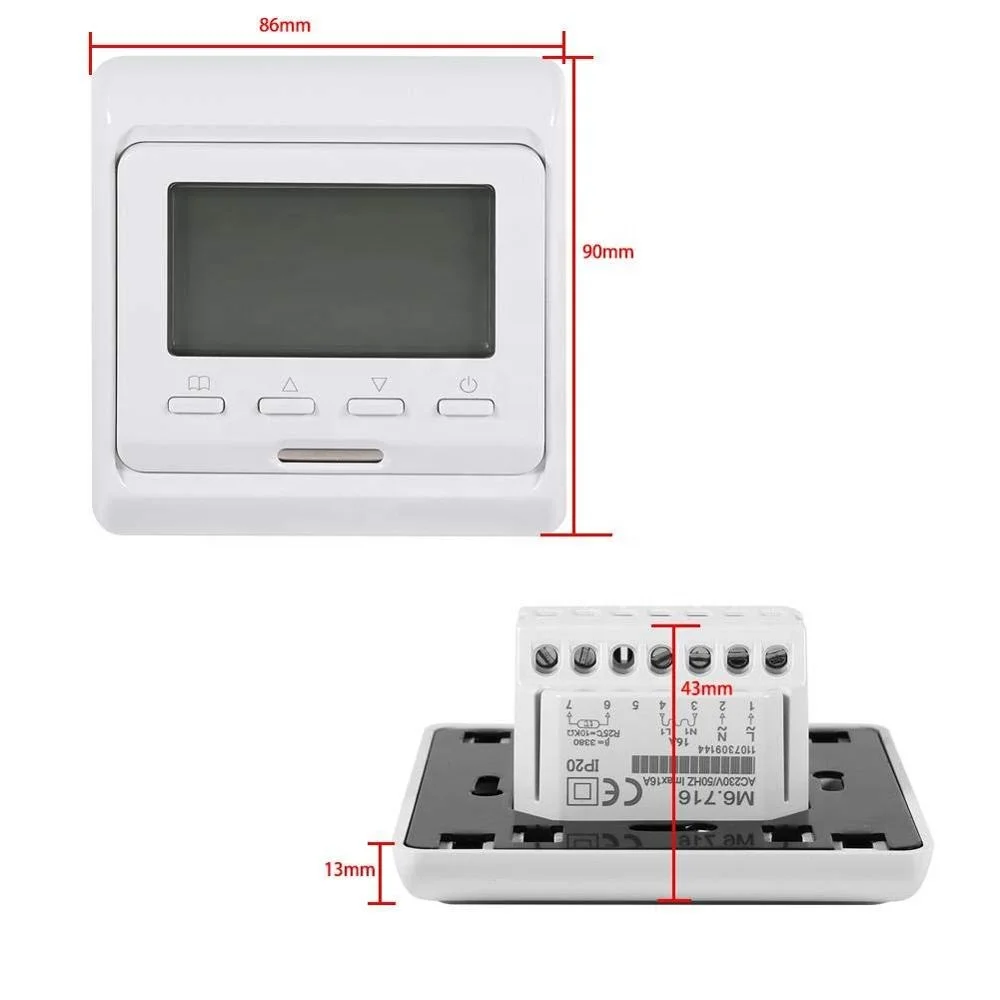

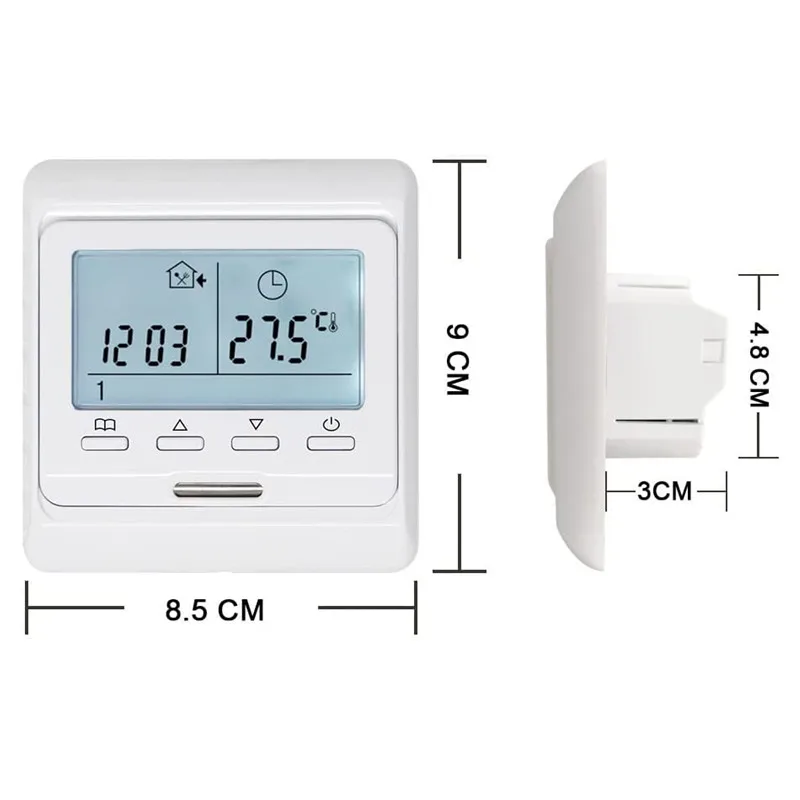

Figure size:86×86×13mm (Section diameter 86 standard box)
Aperture distance for installation:60mm

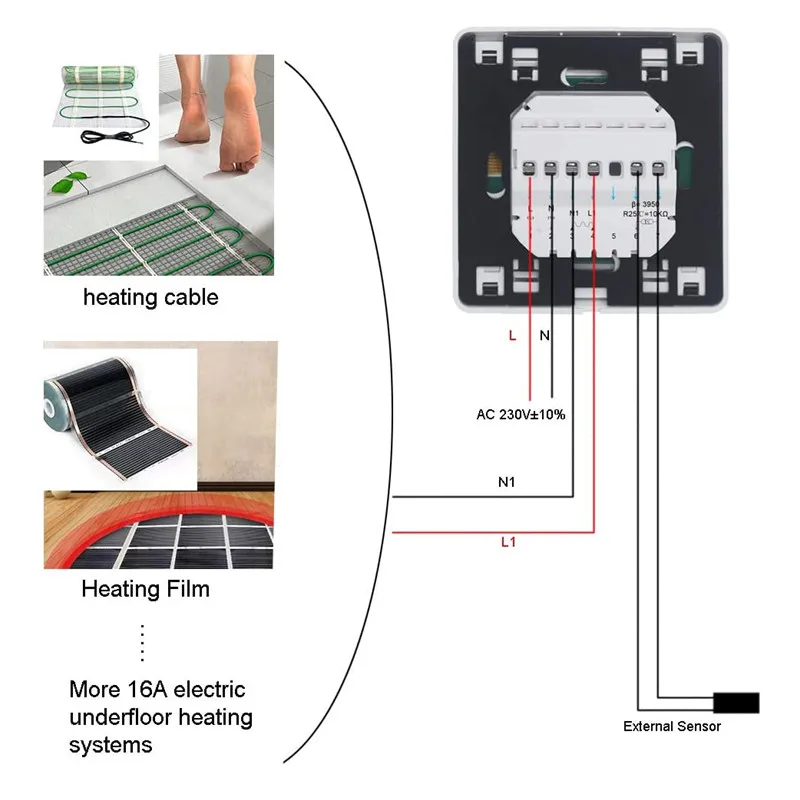

Application of Electrical Heating Thermostat
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
