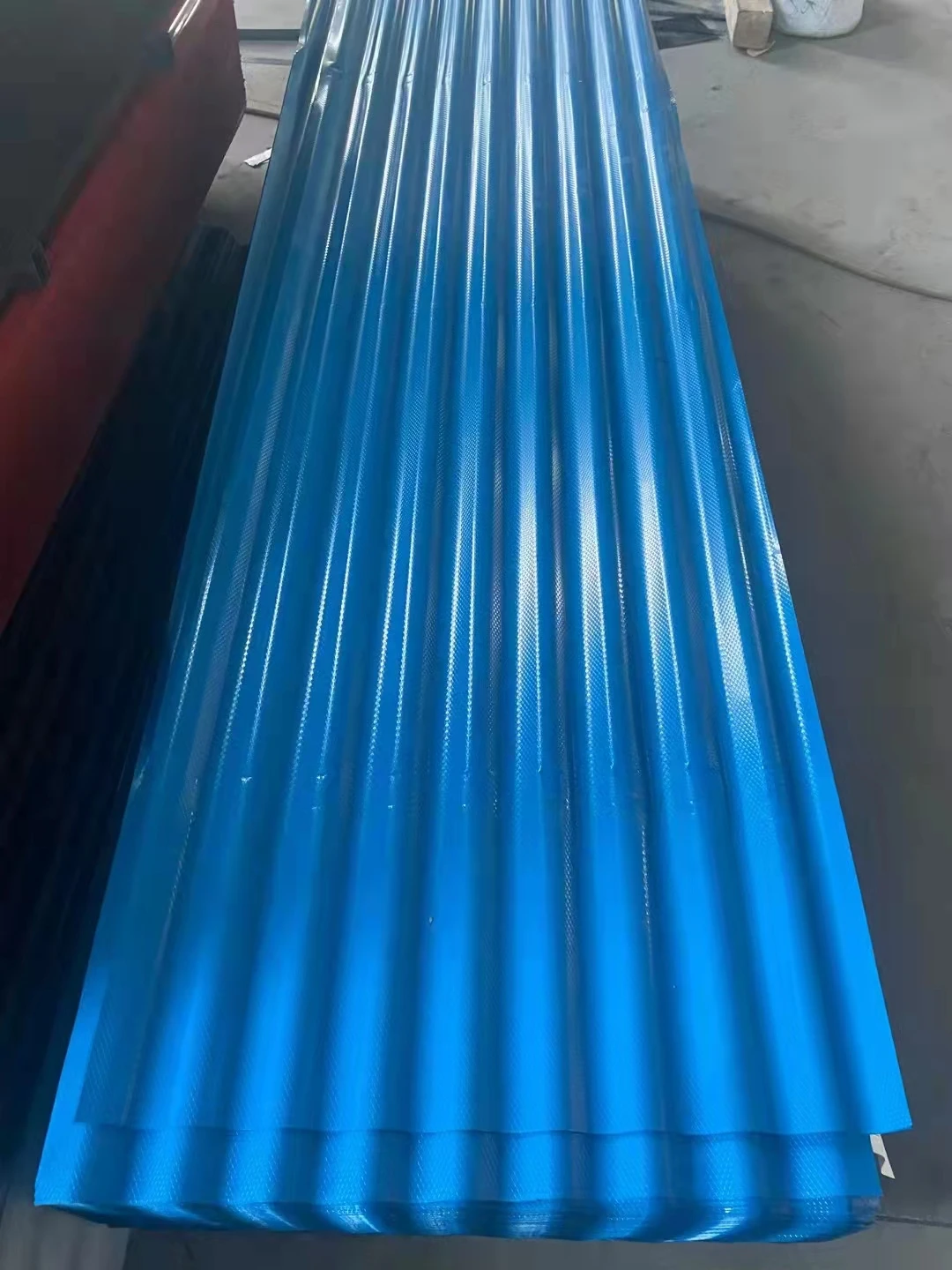

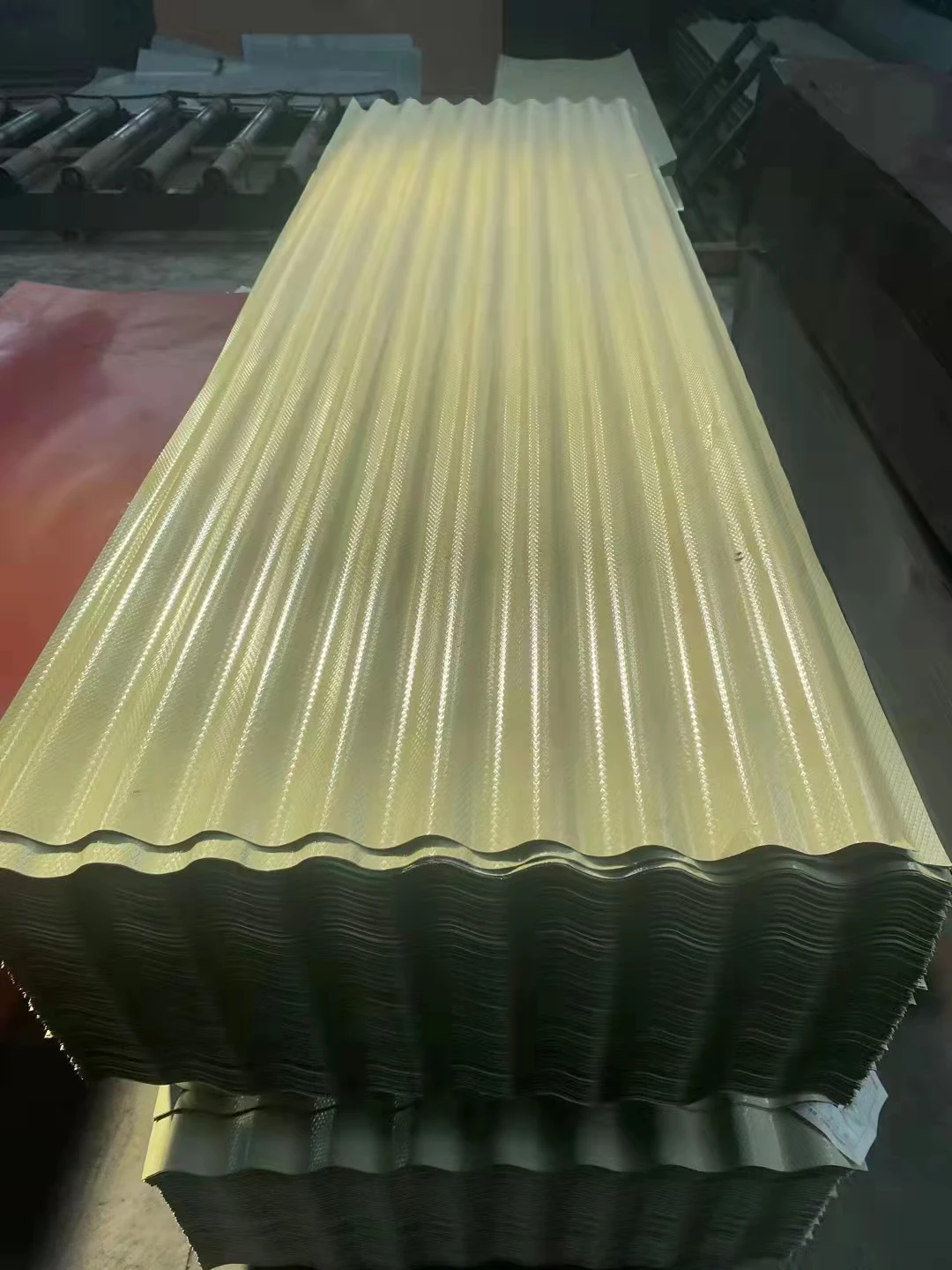

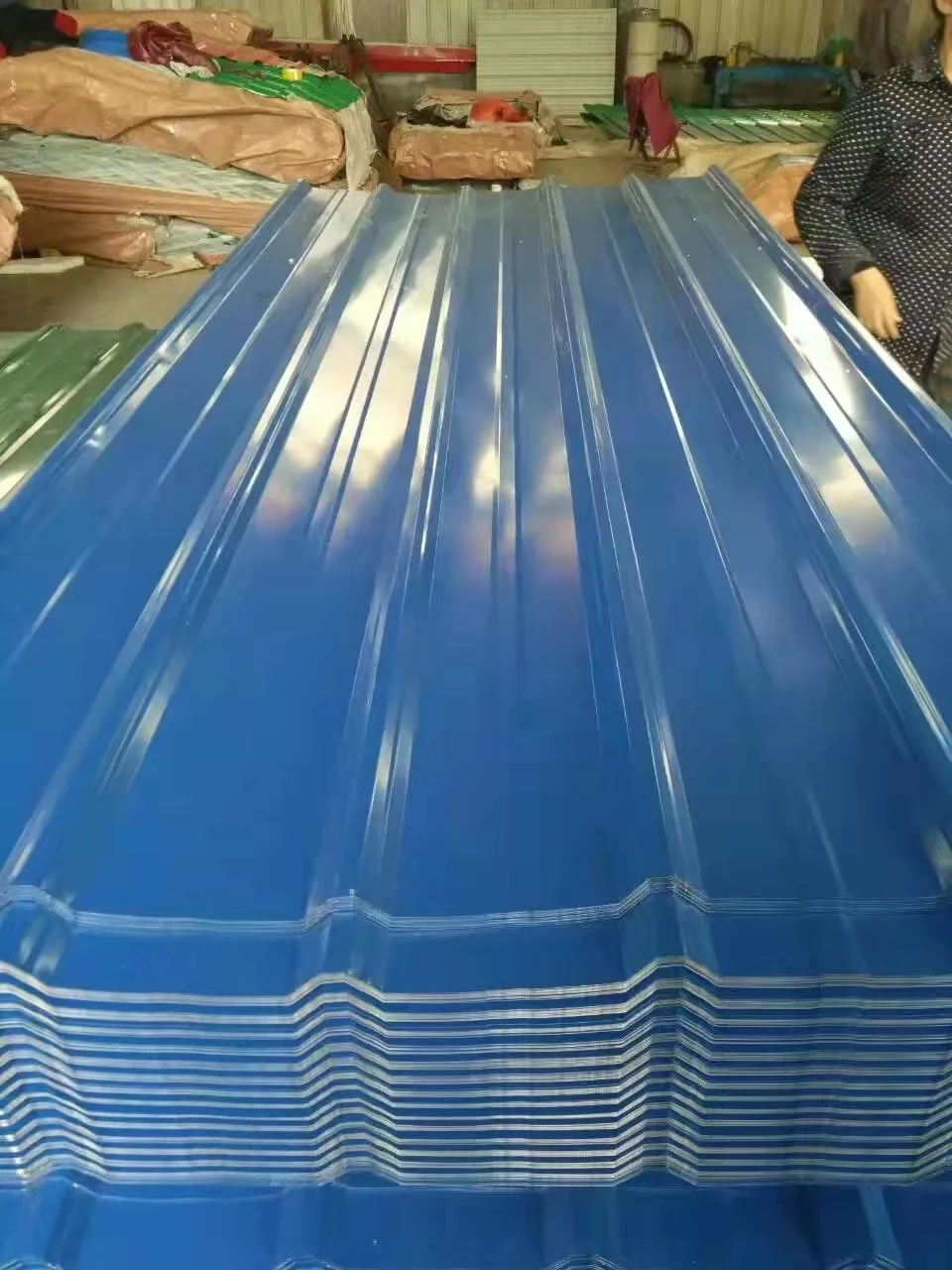

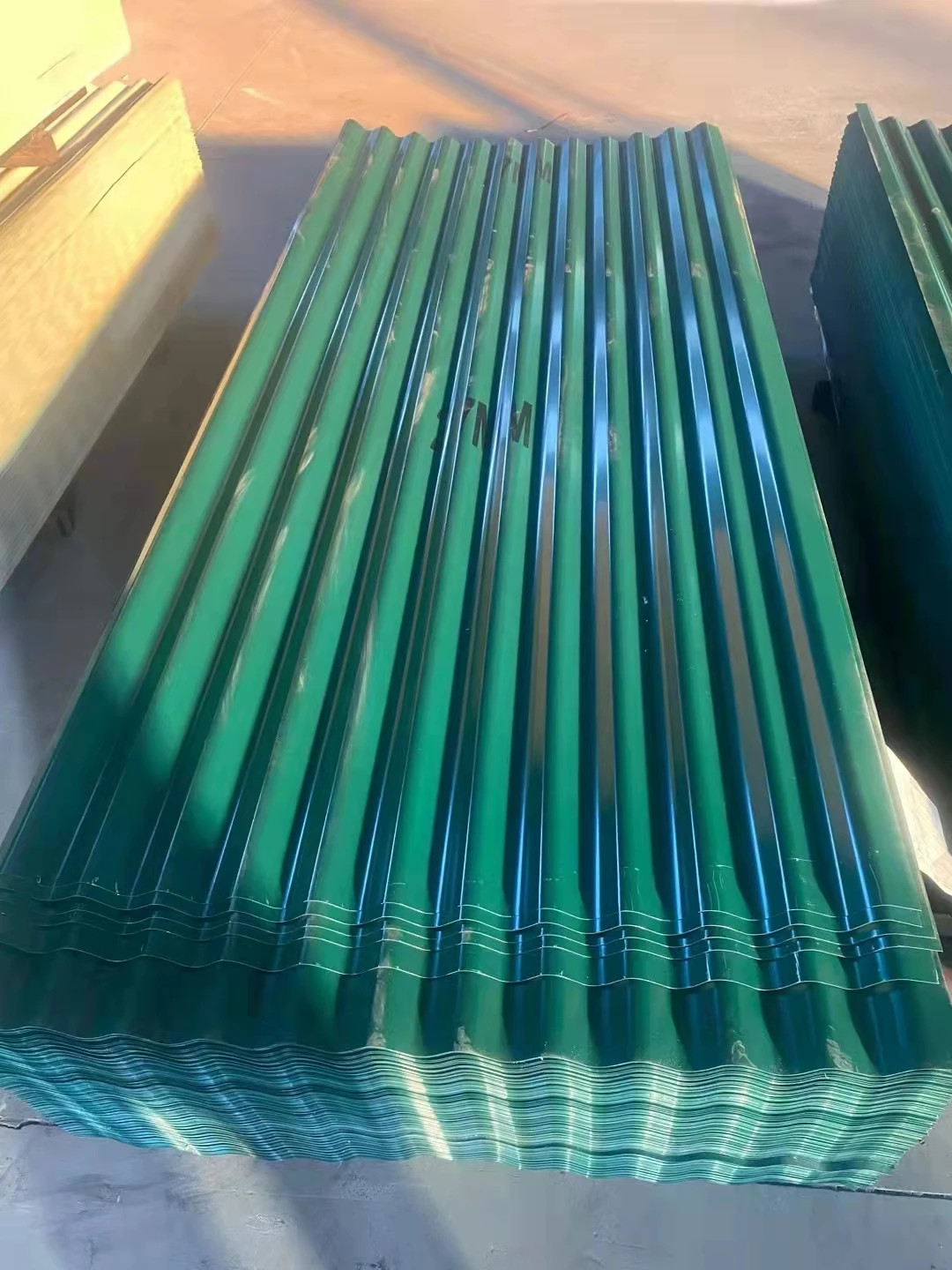

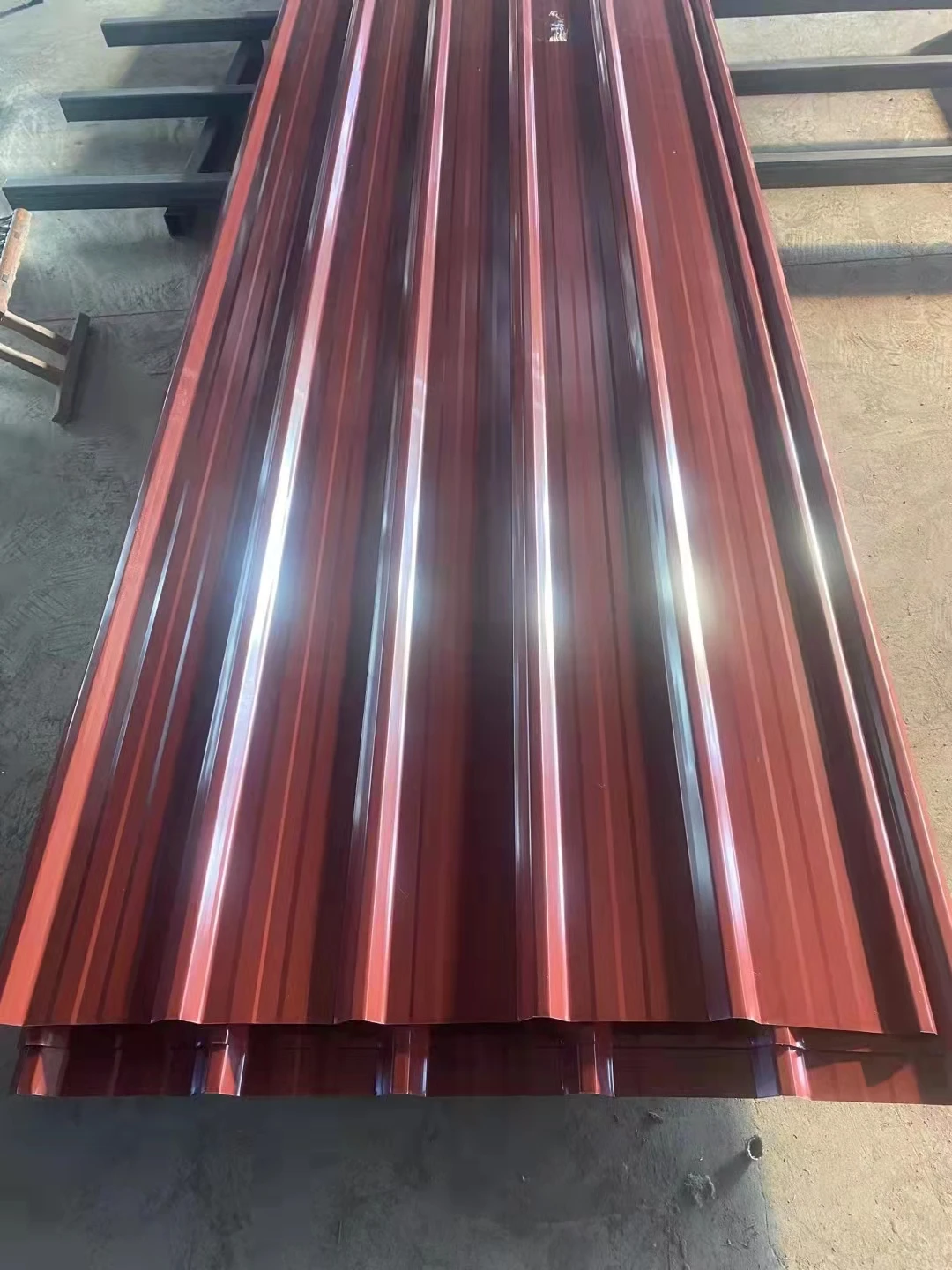

Corrugated Steel Roofing Sheet | ||||||||||
Material: Galvanized steel coil/ prepainted galvalume/galvanized coil | ||||||||||
Spread Width (mm) | Valid Width (mm) | Zinc coating (g) | Alu-zinc coating (g) | Color | Length/meter | |||||
600/1000/1200/1250 | 475~1050 | 60~80 | 30~50g | RAL Color | 2.0-5.8 | |||||
Common Roofing type: | ||||||||||
Cover width(mm) | Coil width (mm) | Wave height (mm ) | wave length (mm) | wave number | Usage | |||||
900 | 1000 | 15 | 225 | 4 | Roof&Wall | |||||
750 | 1000 | 35 | 125 | 6 | Roof&Wall | |||||
850 | 1000 | 18 | 80 | 11 | Roof&Wall | |||||
760 | 1000 | 76 | 380 | 2 | Long-span roof plate | |||||
820 | 1000 | 25 | 205 | 4 | Roof | |||||
1025 | 1200 | 25 | 205 | 5 | Roof | |||||
860 | 1000 | 25 | 287 | 3 | Roof&Wall | |||||
840 | 1000 | 18 | 280 | 3 | Roof&Wall | |||||
910 | 1000 | 10 | 130 | 7 | Roof&Wall | |||||
Packing | Wrapped by plastic film and waterproof paper, and then fastened on wooden pallet. Or as you request. | |||||||||
Normal color | Ocean blue(RAL5002); Grey white(RAL 9002) | |||||||||





New products from manufacturers at wholesale prices
