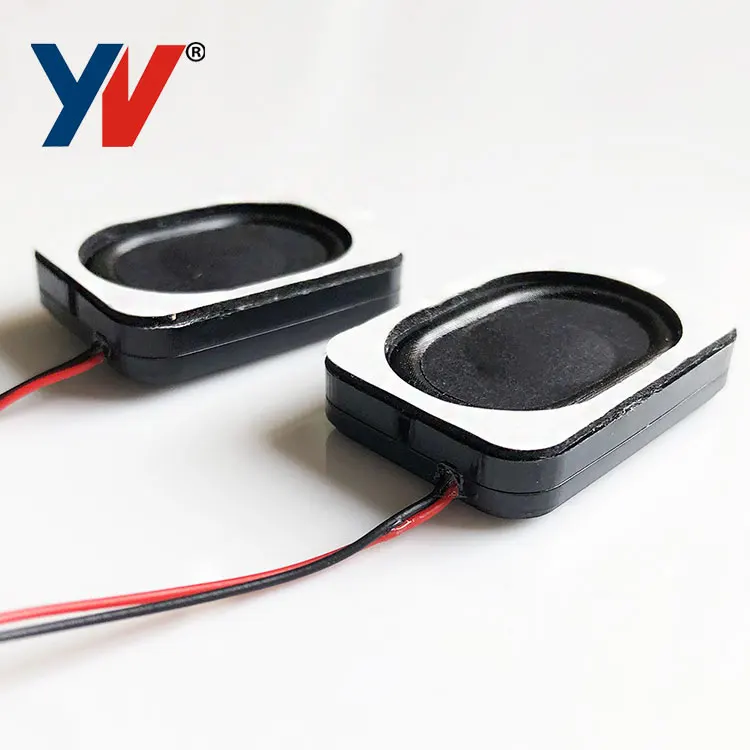

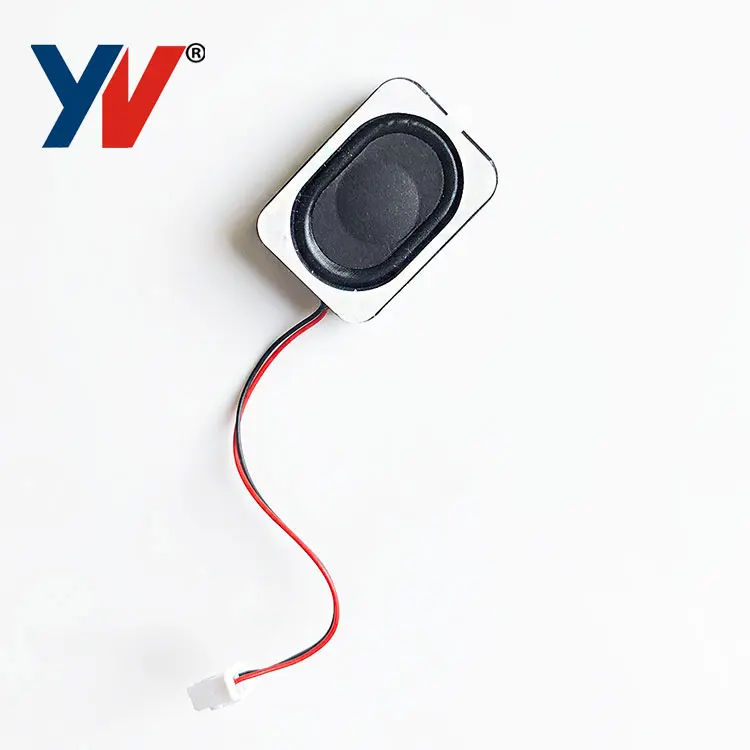

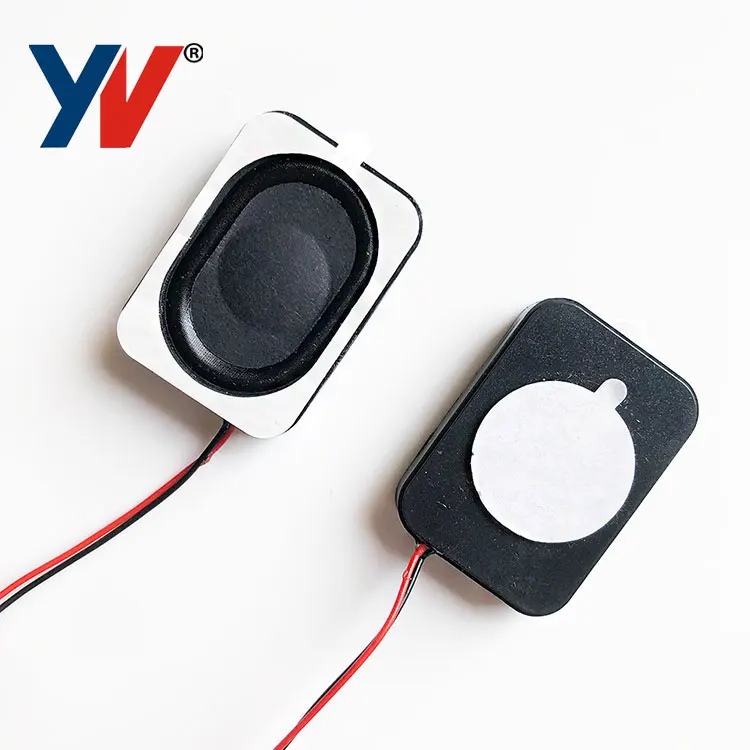

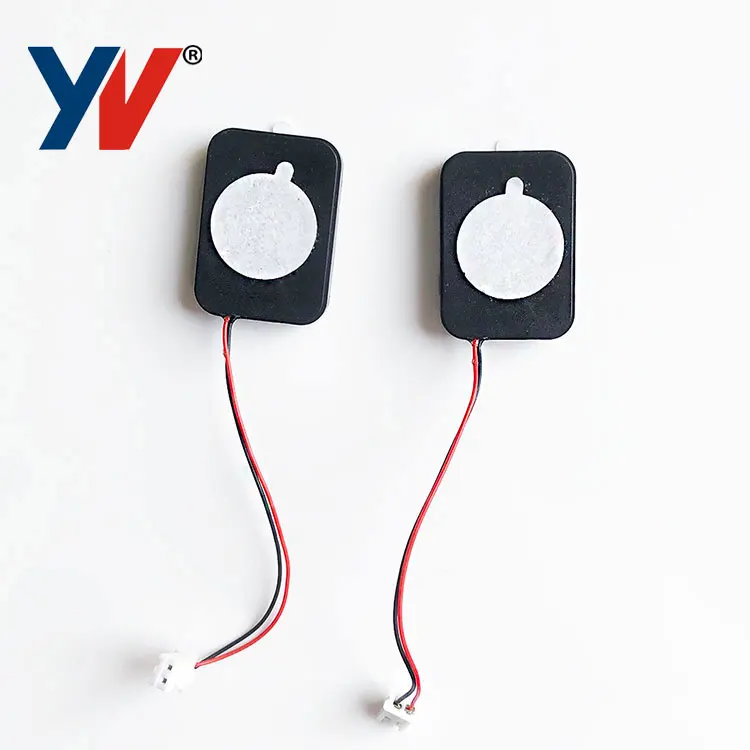

35*25mm flat internal audio loud 2w 8 ohm square connector terminal Dynamic speaker
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600528987404):
Product Overview
Description
35*25mm flat internal audio loud 2w 8 ohm square connector terminal Dynamic speaker
Product Name | 35*25mm flat internal audio loud 2w 8 ohm square connector terminal Dynamic speaker |
Type | Dynamic speaker |
RATED / MAX. POWER | 2.0W / 2.5W |
IMPEDANCE | 8Ω±15% at 1 KHz 2.0Vms Sine Wave |
OPERATING TEMPERATURE | - 30℃ ～ +70℃ |
STORAGE TEMPERATURE | - 40℃ ～ +85℃ |
RESONANCE FREQUENCY | 480±20% Hz at 1.0V Sine wave |
SENSITIVITY (S.P.L.) | 93dB ±3dB at 0.5w/ 0.1m / 10.12.15.20×100Hz average |
FREQUENCY RANGE | fo ~ 10kHz |
DISTORTION | Less than 15 % at 1000Hz 0.6 W |
OUT SIDE SIZE | 35mm×25mm |
1gUNIT WEIGHT | 6.05g±0.1g |

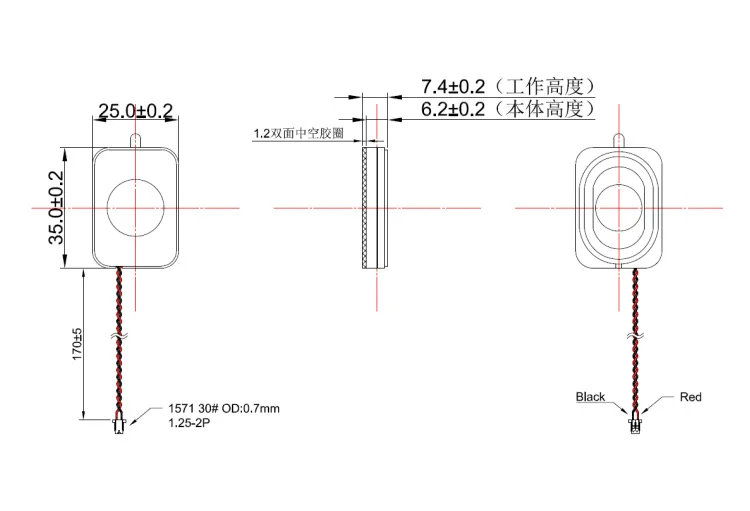

1. Speaker Dimensions

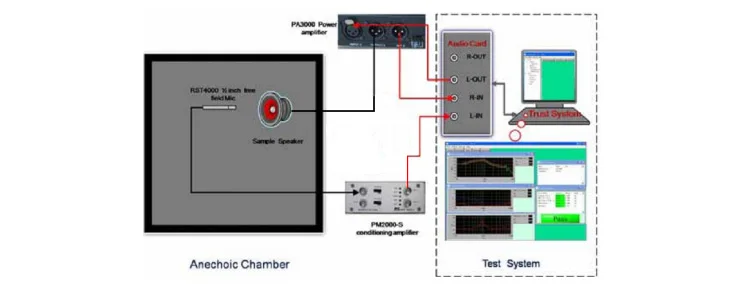

2. Speaker Test Circuit

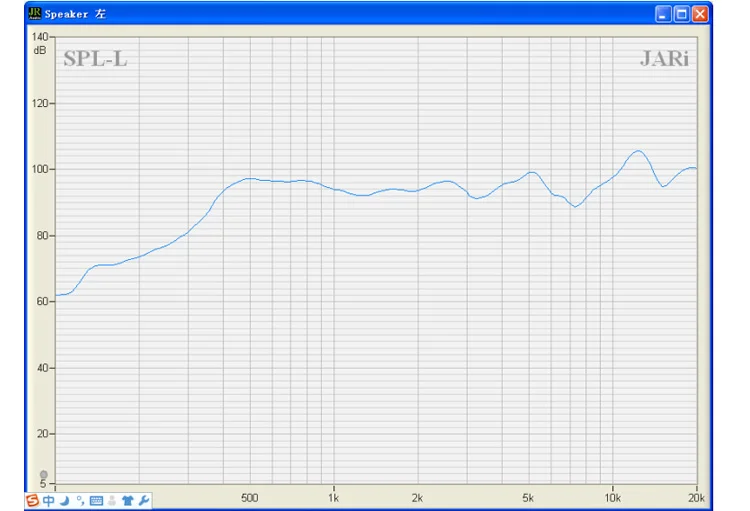

3. Speaker Frequency Response

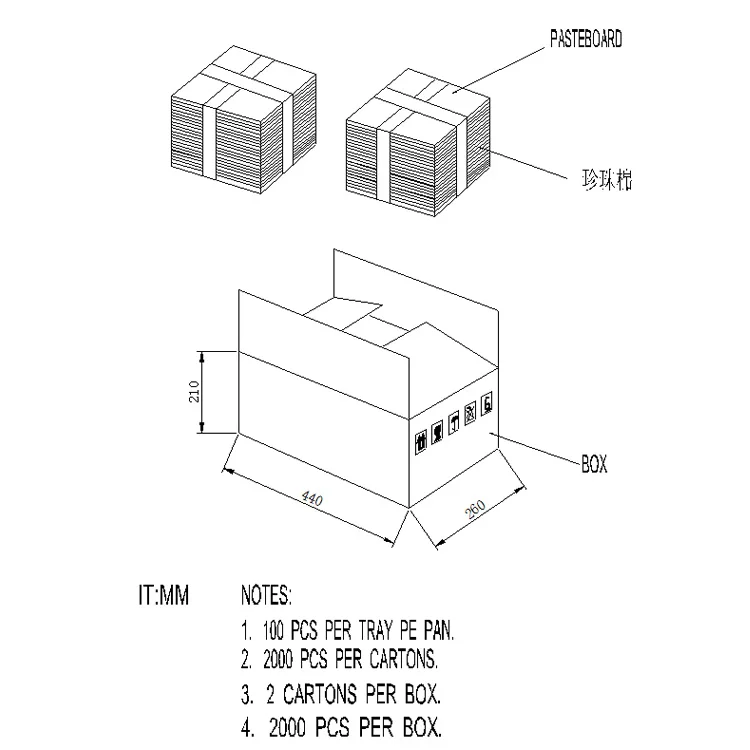

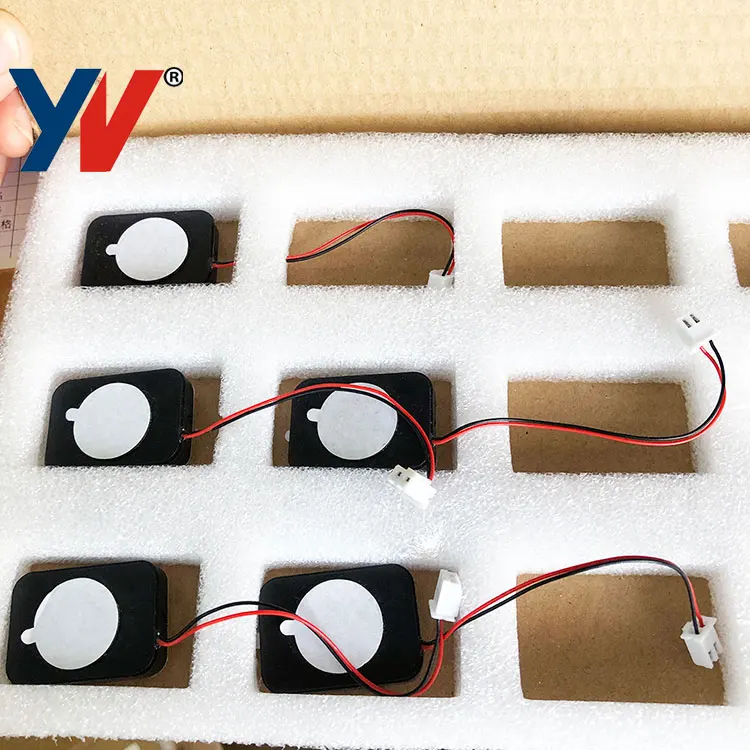

4. Speaker Packing
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.
Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .
Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.
Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.
Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.
Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
