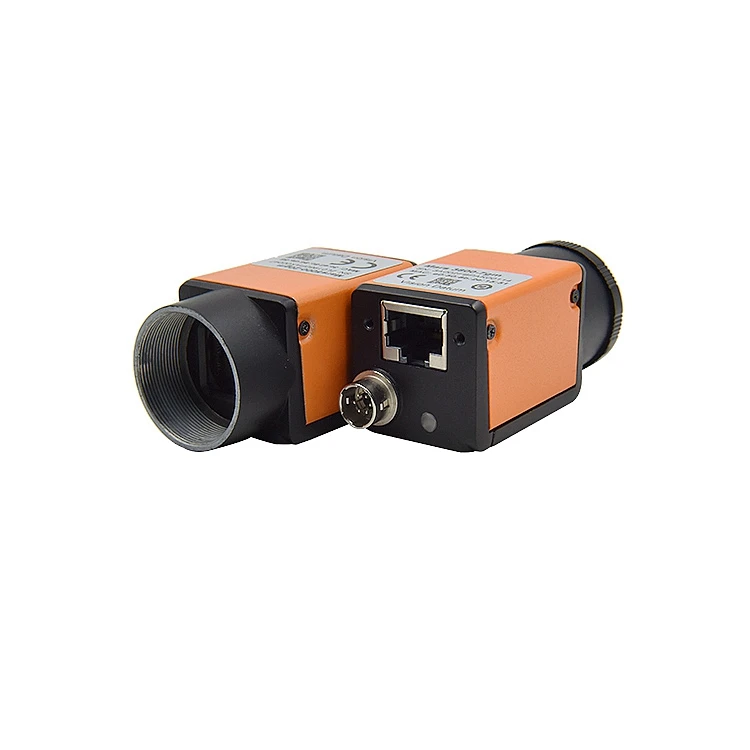

Vision Datum Mars5000-20gm-NIR 5MP IMX264 2/3 Global CMOS GigE c mount machine inspection camera
- Category: Camera, Photo & Accessories >>>
- Supplier: Hangzhou,Vision,Datum,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Brief Introduction

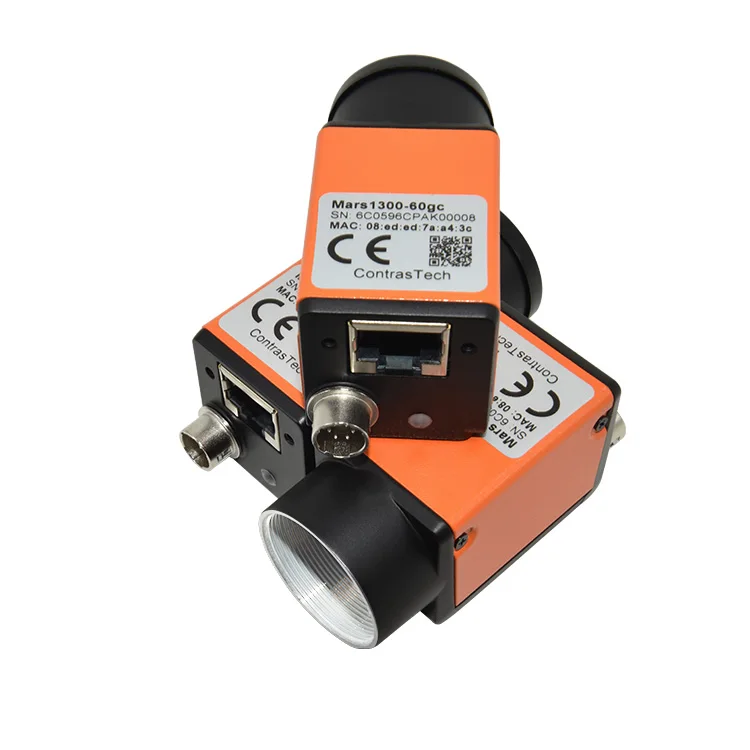

Vision Datum Mars Series GigE Area Scan Camera
Brief Introduction
This series industrial
camera with excellent
performance, its SDK
allows vision system
to become more flexible.
And undergo the strictly
anti-interference test
and quality control test,
they shows high stability
trait to work in various
complex environments.
Main Features
1.Wide range resolution,
from 0.3MP~20MP, ideal
for various applications.
2.With high frame rate up
to 300fps.
3.With wide voltage range
power supply: the POE
power supply and the
DC 6~26V.
4.With 1Gbps bandwidth,
transmission distance
up to 100m.
Product Specifications
Products Parameters | ||
Model Name | Mars5000-20gm-NIR | |
Interface | Gigabit Ethernet (1000 Mbit/s) | |
SNR | >38 | |
Dynamic Range | 60 | |
Via Hardware Trigger, Software Trigger or via Free Run. | ||
Lens Mount | C-Mount | |
-30~80℃ (Storage) -30~50℃ (Working) | ||

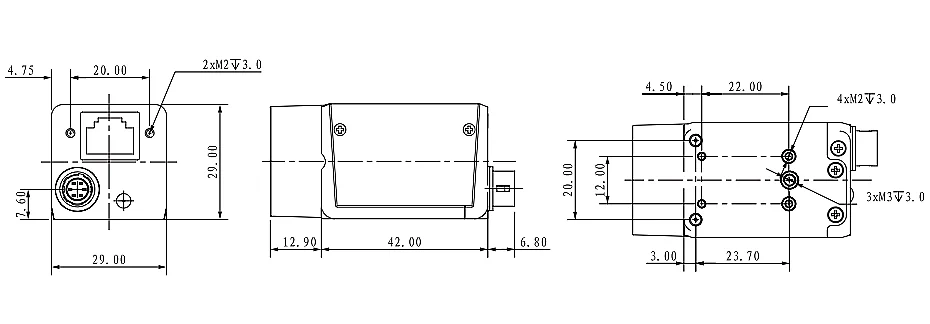

Product Dimension & Drawing:42.0 x 29.0 x 29.0 (mm)

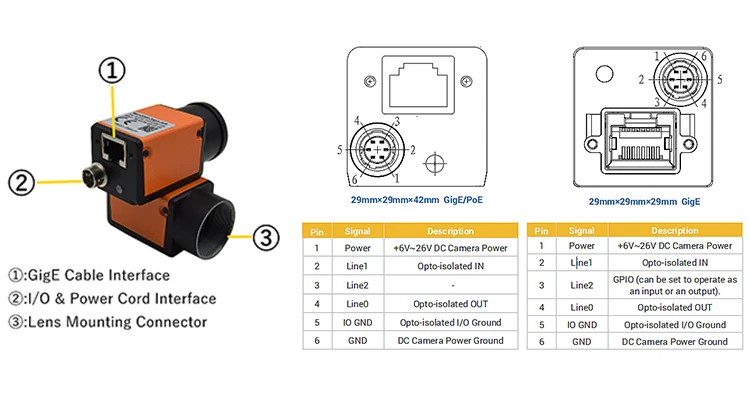

Camera Interfaces instruction & GigE PIN Assignment
More Choices
Mars Series GigE Area Scan Cameras | ||||||||
Warm Tips: 1.Please click the specific model name for more details. 2.gm: GigE Mono, gc: Gige Color, NIR: Near Infrared. 3.1/4": 1/4 inch. NP: No PoE. | ||||||||
Model Name | Sensor Size | Resolution | Frame Rate | |||||
1/4" | 640x480 | 300fps | ||||||
1/3.6" | 800x600 | 200fps | ||||||
1/3.6" | 800x600 | 120fps | ||||||
1/3" | 1280x960 | 30fps | ||||||
1/2" | 1280x1024 | 75fps | ||||||
1/2" | 1280x1024 | 75fps | ||||||
1/2" | 1280x1024 | 60fps | ||||||
1/2" | 1280x1024 | 60fps | ||||||
2/3" | 1920x1200 | 50fps | ||||||
2/3" | 1920x1200 | 50fps | ||||||
1/2.8" | 1920x1080 | 50fps | ||||||
1/1.2" | 1920x1200 | 40fps | ||||||
1/1.8" | 2048x1536 | 30fps | ||||||
2/3" | 2448x2048 | 20fps | ||||||
1" | 2592x2048 | 20fps | ||||||
1" | 2592x2048 | 20fps | ||||||
1/1.8" | 3072x2048 | 18fps | ||||||
1/2.3" | 3856x2764 | 10fps | ||||||
1/1.7" | 4000x3000 | 9fps | ||||||
1" | 4096x2160 | 13fps | ||||||
1.1" | 4096x3000 | 9fps | ||||||
1" | 5472x3468 | 5fps | ||||||
Product Accessories Recommended
Recommended Products
You may need the following products!
Applications & Cases
Major Applications:
Defect Inspection; SMT; Vision Localization; VR/AR;
Dimension Measurement; Barcode Reading; Logistic Industry.
Dimension Measurement; Barcode Reading; Logistic Industry.
Case1: Piezometer Value Inspection.
Case 2: Food Integrity Inspection.
