Professional Electrostatic Powder Coating Batch System Plant
Details Images

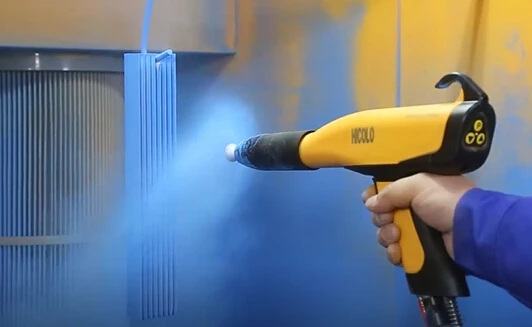

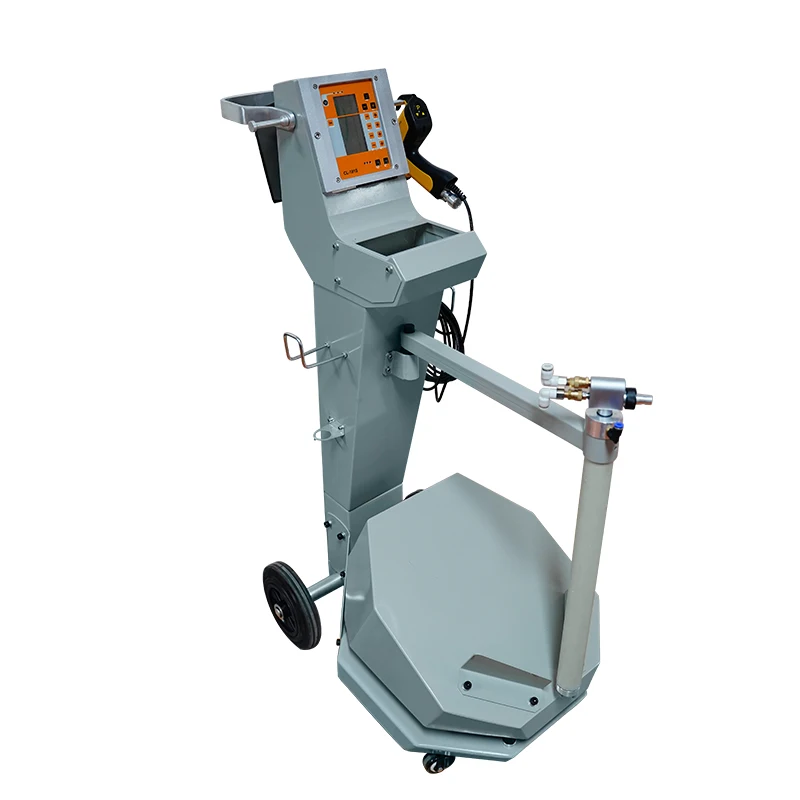

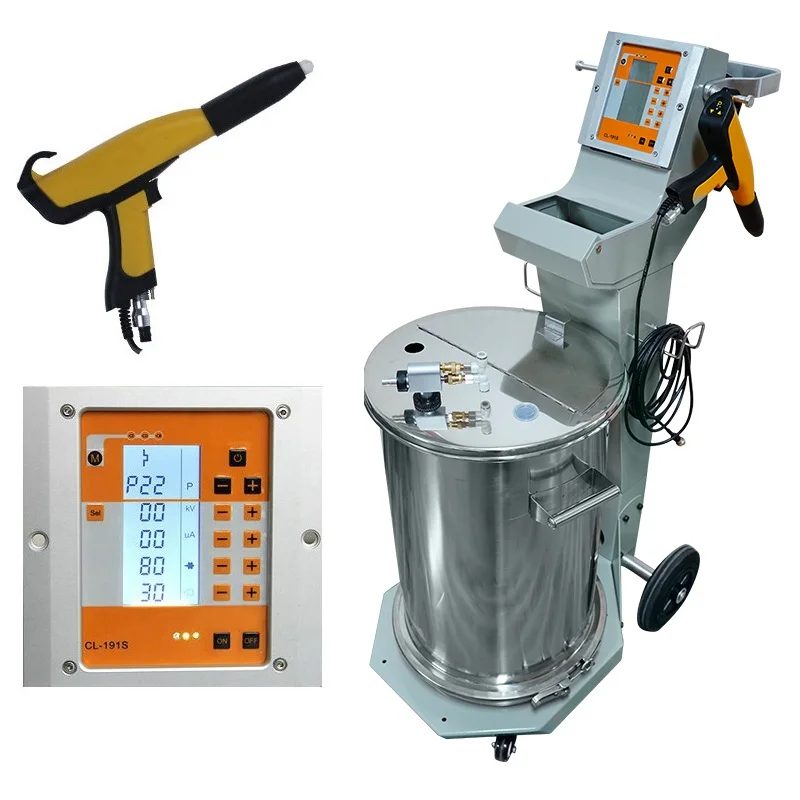

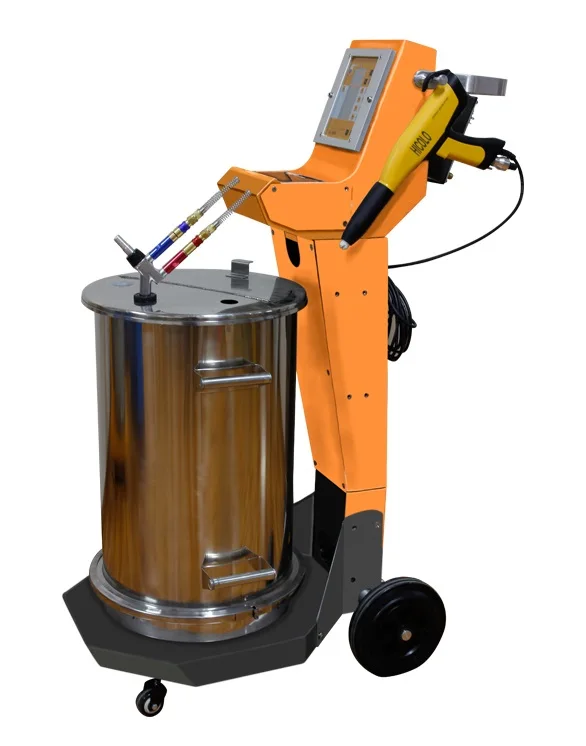

COLO-191S Powder Coating Machine
powerful for specialists.

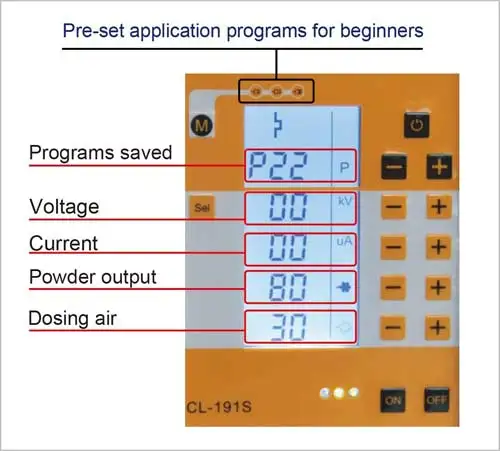

With three pre-setted models ,easy operation for beginner and with 22 programs could save ,powerful for specialists.
High powder spraying quality, very low breakdown, save you from trouble of equipment stop. Unprecedented precision control of current and voltage ensuring maximum efficiency.

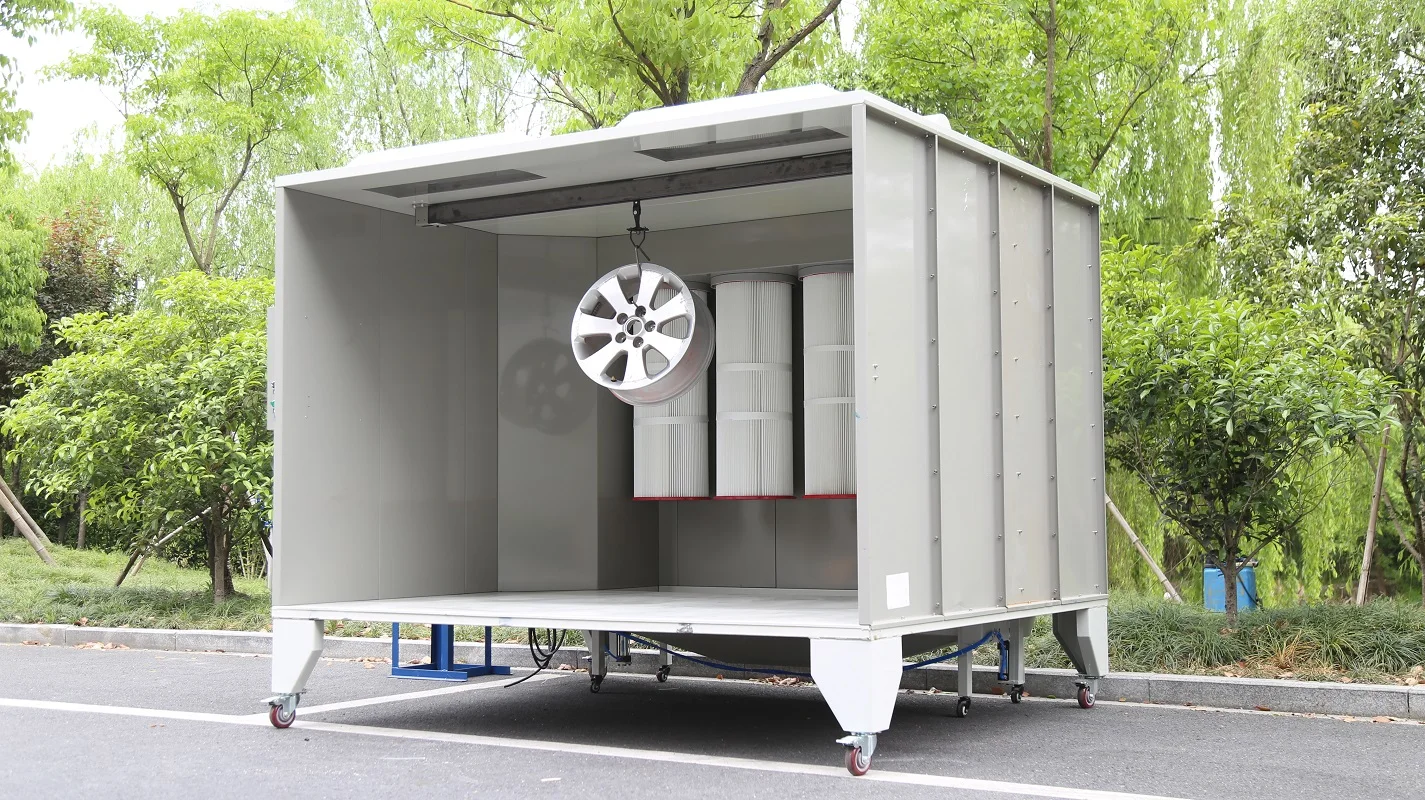

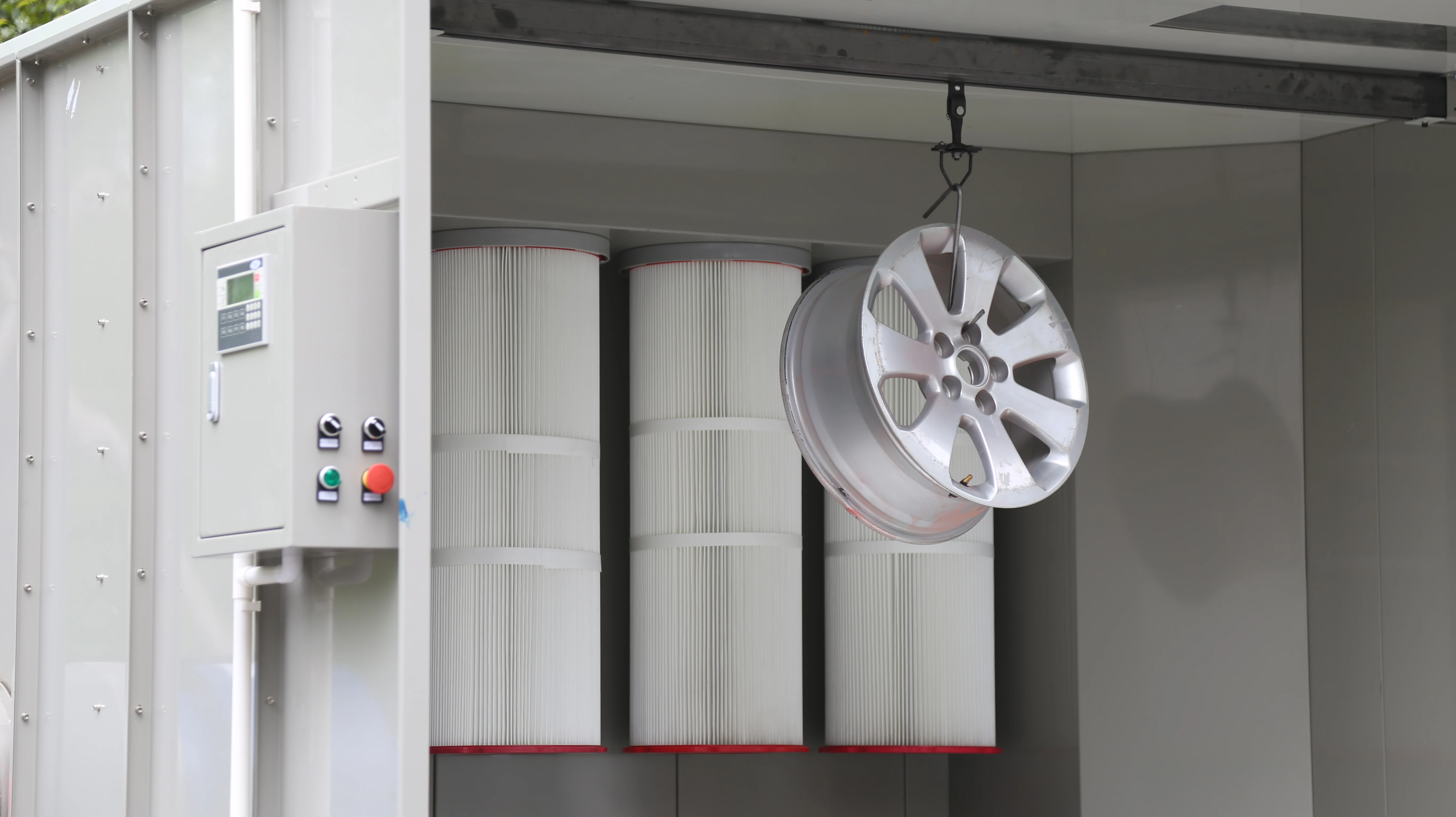

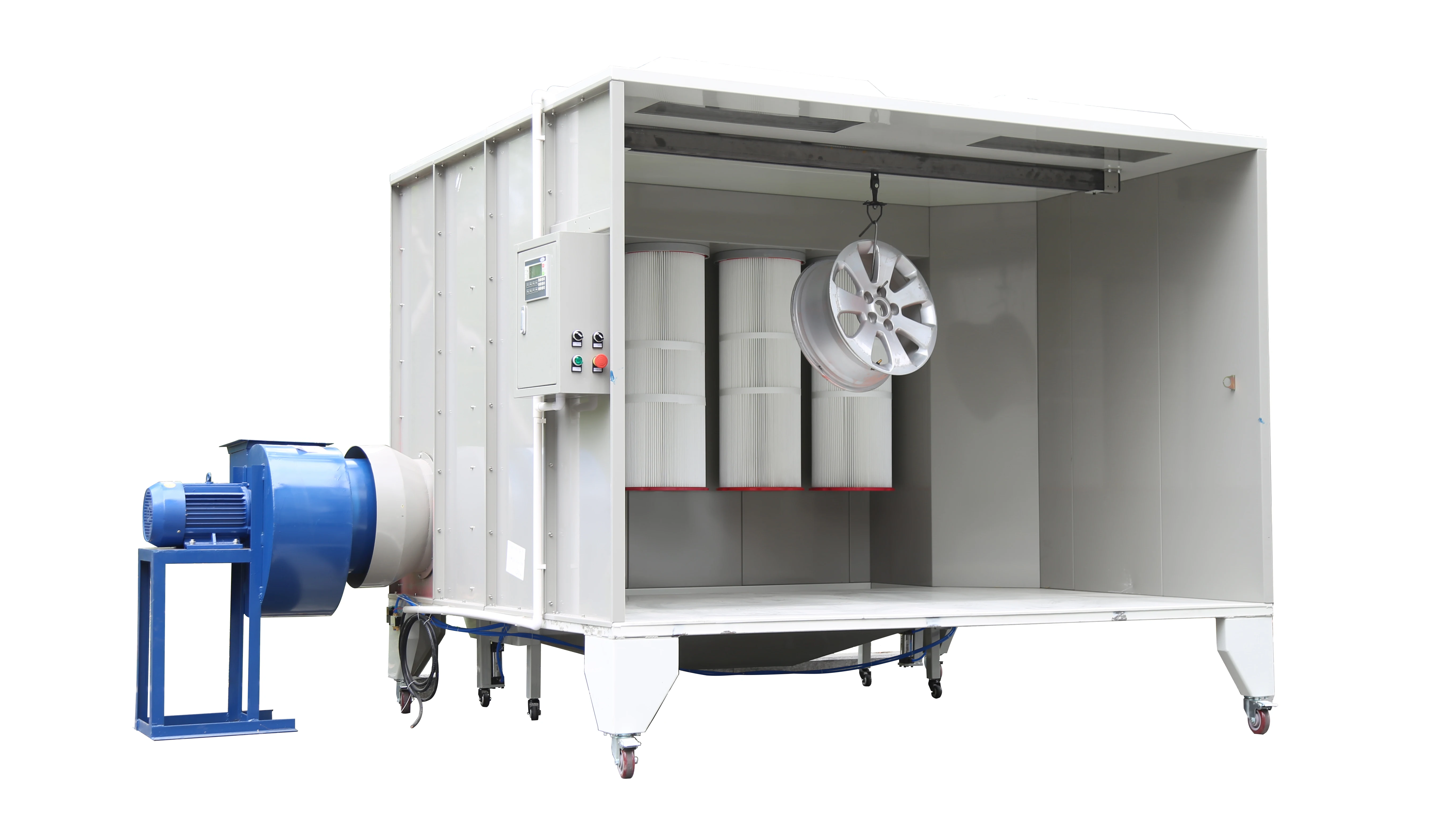

COLO-2315 Manual Powder Coating Spray Booth
1. Incorporates proven cartridge-filter technology capturing excess powders efficiently to keep environment clean.
2. The filtered powder is discharged into a collecting hopper beneath the unit which can be moved away for emptying.
3. Easy-to-use PLC operation panel allows to start/stop exhaust, set pulse-jet time & interval and lift recovery hopper.
4. Designed with wheels perfectly for shops where being able to move the unit is vital.
5. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability.
2. The filtered powder is discharged into a collecting hopper beneath the unit which can be moved away for emptying.
3. Easy-to-use PLC operation panel allows to start/stop exhaust, set pulse-jet time & interval and lift recovery hopper.
4. Designed with wheels perfectly for shops where being able to move the unit is vital.
5. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability.
Model | COLO-S-2315 |
Operating Dimensions | Width2300*Depth1500*Heght1500mm |
Overall dimensions | Width2550*Depth2100*Heght2240mm |
Weight | 580kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 4kw |
Filter Count | 4 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Air Consumption | 6600m^3/h |

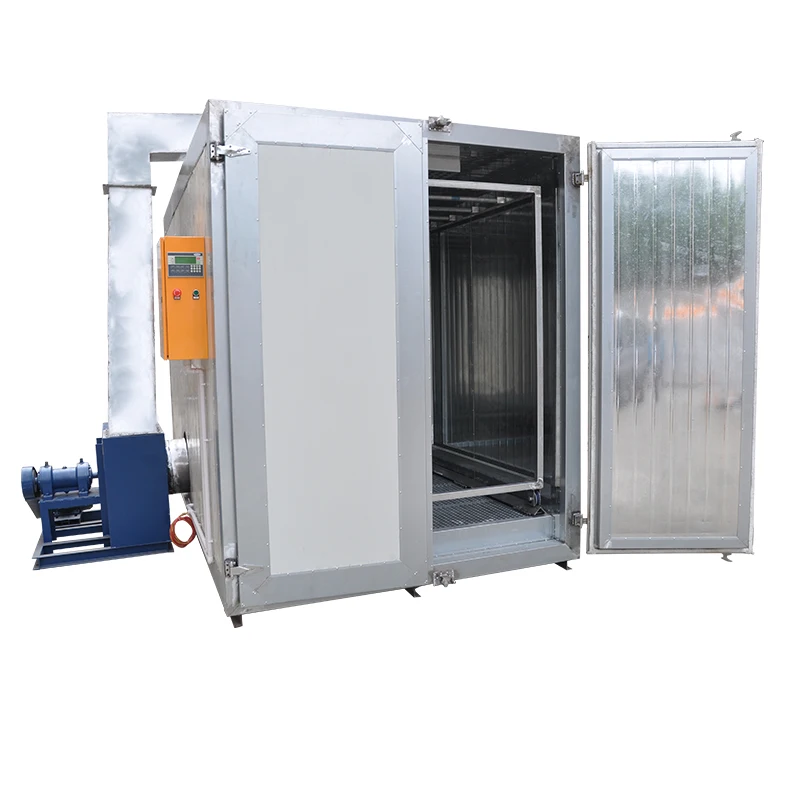

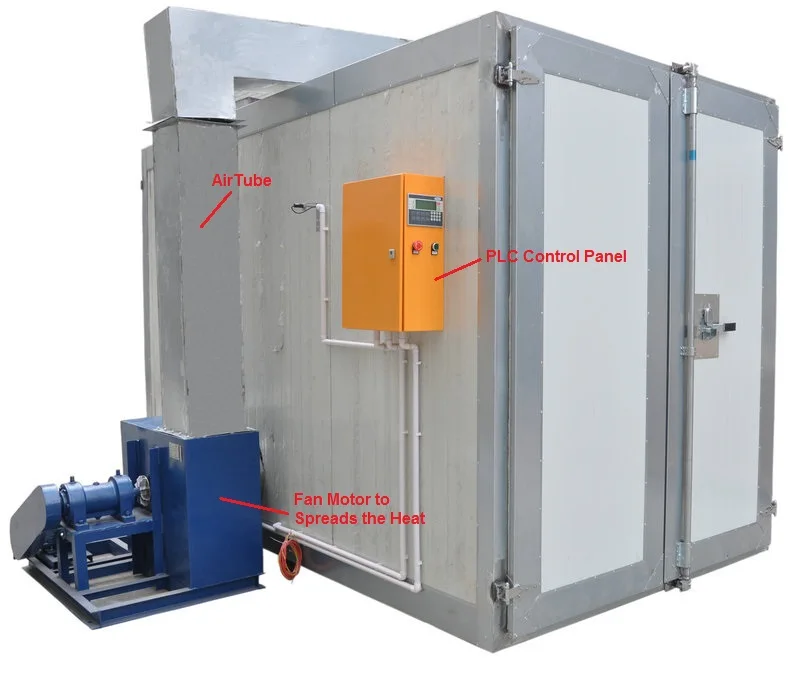

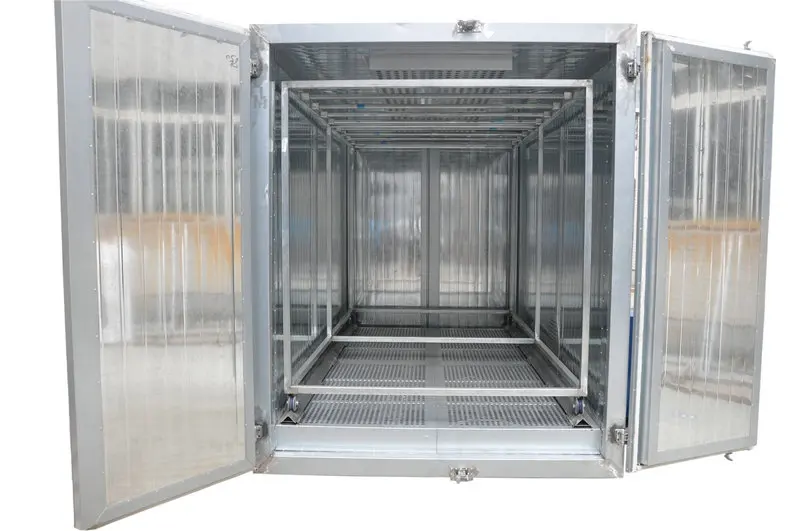

COLO-1732 Electric Powder Coating Oven

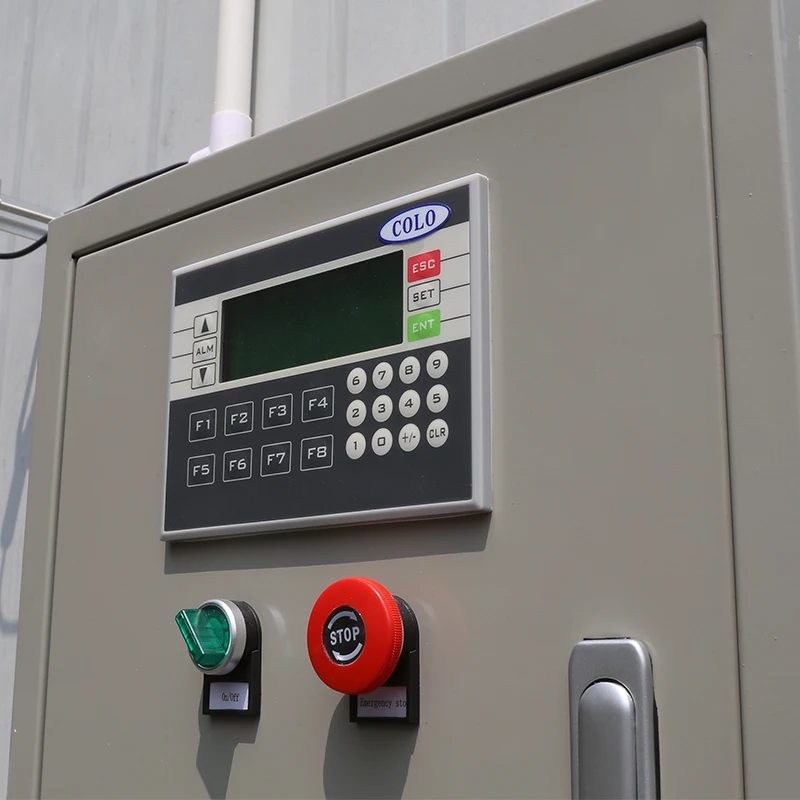

All parameters and functions are set on PLC panel, provides a high precision heating process.

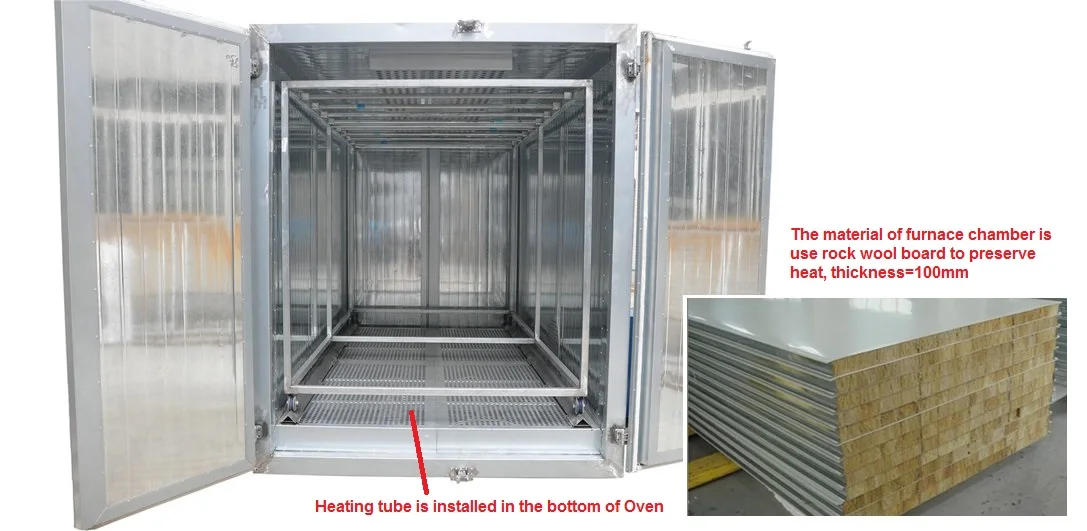

100mm thick rockwool insulation material keeps constant temperature whose stability less than 3℃.
A high peformance fan is excellent for hot airflow circulation, reaching any corner of the oven to ensure baking uniformity and
efficiency.
A pair of outer & inner trolley makes easy loading of workparts. It affects the reduction of the impurities content from the
floor in the chamber.
Model | COLO-1732 |
Worksize dimensions | Width1650 x Height1700 x Depth3200 mm |
Overall dimensions | Width1950 x Height2100 x Depth3600 mm |
Power supply Electric | 30kw |
Voltage | 380V/220v |
Frequency | 50-60hz |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 3-5°C |
Temperature max | 250° C |
Ventilation performance | 1131-2565m3/h |
Motor power | 1.5kw |
Circulation/ Air flow Vertical | Variable through holes on the walls |
Warranty | 12 months |

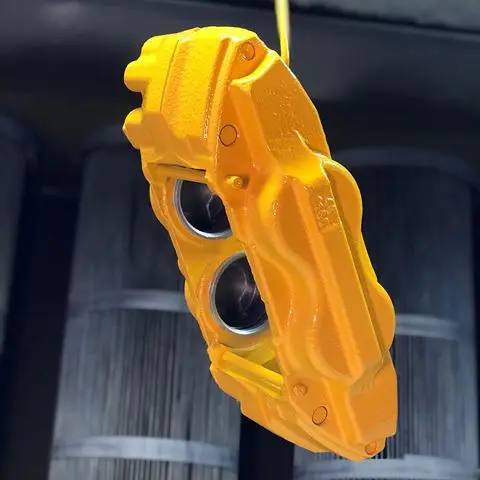

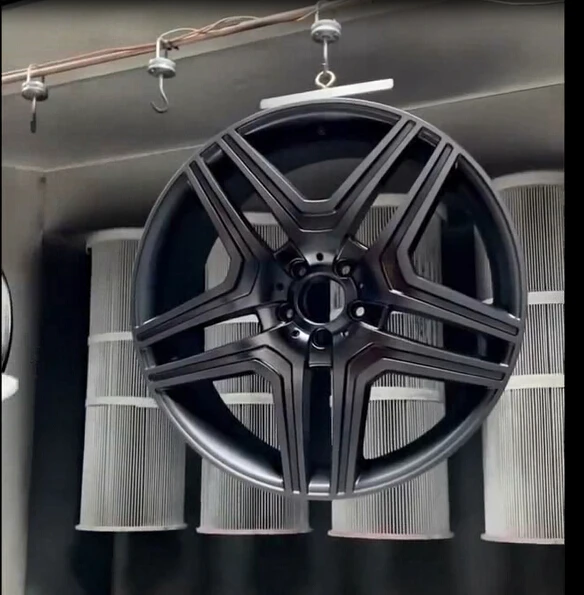

Application

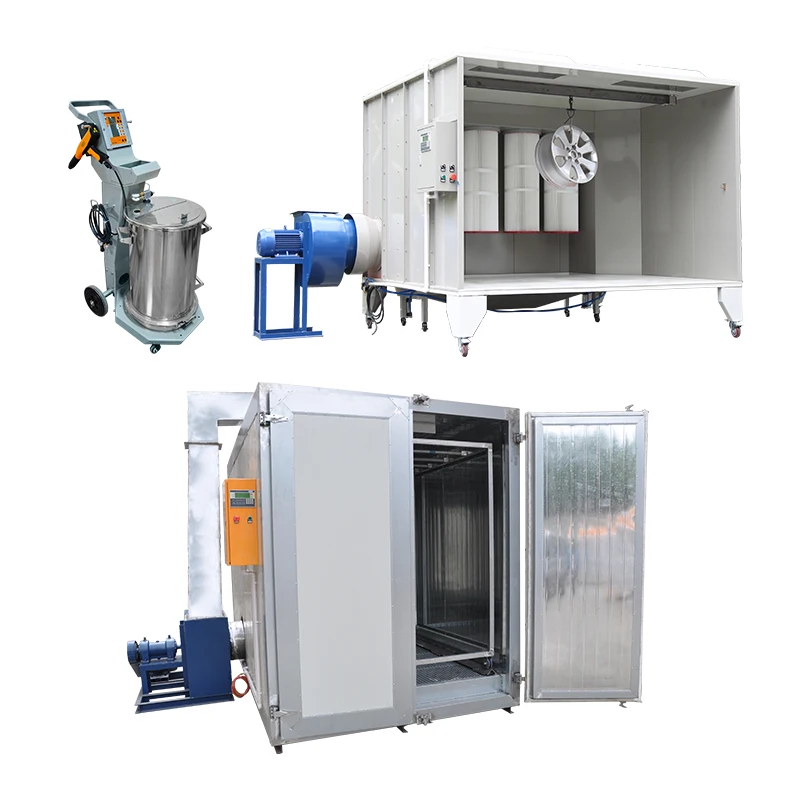

Batch Powder Coating Equipment Package

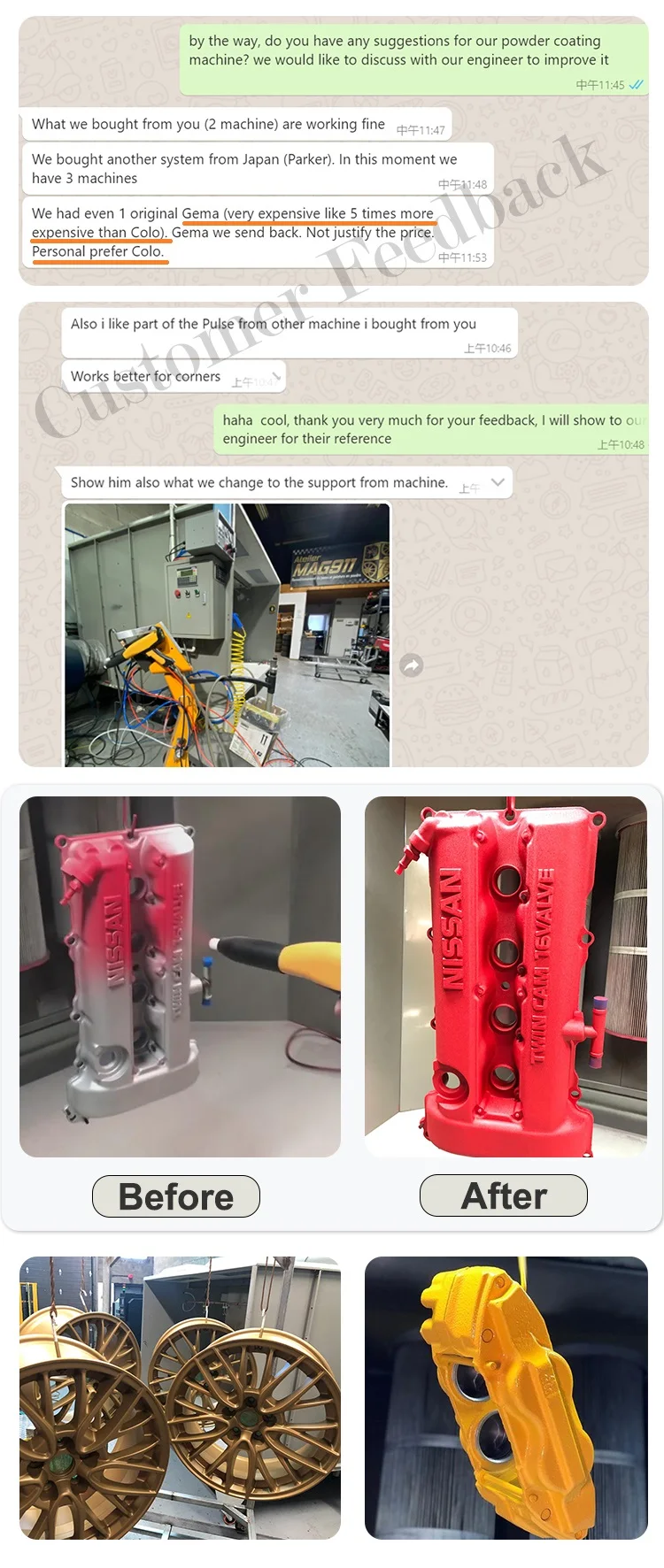

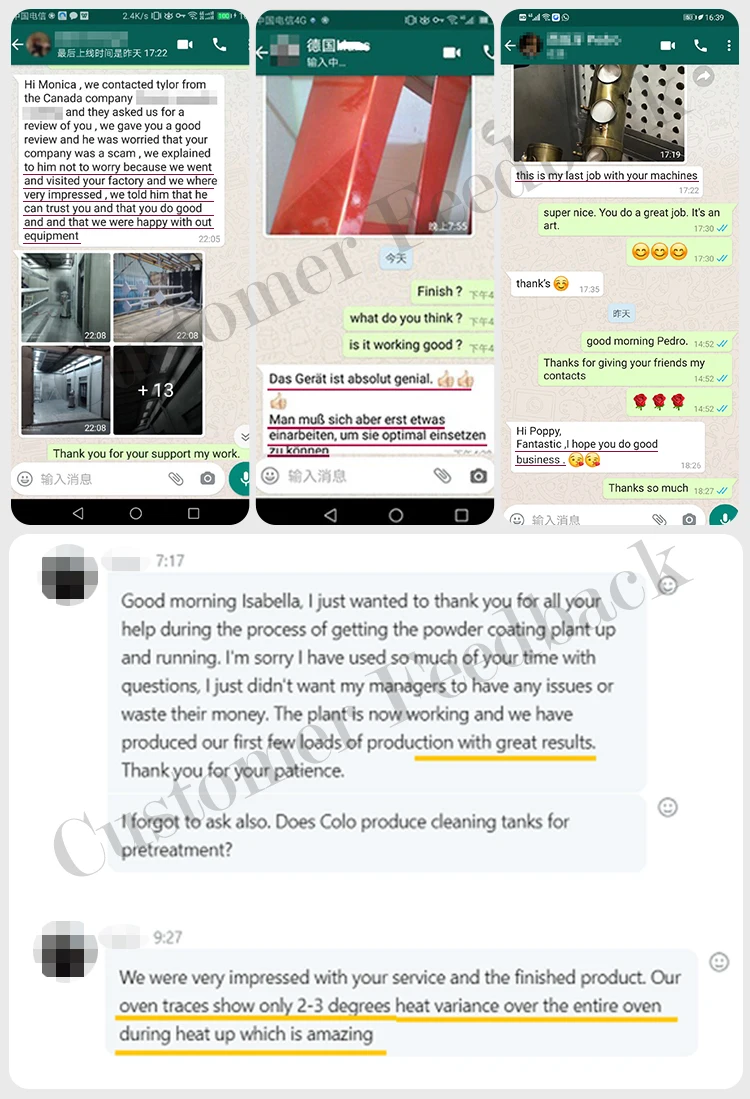

Customers Feedback
Recommend Products
Packing & Delivery
Company Profile
Kafan is a professional manufactuer of surface finishing machinery. We have worked on worldwide market for 10 years, because of the superior technology, quality, service. We exported into more than 100 countries, established long term business with distributer in US, Mexico, Russia, Poland, UK, Germany ect..
We own a manufacruery base on 3600 square meter, around 100 employees and 24sets of production equipment, dividing into technical department, after-sale department.
FAQ
Q1: What is the regular packaging?
A:We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4.Do you have any MOQ requirment.
A: Different products have different MOQ. Please contact us for details.
Q5. High Quality
A: All the Products will be pass test before delivery.
A:We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4.Do you have any MOQ requirment.
A: Different products have different MOQ. Please contact us for details.
Q5. High Quality
A: All the Products will be pass test before delivery.
