Energy saving Electro permanent Magnetic Lifter For the Handling of 2 Ton Steel Plates In a Easy Way
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (1600529085944):
Product Overview
Description
Main Products
Product Description
Electro-permanent Magnetic Lifter For Steel Plate
Lifting a single steel plate/sheet each time, with plate size and weight varying, is a precision handling job that has strict requirements regarding the lifting magnets used. This product is custom engineered for single steel plate/sheet handling.
Composition

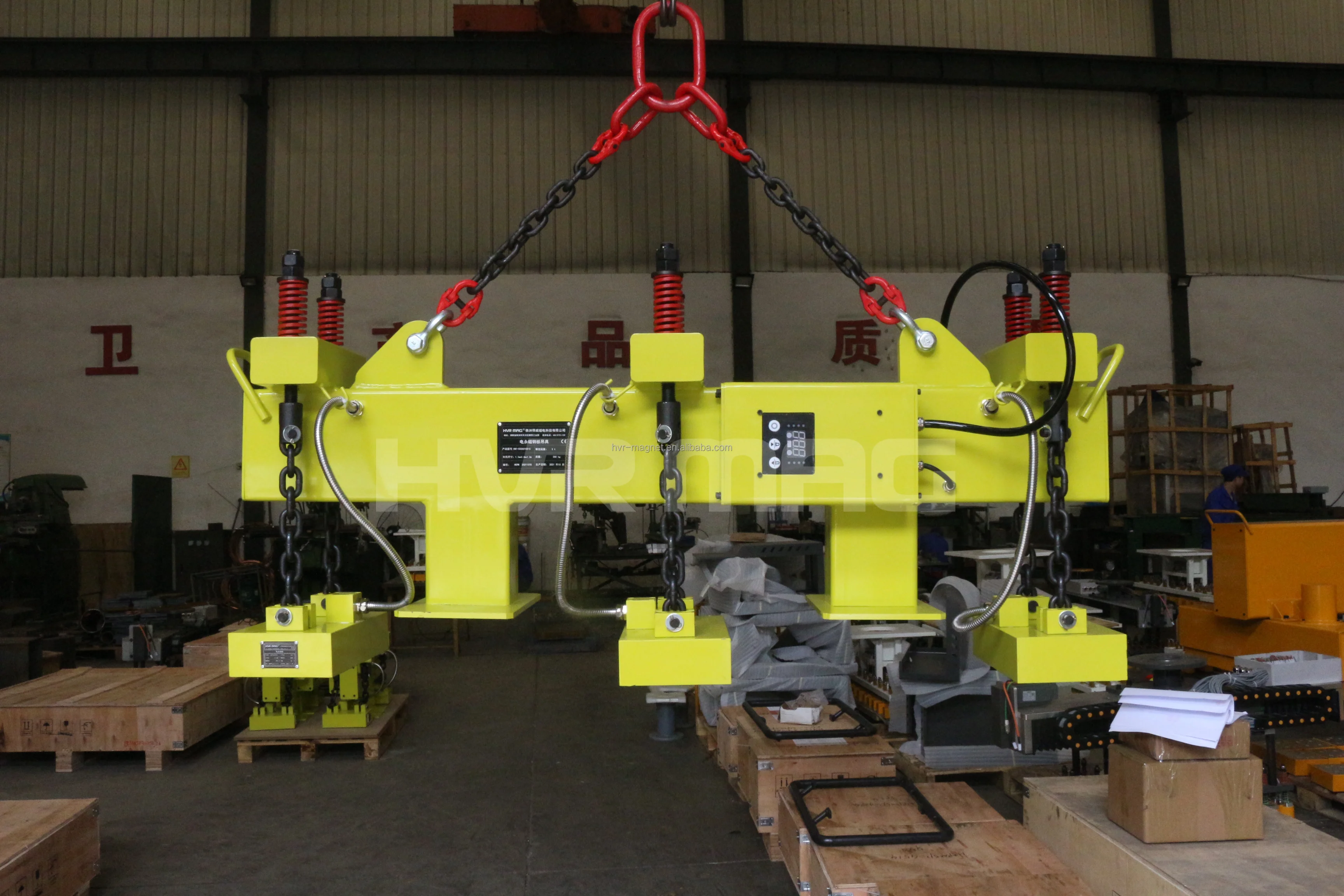

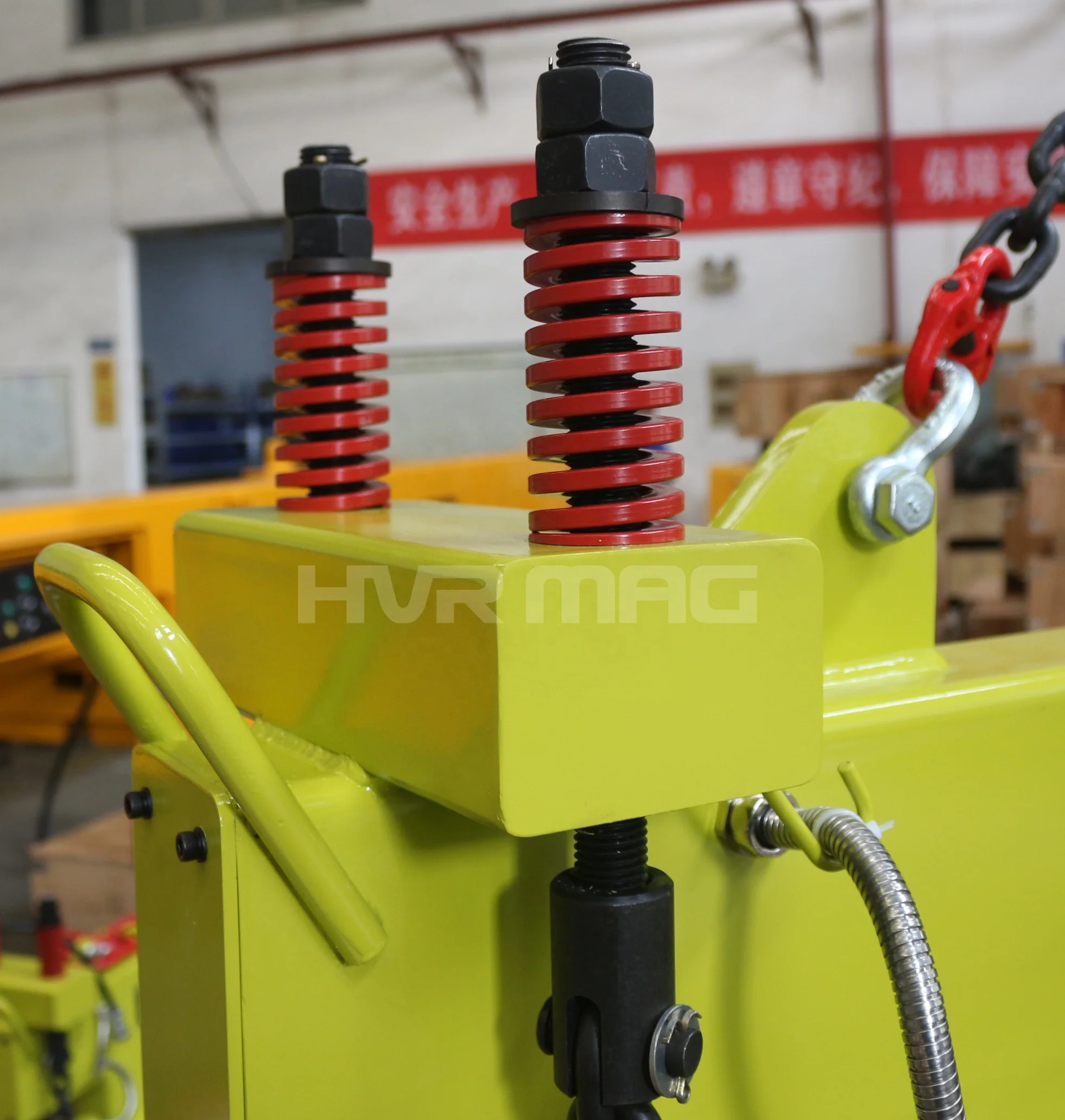

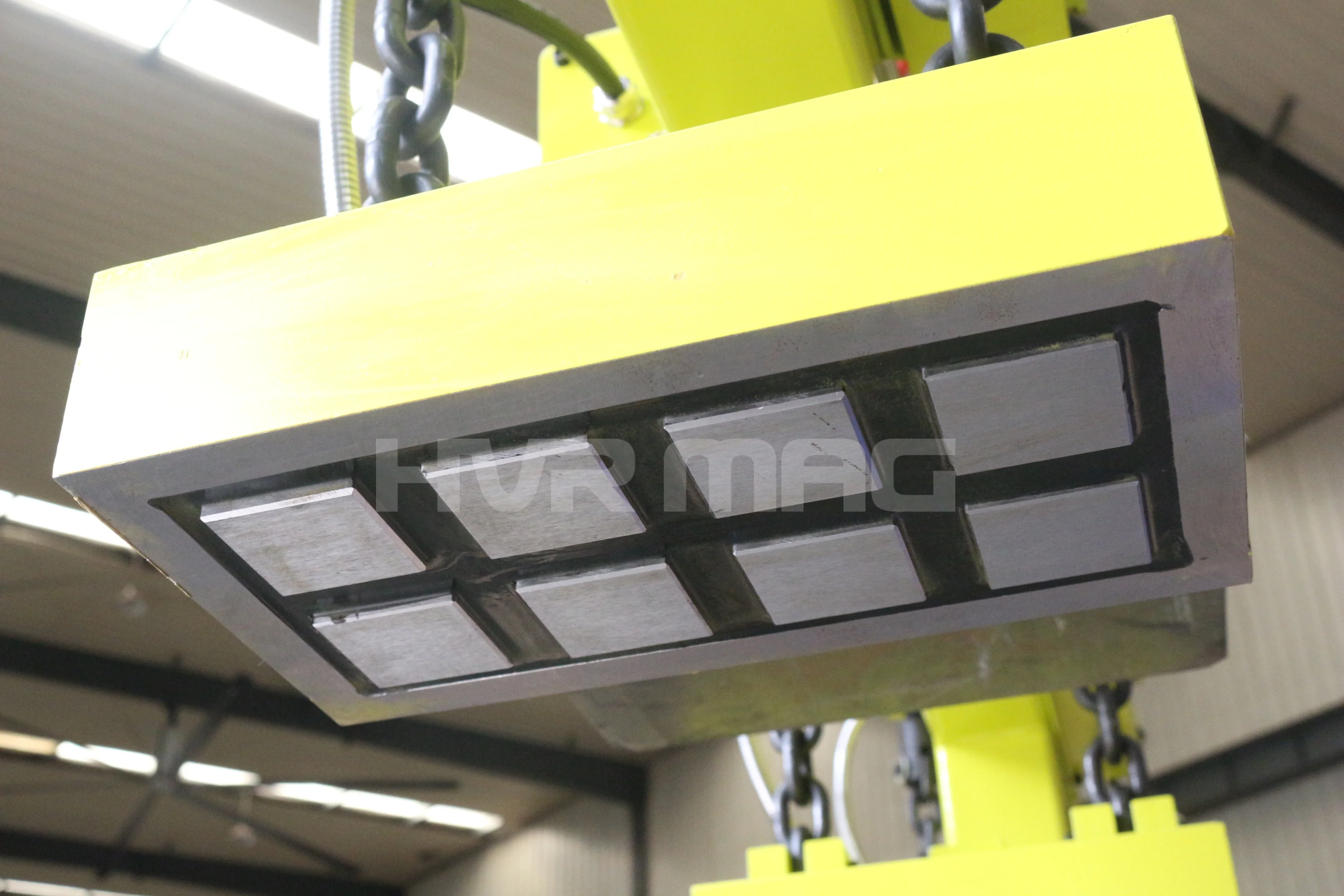

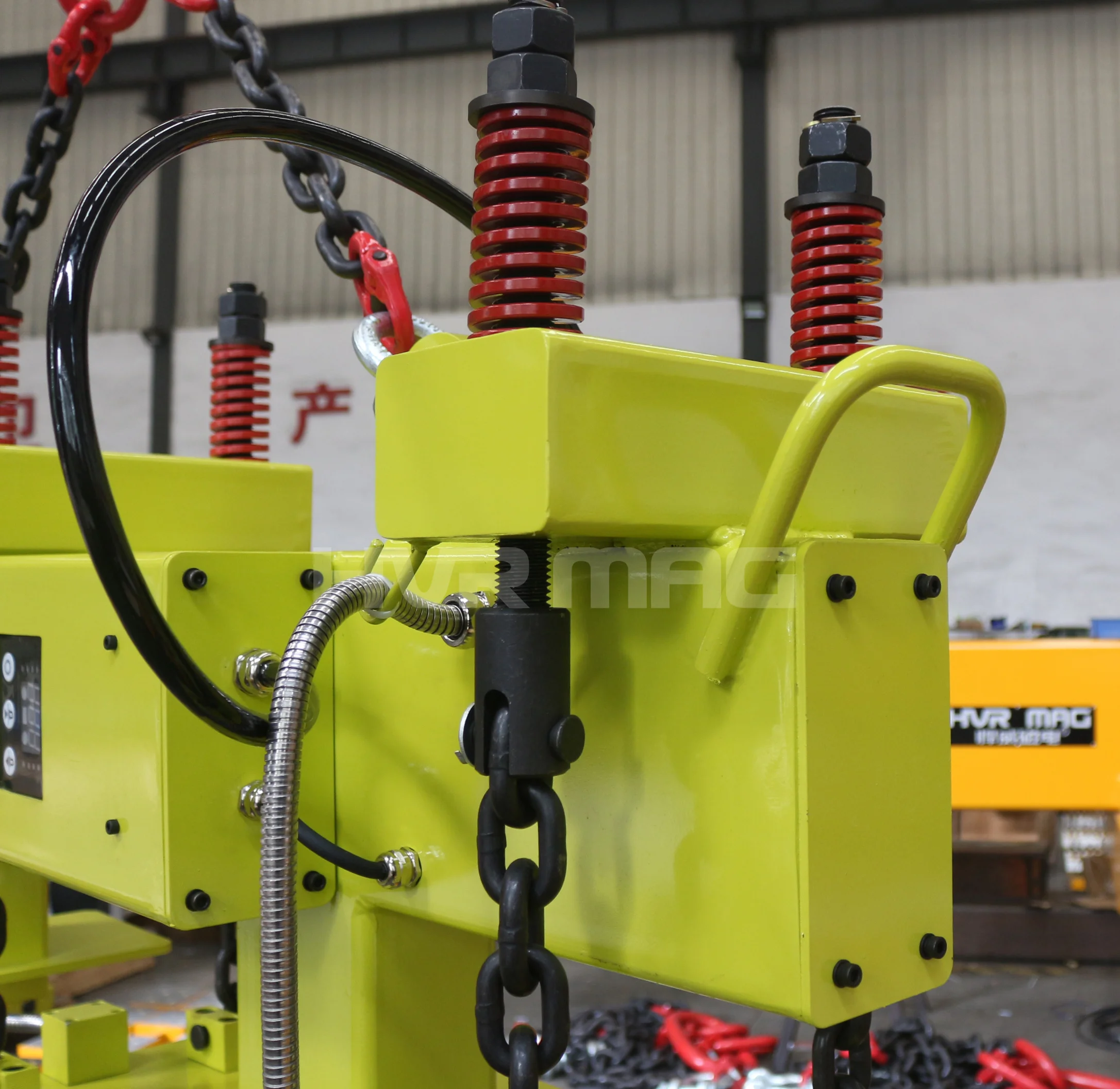

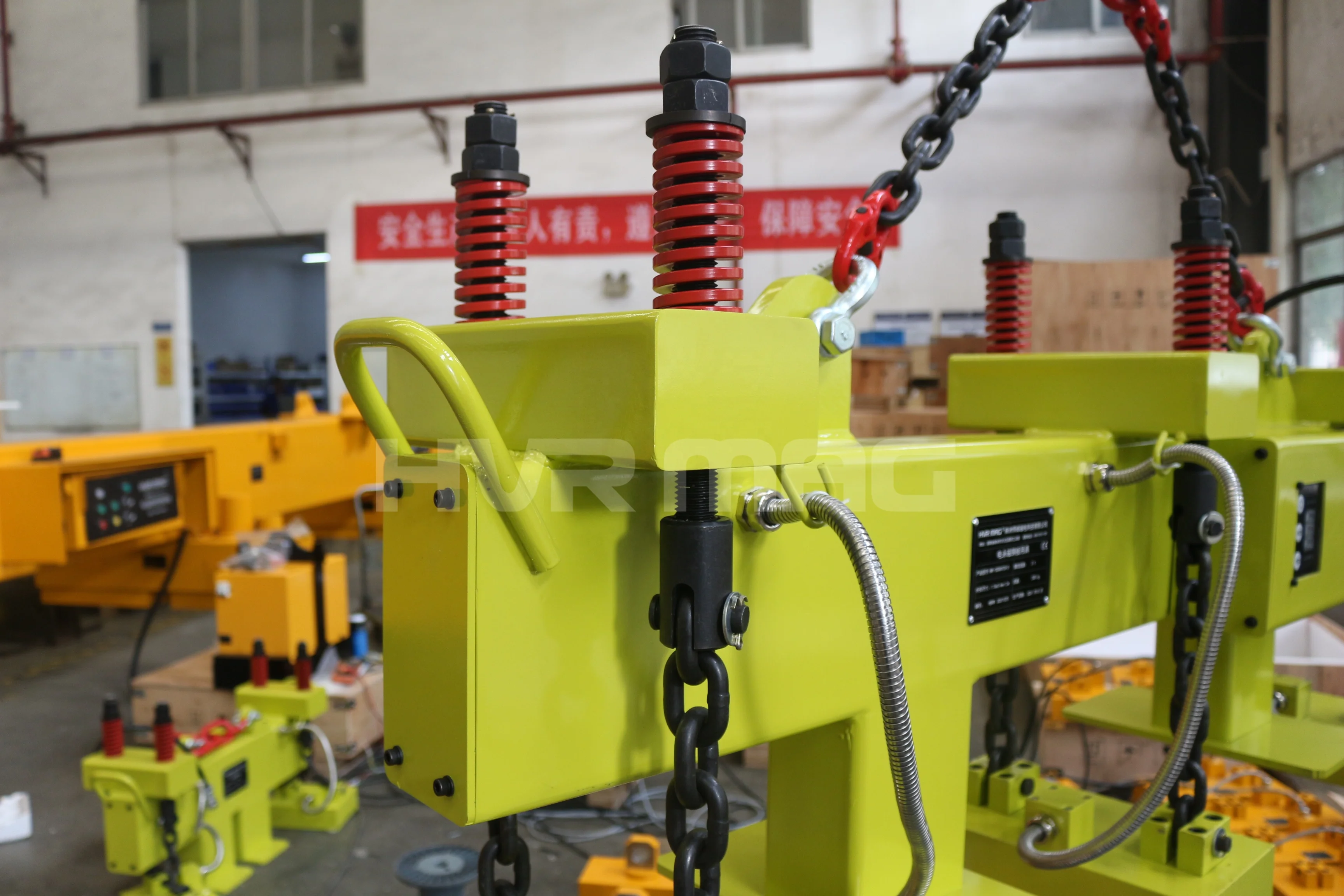

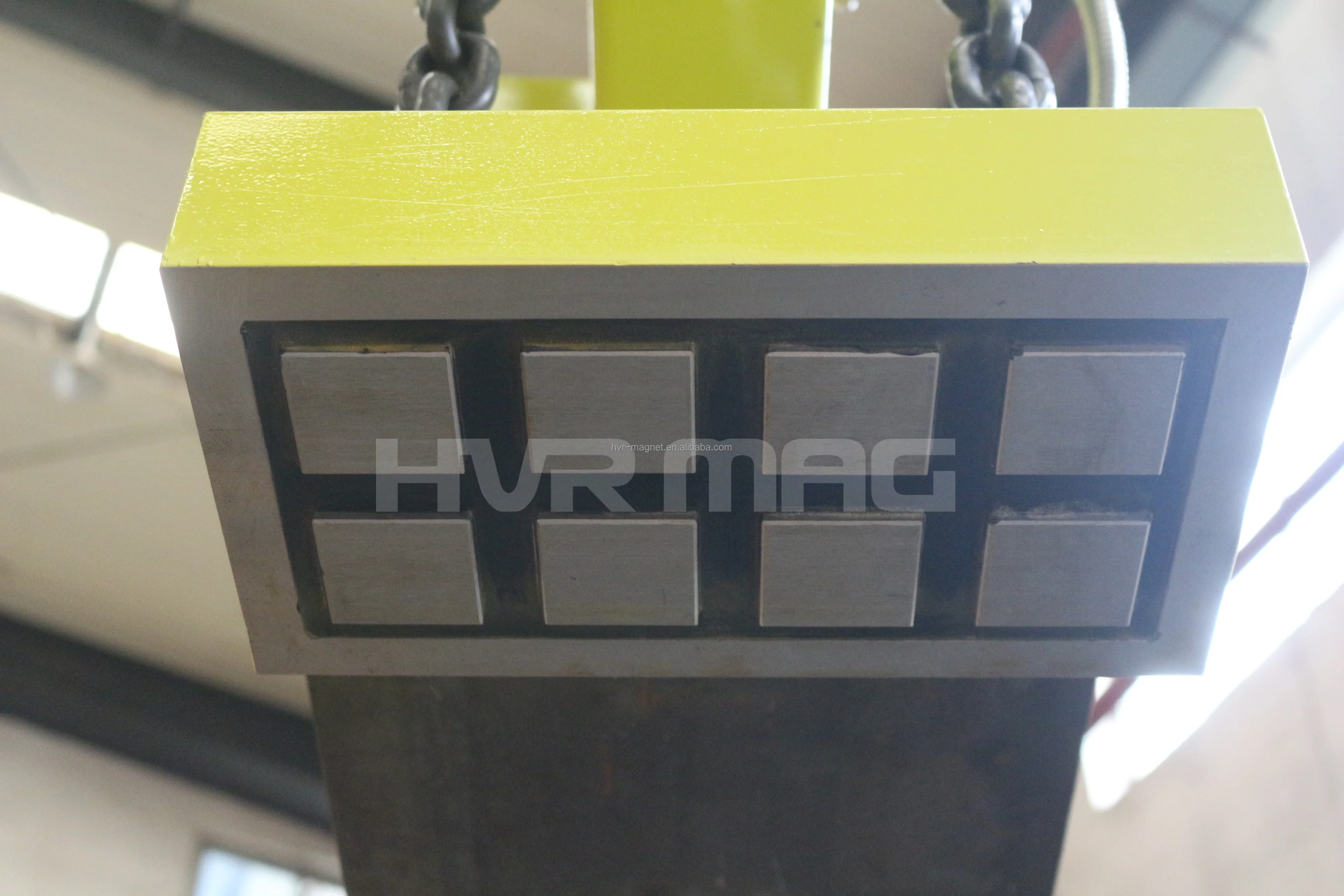

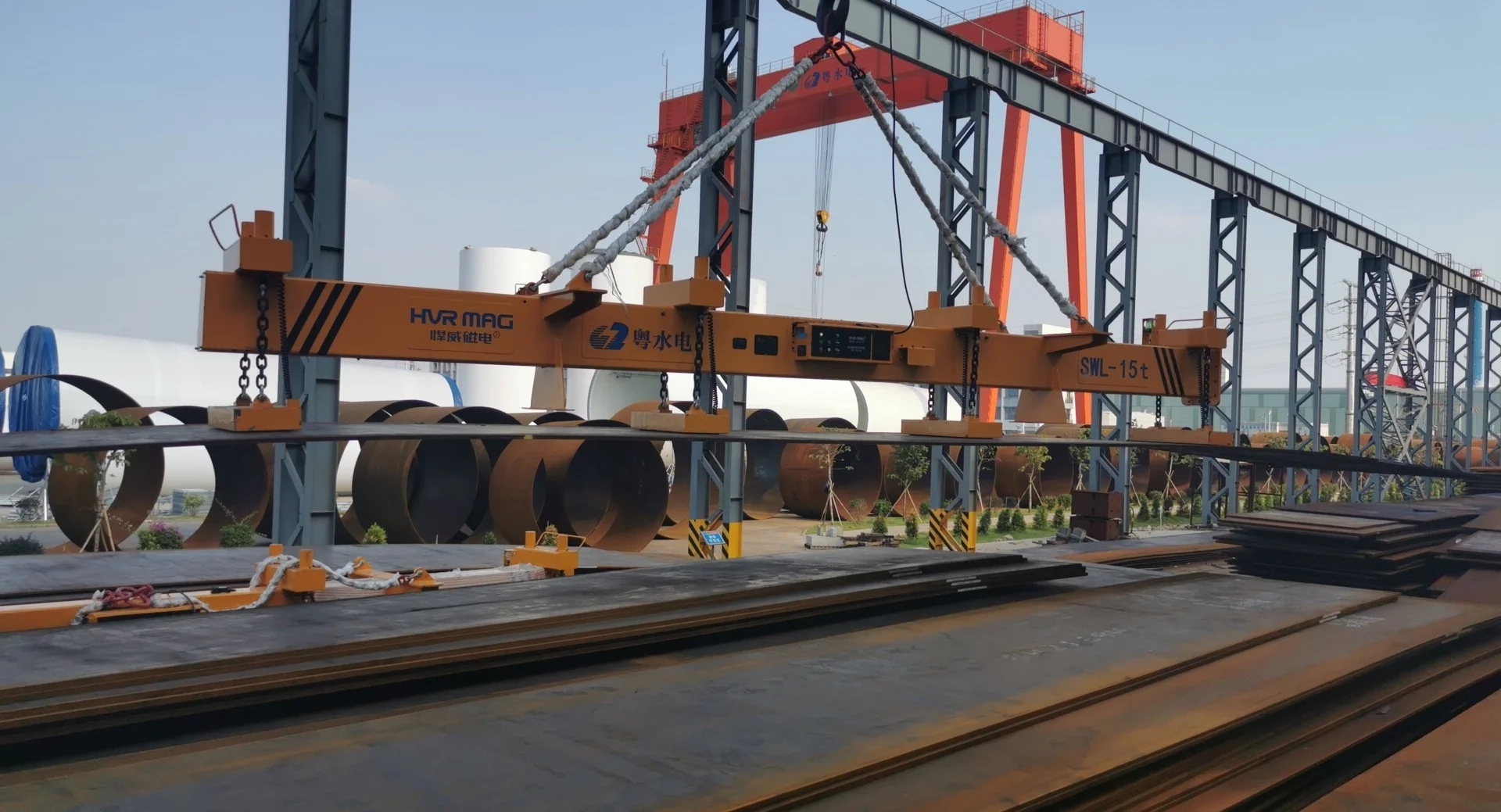

1. The welded beam is made of structural steel and equipped with a number of electro permanent magnetic Modules, elastically suspended, for perfect adaptation to the steel Sheet.

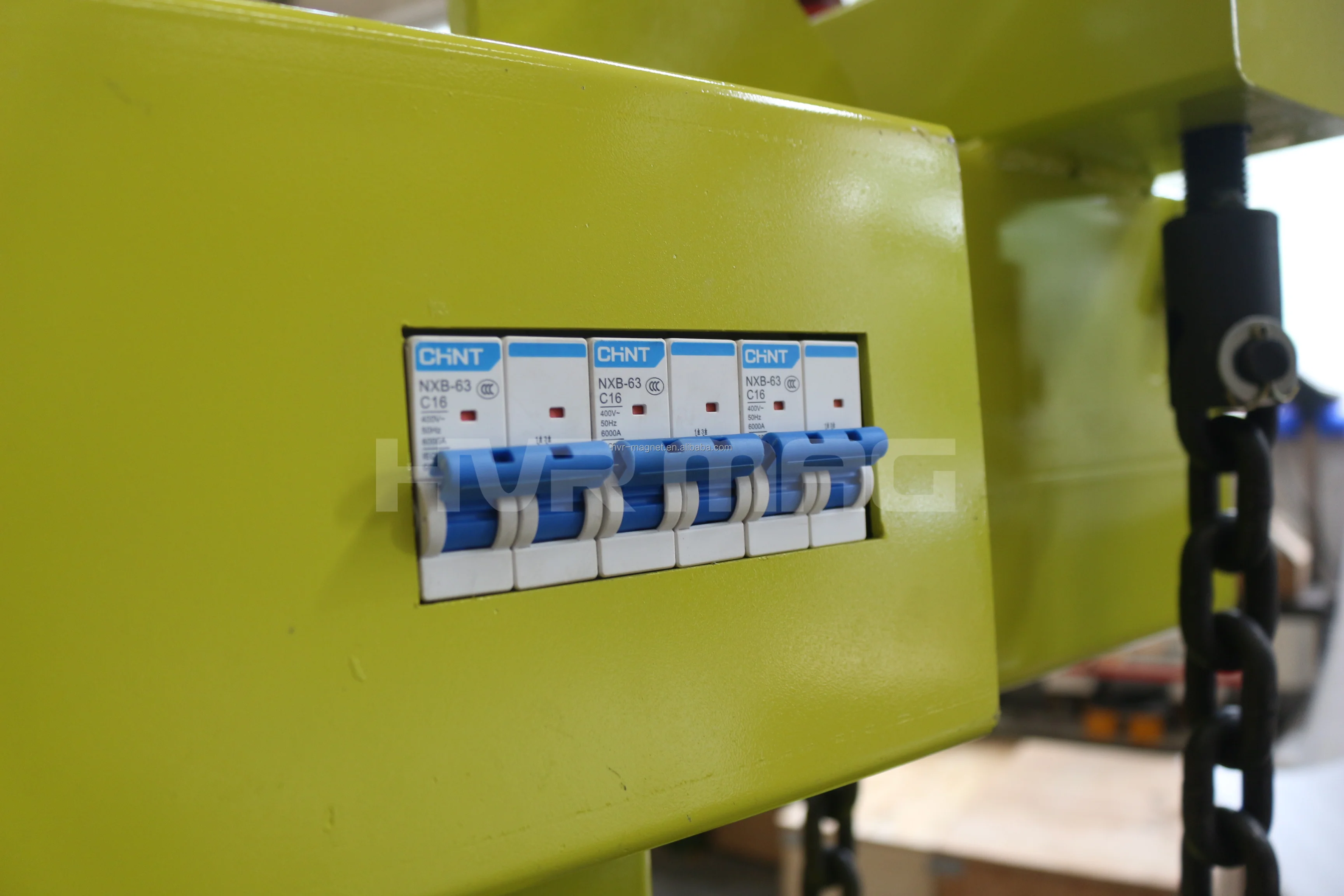

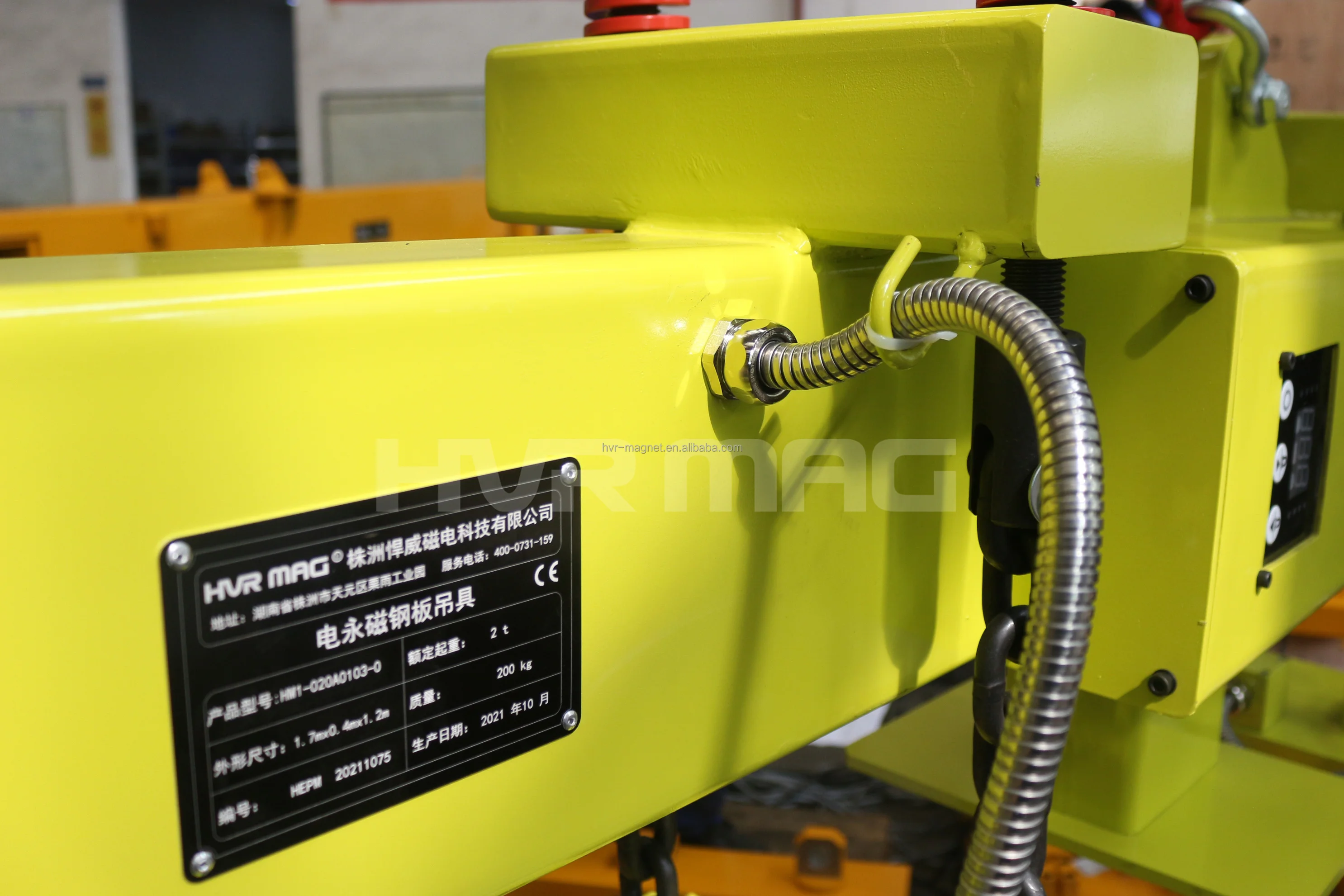

2. The electronic control Unit is equipped with a selector Switch that allows a Number of magnetic Modules to be selected and activated/deactivated.
3. The PICK-UP cycle enables the lifting of a single steel Sheets.

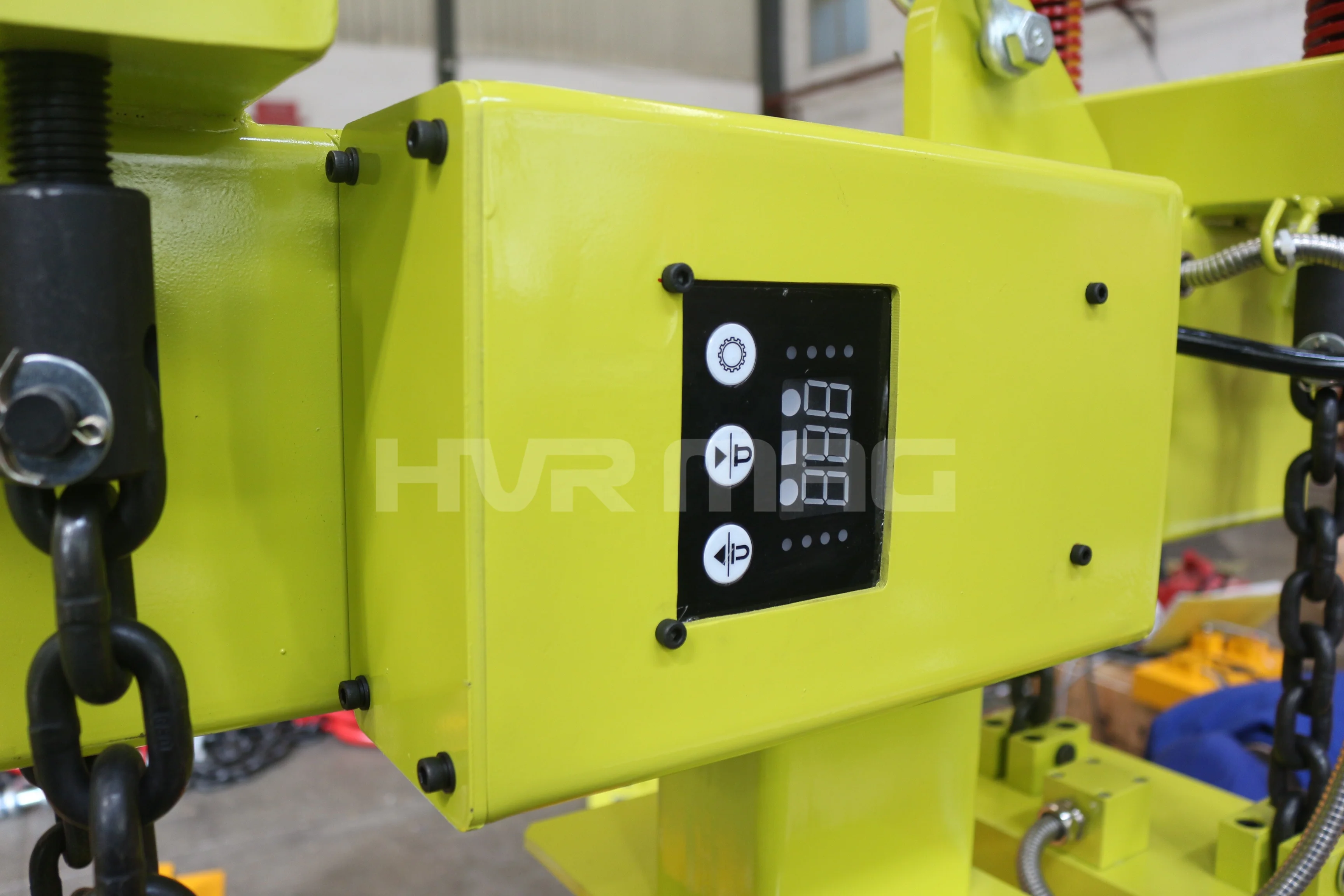

4. Sheet handling is operated by means of the integrated digital push Buttons or by means of the radio remote control that is supplied as standard.
2. The electronic control Unit is equipped with a selector Switch that allows a Number of magnetic Modules to be selected and activated/deactivated.
3. The PICK-UP cycle enables the lifting of a single steel Sheets.
4. Sheet handling is operated by means of the integrated digital push Buttons or by means of the radio remote control that is supplied as standard.
Reliable holding
Magnetic lifting causes no damage to plate surface, which exerts no effect on the processing of next procedure.
Safe lifting
No dropping of suspended plate due to a sudden power failure, as the magnetic lifting force remains.
Energy-saving
Less energy consumption, as no power consumed in lifting state. They only need electricity for MAG and DEMAG phase, to clamp on or release the plate.
Specification
Art No. | Series Code | Length(mm/in) | Width(mm/in) | Thickness(mm/in) | Dead weight (kg/Lbs) | Capacity (kg/Lbs) | ||||
Min. | Max. | Min. | Max. | Min. | ||||||
HM1-06-010 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/16 | 4/0.1 | 430/947 | 1000/2200 | ||
HM1-06-012 | HM1-012A0104-1 | 200/7.9 | 6000/236 | 250/9.8 | 1500/59 | 8/0.3 | 450/992 | 1200/2640 | ||
HM1-06-030 | HM1-030A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 900/1984 | 3000/6600 | ||
HM1-06-060 | HM1-060A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1000/2200 | 6000/2727 | ||
HM1-06-090 | HM1-090A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1100/2420 | 9000/19800 | ||
HM1-06-240 | HM1-240A0203-1 | 500/19.7 | 6000/236 | 580/22.8 | 3200/126 | 8/0.3 | 1600/3520 | 24000/52800 | ||
HM1-09-050 | HM1-050A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1200/2640 | 5000/11000 | ||
HM1-09-080 | HM1-080A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1300/2860 | 8000/3636 | ||
HM1-09-090 | HM1-090A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1400/3080 | 9000/19800 | ||
HM1-09-120 | HM1-120A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1500/3300 | 12000/26400 | ||
HM1-09-160 | HM1-160A0204-1 | 2350/92.5 | 9000/354 | 600/23.6 | 3200/126 | 5/0.2 | 1600/3520 | 16000/35200 | ||
HM1-12-019 | HM1-019A0106-1 | 2100/82.8 | 12000/472 | 250/9.8 | 1500/59 | 5/0.2 | 740/1628 | 1900/4180 | ||
HM1-12-050 | HM1-050A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 1600/3520 | 5000/11000 | ||
HM1-12-080 | HM1-080A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 1800/3960 | 8000/17600 | ||
HM1-12-100 | HM1-100A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 2000/4400 | 10000/22000 | ||
HM1-12-150 | HM1-150A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 2200/4840 | 15000/33000 | ||
HM1-12-200 | HM1-200A0205-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/138 | 5/0.2 | 2400/5280 | 20000/44000 | ||
HM1-12-240 | HM1-240A0206-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/138 | 5/0.2 | 2800/6160 | 24000/52800 | ||
HM1-15-025 | HM1-025A0108-1 | 4000/157 | 15000/590 | 200/7.8 | 800/31 | 6/0.2 | 950/2090 | 2500/5500 | ||
HM1-16-100 | HM1-100A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/138 | 5/0.2 | 2600/5720 | 10000/22000 | ||
HM1-16-140 | HM1-140A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/138 | 5/0.2 | 2900/6380 | 14000/30800 | ||
HM1-16-200 | HM1-200A0206-1 | 2800/110 | 16000/630 | 600/23.6 | 3500/138 | 5/0.2 | 3100/6820 | 20000/44000 | ||
HM1-16-240 | HM1-240A0206-1 | 2800/110 | 16000/630 | 650/25.5 | 3500/138 | 5/0.2 | 3400/7480 | 24000/52800 | ||
HM1-06-005 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/16 | 8/0.3 | 430/946 | 480/1056 | ||
Packing & Delivery
wooden case suitable for export
Certifications
Cases
Recommend Products
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB,BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Why choose us
Our products and services have spreaded all the world ,and also have been recognized by customers.
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents.
2. CE & ISO 9001:2015 standard.
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents.
2. CE & ISO 9001:2015 standard.
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
