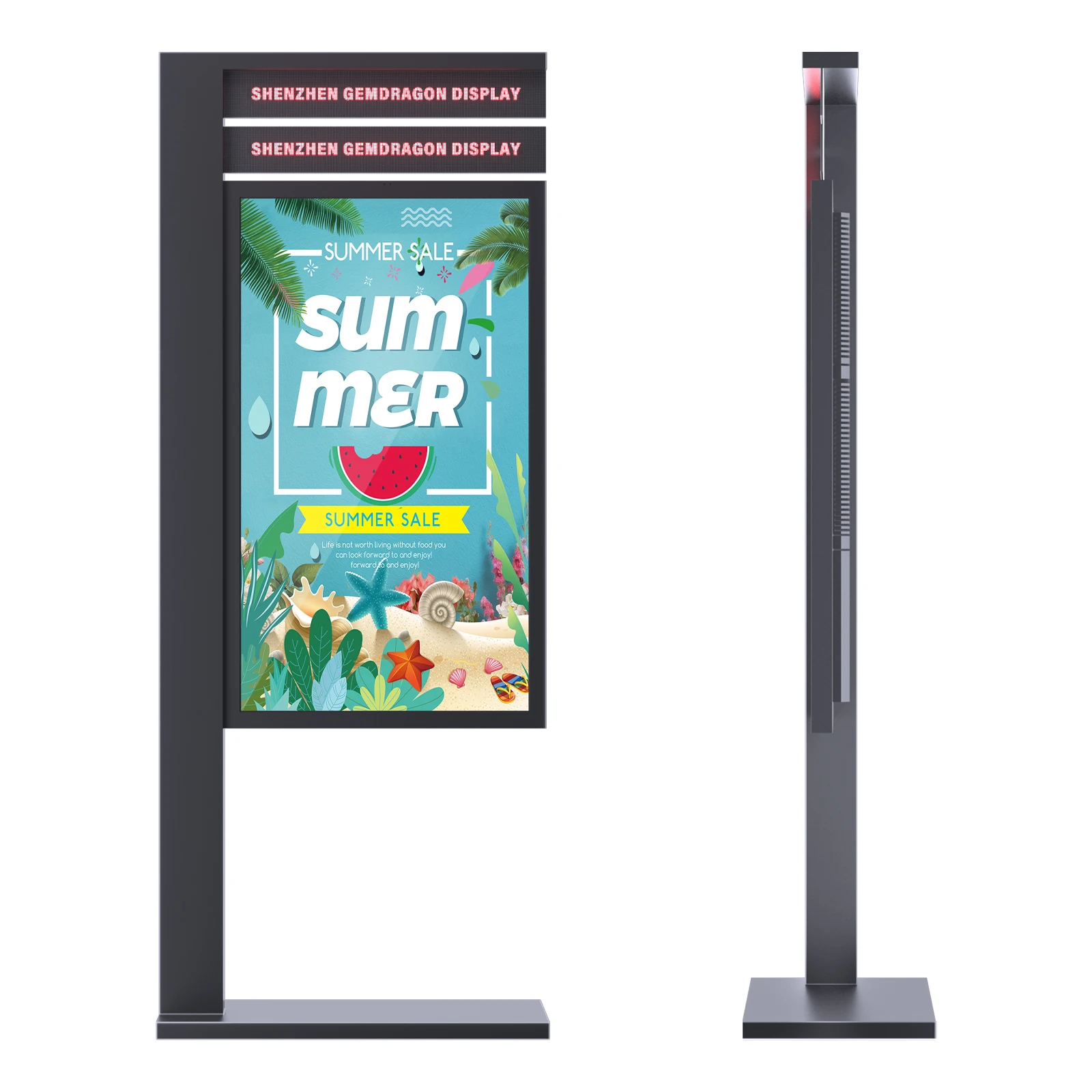

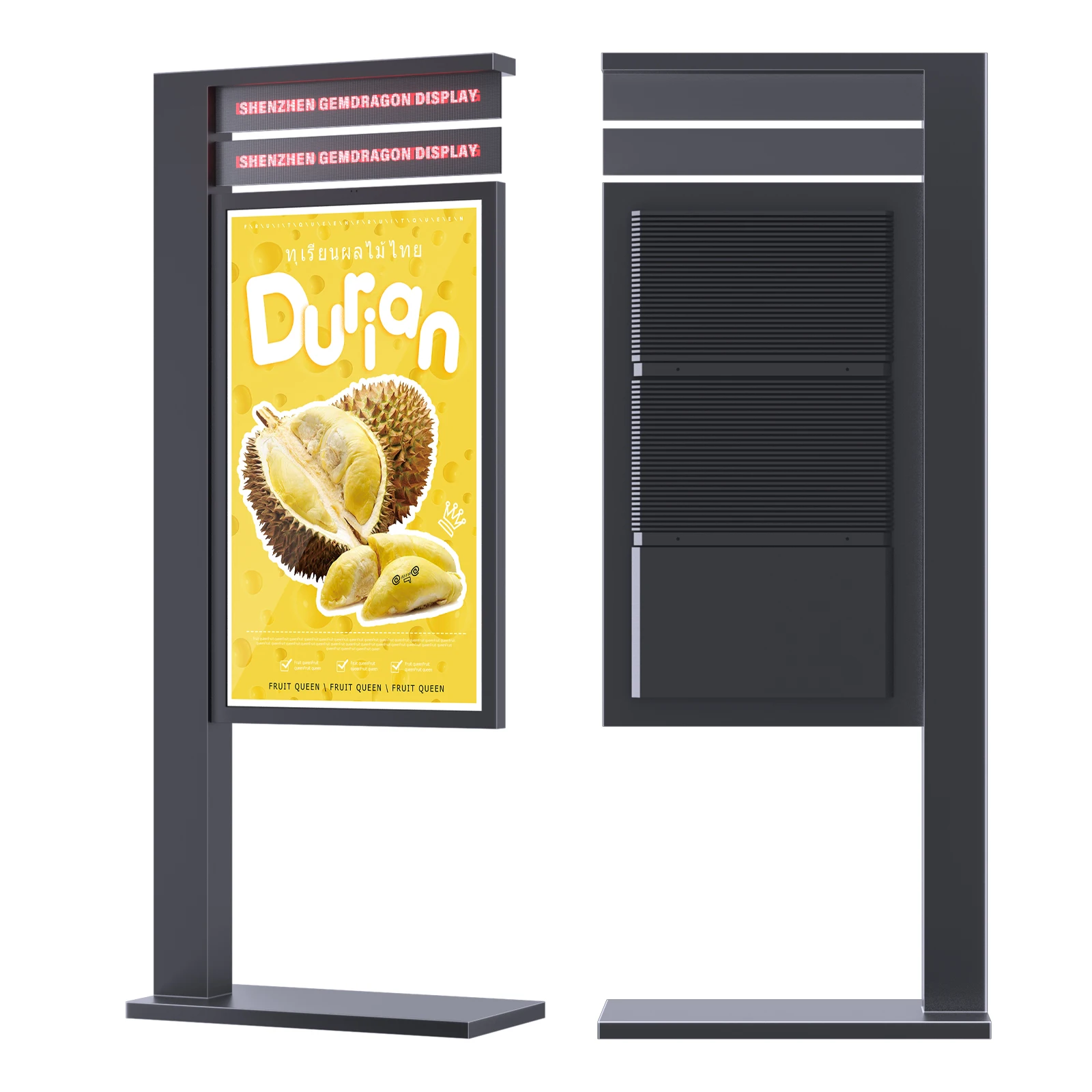

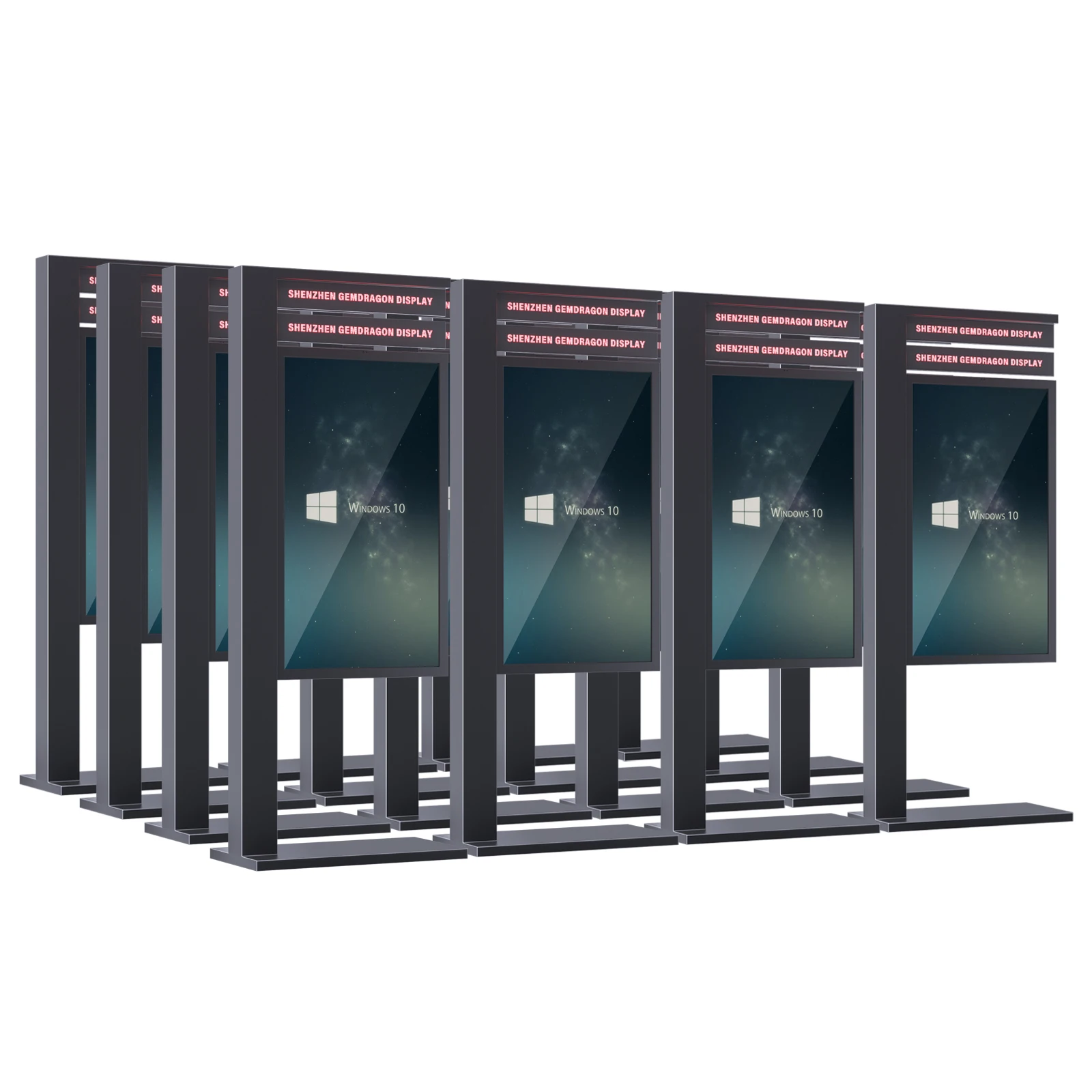

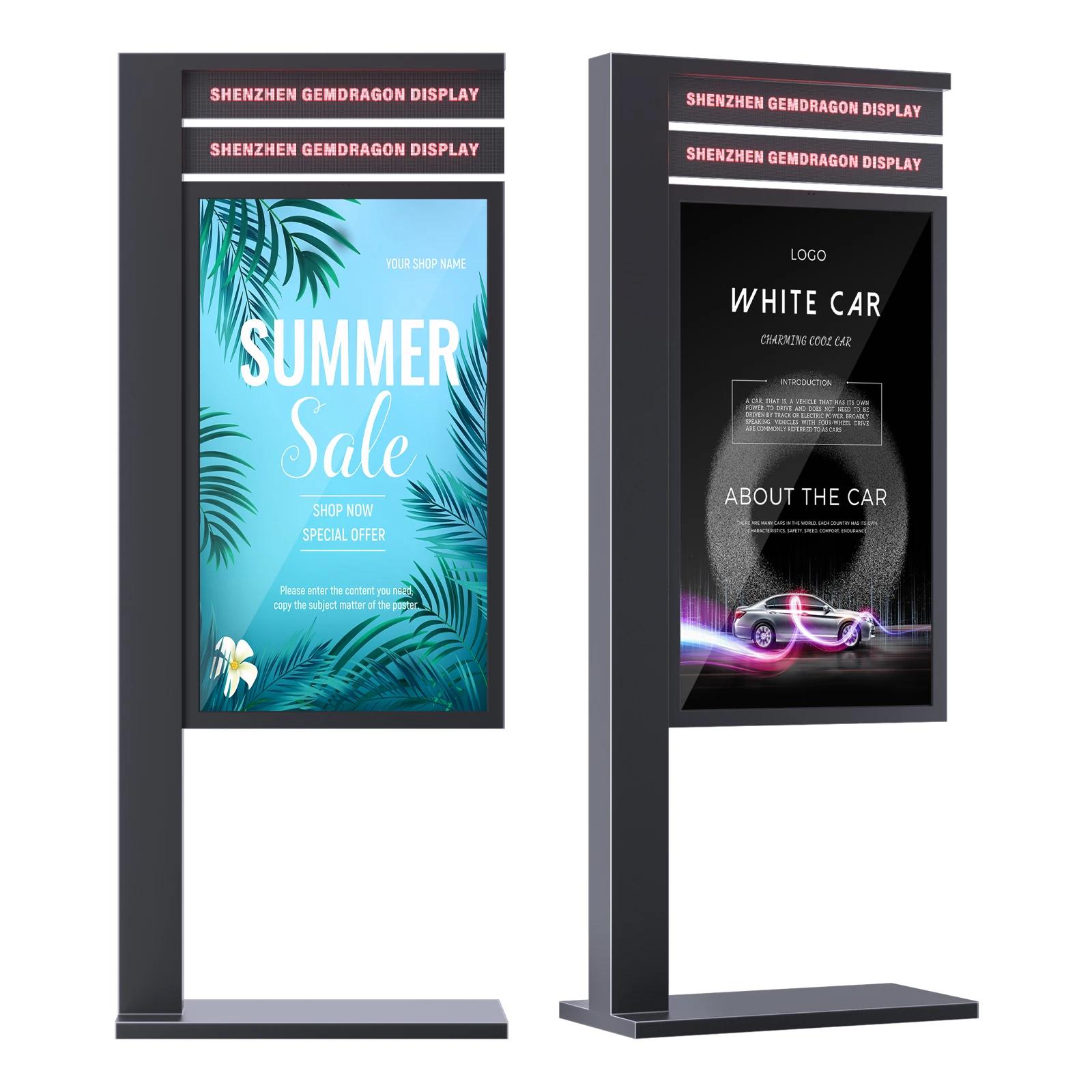

Outdoor waterproof advertising high brightness lcd digital sigange FHD 43 55 65 monitor panel display
- Category: >>>
- Supplier: Shenzhen Dragonbest Technology Co. Ltd.
Share on (1600529099040):
Product Overview
Description
Company Profile
We are a manufacturer of Digital Signage with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
Products Description
Outdoor waterproof advertising high brightness lcd digital sigange FHD 43 55 65 monitor panel display
Specification
1. Structure
1.1 Shell design: The shell is made of 1.2 or 1.5mm galvanized sheet, sprayed with special powder for outdoor use, and outdoor anti-corrosion for more than 7 years.
1.2 Waterproof design: The outer shell structure is designed with waterproof groove and waterproof labyrinth for entering and exiting the air hole to meet the IP55 protection level.
1.3 Dust-proof design: Special dust-proof filter (medium-efficient dust filter) is designed for the air inlet and outlet, which filters dust in the air and prevents mosquitoes from entering the machine.
1.4 High-permeability glass: The protective glass of the whole screen is made of 6mm high-permeability tempered glass or AR anti-glare tempered glass, with light transmittance ≥97% and high light transmission.
1.5 Maintenance: The whole machine adopts front/rear double-opening mode, which can conveniently maintain the internal display, glass, heat-dissipating components and electronic components. The whole machine adopts modular design, which is convenient for installation and maintenance.
1.6 Anti-theft design: The base adopts an internal lock design to prevent the screws from moving from the outside and move the machine equipment to ensure safety and security.
1.7 Installation and fixing: The base is designed and installed with fixing holes. It is fixed on the concrete floor with expansion screws. It can be customized according to customer's requirements, and the accessories can be prepared. It can be installed by directly punching the machine.
2 . Display
2.1 It adopts outdoor special high-brightness LCD screen, the brightness reaches 1000-2500nit, visible under strong light, and the design life is 50,000 hours.
2.2 High definition image quality, screen resolution: 1920*1080.
2.3 High dynamic contrast, the picture is clearer and the viewing angle is 178°.
2.4 Intelligent photosensitive system, which can automatically adjust the brightness of the screen according to the environment. Users can watch the program clearly and comfortably at different times to protect the eyes.
2.5 Intelligent color calibration, automatic calibration contrast color or manual fine-tuning for perfect picture.
3. Intelligent temperature control system
3.1 Adopt intelligent direct ventilation (forced air cooling) cooling system, specializing in special heat dissipation design.
1.1 Shell design: The shell is made of 1.2 or 1.5mm galvanized sheet, sprayed with special powder for outdoor use, and outdoor anti-corrosion for more than 7 years.
1.2 Waterproof design: The outer shell structure is designed with waterproof groove and waterproof labyrinth for entering and exiting the air hole to meet the IP55 protection level.
1.3 Dust-proof design: Special dust-proof filter (medium-efficient dust filter) is designed for the air inlet and outlet, which filters dust in the air and prevents mosquitoes from entering the machine.
1.4 High-permeability glass: The protective glass of the whole screen is made of 6mm high-permeability tempered glass or AR anti-glare tempered glass, with light transmittance ≥97% and high light transmission.
1.5 Maintenance: The whole machine adopts front/rear double-opening mode, which can conveniently maintain the internal display, glass, heat-dissipating components and electronic components. The whole machine adopts modular design, which is convenient for installation and maintenance.
1.6 Anti-theft design: The base adopts an internal lock design to prevent the screws from moving from the outside and move the machine equipment to ensure safety and security.
1.7 Installation and fixing: The base is designed and installed with fixing holes. It is fixed on the concrete floor with expansion screws. It can be customized according to customer's requirements, and the accessories can be prepared. It can be installed by directly punching the machine.
2 . Display
2.1 It adopts outdoor special high-brightness LCD screen, the brightness reaches 1000-2500nit, visible under strong light, and the design life is 50,000 hours.
2.2 High definition image quality, screen resolution: 1920*1080.
2.3 High dynamic contrast, the picture is clearer and the viewing angle is 178°.
2.4 Intelligent photosensitive system, which can automatically adjust the brightness of the screen according to the environment. Users can watch the program clearly and comfortably at different times to protect the eyes.
2.5 Intelligent color calibration, automatic calibration contrast color or manual fine-tuning for perfect picture.
3. Intelligent temperature control system
3.1 Adopt intelligent direct ventilation (forced air cooling) cooling system, specializing in special heat dissipation design.
3.2 Self-developed intelligent temperature control system control box, which can adjust the internal air and external air of the whole machine to cycle regularly according to the internal temperature of the advertising machine. All external wind enters the filter net first, then divides the wind into front/back double air circulation. .
3.3 Equipped with high-temperature automatic power-off protection function, when the internal temperature of the product is abnormal due to external factors or internal reasons, and beyond the reasonable working range, the control system will protect the main components such as the display from power-off protection, and the fan will continue to run at full speed. Fully protect the display and main parts.
3.3 Equipped with high-temperature automatic power-off protection function, when the internal temperature of the product is abnormal due to external factors or internal reasons, and beyond the reasonable working range, the control system will protect the main components such as the display from power-off protection, and the fan will continue to run at full speed. Fully protect the display and main parts.
4. Electronic structure
4.1 The product uses the well-known manufacturer intelligent industrial control board, single machine / Android / industrial computer motherboard can choose, the default Android dual core. Support remote and local program management (optional).
4.2 Adopt international famous brand industrial grade switching power supply, suitable for voltage in different countries of the world, safe, stable, long life and high energy efficiency.
4.3 Built-in leakage protector, lightning protection and other configurations, all-round security protection.
4.4 Configure the precision timer, which can be set in both Chinese and English. It can be set repeatedly according to the time of day, week and month.
4.5 Over-temperature protection: When it occurs, for example, because the special conditions such as the entrance and exit of the air duct are blocked and the internal temperature is high, the system will turn off the power of the LCD screen, and the air-cooling system will continue to operate normally to cool down, protect the LCD screen and the motherboard. And other major components.
5. Electronic function
5. Electronic function
1.Android system: Can choose a variety of motherboards such as well-known manufacturers A20, A83, 3188, 3288, high performance. The default A20 dual-core 1+8G supports multiple optional configurations such as 2+8G, 2+16G, and 2+32G. Can support Android 4.4 or 5.0 version. Support for BT 4.0 version.
Product Overviews
Android system | ||
Can choose a variety of motherboards such as well-known manufacturers A20, A83, 3188, 3288, high performance. The default A20 dual-core 1+8G supports multiple optional configurations such as 2+8G, 2+16G, and 2+32G.Can support Android 4.4 or 5.0 version. Support for BT 4.0 version. | ||
Memory | 1G/2G Internal memory: 8G/16G/32G | |
Decoding resolution | Supports 1920*1080 and above resolution. | |
Play mode | support loop, timing, insert, split screen partition playback, support for any combination of multimedia material playback mode | |
Network support | Ethernet, optional wireless peripheral expansion, optional 3G/4G module) | |
Video playback | support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC and other formats | |
Image format | support JPEG, PNG, GIG, BMP, etc. | |
File format | support TXT, PPT, WORD, ECELE, etc. | |
Video output | support LVDS format video output | |
Audio output | support HD high-definition video output, left and right channel output, built-in 2 * 10W high quality audio. | |
Optional support information release system | RTC real-time clock, scheduled boot, U disk update playlist, U disk network upgrade, remote control | |
2.X86 PC version system | ||
CPU | Intel I3/I5/I7/1900 (optional) | |
Memory | 2G/4G/8G | |
Hard disk | mechanical hard disk 500G/1000G, solid state hard disk 64G/128G/256G | |
Operating system | WINDOWS7/10 Chinese and English system, LINUX Ubuntu system | |
Decoding resolution | Supports 1920*1080 and above resolution. | |
Network support | Ethernet (optional 2 channels), optional wireless peripheral expansion, optional 3G/4G module | |
Video | Support HD, VGA format video output | |
Audio | Left and right channel output, built-in 2*10W high quality audio. | |
Peripheral support | Support 4*USB, 2* serial port (optional 6), 2*SATA interface | |
Optional support information release system | RTC real-time clock, scheduled boot, U disk update playlist, U disk network upgrade, remote. | |
Why Choose Us
Certifications
Shipping
DELIVERY TIME:
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
FAQ
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: What is the difference between an IP65 air conditioner and an IP55 fan? What are the advantages of an air conditioner over a fan solution?
The principle is to cool the inside of the machine, the difference is that the fan is the external circulation of wind, the inside of the machine and the outside are connected, the air conditioner is to achieve internal cooling through refrigeration, and the cold air circulates inside. Compared with the fan scheme, the air conditioner has the advantages: it can withstand a more severe high temperature environment, and the internal space of the machine has less independent dust, which is suitable for places with high temperature. There is less dust inside than the fan.
IP55 fans coolings system : -15 °/+50 °
IP65 fans coolings system : -40 °/+55 °
Q4: What are the standards for anti-corrosion, anti-rust, waterproof, lightning protection and explosion-proof?
1.The outdoor advertising machine is strictly 24H power-on and aging before leaving the factory, and tests the performance of the main board, temperature control, ventilation and heat dissipation;
2.Outdoor anti-corrosion coating can be used normally for 3-7 years without external force damage. The waterproof performance reaches IPX5, and each unit is equipped with a lightning protection switch.
Q5: What is the maximum outdoor brightness? Is there any change in the heat dissipation structure of different brightness?
Most of the sizes of high-brightness LCD screens can be selected in the range of 1000~3000CD/㎡. But some LCD screens have limits. It is recommended to use the range of 1500~2500CD/㎡, which is more conventional, and the energy consumption ratio is relatively suitable. It is recommended to use 1500CD/㎡ for products under 32 inches. Due to the large size and long viewing distance of 75 inches and above, it is recommended to use a brightness of 2500CD/㎡ or above.
Q6: What should be paid attention to in the outdoor installation site?
The outdoor unit can resist normal rainwater but cannot be immersed in water, as rainwater immersion will cause permanent damage to the accessories.
- Avoid low-lying water areas when installing on the floor.
-Wall mounting requires dedicated wall mounting screws on a firm wall. For example, the load-bearing capacity of a solid wall needs to be more than twice the weight of a wall-mounted outdoor advertising machine, and try to avoid installing it on an overturned wall. When installing, leave enough space for heat dissipation on the back and sides of the machine
Q7: What are the advantages of Gemdragon's outdoor machine internal structure layout?
2.1. Using high-quality LCD panels such as well-known brands (LG), the display effect is excellent, and the temperature resistance is higher than 68 degrees.
2.2. The front glass can be made of AG/AR anti-glare super toughened glass.
2.3. Using high-quality outdoor powder, it can withstand 3-5 years of harsh outdoor high temperature, light and humidity tests. The shell adopts galvanized sheet metal demolition and welding process, and the exterior is sprayed with outdoor paint for protection. Through waterproof structure sealing and ventilation and dustproof filter, the waterproof and dustproof grade can reach IP65;
2.4. The shell welding process is stable, the welding seam is even and smooth, and the deformation is small.
2.5. Add locking rods on the side, add screen support brackets, hinges and other accessories to fully test the structural strength and the safety of the equipment.
2.6. Adopt high-quality fan (CE EMC ROHS certification) to withstand high temperature and effectively dissipate heat.
2.7. The MEAN WELL power supply (CE EMC ROHS certification), a well-known German and Japanese brand, is used. Each channel is powered independently (for easy maintenance), and the power is redundant.
2.8. The circuit layout is reasonable, all cables are routed in wire grooves, no excess cables are exposed, high and low voltage are separated, and magnetic rings are added to prevent interference.
2.9. Built-in heater (CE EMC ROHS certification) to ensure normal use at low temperature
2.10. Preset 3-5 interface positions to facilitate later maintenance
2.11. A large area of silver insulation cotton is pasted on the rear shell to effectively reduce solar heat radiation.
2.12. Sufficient performance verification, screen outdoor aging screening, high and low temperature of the whole machine (-20 degrees to), user-use solar radiation simulation, shell size detection, paint coating adhesion test, EMC test (provide test report documents), high-pressure spray shower test
2.13. Built-in dust filter to isolate dust and foreign matter and ensure the safe operation of the equipment.
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: What is the difference between an IP65 air conditioner and an IP55 fan? What are the advantages of an air conditioner over a fan solution?
The principle is to cool the inside of the machine, the difference is that the fan is the external circulation of wind, the inside of the machine and the outside are connected, the air conditioner is to achieve internal cooling through refrigeration, and the cold air circulates inside. Compared with the fan scheme, the air conditioner has the advantages: it can withstand a more severe high temperature environment, and the internal space of the machine has less independent dust, which is suitable for places with high temperature. There is less dust inside than the fan.
IP55 fans coolings system : -15 °/+50 °
IP65 fans coolings system : -40 °/+55 °
Q4: What are the standards for anti-corrosion, anti-rust, waterproof, lightning protection and explosion-proof?
1.The outdoor advertising machine is strictly 24H power-on and aging before leaving the factory, and tests the performance of the main board, temperature control, ventilation and heat dissipation;
2.Outdoor anti-corrosion coating can be used normally for 3-7 years without external force damage. The waterproof performance reaches IPX5, and each unit is equipped with a lightning protection switch.
Q5: What is the maximum outdoor brightness? Is there any change in the heat dissipation structure of different brightness?
Most of the sizes of high-brightness LCD screens can be selected in the range of 1000~3000CD/㎡. But some LCD screens have limits. It is recommended to use the range of 1500~2500CD/㎡, which is more conventional, and the energy consumption ratio is relatively suitable. It is recommended to use 1500CD/㎡ for products under 32 inches. Due to the large size and long viewing distance of 75 inches and above, it is recommended to use a brightness of 2500CD/㎡ or above.
Q6: What should be paid attention to in the outdoor installation site?
The outdoor unit can resist normal rainwater but cannot be immersed in water, as rainwater immersion will cause permanent damage to the accessories.
- Avoid low-lying water areas when installing on the floor.
-Wall mounting requires dedicated wall mounting screws on a firm wall. For example, the load-bearing capacity of a solid wall needs to be more than twice the weight of a wall-mounted outdoor advertising machine, and try to avoid installing it on an overturned wall. When installing, leave enough space for heat dissipation on the back and sides of the machine
Q7: What are the advantages of Gemdragon's outdoor machine internal structure layout?
2.1. Using high-quality LCD panels such as well-known brands (LG), the display effect is excellent, and the temperature resistance is higher than 68 degrees.
2.2. The front glass can be made of AG/AR anti-glare super toughened glass.
2.3. Using high-quality outdoor powder, it can withstand 3-5 years of harsh outdoor high temperature, light and humidity tests. The shell adopts galvanized sheet metal demolition and welding process, and the exterior is sprayed with outdoor paint for protection. Through waterproof structure sealing and ventilation and dustproof filter, the waterproof and dustproof grade can reach IP65;
2.4. The shell welding process is stable, the welding seam is even and smooth, and the deformation is small.
2.5. Add locking rods on the side, add screen support brackets, hinges and other accessories to fully test the structural strength and the safety of the equipment.
2.6. Adopt high-quality fan (CE EMC ROHS certification) to withstand high temperature and effectively dissipate heat.
2.7. The MEAN WELL power supply (CE EMC ROHS certification), a well-known German and Japanese brand, is used. Each channel is powered independently (for easy maintenance), and the power is redundant.
2.8. The circuit layout is reasonable, all cables are routed in wire grooves, no excess cables are exposed, high and low voltage are separated, and magnetic rings are added to prevent interference.
2.9. Built-in heater (CE EMC ROHS certification) to ensure normal use at low temperature
2.10. Preset 3-5 interface positions to facilitate later maintenance
2.11. A large area of silver insulation cotton is pasted on the rear shell to effectively reduce solar heat radiation.
2.12. Sufficient performance verification, screen outdoor aging screening, high and low temperature of the whole machine (-20 degrees to), user-use solar radiation simulation, shell size detection, paint coating adhesion test, EMC test (provide test report documents), high-pressure spray shower test
2.13. Built-in dust filter to isolate dust and foreign matter and ensure the safe operation of the equipment.
