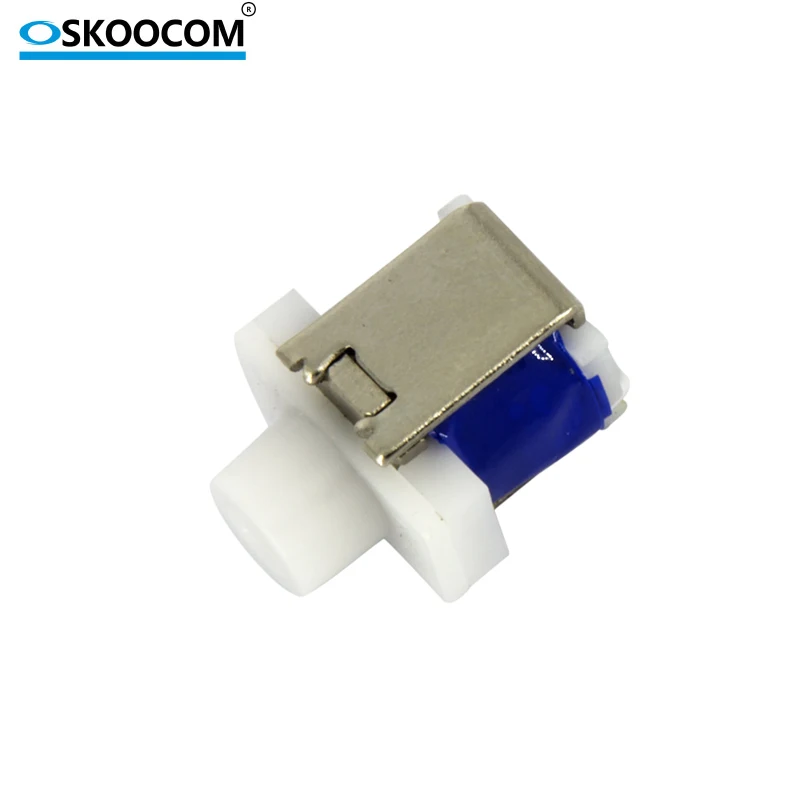

water valve perfume machine electric dc3v 5v 9v normally closed
- Category: >>>
- Supplier: Shenzhen Skoocom Electronic Co. Ltd.
Share on (1600529100905):
Product Overview
Description
Why Choose Us
Why can we bring you higher quality and service?

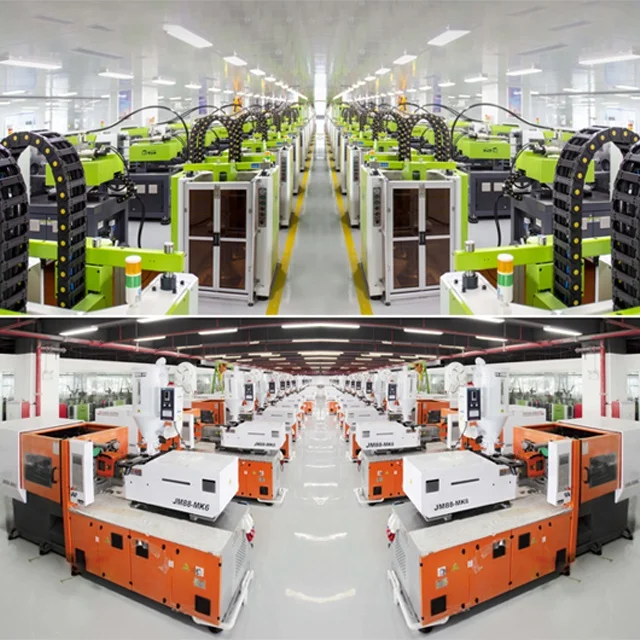

1.We have achieved 90% self-sufficiency: have their own silicone factory, rubber factory, plastic factory, hardware factory, mold factory, can control the quality of accessories, but also reduce the cost.
2.We have our own r&d team to customize the right products for you.
3.Perfect quality process, ensure the quality of batch products, greatly reduce your loss caused by parts failure.
4.Food grade production line to meet your product hygiene needs.
5.We have a number of international certification and nearly 100 patent certificates to make your products more secure.
2.We have our own r&d team to customize the right products for you.
3.Perfect quality process, ensure the quality of batch products, greatly reduce your loss caused by parts failure.
4.Food grade production line to meet your product hygiene needs.
5.We have a number of international certification and nearly 100 patent certificates to make your products more secure.

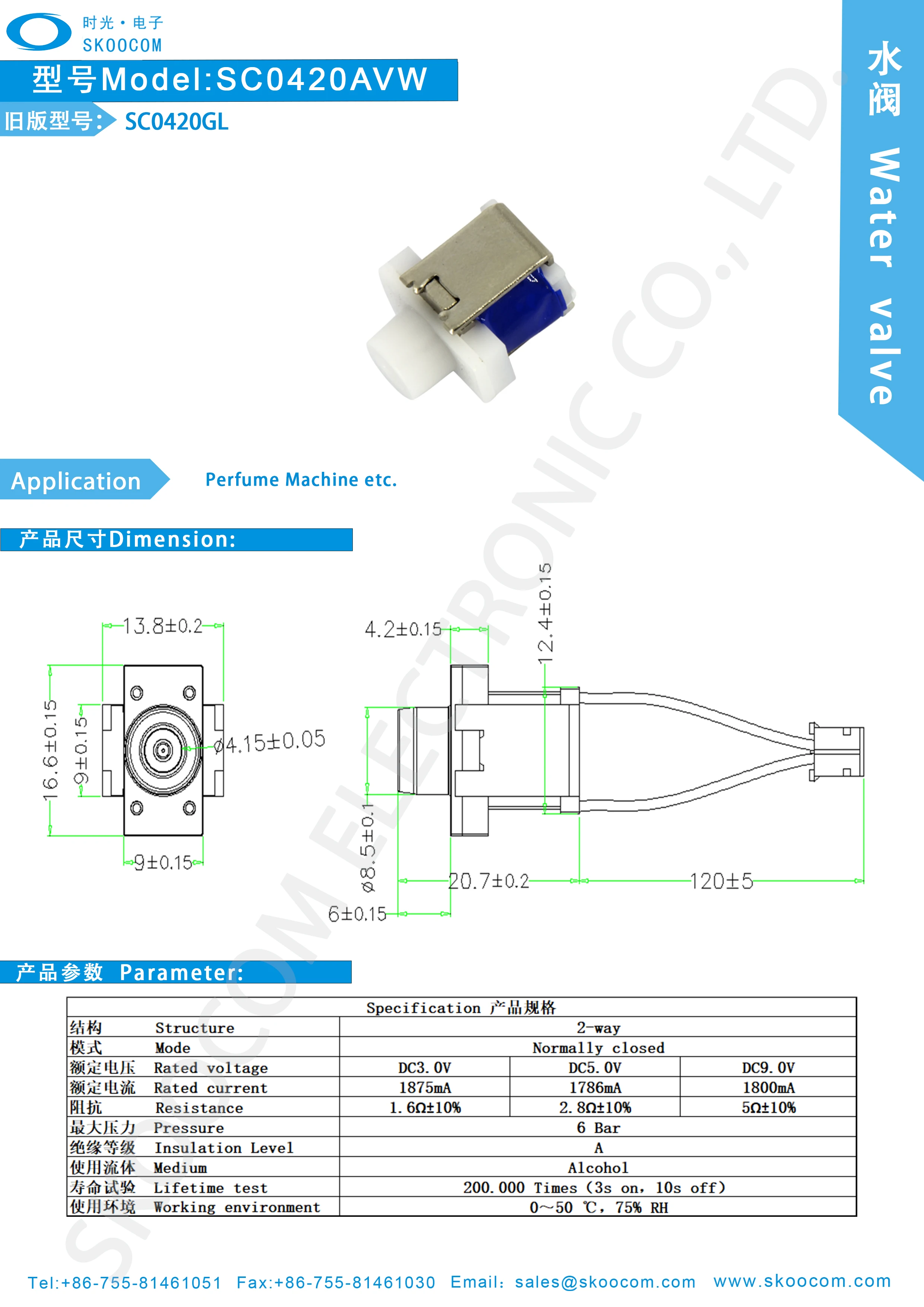

Specification
item | value |
Warranty | 1 year |
Type | BALL VALVES, Stop & Waste Valves, Backwater Valves, SOLENOID VALVES, Globe Valves, Water Regulating Valves, Home Application |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Guangdong | |
Brand Name | SKOOCOM |
Model Number | SC0420GL(SC0420AVW) |
Temperature of Media | Normal Temperature |
Power | Electric |
Media | Water |
Port Size | 4.15±0.05 |
Structure | Control |
Structure | 2-way |
Model | Normally closed |
Rated Voltage: | DC3V,5V,9V |
Rated Current: | 1875mA,1786mA,1800mA |
Resistance | 1.6Ω±10%2.8Ω±10%,5Ω±10% |
Pressure: | 6 Bar |
Insulation Level | A |
Medium | Alcohol |
Lifetime Test | 200,000 Timens |
Woriking environment | 0~50℃,75%RH |
Products Description
Recommend Products

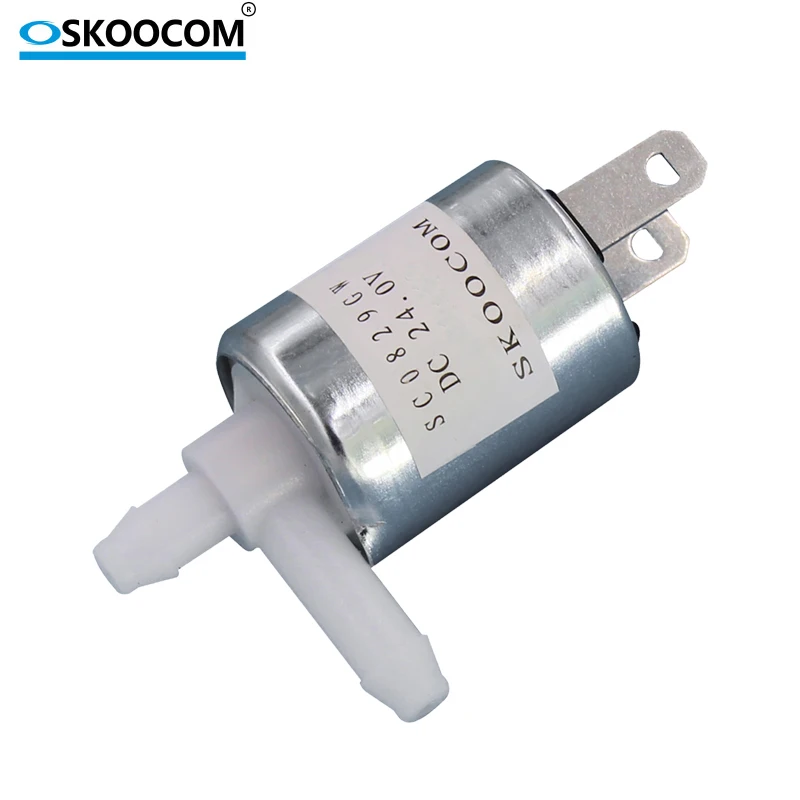

Warranty:1 year
Type:Gate Valves, Backwater Valves, Drain Valves, Water Regulating Valves
Customized support:OEM, ODM, OBM
Place of Origin:Guangdong, China
Brand Name:SKOOCOM
Model Number:SC0829AVW
Application:General
Temperature of Media:Medium Temperature
Power:Electric
Media:Water
Port Size:7.0±0.2
Structure:Control, 2-way
Model:Normally closed
Rated Voltage:DC6V,12V,24V
Rated Current:600mA,300mA,172mA
Resistance:10Ω±10%,40Ω±10%,140Ω±10%
Water Flow:800mL/Min
Pressure:400mmHg
Insulation Level:A
Medium:Water
Lifetime Test:200,000 Times
Type:Gate Valves, Backwater Valves, Drain Valves, Water Regulating Valves
Customized support:OEM, ODM, OBM
Place of Origin:Guangdong, China
Brand Name:SKOOCOM
Model Number:SC0829AVW
Application:General
Temperature of Media:Medium Temperature
Power:Electric
Media:Water
Port Size:7.0±0.2
Structure:Control, 2-way
Model:Normally closed
Rated Voltage:DC6V,12V,24V
Rated Current:600mA,300mA,172mA
Resistance:10Ω±10%,40Ω±10%,140Ω±10%
Water Flow:800mL/Min
Pressure:400mmHg
Insulation Level:A
Medium:Water
Lifetime Test:200,000 Times
Company Profile
Founded in1998, Shenzhen Skoocom Electronic Co., Ltd. is a professional enterprise in developing, manufacturing and marketing inflatable pumps, solenoid valves and electromagnets of different specifications. Since the beginning, Skoocom has identified "thriving through science and technology, advancing with the times, constant innovation, integral management and quality first" as our enterprise's management concepts. With the endeavors of a team of eminent research-oriented experts, Shenzhen Skoocom Electronic Co., Ltd. has in the possession of several independent intellectual property and patents. Meanwhile, Skoocom also manufactures inflatable pumps, solenoid valves and electromagnets of different specifications to satisfy each customer's need.
Quality is the life of our enterprise. Each of our products has to go through a series of liability tests from the raw material to the final stage. Skoocom carries out an integrated QA system to guarantee the quality of our products. Skoocom is strict with raw material procurement, manufacturing in extreme precision according to the prescription and then testing time and time again to the strictest regulations, which have assured the superior quality of our products as well as the unanimous trust from customers at home and aboard.
We will offer you products with excellent quality and service heart and soul.
FAQ
●We can develop new products for you or modify parameters such as flow, current and pressure on existing products.
●We can OEM, ODM.
2. how can we guarantee quality?
●We have a perfect quality control team and process by fully inspecting the shipped products.
●Strict life testing
●Professional testing equipment.
●Professional testing equipment.
3: How long is the deliver[Producing] and shipping ?
●Batch orders will be shipped in 25 working days.
●Sample order will be shipped within 3 working days.
4: Which shipping way is available ?
●DHL, FedEx, TNT, EMS, Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
●For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
5. What is your terms of Payments ?
●Alibaba Trade Assurance. Any trade disputes, alibaba will guarantee your money and compensate all of your loss.
●T/T: 50% deposit first, and 50% balance before the delivery. we will show you the photos or videos of the products and the packing before you pay the balance.
●Western Union, Money Gram, Visa, Master card accepted. Other payment methods are also available, please contact us before payment.
●Western Union, Money Gram, Visa, Master card accepted. Other payment methods are also available, please contact us before payment.
6: How to order ?
Send Us Inquiry → Receive Our Quotation → Negotiate Details → Confirm The Sample → Sign Contract/Deposit → Mass Production →Cargo Ready → Balance/Delivery → Further Cooperation.
7. what services can we provide?
One-stop service: one-stop service from production to shipment.
Quality: professional engineer team strictly control product quality.
Productivity: Fully automatic equipment can firmly support your bulk orders.
Build your ideas: Any custom designs you have are welcome.
One-stop service: one-stop service from production to shipment.
Quality: professional engineer team strictly control product quality.
Productivity: Fully automatic equipment can firmly support your bulk orders.
Build your ideas: Any custom designs you have are welcome.
8: When will you reply after got my inquiries ?
We are in the East eight area, receive the inquiry or Email to reply immediately at 8:00-23:00 and other times receive write back right away after going to the office.
9. Is it OK to print my logo on this product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10: What's your warranty ?
The warranty is 1 year. We deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
