Hollow Bars C62400 Aluminum Bronze Brass Rod Round
US $4.50-$8.10
Кубическая лента/провод/лист/стержень C17200 C17500 C17300 QBe2 QBe1.9 бериллиевая медь
- Category: Copper Bars >>>
- Supplier: Jiangsu DZX Technology Co. Ltd.
Share on (1600529120489):
Product Overview
Description
Product Description
Description | ||
Material | C17200 | |
Standard | ASTM B194 | |
Temper | TD02, TD04, TB00 | |
Hardness | 90-230HV | |
Thickness | 0.05~1.0mm | |
Width | Max. 200mm | |

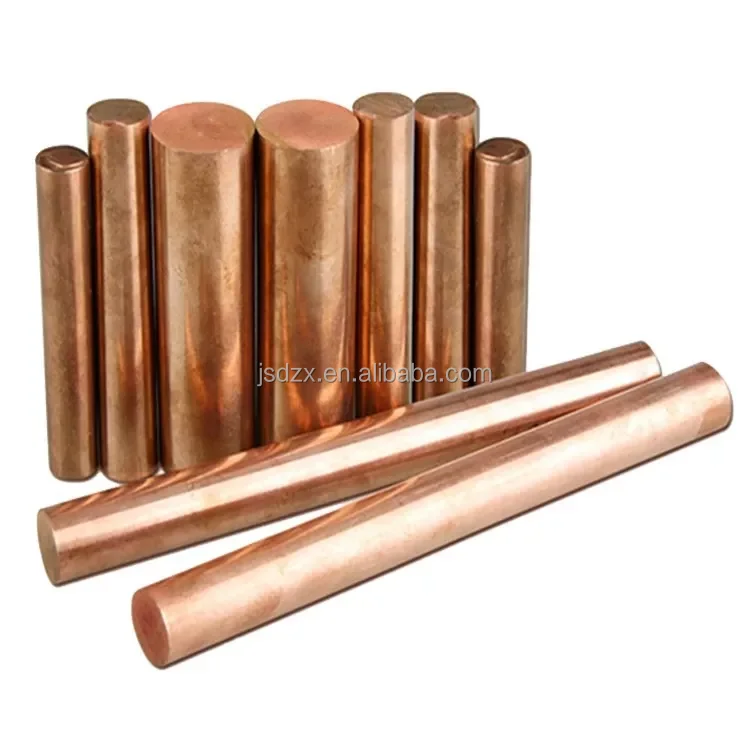

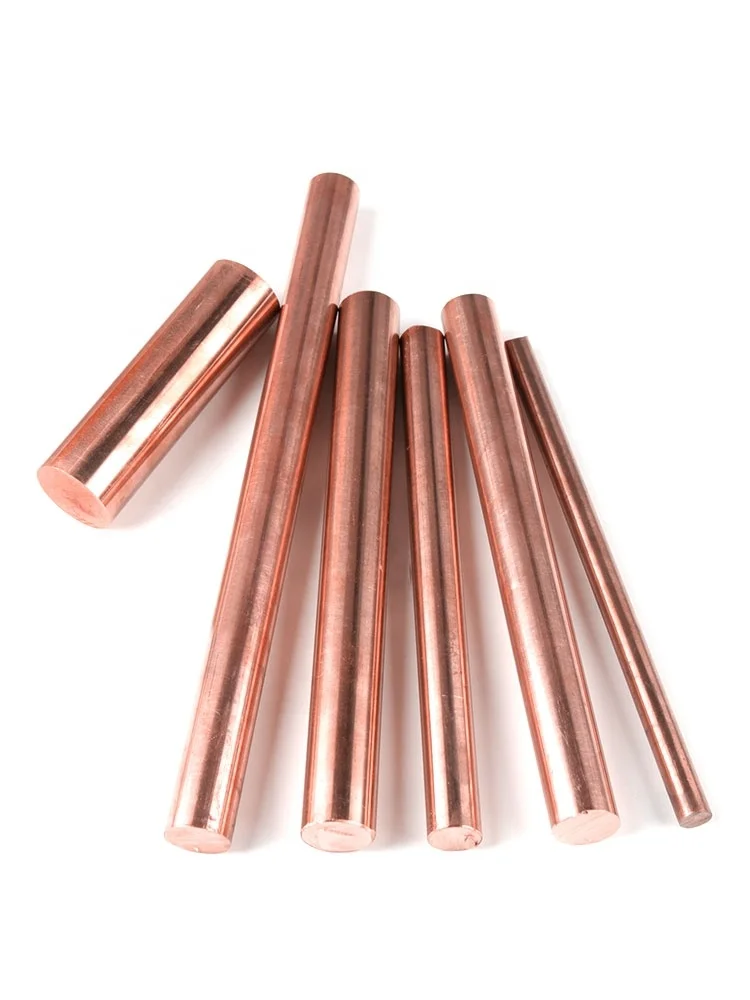

C17200 Beryllium Copper
C17200 Beryllium Copper has extremely high hardness and ultimate tensile strength although the electrical conductivity is lower than the Class 3 copper. It is generally recommended as electrode material for special flash, flash butt and projection welding applications where pressures are extremely high and wear is severe but where heating is not excessive. It is available as wrought material for highest quality dies and electrodes and may also be obtained as high strength castings. It is used frequently in the forms of inserts and die facings, and may also be used for seam welder bushings. Class 4 copper is available in the annealed condition, in this state it can be more readily machined and may be subsequently heat treated to maximum hardness.
Product Name | C17200 C17300 CuCo2Be CuNiBe Beryllium Cobalt Copper Alloy Bar |
Material | CuCo2Be CuNiBe |
Material no. UNS (ASTM) | C17200 C17300 C17500 |
Material description | High strength, good fatigue strength, good conductivity, non-magnetic, wear resistance |
Standard | R.W.M.A Class 4 |
Hardness | 360-390 HB 10/2,5 |
Thermal conductivity | 20℃ ca. 110 W/m.K, 300℃ ca.210 W/m.K |
Electrical conductivity | min. 12, min. 22% IACS MS/m |
Softening temperature | min 480℃ |
Shape | Round, Square, Flat, Hexagon, Customized |
Size | According to customer's requirements |
Application | Welding of the automobile, motorcycle, barrel (tank), air conditioning components and other machinery manufacturing industries. |
Related Products
Production Process
Our Service
Our Company
JiangSu DZX Alloy Co.,Ltd was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
Packing
