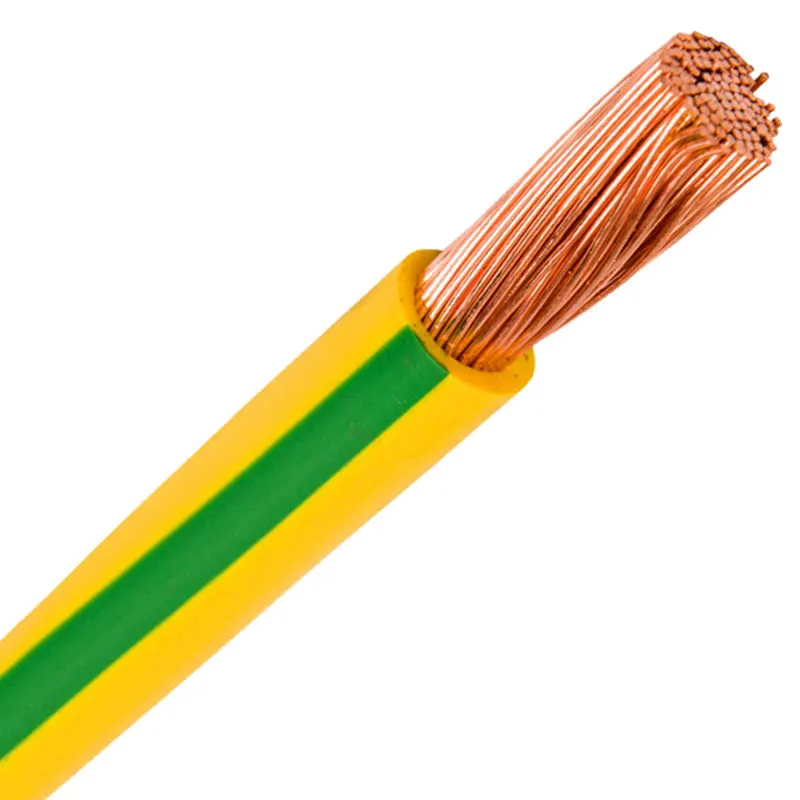

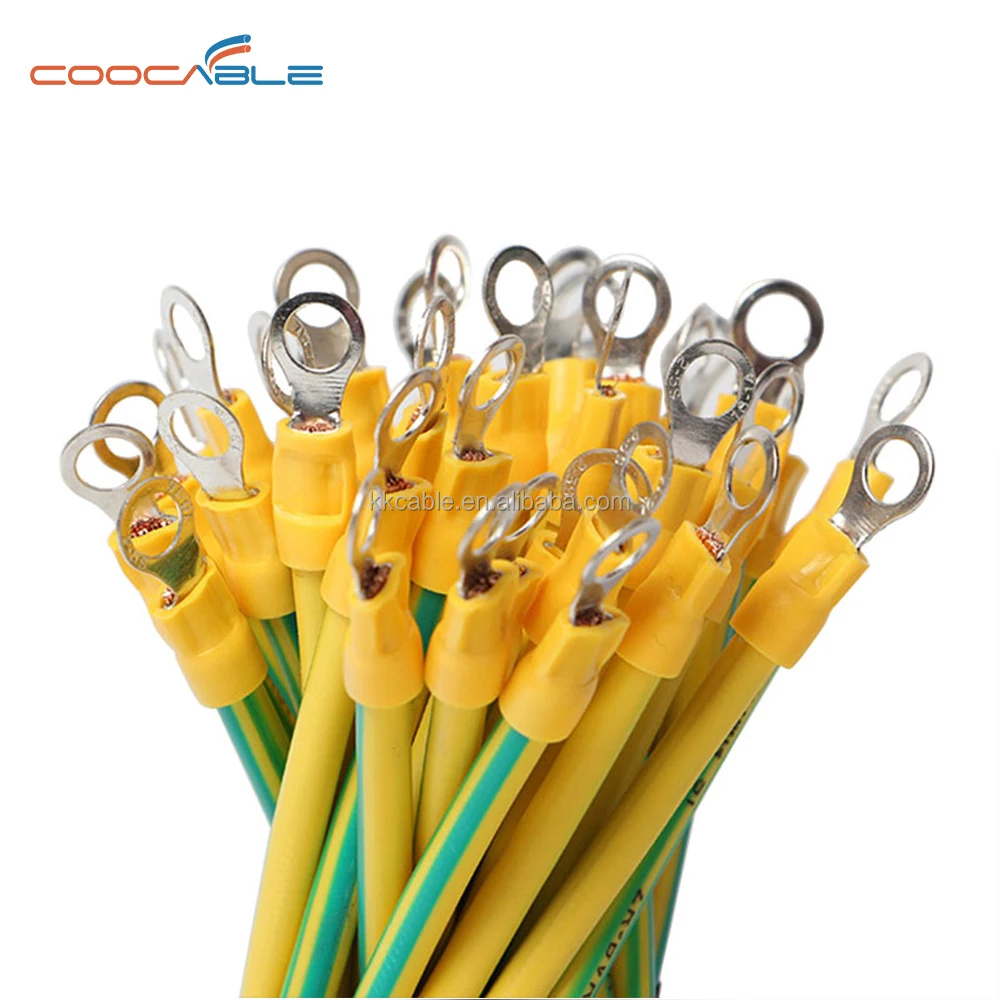

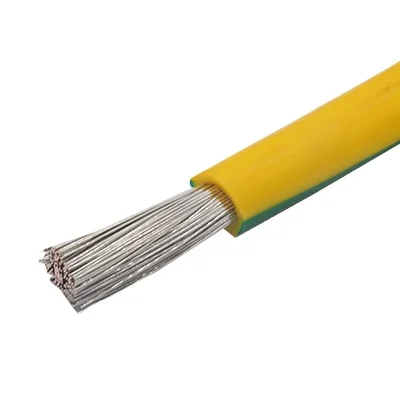

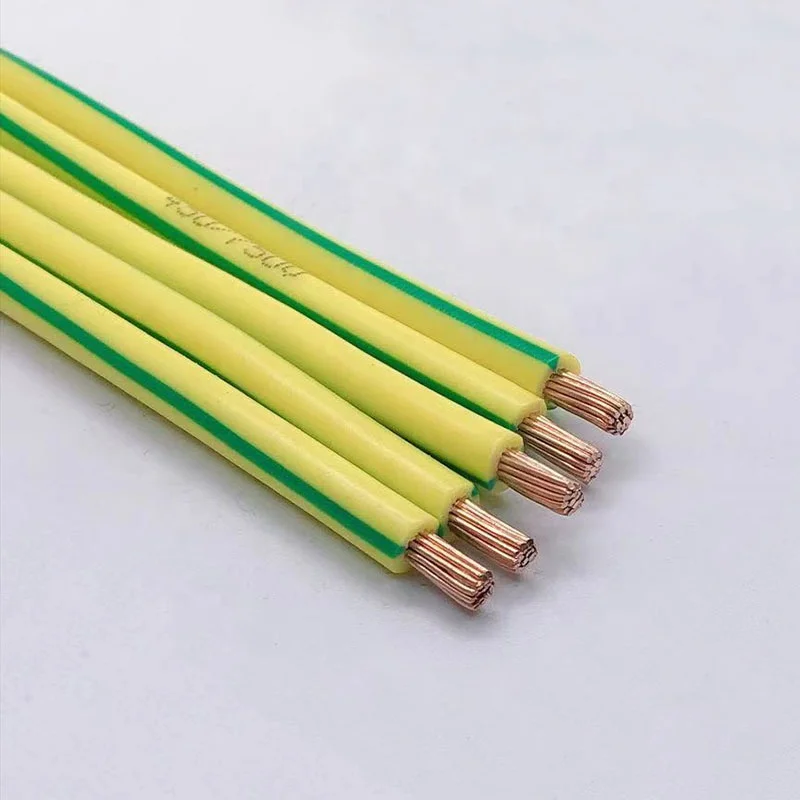

1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm Yellow and Green Ground Cable Flexible Earthing Solar Wire
- Category: >>>
- Supplier: Shanghai Kuka Intelligent Technology Co. Ltd.
Share on (1600529137016):
Product Overview
Description
Product Description
H07V-K is a LSZH safety cable. In the event of fire, it does not emit toxic gases, nor does it give of corrosive gases, avoiding
any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such
as: hospitals, schools, museums, airports, bus terminals, shopping malls, ofices, laboratories, etc. Electrical Performance Low
voltage: 450/750 V CPR: B2ca-s1a,d1,a1, according to EN 50575 Thermal Performance Maximum service temperature: 70°C Maximum
short-circuit temperature: 160°C (max. 5 s). Minimum service temperature: -40°C (fixed and protected installations) Fire
Performance Flame non-propagation: UNE-EN 60332-1 and IEC 60332-1 Fire non-propagation: UNE-EN 60332-3, IEC 60332-3 and EN 50399
LSZH: UNE-EN 6054-1 and IEC 60754-1 Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60% Low corrosive
gases emission bases on UNE-EN 60754-2 and IEC 60754-2 Mechanical Performance Minimum beding radius: 5 x cable diameter Chemical
Performance Chemical performance: Acceptable Water performance Water resistance: AD3 Sprays. Standards EN: 60332-1, EN 60332-3, EN
60754, EN 61034, EN 50399 Approvals: CE, SEC, HAR, BUREAU VERITAS, AENOR, SASO, RoHS Other Estimated lifetime: 30 years based on
UNE-EN 60216-2
any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such
as: hospitals, schools, museums, airports, bus terminals, shopping malls, ofices, laboratories, etc. Electrical Performance Low
voltage: 450/750 V CPR: B2ca-s1a,d1,a1, according to EN 50575 Thermal Performance Maximum service temperature: 70°C Maximum
short-circuit temperature: 160°C (max. 5 s). Minimum service temperature: -40°C (fixed and protected installations) Fire
Performance Flame non-propagation: UNE-EN 60332-1 and IEC 60332-1 Fire non-propagation: UNE-EN 60332-3, IEC 60332-3 and EN 50399
LSZH: UNE-EN 6054-1 and IEC 60754-1 Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60% Low corrosive
gases emission bases on UNE-EN 60754-2 and IEC 60754-2 Mechanical Performance Minimum beding radius: 5 x cable diameter Chemical
Performance Chemical performance: Acceptable Water performance Water resistance: AD3 Sprays. Standards EN: 60332-1, EN 60332-3, EN
60754, EN 61034, EN 50399 Approvals: CE, SEC, HAR, BUREAU VERITAS, AENOR, SASO, RoHS Other Estimated lifetime: 30 years based on
UNE-EN 60216-2
Specification
item | value |
Place of Origin | shanghai |
Brand Name | coocable |
Insulation Material | PVC |
Type | LOW VOLTAGE |
Application | Construction |
Conductor Material | Copper |
Jacket | PVC / RUBBER |

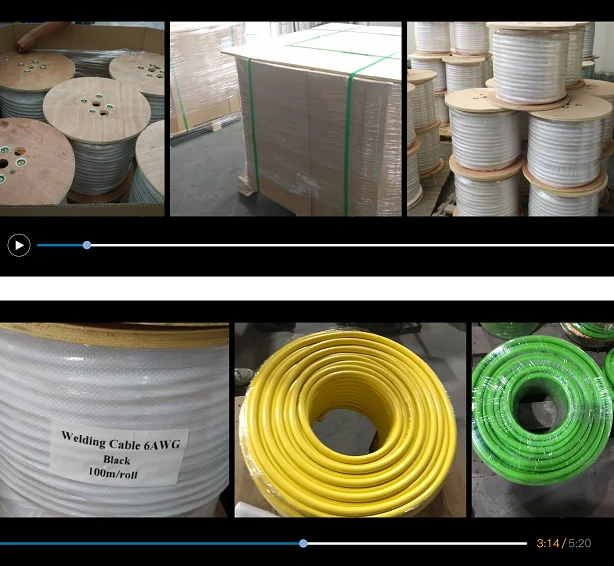

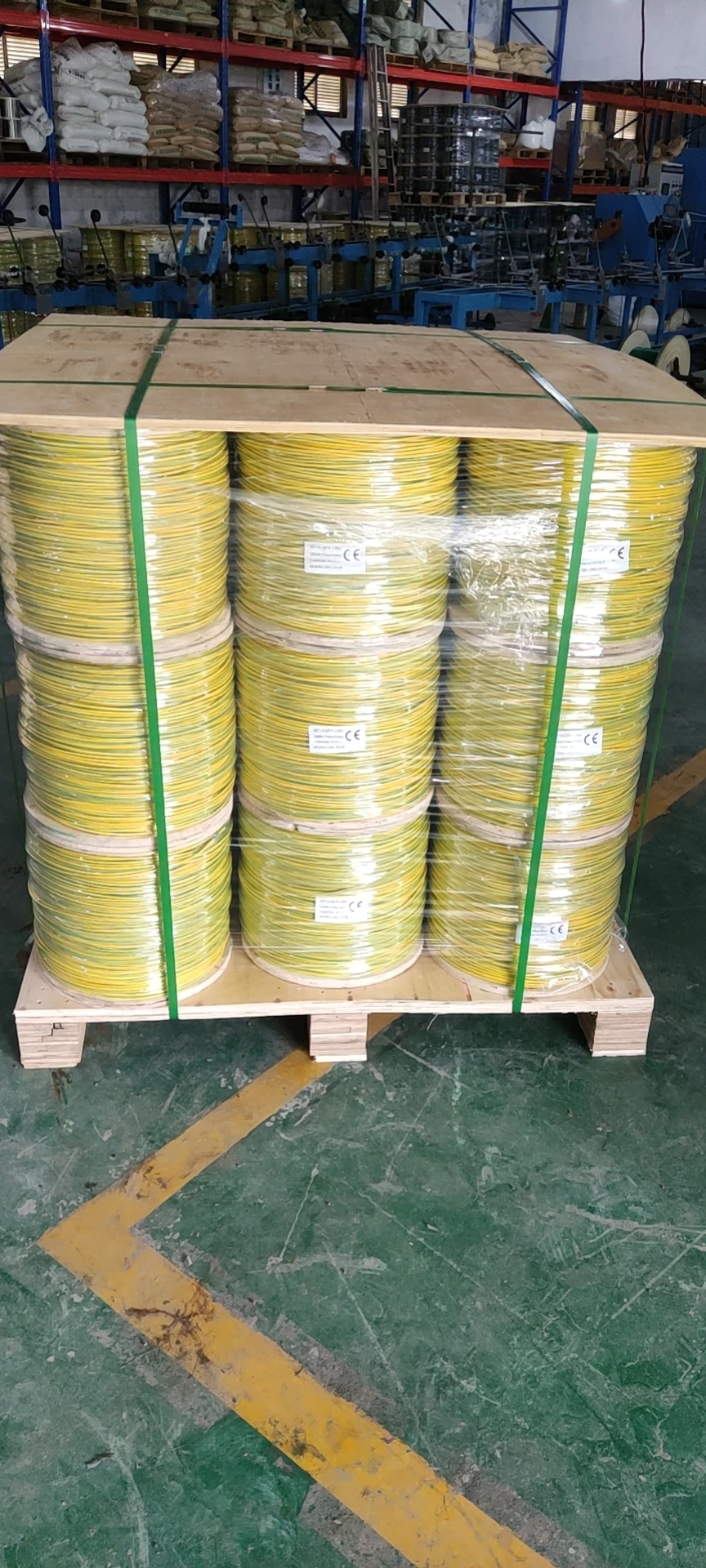

Packing & Delivery
Foam+Carton Copper Welding Cable (Customized )
