Product Overview

Description

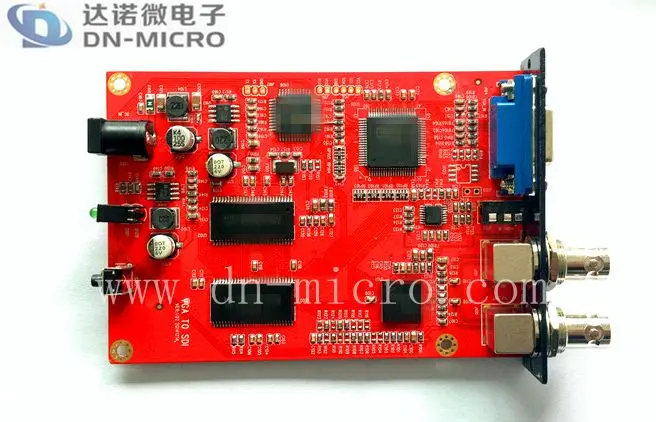

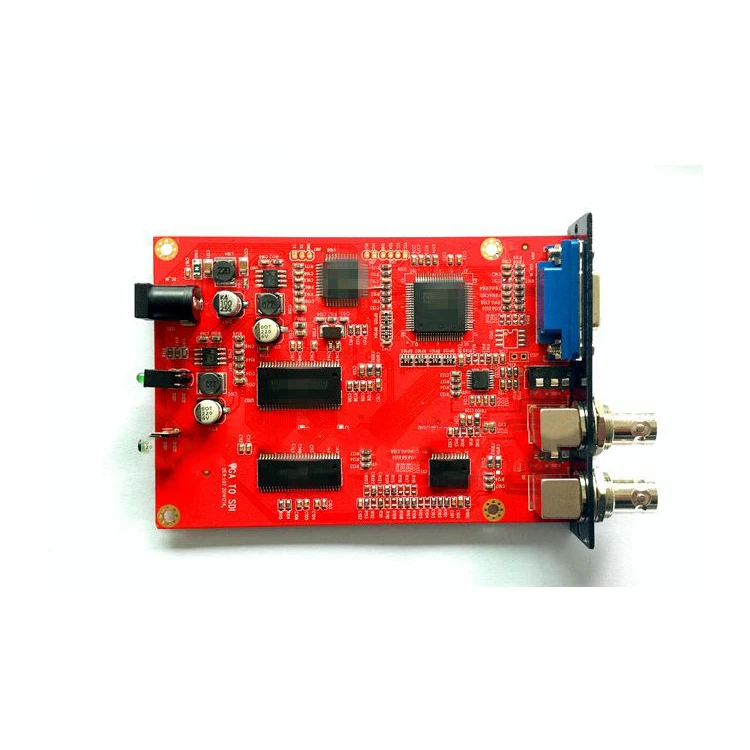

VGA TO SDI converter board, use the industrial-grade scaler conversion processing design, converts 1 VGA signal to SDI signal output, and keep the SDI signal Continue to output.VGA signal automatic recognition is compatible with 800*600~1920*1080 commonly used format  signal, the output SDI support 5 kinds of the most widely used format. The power supply support 5 v ~ 24 v, longer service life.





Range of application



Banking, Securities, Financial system
Multimedia network
The remote web server monitoring







parameter





port	SDI port	standard BNC X 2
	VGA port	D-SUB 15P X 1
	DC input port	DC_2.1mm  X 1
	AUDIO input port	3.5mm  X 1
	Key control	control sdi output
VGA	VGA input format	800*600@60Hz, 1024*768@60Hz, 1280*720@60Hz,  1280*800@60Hz , 1280*768@60Hz,  1440*900@60Hz, 1360*768@60Hz, 1366*768@60Hz,  1280*1024@60Hz, 1600*1024@60Hz , 1680*1050@60Hz, 1920*1080@60Hz , 1366*768@75HZ ,  1024*768@75HZ
	VGA input standard	RS-343A/RS-170
SDI	SDI output impedance	75Ω
	SDI output signal format	720P@60Hz,1080i50,1080P@25Hz,1080P@30Hz,1080P@60Hz
other	DC	DC 5V~24V input
	red light	on,off
	green light	on(have signal),off(No signal)
	power consumption	DC 5V input  620mA
	Working Temp	0~60
	Relative Humidity	20% ~ 80%
	kg	55g
	size	(116mm*110mm*25mm)

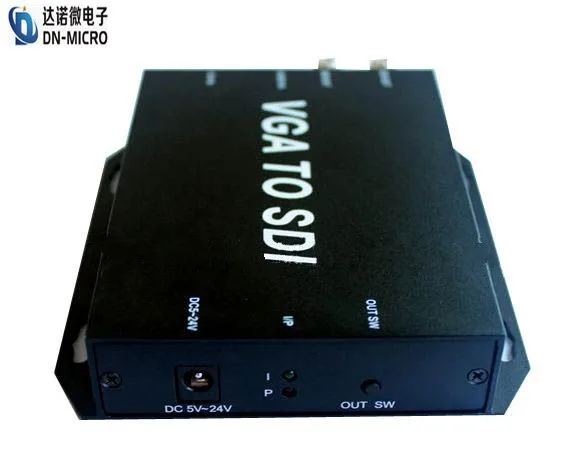

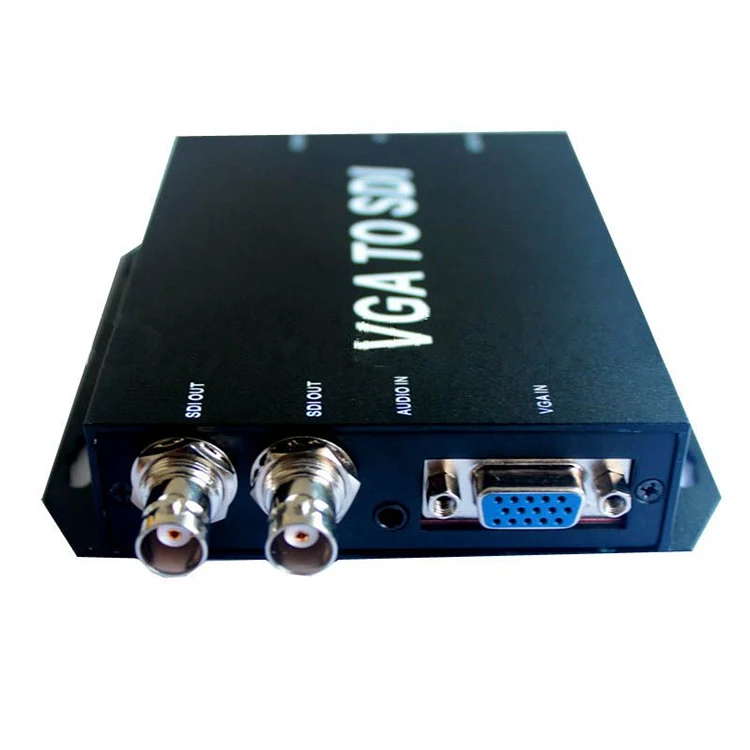

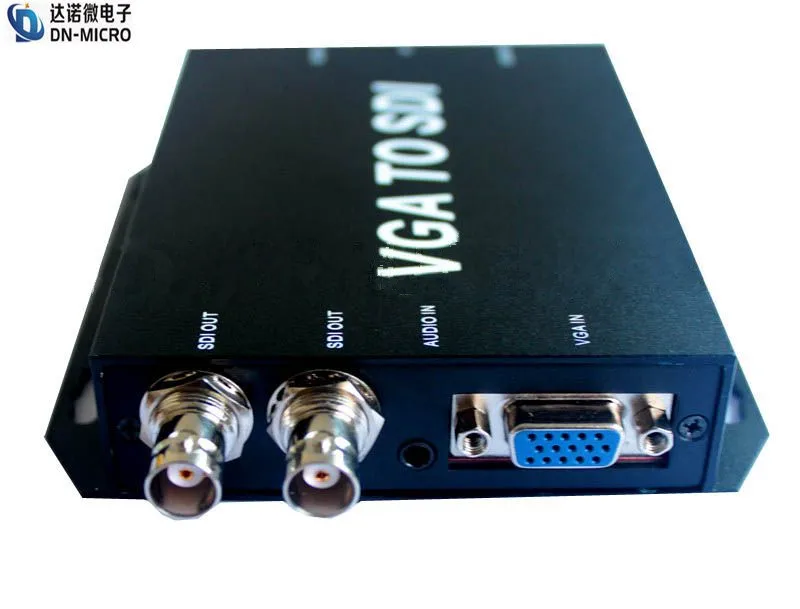

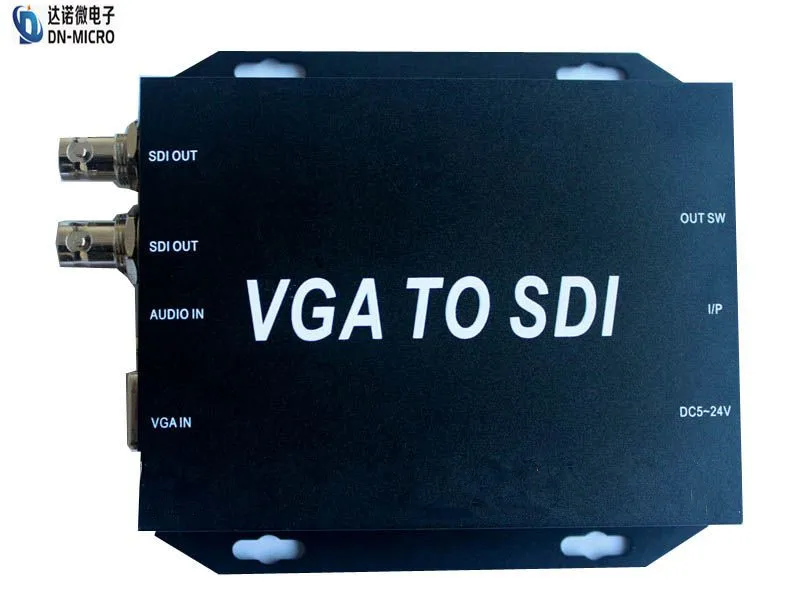

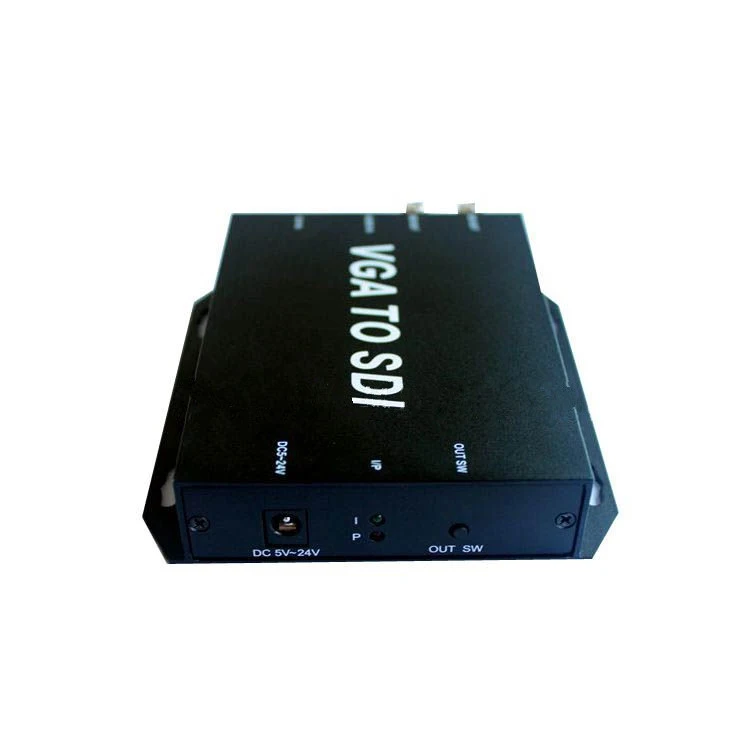

Product pictures





 Shenzhen DN-Micro Electronics Co., Ltd.

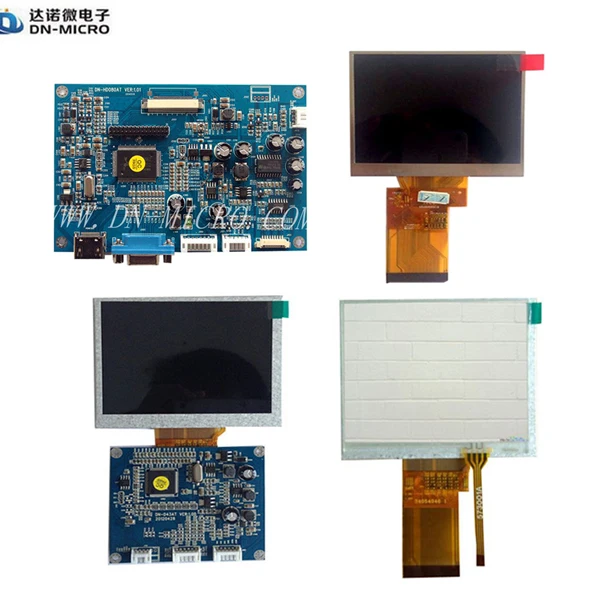

    Shenzhen DN-Micro Electronics Co., Ltd. is a high-tech enterprise specialized in the R&D, production, sales and services of TFT LCD displays and modules. We always believe that technology and talents are the most power of the enterprise, with its advanced technology, strong R&D(more than 10-years experience engineers), production capacity, excellent team and comprehensive sevices, our products have been sold well to many countries and regions all over the world, such as America, Singapore, South Korea, UK, Italy, Middle East, Hong Kong and Taiwan etc.



Shipping & payment terms

1) Accepted small order

3) Ready to ship out within by sea, airway, EMS, DHL,TNT, FedEX, or as customers require, as soon as we receive payment.

4) We accept Paypal T/T. Western Union, if you prefer other payment terms, pls contact us.

5) Import duties, taxes and charges are not included in the item price or shipping charges.  These charges are the buyer's responsibility.
