200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling
200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling

200M Truck mounted Hydraulic Exploration Water Well Drilling Machine / Diesel Power Drilling

Share on (1600529168936):


Price:$8,000.00 - $16,000.00

Quantity:


Product Overview

Description



Product Description

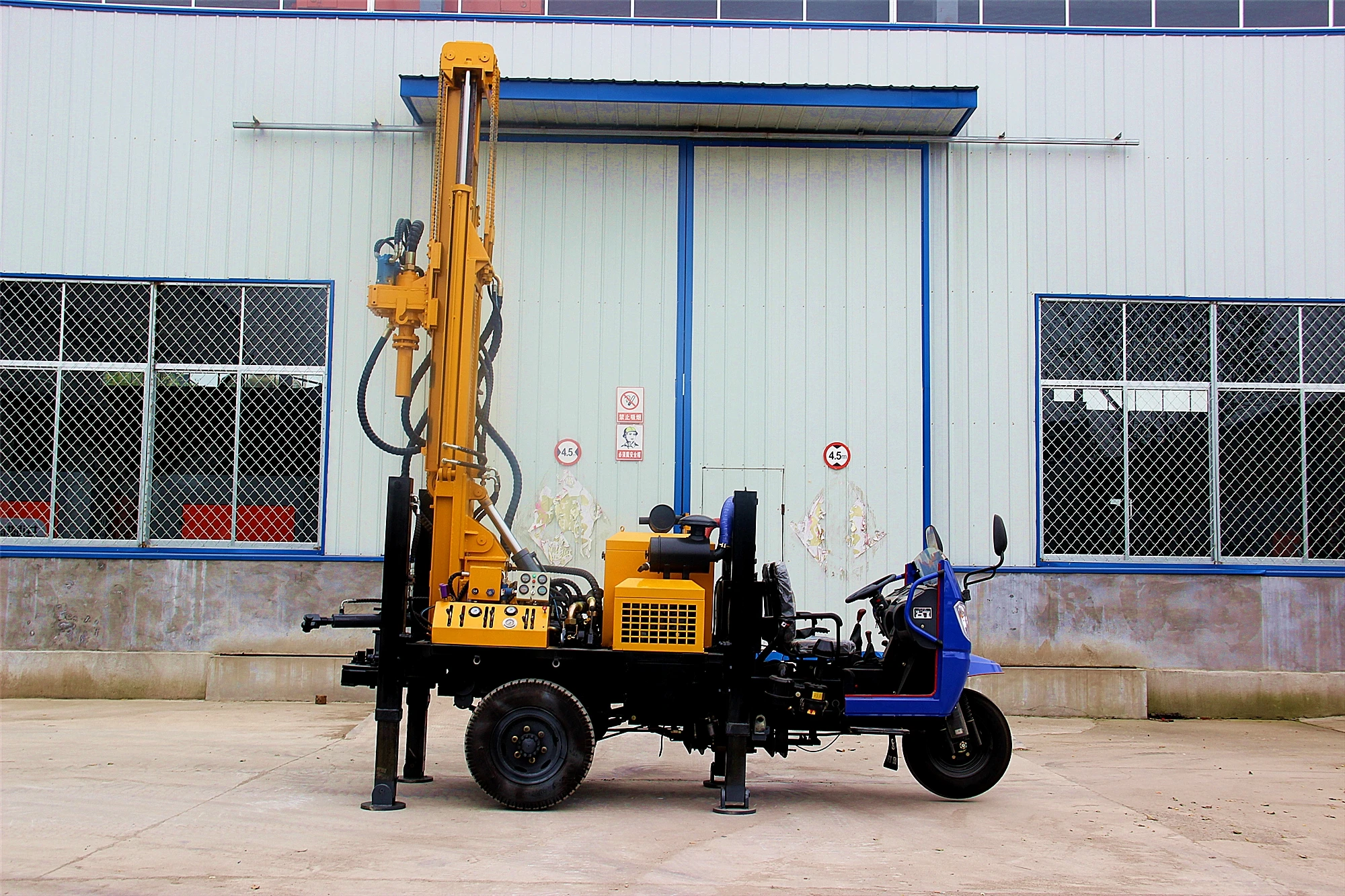

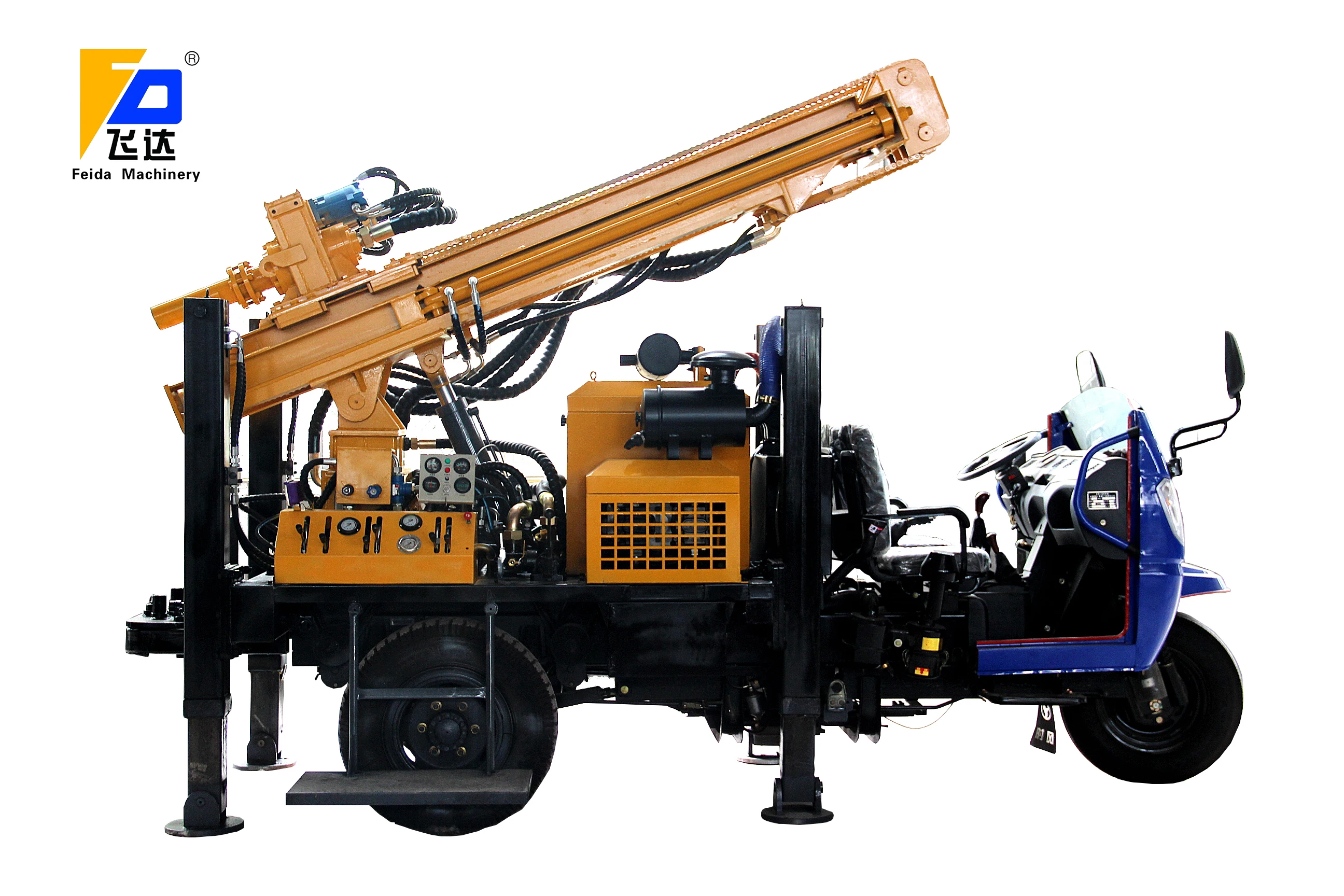

FYL200 water well drilling rig Features: Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.


Specification


Model
FYL200
FY280
FY580
The weight (T)
4.7
7.6
12
The hole diameter (mm）
140-254
140-305
140-350
Drilling depth (m)
200
280
580
One-time advance length (m)
3.3
6.6
6.6
High leg stroke (m)
1.4
1.4
1.7
Climbing angles (Max.）
30
30
30
Equipped capacitor (kw)
65
75
132
Using air pressure (MPA)
1.7-2.5
1.7-3.0
1.7-3.5
Air consumption (m3/min)
17-31
17-31
17-42
Swing speed (rpm)
45-65
40-70
45-140
Rig lifting force (T)
13
17
28
Swing torque (N.m)
3400-4700
4500-6000
8500-11000
The penetration efficiency (m/h)
10-35
15-35
15-35
Dimension (mm)
4350*1600*2450
5900*1850*2360
6200*2200*2650
The engine brand
Quanchai engine
Yuchai engine
Cummins engine


SHOW DETAILS



POWER HEAD
Power head device; the box is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs.




CONSOLE
The vehicle control joystick and instrument integrated platform are simple to operate and reduce labor costs.

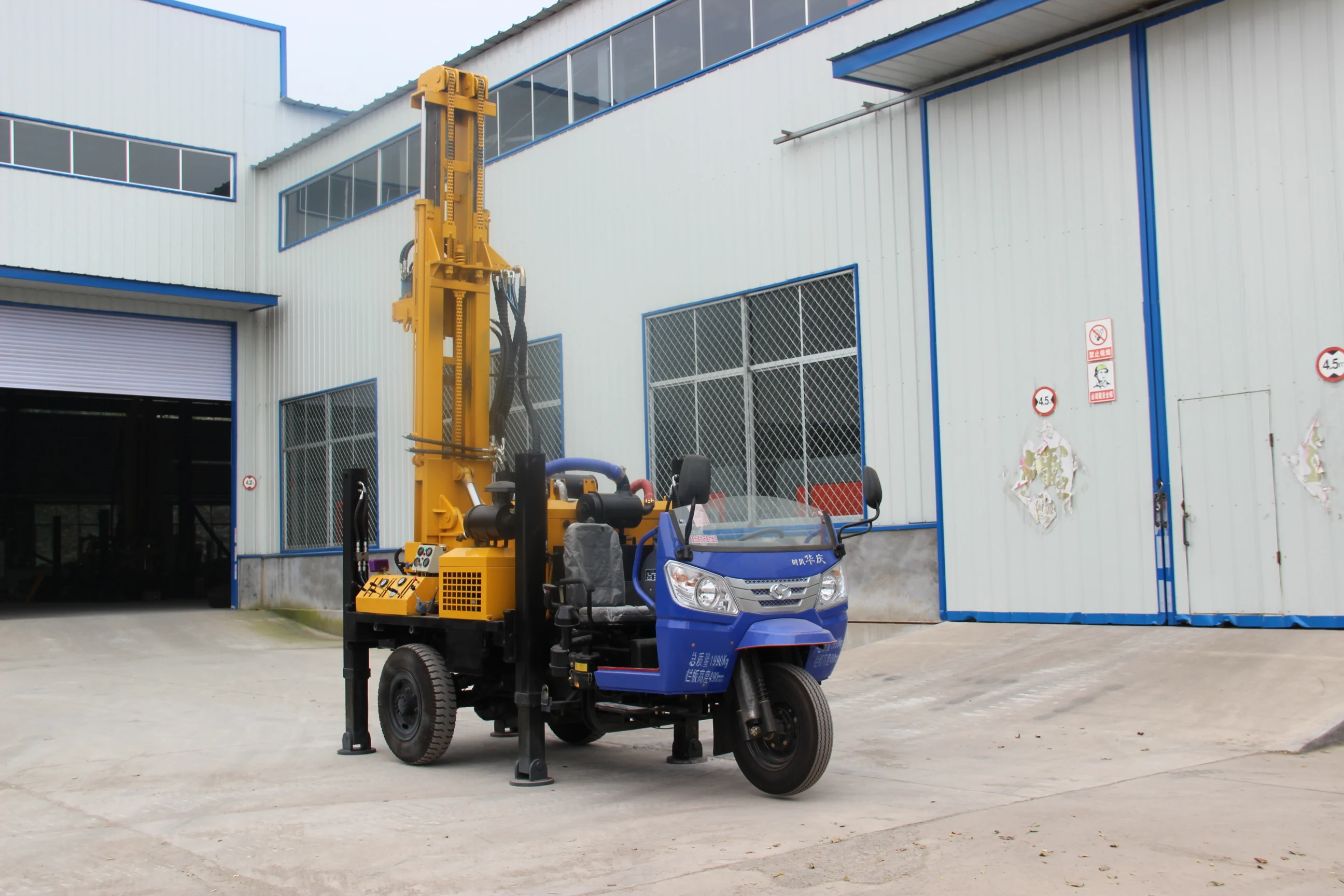

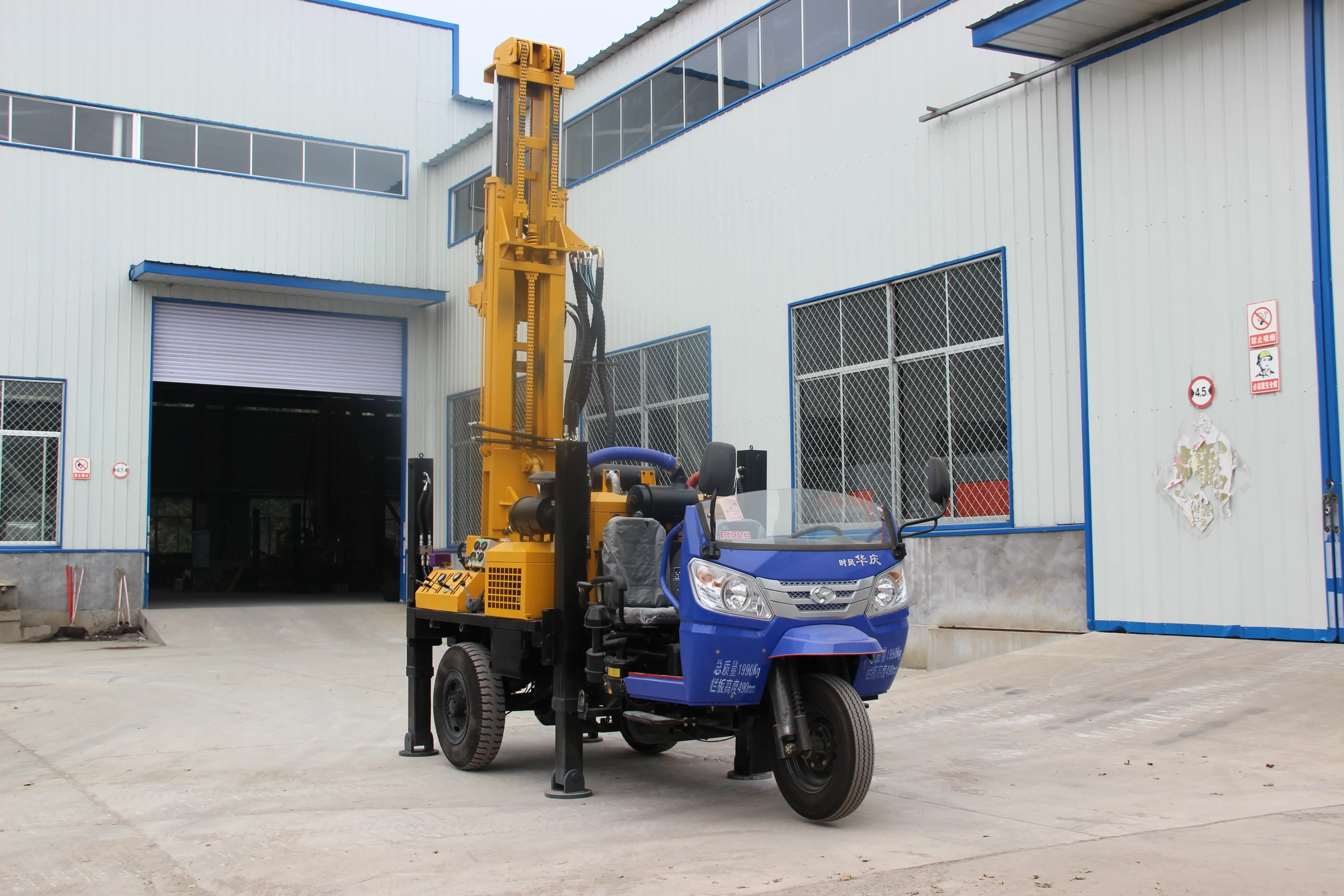

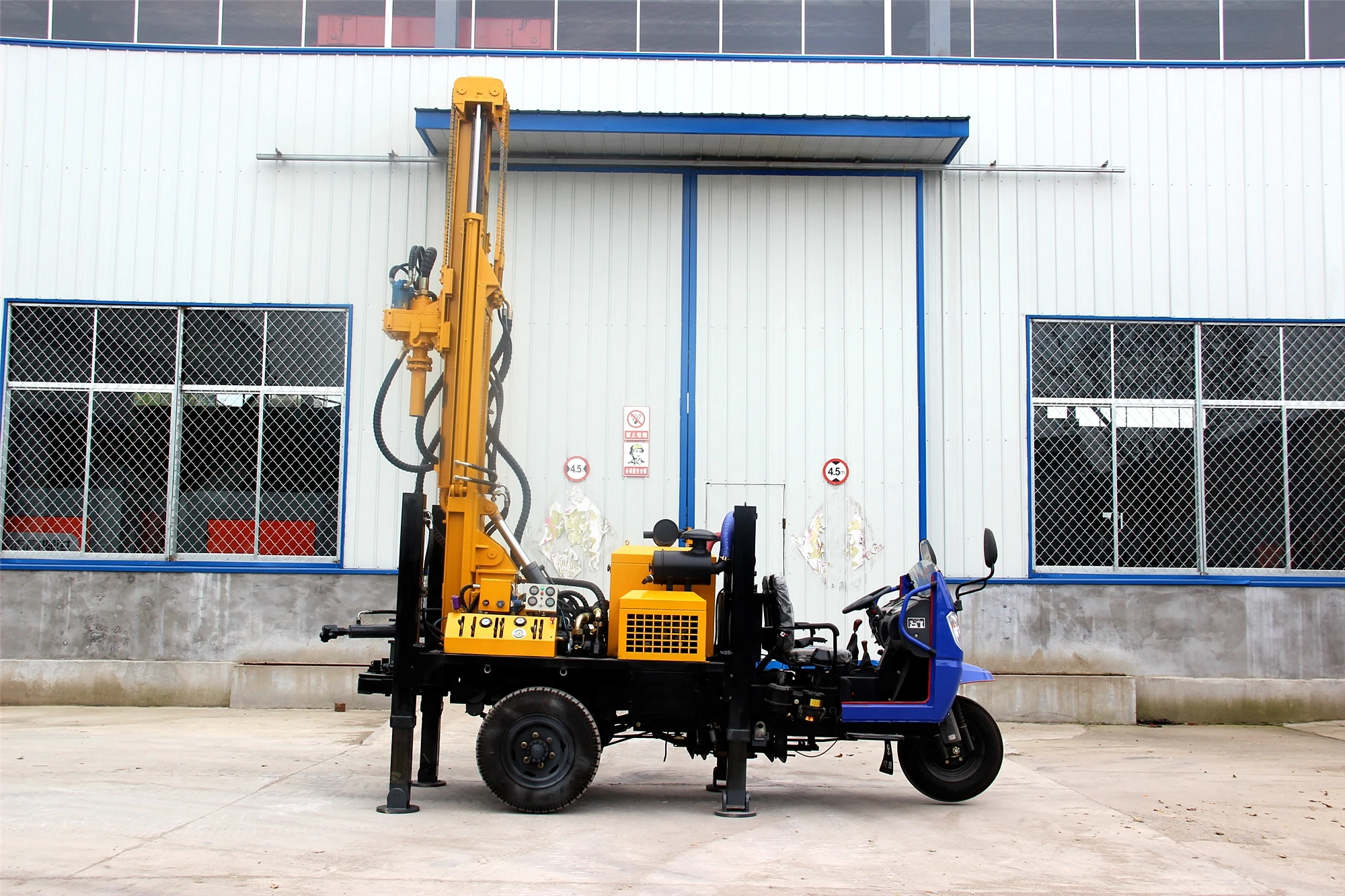

THREE-WHEELED TRACTOR

The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.

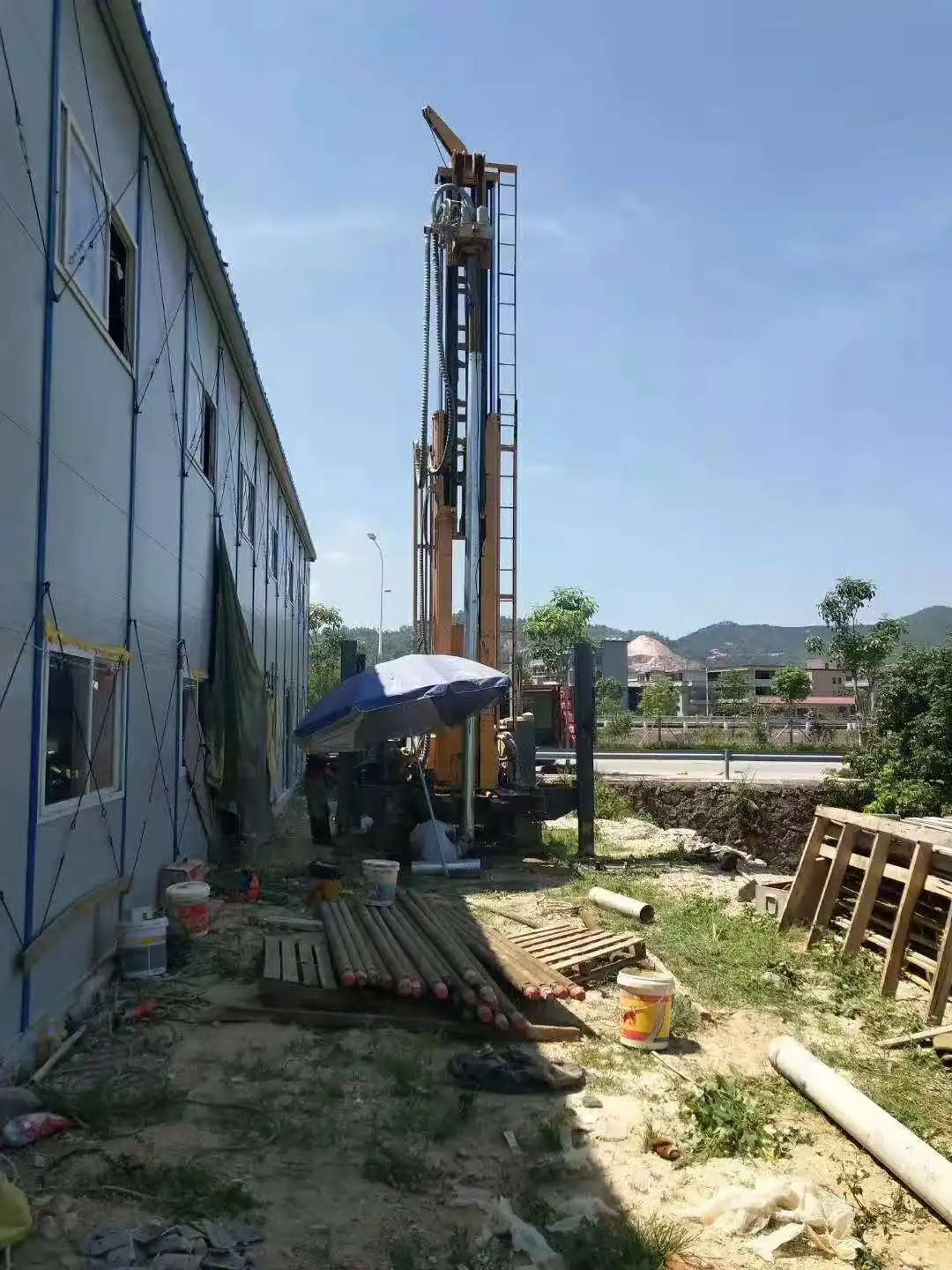

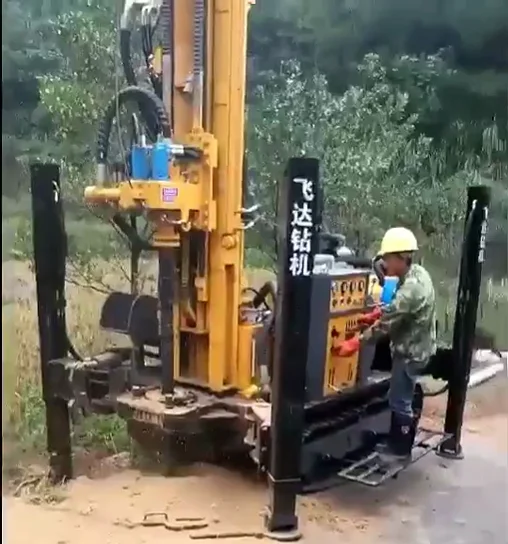

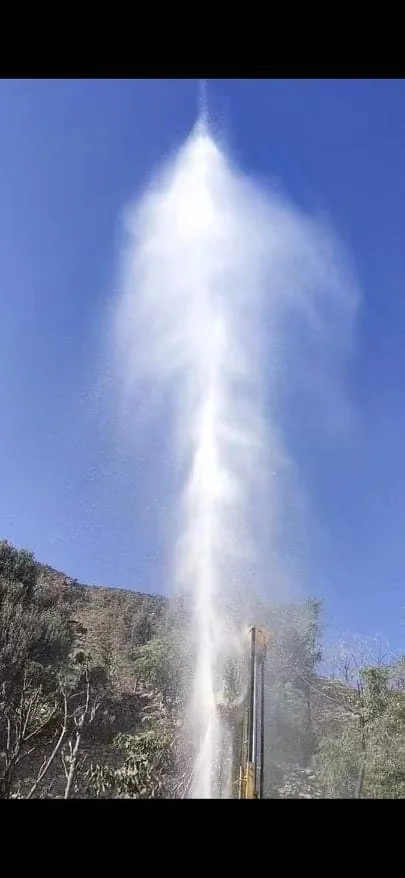

Application

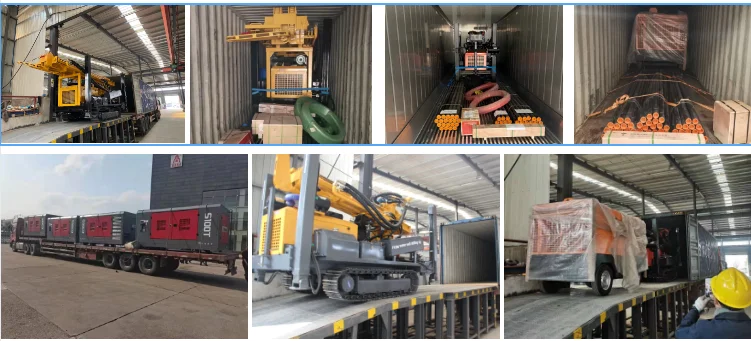

Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




LETTER OF PATENT

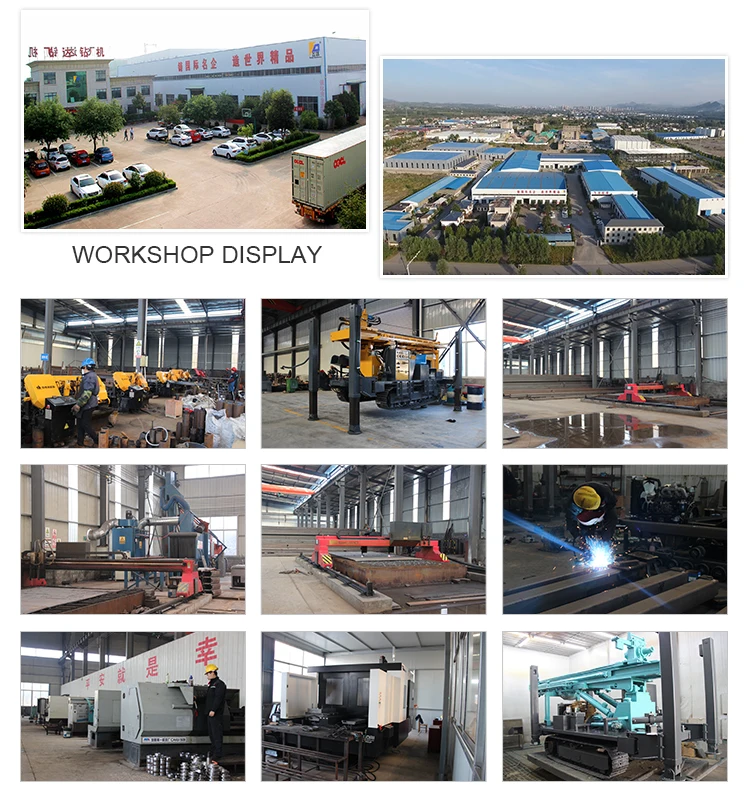

Company Profile






Shandong Mengyin Feida Mining Engineering Machinery Co.,LTD. The main business of the company is the import and export of mining engineering machinery and equipment, water well drilling rig, rope drilling rig, blasting rig, core drilling rig and air compressor and other supporting equipment. The company will independently operate all products export and marketing headquarters. The future development of the company will rely on the advantages of the headquarters production base, develop export trade turn-over, expand global market share.




CONTACT US!!!!!!
If you need more information about our products, please send us inquiry at your freely and we will be at service for you at any time. Then will send your more details about the machine.








FAQ


1. why should you buy from us not from other suppliers?
Feida Mining Machinery Co., Ltd. has been researching and producing water well drilling rig, DTH drilling rig and supporting equipment for 20 years.FY series products have the characteristics of high drilling speed, economy and low failure rate

2.what can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor

3. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

4.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

5.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.

6.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001.

7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
