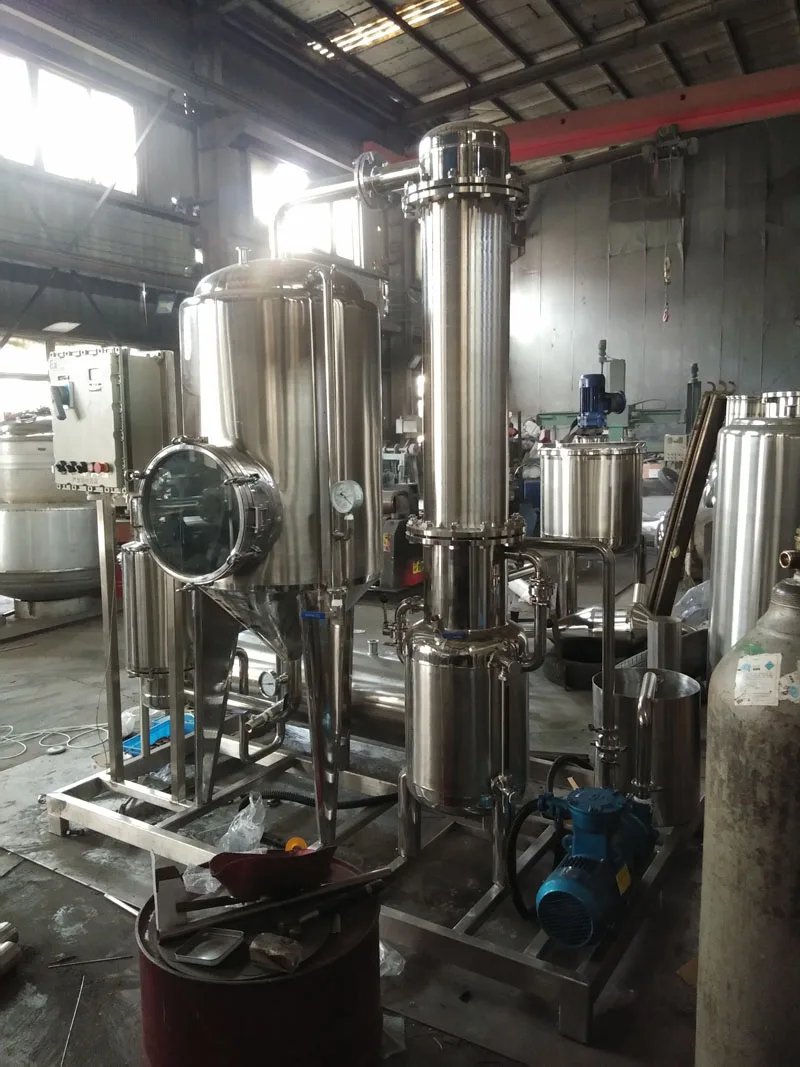

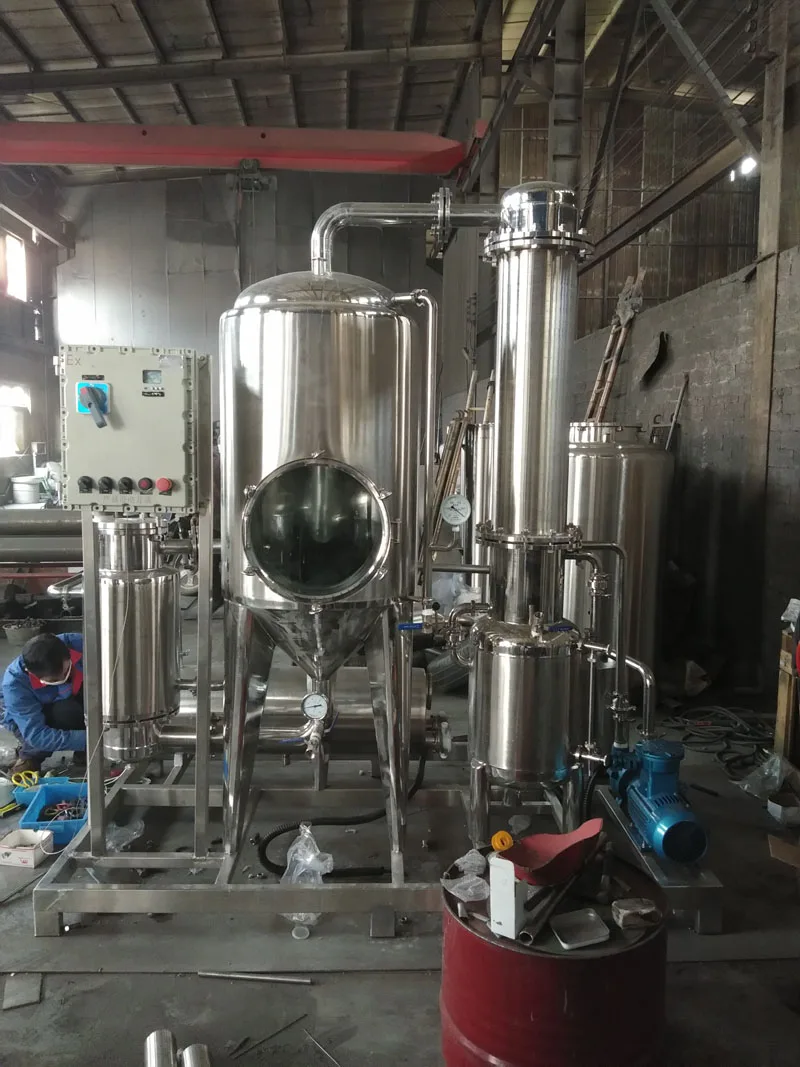

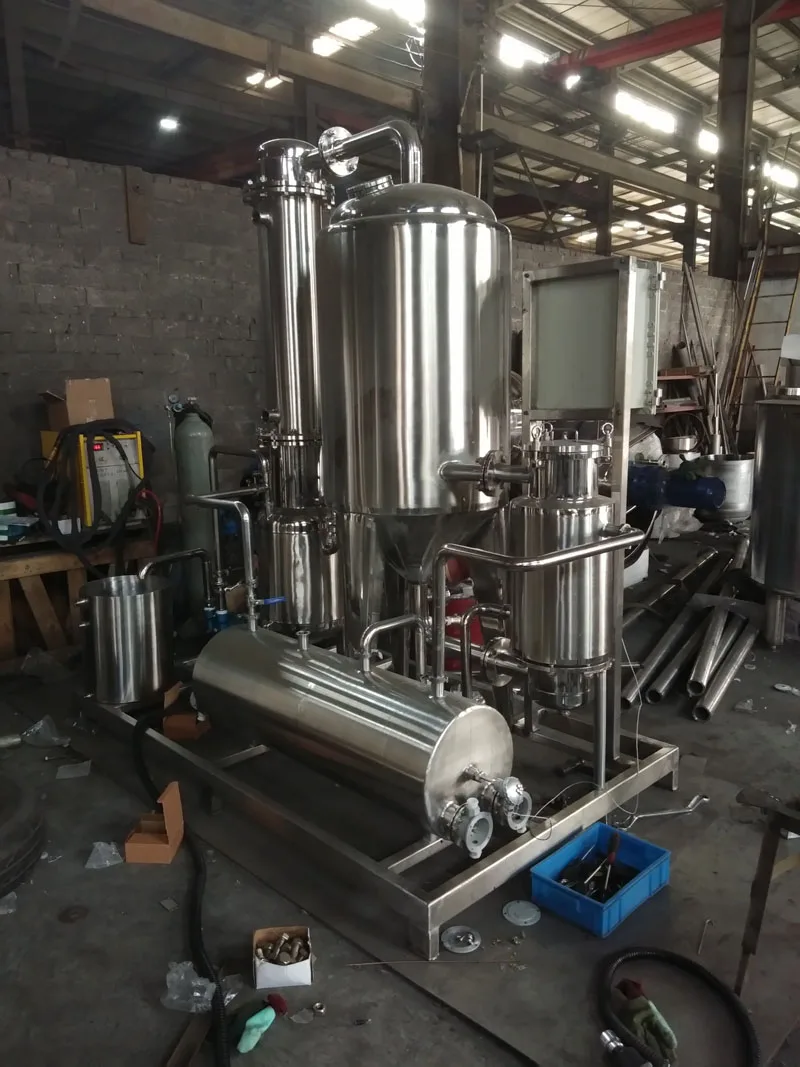

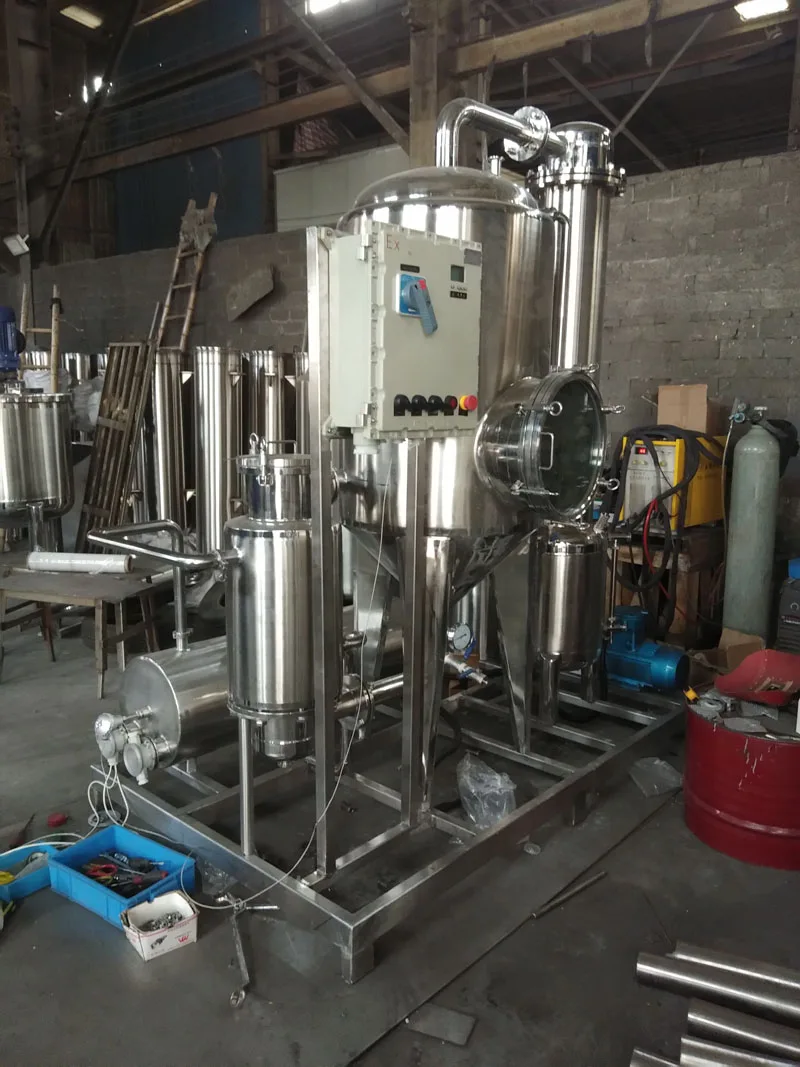

Rising / Falling / Thin Climbing Film Rotary Vacuum Evaporator Evaporation Machine
It can be used to recover ethanol in the evaporation process of ethanol extraction CBD.
It is mainly suitable for the evaporation of materials with high concentration, high viscosity, and easy to scale and coking. It
is widely used in glucose, starch sugar, Chinese medicine, western medicine, oral liquid, food, monosodium glutamate, chemical
industry, dairy products and other materials concentration and recovery of industrial organic solvents (such as ethanol).


Working process of Rising / Falling / Thin Climbing Film Rotary Vacuum Evaporator Evaporation Machine
Feeding-Heating-Separation-Condensation-Cooling-Storage


Products Description


Rising / Falling / Thin Climbing Film Rotary Vacuum Evaporator Evaporation Machine
Model
DWZF-100
DWZF-200
DWZF-500
DWZF-1000
DWZF-2000
Evaporation rate (l/h)
100
200
500
1000
2000
Heating area (m2)
4
8
20
40
80
Condensation area (m2)
4
8
20
40
80
Steam pressure (mpa)
<0.2
Vacuum (mpa)
0.6~0.8
Feed pump (kw)
0.55
0.55
1.1
1.5
1.5
Discharge pump (concentrated liquid, kw)
0.55
0.55
1.1
1.5
1.5
Discharge pump (ethanol, kw)
0.55
0.55
1.1
1.5
1.5
Water ring vacuum pump (kw)
0.81
1.5
2.2
3.85
4
Total power (kw)
2.46
3.15
5.5
8.35
8.5
Power supply
220V/380V/50Hz/60Hz three-phase, other can be customized

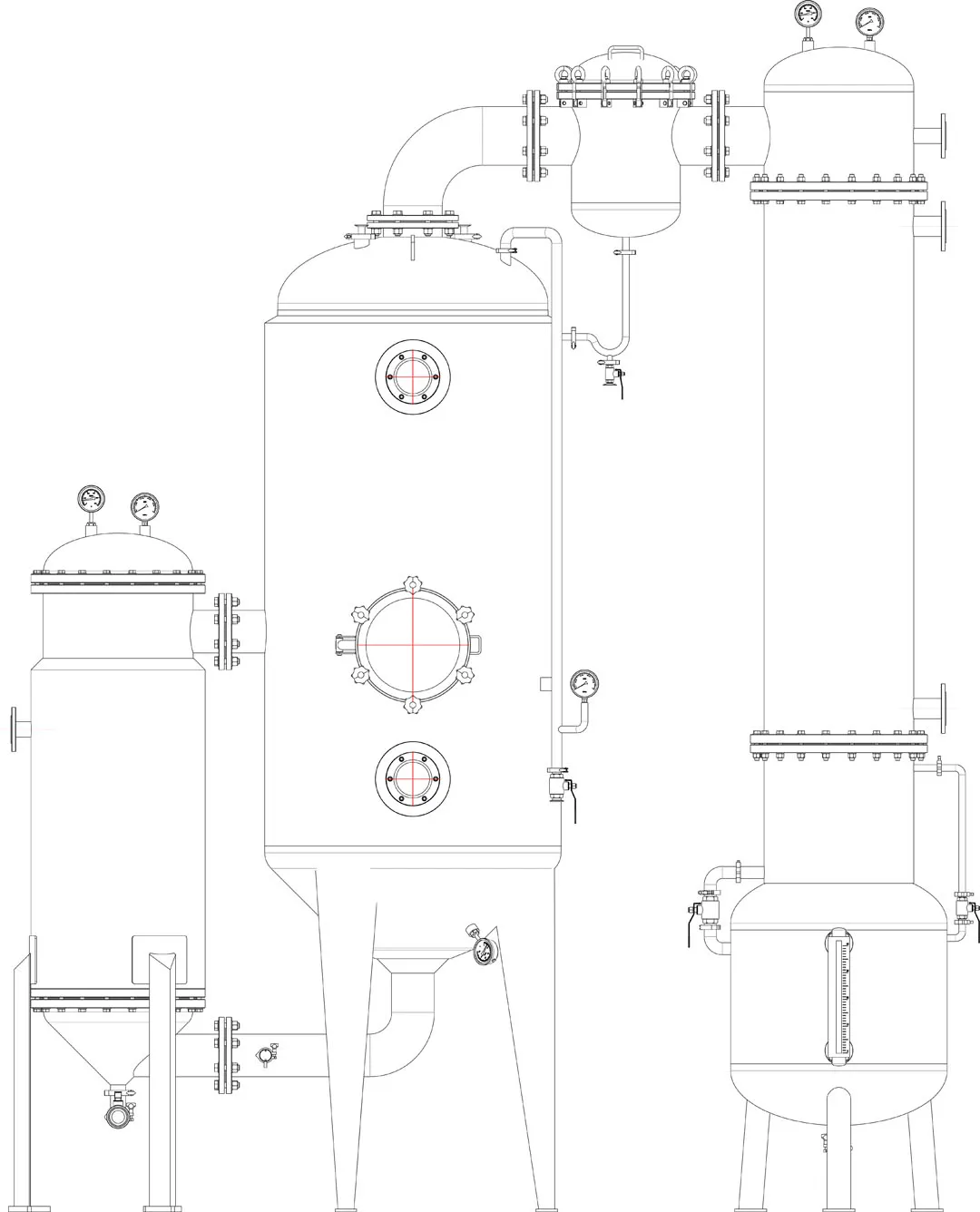

Rising / Falling / Thin Climbing Film Rotary Vacuum Evaporator Evaporation Machine completes most of the vapor-liquid separation in the separation chamber. Therefore, the external circulation evaporator can be more easy to mist entertainment and even run away. The separation chamber must have sufficient separation volume. In addition to the tangential way of the inlet, a foam trap must be installed in the separation chamber. The secondary steam should be discharged at the top of the separation chamber, and the secondary steam pipe should be inserted into a section of the separation chamber. The length of this section is generally between 150-250mm that can play the role of swirling flow, which is conducive to the further separation of gas and liquid. In order to better recover the material liquid entrained in the secondary steam, it is also possible to install a baffle-type or cyclone-type suds catching device between the separation pipe and the condenser pipe in the discharge pipe.




Turnkey Solution
We also provide the match equipment, such as water chiller, industrial steam generator and air compressor. 100% turnkey solution.


Steam generator
Water chiller
Air compressor
