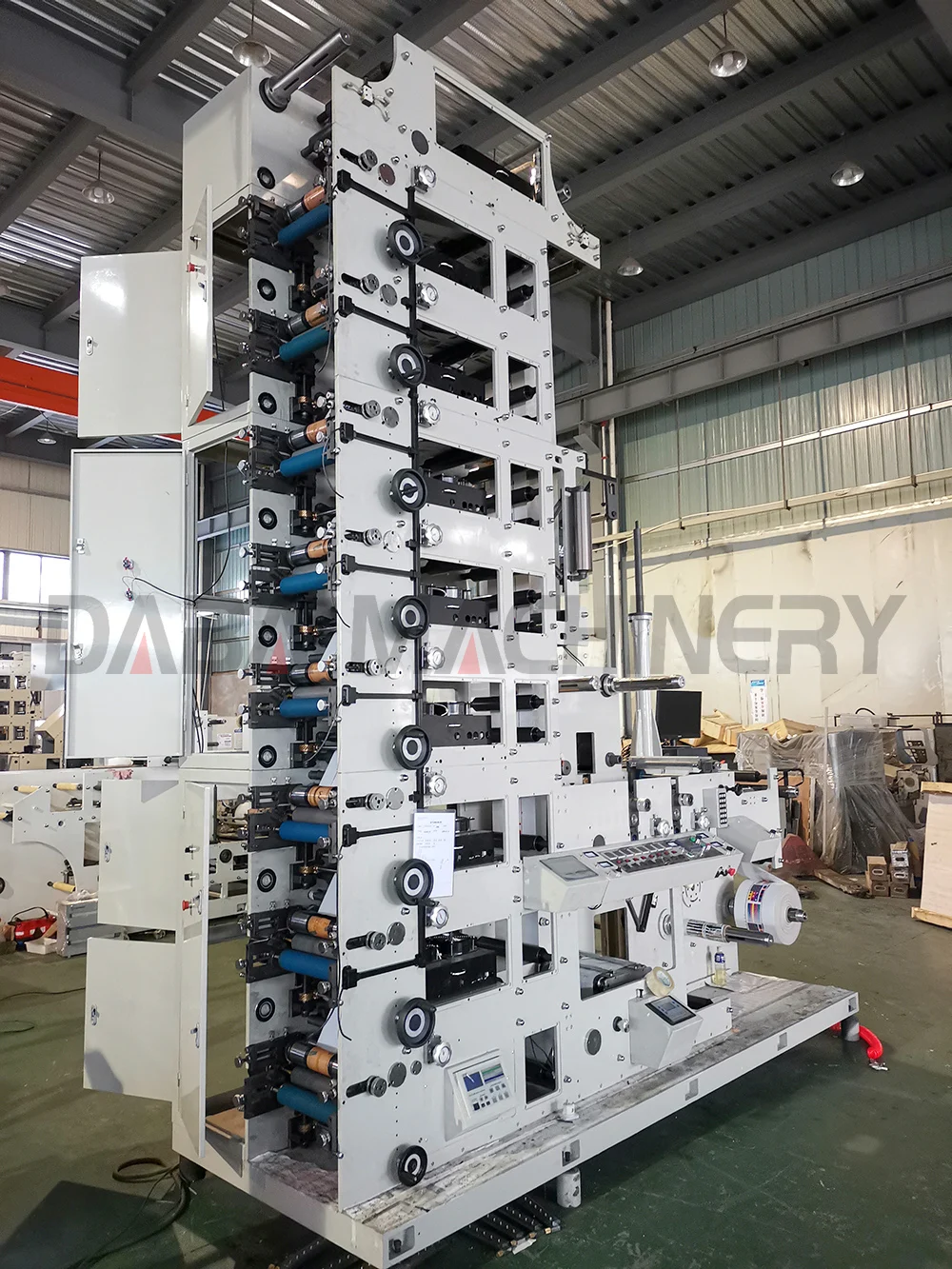

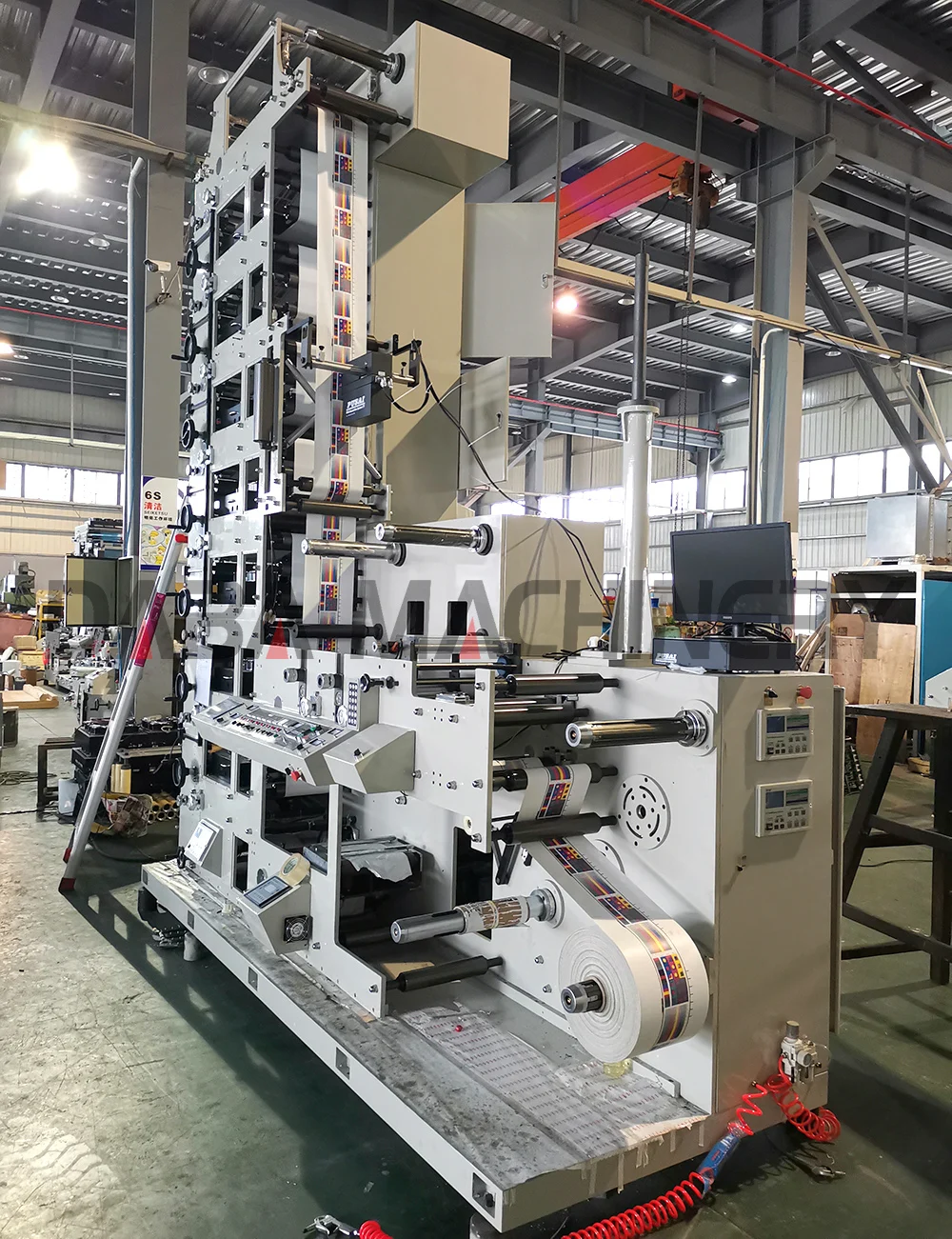

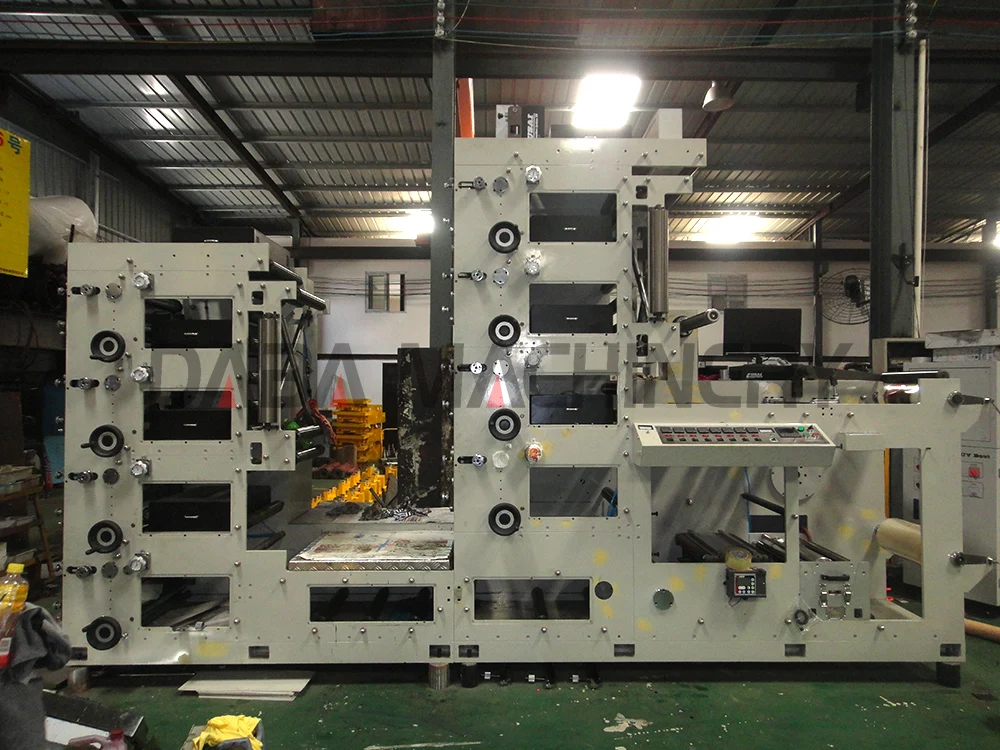

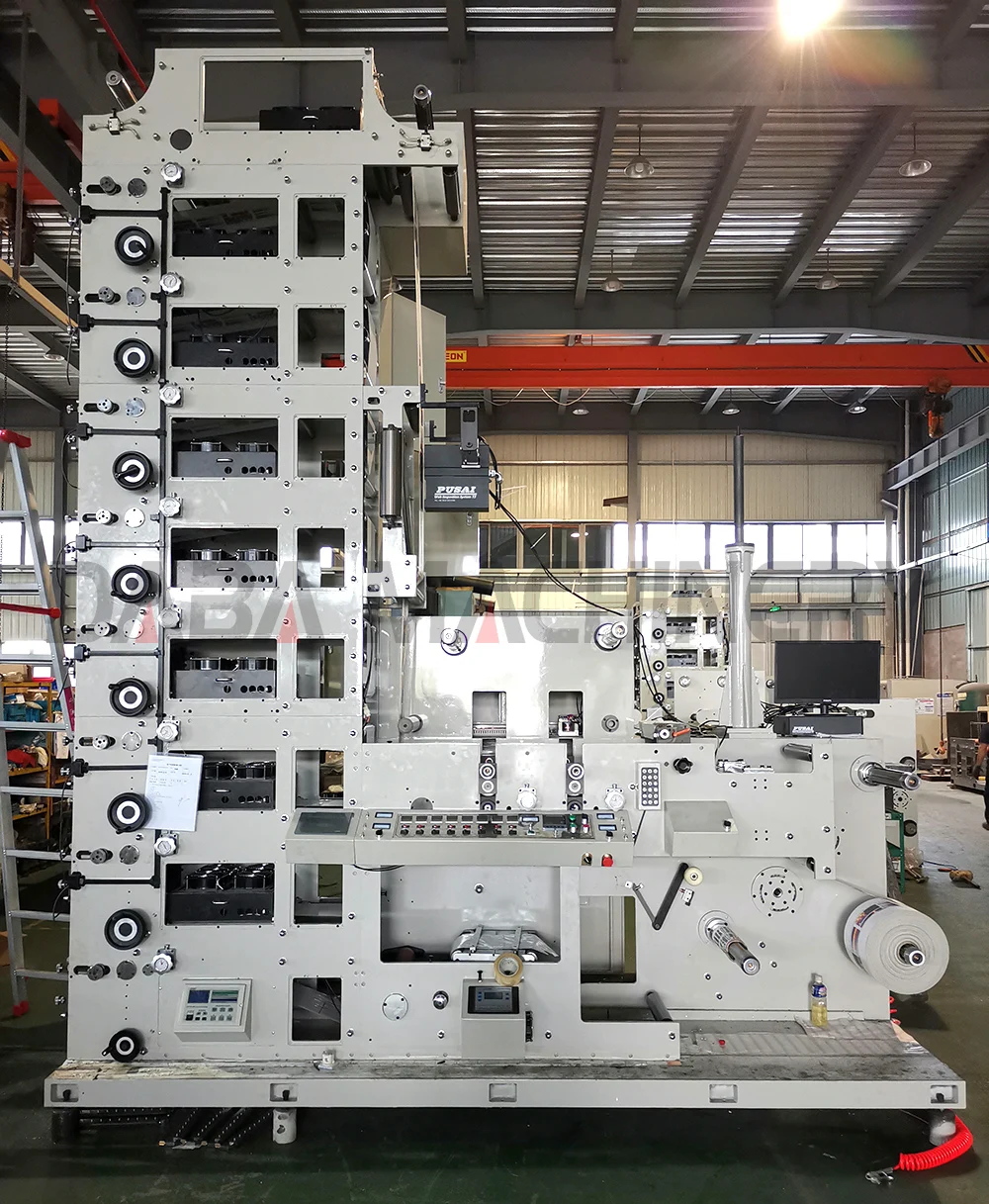

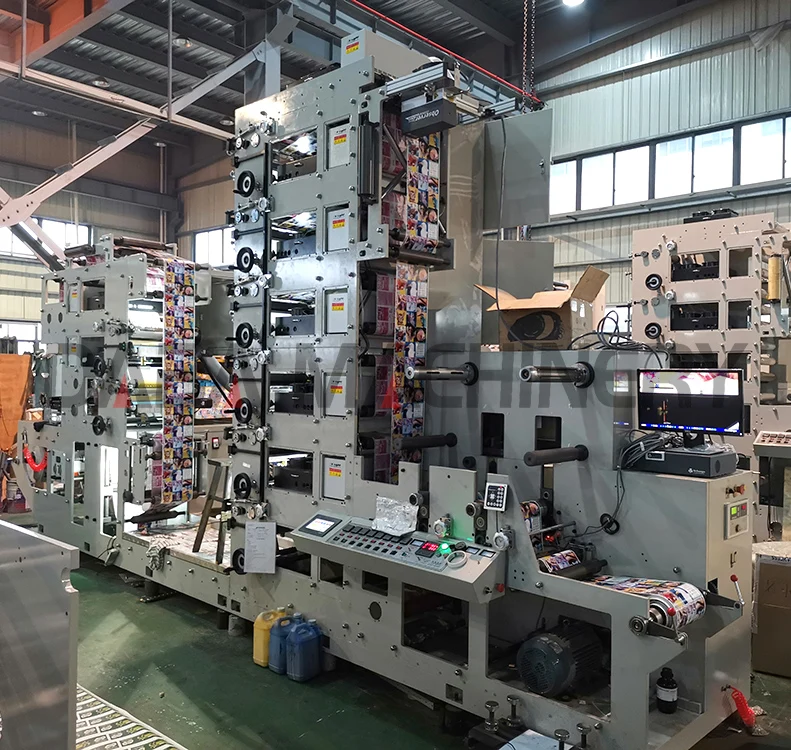

DINGYU single 1 2 3 4 5 6 7 8 colour flexo printers flexographic printing machine
- Category: >>>
- Supplier: Ruian Dingyu Machinery Co. Ltd.
Share on (1600529196993):
Product Overview
Description
Products Description
Main Features
* 1. Main motor adopts imported frequency step-less speed regulator.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.

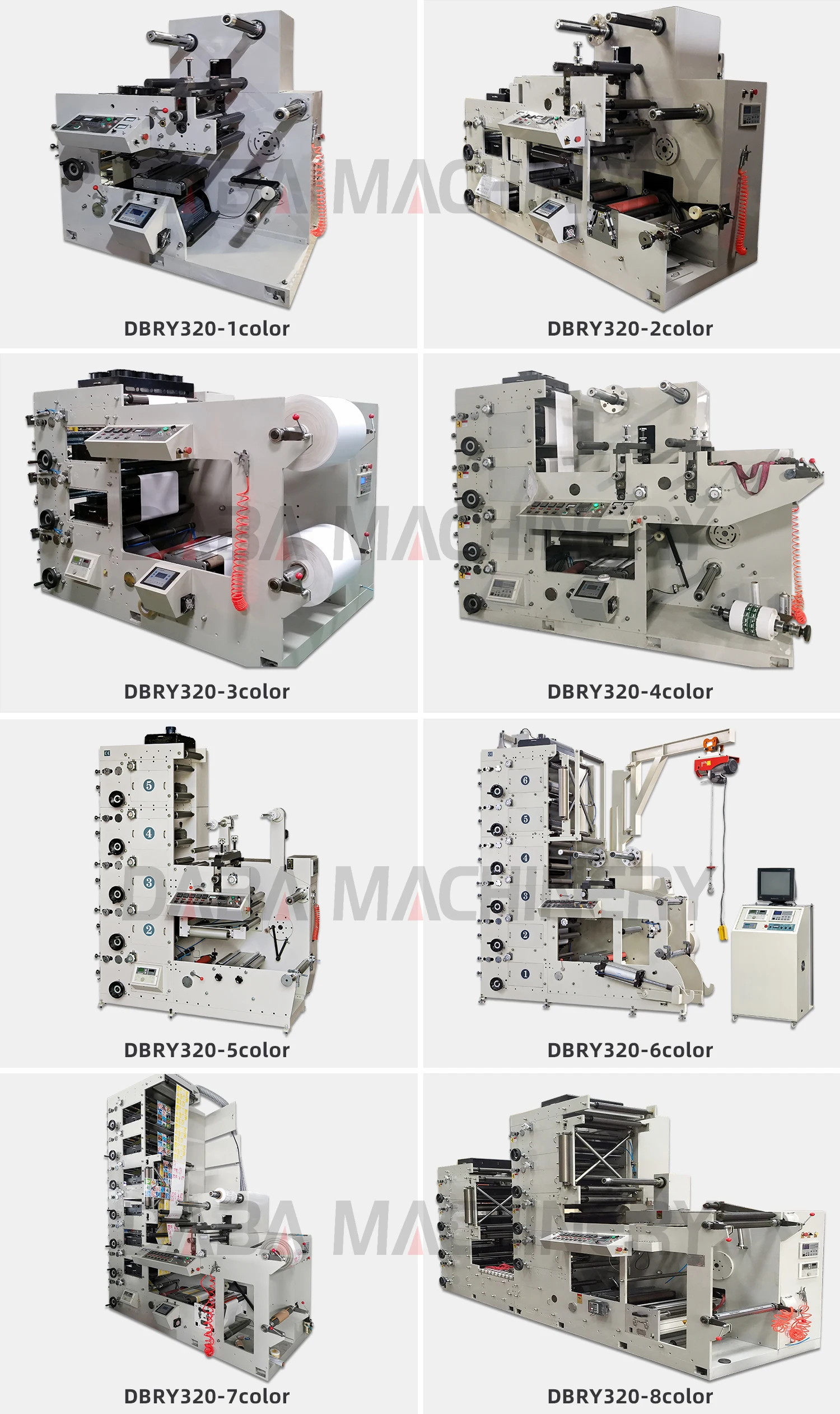

Machine Parameter | ||||||||||||||||
Model | DBRY -1C | DBRY-2C | DBRY -3C | DBRY -4C | DBRY -5C | DBRY -6C | DBRY -7C | DBRY -8C | ||||||||
Printing speed | 70m/min | 60-80m/min | ||||||||||||||
Printing color quantity | 1-12 COLORS | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||||
Max. web width | 330-680mm | |||||||||||||||
Max. Printing width | 320-650mm | |||||||||||||||
Min. Printing width | 35mm | |||||||||||||||
Max. unwinding diameter | 600-1000mm | |||||||||||||||
Max. rewinding diameter | 600-1000mm | |||||||||||||||
Precision of chromatography | ±0.10mm | |||||||||||||||
Machine weight | 1800KG | 2100KG | 2400KG | 2700KG | 3000KG | 3300KG | 3600KG | 3900KG | ||||||||

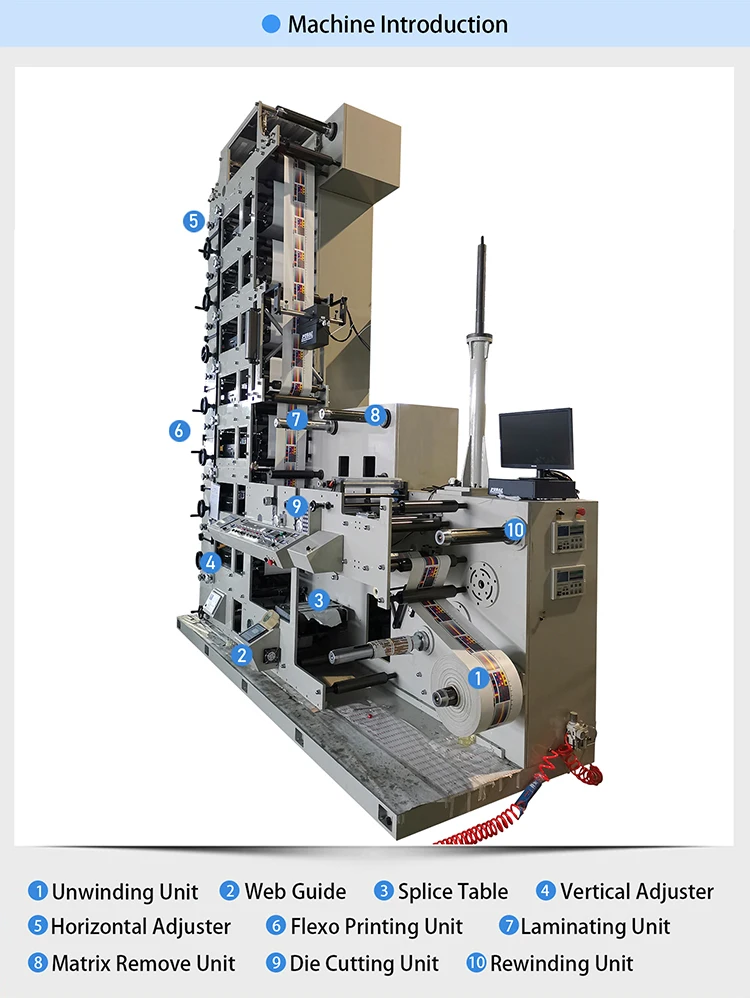

Details Images
1.Unwinding Unit
o Standard Cantilever unwinding station,maximum unwind diameter: 600mm
o 76mm (3″) air shaft roller.
o Electromagnetic power brake.
o Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding
tension.
tension.
2.Web guide system
o EPC system to ensure the printing material the lateral position before feeding to the printing station.
o Ultrasonic Web Guide System,transparent products can be easily detected.
o The precision is ±0.1mm.
o Ultrasonic Web Guide System,transparent products can be easily detected.
o The precision is ±0.1mm.
3.Splice Table
4.Turn Bar Vertical Adjuster
quick change air shaft. Feeding by motor.
5.Turn Bar Horizontal Adjuster
quick change air shaft. Feeding by motor.
6.Flexo Printing Unit
o Printing width:320 mm
o Max printing area: 320mm x 580mm
o Printing repeat Range :178-580 mm（56T-182T）
o Printing driven by 3 kw motor. It could by controlled at the control panel independently
o Gearing – 1/8 cp
o Printing plate thickness:1.7 or 1.14 mm
oBoth sides tape thickness:0.38mm(3M)
o Printing station consist with :Measuring roller(Rub roller) ,Ceramic anilox roller, printing roller, scrapper
o 360°degree printing adjustment .
7.Laminating Unit
o 76mm (3″) quick change air shaft.
o Feeding by motor.
8.Waste Matrix Remove Unit
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
9.Die Cutting Unit
o Gearing – 1/8 cp, 20 degree pressure angle.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
10.Rewinding Unit
o Maximum rewind diameter: 600mm .
o 76mm (3″) quick change airshaft.
o Electromagnetic power clutch.
o Auto tension control ensure the
rewinding tension is tight and rewinding edge is clean.
o 76mm (3″) quick change airshaft.
o Electromagnetic power clutch.
o Auto tension control ensure the
rewinding tension is tight and rewinding edge is clean.
Cold Stamping Unit（optional configuration）
o Need use UV glue with UV oven.
o Cold stamping can be placed at any position.
Cross cutting unit（optional configuration）
Slitting System（optional configuration）
O With 8 pcs rotary knives
O Automatic magnetic powder tension control
O Special blades can be customized according to the product
Camera（optional configuration）
Die Hoist（optional configuration）
Heating Oven UV Dryer（optional configuration）
o Each Printing Unit with one IR heating oven,UV is optional. o Heating oven is equipped over on the printing material.
o Have independent windows for IR and UV oven,easy to install UV oven,do not affect the power and drying range of the IR oven and protect the life of the UV oven better.
Delarm&Relarm Unit（optional configuration）
Electric Register System（optional configuration）
Application and Sample

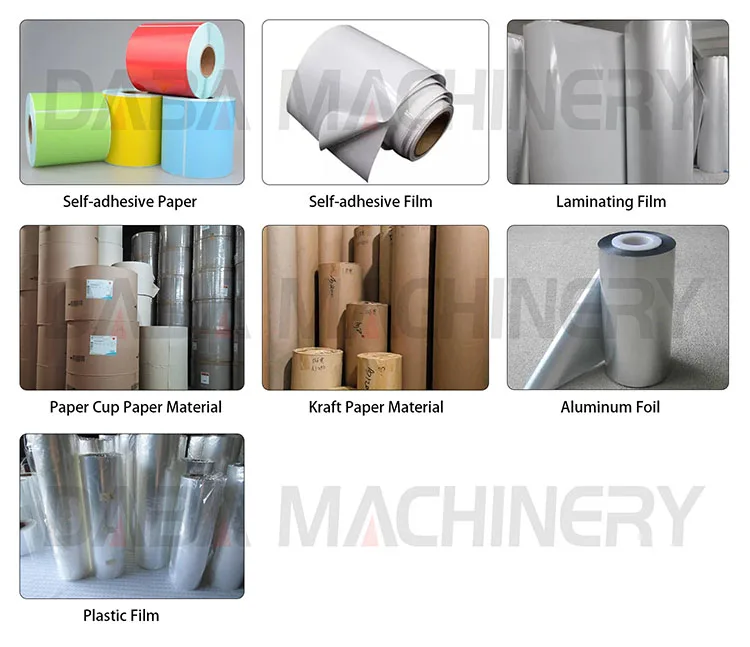

Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film: Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material: kraft paper,paper cup paper,etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film: Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material: kraft paper,paper cup paper,etc.
Application Industry:
* Food product label, Anti-counterfeit label, Daily chemical products label, Medicines label, Chemical label,
Paper cup paper, Blank label, Gold stamping label, Adhesive label, Wine Label,
Price Label, Wash care Label, Oil Label, Bottle Label, Napkin Label,
Milk label, PVC label, Thermal label, Beer Label, Commercial label,
Health product label, Delarm&Relarm label, Battery label, Alcohol label, etc.
Paper cup paper, Blank label, Gold stamping label, Adhesive label, Wine Label,
Price Label, Wash care Label, Oil Label, Bottle Label, Napkin Label,
Milk label, PVC label, Thermal label, Beer Label, Commercial label,
Health product label, Delarm&Relarm label, Battery label, Alcohol label, etc.

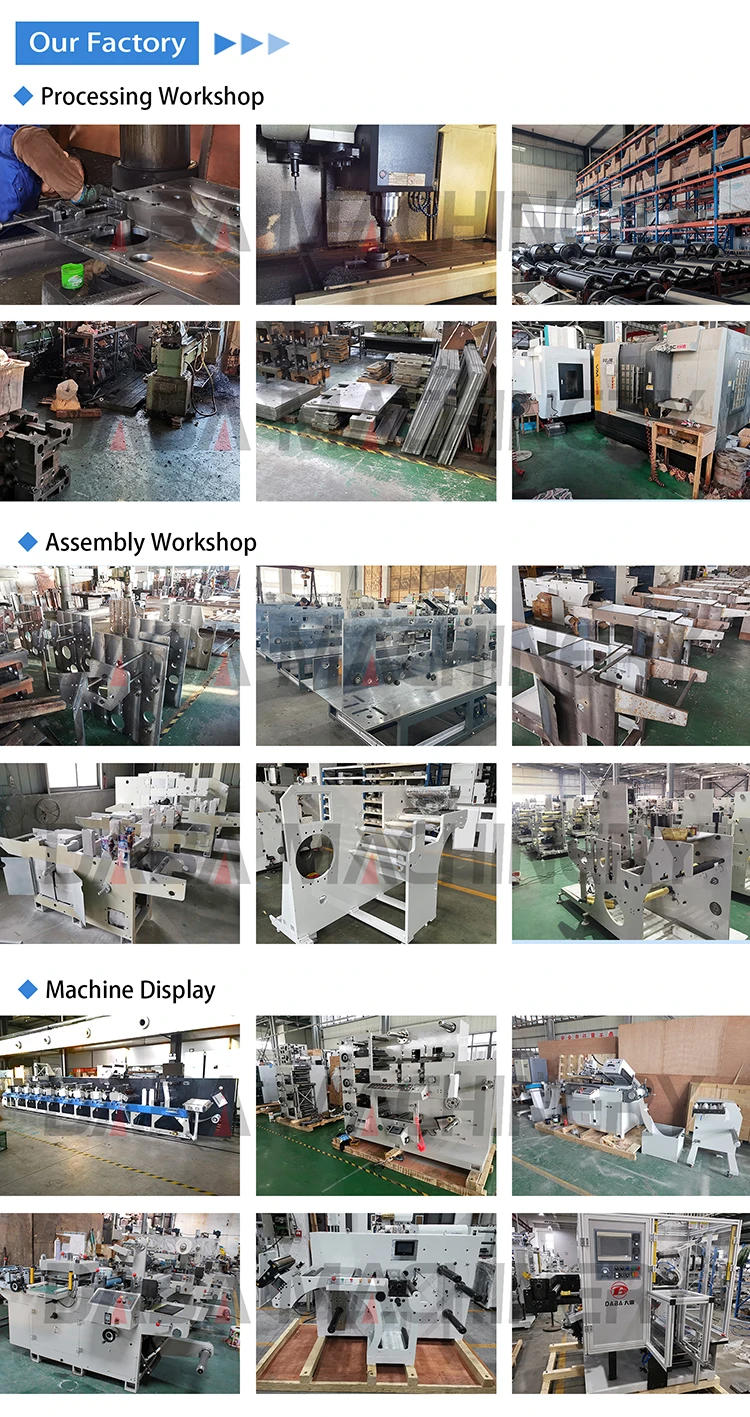

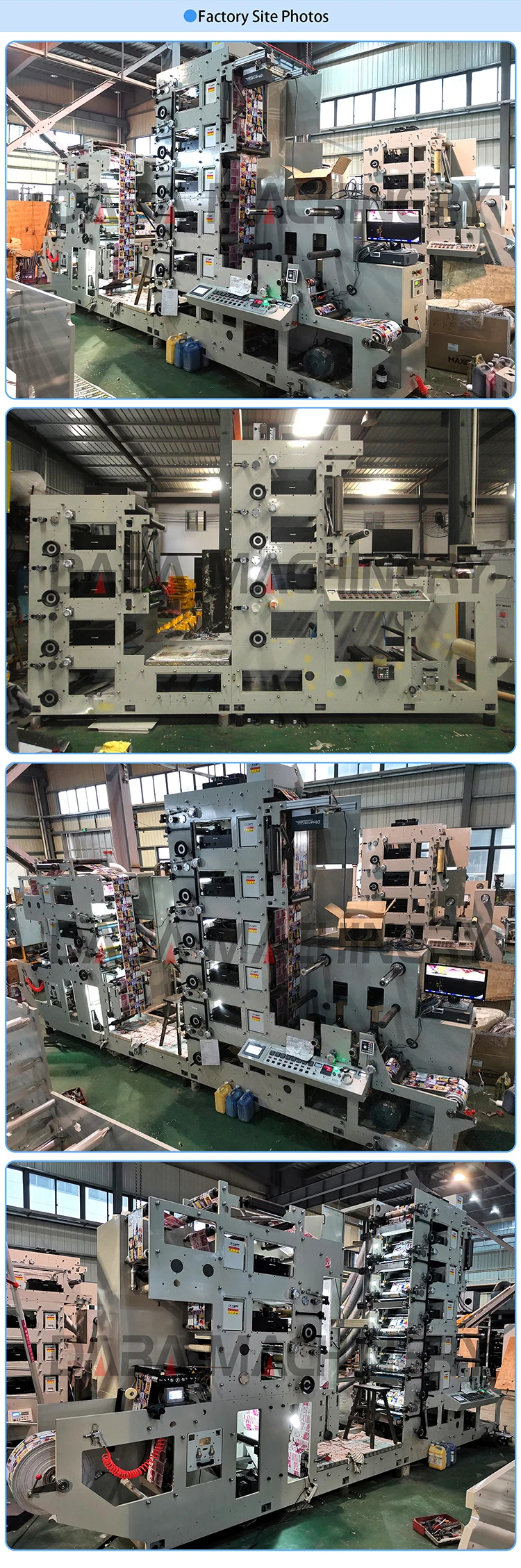

In Factory Photo
