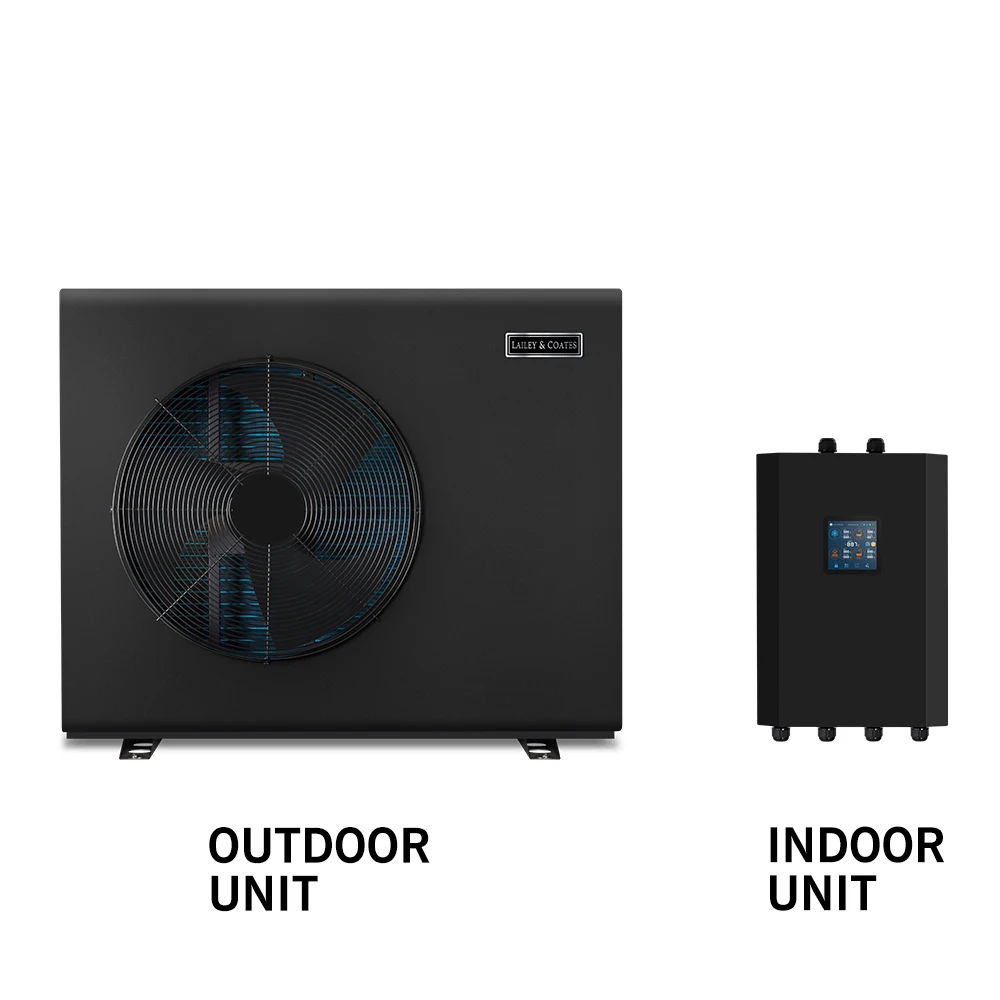

6/9/15/20Kw heat pump with R32 R290 gas for home water heat

Product Overview

Description

LCM-90R-1











Technical Datasheet -- R32 Monobloc Inverter Heat Pump(LCM-90R)
-	-	Air Temp. (℃)    DB/ WB	Leaving Water Temp. (℃)	LCM-90R
Heating	Capacity (kW)	7/6	35	10.94
			55	9.19
	Power Input (kW)	7/6	35	2.18
			55	2.93
	COP (W/W)	7/6	35	5.01
			55	3.14
Cooling	Capacity (kW)	35 / 24	18	10.52
	Power Input (kW)			2.50
	EER (W/W)			4.20
Sound Pressure Level (at 1 m) Rated [dB (A)]				48
Maximum Running Current (A)				17
Rated Water Flow Rate (at LWT 35℃) (LPM)				31
Dimensions (Unit) (LxWxH) (mm)				1094 x 421 x 910
Net Weight (kg)				86
Power Supply (V/ Phase / Hz)				220 ~ 240 / 1 / 50
Compressor				GMCC
Refrigerant				R32









For all the hype surrounding hydrogen, the cheapest way to warm a home during the green

transition will be a heat pump.



That’s the finding a new study by European consumer organizations,

which said the pumps -- that draw heat from the surrounding air -- can help cut heating bills

by a quarter compared with the cost of conventional gas boilers. The verdict on

hydrogen-fueled boilers is severe: they “will never be a cost-effective option.”

And the European Union and its member states should avoid supporting the gas

in the residential sector, the groups said.



We manufacture solutions For A Better World. Our products contribute to saving energy

and cutting emissions. They are designed to make sure buildings are good

for the environment and safe and comfortable for everyone who uses them.





Green homes are the most obvious energy security solution no one is talking about. Energy security starts at home: this means supercharging a renovation wave to cut energy bills and permanently reduce the exposure of families to volatile international gas markets – boosting energy efficiency and rolling out electric heat pumps.







The Core Components























Certifications
