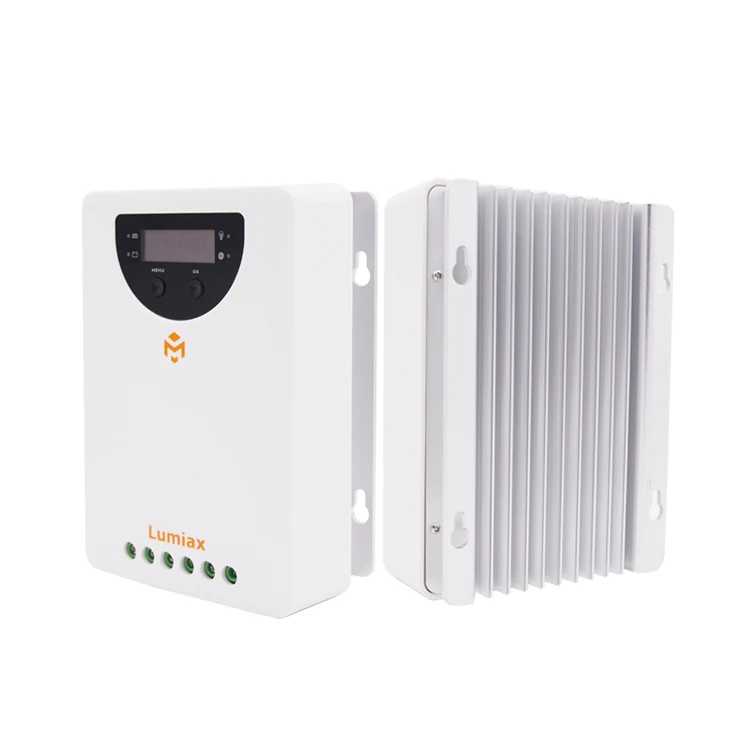

40A 12V 24V charge solar controller mppt solar charge controller for solar panel system OEM ODM with Bluetooth
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (1600529260395):
Product Overview
Description
Products Description
Solar Charge Contrroller Parameters
ltem | MC4010 |
Max Charging Current | 40A |
System Voltage | 12/24V automatic recognition |
MPPT Charging Voltage | before boost or equalization charging stage |
Boost Voltage | 14~14.8/28~29.6vV@25℃(default: 14.5/29V） |
Equalization Voltage | 14~15.0/28~30V@25℃(default 14.8/29.6)(Liquid,AGM) |
Float Voltage | 13~14.5/26~39v @25℃(default 13.7/274V) |
Low Volt.Disconnect | 10.8~11.8V/21.6~23.6V(default 11.2/22.4V) |
Reconnect Voltage | 11.4~12.8V/22.8~25.6V (default 12.0/24.0V) |
Overcharge Protect | 15.8/31.3V |
Max volt on Bat. terminal | 35V |
Charging target voltage | 10.0~32.0V(Lithium default: 14.4V) |
Charging recovery voltage | 9.2~31.8V(Lthium, default 14.0V) |
Low voltage disconnect | 9.0~30.0V(Lthium, default: 10.6V) |
Low voltage reconnect | 9.6~31.0V(Lthium, default 12.0V) |
Battery Type | Gel AGM,Liquid,Lithium (default Gel) |
Max input power | 520/1040W |
Day/Night threshold | 3.0~10.0/6.0~20.0V(Default:8/16V) |
MPPT tracking range | (Battery Voltage +1.0V)~Voc*0.9 |
Output Current | 30A |
Load mode | Always on,Street lamp,User-defind Mode(default: Always on) |
Max tracking efficiency | >99.9% |
Max charge conversion | 98% |
Dimensions&Weight | 196.5*136.6*67.1mm&1.3Kg |
Self consumption | ≤12mA |
Communication | RS485(RJ11 interface) |
Optional | loT,BLE(1nternal/External) |
Grounding | Common Negative |
Power terminals | 6AWG(16mm) |
Ambient temperature | -20~ +55℃ |
Storage temperature | -25~ +80℃ |
Ambient humidity | 0~100%RH |
Protection degree | IP32 |
Max Altitude | 4000m |
Certifications
Our Advantages
Company&Factory
Customer Feedback
Shipping and payment
Lumiax solar chanrge controller, your best choice. Consult customers to get discounts.
