Commercial mono photovoltaic panneaux solaires 500w solar panel
- Category: >>>
- Supplier: Jinan,Eric,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
SPECIFICATIONS FOR SOLAR PANEL | ||||||||||||||||
Model No. | SU-480Wp-132M | SU-485Wp- 132M | SU-490Wp-132M | SU-495Wp-132M | SU-500Wp-132M | SU-505Wp-132M | SU-510Wp-132M | SU-515Wp-132M | ||||||||
Max power(Pmax) | 480 | 485 | 490 | 495 | 500 | 505 | 510 | 515 | ||||||||
Max power voltage(Vmp) | 37.78 | 37.93 | 38.08 | 38.23 | 38.38 | 38.53 | 38.67 | 38.82 | ||||||||
Max power current(Imp) | 12.71 | 12.79 | 12.87 | 12.95 | 13.03 | 13.11 | 13.2 | 13.28 | ||||||||
Open circuit voltage(Voc) | 44.95 | 45.1 | 45.25 | 45.4 | 45.55 | 45.7 | 45.85 | 46 | ||||||||
Short circuit current(Isc) | 13.59 | 16.67 | 13.74 | 13.82 | 13.9 | 13.97 | 14.06 | 14.13 | ||||||||
Moudle efficienvy(%) | 20.3 | 20.4 | 20.6 | 20.8 | 21.1 | 21.3 | 21.5 | 21.7 | ||||||||
Power tolerance | 0~+5W | |||||||||||||||
Max system voltage | DC1500V | |||||||||||||||
Maximum Series Fuse Rating | 20A | |||||||||||||||
Dimensions | 2094*1134*35mm | |||||||||||||||
Weight | 25kg | |||||||||||||||

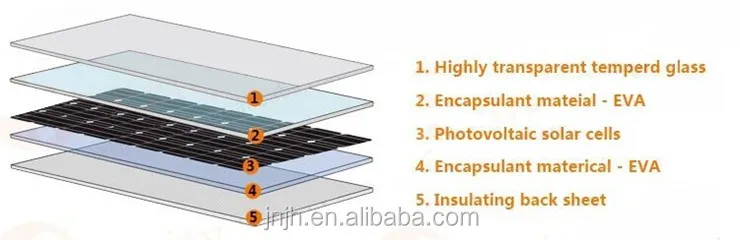

Front glass | High transparency solar glass 3.2mm (0.13 inches) | |||||||||||||||
Frame | Silver, anodized aluminium alloy | |||||||||||||||
Output cables | TUV\u007F1×4.0mm2,\u007FLength:\u007F300mm\u007For\u007FCustomized\u007FLength | |||||||||||||||
Junction box | IP68+3 | |||||||||||||||
Cell type | Monocrystalline silicon 182x91mm | |||||||||||||||
Number of cells | 132 cells in series | |||||||||||||||
Warranty | 10years of product defects in materials & workmanship | |||||||||||||||
10years for 90% of warranted minimum power output | ||||||||||||||||
30years for 80% of warranted minimum power output | ||||||||||||||||
Packing & Delivery
Company Profile
Jinan Eric Energy Technology Co., Ltd.is a leading international manufacturer and supplier of green energy products,which manufactures poly and mono solar cells, modules, and PV power generation systems.We are a high-tech enterprise that has been developed over 17 years,our factory is located in Shanghe development Zone,Jinan city,Shandong Province.With convenient transportation access,it close to port of Qingdao.In order to ensure the quality of the products, our products have passed ISO9001, CE and TUV certification. In addition,we have a professional technical team and advanced facility, comprehensive product test methods as well as strict quality control system.All of our products are greatly appreciated in a variety of different markets all over the world. Our company sales team provides 24-hour professional online service to ensure timely and best quality customer service.If you are interested in any of our products or would like to build a business relationship with us,please contact us now for any further notice.We are looking forward to forming successful business relationships with clients around the world in the near future.Thank you very much for watching.
PRODUCT PROCESS
CERTIFICATIONS
FAQ
Q1: What's the difference between Mono and Poly panel?
A1: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: What is the warranty for solar panels?
A3: We provide 10 years warranty for product,10 years warranty for 90% power production,30 years warranty for 80% power production.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: Are you factory ?
A5: We are manufacturer in solar products area more than 10 years .
