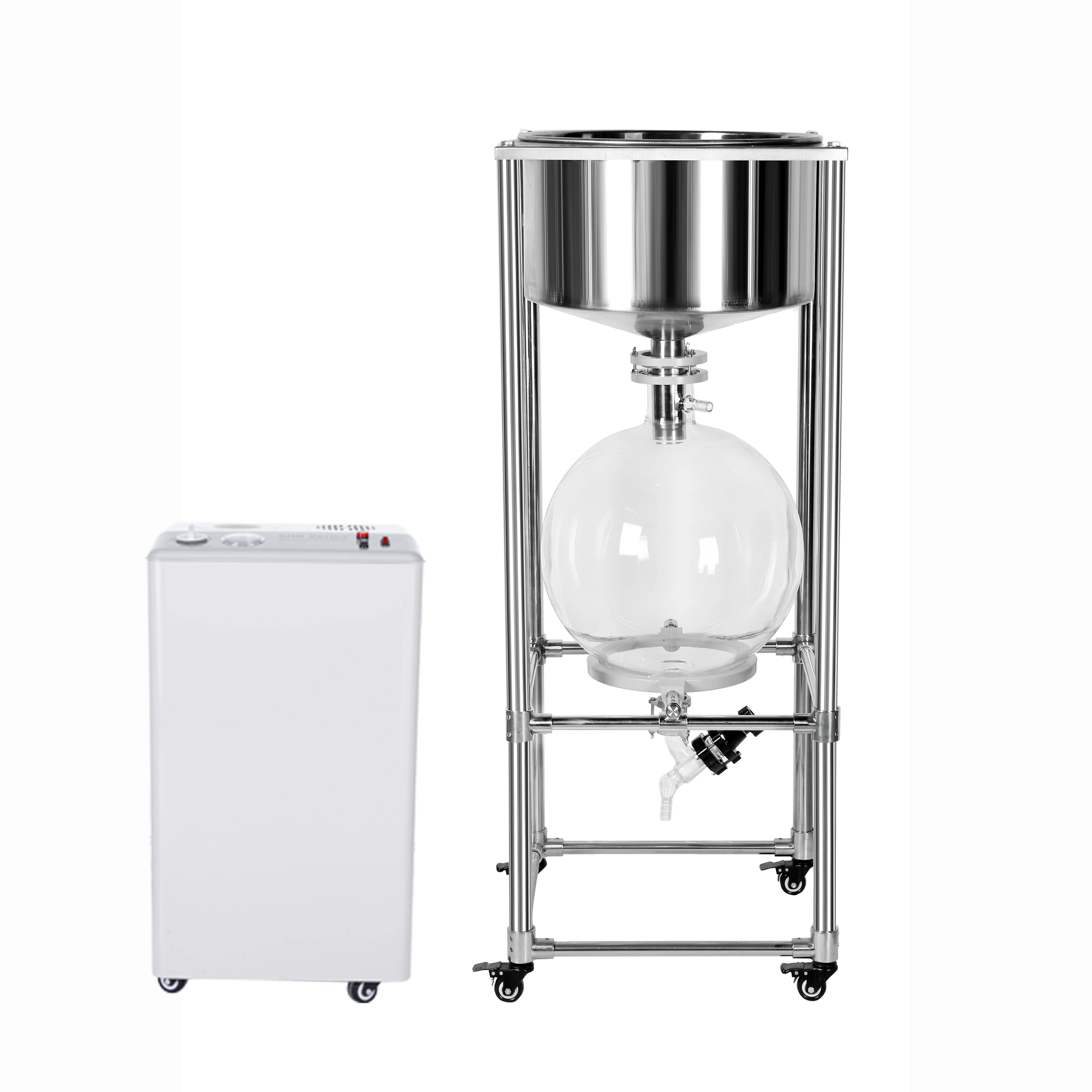

Corrosion Resistant Industrial Filtration Apparatus Vacuum Filter Funnel 30Liter
- Category: >>>
- Supplier: Zhengzhou Sykes Biotechnology Co. Ltd.
Share on (1600529272231):
Product Overview
Description
Product Description
Vacuum suction filter is also know as vacuum filter, according to the actual needs of the majority of bio pharmaceutical development companies, it is the derivative product on the basis of the existing single-layer glass reactor, mainly used for solid-liquid separation products. It can also be used for reaction at room temperature. With superior performance, it received consistent favourable comment from experts and professor of Chinese Academy of Sciences and the users of new drug research and development. It acquires wide use at present .
Product | Vacuum Suction Filter | ||||||
Model | VF-10 | VF-20 | VF-30 | VF-50 | |||
Funnel capacity | 10L | 20L | 30L | 50L | |||
Funnel type | Buchner funnel | Buchner funnel | Buchner funnel | Buchner funnel | |||
Filter bottle capacity | 10L | 20L | 30L | 50L | |||
Filter bottle type | Spherical | Spherical | Spherical | Spherical | |||
Glass part material | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | |||
Filter bottle inlet( mm ) | 95 | 95 | 95 | 95 | |||
Filter bottle outlet( mm ) | 50 | 50 | 50 | 50 | |||
Size of filter bottle ( mm ) | 297 | 370 | 404 | 460 | |||
Funnel size( mm ) | 300 x 200 | 350 x 220 | 350 x 220 | 500 x 250 | |||
Sealing type | Silicone gasket sealing | Silicone gasket sealing | Silicone gasket sealing | Silicone gasket sealing | |||
Dimension of complete machine ( mm ) | 400 x 400 x 1200 | 500 x 500 x 1300 | 500 x 500 x 1400 | 600 x 600 x 1500 | |||

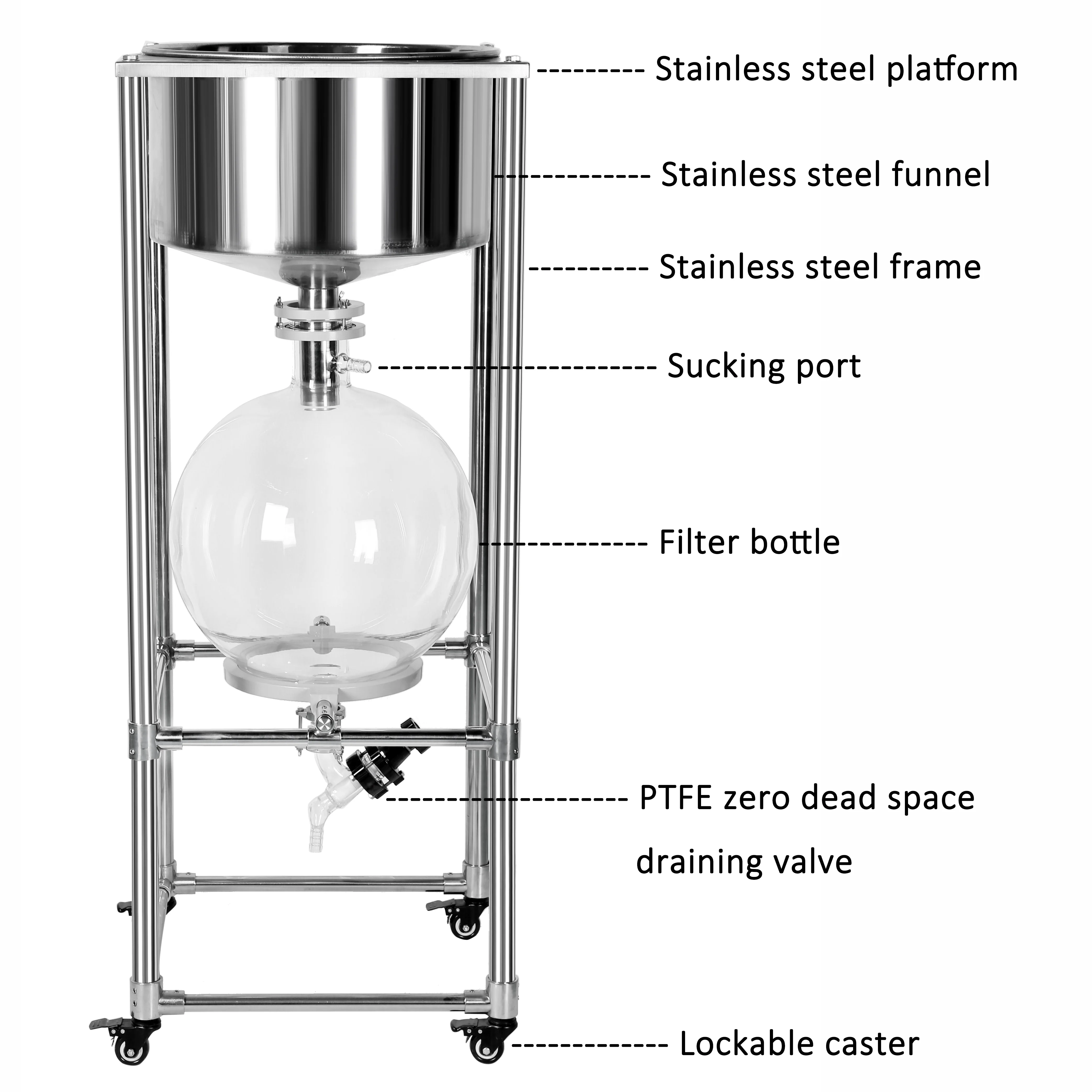

1.\tThe 3.3 high borosilicate glass suction flask has excellent chemical and physical properties
2.\tStainless steel buchner funnel has excellent physical and chemical properties.
3.\tPTFE Zero dead space draining valve can be disassembled. It is convenient to remove the solid materials.
4.\tThe whole machine has perfect sealing performance, under static state negative pressure can reach 0.095MPa.
5.\tThe structure of the whole machine is scientific, visual features, practical and innovative.
6.\tEquipped with lockable casters.
2.\tStainless steel buchner funnel has excellent physical and chemical properties.
3.\tPTFE Zero dead space draining valve can be disassembled. It is convenient to remove the solid materials.
4.\tThe whole machine has perfect sealing performance, under static state negative pressure can reach 0.095MPa.
5.\tThe structure of the whole machine is scientific, visual features, practical and innovative.
6.\tEquipped with lockable casters.
Certifications
Detailed Images

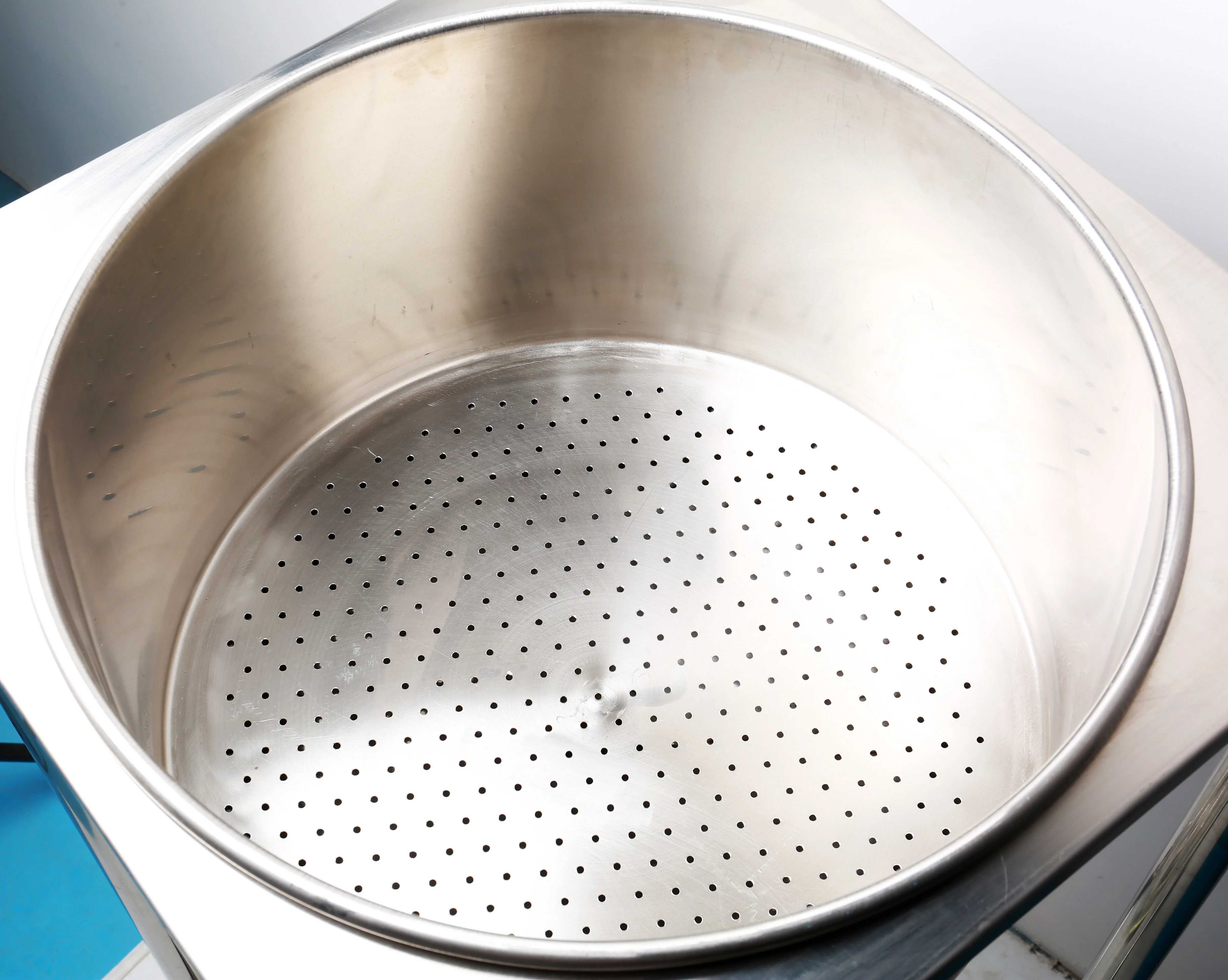

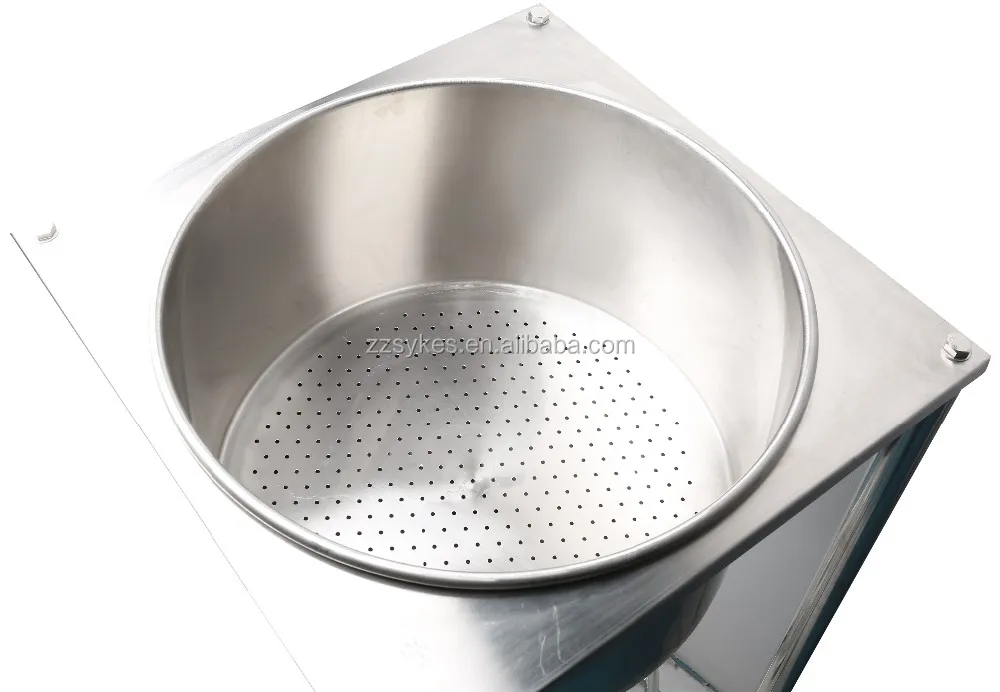

Stainless steel funnel

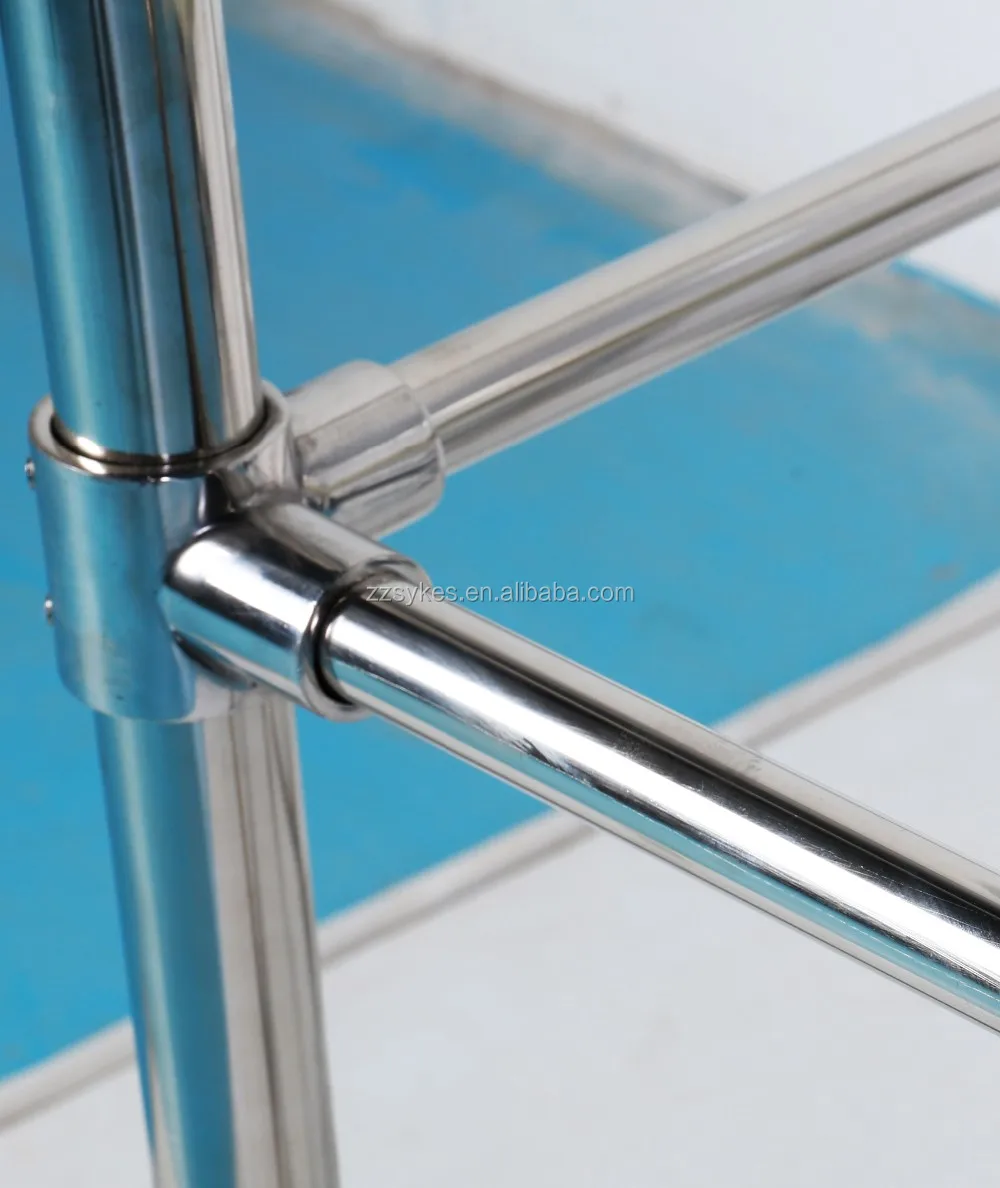

Stainless steel frame
.

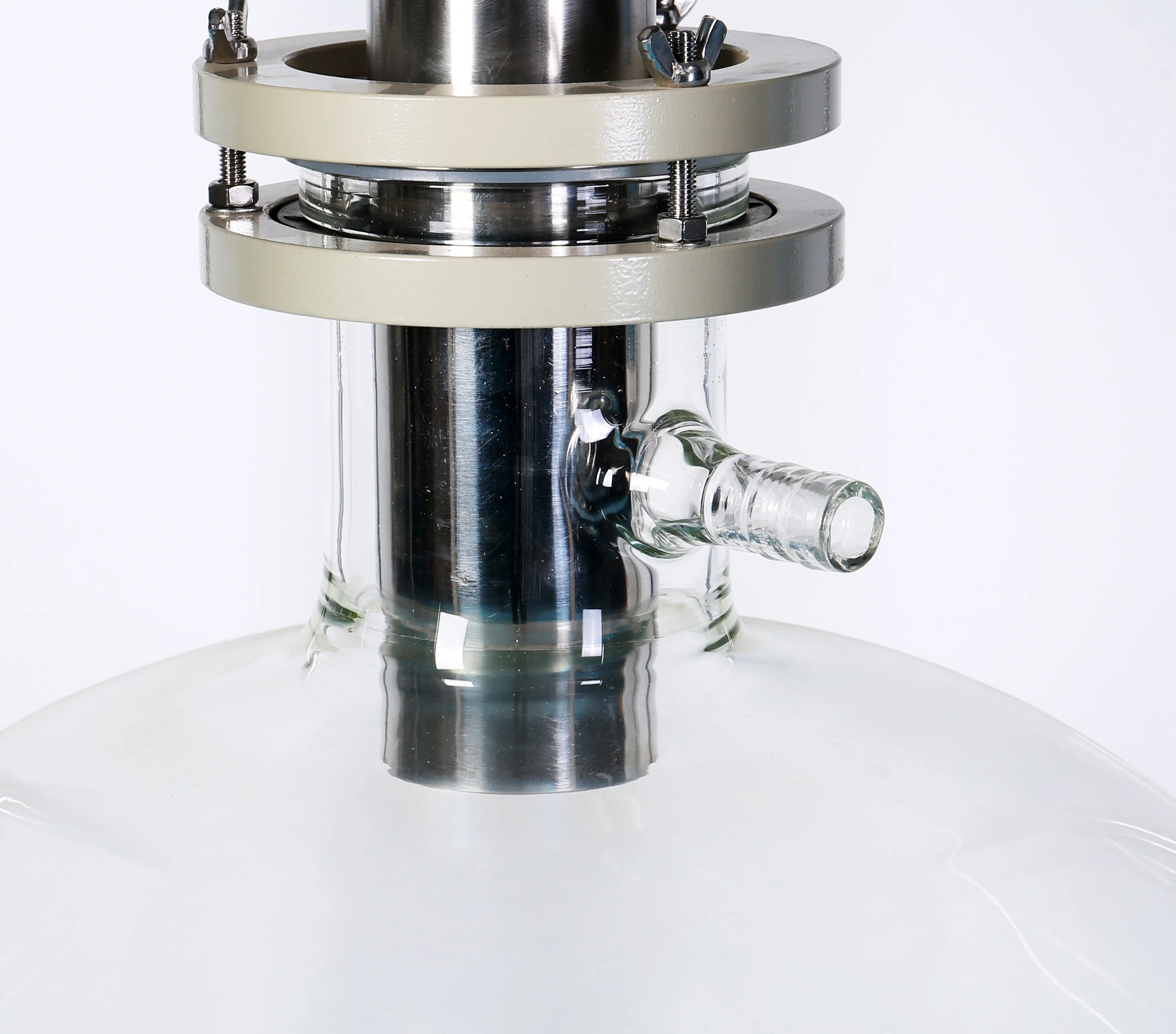

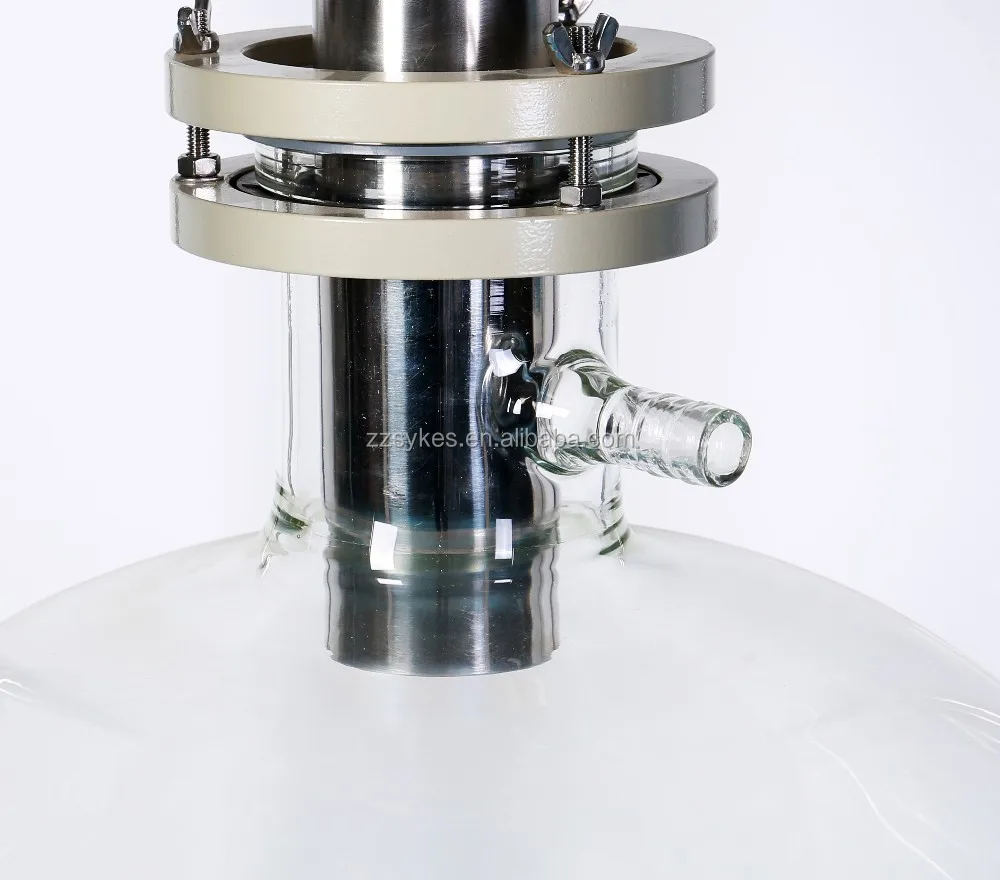

Sucking port

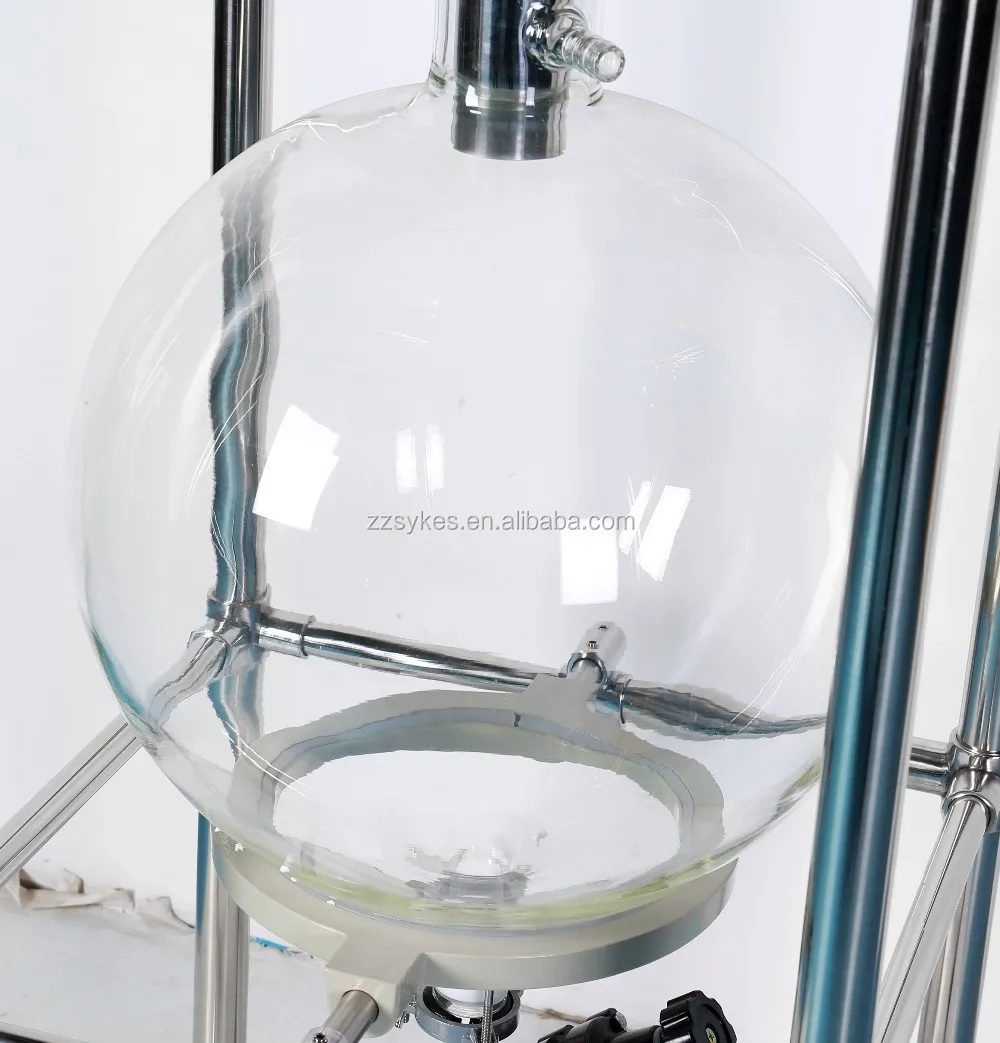

High borosilicate glass 3.3 filter bottle

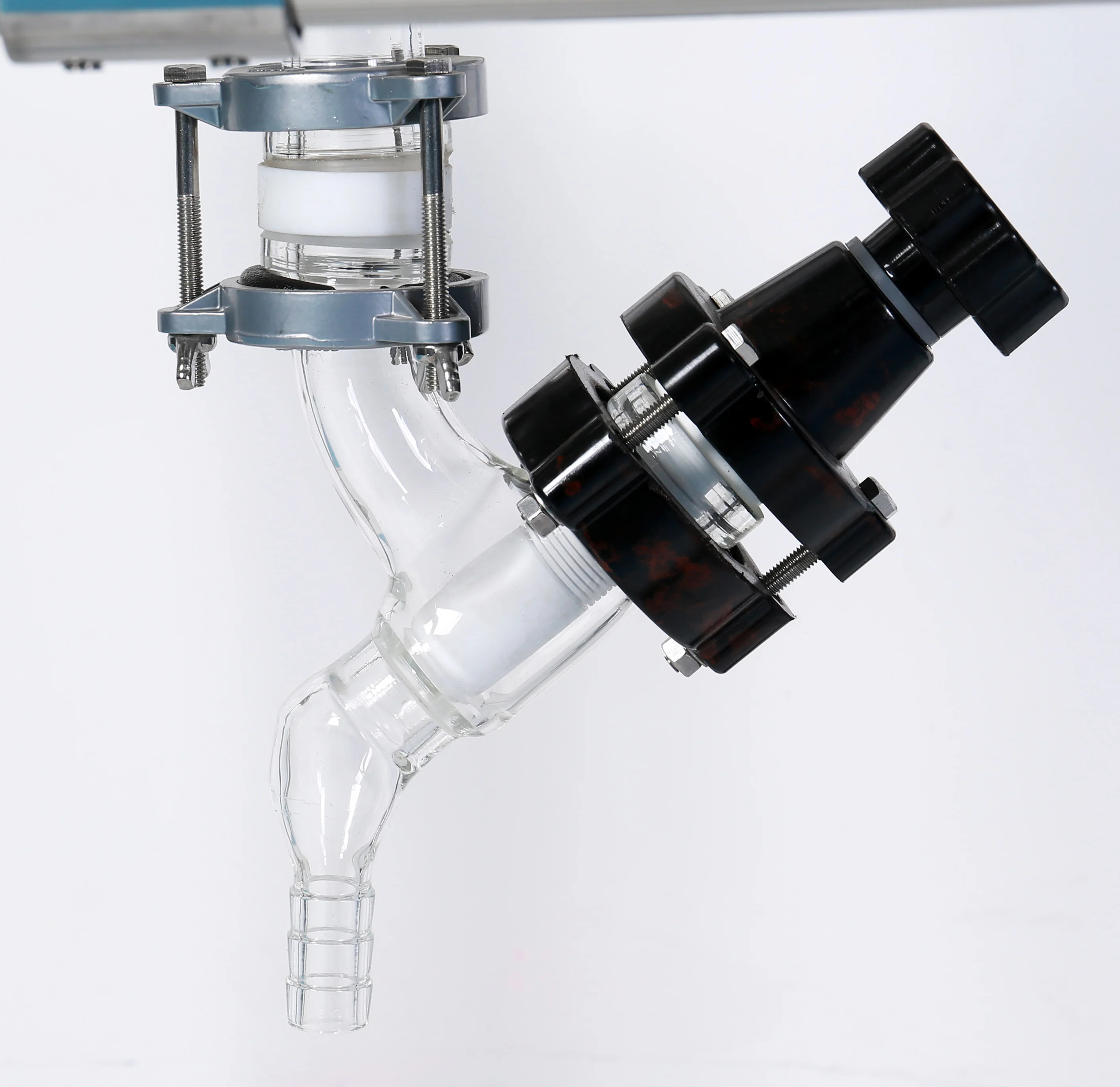

Draining valve
Corollary Equipment

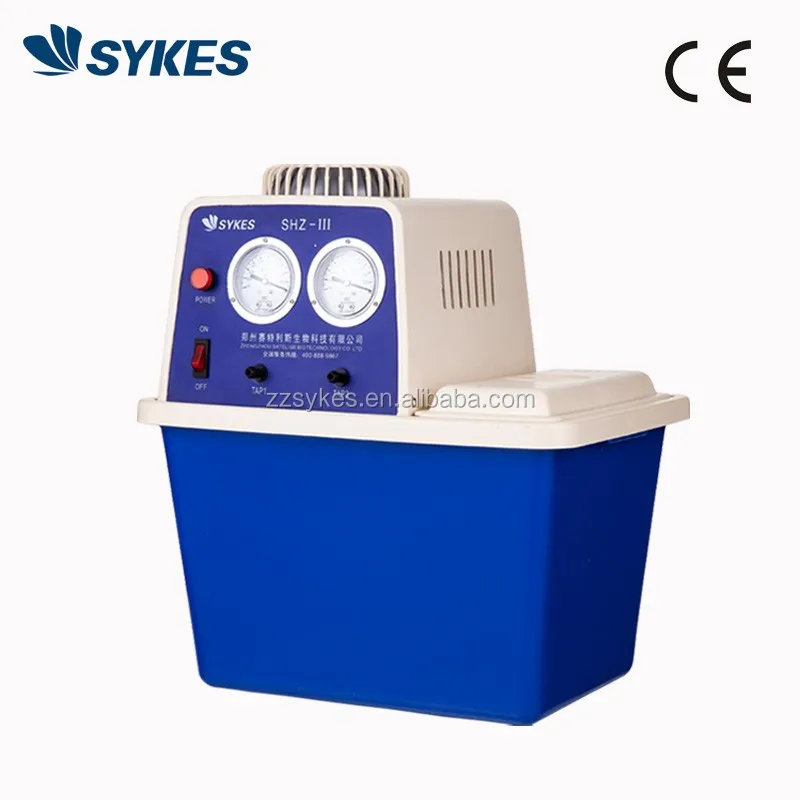

Anti-corrosive PTFE Water Circulating Vacuum Pump SHZ-IIIG
Spray Paint Teflon Water Circulating Vacuum Pump SHB-B95T
Related Products

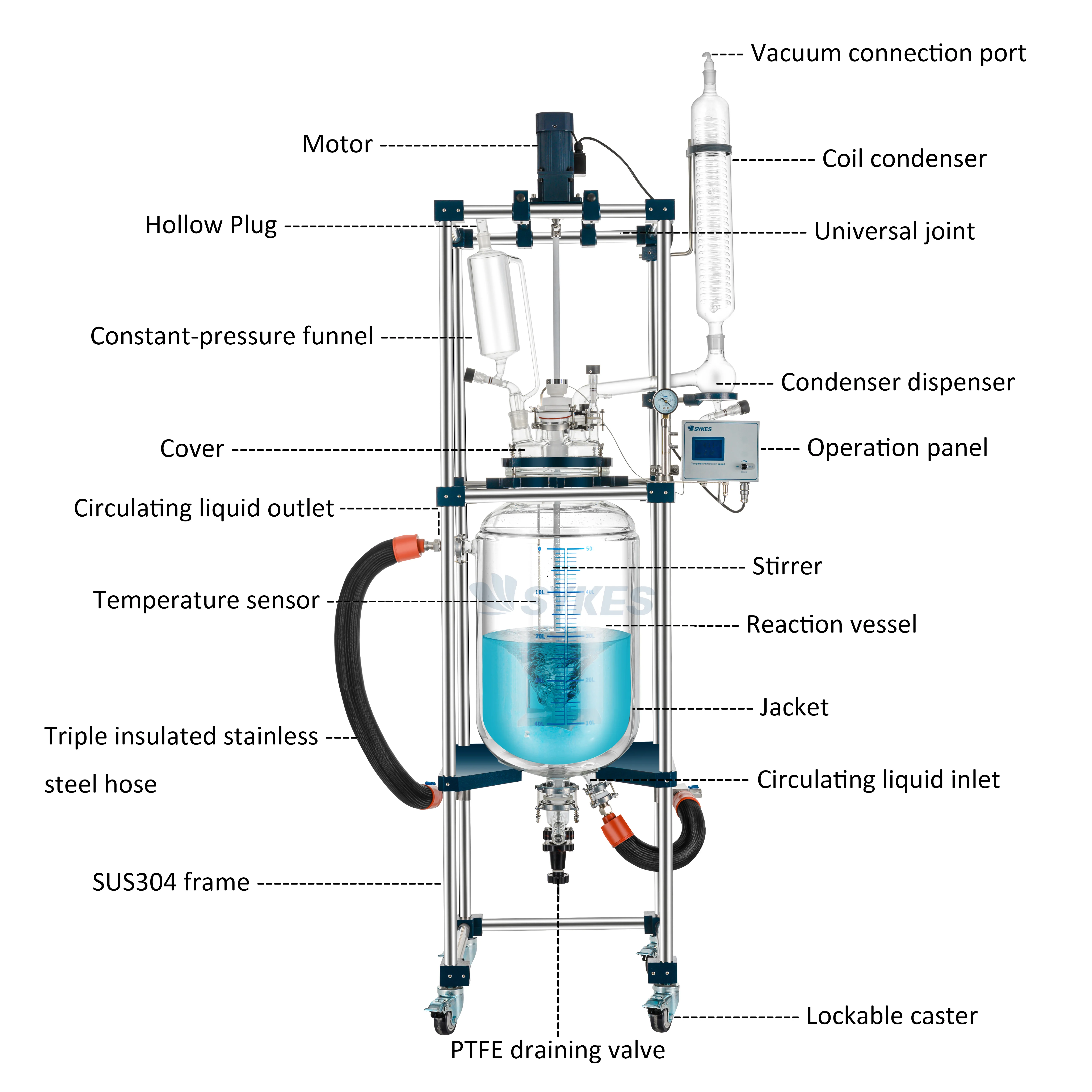

1L-100L Single-layer Glass Reactor With Heating Bath Itself DF Series
