Product Overview
Description
Product Description

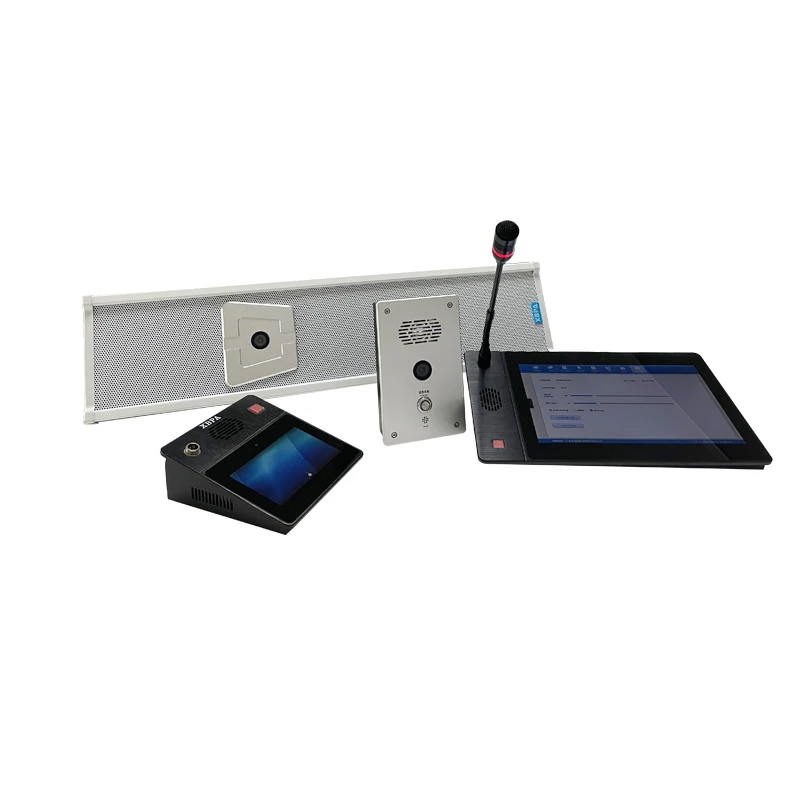

10.1-inch video visual intercom Broadcasting System host software power amplifier speaker full set equipment

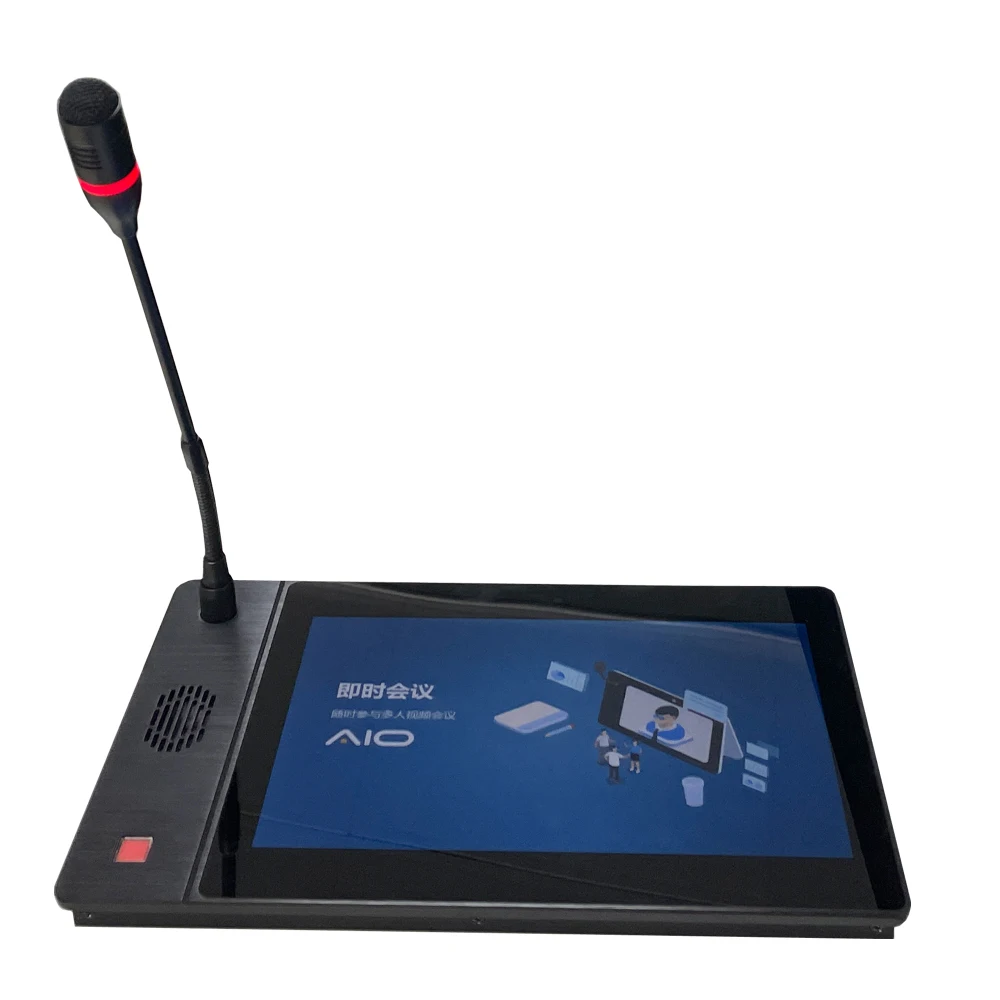

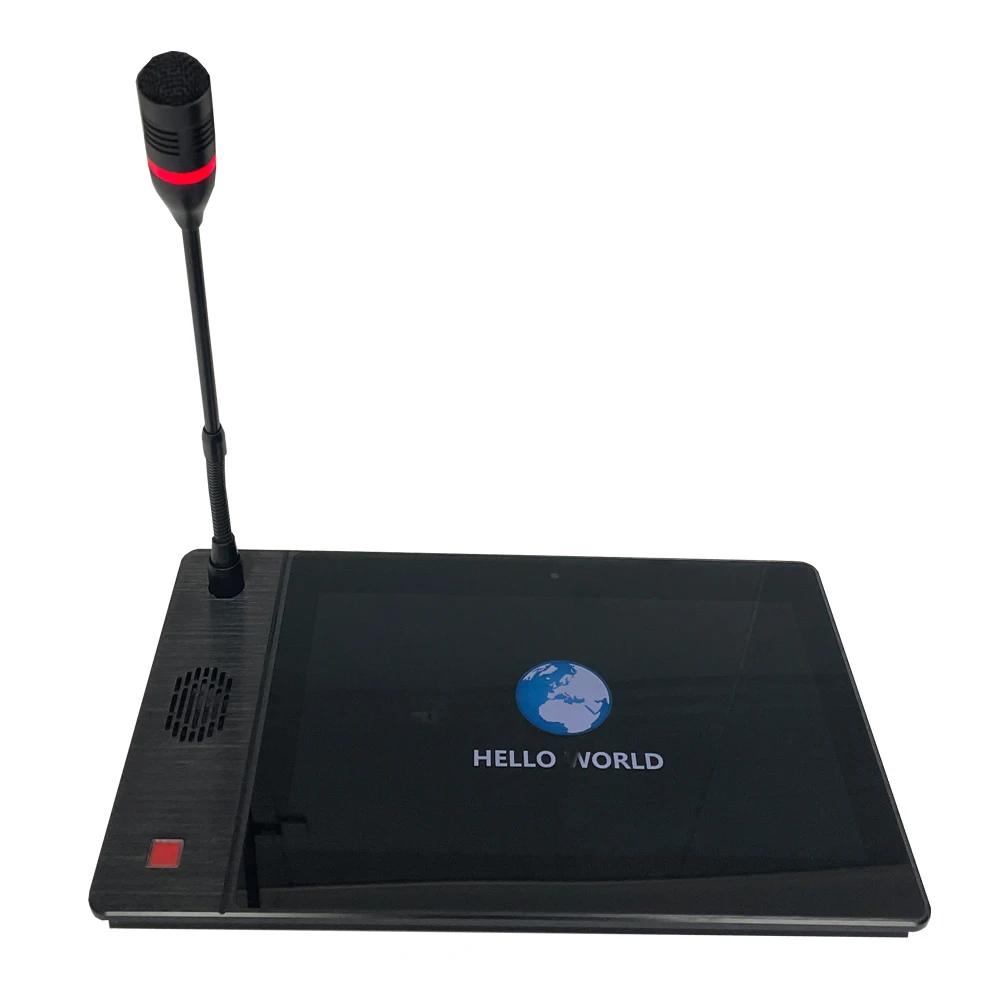

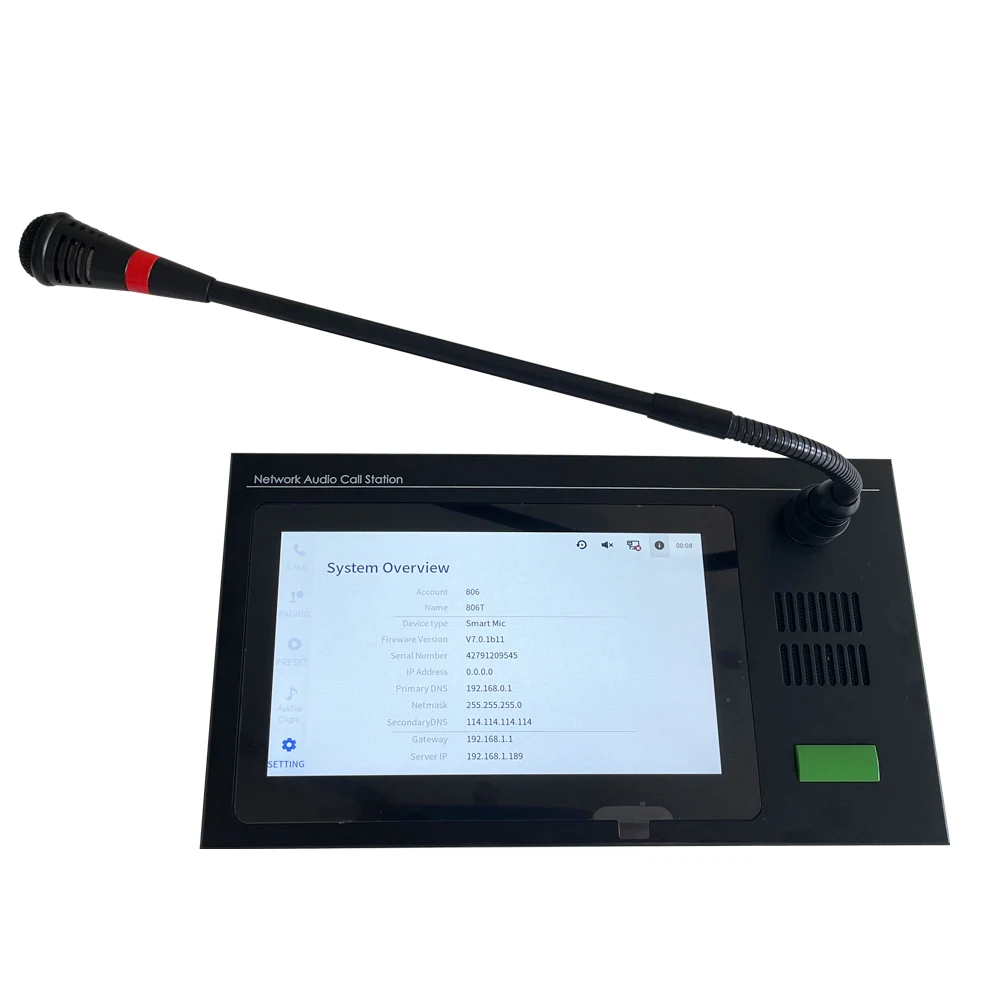

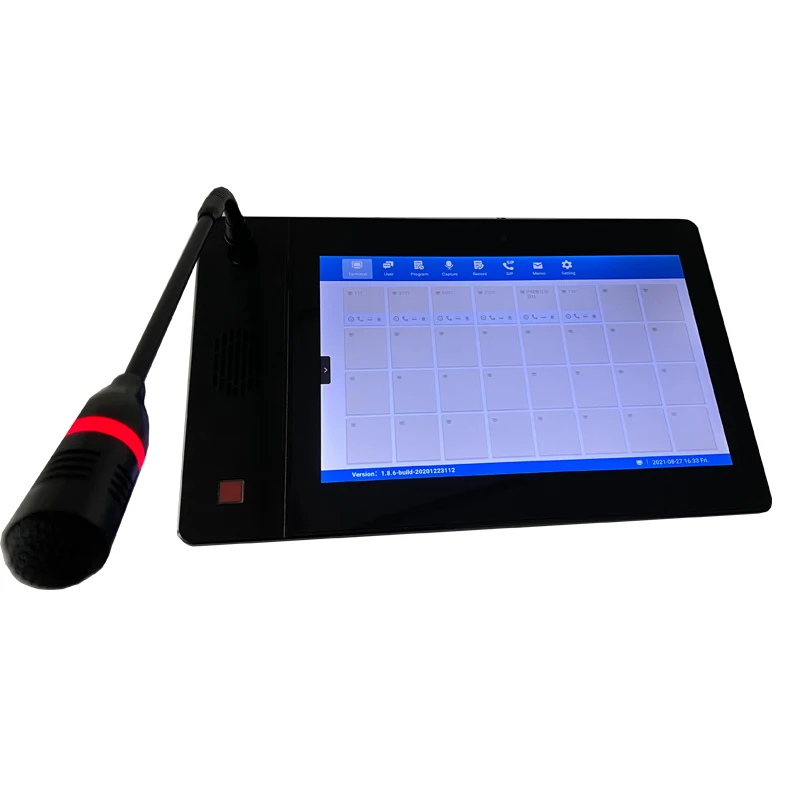

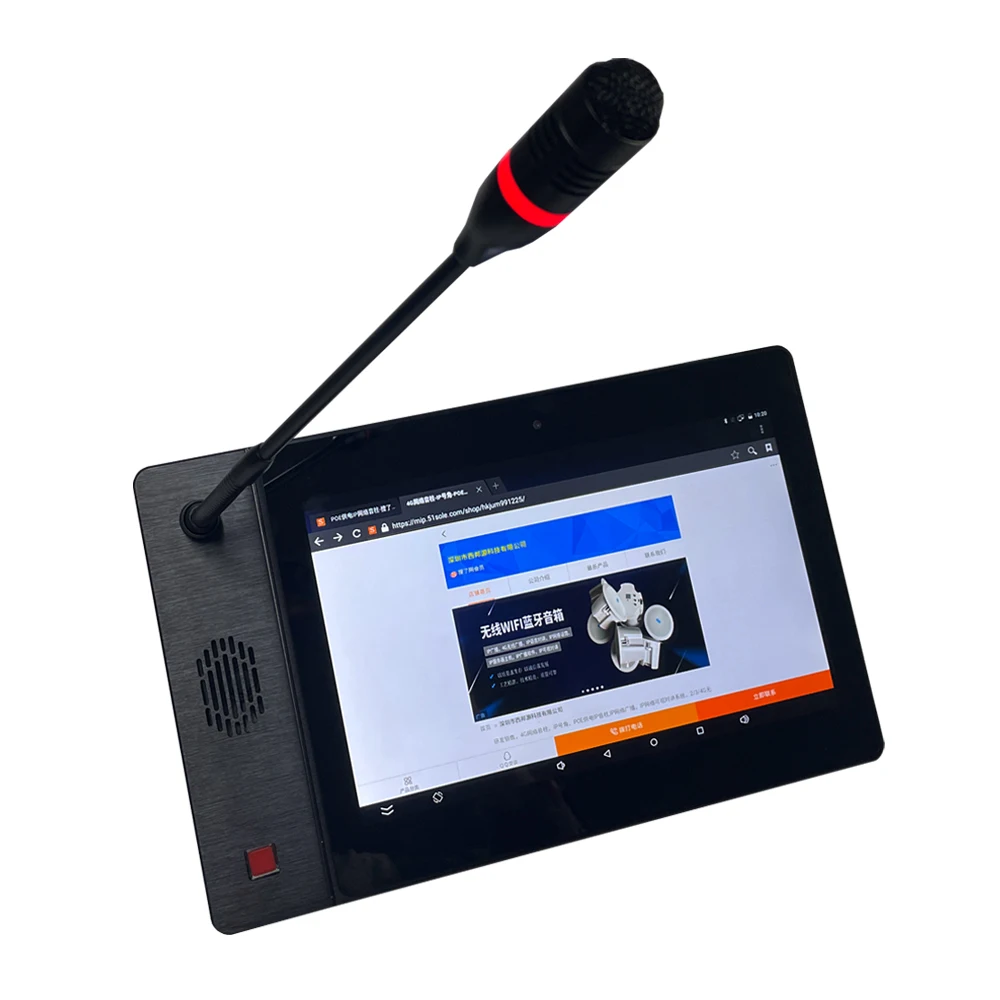

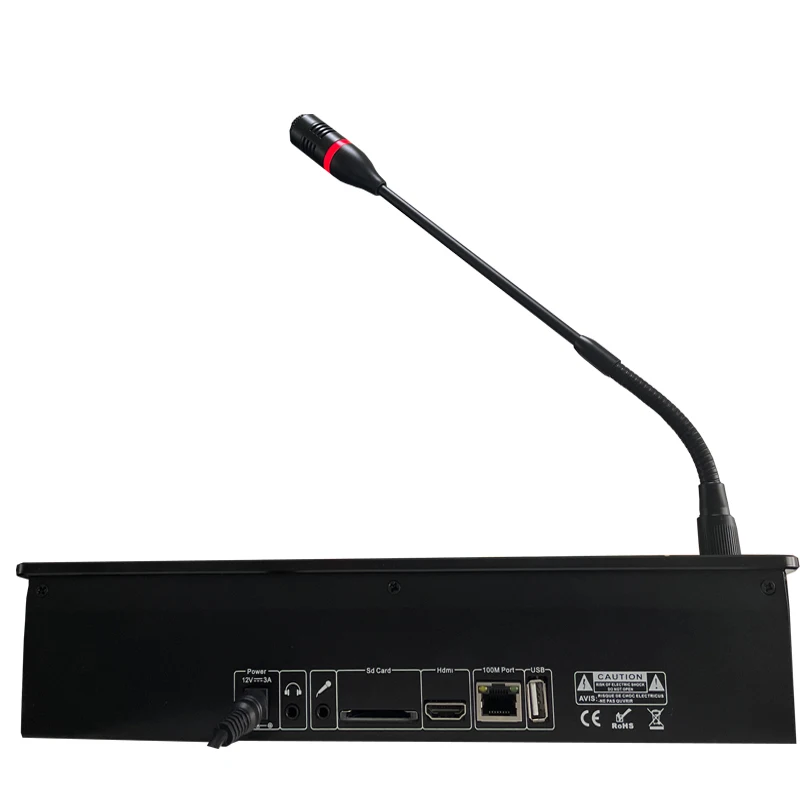

IP Video Docking microphone host
System function
1. Two-way voice video intercom (one-way visual intercom) call function;
The video intercom terminal and the command center's intercom can be set as hands-free after the call is connected, or vice versa.
2. One-button emergency assistance intercom function;
Voice video intercom terminal can be launched with one key to quickly call the monitoring center or the duty room personnel and get help in time.
3. Call transfer function;
When a video intercom terminal in the monitoring center is on the line, or no one is answering after the specified number of rings, or is shut down, it will be automatically transferred to the next voice intercom terminal in the monitoring center.
4. Call strong cutting function;
Voice intercom terminal call can set priority level, high-level voice intercom terminal user can forcibly terminate and insert the call of lower level user.
5. Partition broadcast function;
For example, a monitoring center or duty room can carry out one-way broadcast paging on one or more terminals.
6. Monitoring function;
The pickups of the visual intercom terminal can be used to listen to the surrounding sound.
7. Function of linkage with video monitoring;
The system can open the protocol and port, which is controlled by the video monitoring system linkage, and realize the unified switch between audio and video main screen.
After the user presses the alarm button, the equipment issues an order to the monitoring room center and the regional police station monitoring center. After the security system platform receives the trigger signal, it can dispatch the camera corresponding to the alarm intercom terminal to view the warning situation and record the video.
8. Alarm tone function;
When using the on-site voice intercom terminal for help or talk, the voice intercom terminal of the monitoring center or customer center can output the ringing tone to prompt the staff to answer the call in time.
10. Voice intercom recording function;
The system can automatically carry on the digital recording to the speech conversation content, the recording file saves in the server hard disk.
11. Headset calling function;
The desktop voice intercom terminal in the monitoring center can be connected to the external headset, ensuring that the customer service specialist can make good calls with the remote voice intercom terminal in the case of human noise or environmental noise.
Type no. | XBPA – 5900V |
The network interface | Standard RJ45 input |
Support agreement | TCP/IP, UDP, IGMP (multicast) |
Coding format | 264 H. |
Video pixel | 5 million |
Transmission rate | 100 MBPS |
Audio mode | 16-bit stereo CD sound quality |
Display size | 10.1 in. |
Screen resolution | 1280 * 800 pixels |
Screen type | 65 k color DGUS screen |
The keyboard type | Virtual QWERTY keyboard |
Keyboard input mode | touch |
Internal connection of speaker impedance and rated power | 4 Ω, 3 w |
Total helix distortion | THD 1% or less |
Frequency response | 80 hz ~ + 1 db / 16 KHZ - 3 db |
Signal to noise ratio | > 68 db |
PHONE OUT output impedance and rated power | 32 Ω, 20 mw |
LINE OUT | 1000mV industry standard press terminal |
LINE OUT impedance | 470 Ω |
LINE IN input sensitivity | 350mV industry standard press terminal |
MIC input sensitivity (non-equilibrium) | 10 mv |
Short circuit input | Dry contact input |
Short circuit output | Maximum 3A/120V dry contact |
Working temperature | 5 ℃ to 40 ℃ |
Working humidity | 20% ~ 80% relative humidity, no condensation |
The machine power consumption | 6 w or less |

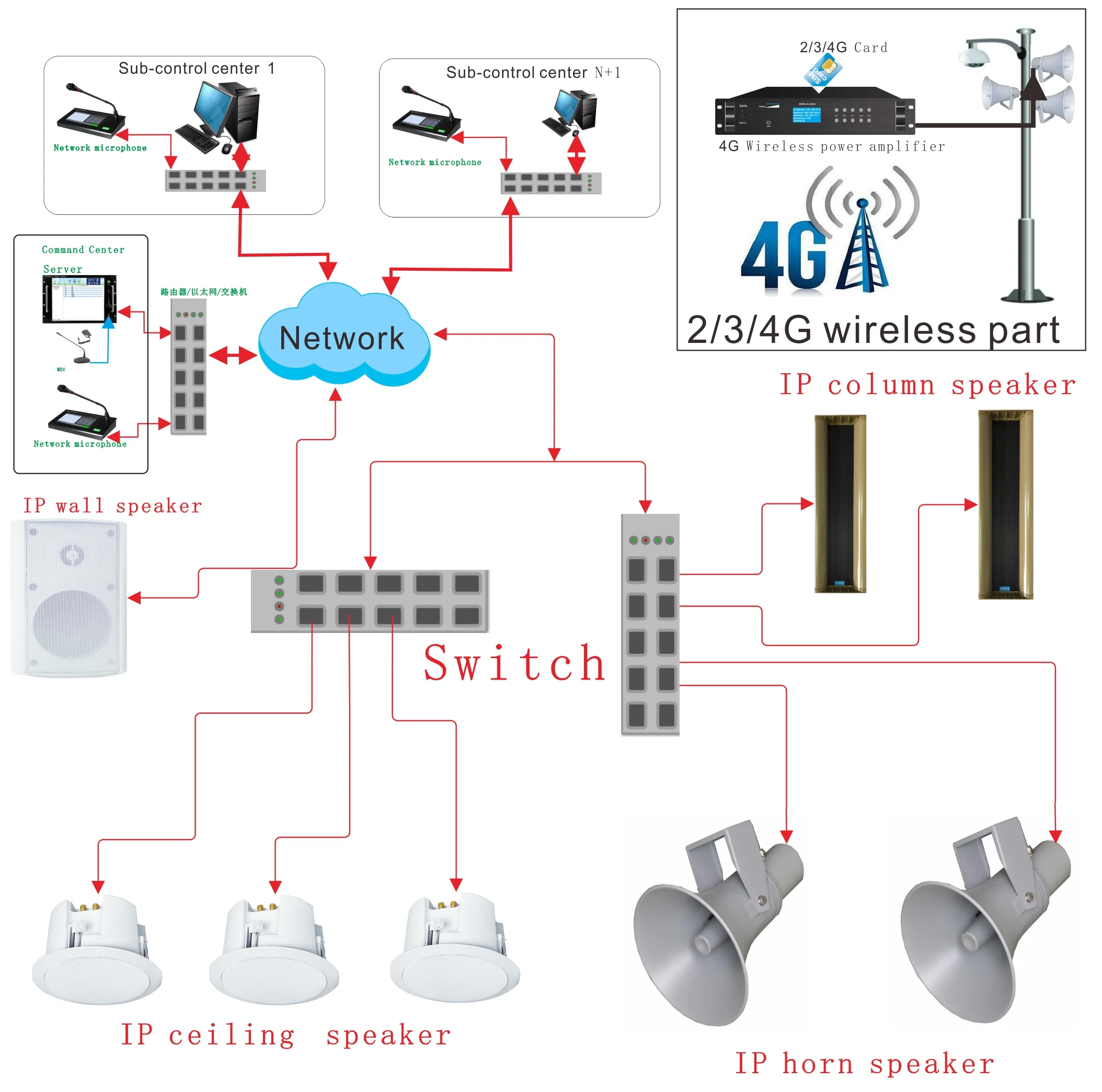

Video intercom system topology

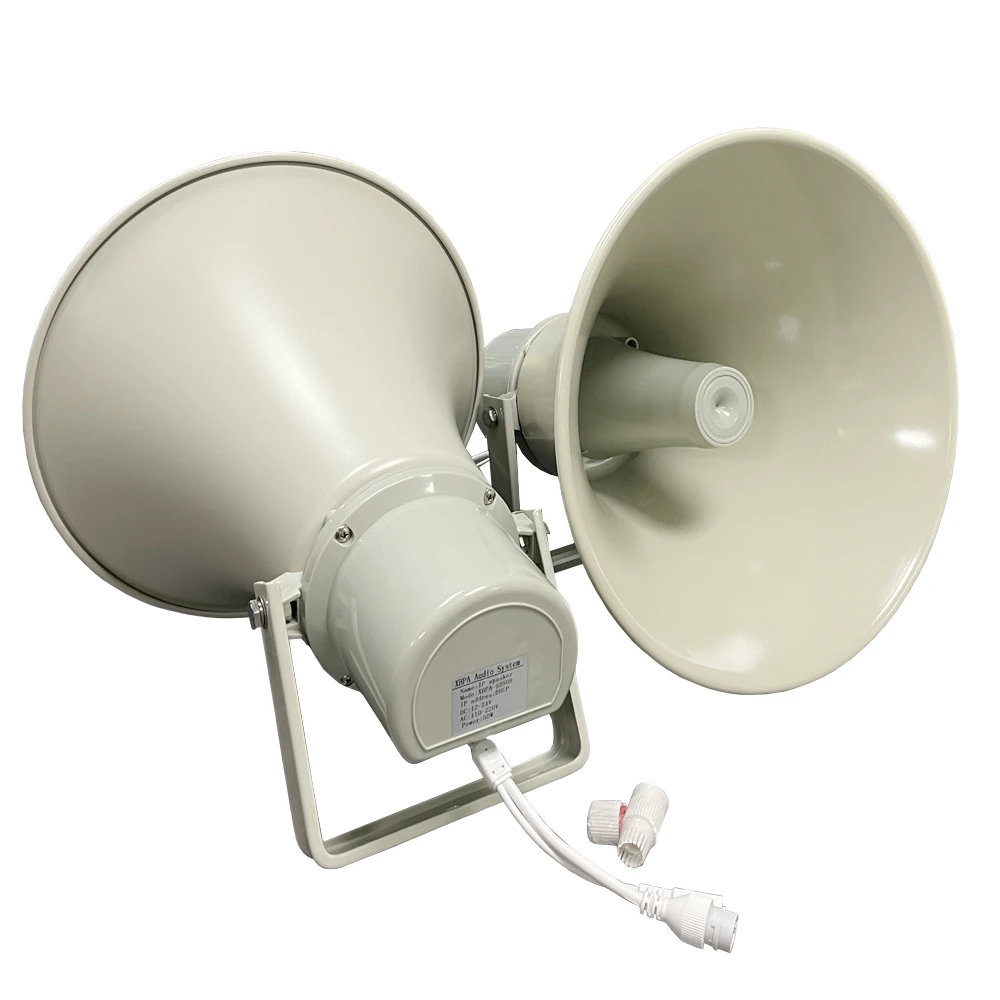

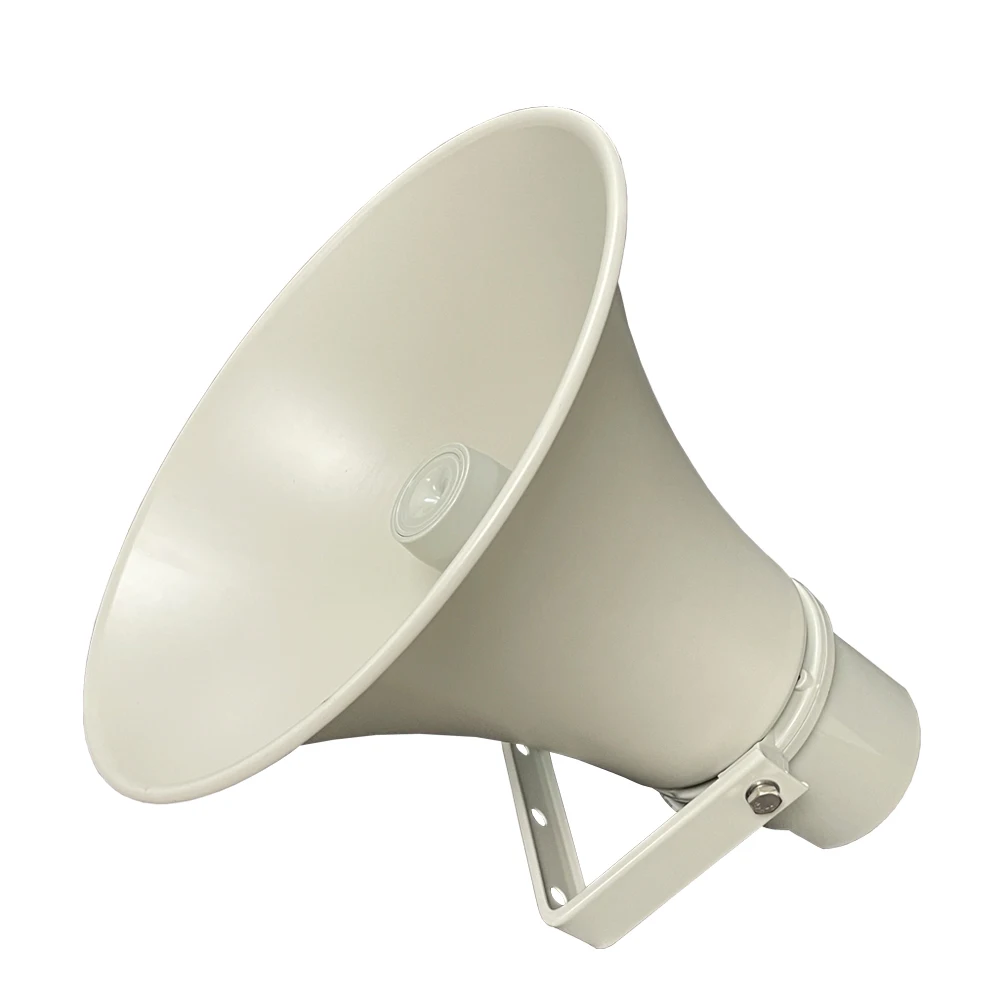

IP network horn speaker

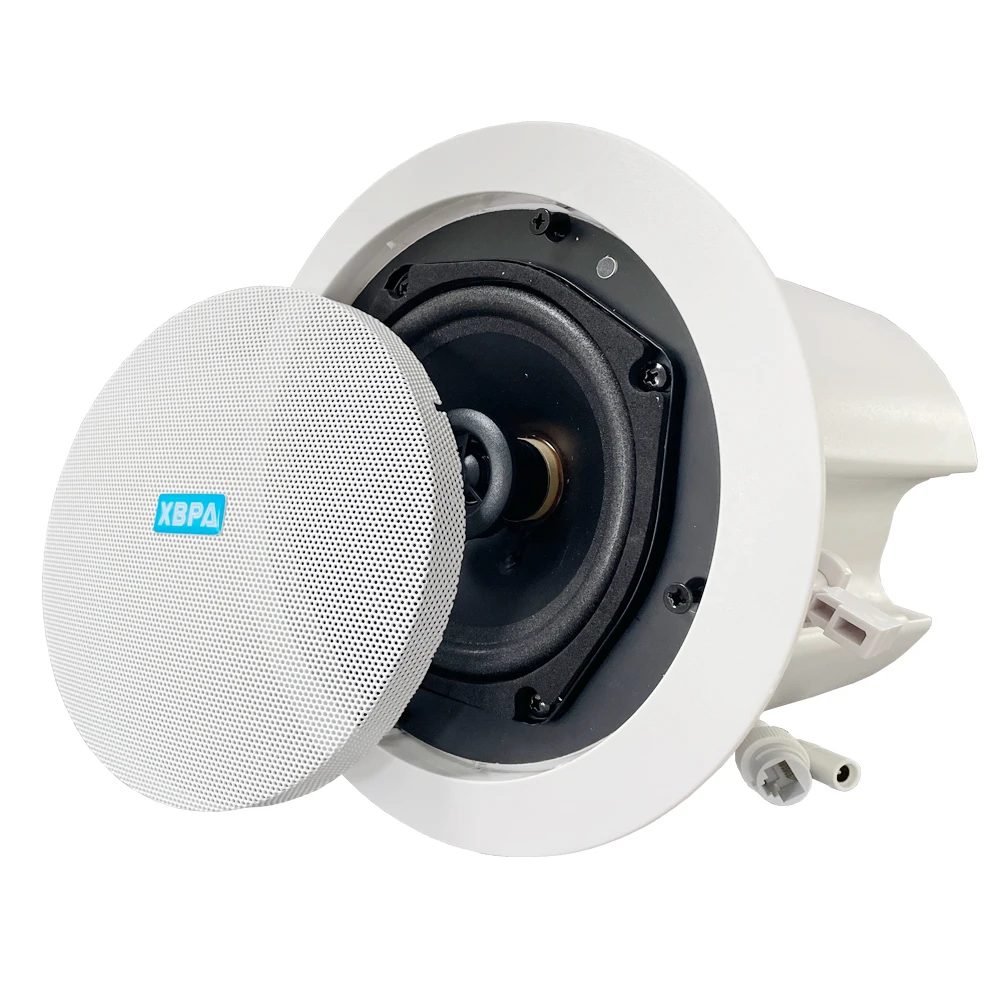

IP ceiling speaker

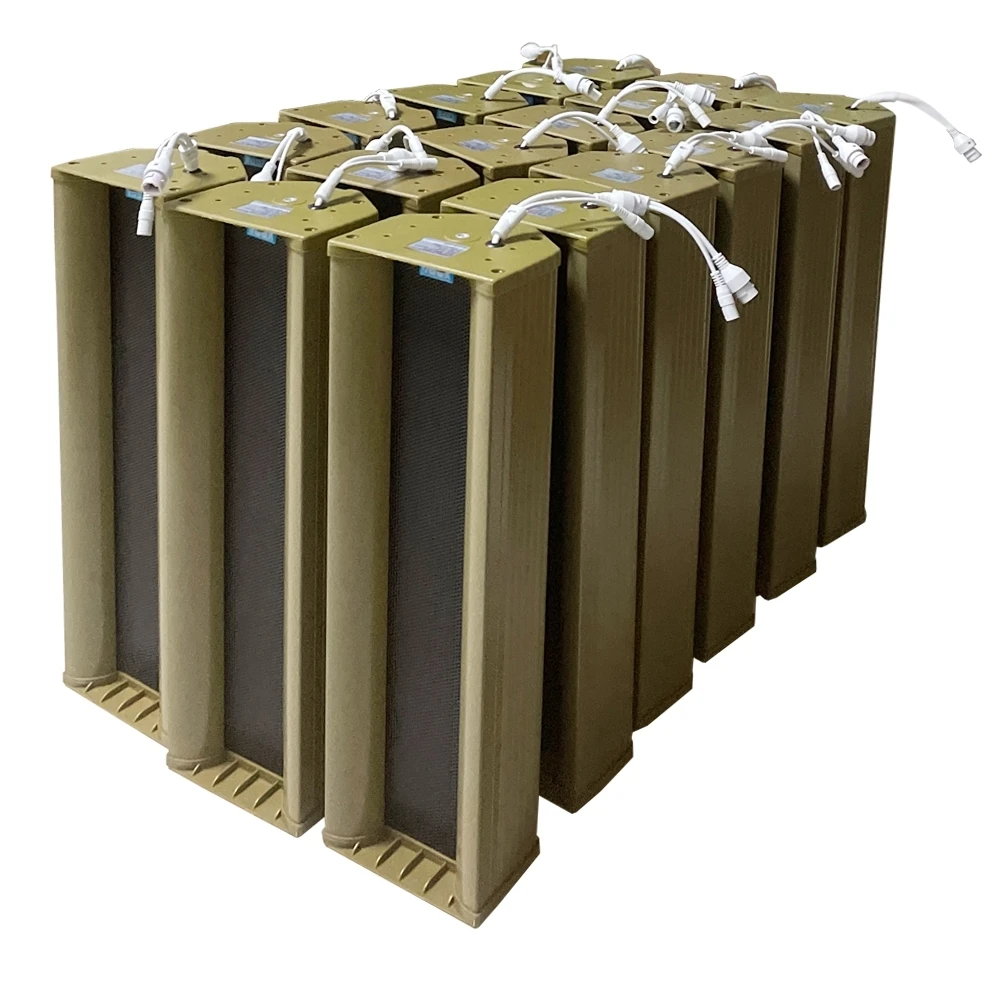

IP column speaker

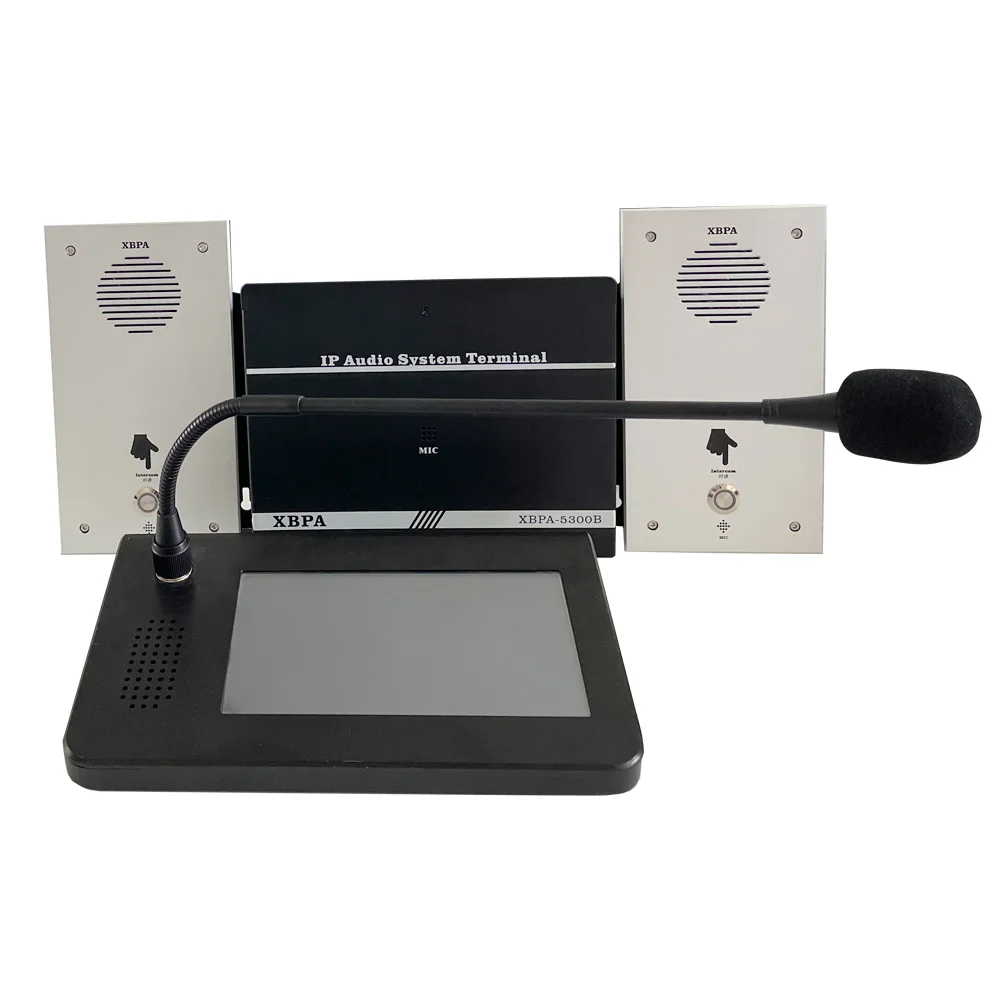

7-inch IP network touch screen intercom microphone + wall-mounted IP network broadcast intercom terminal

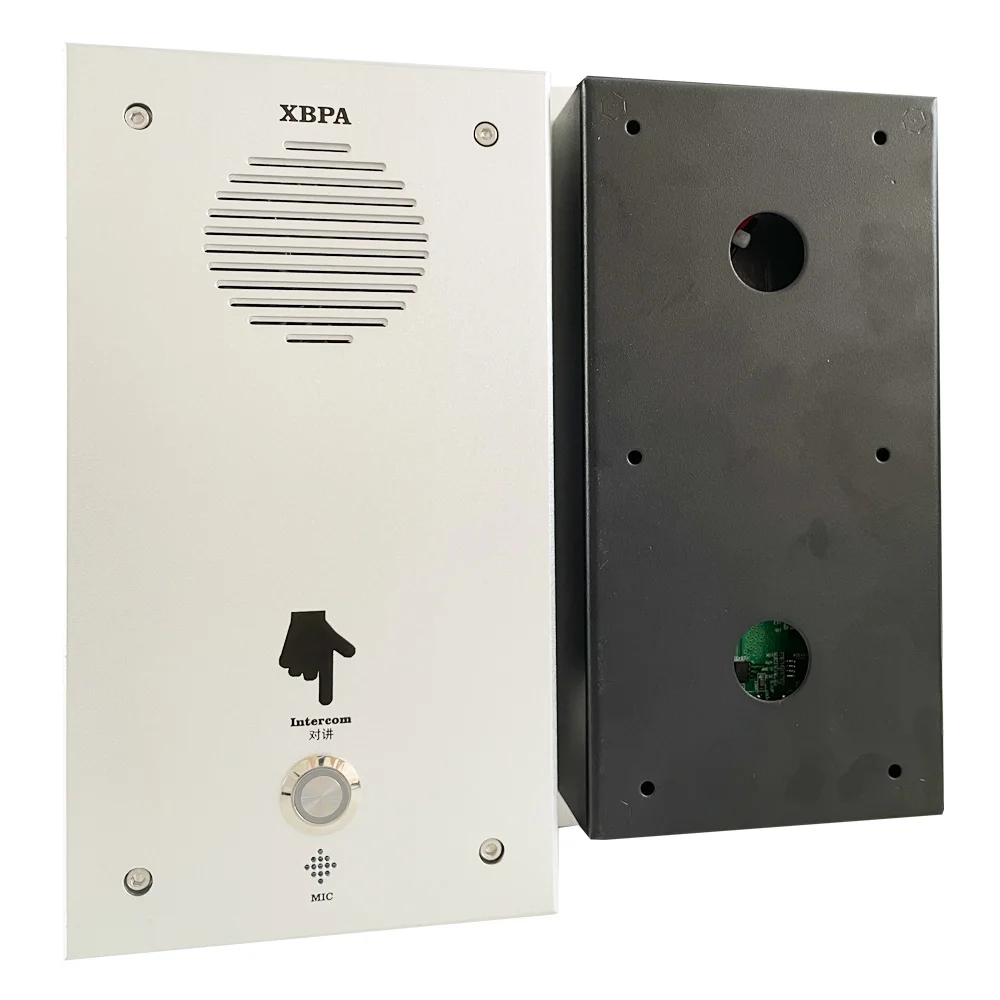

Indoor and outdoor IP network intercom terminal. Call the command center through the button. Only the network cable and power supply need to be connected, and the power supply supports DC/POE/AC
Indoor and outdoor IP network intercom broadcast playback terminal. Built-in power amplifier, output 30WW * 2, external speaker. Call the command center through the button. Only the network cable and power supply need to be connected, and the power supply supports DC/POE/AC

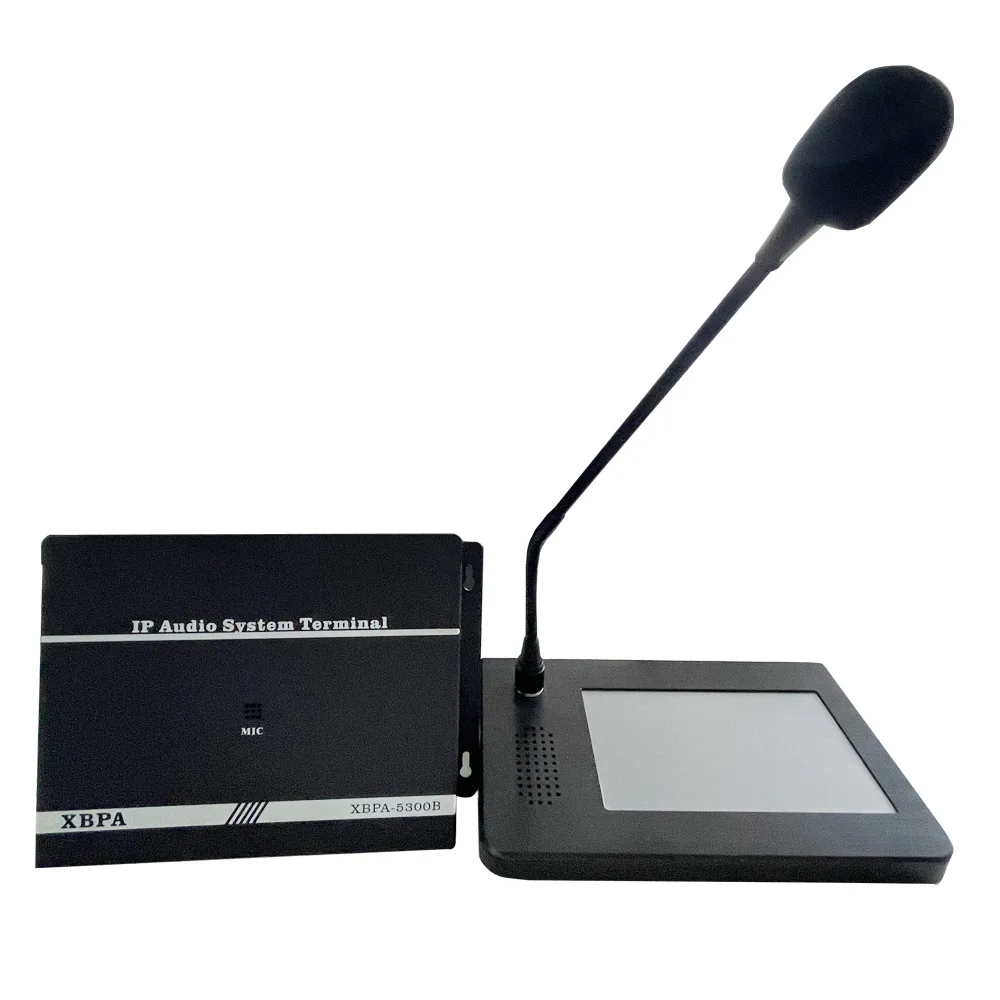

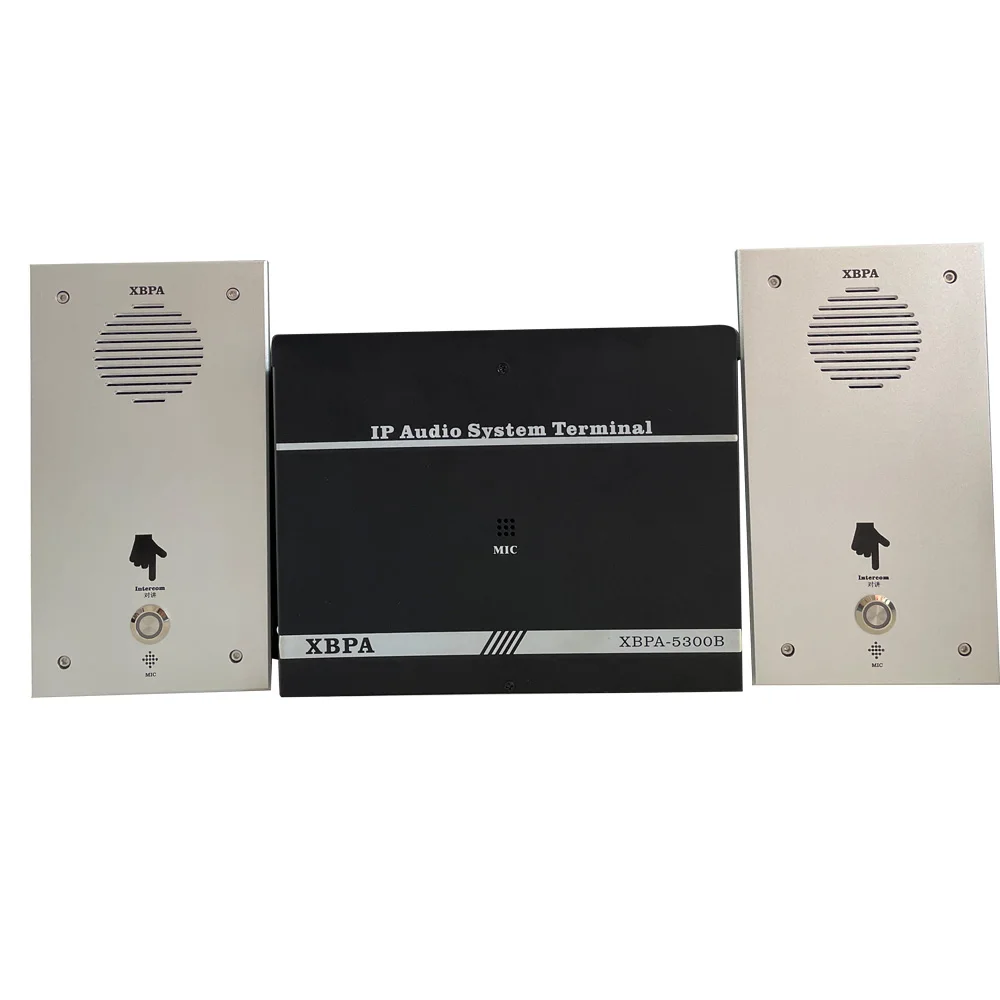

IP network audio wall-mounted intercom terminal + IP network microphone, without server, can realize offline playback and intercom functions.

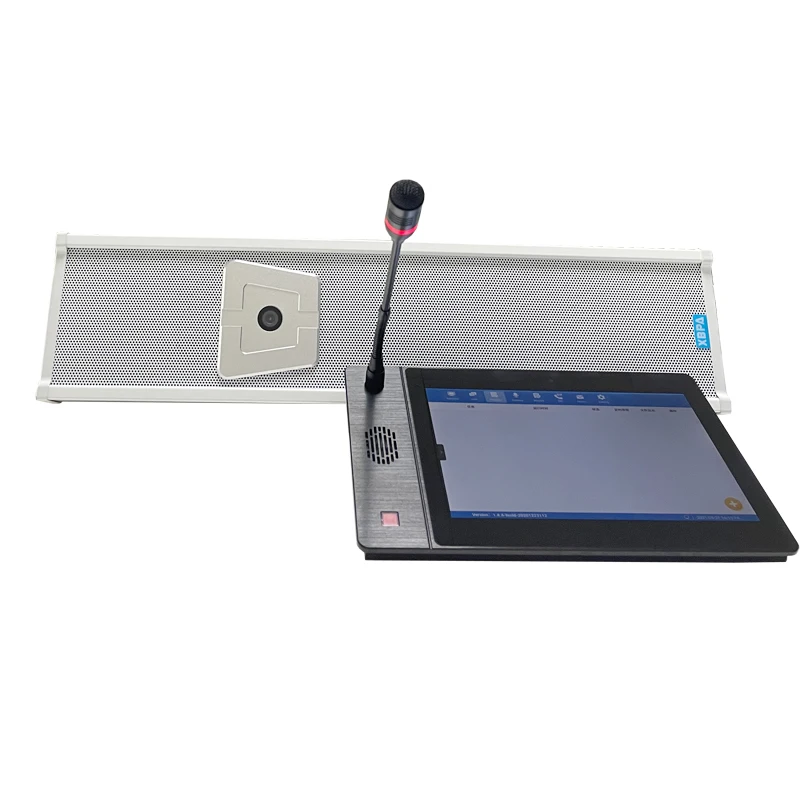

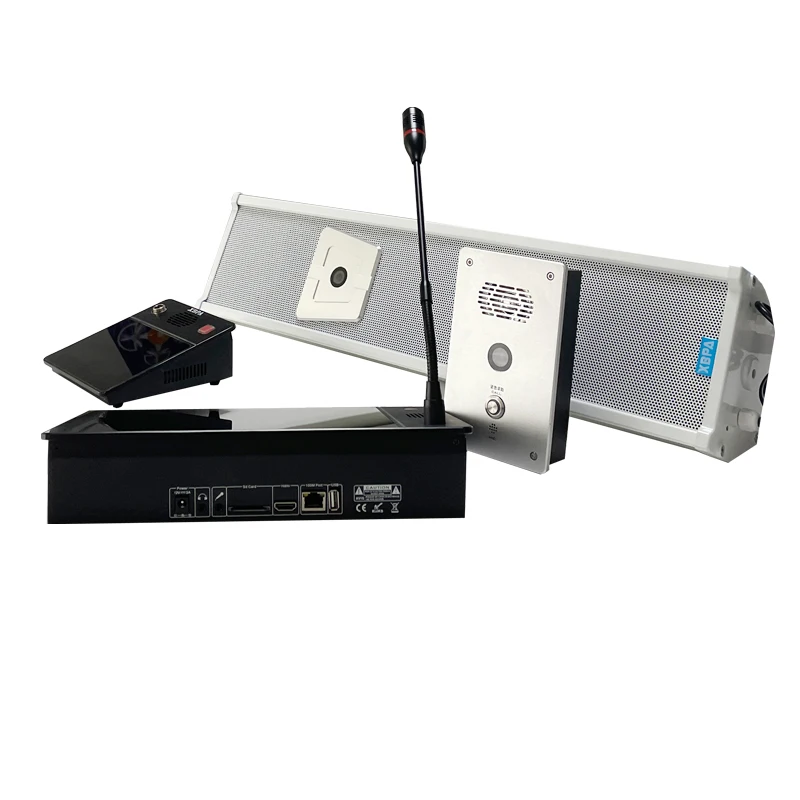

IP network audio and video visual intercom broadcast system terminal host + microphone + Speaker + camera
IP network audio and video visual intercom broadcast system terminal host + microphone + Speaker + camera

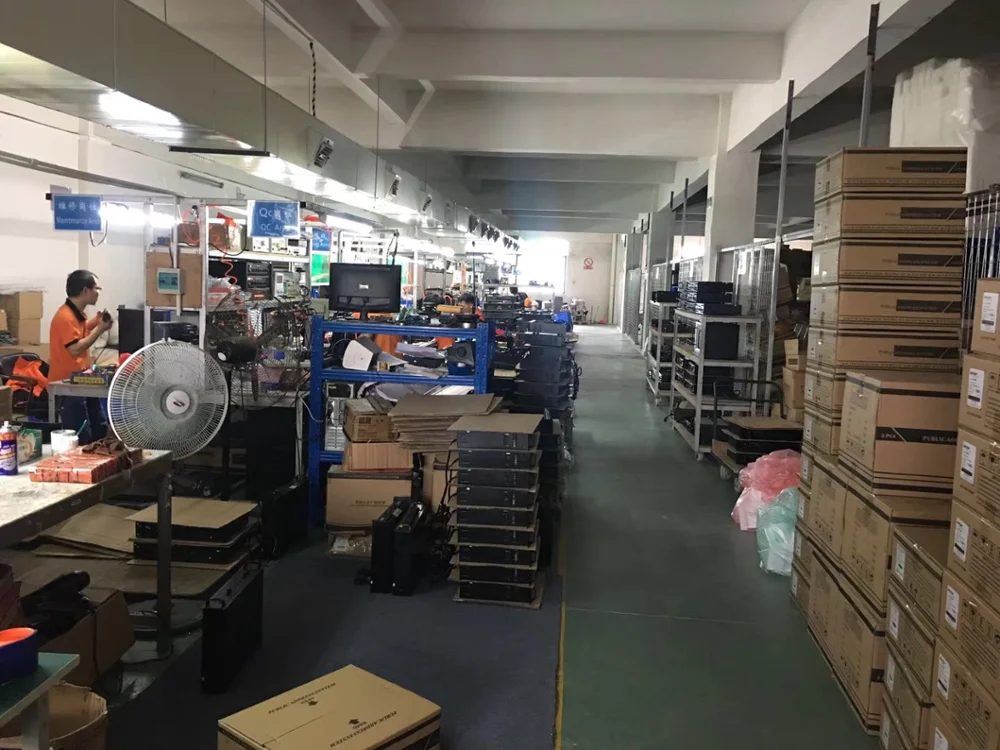

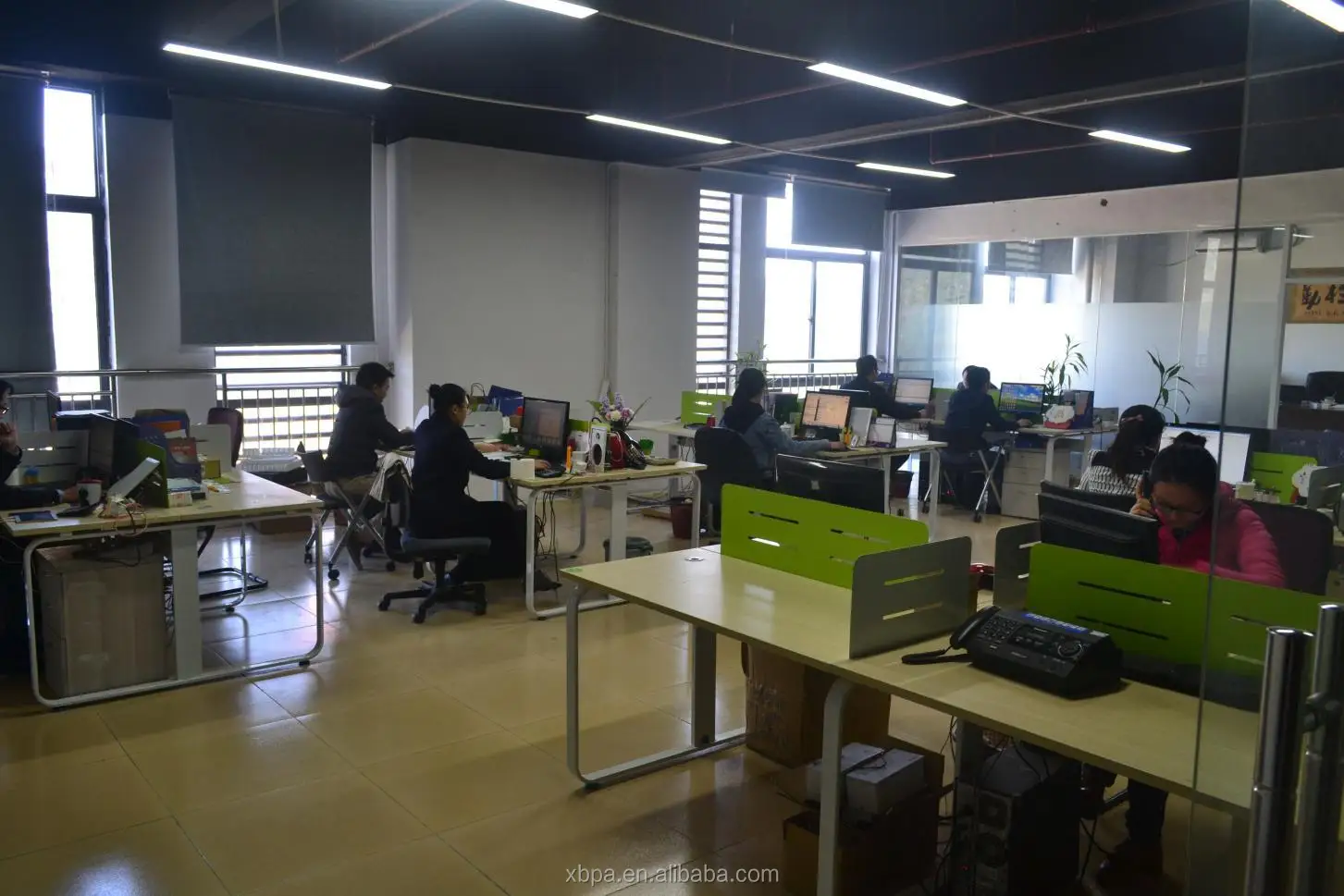

Company Information

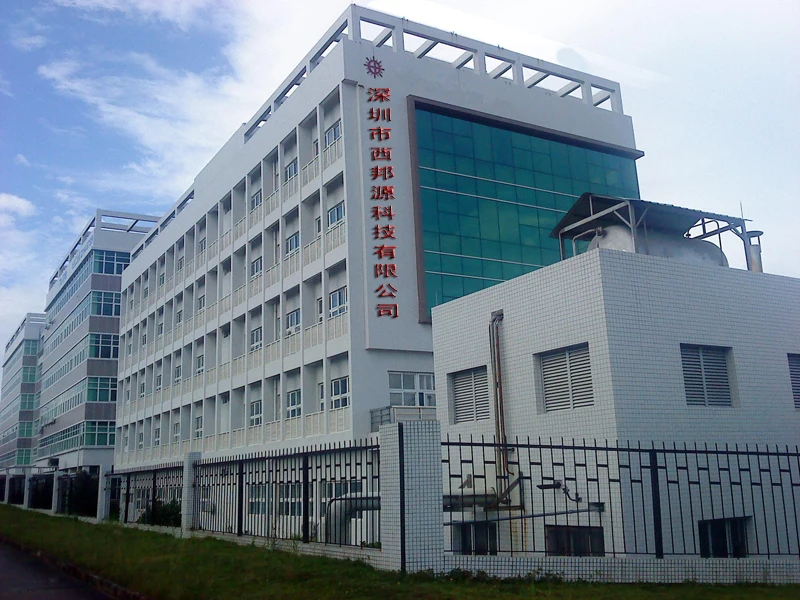

XBPA is located in Shenzhen, a beautiful international metropolis in China. We are a research and development, production, marketing
