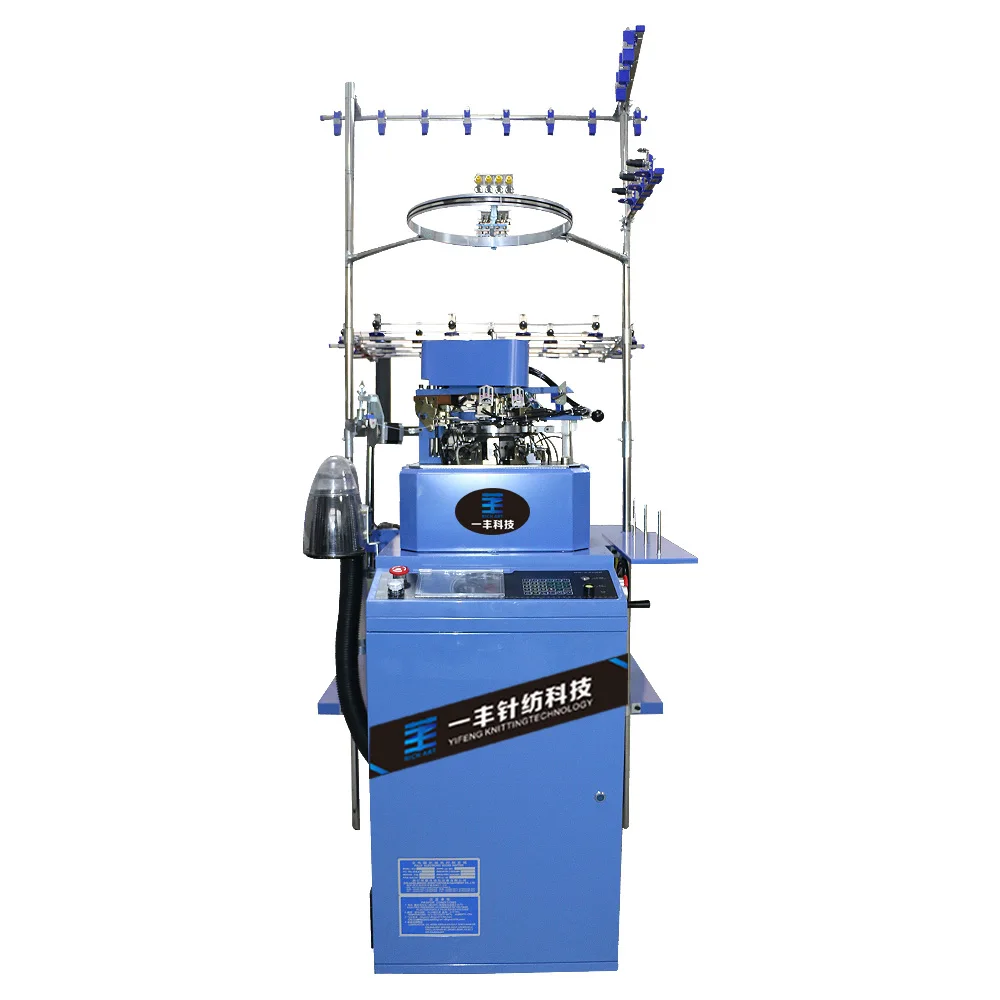

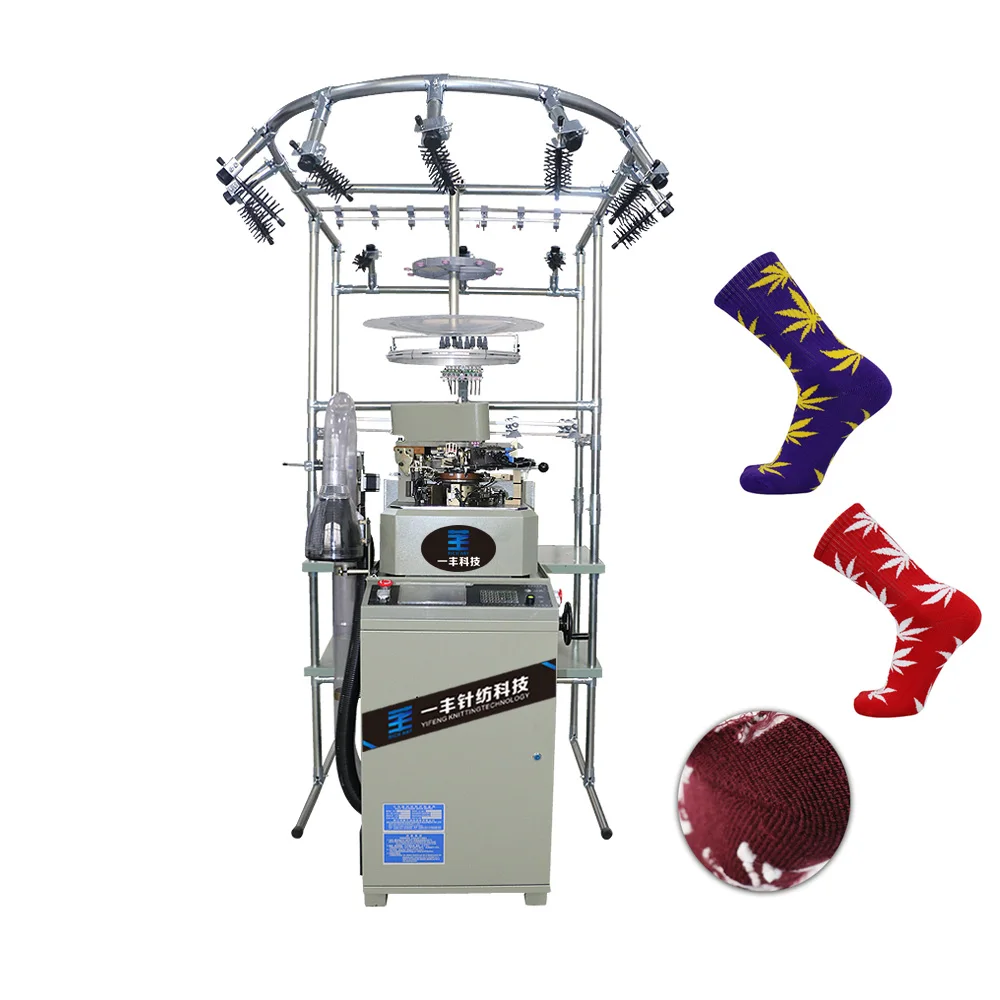

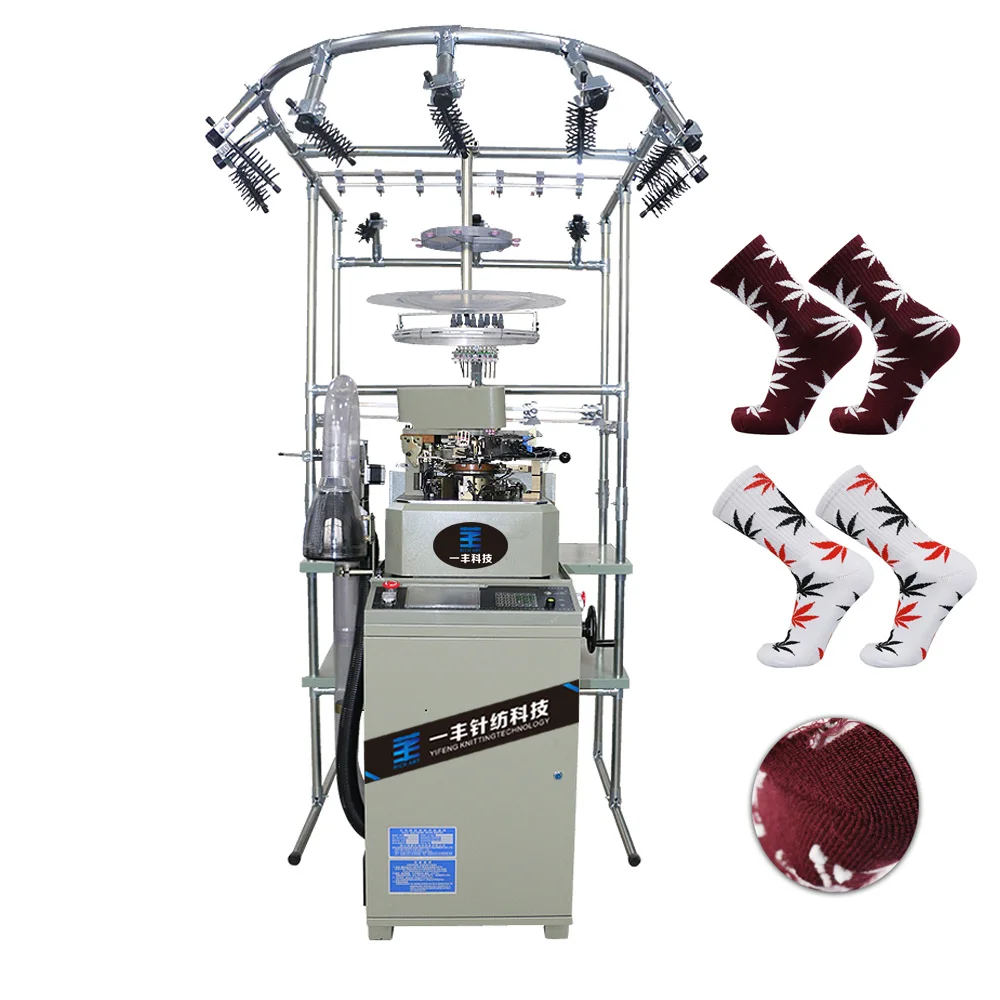

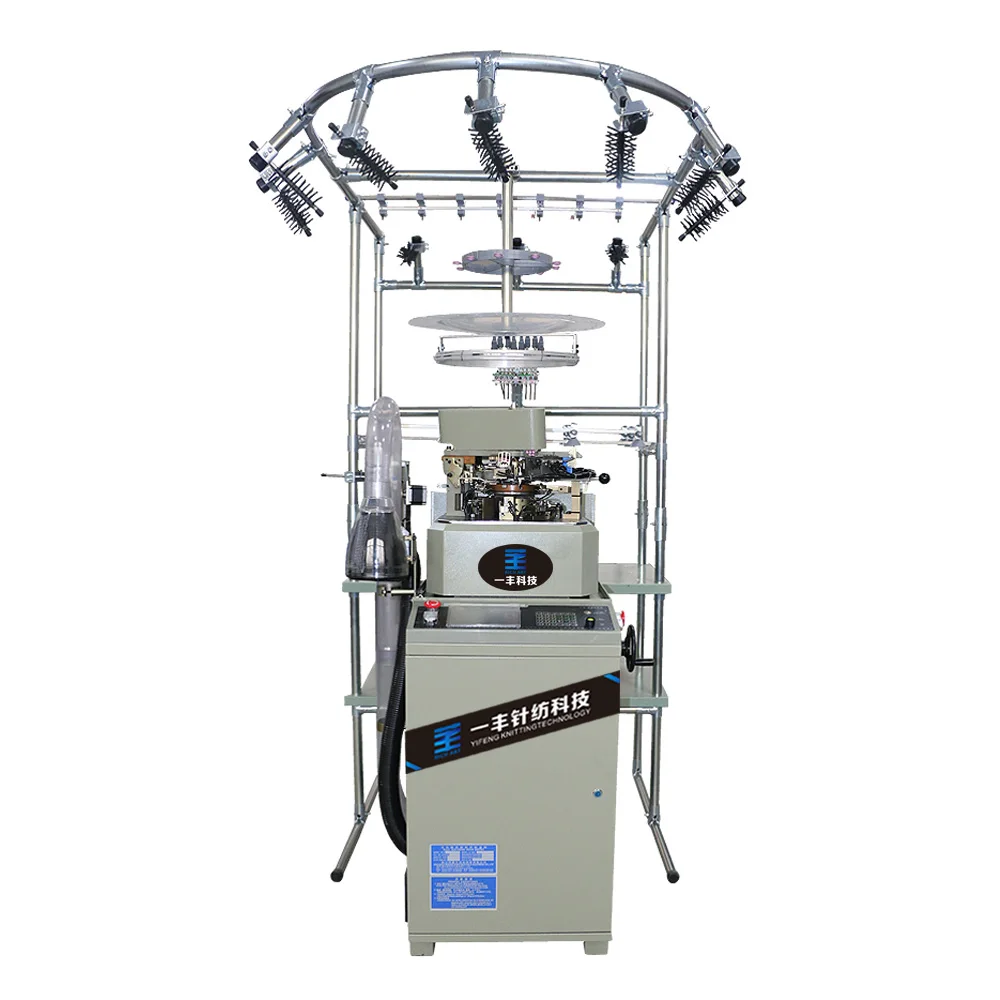

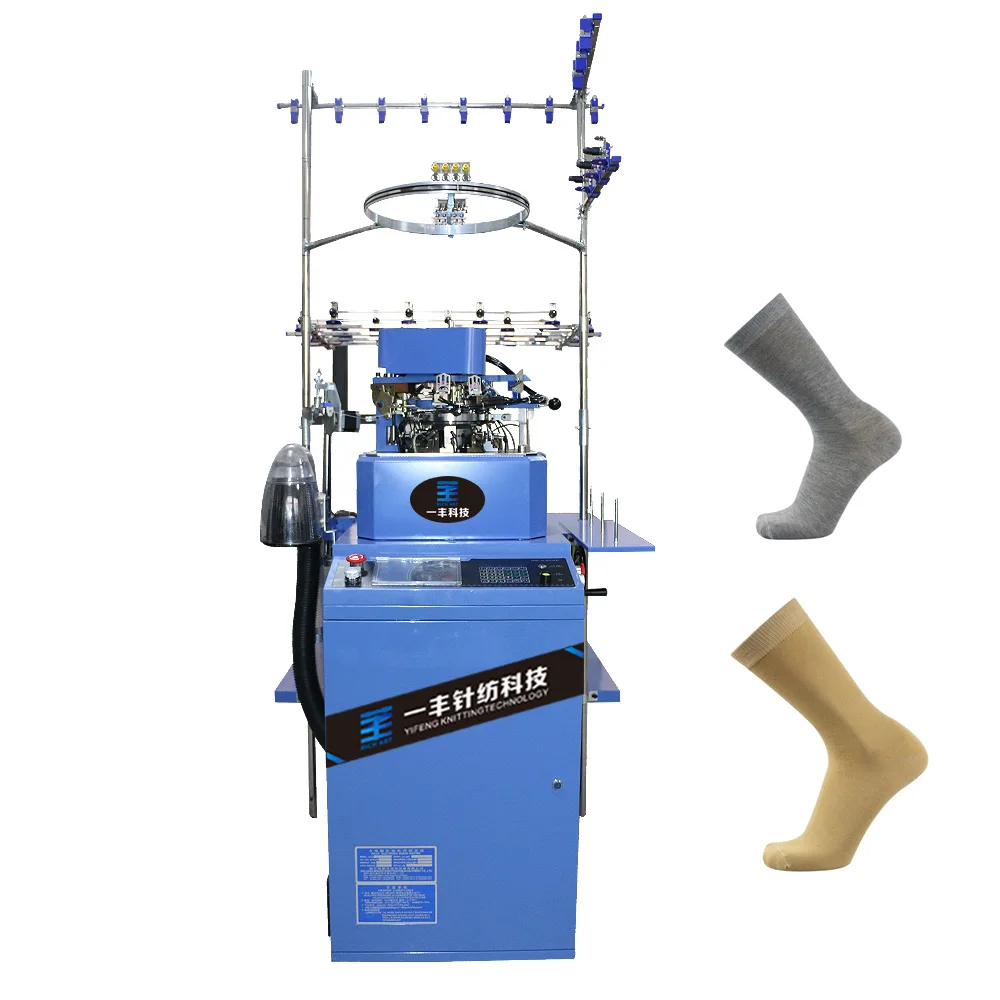

Industrial automatic 4 inch plain & terry sock making machine

Product Overview

Description

High Speed Fully Computerized Plain Terry Invisible Sock Knitting Machine





Product Description







Machine Technology Parameters:



1. Single cylinder

2. 6F: 1 main feeders+5pattern feeders

3. Possibility of 6 colors in one course, 16 colors on one sock.

4. Full computer control, easily operation through keyboard

5. Air valve control cams work

6. Double picker up/down to make heel and toe, higher production

7. Automatic lubrication system

8. Running speed:280-350RPM

9. Power: Available in 220/380/440V 3phase 50/60HZ

10. Gross weight:350KG

11. Battery back-up to protect stored program

12. Package: Export Plywood case. L*W*H is 750*1100*1650MM.

20GP container could load 18 sets machine,

40HQcontainer load 39 sets machine.

13. HS code :8447110000

14. One day produce around 300-400pairs.



















Sock Knitting Machine Main Feature And Function:



1. Machine is with 1 main feeder and  5 groups of auxiliary feeders, 6 colors can be knitted.



2. Double down pickers, up pickers are adopted, improving and increasing the toe/heel knitting speed, also can knit big or small sock heels, high heels.



3. High speed controlling system is adopted with multi-languages: English, Russian, Spanish, Arabic etc. UPS function can keep the running program when electricity fails and continue the previous program when electricity is on again. And huge quantity of pattern files can be stored in the sock machine computer system.



4. Automatic lubrication system, making it easy for sock machine maintenance. Besides needle or yarn breakage, electronic error will be shown on the display automatically, lessen the sock defective rate, and needle consumption.



5.Easy pattern designning software, which can be installed and use on personal computer.



6. Branded pneuatic system is adopted for more accurate controlling, quicker movement, longer machine life.



7. Running cam are manufactured by own CNC equipment, making sure the quality, stability and duration.



8. Quality cylinder is used preventing white oily sock.











Knitting Products

This machine can produce plain, terry, jacquard, tuck, mesh, double rib fabrics and etc., especially in making multi-color embossed-effect jacquard socks, stereo-effect socks, cartoon socks, elastic slim stockings, business socks, casual socks.











Packaging & Shipping





Our Services



1.We provide 24hours online technology supporting and video supporting.



2.We provide after sales services include installing and testing when machines arrived to customer's manufacturing plants.
