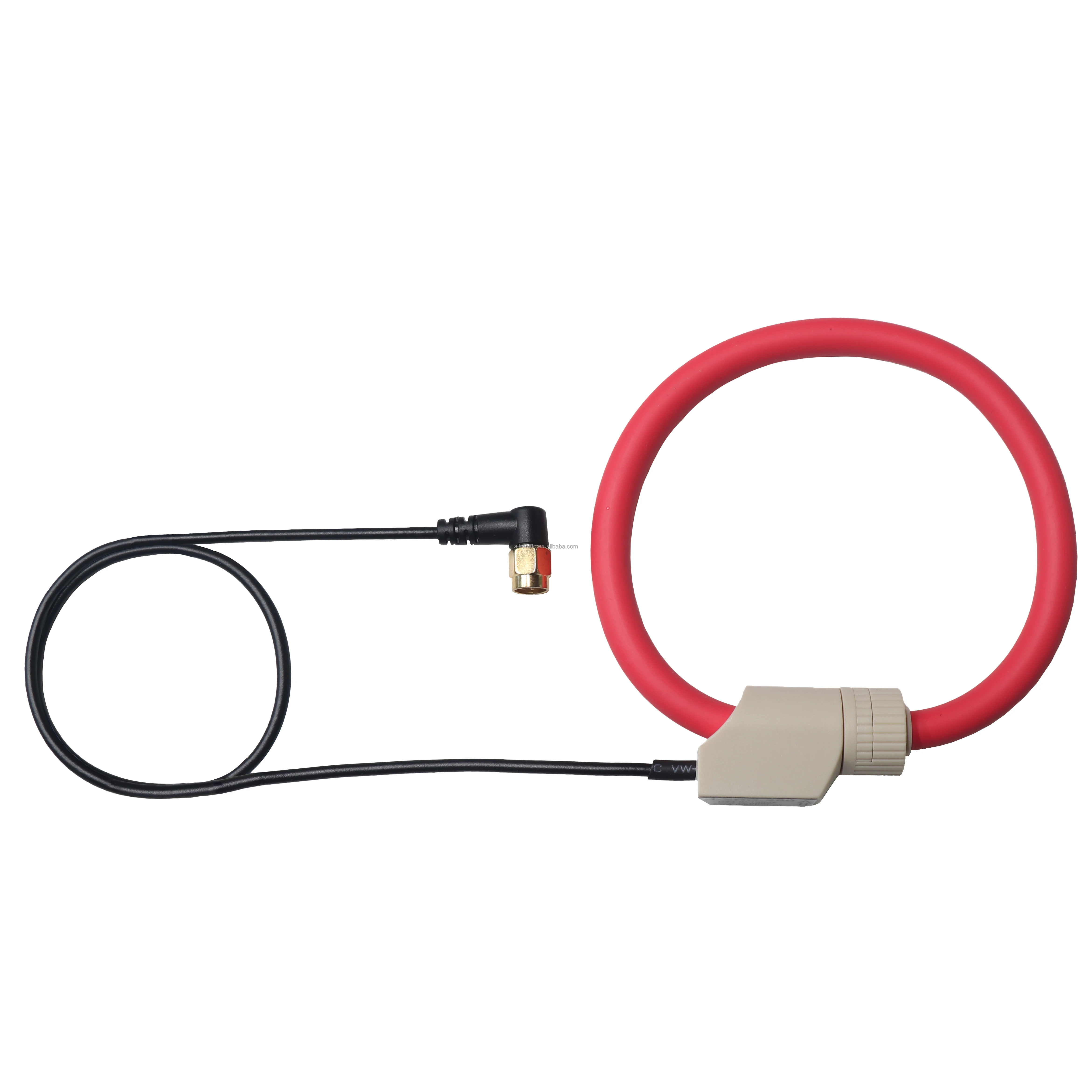

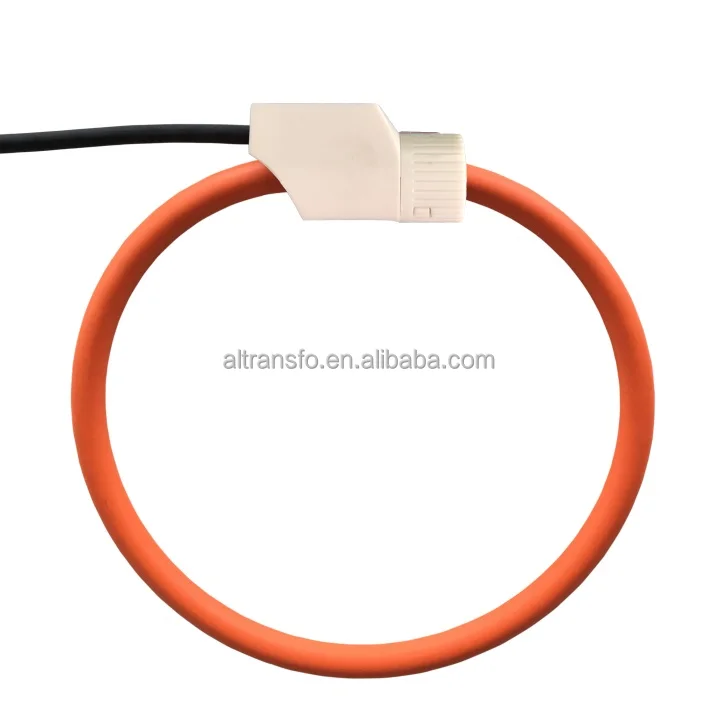

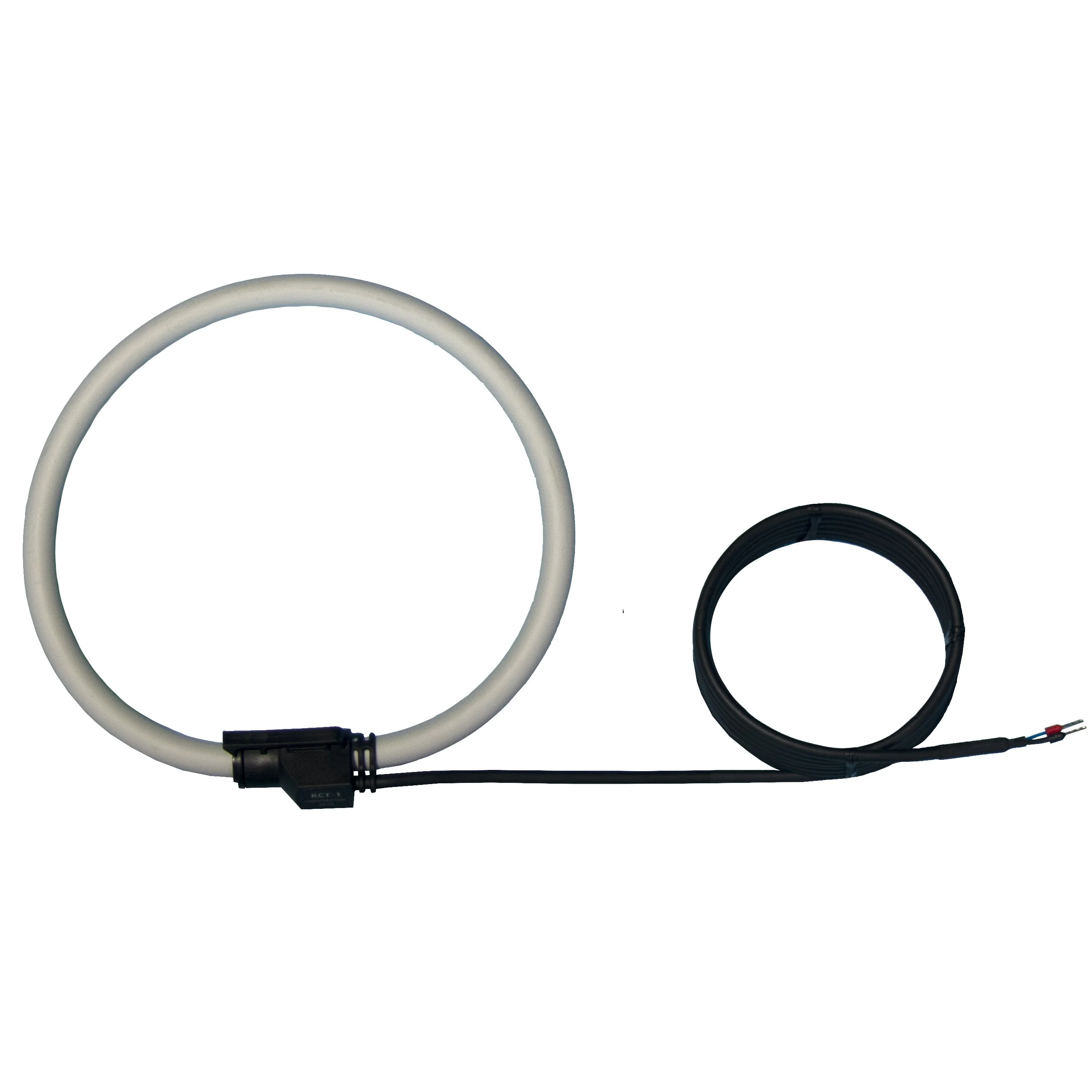

Large Current Input Split Core Current Transformer Rogowski Coil

Rogowski coil ,low power coil (LPCT)
Rogowski coil ---It is used to sense protecting current ,measure current ;Low power coil (LPCT) used to sense current ,measure current ;It is installed in the circuit beaker ,combination electric device .
Rogowski coil ---Use of high-quality epoxy resin sheet as skeleton,small deformation at high and low temperatures , stable accuracy ;
Low power coil ---Used of high-quality ultra-fine crystal material as a magnetic core ,high precision and stable performance.
Secondary signal : can be customized as requesting
Accuracy :5TPE(rogowski  coil),0.2S level (LPCT)


Features

• Flexible and light weights, exquisite appearance


• Easy & quick installation in tight spaces


• No danger from open-circuited secondary


• No core saturation or damage if overloaded


• Excellent linearity


• Multi-size are available


• Maximum measuring current up to 6000A

General data

• Operating temperature & humidity 0 to 50°C (32-122ºF),<=80%RH(No condensate)


• Storage temperature & humidity: -10 to 60°C (14-140ºF), <=80%RH(No condensate)


• Operating environment: Indoor, altitude up to 2000 meters


• Standards Safety: IEC61010-1:2001, 600V CAT III

Applications

• Power quality monitoring


• CT secondary current detection


• Smart logger


• Distributed measurement systems
