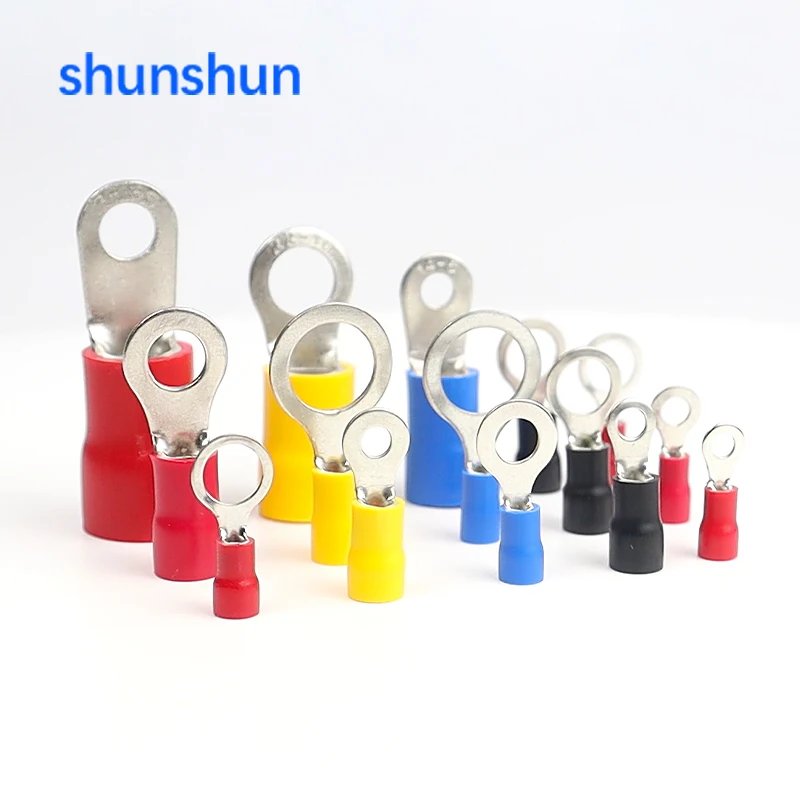

RV2 3.2 RVS2 3.5 RVM2 3.5 RVL2 3.5 RVS2 4 RVL2 4 RVS2 5 PVC Insulated Ring Terminal electrical wire copper connector cable lug
- Category: >>>
- Supplier: Wenzhou Shunshun Electric Co. Ltd.
Share on (1600529297319):
Product Overview
Description

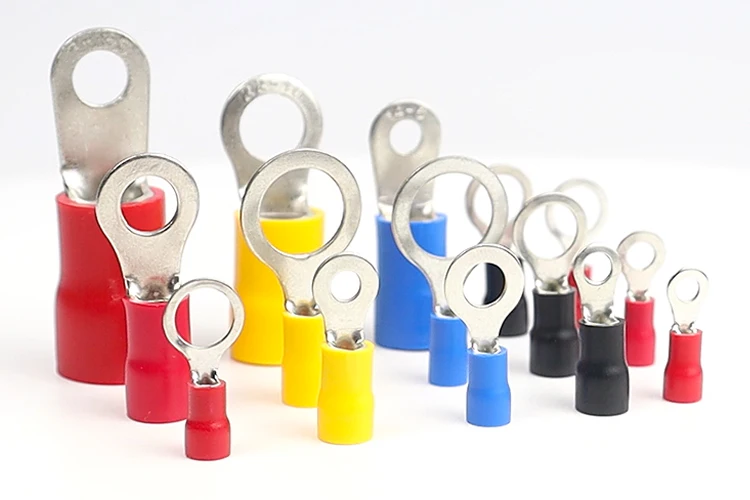

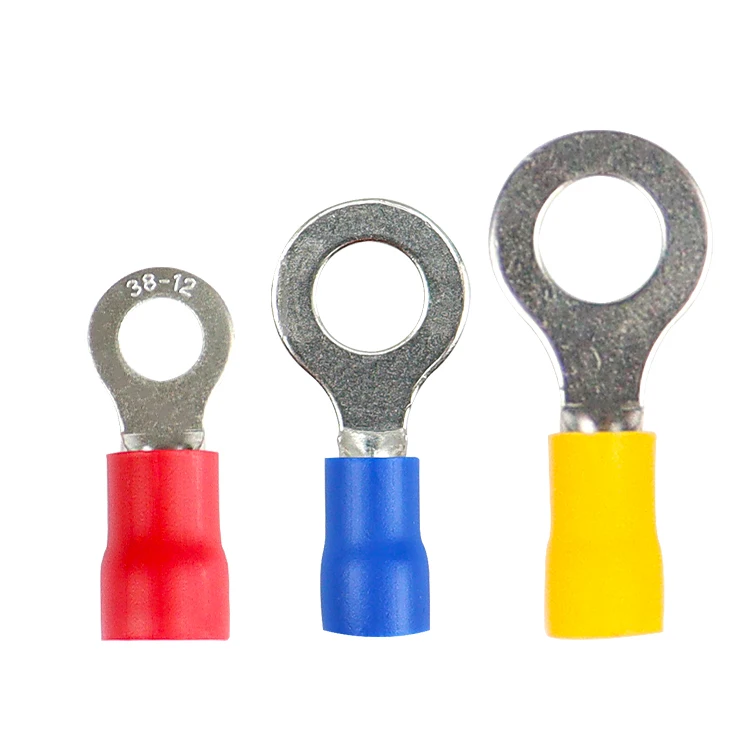

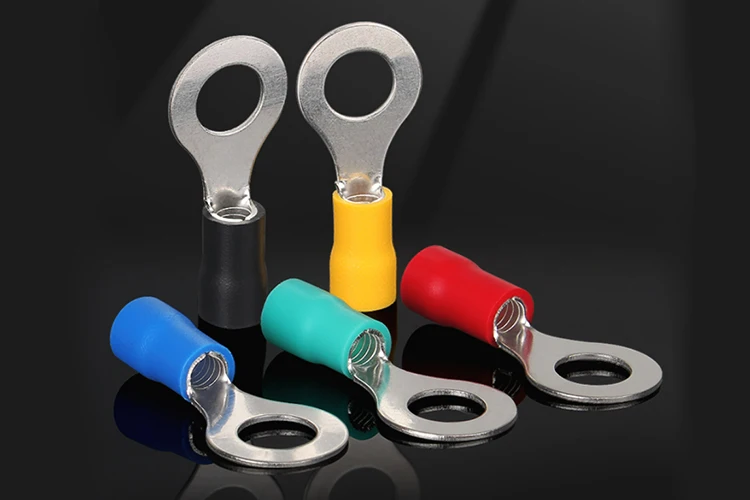

RV series Insulated Copper Ring Crimp Terminal

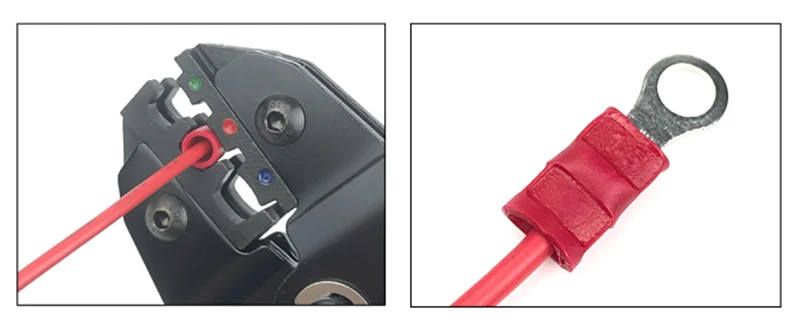

Instructions

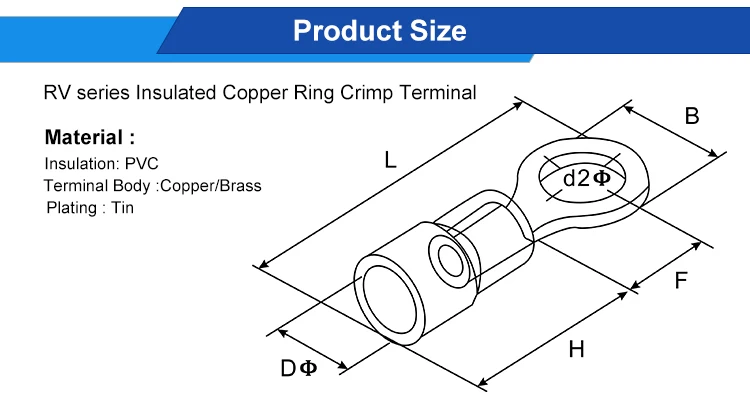

Product specification
Product Name | RV series Insulated Copper Ring Crimp Terminal |
Material | Terminal Body：Copper/Brass Surface :Tin Plating Insulation:PVC |
Wire Gauge A.W.G | 1 AWG ~ 24 AWG |
Color | Red,Blue,Black,Yellow |
Pack | 100 pcs/bag |
Delivery Time | Shipped within 7 days it depend on your order |
OEM/ODM | Avaiable |
Conductor Section : 16AWG ~22AWG (0.5mm²~1.5mm²） Max Current : 19A | ||||||||||||||||
ITEM NO. | Amrican | Dimension(mm) | Color | |||||||||||||
Bolt Number | dΦ | B | L | F | H | DΦ | ||||||||||
RV1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red | ||||||||
RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||||||||||
RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||||||||||
RVL1.25-3.5 | #6 | 3.7 | 8 | 21.5 | 7 | |||||||||||
RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||||||||||
RVL1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | |||||||||||
RVS1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | |||||||||||
RVL1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | |||||||||||
RVS1.25-6 | 1/4 | 6.4 | 9.8 | 23 | 8.5 | |||||||||||
RV1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||||||||||
RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||||||||||
RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||||||||||
RV1.25-12 | 1/2 | 13 | 19.2 | 36 | 16.5 | |||||||||||

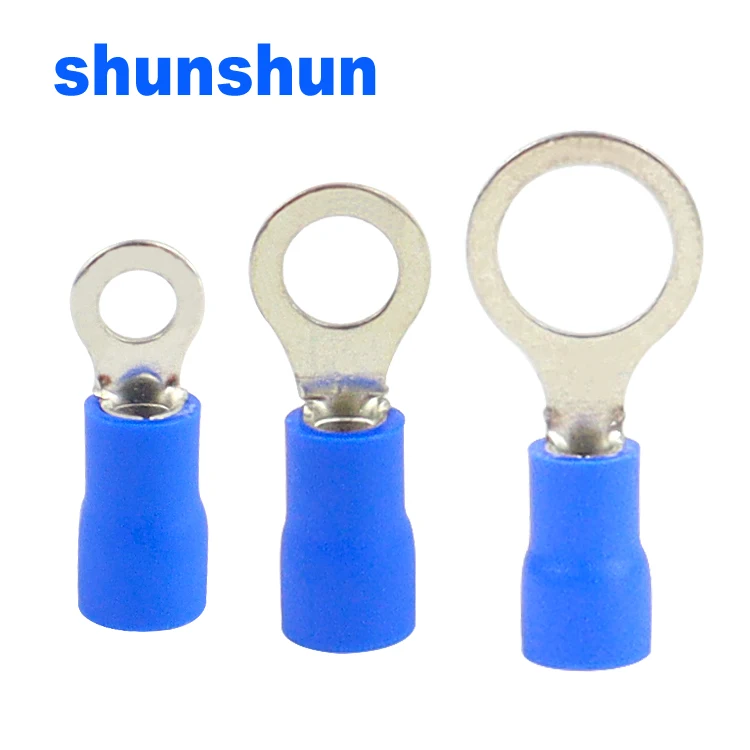

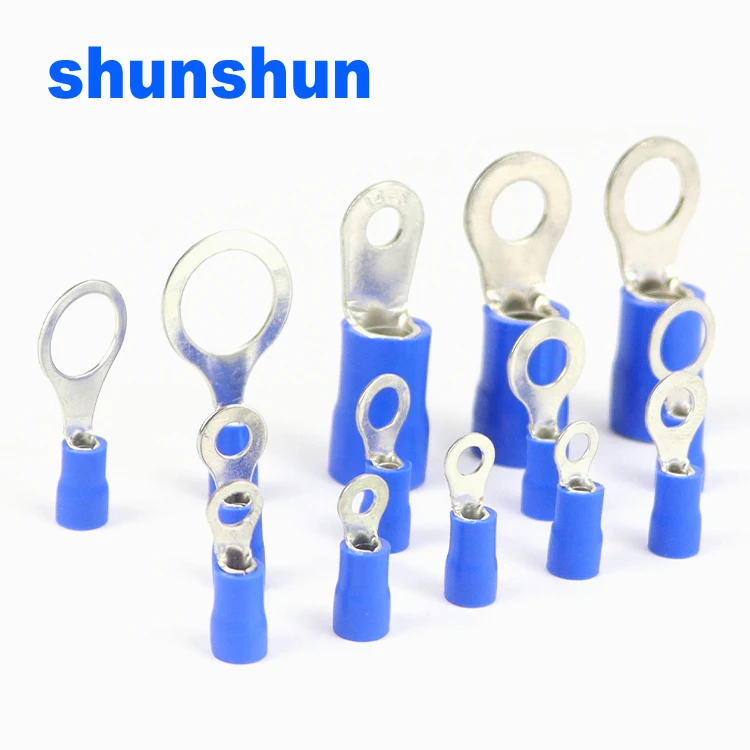

Conductor Section : 14AWG ~16AWG (1.5mm²~2.5mm²） Max Current : 27A | ||||||||||||||||
ITEM NO. | Amrican | Dimension(mm) | Color | |||||||||||||
Bolt Number | dΦ | B | L | F | H | DΦ | ||||||||||
RV2-3.2 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue | ||||||||
RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||||||||||
RVM2-3.5 | #6 | 3.7 | 6.6 | 21 | 7 | |||||||||||
RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||||||||||
RVS2-4 | #8 | 4.3 | 6.6 | 21 | 7 | |||||||||||
RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||||||||||
RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||||||||||
RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||||||||||
RV2-6 | 1/4 | 6.4 | 12 | 27.6 | 11 | |||||||||||
RV2-8 | 5/16 | 8.4 | 12 | 27.6 | 11 | |||||||||||
RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||||||||||
RV2-12 | 1/2 | 13 | 19.2 | 36.5 | 16.5 | |||||||||||
Conductor Section : 12AWG ~14AWG (2.5mm²~4.0mm²） Max Current : 37A | ||||||||||||||||
ITEM NO. | Amrican | Dimension(mm) | Color | |||||||||||||
Bolt Number | dΦ | B | L | F | H | DΦ | ||||||||||
RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 13.0 | 6.2 | Black | ||||||||
RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||||||||||
RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||||||||||
RV3.5-6 | 1/4 | 6.4 | 12.0 | 27.9 | 7.7 | |||||||||||
RV3.5-8 | 5/16 | 8.4 | 15.0 | 24.5 | 13.5 | |||||||||||
RV3.5-10 | 3/8 | 10.5 | 15.0 | 24.5 | 13.5 | |||||||||||
Conductor Section : 10AWG ~12AWG (4.0mm²~6.0mm²） Max Current : 48A | ||||||||||||||||
ITEM NO. | Amrican | Dimension(mm) | Color | |||||||||||||
Bolt Number | dΦ | B | L | F | H | DΦ | ||||||||||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Yellow | ||||||||
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||||||||||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||||||||||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||||||||||
RV5.5-6 | 1/4 | 6.4 | 12 | 31.5 | 13 | |||||||||||
RV5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | |||||||||||
RV5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | |||||||||||
RV5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 | |||||||||||

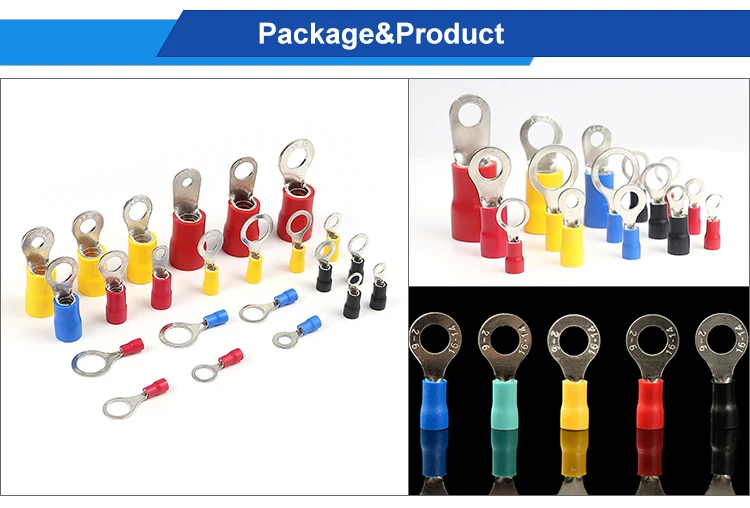

Package&Product
To my dear customers :
1. Delivery Time ?
3~5 days.
100 pcs/bag
2. Minimum Order ?
Minimum order is 1 bag , 1 bag is 100 pieces , means minimum order is 100 pieces .
3. Are you factory or trading company ?
We are factory . 10 + years rich experience factory.
4. What is the quality of the products ?
The quality grade is A grade , good copper , good brass.
5. How is the packing ?
Our packing is very good ,for the air transportation and shipping all is very good packing .
6. What is your email and contact number?
Our email is : shunshun1618@163.com
Our whatsapp number : +86 15868075823
Our website : chinashunshun.en.alibaba.com
