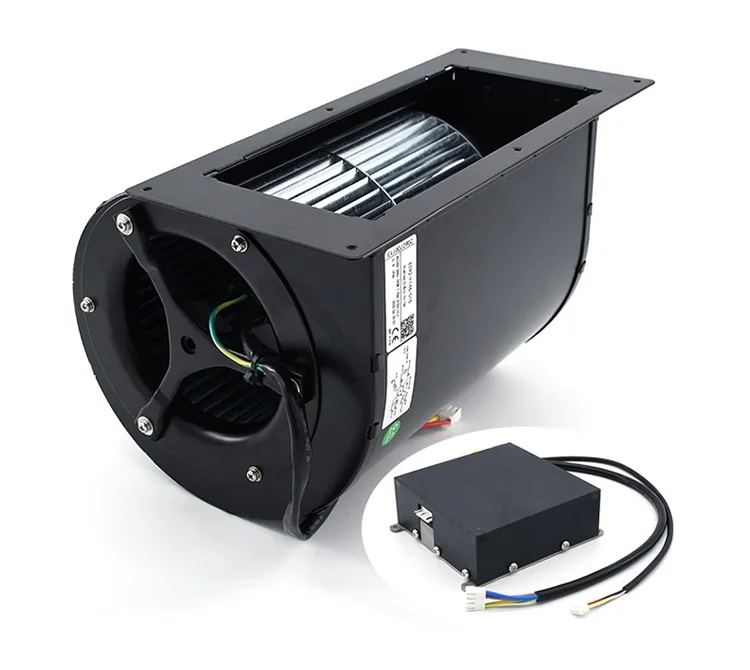

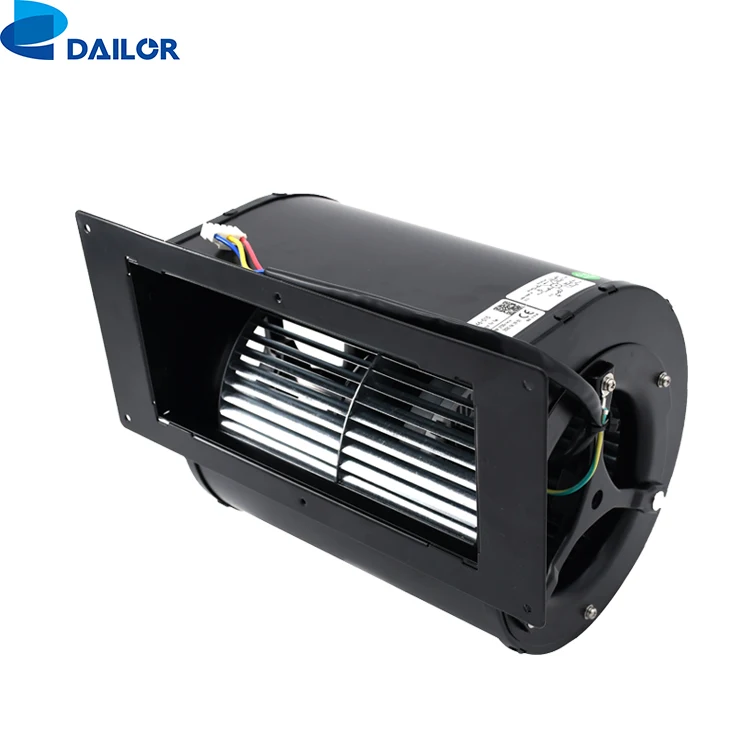

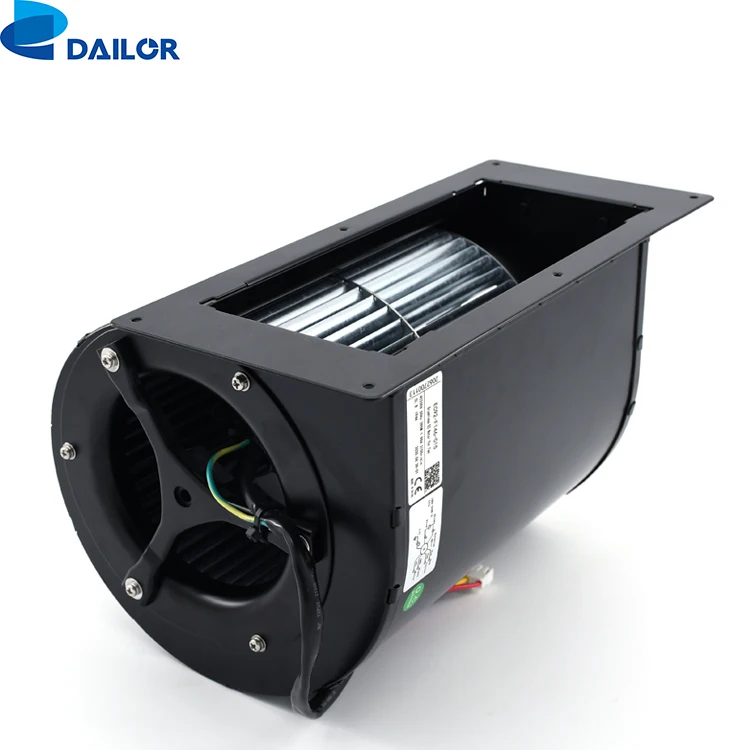

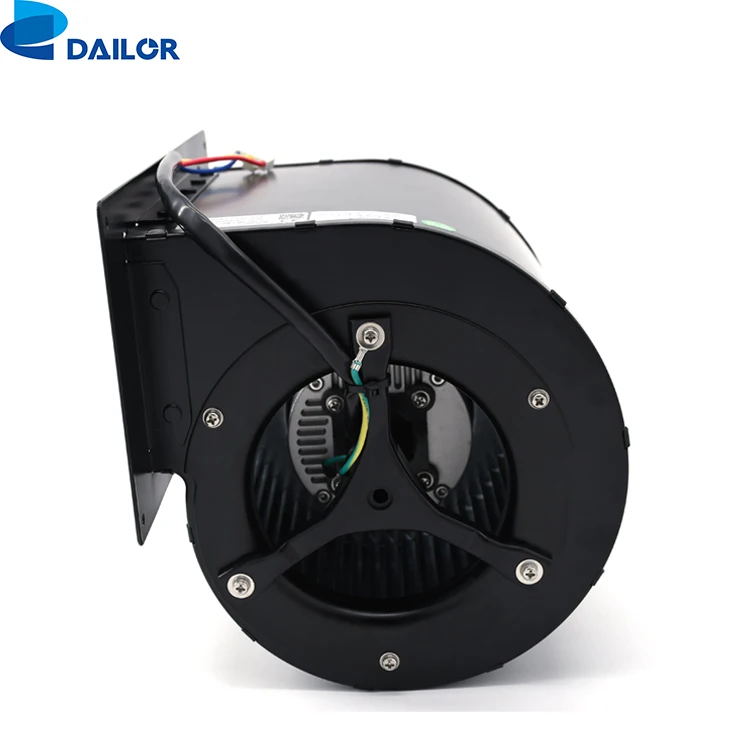

Diameter 146mm impeller EC Forward Curved Centrifugal Fan and Blower 220/230V Carbon Steel IP44 1830RPM 163W
- Category: >>>
- Supplier: Zhongshan Pengfei Electrical Appliance Co. Ltd.
Share on (1600529308716):
Product Overview
Description
Products Information
Product Paramenters
Name | EC Forward Curved Curved Centrifugal Fan and Blower |
Model NO. | EC92-F146-020 |
Rotor | Carbon Steel |
Housing | Carbon Steel |
Impeller | Galvanized Steel Sheet |
Ingress Protection | IP44 |
Insulation Class | F |
Model Name: EC Forward Curved Centrifugal Fan and Blower Dual-inlet
Model No.: EC92-F146-020
Voltage (VAC): 1~220/230
Frequency (Hz): 50/60
Speed (RPM): 1830
Input Power (W): 165
Current (A): 1.30
Operating Temperature Range (℃): -20~+60
Approvals: CCC, CE, UL

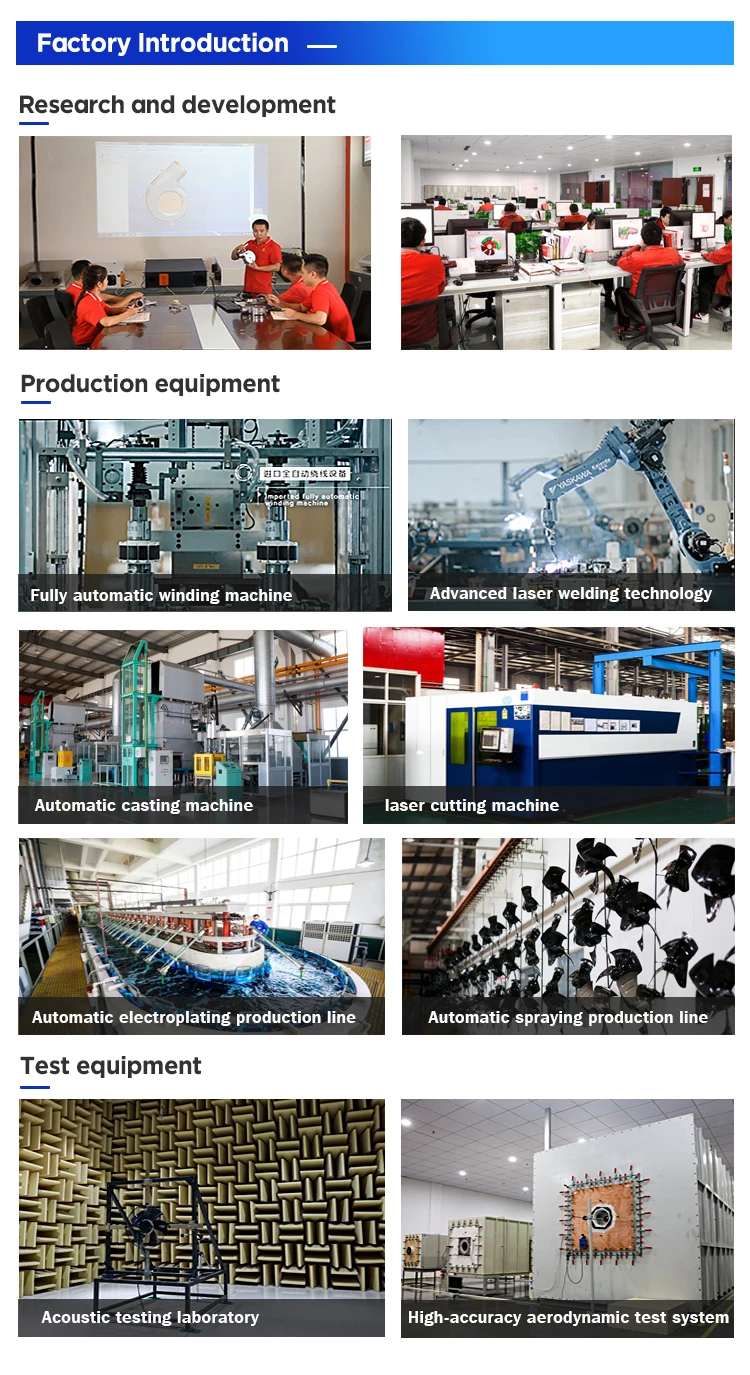

Manufacturing Technique
Certifications and Patents
Recommend Products
FAQ
1.Q: I don't find the specification that meets our requirement.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15-30 working days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalog.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15-30 working days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalog.
