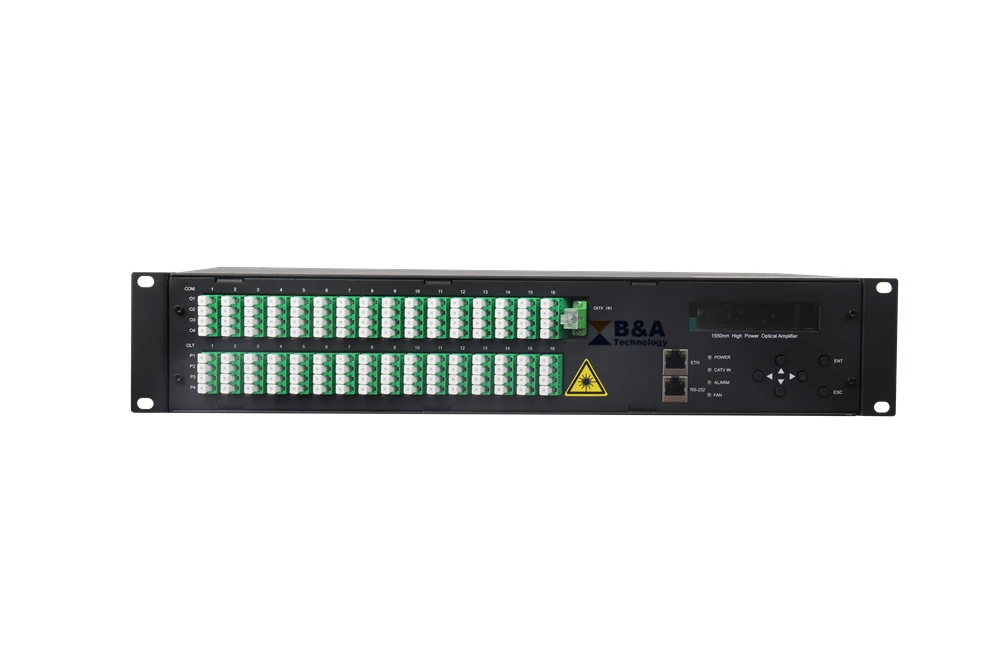

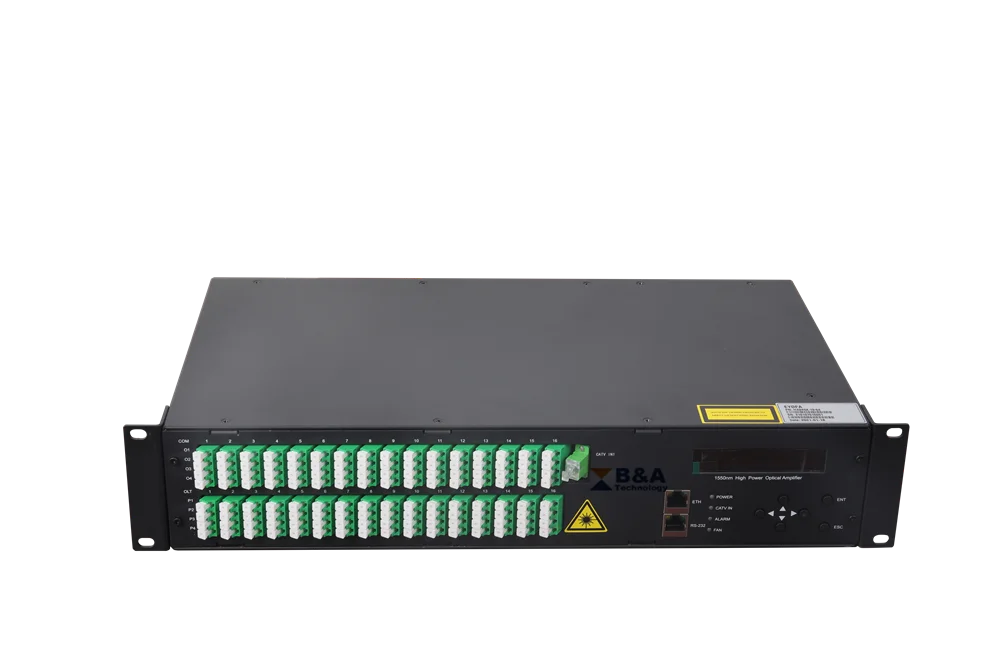

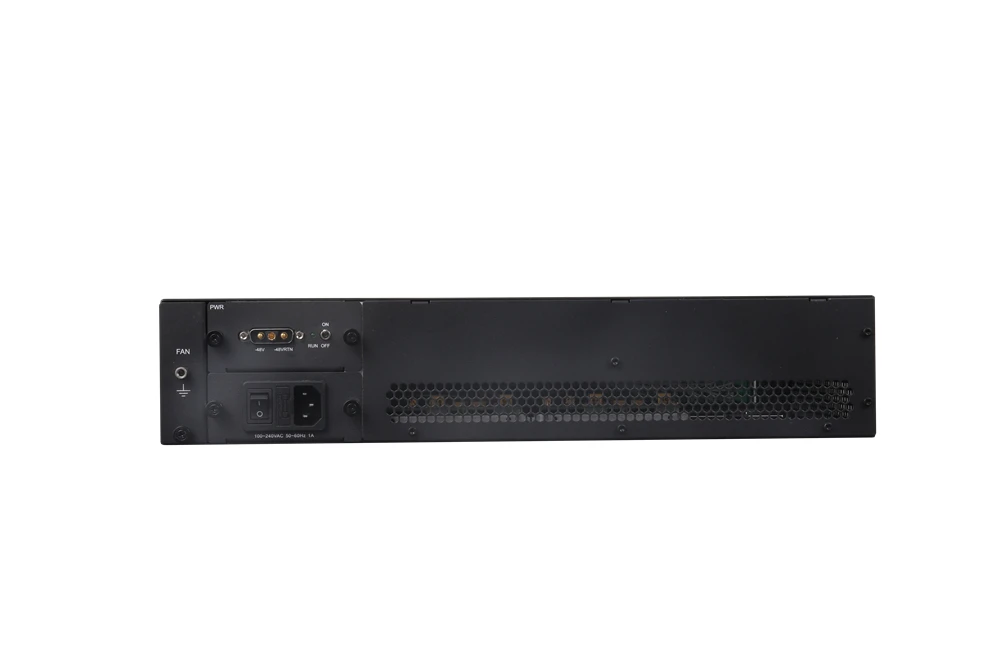

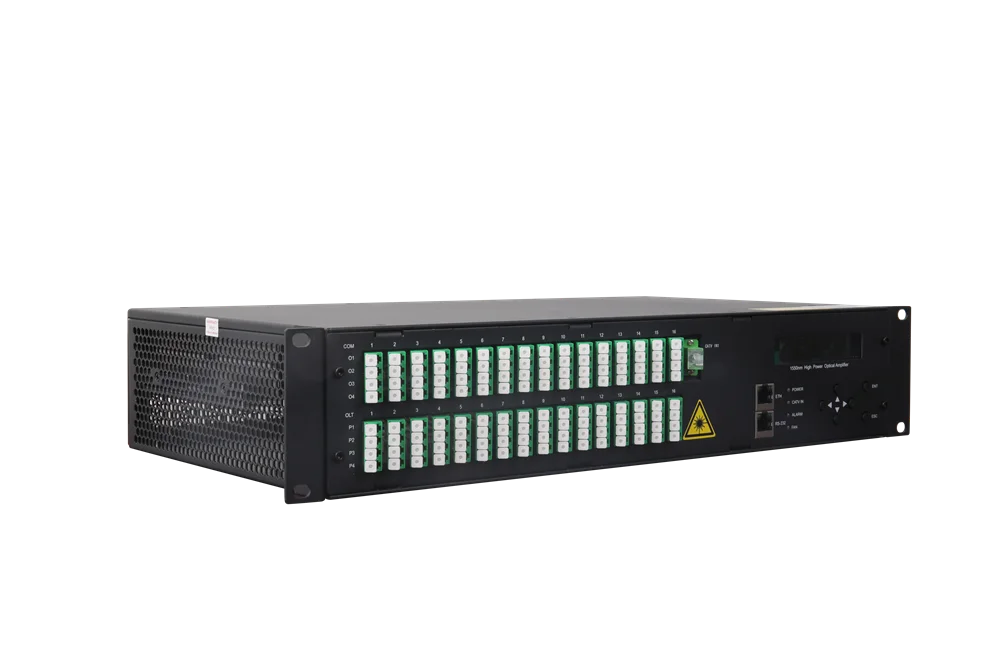

21dBm Output 1550nm Booster EDFA Optical Amplifier
- Category: >>>
- Supplier: Shanghai B And A Technology Co. Ltd.
Share on (1600529313146):
Product Overview
Description
21dBm Output 1550nm Booster EDFA Optical Amplifier
Products Description
Overview:
The product is a high output power C-Band Er-Yb co-doped double cladding optical fiber amplifier. A proprietary ATC (Automatic Temperature Control) and an APC (Automatic Power Control) circuit ensure the high stability and reliability output power, and the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system ensure the control, adjustment and display are intelligent and user-friendly.
The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
This high power EDFA is mainly used in following applications:
➢ Analog CATV Transmission
➢ FTTH Optical Access
➢ Optical Distribution
➢ Free Space Optical
➢ Analog CATV Transmission
➢ FTTH Optical Access
➢ Optical Distribution
➢ Free Space Optical
Features:
1. Suitable for CATV, PON system orvideo combiner is optional
2. Power Supply: Redundancy Hot Swap Power module
3. All optical and management ports front panel access, and works for 19’ or 21’ racks
4. The Fan and power suppliescan be plugged in 2U rack, which is very convenient to maintain
5. LCD display shows and controls the system parameters, LED status indicationshows the alarm status
6. Support ETH, RS232 and Monitor ports
7. Network Management interface supporting SNMP via ETHport.
8. APC（Automatic Power Control）optical output
9. High power components, high reliability, low noise
2. Power Supply: Redundancy Hot Swap Power module
3. All optical and management ports front panel access, and works for 19’ or 21’ racks
4. The Fan and power suppliescan be plugged in 2U rack, which is very convenient to maintain
5. LCD display shows and controls the system parameters, LED status indicationshows the alarm status
6. Support ETH, RS232 and Monitor ports
7. Network Management interface supporting SNMP via ETHport.
8. APC（Automatic Power Control）optical output
9. High power components, high reliability, low noise
Product Parameters
No. | Item | Min. | Typ. | Max. | Unit | ||||||
1 | CATV EDFA Optical Specifications | ||||||||||
1.1 | CATV Port Wavelength Range(λ1) | 1545- 1565 | nm | ||||||||
1.2 | Input Power | -10 | 0 | 10 | dBm | ||||||
1.3 | Output Power (Every Port) | ------ | ------ | 23 | dBm | ||||||
1.4 | Total Output Power | ------ | ------ | 40 | dBm | ||||||
1.5 | Numbers of Output1 | ------ | ------ | 128 | ------ | ||||||
1.6 | Output Power Uniformity (among Output Ports) | ------ | ± 1 | ------ | dB | ||||||
1.7 | Output Power Stability | -0.5 | ------ | 0.5 | dB | ||||||
1.8 | NF (In=0dBm, λ=1550nm) | ------ | 5.5 | 6.0 | dB | ||||||
1.9 | Pump leakage @ Input/output port | ------ | ------ | -30 | dBm | ||||||
1.10 | Isolation @ Input/output port | 30 | ------ | ------ | dB | ||||||
1.11 | PMD (Polarization Mode Dispersion) | ------ | ------ | 0.5 | ps | ||||||
1.12 | PDG (Polarization dependent gain) | ------ | ------ | 0.5 | dB | ||||||
1.13 | RL (Optical Return Loss) | 50 | ------ | ------ | dB | ||||||
1.14 | Output Power Adjustable | Output power can control 5 dB | |||||||||
2 | Built-in WDM Specifications（Optional in PON system） | ||||||||||
2.1 | CATV Port Wavelength Range (λ1) | 1545- 1565 | nm | ||||||||
2.2 | PON Port wavelength Range (λ2) | 1260-1360&1480-1500 &1575 - 1581 &1616 -1660 | nm | ||||||||
2.3 | Insertion Loss | Pass Band | ------ | ------ | 1.2 | dB | |||||
Reflection Band | ------ | ------ | 1.2 | dB | |||||||
2.4 | PDL (Polarization Dependent Loss) | ------ | ------ | 0.1 | dB | ||||||
2.5 | PMD (Polarization Mode Dispersion) | ------ | ------ | 0.1 | Ps | ||||||
2.6 | Isolation (Com→PON@λ1) | 15 | ------ | ------ | dB | ||||||
2.7 | Isolation (Com→CATV@λ2) | 40 | ------ | ------ | dB | ||||||
2.8 | Directivity (P«R) | 50 | ------ | ------ | dB | ||||||
2.9 | PON Signal that passes through when EDFA is turned off | 1577, 1270&1310,1490 &1625/1650 | nm | ||||||||
2.10 | Power Tolerance | ------ | ------ | 26 | dBm | ||||||
2.11 | Constant Output | @ variable input: -6 ~ +8 dBm | |||||||||
Environmental characteristics:
Item | Min. | Typ. | Max. | Unit |
Operation Temperature | -5 | ------ | +60 | ℃ |
Storage Temperature | -40 | ------ | +85 | ℃ |
Operation Humidity | 5 | ------ | 95 | % |
Storage Humidity | 5 | ------ | 95 | % |
Power supply | -72 | -48 | -36 | VDC |
90 | ------ | 240 | VAC | |
Consumption※ | 0 | ------ | 50 | W |
Manufacturing Technique
International market: Our partner
Company profile and factory
We are the manufacturer about edfa fiber amplifier in China and our company has long focused on the innovation and engineering of light amplification technology, optical fiber transmission technology, and optical fiber detection technology.
What we have achieved:
1. Independently developed aerospace-grade optical fiber amplifier equipped with Tiangong-2
2. Cooperative supplier of many leading enterprises
3. Obtained special support for major instruments from the Ministry of Science and Technology
4. EYDFA achieved the largest shipment in China and launched a series of optical fiber communication subsystems.
5. Revolutionary breakthroughs have been made in technologies such as high-speed scanning light sources and pulse energy detection
6. The first supplier in China to develop commercial EYDFA products.
2. Cooperative supplier of many leading enterprises
3. Obtained special support for major instruments from the Ministry of Science and Technology
4. EYDFA achieved the largest shipment in China and launched a series of optical fiber communication subsystems.
5. Revolutionary breakthroughs have been made in technologies such as high-speed scanning light sources and pulse energy detection
6. The first supplier in China to develop commercial EYDFA products.
R&D
Quality Inspection
Exhibition
Our reviews:
Product packaging
Hi friend, it's an honor to know you are interested in our product, if you want to know more details about the specification,
FAQ:
1. Are you a factory?
Yes, we manufacture the edfa.
2. Can I have a sample order? What is your MOQ?
Yes, of course. We welcome you to check the quality with sample order. We do not have MOQ, 1 set is available.
3. What is the lead time?
For usual products,there have stocks,and we will ship about 3 days after received payment. But for big quantity and special products, please check lead time with our sales representative.
4. How do you ship the goods and how long does it take arrive?
Yes, of course. We welcome you to check the quality with sample order. We do not have MOQ, 1 set is available.
3. What is the lead time?
For usual products,there have stocks,and we will ship about 3 days after received payment. But for big quantity and special products, please check lead time with our sales representative.
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. What is your payment terms?
Usually,we need prepayment by T/T or West Union. We can also support L/C,Credit terms.
6. What is your warranty time ?
We promise 18 months warranty for all products shipped from us.
7. Could I return the products if there is a quality problem?
Yes, if there is a quality problem,we could accept free exchange.
8. Could I use my own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
5. What is your payment terms?
Usually,we need prepayment by T/T or West Union. We can also support L/C,Credit terms.
6. What is your warranty time ?
We promise 18 months warranty for all products shipped from us.
7. Could I return the products if there is a quality problem?
Yes, if there is a quality problem,we could accept free exchange.
8. Could I use my own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
